Page 2209 of 3924

INFINITI FX35 2008 Service Manual
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-969
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

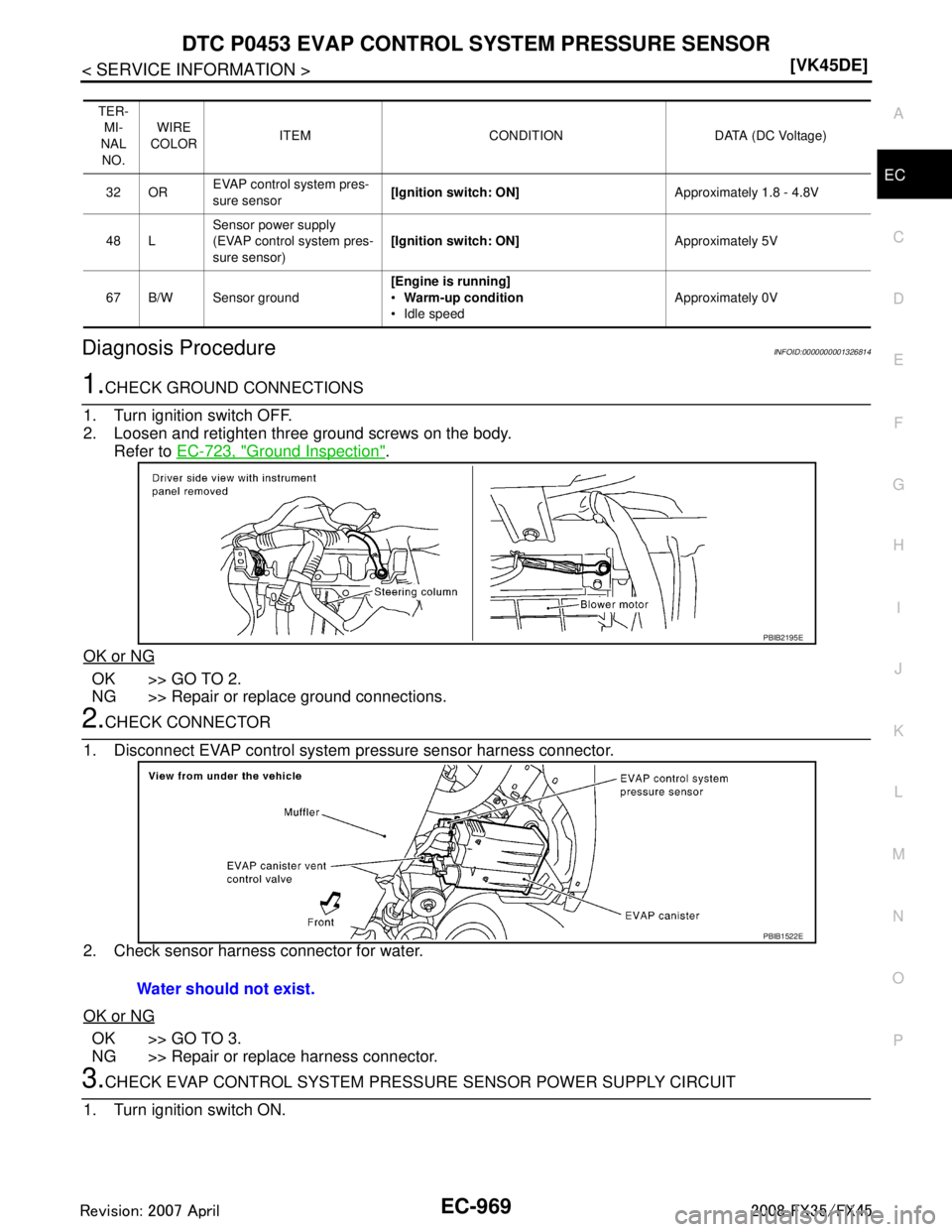

Diagnosis ProcedureINFOID:0000000001326814
1.CHECK GROUND CONNECTIONS
1. Turn ign

Page 2210 of 3924

INFINITI FX35 2008 Service Manual
EC-970
< SERVICE INFORMATION >[VK45DE]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR
2. Check voltage between EVAP control system pressure sensor
terminal 3 and ground with CONSULT-III or tester.
OK

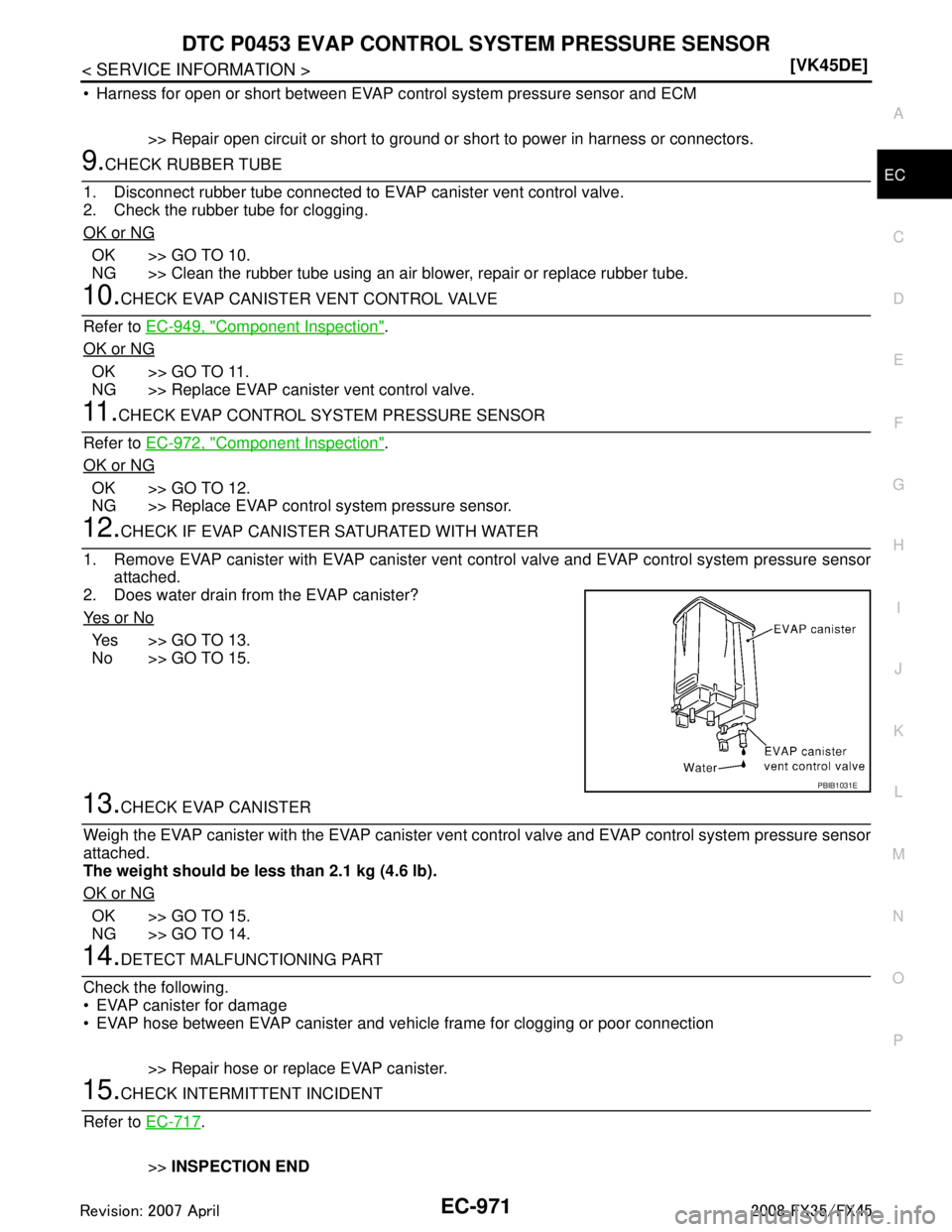

Page 2211 of 3924

INFINITI FX35 2008 Service Manual
DTC P0453 EVAP CONTROL SYSTEM PRESSURE SENSOR
EC-971
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Harness for open or short between EVAP c
ontrol system pressure sensor and ECM

Page 2212 of 3924

INFINITI FX35 2008 Service Manual
EC-972
< SERVICE INFORMATION >[VK45DE]
DTC P0453 EVAP CONTROL
SYSTEM PRESSURE SENSOR

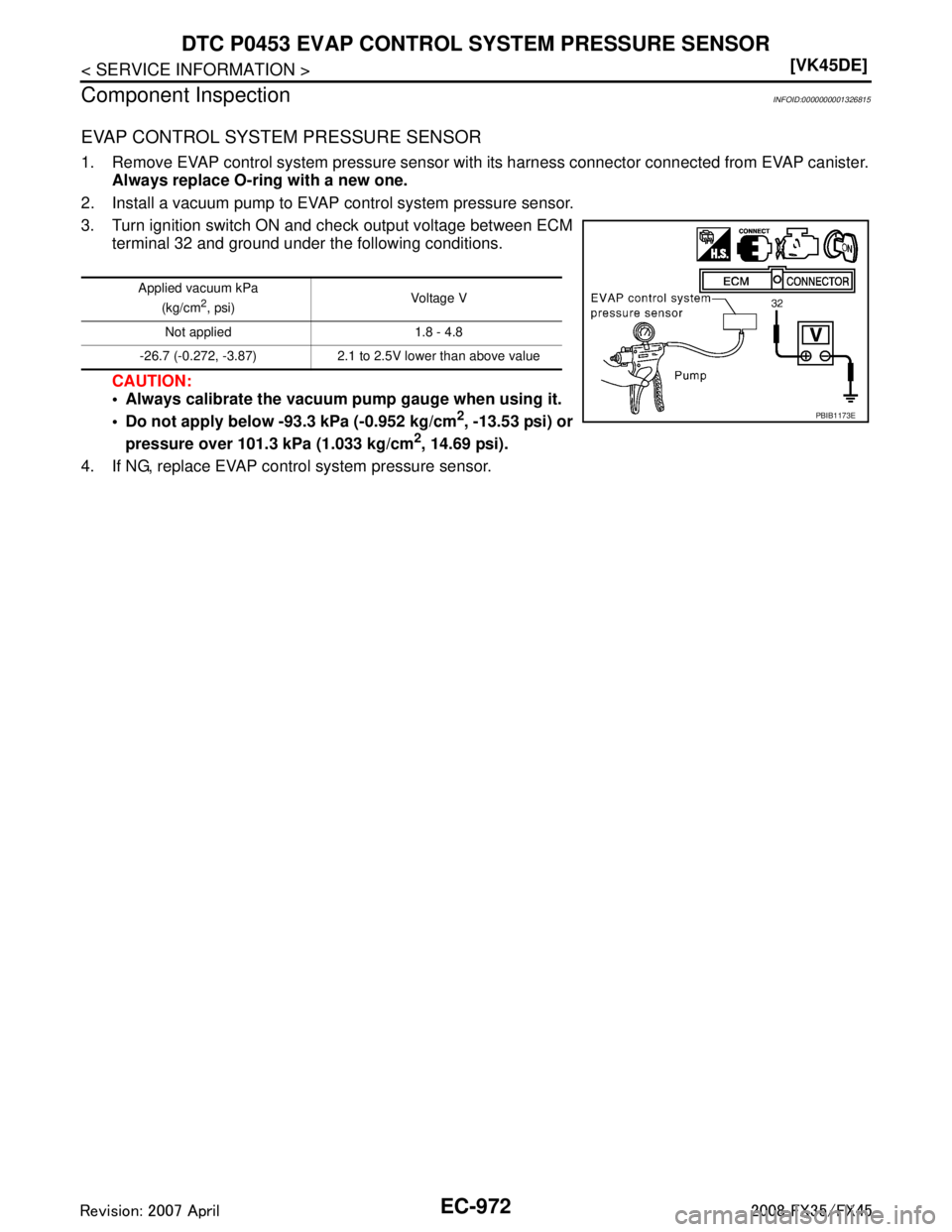

Component Inspection
INFOID:0000000001326815
EVAP CONTROL SYSTEM PRESSURE SENSOR
1. Remove EVAP control system pr

Page 2213 of 3924

INFINITI FX35 2008 Service Manual
DTC P0455 EVAP CONTROL SYSTEMEC-973
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

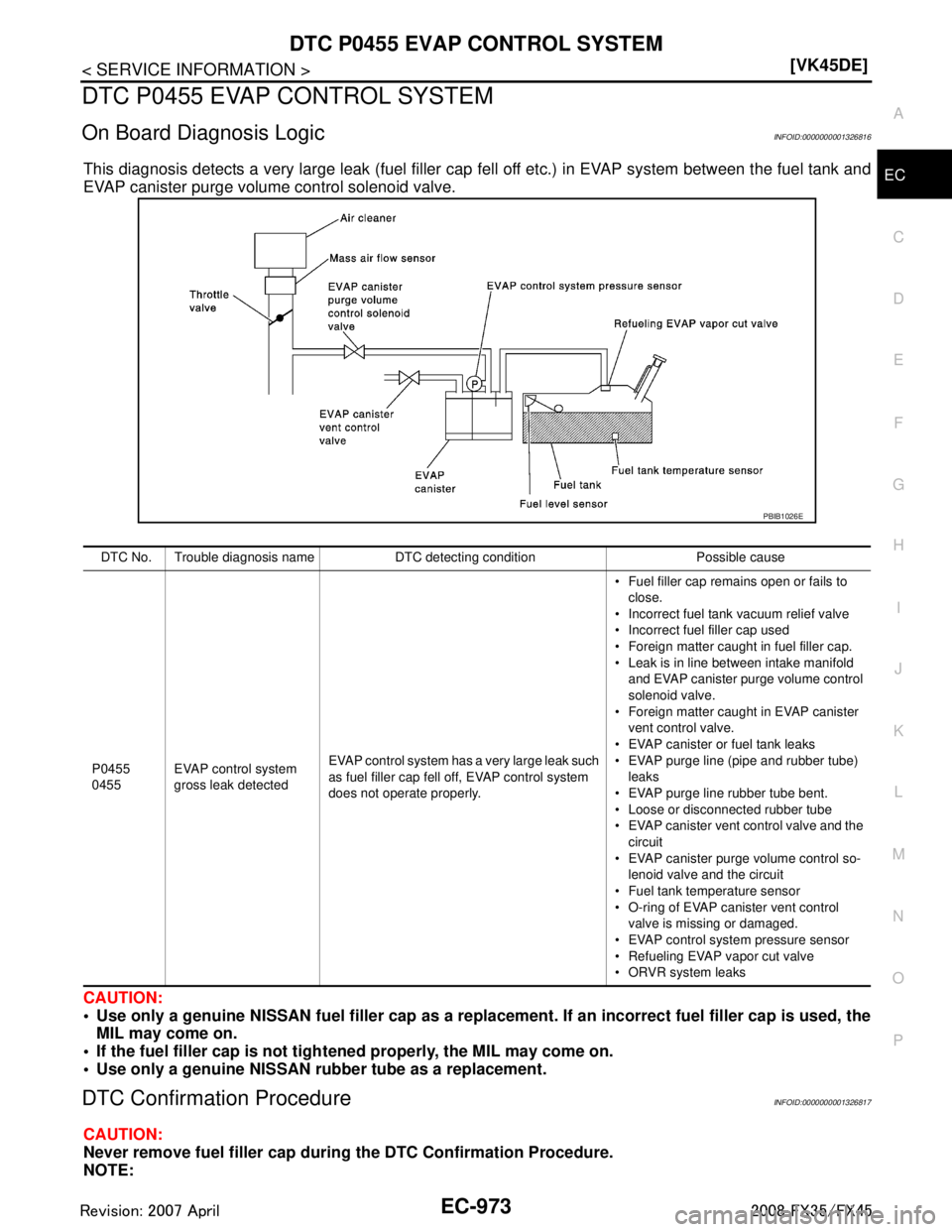

DTC P0455 EVAP CONTROL SYSTEM
On Board Diagnosis LogicINFOID:0000000001326816
This diagnosis detec

Page 2214 of 3924

INFINITI FX35 2008 Service Manual
EC-974
< SERVICE INFORMATION >[VK45DE]
DTC P0455 EVAP CONTROL SYSTEM

Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve
properly.
If DTC Confirmation Pr

EC-974
< SERVICE INFORMATION >[VK45DE]
DTC P0455 EVAP CONTROL SYSTEM

Make sure that EVAP hoses are connected to EVAP canister purge volume control solenoid valve
properly.
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Perform “DTC WORK SUPPORT” when the fuel level is between 1/4 and 3/4 full, and vehicle is placed
on flat level surface.
Open engine hood before conducting the following procedures.
WITH CONSULT-III
1. Tighten fuel filler cap secure ly until ratcheting sound is heard.
2. Turn ignition switch ON.
3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON and select “DATA MONITOR” mode with CONSULT-III.
5. Make sure that the following conditions are met. COOLAN TEMP/S: 0 - 70 °C (32 - 158 °F)
INT/A TEMP SE: 0 - 60 °C (32 - 140 °F)
6. Select “EVAP SML LEAK P0442/P1442” of “EV APORATIVE SYSTEM” in “DTC WORK SUPPORT” mode
with CONSULT-III.
Follow the instruction displayed.
NOTE:
If the engine speed cannot be maintained within t he range displayed on the CONSULT-III screen, go to
EC-658, "
Basic Inspection".
7. Make sure that “OK” is displayed. If “NG” is displayed, select “SELF-DIAG RE SULTS” mode and make sure that “EVAP GROSS LEAK
[P0455]” is displayed. If it is displayed, refer to EC-974, "
Diagnosis Procedure".
If P0442 is displayed, perform Diagnostic Procedure for DTC P0442 EC-927, "
Diagnosis Procedure".
WITH GST
NOTE:
Be sure to read the explanation of EC-633, "
Emission-related Diagnostic Information" before driving vehicle.
1. Start engine.
2. Drive vehicle according to EC-633, "
Emission-related Diagnostic Information".
3. Stop vehicle.
4. Turn ignition switch OFF, wait at least 10 seconds and then turn ON.
5. Select “Service $07” with GST. If P0455 is displayed on the screen, go to EC-974, "
Diagnosis Procedure".
If P0442 is displayed on the screen, go to EC-927, "
Diagnosis Procedure".
If P0441 is displayed on the screen, go to EC-922, "
Diagnosis Procedure".
Diagnosis ProcedureINFOID:0000000001326818
1.CHECK FUEL FILLER CAP DESIGN
1. Turn ignition switch OFF.
2. Check for genuine NISSAN fuel filler cap design.
OK or NG
OK >> GO TO 2.
NG >> Replace with genuine NISSAN fuel filler cap.
2.CHECK FUEL FILLER CAP INSTALLATION
Check that the cap is tightened proper ly by rotating the cap clockwise.
SEF915U
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

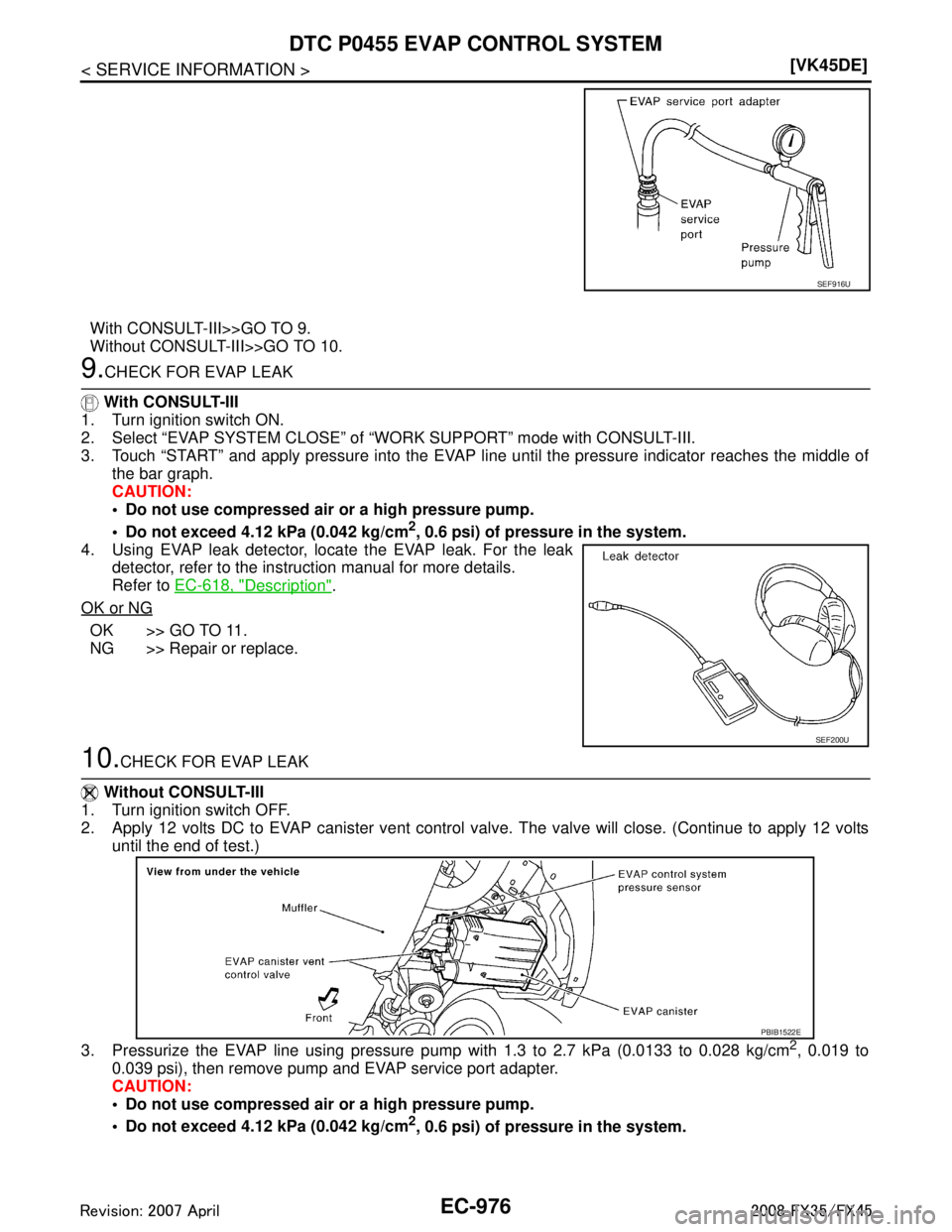

Page 2215 of 3924

INFINITI FX35 2008 Service Manual
DTC P0455 EVAP CONTROL SYSTEMEC-975
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 3.
NG >> 1. Open fuel filler cap, then clean cap and fuel filler neck threads

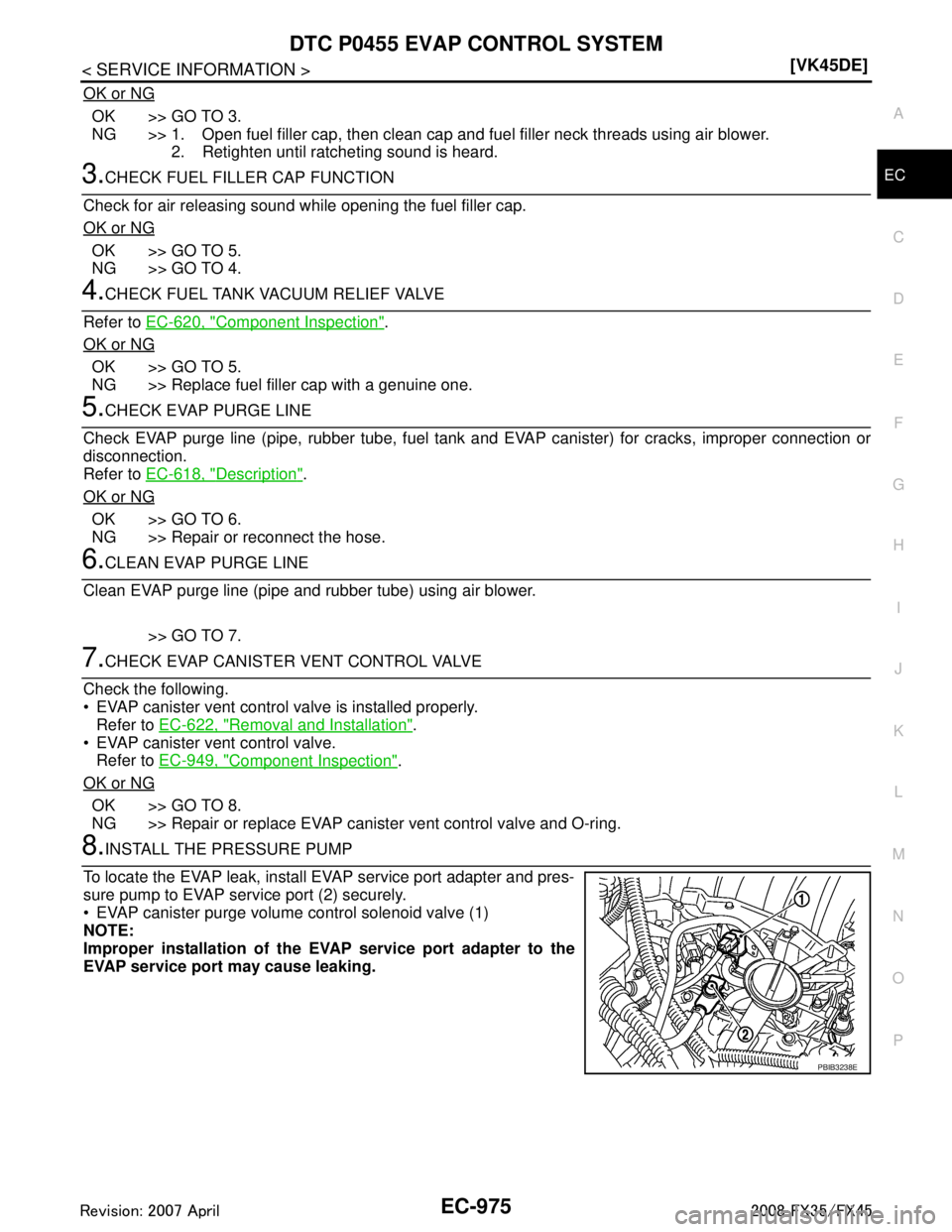

Page 2216 of 3924

INFINITI FX35 2008 Service Manual
EC-976
< SERVICE INFORMATION >[VK45DE]
DTC P0455 EVAP CONTROL SYSTEM
With CONSULT-III>>GO TO 9.
Without CONSULT-III>>GO TO 10.
9.CHECK FOR EVAP LEAK
With CONSULT-III
1. Turn ignition switch ON.
2.
