Page 2481 of 3924

INFINITI FX35 2008 Service Manual
EI-44
< SERVICE INFORMATION >
HEADLINING
Removal and Installation
INFOID:0000000001529412
REMOVAL
1. Remove front pillar garnish. Refer to EI-38, "Removal and Installation".
2. Remove kicking plate

Page 2482 of 3924

INFINITI FX35 2008 Service Manual
LUGGAGE FLOOR TRIMEI-45
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
EI
N
O P
LUGGAGE FLOOR TRIM

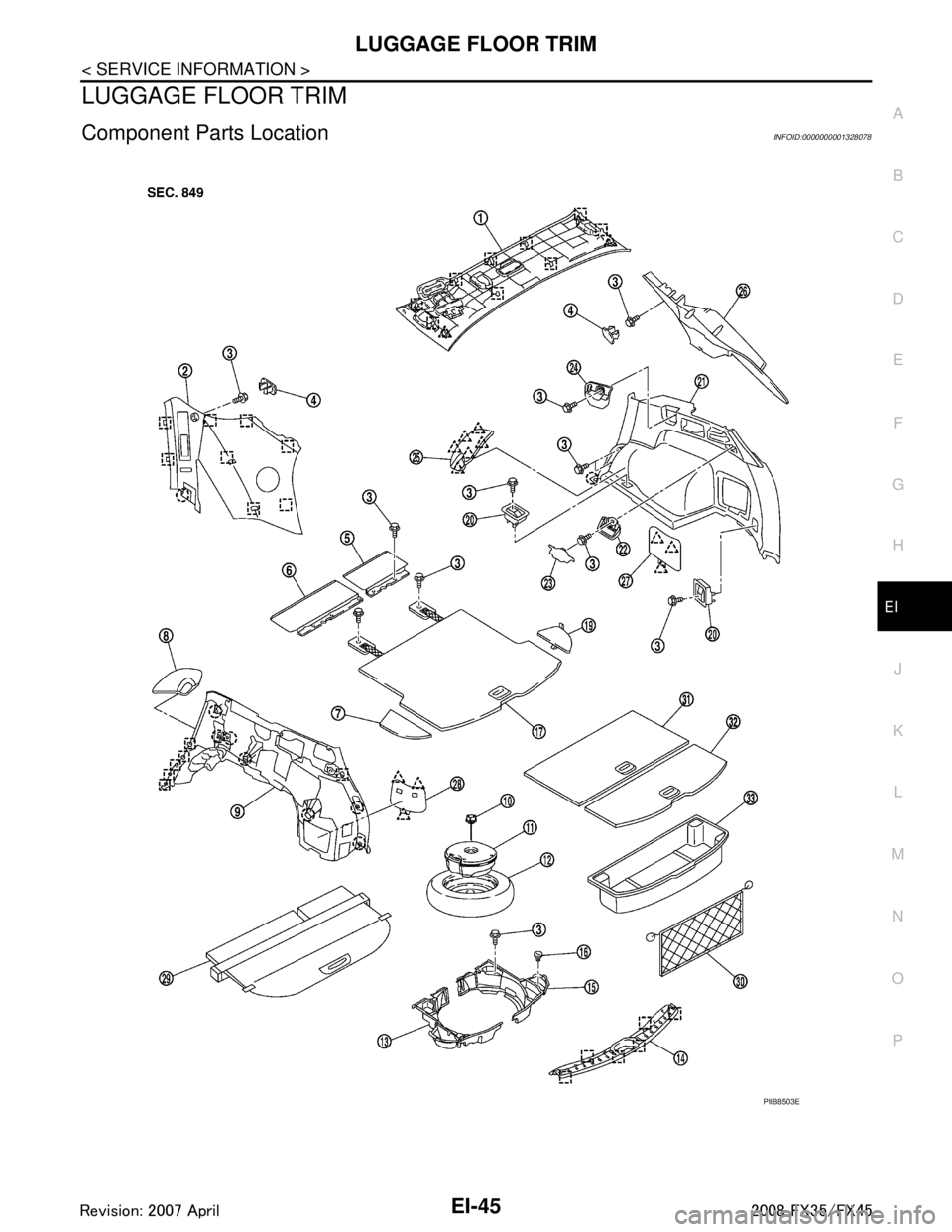

Component Parts LocationINFOID:0000000001328078
PIIB8503E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A

Page 2483 of 3924

INFINITI FX35 2008 Service Manual
EI-46
< SERVICE INFORMATION >
LUGGAGE FLOOR TRIM
Removal and Installation
INFOID:0000000001529413
REMOVAL
1. Remove tonneau cover.
2. Remove luggage side hook and remove net hook (RH/LH).
3. Remove l

EI-46
< SERVICE INFORMATION >
LUGGAGE FLOOR TRIM
Removal and Installation
INFOID:0000000001529413
REMOVAL
1. Remove tonneau cover.
2. Remove luggage side hook and remove net hook (RH/LH).
3. Remove luggage floor board assembly. Remove bolt with power tool.
4. Remove luggage floor side board assembly (RH/LH).
5. Remove back door weather strip.
6. Remove rear plate assembly.
7. Remove roof rear garnish assembly.
8. Remove luggage floor cover assembly (RH/LH).
9. Remove rear door kicking plate (RH/LH).
10. Remove rear body side welt.
11. Remove rear seat cushion and seatback. Refer to SE-95, "
Removal and Installation".
12. Remove rear wheel house finisher assembly (RH/LH).
13. Remove luggage side finisher assembly bolt and remove luggage side finisher assembly (RH/LH).
14. Remove bolt, and then remove parcel shelf holder.
15. Remove rear parcel shelf cap.
16. Remove bolt, and then remove rear parcel hook.
17. Remove rear seat belt anchor (RH/LH). Refer to SB-5, "
Removal and Installation of Rear Seat Belt".
18. Remove rear pillar upper garnish assembly cap and bolt, then remove rear pillar upper garnish assembly (RH/LH).
19. Remove spare tire clamp.
20. Remove sub-woofer box connector and remove sub-woofer box.
21. Remove spare tire.
22. Remove towing hook, wheel nut wrench, spanner, tire stopper, jack rod and jack complete.
23. Remove luggage side box bolt and luggage side box assembly (RH/LH).
INSTALLATION
Install in the reverse order of removal.
1. Roof rear garnish assembly 2. Rear pillar upper garnish assembly (LH)3. Bolt
4. Cap 5. Luggage floor cover assembly (RH) 6. Luggage floor cover assembly (LH)
7. Luggage floor side board assembly (LH) 8. Rear wheel house finisher assembly
(LH) 9. Luggage side finisher assembly (LH)
10. Clamp 11. Sub woofer box 12. Spare tire
13. Luggage side box (LH) 14. Rear plate assembly 15. Luggage side box (RH)
16. Cap 17. Luggage floor board assembly 18. Luggage floor board assembly (op- tion for Canada)
19. Luggage floor side board assembly (RH) 20. Net hook 21. Luggage side finisher assembly
(RH)
22. Rear parcel shelf hook 23. Rear parcel shelf cap 24. Rear parcel shelf holder
25. Rear wheel house finisher assembly (RH) 26. Rear pillar upper garnish assembly
(RH) 27. Luggage finisher mask (RH)
28. Luggage finisher mask (LH) 29. Tonneau cover 30. Net
31. Luggage floor center front board (Run flat type) 32. Luggage floor center rear board
(Run flat type) 33. Luggage floor box assembly
(Run flat type)
: Clip
: Pawl
: Metal clip
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2484 of 3924

INFINITI FX35 2008 Service Manual
BACK DOOR TRIMEI-47
< SERVICE INFORMATION >
C
DE
F
G H
J
K L
M A
B
EI
N
O P

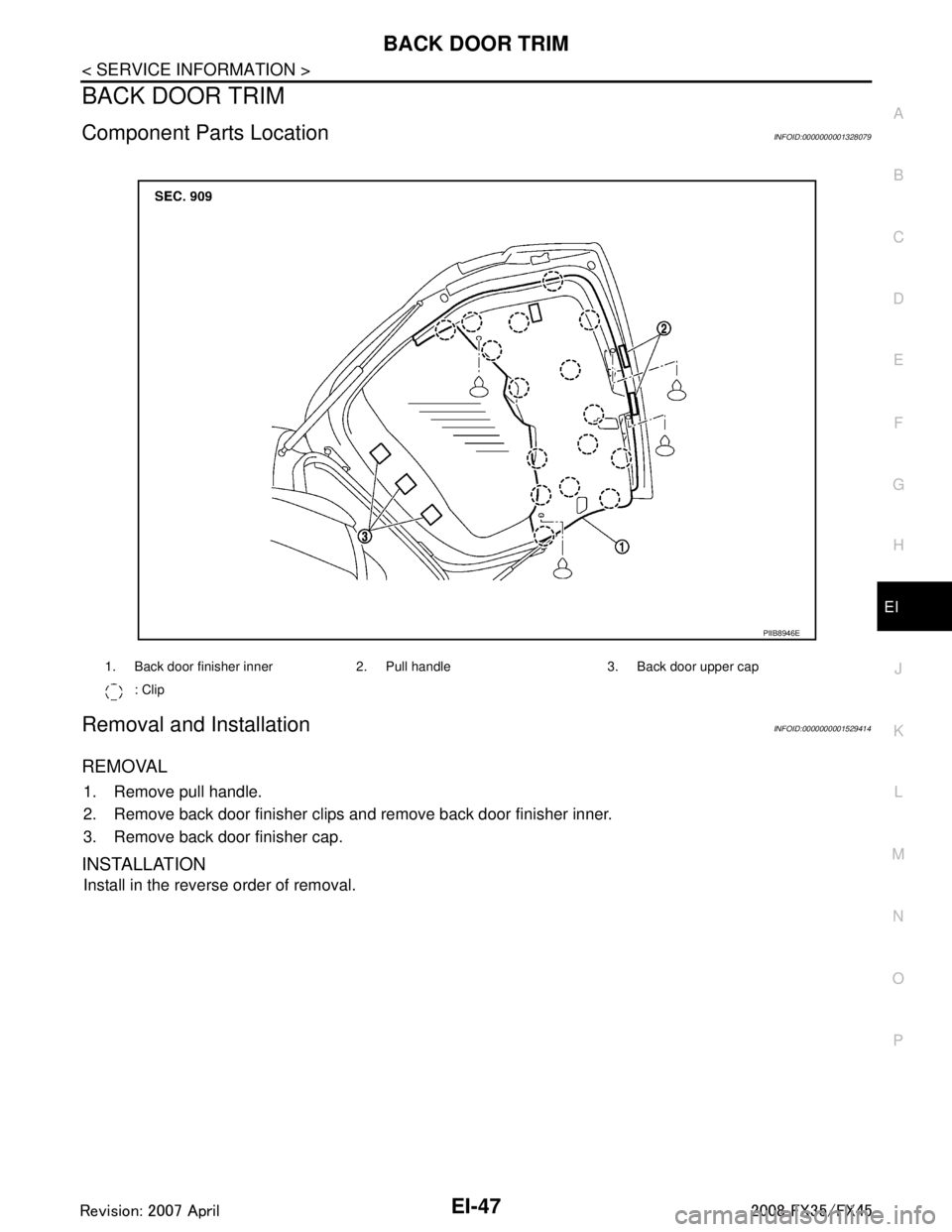

BACK DOOR TRIM
Component Parts LocationINFOID:0000000001328079
Removal and InstallationINFOID:0000000001529414
REMOVAL
1. R

Page 2485 of 3924

INFINITI FX35 2008 Service Manual
EM-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION EM
A
EM
N
O P
CONTENTS
ENGINE MECHANICAL
VQ35DE
SERVICE INFORMATION .. ..........................
4
PRECAUTIONS .............................................

EM-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION EM
A
EM
N
O P
CONTENTS
ENGINE MECHANICAL
VQ35DE
SERVICE INFORMATION .. ..........................
4
PRECAUTIONS .............................................. .....4
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ......
4
Precaution for Drain Engine Coolant and Engine
Oil ..............................................................................
4
Precaution for Disconnecting Fuel Piping .................4
Precaution for Removal and Disassembly ................4
Precaution for Inspection, Repair and Replace-
ment ..........................................................................
4
Precaution for Assembly and Installation ..................5
Precaution for Angle Tightening ................................5
Precaution for Liquid Gasket .....................................5
PREPARATION ...................................................7
Special Service Tool ........................................... ......7
Commercial Service Tool ..........................................9
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ............................
12
NVH Troubleshooting - Engine Noise ................. ....12
Use the Chart Below to Help You Find the Cause
of the Symptom .......................................................
12
DRIVE BELTS ....................................................14
Checking Drive Belts ........................................... ....14
Tension Adjustment ................................................14
Removal and Installation .........................................15
AIR CLEANER AND AIR DUCT ........................17
Component .......................................................... ....17
Removal and Installation .........................................17
Changing Air Cleaner Filter .....................................18
INTAKE MANIFOLD COLLECTOR ...................19
Component .......................................................... ....19
Removal and Installation .........................................19
INTAKE MANIFOLD ...........................................24
Component .......................................................... ....24
Removal and Installation .........................................24
EXHAUST MANIFOLD AND THREE WAY
CATALYST ........................................................
26
Component ..............................................................26
Removal and Installation .........................................26
OIL PAN AND OIL STRAINER .........................30
Component (2WD Models) ......................................30
Removal and Installation (2WD Models) .................30
Component (AWD Models) ......................................35
Removal and Installation (AWD Models) .................36
IGNITION COIL .................................................42
Component ..............................................................42
Removal and Installation .........................................42
SPARK PLUG (PLATINUM-TIPPED TYPE) .....43
Component ..............................................................43
Removal and Installation .........................................43
FUEL INJECTOR AND FUEL TUBE ................45
Component ..............................................................45
Removal and Installation .........................................45
ROCKER COVER .............................................51
Component ..............................................................51
Removal and Installation .........................................51
FRONT TIMING CHAIN CASE .........................54
Removal and Installation .........................................54
TIMING CHAIN ..................................................64
Component .......................................................... ....64
Removal and Installation .........................................65
CAMSHAFT .......................................................83
Component ..............................................................83
Removal and Installation .........................................84
Valve Clearance ......................................................91
OIL SEAL ..........................................................97
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2486 of 3924

INFINITI FX35 2008 Service Manual
EM-2
Removal and Installation of Valve Oil Seal .............97
Removal and Installation of Front Oil Seal .............97
Removal and Installation of Rear Oil Seal ..............98
CYLINDER HEAD

EM-2
Removal and Installation of Valve Oil Seal .............97
Removal and Installation of Front Oil Seal .............97
Removal and Installation of Rear Oil Seal ..............98
CYLINDER HEAD ............................................100
On-Vehicle Service .............................................. ..100
Component ............................................................101
Removal and Installation .......................................101
Disassembly and Assembly ...................................105
Inspection After Disassembly ................................107
ENGINE ASSEMBLY .......................................112
Component (2WD Models) .................................. ..112
Removal and Installation (2WD Models) ...............112
Component (AWD Models) ....................................117
Removal and Installation (AWD Models) ...............117
CYLINDER BLOCK .........................................122
Component .......................................................... ..122
Disassembly and Assembly ...................................123
How to Select Piston and Bearing .........................134
Inspection After Disassembly ................................138
SERVICE DATA AND SPECIFICATIONS
(SDS) ................................................................
149
Standard and Limit .............................................. ..149
VK45DE
SERVICE INFORMATION ..........................
160
PRECAUTIONS .............................................. .160
Precaution Necessary for Steering Wheel Rota-
tion After Battery Disconnect ............................... ..
160
Precaution for Drain Engine Coolant and Engine
Oil ..........................................................................
160
Precaution for Disconnecting Fuel Piping ..............160
Precaution for Removal and Disassembly .............160
Precaution for Inspection, Repair and Replace-
ment .......................................................................
160
Precaution for Assembly and Installation ..............161
Parts Requiring Angle Tightening ..........................161
Precaution for Liquid Gasket .................................161
PREPARATION .............................................. .163
Special Service Tool ............................................ ..163
Commercial Service Tool ......................................164
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING ..........................
167
NVH Troubleshooting - Engine Noise .................. ..167
Use the Chart Below to Help You Find the Cause
of the Symptom .....................................................
167
ENGINE ROOM COVER ..................................169
Component .......................................................... ..169
Removal and Installation .......................................169
DRIVE BELTS ..................................................170
Component .......................................................... ..170
Checking Drive Belts .............................................170
Tension Adjustment ...............................................170
Removal and Installation ...................................... .170
Component ...........................................................171
Drive Belt Auto Tensioner and Idler Pulley ...........172
AIR CLEANER AND AIR DUCT .......................173
Component .......................................................... .173
Removal and Installation .......................................173
Changing Air Cleaner Filter ...................................174
INTAKE MANIFOLD .........................................175
Component .......................................................... .175
Removal and Installation .......................................176
EXHAUST MANIFOLD AND THREE WAY
CATALYST .......................................................
179
Component .......................................................... .179
Removal and Installation .......................................179
OIL PAN AND OIL STRAINER ........................183
Component .......................................................... .183
Removal and Installation .......................................183
IGNITION COIL .................................................187
Component .......................................................... .187
Removal and Installation .......................................187
SPARK PLUG (PLATINUM-TIPPED TYPE) ....188
Component .......................................................... .188
Removal and Installation .......................................188
FUEL INJECTOR AND FUEL TUBE ................190
Component .......................................................... .190
Removal and Installation .......................................190
ROCKER COVER .............................................196
Component .......................................................... .196
Removal and Installation .......................................196
TIMING CHAIN .................................................199
Component .......................................................... .199
Removal and Installation .......................................200
CAMSHAFT ......................................................211
Component .......................................................... .211
Removal and Installation .......................................211
Valve Clearance ....................................................218
OIL SEAL ..........................................................222
Removal and Installation of Valve Oil Seal ...........222
Removal and Installation of Front Oil Seal ........... .222
Removal and Installation of Rear Oil Seal ............224
CYLINDER HEAD .............................................226
On-Vehicle Service .............................................. .226
Component ...........................................................227
Removal and Installation .......................................227
Disassembly and Assembly ..................................229
Inspection After Disassembly ................................232
ENGINE ASSEMBLY ..................................... ..237
Component .......................................................... .237
Removal and Installation .......................................237
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2487 of 3924

INFINITI FX35 2008 Service Manual
EM-3
C
DE
F
G H
I
J
K L
M
EM A
N
O P
CYLINDER BLOCK ........................................ ..241
Component .......................................................... ..241
Disassembly and Assembly

Page 2488 of 3924

INFINITI FX35 2008 Service Manual
EM-4
< SERVICE INFORMATION >[VQ35DE]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution Necessary for Steering W
heel Rotation After Battery Disconnect
INFOID:0000000001524592
NOTE:
• This Proc

EM-4
< SERVICE INFORMATION >[VQ35DE]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution Necessary for Steering W
heel Rotation After Battery Disconnect
INFOID:0000000001524592
NOTE:
• This Procedure is applied only to models with In telligent Key system and NVIS/IVIS (NISSAN/INFINITI
VEHICLE IMMOBILIZER SYSTEM - NATS).
Remove and install all control units after disconnecting both battery cables with the ignition knob in the ″LOCK ″ position.
Always use CONSULT-III to perform self-diagnosis as a part of each function inspection after finishing work.
If DTC is detected, perform trouble diagnosis according to self-diagnostic results.
For models equipped with the Intelligent Key system and NVIS /IVIS, an electrically controlled steering lock
mechanism is adopted on the key cylinder.
For this reason, if the battery is disconnected or if the battery is discharged, the steering wheel will lock and
steering wheel rotation will become impossible.
If steering wheel rotation is required when battery pow er is interrupted, follow the procedure below before
starting the repair operation.
OPERATION PROCEDURE
1. Connect both battery cables. NOTE:
Supply power using jumper cables if battery is discharged.
2. Use the Intelligent Key or mechanical key to turn the ignition switch to the ″ACC ″ position. At this time, the
steering lock will be released.
3. Disconnect both battery cables. The steering lock will remain released and the steering wheel can be
rotated.
4. Perform the necessary repair operation.
5. When the repair work is completed, return the ignition switch to the ″LOCK ″ position before connecting
the battery cables. (At this time, the steering lock mechanism will engage.)
6. Perform a self-diagnosis check of all control units using CONSULT-III.
Precaution for Drain Engine Coolant and Engine OilINFOID:0000000001325693
Drain engine coolant and engine oil when the engine is cooled.
Precaution for Disconnecting Fuel PipingINFOID:0000000001325694
Before starting work, make sure no fire or spark producing items are in the work area.
Release fuel pressure before disconnecting and disassembly.
After disconnecting pipes, plug openings to stop fuel leakage.
Precaution for Removal and DisassemblyINFOID:0000000001325695
When instructed to use SST, use specified tools. Always be careful to work safely, avoid forceful or unin-
structed operations.
Exercise maximum care to avoid damage to mating or sliding surfaces.
Cover openings of engine system with a tape or equival ent, if necessary, to seal out foreign materials.
Mark and arrange disassembly parts in an organi zed way for easy troubleshooting and re-assembly.
When loosening nuts and bolts, as a basic rule, star t with the one furthest outside, then the one diagonally
opposite, and so on. If the order of loosening is specified, do exactly as specified. Power tools may be used
in the step.
Precaution for Inspection, Repair and ReplacementINFOID:0000000001325696
Before repairing or replacing, thoroughly inspect parts. Inspect new replacement parts in the same way, and
replace if necessary.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Load next 8 pages

Page: < prev 1-10 ... 2449-2456 2457-2464 2465-2472 2473-2480 2481-2488 2489-2496 2497-2504 2505-2512 2513-2520 ... 3928 next >

width roof child lock coolant level air bleeding snow chains
