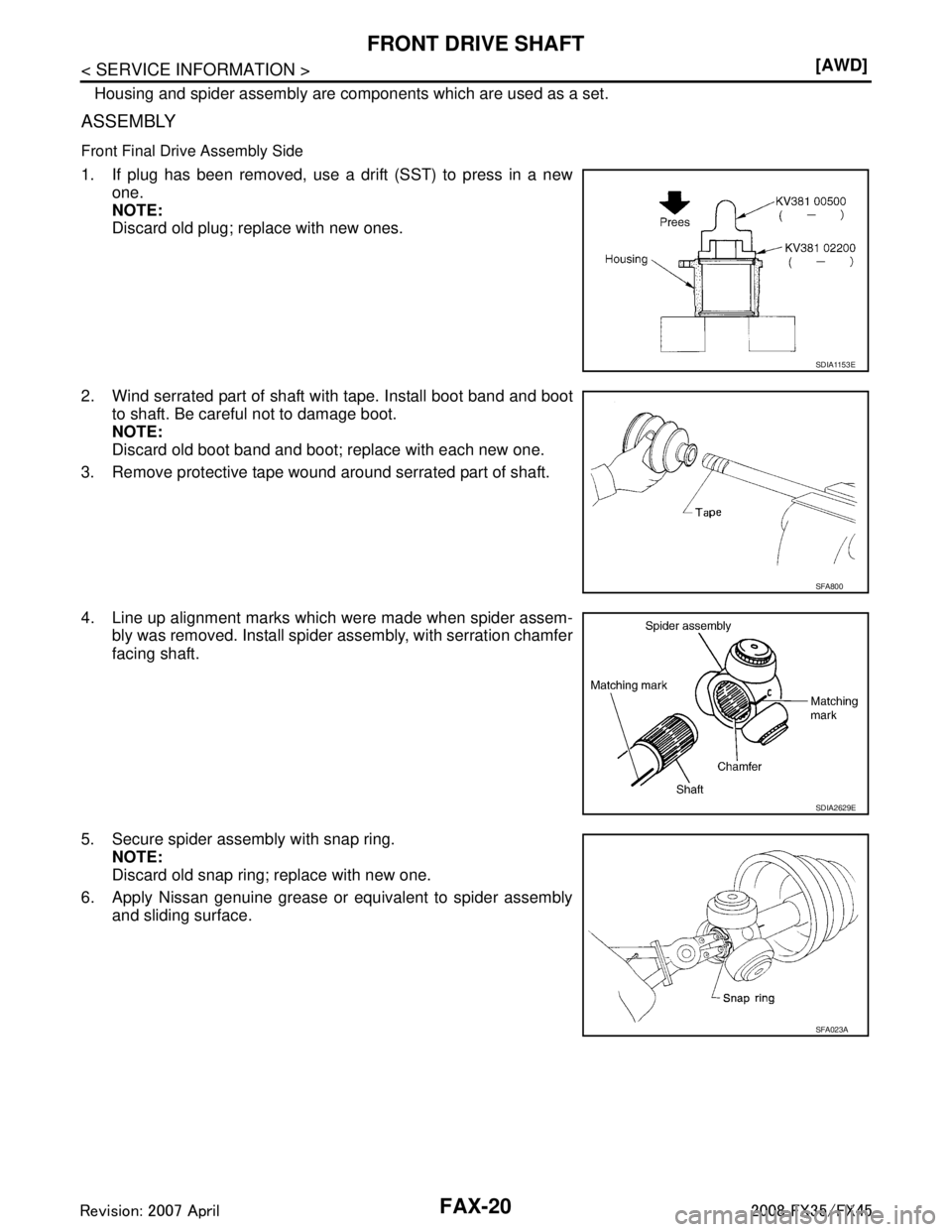

FAX-20
< SERVICE INFORMATION >[AWD]
FRONT DRIVE SHAFT
Housing and spider assembly are components which are used as a set.
ASSEMBLY
Front Final Drive Assembly Side
1. If plug has been removed, use a drift (SST) to press in a new
one.
NOTE:
Discard old plug; replace with new ones.
2. Wind serrated part of shaft with tape. Install boot band and boot to shaft. Be careful not to damage boot.
NOTE:
Discard old boot band and boot; replace with each new one.
3. Remove protective tape wound around serrated part of shaft.
4. Line up alignment marks which were made when spider assem- bly was removed. Install spider assembly, with serration chamfer
facing shaft.
5. Secure spider assembly with snap ring. NOTE:
Discard old snap ring; replace with new one.
6. Apply Nissan genuine grease or equivalent to spider assembly and sliding surface.
SDIA1153E
SFA800
SDIA2629E
SFA023A
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2786 of 3924
![INFINITI FX35 2008 Service Manual

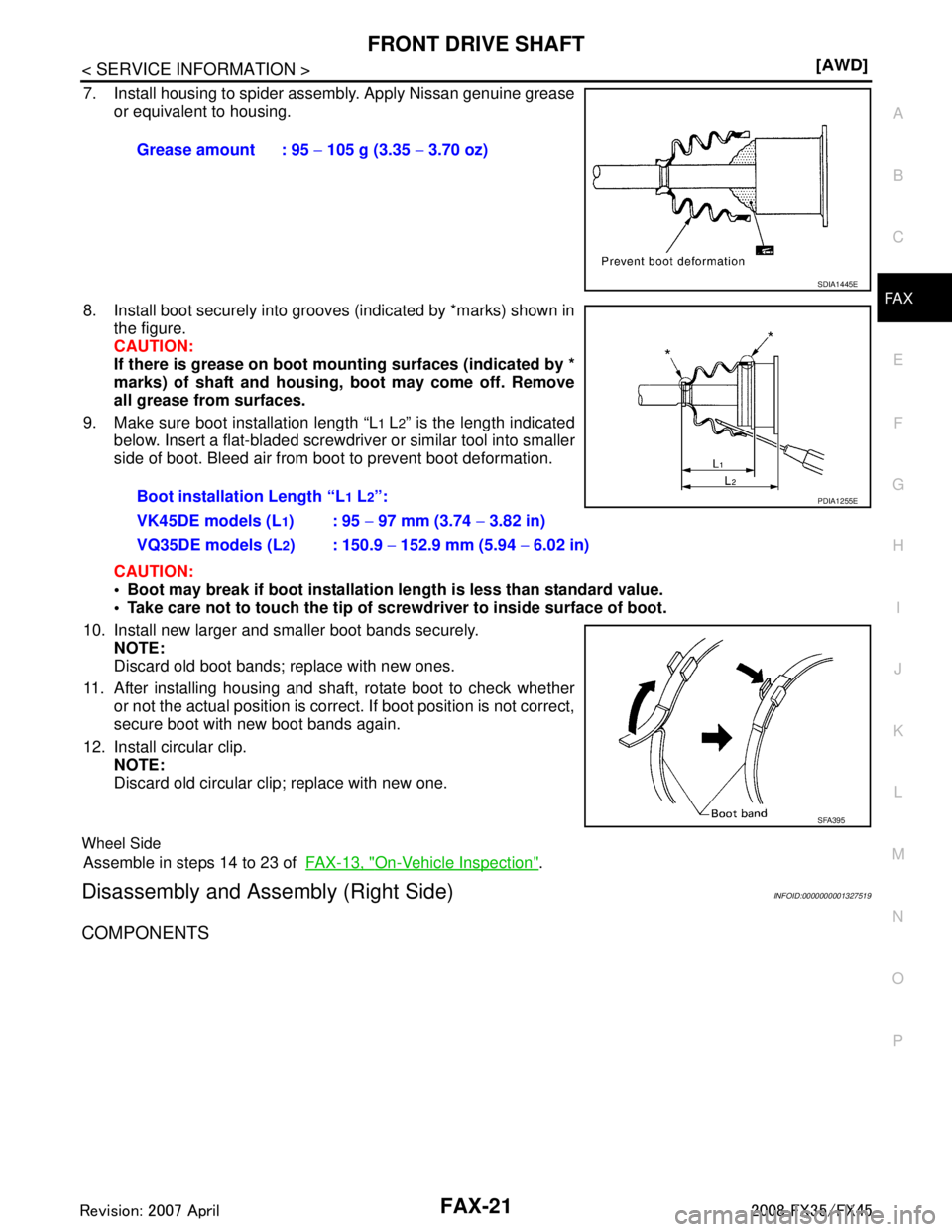

FRONT DRIVE SHAFTFAX-21
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
7. Install housing to spider assembly. Apply Nissan genuine grease or equivalent to housing.
8. Install boot se INFINITI FX35 2008 Service Manual
FRONT DRIVE SHAFTFAX-21
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
7. Install housing to spider assembly. Apply Nissan genuine grease or equivalent to housing.
8. Install boot se](/manual-img/42/57017/w960_57017-2785.png)
FRONT DRIVE SHAFTFAX-21
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
7. Install housing to spider assembly. Apply Nissan genuine grease or equivalent to housing.
8. Install boot securely into grooves (indicated by *marks) shown in the figure.
CAUTION:
If there is grease on boot mo unting surfaces (indicated by *
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.
9. Make sure boot installation length “L
1 L2” is the length indicated
below. Insert a flat-bladed screwdriver or similar tool into smaller
side of boot. Bleed air from boot to prevent boot deformation.
CAUTION:
Boot may break if boot installation le ngth is less than standard value.
Take care not to touch the tip of screw driver to inside surface of boot.
10. Install new larger and smaller boot bands securely. NOTE:
Discard old boot bands; replace with new ones.
11. After installing housing and shaft, rotate boot to check whether or not the actual position is correc t. If boot position is not correct,
secure boot with new boot bands again.
12. Install circular clip. NOTE:
Discard old circular clip; replace with new one.
Wheel Side
Assemble in steps 14 to 23 of FAX-13, "On-Vehicle Inspection".
Disassembly and Assembly (Right Side)INFOID:0000000001327519
COMPONENTS
Grease amount : 95 − 105 g (3.35 − 3.70 oz)
SDIA1445E
Boot installation Length “L1 L2”:
VK45DE models (L
1) : 95 − 97 mm (3.74 − 3.82 in)
VQ35DE models (L
2) : 150.9 − 152.9 mm (5.94 − 6.02 in)
PDIA1255E
SFA395
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2787 of 3924

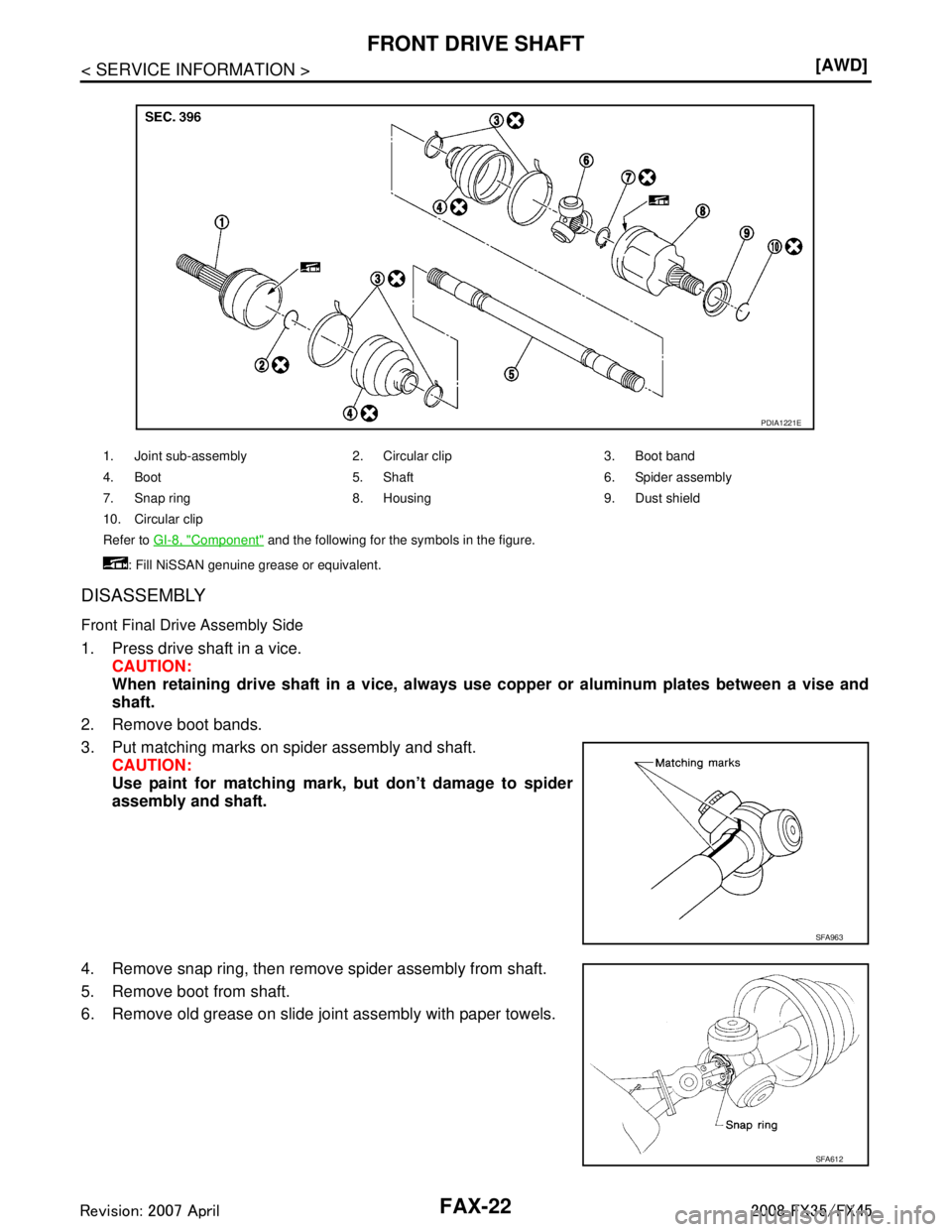

FAX-22
< SERVICE INFORMATION >[AWD]
FRONT DRIVE SHAFT
DISASSEMBLY
Front Final Drive Assembly Side
1. Press drive shaft in a vice.
CAUTION:
When retaining drive shaft in a vice, always u se copper or aluminum plates between a vise and
shaft.
2. Remove boot bands.
3. Put matching marks on spider assembly and shaft. CAUTION:
Use paint for matching mark, but don’t damage to spider
assembly and shaft.
4. Remove snap ring, then remove spider assembly from shaft.
5. Remove boot from shaft.
6. Remove old grease on slide joint assembly with paper towels.
1. Joint sub-assembly 2. Circular clip 3. Boot band
4. Boot 5. Shaft 6. Spider assembly
7. Snap ring 8. Housing 9. Dust shield
10. Circular clip
Refer to GI-8, "
Component" and the following for the symbols in the figure.
: Fill NiSSAN genuine grease or equivalent.
PDIA1221E
SFA963
SFA612
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2788 of 3924
![INFINITI FX35 2008 Service Manual

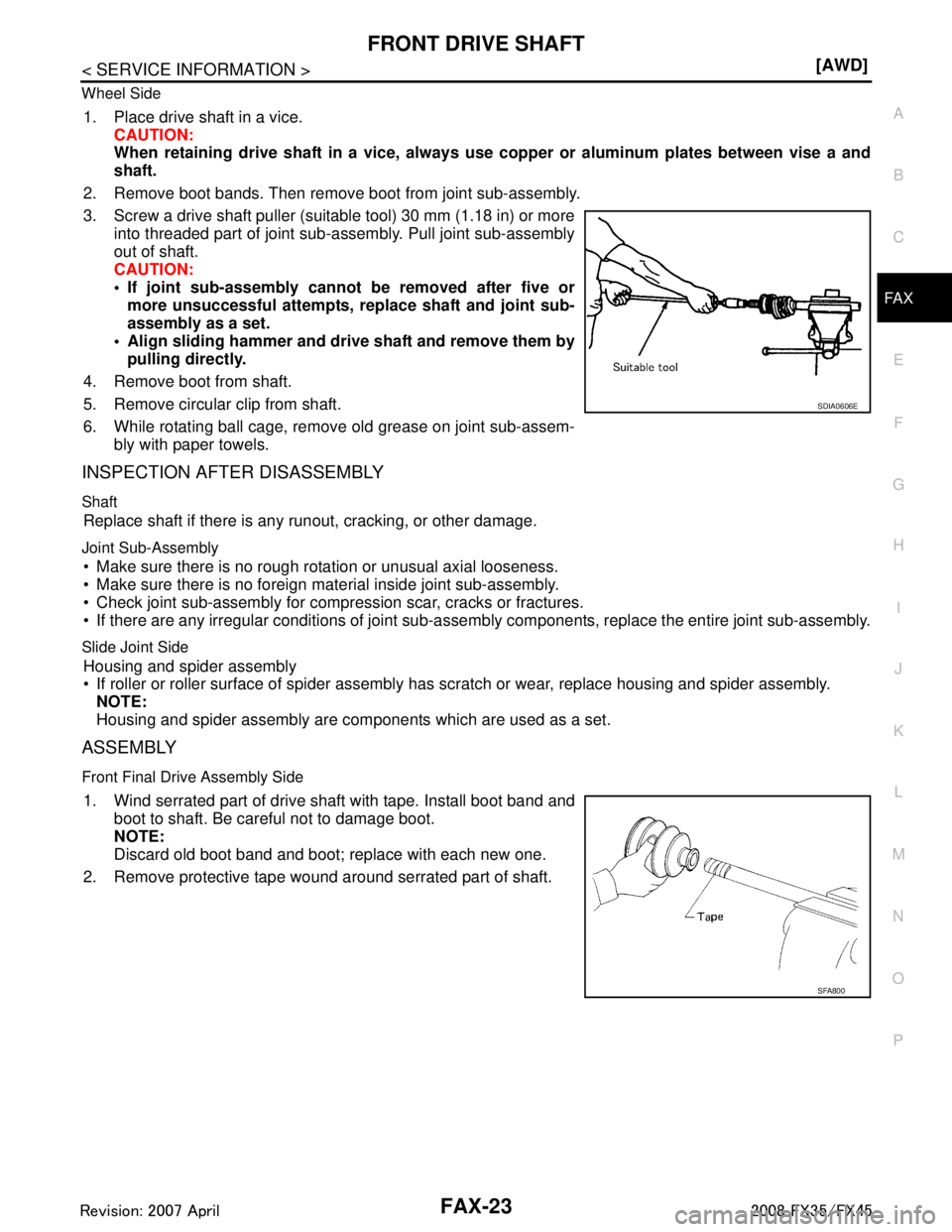

FRONT DRIVE SHAFTFAX-23
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
Wheel Side
1. Place drive shaft in a vice.
CAUTION:
When retaining drive shaft in a vice, always u se copper or INFINITI FX35 2008 Service Manual
FRONT DRIVE SHAFTFAX-23
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
Wheel Side
1. Place drive shaft in a vice.
CAUTION:
When retaining drive shaft in a vice, always u se copper or](/manual-img/42/57017/w960_57017-2787.png)
FRONT DRIVE SHAFTFAX-23
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
Wheel Side
1. Place drive shaft in a vice.
CAUTION:
When retaining drive shaft in a vice, always u se copper or aluminum plates between vise a and
shaft.
2. Remove boot bands. Then remove boot from joint sub-assembly.
3. Screw a drive shaft puller (suitable tool) 30 mm (1.18 in) or more into threaded part of joint sub-assembly. Pull joint sub-assembly
out of shaft.
CAUTION:
If joint sub-assembly cannot be removed after five ormore unsuccessful attempts, replace shaft and joint sub-
assembly as a set.
Align sliding hammer and drive shaft and remove them by
pulling directly.
4. Remove boot from shaft.
5. Remove circular clip from shaft.
6. While rotating ball cage, remove old grease on joint sub-assem- bly with paper towels.
INSPECTION AFTER DISASSEMBLY
Shaft
Replace shaft if there is any runout, cracking, or other damage.
Joint Sub-Assembly
Make sure there is no rough rotation or unusual axial looseness.
Make sure there is no foreign material inside joint sub-assembly.
Check joint sub-assembly for compression scar, cracks or fractures.
If there are any irregular conditions of joint sub-asse mbly components, replace the entire joint sub-assembly.
Slide Joint Side
Housing and spider assembly
If roller or roller surface of spider assembly has scratch or wear, replace housing and spider assembly.
NOTE:
Housing and spider assembly are components which are used as a set.
ASSEMBLY
Front Final Drive Assembly Side
1. Wind serrated part of drive s haft with tape. Install boot band and
boot to shaft. Be careful not to damage boot.
NOTE:
Discard old boot band and boot; replace with each new one.
2. Remove protective tape wound around serrated part of shaft.
SDIA0606E
SFA800
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2789 of 3924
![INFINITI FX35 2008 Service Manual
FAX-24
< SERVICE INFORMATION >[AWD]
FRONT DRIVE SHAFT
3. Line up alignment marks which were made when spider assem-
bly was removed. Install spider assembly, with serration chamfer
facing dive shaft. INFINITI FX35 2008 Service Manual
FAX-24
< SERVICE INFORMATION >[AWD]
FRONT DRIVE SHAFT
3. Line up alignment marks which were made when spider assem-
bly was removed. Install spider assembly, with serration chamfer
facing dive shaft.](/manual-img/42/57017/w960_57017-2788.png)
FAX-24
< SERVICE INFORMATION >[AWD]
FRONT DRIVE SHAFT
3. Line up alignment marks which were made when spider assem-
bly was removed. Install spider assembly, with serration chamfer
facing dive shaft.
4. Secure spider assembly with snap ring. NOTE:
Discard old snap ring; replace with new one.
5. Apply Nissan genuine grease or equivalent to spider assembly and sliding surface.
6. Install housing to spider assembly. Apply Nissan genuine grease or equivalent to housing.
7. Install boot securely into grooves (indicated by * marks) shown in the figure.
CAUTION:
If there is grease on boot mo unting surfaces (indicated by*
marks) of shaft and housing, boot may come off. Remove
all grease from surfaces.
8. Make sure boot installation length “L” is the length indicated below. Insert a flat-bladed screwdriver or similar tool into smaller
side of boot. Bleed air from boot to prevent boot deformation.
CAUTION:
Boot may break if boot installation length is less than standard value.
Take care not to touch the tip of screw driver to inside surface of boot.
9. Install new larger and smaller boot bands securely. NOTE:
Discard old boot bands; replace with new ones.
SDIA2629E
SFA023A
Grease amount : 113 − 123 g (3.98 − 4.33 oz)
SDIA1446E
Boot installation Length “L”:
157.55 − 159.55 mm (6.20 − 6.28 in)SDIA3250E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2790 of 3924
FRONT DRIVE SHAFTFAX-25
< SERVICE INFORMATION > [AWD]
C
EF
G H
I
J
K L
M A
B
FA X
N
O P
10. Put boot band in the groove on drive shaft boot. Then fit pawls ( ) into holes to temporary installation.
NOTE:
For the large diameter side, fit projection (A) and guide slit (B) at
first.
11. Pinch projection on the band with suitable pliers to tighten band.
12. Insert tip of band below end of the pawl.
13. After installing housing and shaft, rotate boot to check whether or not the actual position is correc t. If boot position is not correct,
secure boot with new boot bands again.
14. Install circular clip. NOTE:
Discard old circular clip; replace with new one.
Wheel Side
Assemble in steps 14 to 23 of FAX-13, "On-Vehicle Inspection".
SDIA3557E
SDIA3558E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2791 of 3924
FAX-26
< SERVICE INFORMATION >[AWD]
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)
Wheel BearingINFOID:0000000001327520
Drive ShaftINFOID:0000000001327521
Axial end play
0.05 mm (0.002 in) or less
Joint Wheel side Front final drive assembly side
Engine type VQ35DE models VK45DE models VQ35DE models VK45DE models
Grease quantityLH side
77 – 97 g (2.71 – 3.42 oz) 95 – 105 g (3.35 – 3.70 oz)
RH side 113 – 123 g (3.98 – 4.33 oz)
Boots installed length LH side
136 mm (5.35 in) 150.9 – 152.9 mm (5.94
– 6.02 in) 95 – 97 mm
(3.74 – 3.82 in)
RH side 157.55 – 159.55 mm (6.20 – 6.28 in)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2792 of 3924

FFD-1
DRIVELINE/AXLE
CEF
G H
I
J
K L
M
SECTION FFD
A
B
FFD
N
O P
CONTENTS
FRONT FINAL DRIVE
SERVICE INFORMATION .. ..........................2
PRECAUTIONS .............................................. .....2
Service Notice or Precaution ............................... ......2
PREPARATION ...................................................3
Special Service Tool ........................................... ......3
Commercial Service Tool ..........................................5
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING .............................
6
NVH Troubleshooting Chart ................................ ......6
DESCRIPTION ....................................................7
Cross-Sectional View .......................................... ......7
DIFFERENTIAL GEAR OIL .................................8
Changing Differential Gear Oil ............................ ......8
Checking Differential Gear Oil ............................. .....8
FRONT OIL SEAL ..............................................9
Removal and Installation ..........................................9
SIDE OIL SEAL .................................................12
Removal and Installation .........................................12
FRONT FINAL DRIVE ASSEMBLY ..................14
Removal and Installation (VQ35DE Models) ...........14
Removal and Installation (VK45DE Models) ...........15
Disassembly and Assembly .....................................17
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
39
General Specification ..............................................39
Inspection and Adjustment ......................................39
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
