Page 2649 of 3924
PREPARATIONEM-165
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
(Kent-Moore No.)
Tool name
Description
(—)
Tube presser Pressing the tube of liquid gasket
(—)
Power tool Loosening nuts and bolts
(—)
Spark plug wrench Removing and installing spark plug
(—)
Manual lift table caddy Removing and installing engine
(J–24239-01)
Cylinder head bolt wrench Loosening and tightening cylinder head bolt,
and use with angle wrench [SST:
KV10112100 (BT–8653-A)]
a: 13 (0.51) dia.
b: 12 (0.47)
c: 10 (0.39)
Unit: mm (in)
(—)
Valve seat cutter set Finishing valve seat dimensions
(—)
Piston ring expander Removing and installing piston ring
S-NT052
PBIC0190E
S-NT047
ZZA1210D
NT583
S-NT048
S-NT030
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2650 of 3924
![INFINITI FX35 2008 Service Manual
EM-166
< SERVICE INFORMATION >[VK45DE]
PREPARATION
(—)
Valve guide driftRemoving and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
(—)
Valve guide INFINITI FX35 2008 Service Manual
EM-166
< SERVICE INFORMATION >[VK45DE]
PREPARATION
(—)
Valve guide driftRemoving and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
(—)
Valve guide](/manual-img/42/57017/w960_57017-2649.png)
EM-166
< SERVICE INFORMATION >[VK45DE]
PREPARATION
(—)
Valve guide driftRemoving and installing valve guide
Intake and Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.
(—)
Valve guide reamer (1): Reaming valve guide inner hole
(2): Reaming hole for oversize valve guide
Intake and Exhaust:
d
1: 6.0 mm (0.236 in) dia.
d
2: 10.2 mm (0.402 in) dia.
(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a: J-43897-18 (18 mm dia.) for zirconia
heated oxygen sensor
b: J-43897-12 (12 mm dia.) for titania heat-
ed oxygen sensor
(—)
Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907) Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads
(Kent-Moore No.)
Tool name
Description
S-NT015
S-NT016
AEM488
AEM489
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2651 of 3924
NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTINGEM-167
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
NOISE, VIBRATION AND HARSHN
ESS (NVH) TROUBLESHOOTING
NVH Troubleshooting - Engine NoiseINFOID:0000000001325761
Use the Chart Below to Help You Find the Cause of the SymptomINFOID:0000000001325762
1. Locate the area where noise occurs.
2. Confirm the type of noise.
PBIC2865E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2652 of 3924
![INFINITI FX35 2008 Service Manual
EM-168
< SERVICE INFORMATION >[VK45DE]
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or rep INFINITI FX35 2008 Service Manual
EM-168
< SERVICE INFORMATION >[VK45DE]
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or rep](/manual-img/42/57017/w960_57017-2651.png)
EM-168
< SERVICE INFORMATION >[VK45DE]
NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING
3. Specify the operating condition of engine.
4. Check specified noise source.
If necessary, repair or replace these parts.
A: Closely related B: Related C: Sometimes related —: Not relatedLocation
of noise Type of
noise Operating condition of engine
Source of noise Check item
Refer-
ence page
Be-
fore
warm- up After
warm-
up When
start-
ing When
idling When
racing While
driving
Top of en-
gine
Rocker
cover
Cylinder
head Ticking or
clicking
C A — A B — Tappet noise Valve clearance
EM-218
Rattle C A — A B CCamshaft
bearing noiseCamshaft journal oil
clearance
Camshaft runout EM-211EM-211
Crank-
shaft pul-
ley
Cylinder
block
(Side of
engine)
Oil panSlap or
knock
—A—B B— Piston pin
noisePiston to piston pin oil
clearance
Connecting rod bushing
oil clearance EM-256
EM-256
Slap or
rap
A——B B A Piston slap
noisePiston to cylinder bore
clearance
Piston ring side clear-
ance
Piston ring end gap
Connecting rod bend
and torsion EM-256EM-256
EM-256
EM-256
Knock A B C B B B
Connecting
rod bearing
noiseConnecting rod bushing
oil clearance
Connecting rod bearing
oil clearance
EM-256EM-256
Knock A B — A B C
Main bearing
noiseMain bearing oil clear-
ance
Crankshaft runout EM-256EM-256
Front of
engine
front coverTapping or
ticking
AA—BBB Timing chain
and chain
tensioner
noiseTiming chain cracks
and wear
Timing chain tensioner
operation
EM-200
EM-199
Front of
engineSqueak-
ing or fizz-
ing
AB—B—C Drive belts
(Sticking or
slipping)Drive belts deflection
EM-170
Creaking A B A B A B Drive belts
(Slipping)Idler pulley bearing op-
eration
Squall
Creak AB—BAB Water pump
noise
Water pump operation
CO-50
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2653 of 3924
ENGINE ROOM COVEREM-169
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

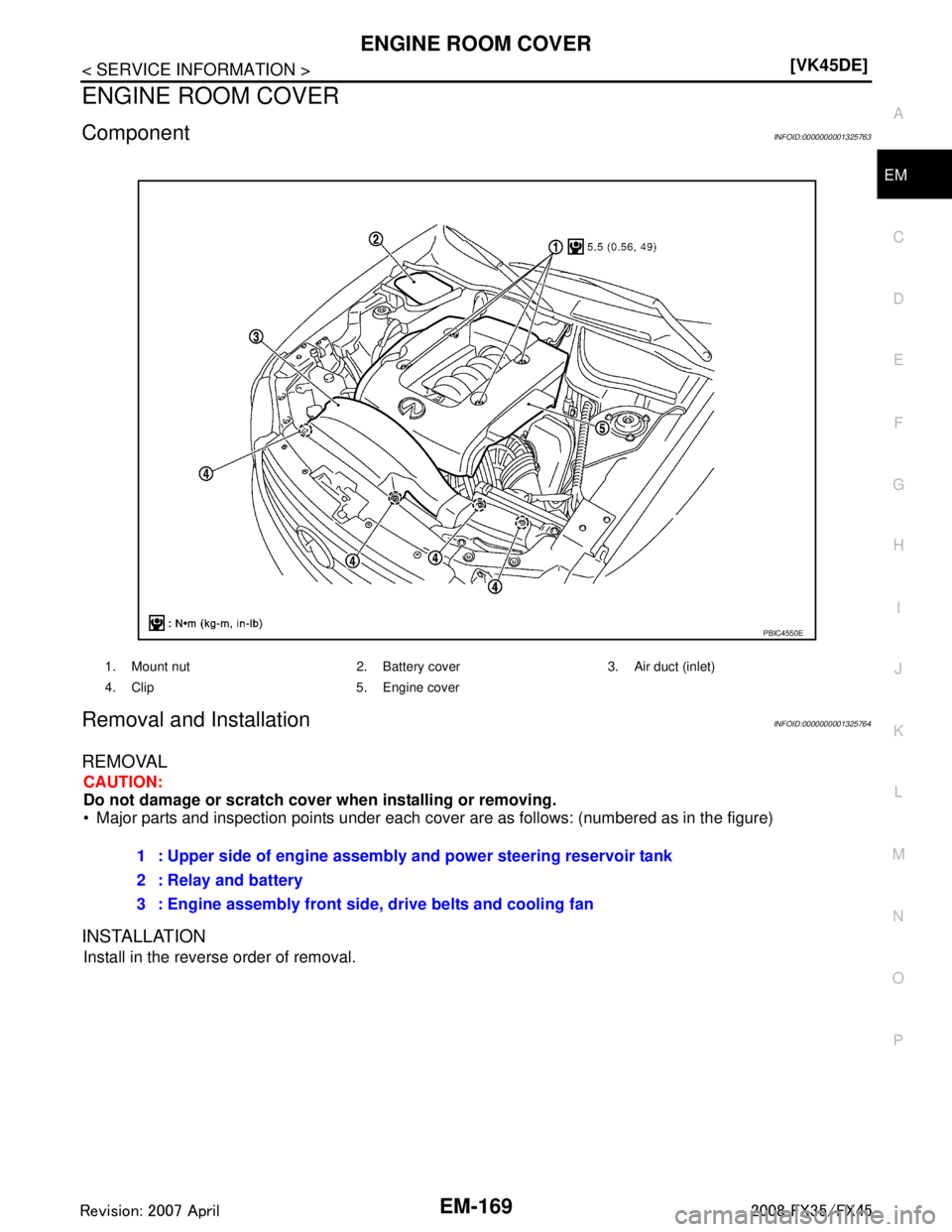

ENGINE ROOM COVER
ComponentINFOID:0000000001325763
Removal and InstallationINFOID:0000000001325764
REMOVAL
CAUTION:
Do not damage or scratch cover when installing or removing.
Major parts and inspection points under each cover are as follows: (numbered as in the figure)
INSTALLATION
Install in the reverse order of removal.
1. Mount nut 2. Battery cover 3. Air duct (inlet)
4. Clip 5. Engine cover
PBIC4550E
1 : Upper side of engine assembly and power steering reservoir tank
2 : Relay and battery
3 : Engine assembly front side, drive belts and cooling fan
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2654 of 3924
![INFINITI FX35 2008 Service Manual
EM-170
< SERVICE INFORMATION >[VK45DE]
DRIVE BELTS
DRIVE BELTS
ComponentINFOID:0000000001325765
Checking Drive BeltsINFOID:0000000001325766
WARNING:
Be sure to perform when engine is stopped.
Remov INFINITI FX35 2008 Service Manual
EM-170
< SERVICE INFORMATION >[VK45DE]
DRIVE BELTS
DRIVE BELTS
ComponentINFOID:0000000001325765
Checking Drive BeltsINFOID:0000000001325766
WARNING:
Be sure to perform when engine is stopped.
Remov](/manual-img/42/57017/w960_57017-2653.png)
EM-170
< SERVICE INFORMATION >[VK45DE]
DRIVE BELTS
DRIVE BELTS
ComponentINFOID:0000000001325765
Checking Drive BeltsINFOID:0000000001325766
WARNING:
Be sure to perform when engine is stopped.
Remove air duct (inlet) when inspecting drive belt for alternator, water pump and A/C compressor.
Remove front engine undercover with power tool when inspecting power steering oil pump belt.
Make sure that indicator (single line notch) of eac
h auto tensioner is within the allowable working range
(between three line notches).
NOTE:
Check auto tensioner indication when engine is cold.
When new drive belt is installed, the range should be “A”.
The indicator notch is located on the moving side of auto tensioner for alternator, water pump and A/C
compressor belt, while it is found on the fixed side for power steering oil pump belt.
Visually check entire belt for wear, damage or cracks.
If the indicator is out of allowable wo rking range or belt is damaged, replace belt.
Tension AdjustmentINFOID:0000000001325767
Belt tensioning is not necessary, as it is automatically adjusted by auto tensioner.
Removal and InstallationINFOID:0000000001325768
REMOVAL
Alternator, Water Pump and A/C Compressor Belt
1. Remove air duct (inlet). Refer to EM-173, "Component".
2. With box wrench, and while securely holding the hexagonal part in pulley center of auto tensioner, move wrench handle in the
direction of arrow (loosening direction of tensioner).
CAUTION:
Avoid placing hand in a location where pinching may
occur if the holding tool accidentally comes off.
Do not loosen the hexagonal part in center of drive belt auto-tensioner pulley (Do not tu rn it clockwise). If turned
clockwise, the complete dri ve belt auto-tensioner must be
replaced as a unit, including the pulley.
PBIC2331E
PBIC2976E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2655 of 3924
![INFINITI FX35 2008 Service Manual
DRIVE BELTSEM-171
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
3. Under the above condition, insert a metallic bar of
approximately 6 mm (0.24 in) in diameter (hexagonal
bar wren INFINITI FX35 2008 Service Manual
DRIVE BELTSEM-171
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
3. Under the above condition, insert a metallic bar of
approximately 6 mm (0.24 in) in diameter (hexagonal
bar wren](/manual-img/42/57017/w960_57017-2654.png)
DRIVE BELTSEM-171
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

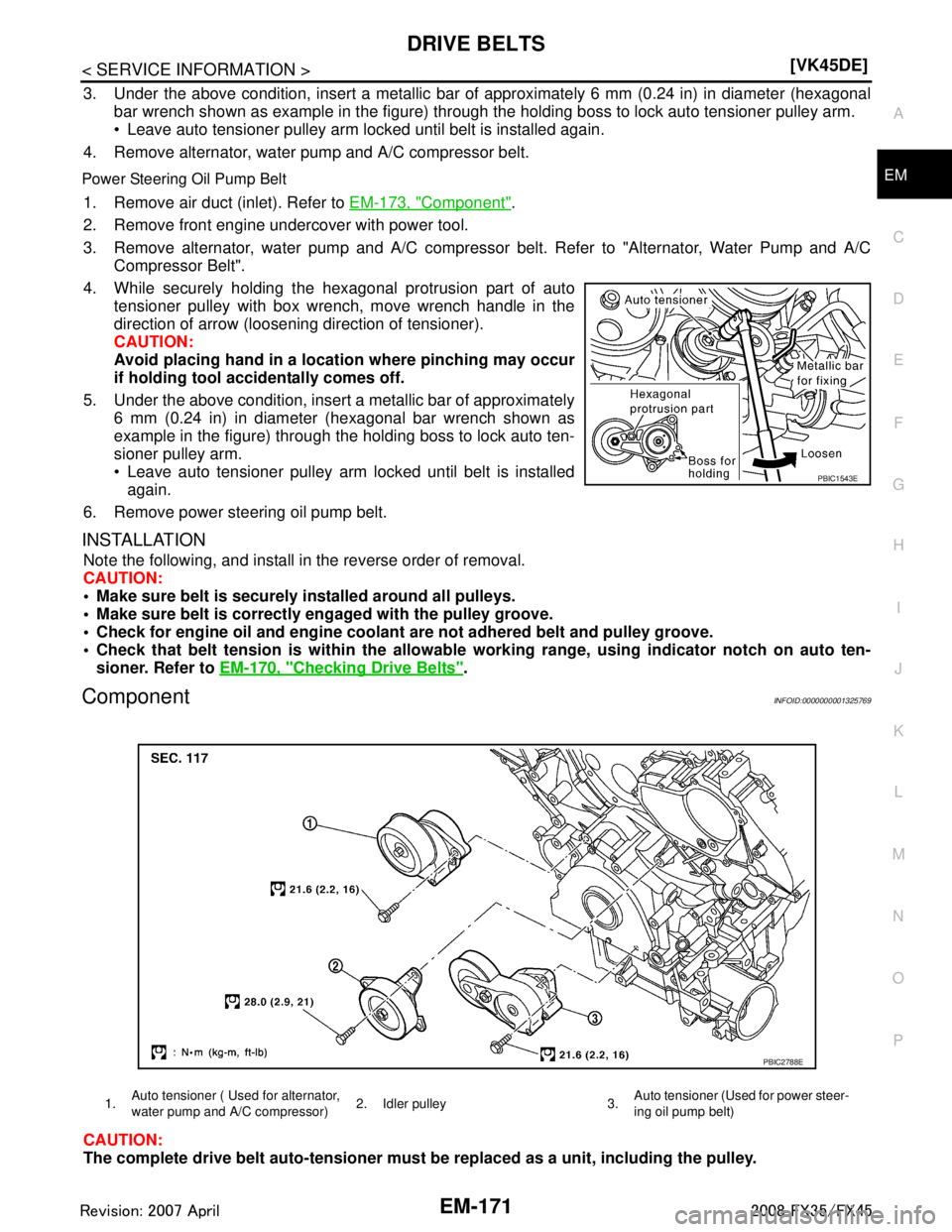

3. Under the above condition, insert a metallic bar of
approximately 6 mm (0.24 in) in diameter (hexagonal
bar wrench shown as example in the figure) through the holding boss to lock auto tensioner pulley arm.
Leave auto tensioner pulley arm locked until belt is installed again.
4. Remove alternator, water pump and A/C compressor belt.
Power Steering Oil Pump Belt
1. Remove air duct (inlet). Refer to EM-173, "Component".
2. Remove front engine undercover with power tool.
3. Remove alternator, water pump and A/C compressor belt. Refer to "Alternator, Water Pump and A/C Compressor Belt".
4. While securely holding the hexagonal protrusion part of auto tensioner pulley with box wrench, move wrench handle in the
direction of arrow (loosening direction of tensioner).
CAUTION:
Avoid placing hand in a locat ion where pinching may occur
if holding tool accidentally comes off.
5. Under the above condition, insert a metallic bar of approximately 6 mm (0.24 in) in diameter (hexagonal bar wrench shown as
example in the figure) through the holding boss to lock auto ten-
sioner pulley arm.
Leave auto tensioner pulley arm locked until belt is installed
again.
6. Remove power steering oil pump belt.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Make sure belt is securely installed around all pulleys.
Make sure belt is correctly engaged with the pulley groove.
Check for engine oil and engine coolan t are not adhered belt and pulley groove.
Check that belt tension is within the allowable working range, using indicator notch on auto ten-
sioner. Refer to EM-170, "
Checking Drive Belts".
ComponentINFOID:0000000001325769
CAUTION:
The complete drive belt auto-tensioner must be replaced as a unit, including the pulley.
PBIC1543E
1.Auto tensioner ( Us
ed for alternator,
water pump and A/C compressor) 2. Idler pulley 3. Auto tensioner (Use
d for power steer-
ing oil pump belt)
PBIC2788E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2656 of 3924
![INFINITI FX35 2008 Service Manual
EM-172
< SERVICE INFORMATION >[VK45DE]
DRIVE BELTS
Drive Belt Auto Tensioner and Idler Pulley
INFOID:0000000001325770
REMOVAL
1. Remove air duct (inlet). Refer to EM-173, "Component".
2. Remove fron INFINITI FX35 2008 Service Manual
EM-172
< SERVICE INFORMATION >[VK45DE]
DRIVE BELTS
Drive Belt Auto Tensioner and Idler Pulley
INFOID:0000000001325770
REMOVAL
1. Remove air duct (inlet). Refer to EM-173, "Component".
2. Remove fron](/manual-img/42/57017/w960_57017-2655.png)
EM-172
< SERVICE INFORMATION >[VK45DE]
DRIVE BELTS
Drive Belt Auto Tensioner and Idler Pulley
INFOID:0000000001325770
REMOVAL
1. Remove air duct (inlet). Refer to EM-173, "Component".
2. Remove front engine undercover with power tool.
3. Remove drive belts. Refer to EM-170, "
Removal and Installation".
Keep auto tensioner pulley arm locked after belt is removed.
4. Remove auto tensioner and idler pulley with power tool. Keep auto tensioner pulley arm locked to install or remove auto tensioner.
CAUTION:
Do not loosen the hexagonal part in center of drive belt auto-tensioner pulley (Do not turn it clock-
wise). If turned clockwise, the complete drive belt auto-tensioner must be replaced as a unit,
including the pulley.
INSTALLATION
Install in the reverse order of removal.
CAUTION:
Do not swap the pulley between new and old drive belt auto-tensioner.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
