DTC P0643 SENSOR POWER SUPPLYEC-1009
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0643 SENSOR POWER SUPPLY
On Board Diagnosis LogicINFOID:0000000001326868
This self-diagnosis has the on
e trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM ent ers fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326869
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-1011, "
Diagnosis Procedure".
DTC No.Trouble diagnosis
name DTC detecting condition Possible cause
P0643
0643 Sensor power supply
circuit short ECM detects a voltage of power source for
sensor is excessively low or high. Harness or connectors
(APP sensor 1 circuit is shorted.)
(EVAP control system pressure sensor is
shorted.)
(Refrigerant pressure sensor circuit is short-
ed.)
(PSP sensor circuit is shorted.)
Accelerator pedal position sensor
EVAP control system pressure sensor
Refrigerant pressure sensor
Power steering pressure sensor
Engine operation condition in fail-safe mode
ECM stops the electric throttle control actuator control, throttle valve is maintained at a fixed opening (approx. 5 degrees) b y the return
spring.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2250 of 3924
EC-1010
< SERVICE INFORMATION >[VK45DE]
DTC P0643 SENSOR POWER SUPPLY
Wiring Diagram
INFOID:0000000001326870
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM1350E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2251 of 3924
![INFINITI FX35 2008 Service Manual
DTC P0643 SENSOR POWER SUPPLYEC-1011
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001326871
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF INFINITI FX35 2008 Service Manual
DTC P0643 SENSOR POWER SUPPLYEC-1011
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001326871
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF](/manual-img/42/57017/w960_57017-2250.png)
DTC P0643 SENSOR POWER SUPPLYEC-1011
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001326871
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten three ground screws on the body. Refer to EC-723, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
TER- MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
48 L Sensor power supply
(EVAP control system pres-
sure sensor)
[Ignition switch: ON]
Approximately 5V
49 PU Sensor power supply
(Refrigerant pressure sen-
sor) [Ignition switch: ON]
Approximately 5V
68 SB Sensor power supply
(Power steering pressure
sensor) [Ignition switch: ON]
Approximately 5V
82 B/W Sensor ground
(APP sensor 1 / ICC steering
switch / ASCD steering
switch) [Engine is running]
Warm-up condition
Idle speed Approximately 0V
83 G/OR Sensor ground
(APP sensor 2) [Engine is running]
Warm-up condition
Idle speed Approximately 0V
90 L/B Sensor power supply
(APP sensor 1)
[Ignition switch: ON]
Approximately 5V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
98 Y/R Accelerator pe
dal position
sensor 2 [Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released
0.15 - 0.60V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed 1.95 - 2.40V
106 OR Accelerator pe
dal position
sensor 1 [Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully released
0.5 - 1.0V
[Ignition switch: ON]
Engine stopped
Accelerator pedal: Fully depressed 3.9 - 4.7V
PBIB2195E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2252 of 3924
![INFINITI FX35 2008 Service Manual
EC-1012
< SERVICE INFORMATION >[VK45DE]
DTC P0643 SENSOR POWER SUPPLY
2.CHECK ACCELERATOR PEDAL POSITION
SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness c INFINITI FX35 2008 Service Manual
EC-1012
< SERVICE INFORMATION >[VK45DE]
DTC P0643 SENSOR POWER SUPPLY
2.CHECK ACCELERATOR PEDAL POSITION
SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness c](/manual-img/42/57017/w960_57017-2251.png)
EC-1012
< SERVICE INFORMATION >[VK45DE]
DTC P0643 SENSOR POWER SUPPLY
2.CHECK ACCELERATOR PEDAL POSITION
SENSOR 1 POWER SUPPLY CIRCUIT
1. Disconnect accelerator pedal position (APP) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between APP sensor terminal 6 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 5.
NG >> GO TO 3.
3.CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4.CHECK COMPONENTS
Check the following.
EVAP control system pressure sensor (Refer to EC-965, "
Component Inspection".)
Refrigerant pressure sensor (Refer to ATC-69, "
Magnet Clutch Circuit".)
Power steering pressure sensor (Refer to EC-1002, "
Component Inspection".)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
5.CHECK APP SENSOR
Refer to EC-1109, "
Component Inspection".
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6.REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-662, "
Accelerator Pedal Released Position Learning".
PBIB1548E
Voltage: Approximately 5V
PBIB0914E
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 6 EC-1010
48 EVAP control system pressure sensor terminal 3 EC-962
49 Refrigerant pressure sensor terminal 1EC-1178
68 PSP sensor terminal 1 EC-999
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2253 of 3924
DTC P0643 SENSOR POWER SUPPLYEC-1013
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Perform
EC-663, "Throttle Valve Closed Position Learning".
4. Perform EC-663, "
Idle Air Volume Learning".
>> INSPECTION END
7.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2254 of 3924
![INFINITI FX35 2008 Service Manual
EC-1014
< SERVICE INFORMATION >[VK45DE]
DTC P0850 PNP SWITCH
DTC P0850 PNP SWITCH
Component DescriptionINFOID:0000000001326872
When the selector lever position is P or N,
park/neutral position (PNP) INFINITI FX35 2008 Service Manual
EC-1014
< SERVICE INFORMATION >[VK45DE]
DTC P0850 PNP SWITCH
DTC P0850 PNP SWITCH
Component DescriptionINFOID:0000000001326872
When the selector lever position is P or N,
park/neutral position (PNP)](/manual-img/42/57017/w960_57017-2253.png)
EC-1014
< SERVICE INFORMATION >[VK45DE]
DTC P0850 PNP SWITCH
DTC P0850 PNP SWITCH
Component DescriptionINFOID:0000000001326872
When the selector lever position is P or N,
park/neutral position (PNP) switch is ON.
ECM detects the position because the conti nuity of the line (the ON signal) exists.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326873
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001326874
DTC Confirmation ProcedureINFOID:0000000001326875
CAUTION:
Always drive vehicle at a safe speed.
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-III
1. Turn ignition switch ON.
2. Select “P/N POSI SW” in “DATA MONITOR” mode wit h CONSULT-III. Then check the “P/N POSI SW” sig-
nal under the following conditions.
If NG, go to EC-1017, "
Diagnosis Procedure".
If OK, go to following step.
3. Start engine and warm it up to normal operating temperature.
4. Maintain the following conditions for at least 60 consecutive seconds.
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to EC-1017, "
Diagnosis Procedure".
MONITOR ITEM CONDITION SPECIFICATION
P/N POSI SW Ignition switch: ON Selector lever: P or N ON
Selector lever: Except above OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0850
0850 Park/neutral position
switch The signal of the park/neutral position (PNP)
switch is not changed in the process of engine
starting and driving. Harness or connectors
[The park/neutral position (PNP) switch
circuit is open or shorted.]
Park/neutral position (PNP) switch
Unified meter and A/C amp.
TCM
Position (Selector lever) Known-good signal
N or P position ON
Except above position OFF
ENG SPEED 1,200 - 6,375 rpm
COOLAN TEMP/S More than 70 °C (158 °F)
B/FUEL SCHDL 2.0 - 31.8 msec
VHCL SPEED SE More than 64 km/h (40 MPH)
Selector lever Suitable position
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2255 of 3924
DTC P0850 PNP SWITCHEC-1015
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Overall Function CheckINFOID:0000000001326876
Use this procedure to check the overall function of the
park/neutral position (PNP) switch circuit. During this
check, a 1st trip DTC might not be confirmed.
WITH GST
1. Turn ignition switch ON.
2. Check voltage between ECM terminal 102 (PNP switch signal)
and ground under the following conditions.
3. If NG, go to EC-1017, "
Diagnosis Procedure".
Position (Selector lever) Voltage (Known-good data)
P or N position Approx. 0V
Except above position BATTERY VOLTAGE
(11 - 14V)
MBIB0043E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2256 of 3924
EC-1016
< SERVICE INFORMATION >[VK45DE]
DTC P0850 PNP SWITCH

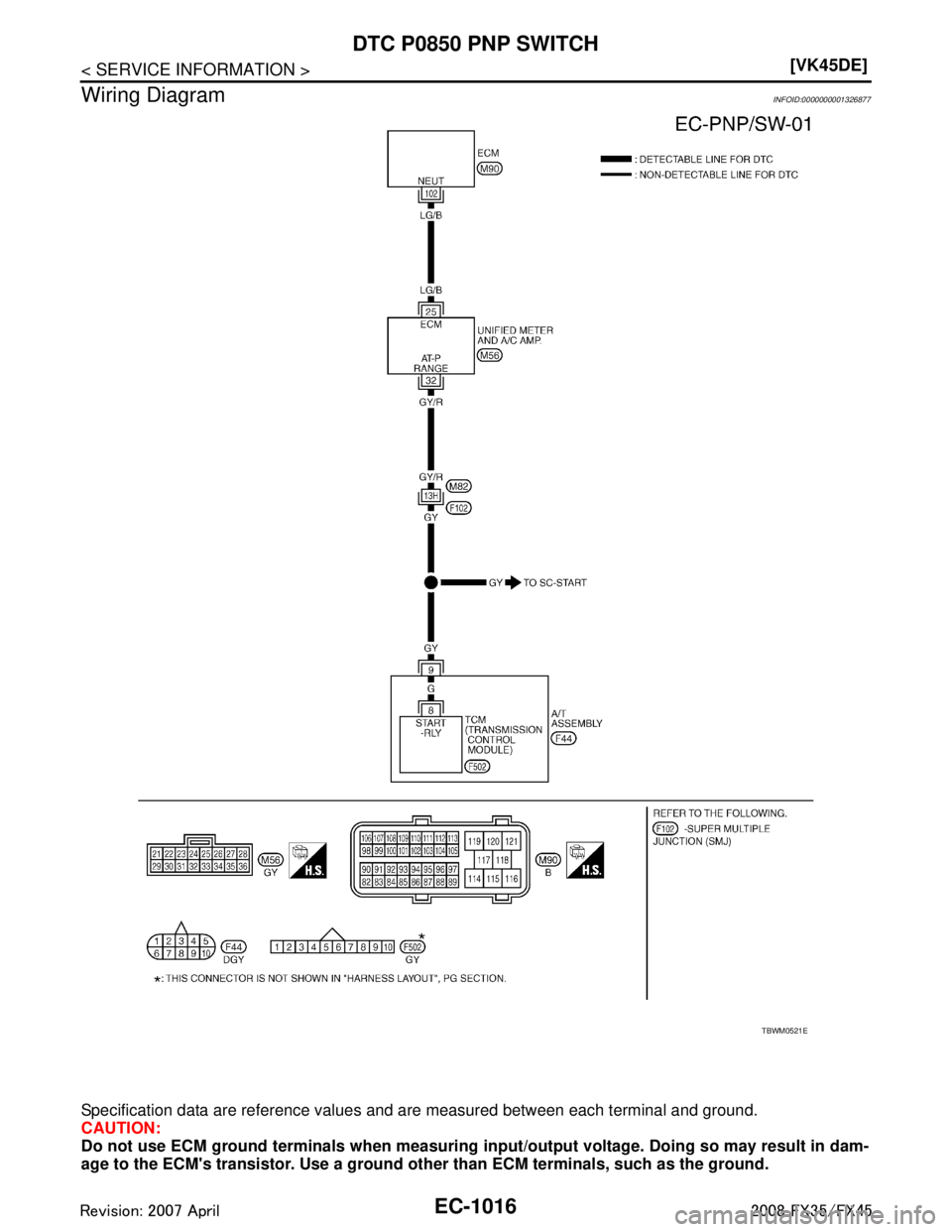

Wiring Diagram
INFOID:0000000001326877
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring in put/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM0521E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
