REAR WIPER AND WASHER SYSTEM
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (wiper switch). Refer to LT-104, "
Combination Switch Inspection".
2.ACTIVE TEST
With CONSULT-III
1. Select “REAR WIPER” of BCM active test item.
2. With operating the test item, check the rear wiper operation.
Without CONSULT-III
GO TO 3.
Does rear wiper operate normally?
YES >> Replace BCM. Refer to BCS-13, "Removal and Installation of BCM".
NO >> GO TO 3.
3.CHECK BCM
With rear wiper switch ON, check voltage between rear wiper motor
harness connector and ground.
OK or NG
OK >> GO TO 4.
NG >> GO TO 5.
4.CHECK GROUND CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect rear wiper motor connector.
3. Check continuity between rear wiper motor harness connector and ground.
OK or NG
OK >> Replace rear wiper motor.
NG >> Repair harness or connector.
5.CHECK REAR WIPER CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector and rear wiper motor harness connector.
4. Check continuity between BCM harness connector and ground.
OK or NG
OK >> Replace BCM. Refer to BCS-13, "Removal and Installa-
tion of BCM".
NG >> Repair harness or connector.
4 – Ground : Battery voltage.
PKIB1784E
2 – Ground : Conti nuity should exist.
PKIA5200E
70 – 4 : Continuity should exist.
70 – Ground : Continuity should not exist.
PKID0795E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3914 of 3924

REAR WIPER AND WASHER SYSTEMWW-39
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
Rear Wiper Does Not Re turn to Stop PositionINFOID:0000000001328584
1.CHECK REAR WIPER MOTOR CIRCUIT
With CONSULT-III
1. Select “RR WIPER STOP” of BCM data monitor item.
2. Check that “RR WIPER STOP”, turn ON-O FF linked with rear wiper switch operation.
Without CONSULT-III
GO TO 2.
OK or NG
OK >> Replace BCM. Refer to BCS-13, "Removal and Installation of BCM".
NG >> GO TO 2.
2.CHECK REAR WIPER AUTO STOP CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect BCM connector and rear wiper motor connector.
3. Check continuity between BCM harness connector and rear wiper motor harness connector.
4. Check continuity between BCM harness connector and ground.
5. Check continuity between rear wiper motor harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3.CHECK REAR WIPER MOTOR SIGNAL
1. Connect BCM connector and rear wiper motor connector.
2. Turn ignition switch ON.
3. Check voltage between rear wiper motor harness connector and ground while rear wiper motor is stopped and while it is operat-
ing.
OK or NG
OK >> Replace BCM. Refer to BCS-13, "Removal and Installation of BCM".
NG >> Replace rear wiper motor.
59 – 3 : Continuity should exist.
59 – Ground : Continuity should not exist.
PKID0796E
2 – Ground : Continuity should exist.
PKIA5200E
(+)
(-) Condition Vo l ta g e
(Approx.)
Rear wiper motor
Connector Te r m i n a l
D107 3 Ground Wiper stopped
Battery
voltage
Wiper operating 0 V
PKIA5203E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3915 of 3924

WW-40
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
Only Rear Wiper ON Does Not Operate
INFOID:0000000001328585
Refer to LT-104, "Combination Switch Inspection".
Only Rear Wiper IN T Does Not OperateINFOID:0000000001328586
Refer to LT-104, "Combination Switch Inspection".
Wiper Does Not Wipe When Rear Washer OperatesINFOID:0000000001328587
Refer to LT-104, "Combination Switch Inspection".
Rear Wipers Do Not StopINFOID:0000000001328588
1.CHECK CIRCUIT BETWEEN COMB INATION SWITCH AND BCM
With CONSULT-III
1. Select “RR WIPER INT”, “RR WIPER ON”, and “RR WASHER SW” of BCM data monitor item.
2. With operating the wiper switch, check the monitor status.
Without CONSULT-III
Refer to LT-104, "
Combination Switch Inspection".
OK or NG
OK >> Replace BCM. Refer to BCS-13, "Removal and Installation of BCM".
NG >> Check combination switch (wiper switch). Refer to LT-104, "
Combination Switch Inspection".
Removal and Installation of Rear Wiper Arm, Adjustment of Wiper Arms Stop Location
INFOID:0000000001328589
REMOVAL
1. Turn rear wiper switch ON to operate wiper moto r, then turn rear wiper switch OFF (auto stop).
2. Remove rear wiper arm cap, and remove rear wiper arm nut.
3. Remove rear wiper arm from the vehicle.
INSTALLATION
1. Clean up the pivot area as shown in the figure. This will reduce possibility of rear wiper arm nuts looseness.
2. Prior to rear wiper arms installation, turn rear wiper switch ON to operate wiper motor, and then turn rear wiper switch OFF (auto
stop).
SKIA0082J
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3916 of 3924

REAR WIPER AND WASHER SYSTEMWW-41
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
3. Lift the blade up and then set it down onto back door window glass surface to set the blade center to lowest heat wire immedi-
ately.
4. Tighten rear wiper arm nuts to specified torque.
5. Spray washer fluid. Turn on rear wiper switch ON to operate wiper motor, and then turn rear wiper switch OFF (auto stop).
6. Ensure that wiper blade stop within the following range.
7. Install rear wiper arm cap.
Removal and Installation of Rear Wiper BladeINFOID:0000000001328590
REMOVAL
1. Remove rear wiper arm. Refer to WW-40, "Removal and Instal-
lation of Rear Wiper Arm, Adjustment of Wiper Arms Stop Loca-
tion".
2. Turn rear wiper blade 90 degrees against rear wiper arm, and pull it out downward for removal.
CAUTION:
Replace rear wiper blade as rear wiper blade assembly.
INSTALLATION
Installation is the reverse order of removal. Rear wiper arm nut : 8.8 N·m (0.90 kg-m, 78 in-lb)
Lowest heat wire :
± 3.75 mm ( ± 0.148 in)
PKID0496E
SKIA6169E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3917 of 3924

WW-42
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
Removal and Installation of Rear Wiper Motor
INFOID:0000000001328591
REMOVAL
1. Remove rear wiper arm. Refer to WW-40, "Removal and Installation of Rear Wiper Arm, Adjustment of
Wiper Arms Stop Location".
2. Remove pivot cap, and remove nut from vehicle.
3. Remove back door finisher. Refer to EI-47, "
Component Parts Location".
4. Disconnect rear wiper motor connector.
5. Remove rear wiper motor mounting bolts and remove rear wiper motor from vehicle.
CAUTION:
Never remove cushion rubber.
INSTALLATION
1. Install rear wiper motor to the vehicle.
2. Connect rear wiper motor connector. Turn rear wiper switch ON to operate rear wiper motor, and then turn
rear wiper switch OFF (auto stop).
3. Install back door finisher. Refer to EI-47, "
Component Parts Location".
4. Install pivot cap, and nut.
5. Install rear wiper arm and rear wiper arm caps. Refer to WW-40, "
Removal and Installation of Rear Wiper
Arm, Adjustment of Wiper Arms Stop Location".
CAUTION:
Never drop the wiper motor or cause it to contact other parts.
1. Rear wiper motor 2. Rear wiper mounting bolts 3. Rear wiper blade
4. Rear wiper arm 5. Rear wiper arm cap 6. Rear wiper arm nut
7. Pivot cap 8. Nut 9. Washer
10. Cushion rubber
SKIB7578E
PKIB3588E
Rear wiper motor mounting bolts : 5.8 N·m (0.59 kg-m, 51 in-lb)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3918 of 3924
REAR WIPER AND WASHER SYSTEMWW-43
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
Washer Nozzle AdjustmentINFOID:0000000001328592
Adjust spray positions as shown in the figure.
Unit: mm (in)
Insert a needle or suitable tool into the nozzle hole and move it to adjust the spray position.
Washer Tube LayoutINFOID:0000000001328593
Removal and Installation of Washer NozzleINFOID:0000000001328594
REMOVAL
Spray position h (height) (width)φ
S
A, B 2.5 (0.098) 80 (3.15) 30 (1.18)
SKIA5088E
Adjustable range : ± 15 ° (In any direction)
SKIA5087E
PKIC9709E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3919 of 3924

WW-44
< SERVICE INFORMATION >
REAR WIPER AND WASHER SYSTEM
1. Remove high-mounted stop lamp. Refer to LT-114, "High-
Mounted Stop Lamp".
2. Remove screw and remove washer nozzle from high-mounted stop lamp.
INSTALLATION
Installation is the reverse order of removal. Adjust nozzle spray location. Refer to WW-43, "Washer Nozzle
Adjustment".
Check ValveINFOID:0000000001328595
Blow check valve. Confirm that the air ventilates. Also confirm that
inhalation is impossible.
CAUTION:
A check valve is provided in the w asher fluid line. Be careful not
to connect check valve to washer tube in the wrong direction.
Inspection of Front Wiper and Washer Switch CircuitINFOID:0000000001328596
Refer to LT-104, "Combination Switch Inspection".
Removal and Installation of Re ar Wiper and Washer SwitchINFOID:0000000001328597
Refer to WW-28, "Removal and Installation of Front Wiper and Washer Switch".
Removal and Installation of Washer TankINFOID:0000000001328598
Refer to WW-28, "Removal and Installation of Washer Tank".
Removal and Installation of Front and Rear Washer pumpINFOID:0000000001328599
Refer to WW-29, "Removal and Installation of Front and Rear Washer Pump".
PKIB6132E
SEL411H
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3920 of 3924
POWER SOCKETWW-45
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
WW
N
O P
POWER SOCKET

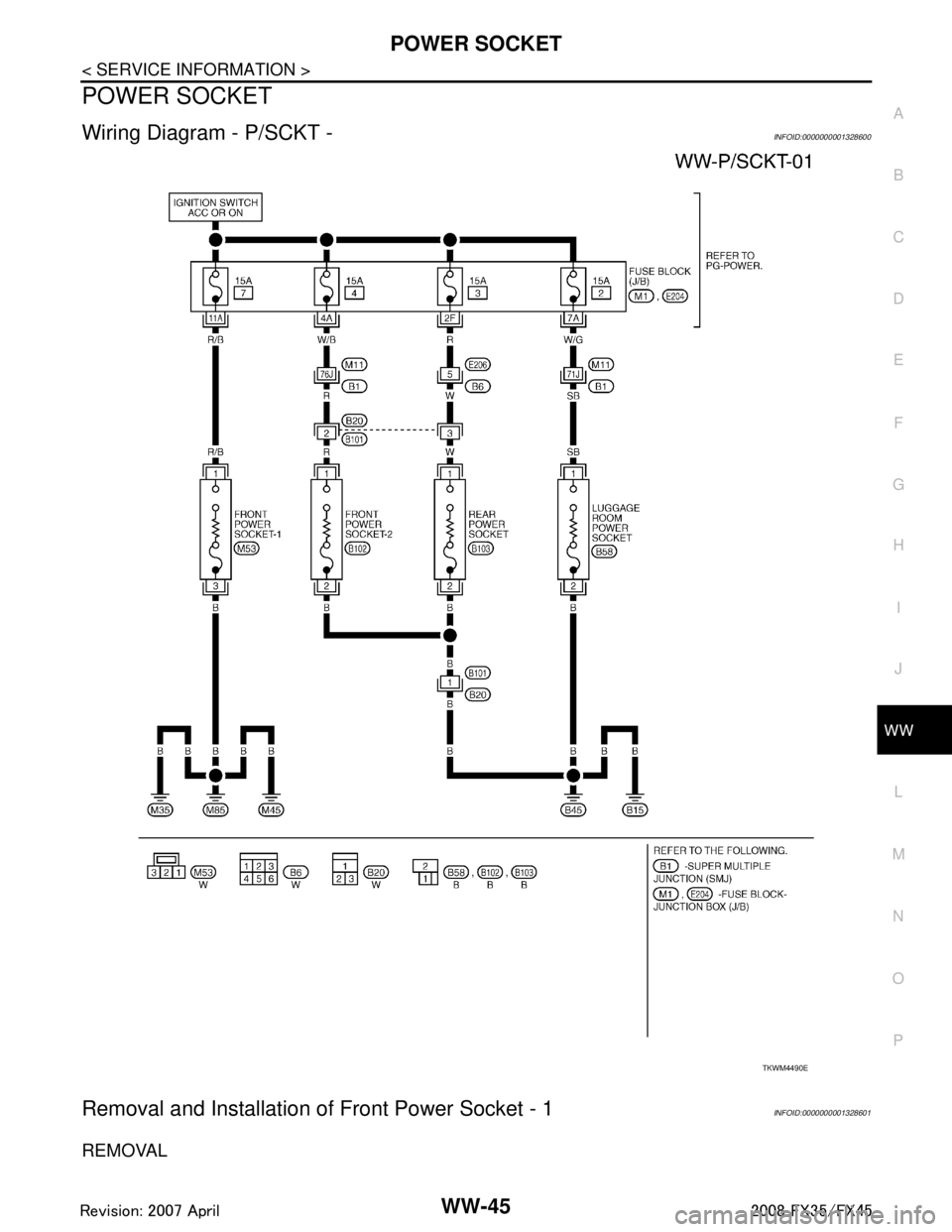

Wiring Diagram - P/SCKT -INFOID:0000000001328600
Removal and Installation of Front Power Socket - 1INFOID:0000000001328601
REMOVAL
TKWM4490E
