Page 2561 of 3924
TIMING CHAINEM-77
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

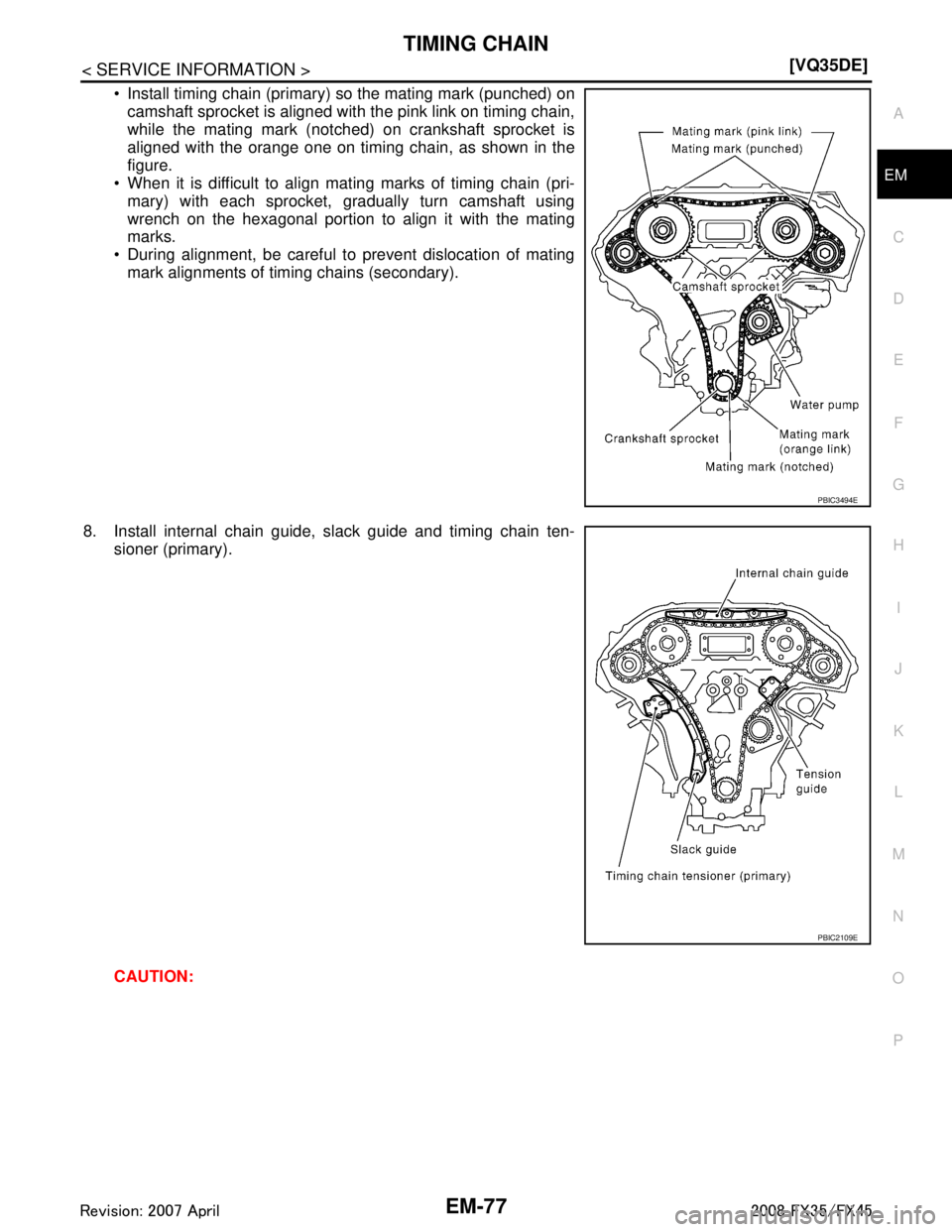

Install timing chain (primary) so the mating mark (punched) on
camshaft sprocket is aligned with the pink link on timing chain,
while the mating mark (notched) on crankshaft sprocket is
aligned with the orange one on timing chain, as shown in the
figure.
When it is difficult to align mating marks of timing chain (pri-
mary) with each sprocket, gradually turn camshaft using
wrench on the hexagonal portion to align it with the mating
marks.
During alignment, be careful to prevent dislocation of mating mark alignments of timing chains (secondary).
8. Install internal chain guide, slack guide and timing chain ten- sioner (primary).
CAUTION:
PBIC3494E
PBIC2109E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2562 of 3924
![INFINITI FX35 2008 Service Manual
EM-78
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
Do not overtighten slack guide
mounting bolts. It is normal
for a gap to exist under the bo lt seats when mounting bolts
are tightened to the speci INFINITI FX35 2008 Service Manual
EM-78
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
Do not overtighten slack guide
mounting bolts. It is normal
for a gap to exist under the bo lt seats when mounting bolts
are tightened to the speci](/manual-img/42/57017/w960_57017-2561.png)
EM-78
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
Do not overtighten slack guide
mounting bolts. It is normal
for a gap to exist under the bo lt seats when mounting bolts
are tightened to the specification.
9. Install the timing chain tensioner (primary) with the following procedure:
a. Pull plunger stopper tab up (or turn lever downward) so as to remove plunger stopper tab from the rachet of plunger.
NOTE:
Plunger stopper tab and lever are synchronized.
b. Push plunger into the inside of tensioner body.
c. Hold plunger in the fully compressed position by engaging plunger stopper tab with the tip of ratchet.
d. To secure lever, insert stopper pin through hole of lever into ten- sioner body hole.
The lever parts and the tab are synchronized. Therefore, theplunger will be secured under this condition.
NOTE:
Figure shows the example of 1.2 mm (0.047 in) diamet er thin screwdriver being used as the stopper pin.
e. Install timing chain tensioner (primary). Remove any dirt and foreign materials completely from theback and the mounting surfaces of timing chain tensioner (pri-
mary).
f. Pull out stopper pin after installing, and then release plunger.
10. Make sure again that the mating marks on sprockets and timing chain have not slipped out of alignment.
11. Install new O-rings on rear timing chain case.
12. Install new front oil seal on front timing chain case. Apply new engine oil to both oil seal lip and dust seal lip.
PBIC2633E
PBIC3568E
PBIC3569E
PBIC2548E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2563 of 3924
TIMING CHAINEM-79
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

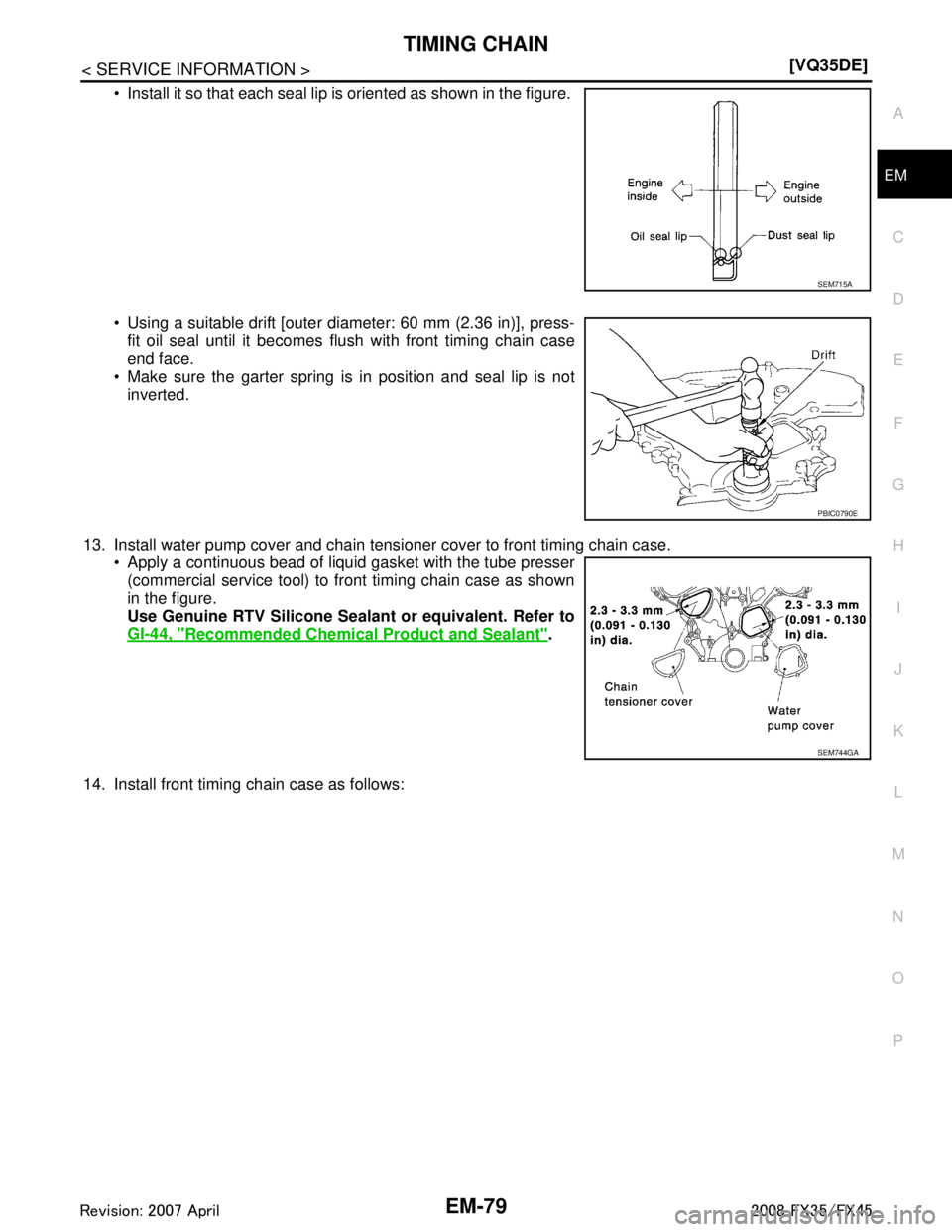

Install it so that each seal lip is oriented as shown in the figure.
Using a suitable drift [outer diameter: 60 mm (2.36 in)], press-
fit oil seal until it becomes flush with front timing chain case
end face.
Make sure the garter spring is in position and seal lip is not
inverted.
13. Install water pump cover and chain tensioner cover to front timing chain case. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to front timing chain case as shown
in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
14. Install front timing chain case as follows:
SEM715A
PBIC0790E
SEM744GA
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2564 of 3924
![INFINITI FX35 2008 Service Manual
EM-80
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN

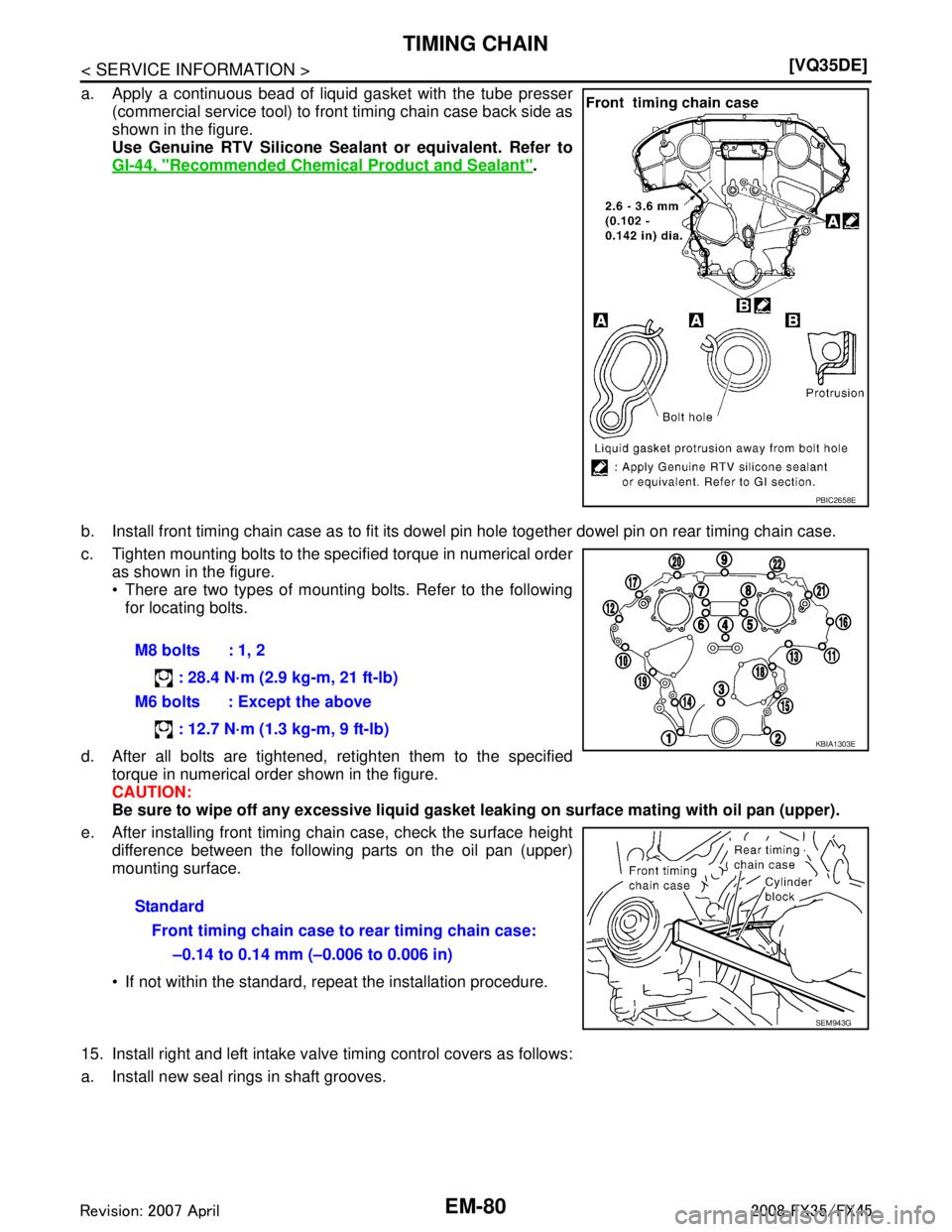

a. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to front timing chain case back side as
shown in the fig INFINITI FX35 2008 Service Manual
EM-80
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
a. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to front timing chain case back side as
shown in the fig](/manual-img/42/57017/w960_57017-2563.png)
EM-80
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
a. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to front timing chain case back side as
shown in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
b. Install front timing chain case as to fit its dowel pin hole together dowel pin on rear timing chain case.
c. Tighten mounting bolts to the specified torque in numerical order as shown in the figure.
There are two types of mounting bolts. Refer to the followingfor locating bolts.
d. After all bolts are tightened, retighten them to the specified torque in numerical order shown in the figure.
CAUTION:
Be sure to wipe off any excessive liquid gasket l eaking on surface mating with oil pan (upper).
e. After installing front timing chain case, check the surface height difference between the following parts on the oil pan (upper)
mounting surface.
If not within the standard, repeat the installation procedure.
15. Install right and left intake valve timing control covers as follows:
a. Install new seal rings in shaft grooves.
PBIC2658E
M8 bolts : 1, 2 : 28.4 N·m (2.9 kg-m, 21 ft-lb)
M6 bolts : Except the above
: 12.7 N·m (1.3 kg-m, 9 ft-lb)
Standard Front timing chain case to rear timing chain case:
–0.14 to 0.14 mm (–0.006 to 0.006 in)
KBIA1303E
SEM943G
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2565 of 3924
![INFINITI FX35 2008 Service Manual
TIMING CHAINEM-81
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
b. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to intake valve timing c INFINITI FX35 2008 Service Manual
TIMING CHAINEM-81
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
b. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to intake valve timing c](/manual-img/42/57017/w960_57017-2564.png)
TIMING CHAINEM-81
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

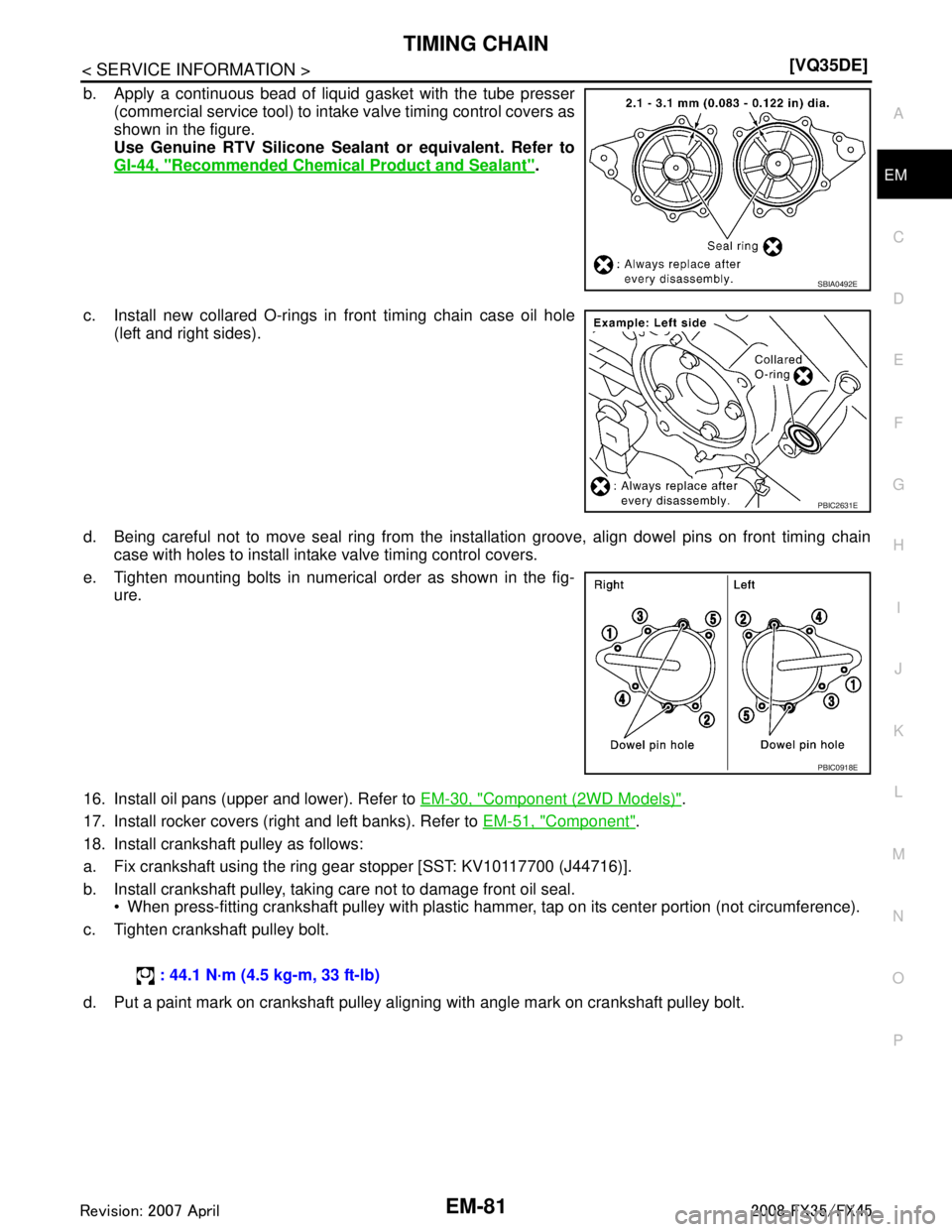

b. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to intake valve timing control covers as
shown in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
c. Install new collared O-rings in front timing chain case oil hole (left and right sides).
d. Being careful not to move seal ring from the installation groove, align dowel pins on front timing chain case with holes to install intake valve timing control covers.
e. Tighten mounting bolts in numerical order as shown in the fig- ure.
16. Install oil pans (upper and lower). Refer to EM-30, "
Component (2WD Models)".
17. Install rocker covers (right and left banks). Refer to EM-51, "
Component".
18. Install crankshaft pulley as follows:
a. Fix crankshaft using the ring gear stopper [SST: KV10117700 (J44716)].
b. Install crankshaft pulley, taking care not to damage front oil seal. When press-fitting crankshaft pulley with plastic hamme r, tap on its center portion (not circumference).
c. Tighten crankshaft pulley bolt.
d. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.
SBIA0492E
PBIC2631E
PBIC0918E
: 44.1 N·m (4.5 kg-m, 33 ft-lb)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2566 of 3924
![INFINITI FX35 2008 Service Manual
EM-82
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
e. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. Theangle between two notches is 90 INFINITI FX35 2008 Service Manual
EM-82
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
e. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. Theangle between two notches is 90](/manual-img/42/57017/w960_57017-2565.png)
EM-82
< SERVICE INFORMATION >[VQ35DE]
TIMING CHAIN
e. Further tighten by 90 degrees. (Angle tightening)
Check the tightening angle by referencing to the notches. Theangle between two notches is 90 degrees.
19. Rotate crankshaft pulley in normal direction (clock wise when viewed from front) to confirm it turns
smoothly.
20. For the following operations, perform steps in the reverse order of removal.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The following are procedures for checking fluids leak, lubricates leak. Before starting engine, check oil/fluid levels incl uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to GI-44, "
Recommended Chemical Product and Sealant".
Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-
age at connection points.
- Start engine. With engine speed increased, che ck again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration. NOTE:
If hydraulic pressure inside chain tensioner drops af ter removal/installation, slack in guide may generate a
pounding noise during and just after the engine start. However, this does not indicate an unusualness. Noise
will stop after hydraulic pressure rises.
Warm up engine thoroughly to make sure there is no leakage of fuel, or any oil/fluids including engine oil and engine coolant.
Bleed air from lines and hoses of applic able lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the specified level, if necessary.
Summary of the inspection items:
*: Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc.
PBIC4821E
Items Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2567 of 3924
CAMSHAFTEM-83
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CAMSHAFT
ComponentINFOID:0000000001325731
1.
Intake valve timing control solenoid
valve (right bank)
2. Gasket 3. Camshaft bracket (No. 2 to 4)
4. Camshaft (EXH) 5. Camshaft (INT) 6. Camshaft bracket (No. 1)
7. Seal washer 8. Dowel pin 9. Valve lifter
10. O-ring 11. Timing chain tensioner (secondary)
(right bank)12. Spring
13. Plunger 14. Timing chain tensioner (secondary)
(left bank)
15. Cylinder head (right bank)
16. Cylinder head (left bank) 17. O-ring 18. Camshaft position
sensor (PHASE)
(right bank)
19. Camshaft position sensor (PHASE)
(left bank) 20.
Intake valve timing control solenoid
valve (left bank)
A. Refer to EM-84
PBIC4684E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2568 of 3924
![INFINITI FX35 2008 Service Manual
EM-84
< SERVICE INFORMATION >[VQ35DE]
CAMSHAFT
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325732
REMOVAL
1. Remove front timing chain case, cams INFINITI FX35 2008 Service Manual
EM-84
< SERVICE INFORMATION >[VQ35DE]
CAMSHAFT
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325732
REMOVAL
1. Remove front timing chain case, cams](/manual-img/42/57017/w960_57017-2567.png)
EM-84
< SERVICE INFORMATION >[VQ35DE]
CAMSHAFT
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325732
REMOVAL
1. Remove front timing chain case, camshaft sprocket, timing chain and rear timing chain case. Refer to EM-
64, "Component".
2. Remove camshaft position sensor (PHASE) (right and left banks) from cylinder head back side.
CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at
sensor tip.
Do not place sensors in a location where they are
exposed to magnetism.
3. Remove intake valve timing control solenoid valves. Discard intake valve timing control solenoid valve gaskets anduse new gaskets for installation.
4. Remove camshaft brackets. Mark camshafts, camshaft brackets and bolts so they are placed in the same position and direction forinstallation.
Equally loosen camshaft bracket bolts in several steps in reverse order as shown in the figure.
5. Remove camshaft.
KBIA1046E
SEM443GA
PBIC2050E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
