CYLINDER BLOCKEM-125
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

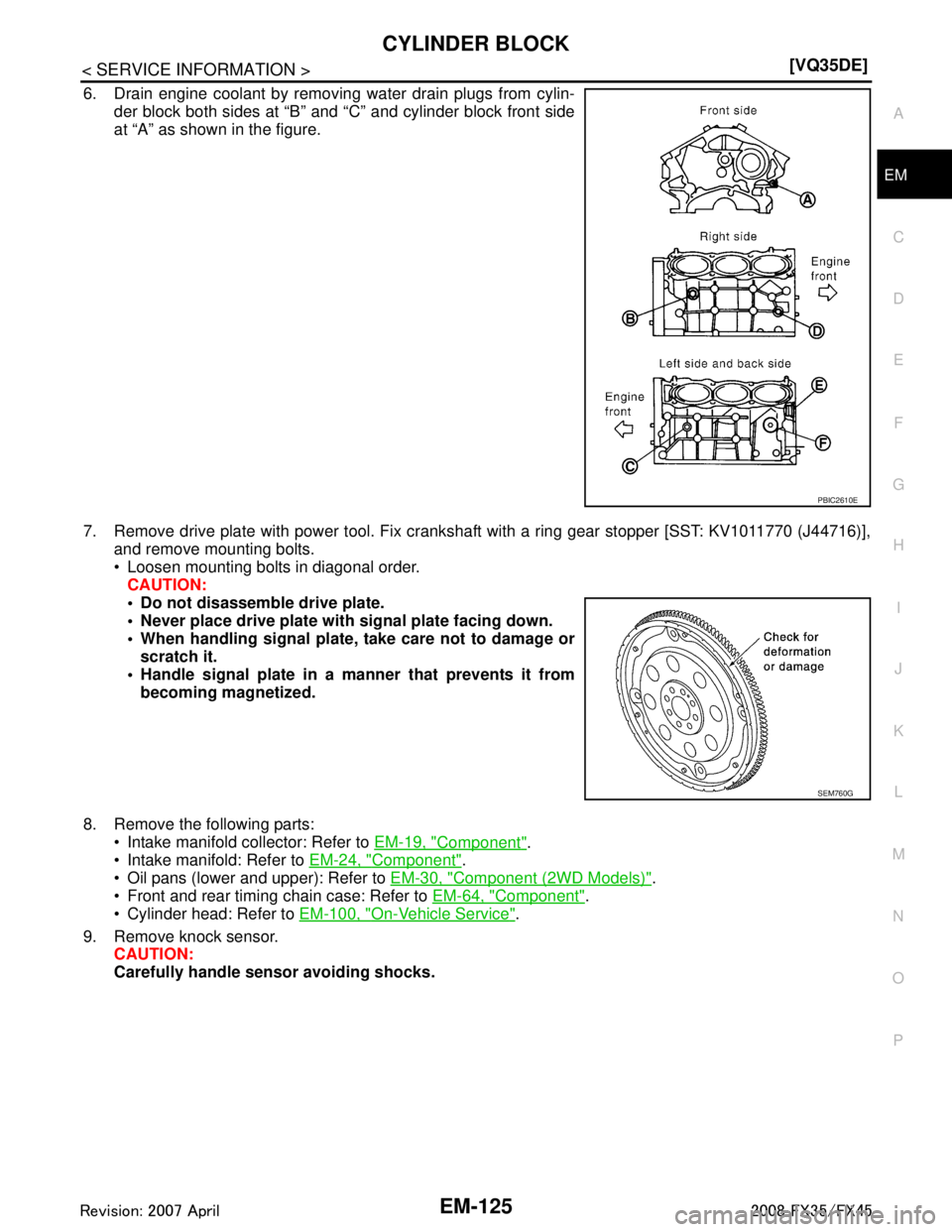

6. Drain engine coolant by removing water drain plugs from cylin-
der block both sides at “B” and “C” and cylinder block front side
at “A” as shown in the figure.
7. Remove drive plate with power tool. Fix cr ankshaft with a ring gear stopper [SST: KV1011770 (J44716)],
and remove mounting bolts.
Loosen mounting bolts in diagonal order.
CAUTION:
Do not disassemble drive plate.
Never place drive plate with signal plate facing down.
When handling signal plate, take care not to damage or
scratch it.
Handle signal plate in a ma nner that prevents it from
becoming magnetized.
8. Remove the following parts: Intake manifold collector: Refer to EM-19, "
Component".
Intake manifold: Refer to EM-24, "
Component".
Oil pans (lower and upper): Refer to EM-30, "
Component (2WD Models)".
Front and rear timing chain case: Refer to EM-64, "
Component".
Cylinder head: Refer to EM-100, "
On-Vehicle Service".
9. Remove knock sensor. CAUTION:
Carefully handle sensor avoiding shocks.
PBIC2610E
SEM760G
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2610 of 3924
![INFINITI FX35 2008 Service Manual
EM-126
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
10. Remove pilot converter using the pilot bushing puller (SST) as
necessary.
11. Remove rear oil seal retainer. Remove by inserting a screwdri INFINITI FX35 2008 Service Manual
EM-126
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
10. Remove pilot converter using the pilot bushing puller (SST) as
necessary.
11. Remove rear oil seal retainer. Remove by inserting a screwdri](/manual-img/42/57017/w960_57017-2609.png)
EM-126
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
10. Remove pilot converter using the pilot bushing puller (SST) as
necessary.
11. Remove rear oil seal retainer. Remove by inserting a screwdriver between main bearing cap and rear oil seal retainer.
CAUTION:
If rear oil seal retainer is removed, replace it with new one.
NOTE:
Regard both rear oil seal and retainer as an assembly.
12. Remove baffle plate from main bearing beam (2WD models).
13. Remove piston and connecting rod assembly with the following procedure: Before removing piston and connecting rod assembly, check the connecting rod side clearance. Refer to
EM-138, "
Inspection After Disassembly".
CAUTION:
Be careful not to drop connecting ro d bearing, and to scratch the surface.
a. Position crankshaft pin corresponding to connecting rod to be removed onto the bottom dead center.
b. Remove connecting rod bearing cap.
c. Using a hammer handle or similar tool, push piston and connect- ing rod assembly out to the cylinder head side.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interf erence of the connecting rod big
end.
14. Remove connecting rod bearings from connecting rod and connecting rod bearing cap. CAUTION:
Be careful not to drop connecting ro d bearing, and to scratch the surface.
Identify installation positions, and store them without mixing them up.
15. Remove piston rings form piston. Before removing piston rings, check the piston ring side clearance. Refer to EM-138, "
Inspection After
Disassembly".
Use a piston ring expander (commercial service tool).
CAUTION:
When removing piston rings, be careful not to damage piston.
Be careful not to damage piston rings by expanding them
excessively.

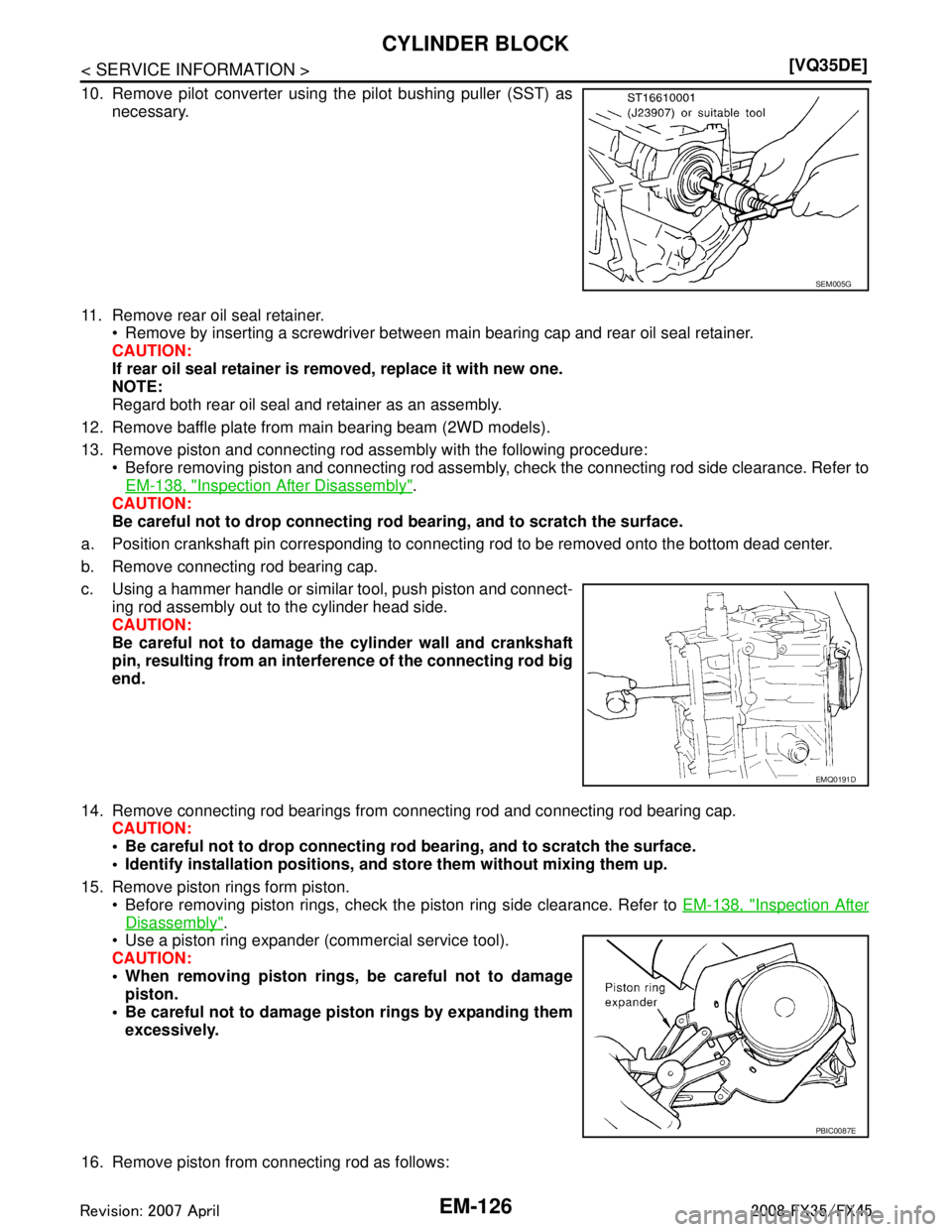

16. Remove piston from connecting rod as follows:
SEM005G
EMQ0191D
PBIC0087E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2611 of 3924
CYLINDER BLOCKEM-127
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

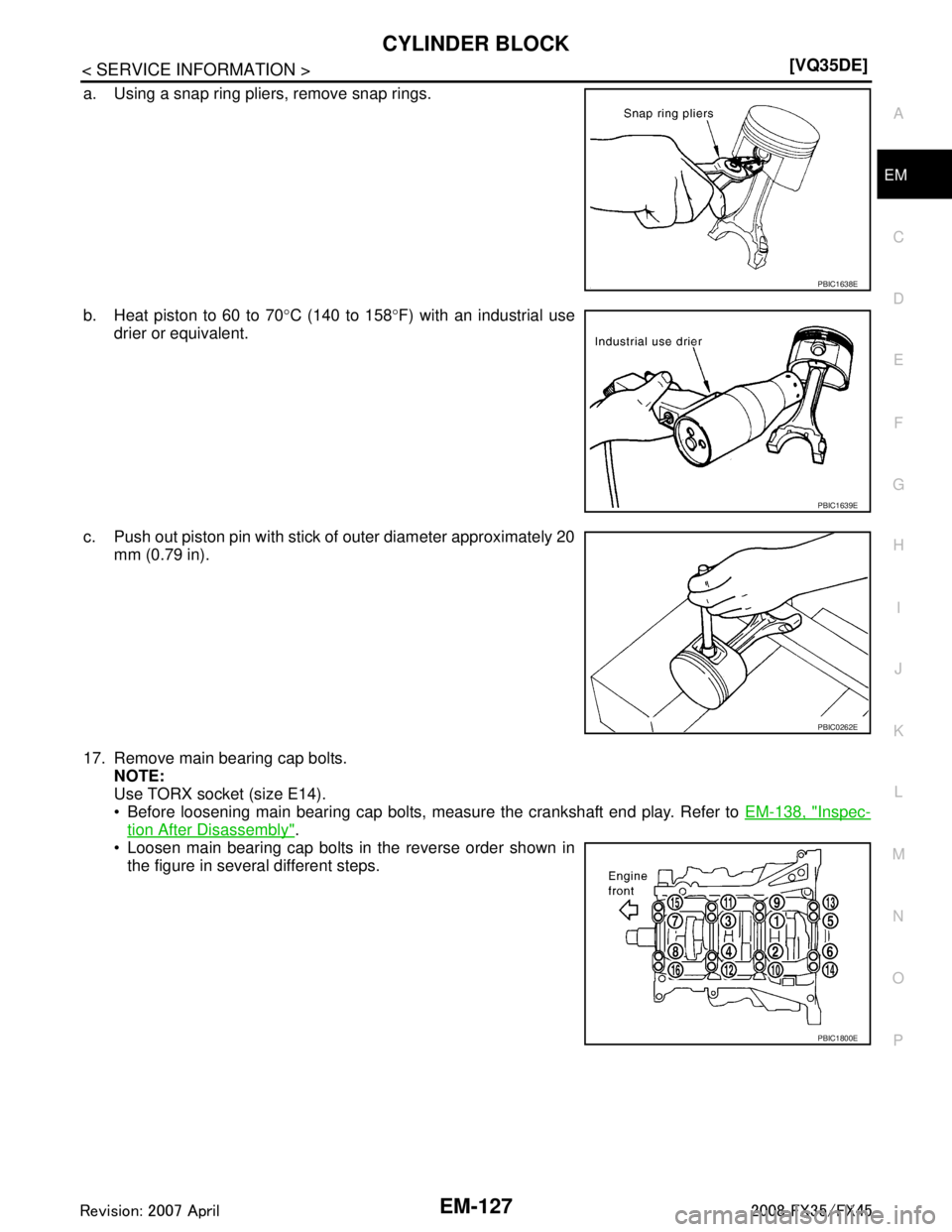

a. Using a snap ring pliers, remove snap rings.
b. Heat piston to 60 to 70
°C (140 to 158 °F) with an industrial use
drier or equivalent.
c. Push out piston pin with stick of outer diameter approximately 20 mm (0.79 in).
17. Remove main bearing cap bolts. NOTE:
Use TORX socket (size E14).
Before loosening main bearing cap bolts, measure the crankshaft end play. Refer to EM-138, "
Inspec-
tion After Disassembly".
Loosen main bearing cap bolts in the reverse order shown in
the figure in several different steps.
PBIC1638E
PBIC1639E
PBIC0262E
PBIC1800E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2612 of 3924
![INFINITI FX35 2008 Service Manual
EM-128
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
18. Remove main bearing beam.
19. Remove main bearing caps.
CAUTION:
Be careful not to drop main b earing, and to scratch the sur-
face.
Using INFINITI FX35 2008 Service Manual
EM-128
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
18. Remove main bearing beam.
19. Remove main bearing caps.
CAUTION:
Be careful not to drop main b earing, and to scratch the sur-
face.
Using](/manual-img/42/57017/w960_57017-2611.png)
EM-128
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
18. Remove main bearing beam.
19. Remove main bearing caps.
CAUTION:
Be careful not to drop main b earing, and to scratch the sur-
face.
Using main bearing cap bolts, remove main bearing cap while shaking it back-and-forth.
20. Remove crankshaft.
21. Remove main bearings and thrust bearings from cylinder block and main bearing caps. CAUTION:
Be careful not to drop main b earing, and to scratch the surface.
Identify installation positions, and store them without mixing them up.
22. Remove oil jet.
ASSEMBLY
1. Fully air-blow engine coolant and engine oil passages in cylinder block, cylinder bore and crankcase to
remove any foreign material.
CAUTION:
Use a goggles to protect your eye.

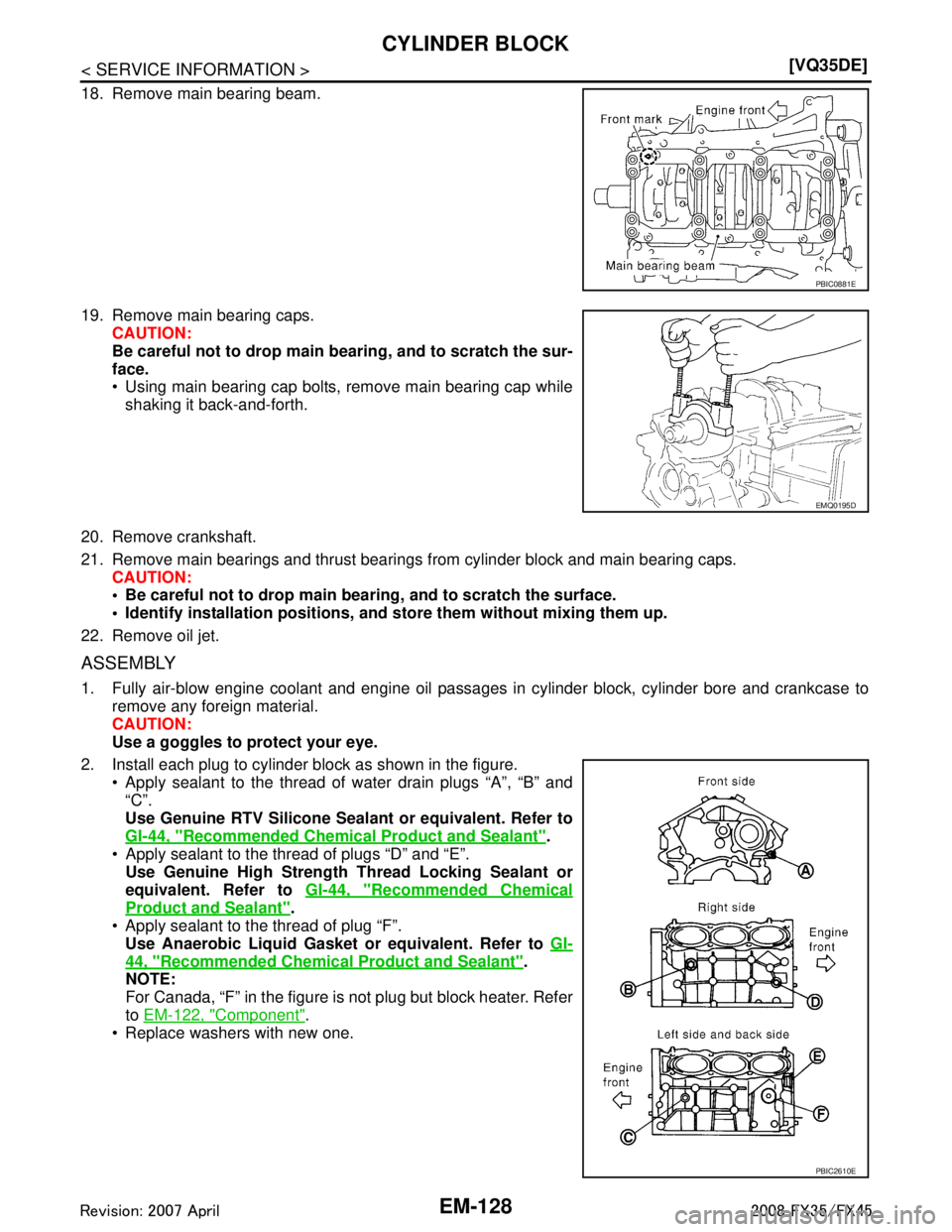

2. Install each plug to cylinder block as shown in the figure. Apply sealant to the thread of water drain plugs “A”, “B” and
“C”.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
Apply sealant to the thread of plugs “D” and “E”. Use Genuine High Strength Thread Locking Sealant or
equivalent. Refer to GI-44, "
Recommended Chemical
Product and Sealant".
Apply sealant to the thread of plug “F”. Use Anaerobic Liquid Gasket or equivalent. Refer to GI-
44, "Recommended Chemical Product and Sealant".
NOTE:
For Canada, “F” in the figure is not plug but block heater. Refer
to EM-122, "
Component".
Replace washers with new one.
PBIC0881E
EMQ0195D
PBIC2610E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2613 of 3924
![INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-129
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Tighten each plug as specified below.
3. Install oil jet. Insert oil jet dowel pin into cylinder block dowel INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-129
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Tighten each plug as specified below.
3. Install oil jet. Insert oil jet dowel pin into cylinder block dowel](/manual-img/42/57017/w960_57017-2612.png)
CYLINDER BLOCKEM-129
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Tighten each plug as specified below.
3. Install oil jet. Insert oil jet dowel pin into cylinder block dowel pin hole, andtighten mounting bolts.

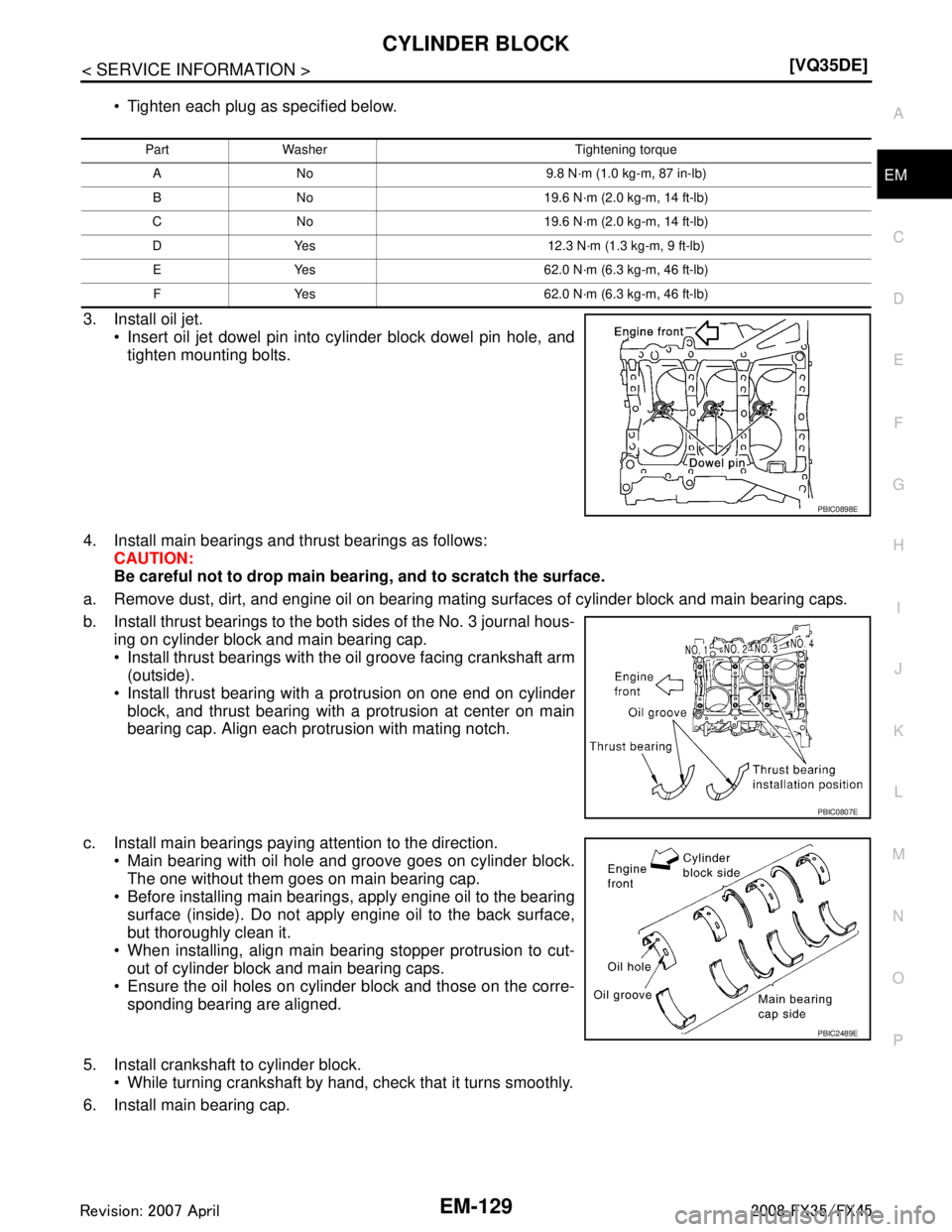

4. Install main bearings and thrust bearings as follows: CAUTION:
Be careful not to drop main b earing, and to scratch the surface.
a. Remove dust, dirt, and engine oil on bearing mating su rfaces of cylinder block and main bearing caps.
b. Install thrust bearings to the both sides of the No. 3 journal hous- ing on cylinder block and main bearing cap.
Install thrust bearings with the oil groove facing crankshaft arm(outside).
Install thrust bearing with a protrusion on one end on cylinder block, and thrust bearing with a protrusion at center on main
bearing cap. Align each protrusion with mating notch.
c. Install main bearings paying attention to the direction. Main bearing with oil hole and groove goes on cylinder block.
The one without them goes on main bearing cap.
Before installing main bearings, apply engine oil to the bearing surface (inside). Do not apply engine oil to the back surface,
but thoroughly clean it.
When installing, align main bearing stopper protrusion to cut- out of cylinder block and main bearing caps.
Ensure the oil holes on cylinder block and those on the corre-
sponding bearing are aligned.
5. Install crankshaft to cylinder block. While turning crankshaft by hand, check that it turns smoothly.
6. Install main bearing cap.
Part Washer Tightening torque
A No 9.8 N·m (1.0 kg-m, 87 in-lb)
B No 19.6 N·m (2.0 kg-m, 14 ft-lb)
C No 19.6 N·m (2.0 kg-m, 14 ft-lb)
D Yes 12.3 N·m (1.3 kg-m, 9 ft-lb) E Yes 62.0 N·m (6.3 kg-m, 46 ft-lb)F Yes 62.0 N·m (6.3 kg-m, 46 ft-lb)
PBIC0898E
PBIC0807E
PBIC2489E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2614 of 3924
![INFINITI FX35 2008 Service Manual
EM-130
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
Main bearing caps are identified by identification mark cast on
them. For installation, face front mark to front side.
NOTE:
Main bearing cap c INFINITI FX35 2008 Service Manual
EM-130
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
Main bearing caps are identified by identification mark cast on
them. For installation, face front mark to front side.
NOTE:
Main bearing cap c](/manual-img/42/57017/w960_57017-2613.png)
EM-130
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
Main bearing caps are identified by identification mark cast on
them. For installation, face front mark to front side.
NOTE:
Main bearing cap cannot be replaced as a single part, because it
is machined together with cylinder block.
7. Install main bearing beam. Install main bearing beam with front mark facing downward (oil pan side).
Install main bearing beam with front mark facing front of the
engine.
8. Install main bearing cap bolts in numerical order as shown in the figure as follows:
a. Inspect the outer diameter of main bearing cap bolt. Refer to EM-138, "
Inspection After Disassembly".
b. Apply new engine oil to threads and seat surfaces of main bear- ing cap bolts.
c. Tighten main bearing cap bolts in several different steps.
d. Turn all main bearing cap bolts 90 degrees clockwise (Angle tightening).
CAUTION:
Use the angle wrench [SST: KV10112100 (BT8653-A)] to
check tightening angle. Do not make judgment by visual
inspection.
After installing main bearing cap bolts, make sure that crank-
shaft can be rotated smoothly by hand.
Check the crankshaft end play. Refer to EM-138, "
Inspection
After Disassembly".
9. Install piston to connecting rod as follows:
a. Using a snap ring pliers, install new snap ring to the groove of piston rear side. Insert it fully into groove to install.

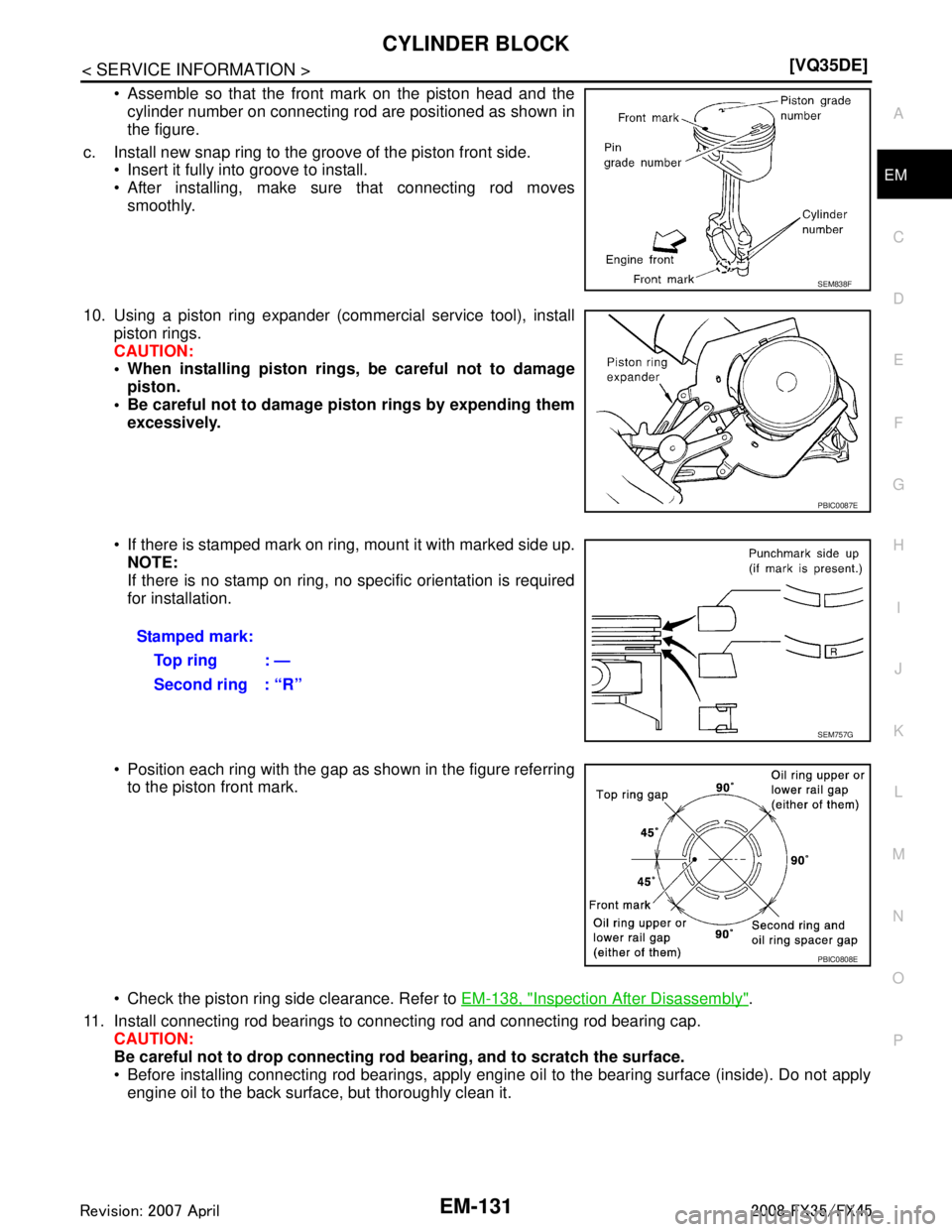

b. Install piston to connecting rod. Using an industrial use drier or similar tool, heat piston until piston pin can be pushed in by hand without
excess force [approx. 60 to 70 °C (140 to 158 °F)]. From the front to the rear, insert piston pin into piston
and connecting rod.
SEM456G
PBIC0881E
: 35.3 N·m (3.6 kg-m, 26 ft-lb)
PBIC1800E
PBIC0921E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2615 of 3924
![INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-131
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Assemble so that the front mark on the piston head and the
cylinder number on connecting rod are positioned as INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-131
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Assemble so that the front mark on the piston head and the
cylinder number on connecting rod are positioned as](/manual-img/42/57017/w960_57017-2614.png)
CYLINDER BLOCKEM-131
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Assemble so that the front mark on the piston head and the
cylinder number on connecting rod are positioned as shown in
the figure.
c. Install new snap ring to the groove of the piston front side. Insert it fully into groove to install.
After installing, make sure that connecting rod moves
smoothly.
10. Using a piston ring expander (commercial service tool), install piston rings.
CAUTION:
When installing piston rings, be careful not to damagepiston.
Be careful not to damage piston rings by expending them excessively.
If there is stamped mark on ri ng, mount it with marked side up.
NOTE:
If there is no stamp on ring, no specific orientation is required
for installation.
Position each ring with the gap as shown in the figure referring to the piston front mark.
Check the piston ring side clearance. Refer to EM-138, "
Inspection After Disassembly".
11. Install connecting rod bearings to connecting rod and connecting rod bearing cap. CAUTION:
Be careful not to drop connecting r od bearing, and to scratch the surface.
Before installing connecting rod bearings, apply engine oi l to the bearing surface (inside). Do not apply
engine oil to the back surface, but thoroughly clean it.
SEM838F
PBIC0087E
Stamped mark:
To p r i n g : —
Second ring : “R”
SEM757G
PBIC0808E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2616 of 3924
![INFINITI FX35 2008 Service Manual
EM-132
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK

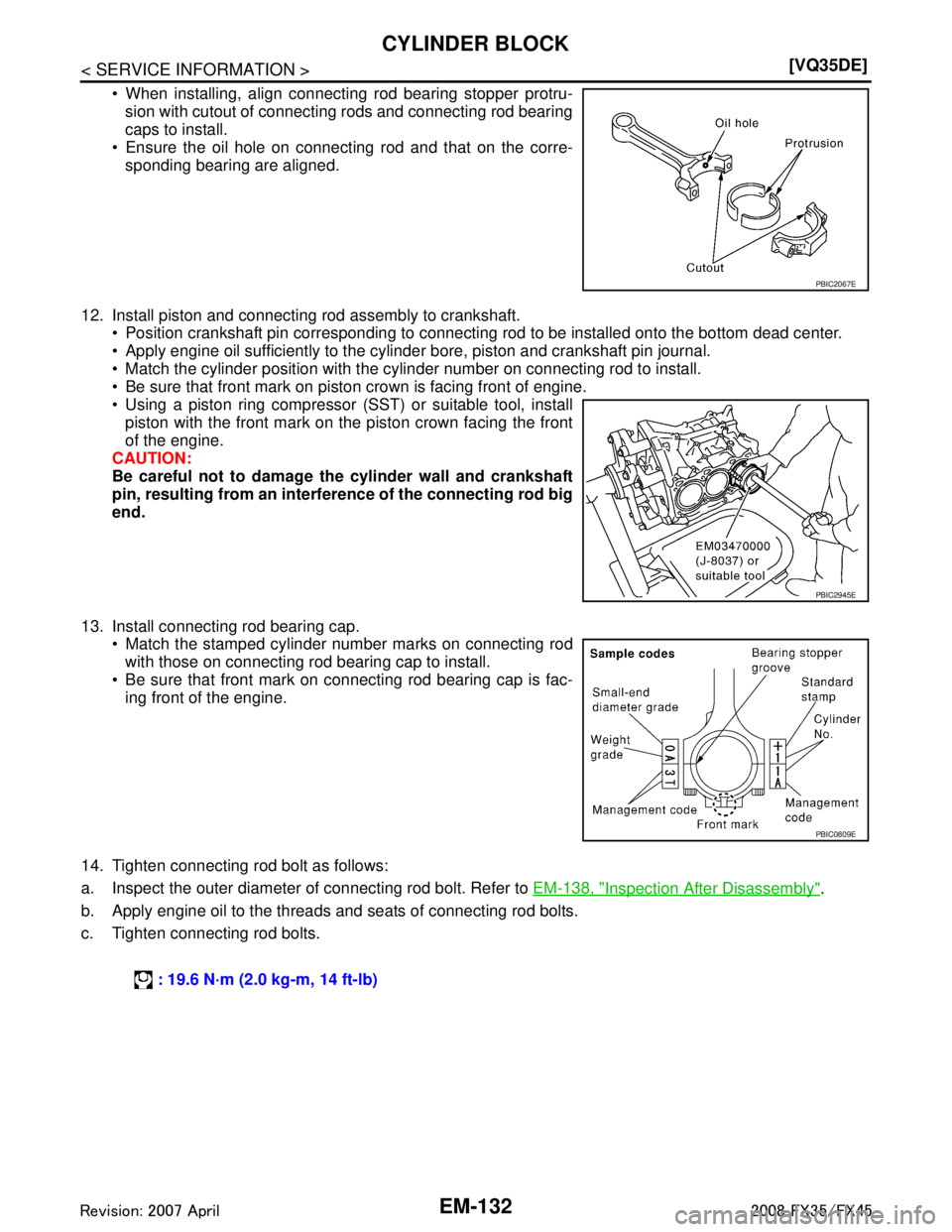

When installing, align connecting rod bearing stopper protru-
sion with cutout of connecting rods and connecting rod bearing
caps to install.
INFINITI FX35 2008 Service Manual
EM-132
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
When installing, align connecting rod bearing stopper protru-
sion with cutout of connecting rods and connecting rod bearing
caps to install.](/manual-img/42/57017/w960_57017-2615.png)
EM-132
< SERVICE INFORMATION >[VQ35DE]
CYLINDER BLOCK
When installing, align connecting rod bearing stopper protru-
sion with cutout of connecting rods and connecting rod bearing
caps to install.
Ensure the oil hole on connecting rod and that on the corre- sponding bearing are aligned.
12. Install piston and connecting rod assembly to crankshaft. Position crankshaft pin corresponding to connecting rod to be installed onto the bottom dead center.
Apply engine oil sufficiently to the cylinder bore, piston and crankshaft pin journal.
Match the cylinder position with the cyli nder number on connecting rod to install.
Be sure that front mark on piston crown is facing front of engine.
Using a piston ring compressor (SST) or suitable tool, install
piston with the front mark on t he piston crown facing the front
of the engine.
CAUTION:
Be careful not to damage the cylinder wall and crankshaft
pin, resulting from an interf erence of the connecting rod big
end.
13. Install connecting rod bearing cap. Match the stamped cylinder number marks on connecting rod
with those on connecting rod bearing cap to install.
Be sure that front mark on connecting rod bearing cap is fac- ing front of the engine.
14. Tighten connecting rod bolt as follows:
a. Inspect the outer diameter of connecting rod bolt. Refer to EM-138, "
Inspection After Disassembly".
b. Apply engine oil to the threads and seats of connecting rod bolts.
c. Tighten connecting rod bolts.
PBIC2067E
PBIC2945E
PBIC0809E
: 19.6 N·m (2.0 kg-m, 14 ft-lb)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
