Page 1065 of 3924

INFINITI FX35 2008 Service Manual
BRC-50
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
The ABS Function Does Not Operate
INFOID:0000000001327695
CAUTION:
The ABS does not operate when the sp eed is 10 km/h (6 M

BRC-50
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS FOR SYMPTOMS
The ABS Function Does Not Operate
INFOID:0000000001327695
CAUTION:
The ABS does not operate when the sp eed is 10 km/h (6 MPH) or less.
1.CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 2 seconds after the ignition switch is turned ON or when driv-
ing.
OK or NG
OK >> CHECK WHEEL SENSOR. Refer to BRC-49, "Excessive ABS Function Operation Frequency".
NG >> Perform self-diagnosis. Refer to BRC-26, "
Self-Diagnosis".
Pedal Vibration or ABS Operation Sound OccursINFOID:0000000001327696
CAUTION:
Under the following conditions, when brake pedal is lightly depressed (just place a foot on it), ABS is
activated and vibration is felt. However, this is normal.
When shifting gears
When driving on slippery road
During cornering at high speed
When passing over bumps or grooves
When pulling away just after st arting engine [at approximately 10 km/h (6 MPH) or higher]
1.SYMPTOM CHECK 1
Check if pedal vibration or operati on sound occurs when engine is started.
OK or NG
OK >> Perform self-diagnosis. Refer to BRC-26, "Self-Diagnosis".
NG >> GO TO 2.
2.SYMPTOM CHECK 2
Check symptom when electrical component (headlamps, etc.) switches are operated.
Does the symptom occur when the electrical component (head lamp, etc.) switches are operated?
YES >> Check if there is a radio, antenna, antenna lead wi re, or wiring close to ABS actuator and electric
unit (control unit) (or its wiring), and if there is, move it farther away.
NO >> CHECK WHEEL SENSOR. Refer to BRC-49, "
Excessive ABS Function Operation Frequency".
Vehicle Jerks During VDC/TCS/ABS ControlINFOID:0000000001327697
1.CHECK ENGINE SPEED SIGNAL
Perform CONSULT-III “DATA MONITOR” to check engine speed.
Is engine speed at idle 400 rpm or higher?
YES >> GO TO 3.
NO >> GO TO 2.
2.CHECK ABS WARNING LAMP DISPLAY
Make sure warning lamp turns off approximately 2 seconds after the ignition switch is turned ON or when driv-
ing.
OK or NG
OK >> System is normal.
NG >> GO TO 3.
3.CHECK ECM SELF-DIAGNOSTIC RESULTS
Perform ECM self-diagnosis.
Are self-diagnosis items displayed?
YES >> Check the corresponding items. Refer to EC-89(VQ35DE), EC-666(VK45DE) in “Engine Control
(EC section)”.
NO >> GO TO 4.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1066 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSIS FOR SYMPTOMSBRC-51
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
4.CHECK A/T SELF-DIAGNOSTIC RESULTS
Perform A/T self-diagnosis.
OK or NG
OK >> GO TO 5.
NG

Page 1067 of 3924

INFINITI FX35 2008 Service Manual
BRC-52
< SERVICE INFORMATION >[VDC/TCS/ABS]
WHEEL SENSORS
WHEEL SENSORS
Removal and InstallationINFOID:0000000001327698
REMOVAL
1. Disconnect wheel sensor connector.
2. Remove wheel sensor mounting b

Page 1068 of 3924

INFINITI FX35 2008 Service Manual
SENSOR ROTORBRC-53
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

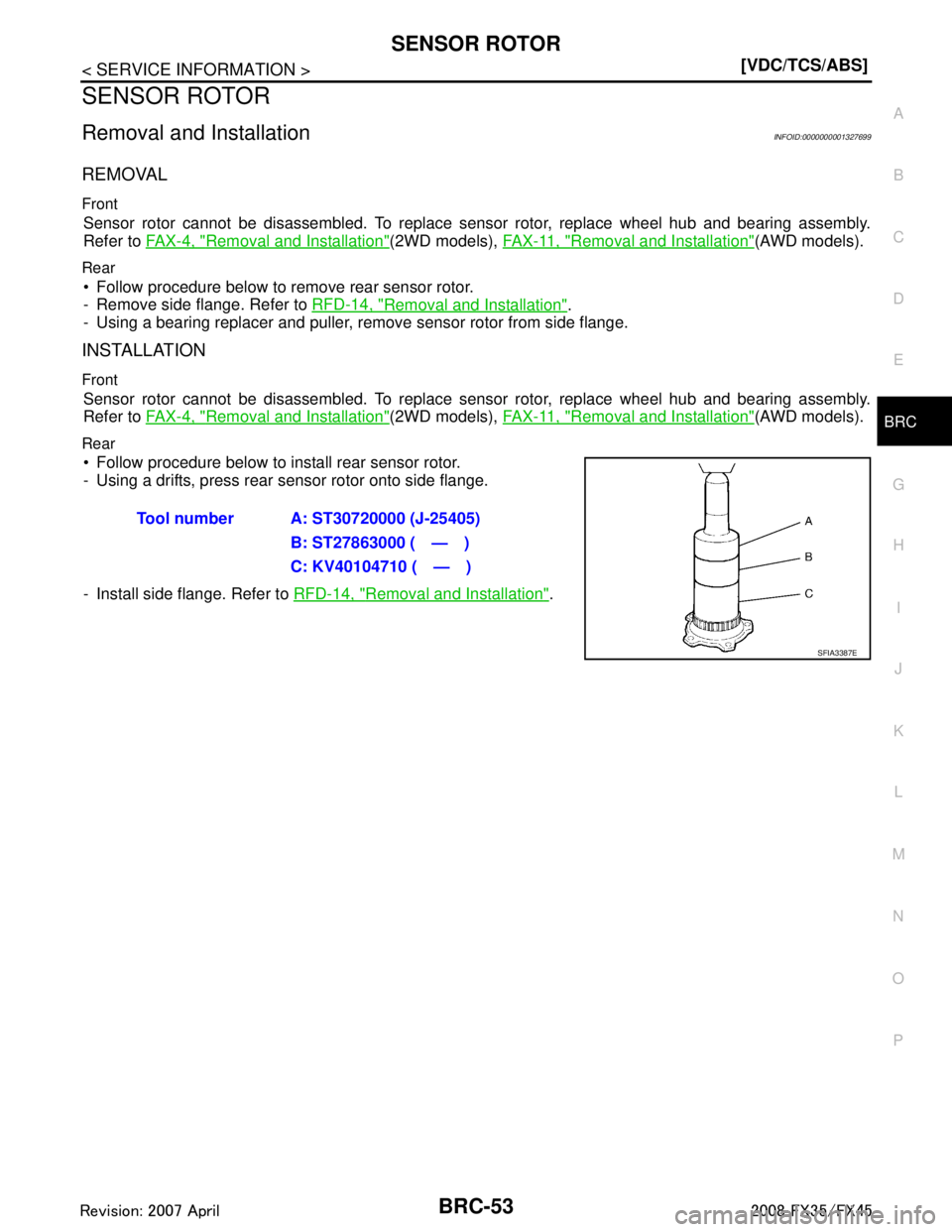

SENSOR ROTOR
Removal and InstallationINFOID:0000000001327699
REMOVAL
Front
Sensor rotor cannot be disassembl

Page 1069 of 3924

INFINITI FX35 2008 Service Manual
BRC-54
< SERVICE INFORMATION >[VDC/TCS/ABS]

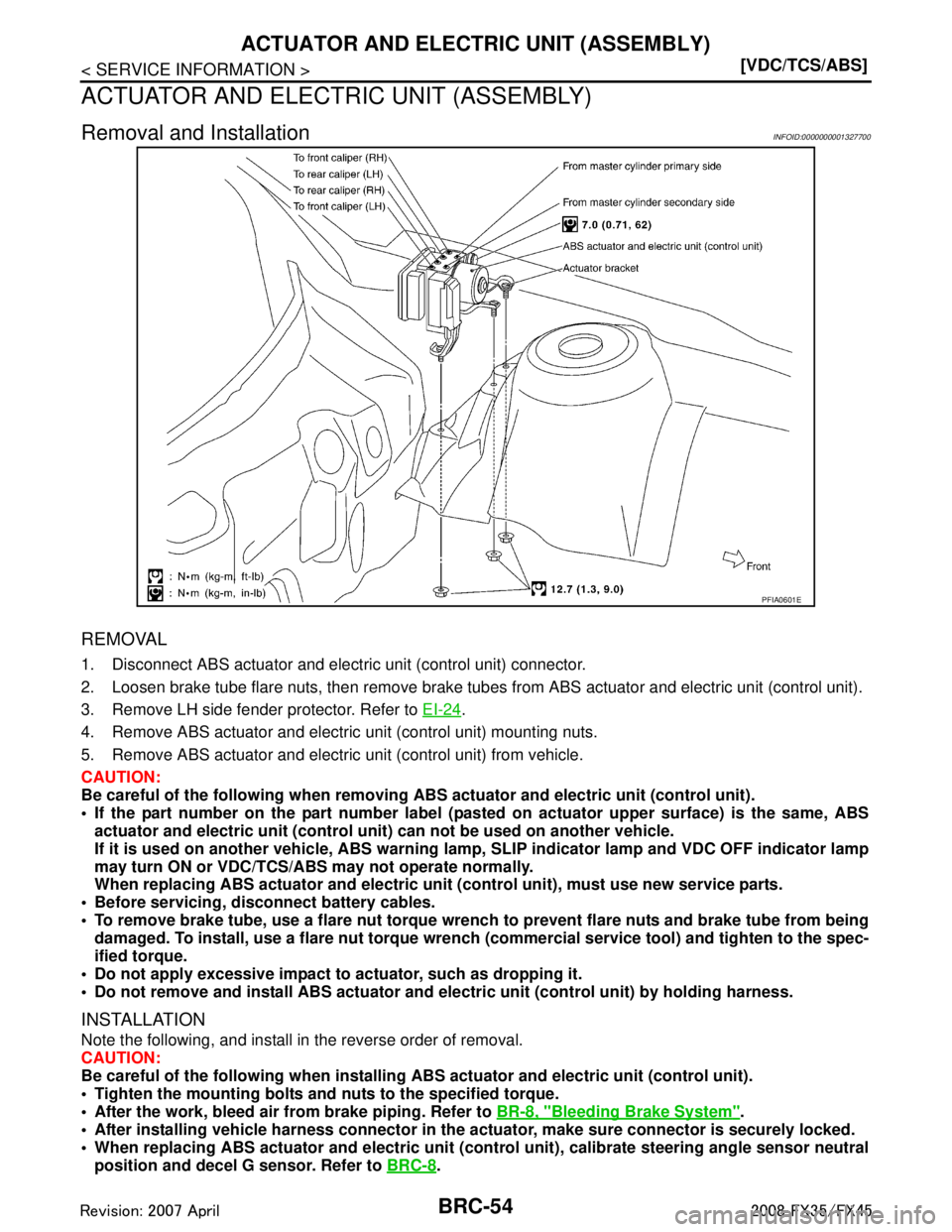

ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Removal and InstallationINFOID:0000000001327700
REMOVAL
1. Disconnect ABS actua

BRC-54
< SERVICE INFORMATION >[VDC/TCS/ABS]
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
ACTUATOR AND ELECTRIC UNIT (ASSEMBLY)
Removal and InstallationINFOID:0000000001327700
REMOVAL
1. Disconnect ABS actuator and electric unit (control unit) connector.
2. Loosen brake tube flare nuts, then remove brake tubes
from ABS actuator and electric unit (control unit).
3. Remove LH side fender protector. Refer to EI-24
.
4. Remove ABS actuator and electric unit (control unit) mounting nuts.
5. Remove ABS actuator and electric unit (control unit) from vehicle.
CAUTION:
Be careful of the following wh en removing ABS actuator and electric unit (control unit).
If the part number on the part number label (p asted on actuator upper surface) is the same, ABS
actuator and electric unit (c ontrol unit) can not be used on another vehicle.
If it is used on another vehicle, ABS warning lamp, SLIP indicator lamp and VDC OFF indicator lamp
may turn ON or VDC/TCS/ABS may not operate normally.
When replacing ABS actuator an d electric unit (control unit), must use new service parts.
Before servicing, disconnect battery cables.
To remove brake tube, use a flare nut torque wrench to prevent flare nuts and brake tube from being
damaged. To install, use a flare nut torque wren ch (commercial service tool) and tighten to the spec-
ified torque.
Do not apply excessive impact to actuator, such as dropping it.
Do not remove and install ABS actuator and el ectric unit (control unit) by holding harness.
INSTALLATION
Note the following, and install in the reverse order of removal.
CAUTION:
Be careful of the following wh en installing ABS actuator and electric unit (control unit).
Tighten the mounting bolts and nuts to the specified torque.
After the work, bleed air from brake piping. Refer to BR-8, "
Bleeding Brake System".
After installing vehicle harness connector in th e actuator, make sure connector is securely locked.
When replacing ABS actuator and el ectric unit (control unit), calibrate steering angle sensor neutral
position and decel G sensor. Refer to BRC-8
.
PFIA0601E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1070 of 3924

INFINITI FX35 2008 Service Manual
G SENSORBRC-55
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

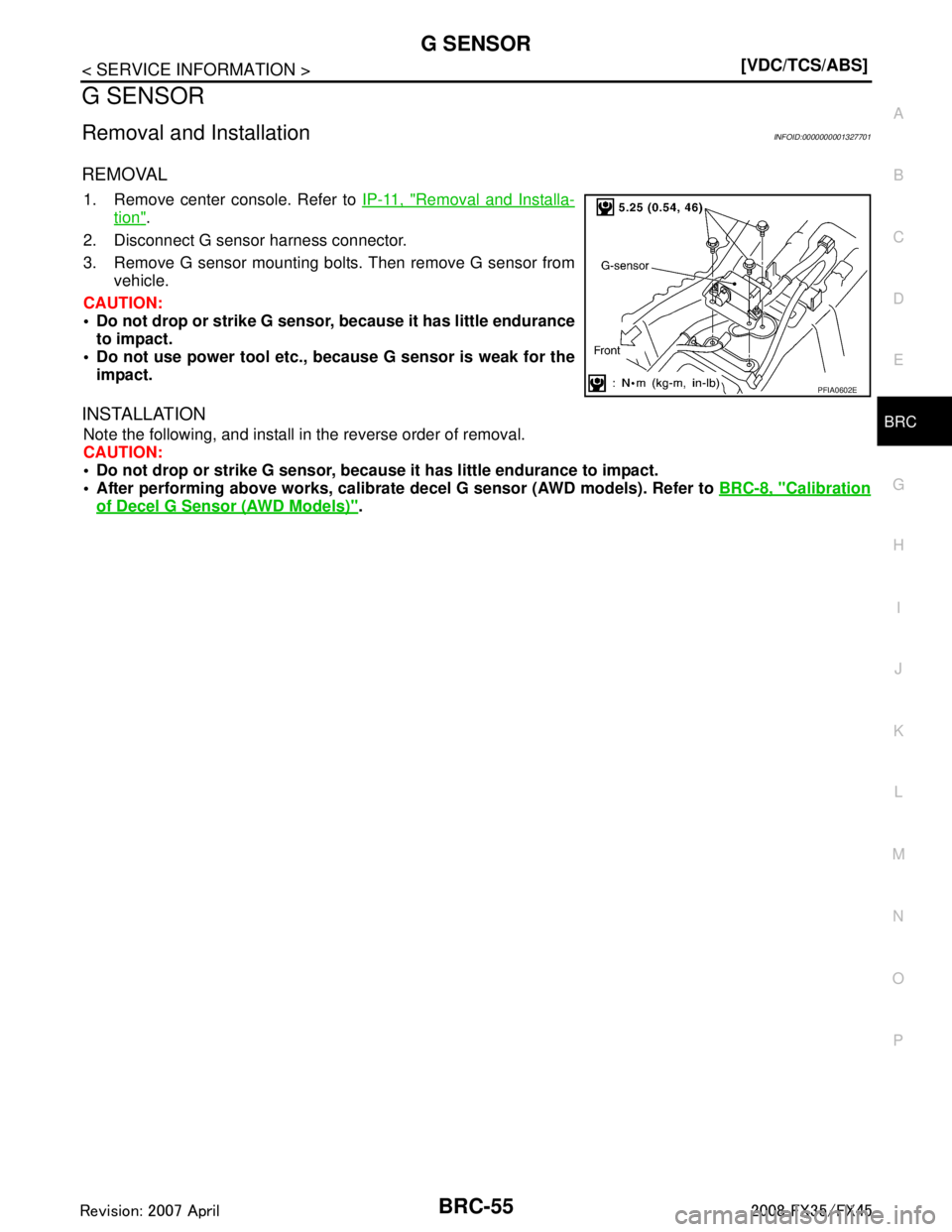

G SENSOR
Removal and InstallationINFOID:0000000001327701
REMOVAL
1. Remove center console. Refer to IP-11, "Rem

Page 1071 of 3924

INFINITI FX35 2008 Service Manual
BRC-56
< SERVICE INFORMATION >[VDC/TCS/ABS]

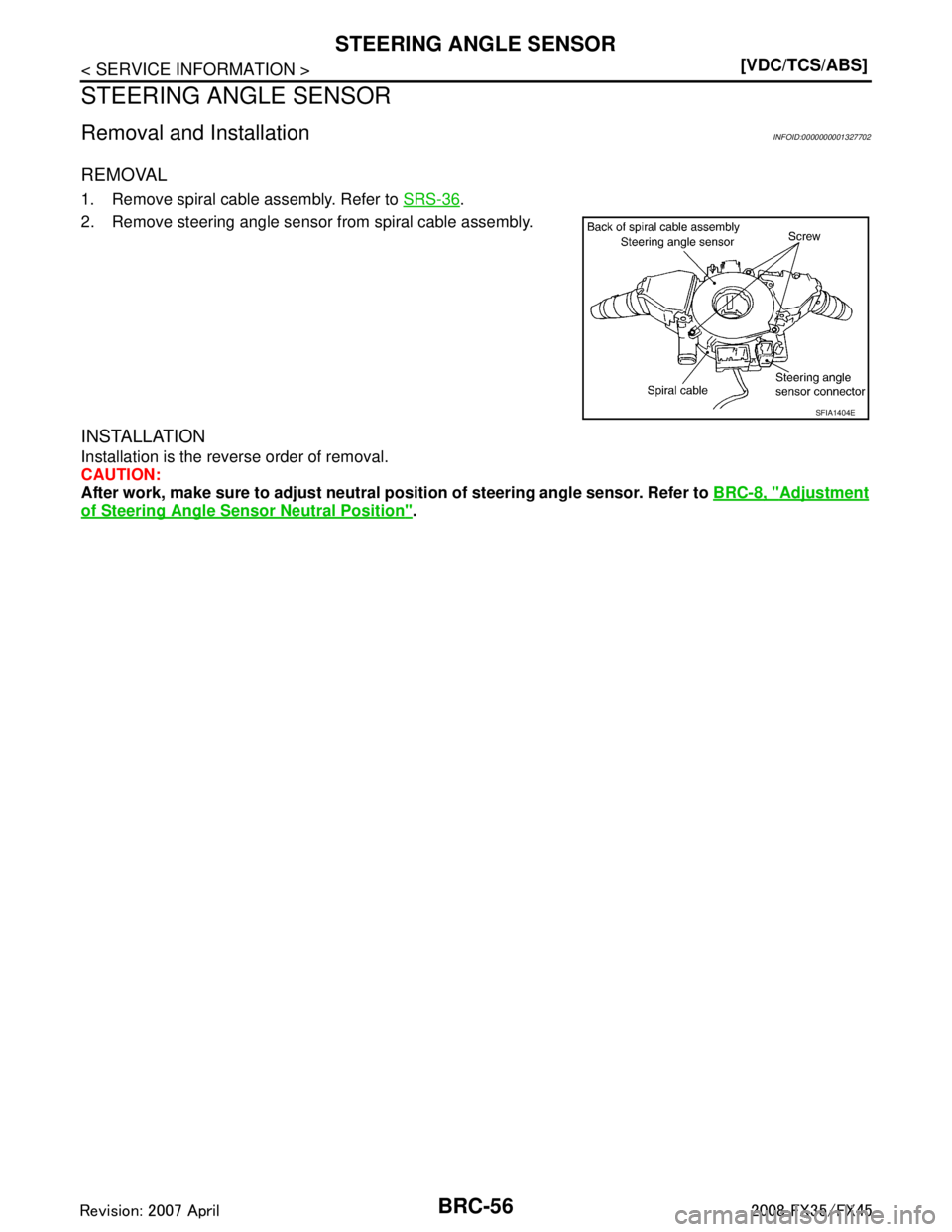

STEERING ANGLE SENSOR
STEERING ANGLE SENSOR
Removal and InstallationINFOID:0000000001327702
REMOVAL
1. Remove spiral cable assembly. Refer to
SRS-36.
2. R

Page 1072 of 3924

INFINITI FX35 2008 Service Manual
CO-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION CO
A
CO
N
O P
CONTENTS
ENGINE COOLING SYSTEM
VQ35DE
SERVICE INFORMATION .. ..........................
3
PRECAUTIONS .........................................

CO-1
ENGINE
C
DE
F
G H
I
J
K L
M
SECTION CO
A
CO
N
O P
CONTENTS
ENGINE COOLING SYSTEM
VQ35DE
SERVICE INFORMATION .. ..........................
3
PRECAUTIONS .............................................. .....3
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ......
3
Precaution for Liquid Gasket .....................................3
PREPARATION ...................................................5
Special Service Tool ........................................... ......5
Commercial Service Tool ..........................................5
OVERHEATING CAUSE ANALYSIS ..................7
Troubleshooting Chart ......................................... ......7
COOLING SYSTEM ....................................... .....9
Cooling Circuit ..................................................... ......9
System Chart ............................................................9
ENGINE COOLANT ...........................................10
Inspection ............................................................ ....10
Changing Engine Coolant .......................................10
RADIATOR .........................................................13
Component .......................................................... ....13
Removal and Installation .........................................13
Checking Radiator Cap ...........................................14
Checking Radiator ...................................................15
RADIATOR (ALUMINUM TYPE) ........................16
Component .......................................................... ....16
Disassembly and Assembly ....................................16
COOLING FAN ...................................................20
Component .......................................................... ....20
Removal and Installation .........................................20
Disassembly and Assembly ....................................20
WATER PUMP ...................................................22
Component .......................................................... ....22
Removal and Installation .........................................22
WATER INLET AND THERMOSTAT ASSEM-
BLY ....................................................................
27
Component .......................................................... ....27
Removal and Installation .........................................27
WATER OUTLET AND WATER PIPING ..........29
Component ..............................................................29
Removal and Installation .........................................29
SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................
31
Standard and Limit ..................................................31
VK45DE
SERVICE INFORMATION .. .........................
32
PRECAUTIONS .................................................32
Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ............................................................. ....
32
PREPARATION .................................................33
Special Service Tool ................................................33
Commercial Service Tool ........................................33
OVERHEATING CAUSE ANALYSIS ................34
Troubleshooting Chart .............................................34
COOLING SYSTEM ..........................................36
Cooling Circuit .........................................................36
System Chart ...........................................................36
ENGINE COOLANT ..........................................37
Inspection ................................................................37
Changing Engine Coolant ........................................37
RADIATOR ....................................... .................40
Component .......................................................... ....40
Removal and Installation .........................................40
Checking Radiator Cap ...........................................42
Checking Radiator ...................................................43
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
