Page 2537 of 3924

INFINITI FX35 2008 Service Manual
ROCKER COVEREM-53
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
4. Tighten bolts in two steps separately in numerical order as
shown in the figure.
5. Install oil catcher and oil f

Page 2538 of 3924

INFINITI FX35 2008 Service Manual
EM-54
< SERVICE INFORMATION >[VQ35DE]
FRONT TIMING CHAIN CASE
FRONT TIMING CHAIN CASE
Removal and InstallationINFOID:0000000001325728
NOTE:
This section describes removal/installation procedure
of

EM-54
< SERVICE INFORMATION >[VQ35DE]
FRONT TIMING CHAIN CASE
FRONT TIMING CHAIN CASE
Removal and InstallationINFOID:0000000001325728
NOTE:
This section describes removal/installation procedure
of front timing chain case and timing chain related
parts without removing oil pan (upper) on the vehicle.
When oil pan (upper) needs to be removed or installed, or when rear timing chain case is removed or installed, remove oil pans (upper and lower) first. Then remove front timing chain case, timing chain related
parts, and rear timing chain case in this order, and install in reverse order of removal. Refer to EM-64, "
Com-
ponent".
Refer to EM-64, "
Component" for component parts location.
REMOVAL
1. Disconnect negative battery terminal. Refer to SC-4, "How to Handle Battery".
2. Remove engine cover with power tool. Refer to EM-19, "
Component".
3. Remove air cleaner case assembly. Refer to EM-17, "
Component".
4. Remove front and rear engine undercover with power tool.
5. Release the fuel pressure. Refer to EC-87, "
Fuel Pressure Check".
6. Drain engine oil. Refer to LU-7, "
Changing Engine Oil".
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
7. Drain engine coolant from radiator. Refer to CO-10, "
Changing Engine Coolant".
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
8. Separate engine harnesses removing their brackets from front timing chain case.
9. Remove drive belts. Refer to EM-15, "
Removal and Installation".
10. Remove intake manifold colle ctors (upper and lower). Refer to EM-19, "
Component".
11. Remove power steering oil pump from bracket with piping connected, and temporarily secure it aside.
Refer to PS-27, "
On-Vehicle Inspection and Service".
12. Remove power steering oil pump bracket. Refer to PS-27, "
On-Vehicle Inspection and Service".
13. Remove alternator. Refer to SC-19, "
System Description".
14. Remove water bypass hose, water hose clamp and idler pulley bracket from front timing chain case.
15. Remove intake valve timing control covers. Loosen mounting bolts in reverse order as shown in the figure.
Use the seal cutter [SST: KV10111100 (J37228)] to cut liquidgasket for removal.
CAUTION:
Shaft is internally jointed wi th camshaft sprocket (INT) cen-
ter hole. When removing, keep it horizontal until it is com-
pletely disconnected.
SEM728G
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2539 of 3924

INFINITI FX35 2008 Service Manual
FRONT TIMING CHAIN CASEEM-55
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
16. Remove collared O-ring from front timing chain case (left and
right side).
17. Remove rocker covers (

Page 2540 of 3924

INFINITI FX35 2008 Service Manual
EM-56
< SERVICE INFORMATION >[VQ35DE]
FRONT TIMING CHAIN CASE

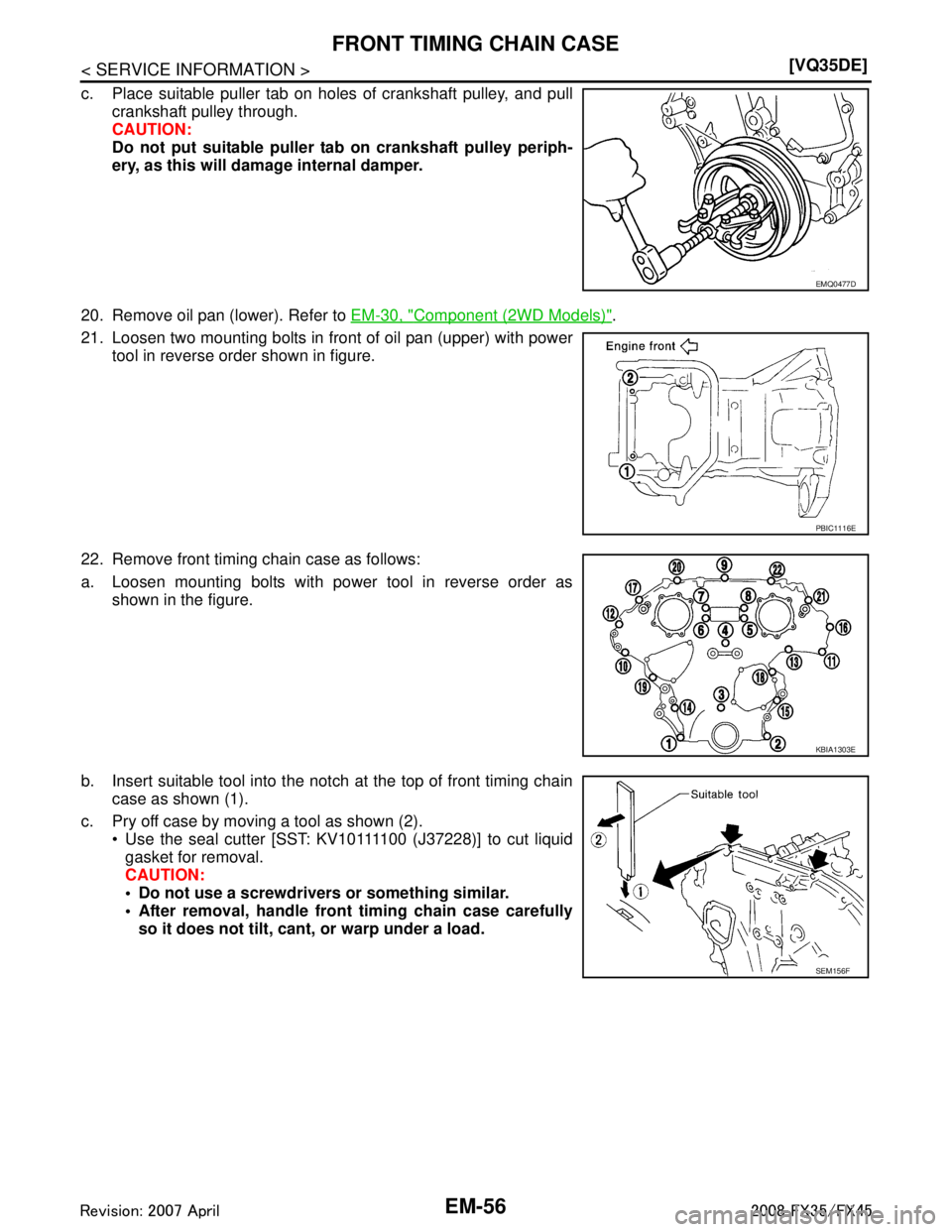

c. Place suitable puller tab on holes of crankshaft pulley, and pull
crankshaft pulley through.
CAUTION:
Do not put suitable puller tab

Page 2541 of 3924

INFINITI FX35 2008 Service Manual
FRONT TIMING CHAIN CASEEM-57
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

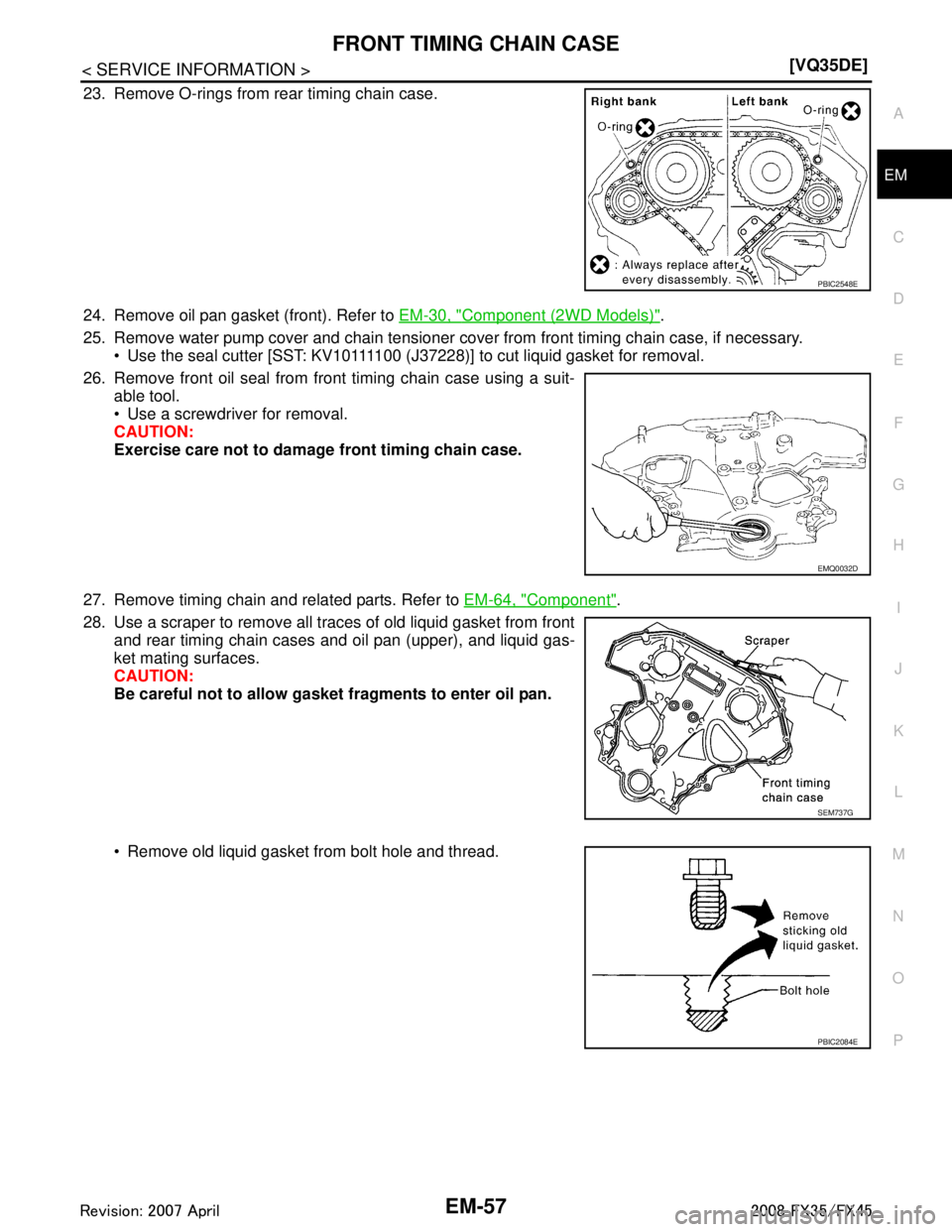

23. Remove O-rings from rear timing chain case.
24. Remove oil pan gasket (front). Refer to
EM-30, "
Com

Page 2542 of 3924

INFINITI FX35 2008 Service Manual
EM-58
< SERVICE INFORMATION >[VQ35DE]
FRONT TIMING CHAIN CASE

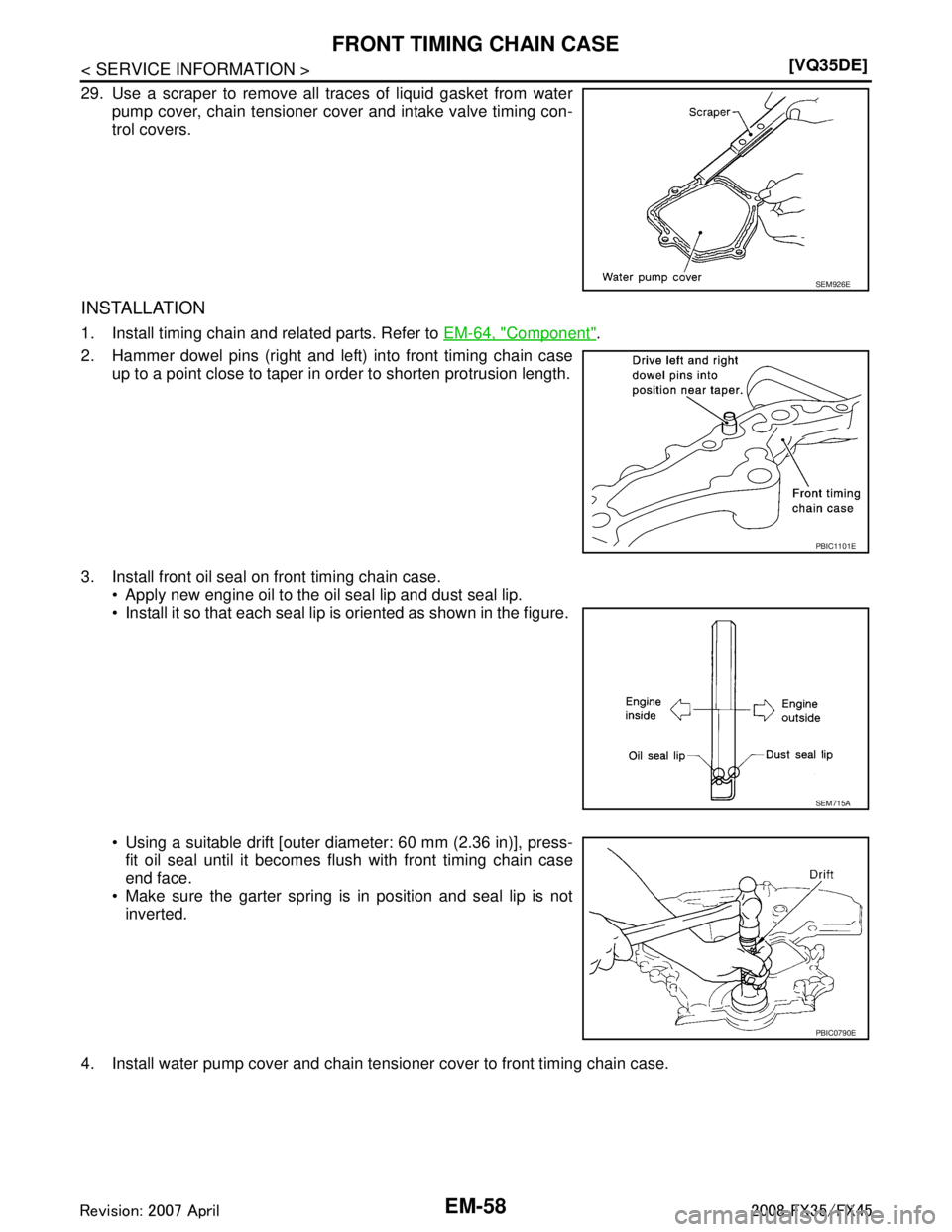

29. Use a scraper to remove all traces of liquid gasket from water
pump cover, chain tensioner cover and intake valve timing con-
trol co

Page 2543 of 3924

INFINITI FX35 2008 Service Manual
FRONT TIMING CHAIN CASEEM-59
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

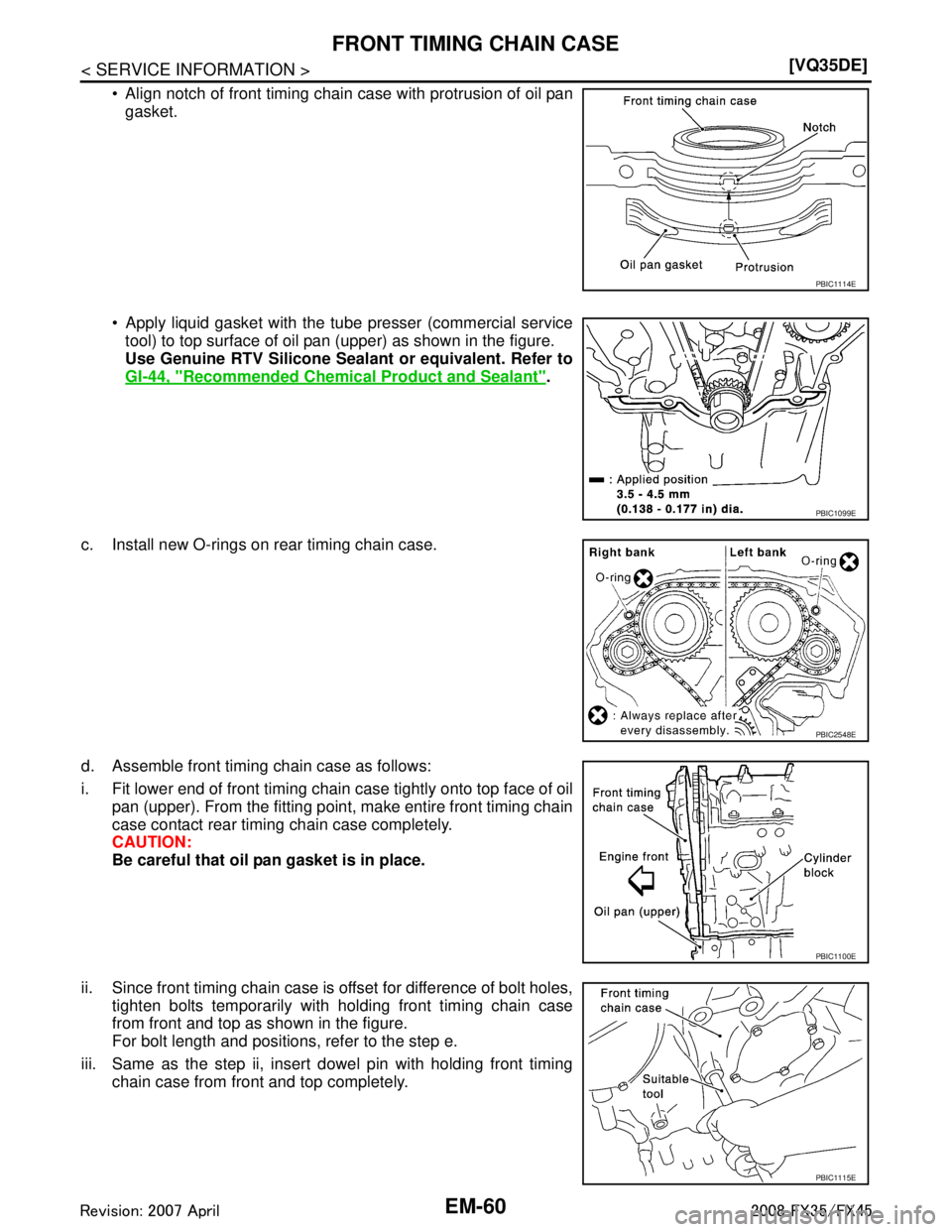

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to front timin

Page 2544 of 3924

INFINITI FX35 2008 Service Manual
EM-60
< SERVICE INFORMATION >[VQ35DE]
FRONT TIMING CHAIN CASE

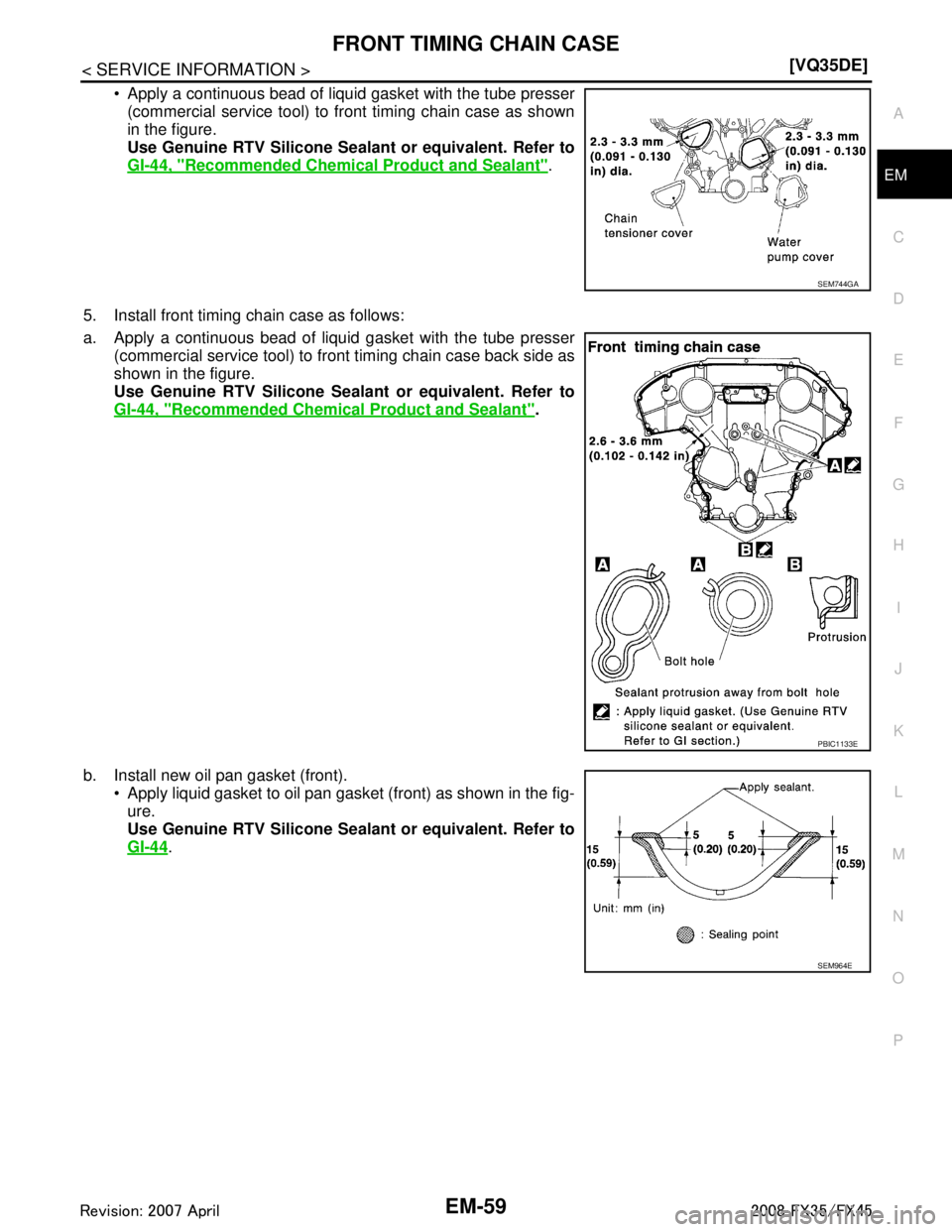

Align notch of front timing chain case with protrusion of oil pan
gasket.
Apply liquid gasket with the tube presser (commercial servi
