ASCD BRAKE SWITCHEC-545
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4. Check voltage between ASCD brake switch terminal 1 and
ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
Fuse block (J/B) connector E201
10A fuse
Harness for open or short between ASCD brake switch and fuse
>> Repair open circuit or short to ground or short power in harness or connectors.
4.CHECK ASCD BRAKE SWITCH INPUT SIGN AL CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECM term inal 108 and ASCD brake switch terminal 2.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E211, M41
Harness for open or short between ECM and ASCD brake switch
>> Repair open circuit or short to ground or short power in harness or connectors.
6.CHECK ASCD BRAKE SWITCH
Refer to EC-545, "
Component Inspection"
OK or NG
OK >> GO TO 7.
NG >> Replace ASCD brake switch.
7.CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
>> INSPECTION END
Component InspectionINFOID:0000000001326430
ASCD BRAKE SWITCH
1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector. Voltage: Battery voltage
PBIB0857E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1786 of 3924
EC-546
< SERVICE INFORMATION >[VQ35DE]
ASCD BRAKE SWITCH
3. Check continuity between ASCD brake switch terminals 1 and 2
under the following conditions.
If NG, adjust ASCD brake switch installation, refer to BR-5
, and
perform step 3 again.
Condition Continuity
Brake pedal: Fully released Should exist.
Brake pedal: Slightly depressed Should not exist.
SEC023D
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1787 of 3924
![INFINITI FX35 2008 Service Manual
ASCD INDICATOREC-547
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ASCD INDICATOR
Component DescriptionINFOID:0000000001326431
ASCD indicator lamp illuminates to indicate ASCD oper INFINITI FX35 2008 Service Manual
ASCD INDICATOREC-547
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ASCD INDICATOR
Component DescriptionINFOID:0000000001326431
ASCD indicator lamp illuminates to indicate ASCD oper](/manual-img/42/57017/w960_57017-1786.png)
ASCD INDICATOREC-547
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
ASCD INDICATOR
Component DescriptionINFOID:0000000001326431
ASCD indicator lamp illuminates to indicate ASCD operation status. Lamp has two indicators, CRUISE, SET,
and is integrated in combination meter.
CRUISE indicator illuminates when MAIN switch on ASCD
steering switch is turned ON to indicated that
ASCD system is ready for operation.
SET indicator illuminates when following conditions are met.
CRUISE indicator is illuminated.
SET/COAST switch on ASCD steering switch is tur ned ON while vehicle speed is within the range of ASCD
setting.
SET indicator remains lit during ASCD control.
Refer to EC-37
for the ASCD function.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326432
Specification data are reference value.
MONITOR ITEM CONDITION SPECIFICATION
CRUISE LAMP Ignition switch: ON ON/OFF (MAIN) switch: Pressed
at the 1st time → at the 2nd time ON
→ OFF
SET LAMP MAIN switch: ON
When vehicle speed is be-
tween 40km/h (25MPH) and
144km/h (89MPH) ASCD: Operating ON
ASCD: Not operating OFF
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1788 of 3924
EC-548
< SERVICE INFORMATION >[VQ35DE]
ASCD INDICATOR

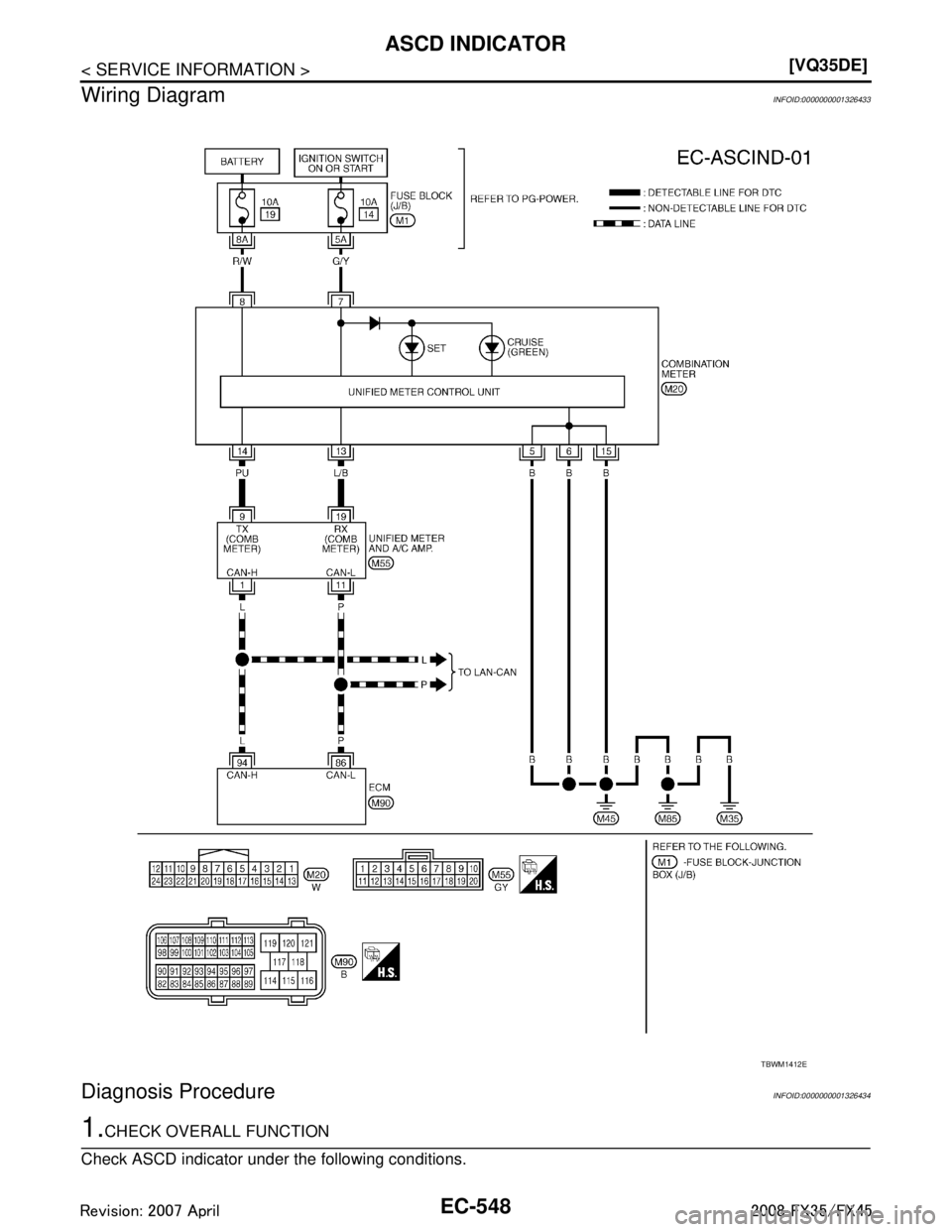

Wiring Diagram
INFOID:0000000001326433
Diagnosis ProcedureINFOID:0000000001326434
1.CHECK OVERALL FUNCTION
Check ASCD indicator under the following conditions.
TBWM1412E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1789 of 3924
ASCD INDICATOREC-549
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >>
INSPECTION END
NG >> GO TO 2.
2.CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
OK >> GO TO 3.
NG >> Perform trouble diagnoses for DTC U1000, U1001. Refer to EC-146
.
3.CHECK DTC WITH “UNIFIED METER AND A/C AMP.”
Refer to DI-27, "
CONSULT-III Function (METER/M&A)".
OK or NG
OK >> GO TO 4.
NG >> Go to DI-30, "
DTC [B2202] Meter Communication Circuit".
4.CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
>> INSPECTION END
ASCD INDICATOR CONDITION SPECIFICATION
CRUISE LAMP Ignition switch: ON MAIN switch: pressed at the 1st
time → at the 2nd time ON
→ OFF
SET LAMP MAIN switch: ON
When vehicle speed is be-
tween 40km/h (25MPH) and
144km/h (89MPH) ASCD: Operating ON
ASCD: Not operating OFF
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1790 of 3924
![INFINITI FX35 2008 Service Manual
EC-550
< SERVICE INFORMATION >[VQ35DE]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
DescriptionINFOID:0000000001326435
The electrical load signal (Headlamp switch signal, et
c.) is transferred throu INFINITI FX35 2008 Service Manual
EC-550
< SERVICE INFORMATION >[VQ35DE]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
DescriptionINFOID:0000000001326435
The electrical load signal (Headlamp switch signal, et
c.) is transferred throu](/manual-img/42/57017/w960_57017-1789.png)
EC-550
< SERVICE INFORMATION >[VQ35DE]
ELECTRICAL LOAD SIGNAL
ELECTRICAL LOAD SIGNAL
DescriptionINFOID:0000000001326435
The electrical load signal (Headlamp switch signal, et
c.) is transferred through the CAN communication line
from BCM to ECM via IPDM E/R.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326436
Specification data are reference values.
Diagnosis ProcedureINFOID:0000000001326437
1.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-I
1. Turn ignition switch ON.
2. Connect CONSULT-III and select “DATA MONITOR” mode.
3. Select “LOAD SIGNAL” and check indication under the following conditions.
OK or NG
OK >> GO TO 2.
NG >> GO TO 4.
2.CHECK LOAD SIGNAL CIRCUIT OVERALL FUNCTION-II
Check “LOAD SIGNAL” indication under the following conditions.
OK or NG
OK >> GO TO 3.
NG >> GO TO 5.
3.CHECK HEATER FAN SIGNAL CIRCUIT OVERALL FUNCTION
Check “HEATER FAN SW” in “DATA MONITOR” m ode with CONSULT-III under the following conditions.
OK or NG
OK >> INSPECTION END
NG >> GO TO 6.
4.CHECK REAR WINDOW DEFOGGER SYSTEM
MONITOR ITEM CONDITION SPECIFICATION
LOAD SIGNAL Ignition switch: ON Rear window defogger switch is ON
and/or lighting switch is in 2nd.
ON
Rear window defogger switch is OFF
and lighting switch is OFF. OFF
HEATER FAN SW Engine: After warming up, idle the
engine Heater fan: Operating. ON
Heater fan: Not operating OFF
Condition Indication
Rear window defogger switch: ON ON
Rear window defogger switch: OFF OFF
Condition Indication
Lighting switch: ON at 2nd position ON Lighting switch: OFF OFF
Condition Indication
Heater fan: Operating ON
Heater fan: Not operating OFF
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1791 of 3924
ELECTRICAL LOAD SIGNALEC-551
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Refer to
GW-60.
>> INSPECTION END
5.CHECK HEADLAMP SYSTEM
Refer to LT- 5
.
>> INSPECTION END
6.CHECK HEATER FAN CONTROL SYSTEM
Refer to AT C - 3 2
.
>> INSPECTION END
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1792 of 3924
![INFINITI FX35 2008 Service Manual
EC-552
< SERVICE INFORMATION >[VQ35DE]
FUEL INJECTOR
FUEL INJECTOR
Component DescriptionINFOID:0000000001326438
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to INFINITI FX35 2008 Service Manual
EC-552
< SERVICE INFORMATION >[VQ35DE]
FUEL INJECTOR
FUEL INJECTOR
Component DescriptionINFOID:0000000001326438
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to](/manual-img/42/57017/w960_57017-1791.png)
EC-552
< SERVICE INFORMATION >[VQ35DE]
FUEL INJECTOR
FUEL INJECTOR
Component DescriptionINFOID:0000000001326438
The fuel injector is a small, precise solenoid valve. When the ECM
supplies a ground to the fuel injector circuit, the coil in the fuel injec-
tor is energized. The energized coil pulls the Ball valve back and
allows fuel to flow through the fuel injector into the intake manifold.
The amount of fuel injected depends upon the fuel injection pulse
duration. Pulse duration is the length of time the fuel injector remains
open. The ECM controls the injection pulse duration based on
engine fuel needs.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326439
Specification data are reference values.
SEF375Z
MONITOR ITEM CONDITION SPECIFICATION
B/FUEL SCHDL See EC-131
.
INJ PULSE-B1
INJ PULSE-B2 Engine: After warming up
Selector lever: P or N
Air conditioner switch: OFF
No load Idle 2.0 - 3.0 msec
2,000 rpm 1.9 - 2.9 msec
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
