INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-253
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
In grinding crankshaft pin to
use undersize bearings, keep the
fillet R [1.5 mm (0.059 in)].
Bearing undersize t

Page 2738 of 3924

INFINITI FX35 2008 Service Manual
EM-254
< SERVICE INFORMATION >[VK45DE]
CYLINDER BLOCK
2. Correspond the measured dimension in “Cylinder block main bearing housing inner diameter” row of
“Main Bearing Selection Table”.
3. Co

Page 2739 of 3924

INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-255
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

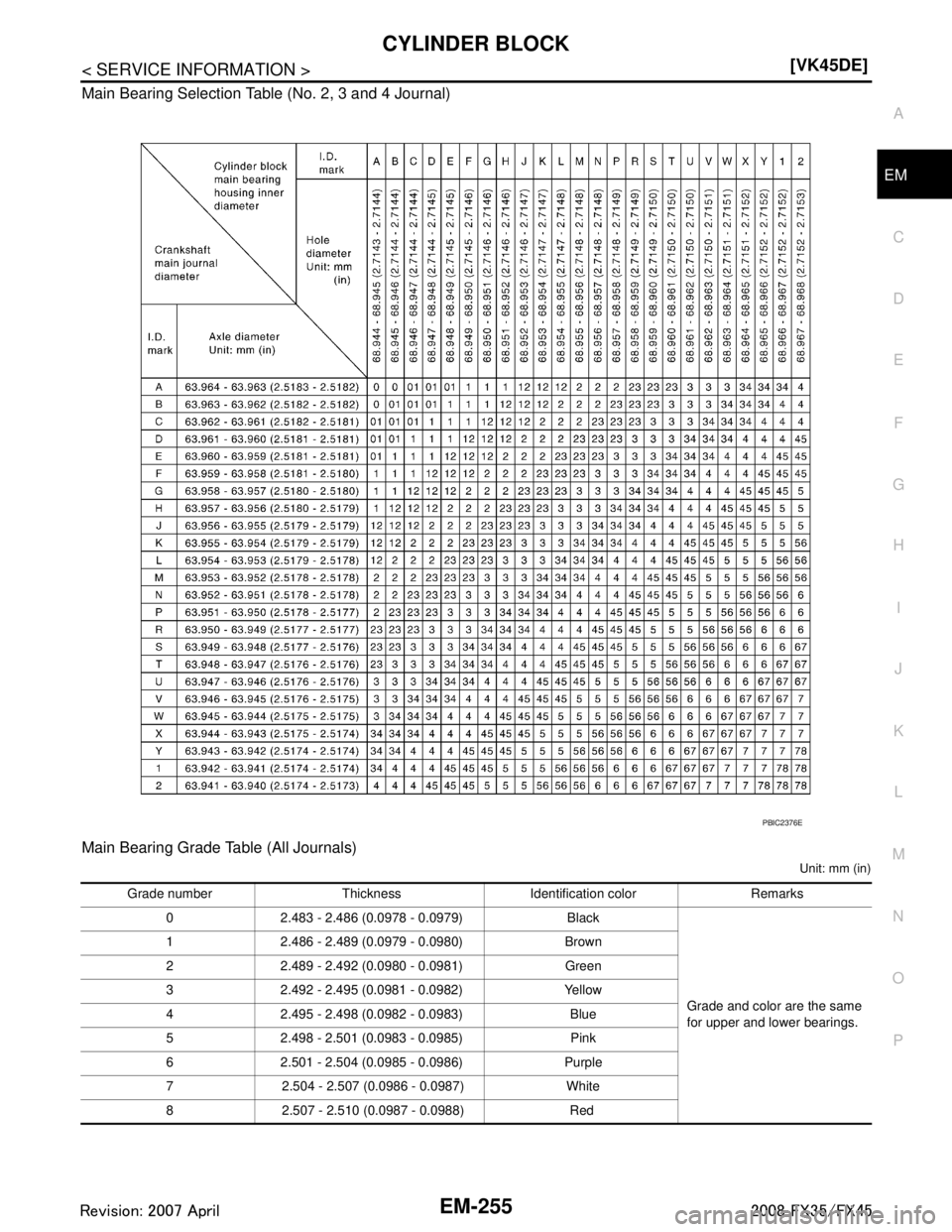

Main Bearing Selection Table (No. 2, 3 and 4 Journal)
Main Bearing Grade Table (All Journals)
Unit: mm (in)
PBIC2

Page 2740 of 3924

INFINITI FX35 2008 Service Manual
EM-256
< SERVICE INFORMATION >[VK45DE]
CYLINDER BLOCK
Use Undersize Bearing Usage Guide
When the specified main bearing oil clearance is not obtained with standard size main bearings, use under-
si

Page 2741 of 3924

INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-257
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CONNECTING ROD SIDE CLEARANCE
Measure the side clearance between connecting rod and crank-
shaft arm with feele

Page 2742 of 3924

INFINITI FX35 2008 Service Manual
EM-258
< SERVICE INFORMATION >[VK45DE]
CYLINDER BLOCK
Measure the side clearance of piston ring and piston ring groove
with feeler gauge.
If the measured value exceeds the limit, replace piston

Page 2743 of 3924

INFINITI FX35 2008 Service Manual
CYLINDER BLOCKEM-259
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CONNECTING ROD BIG END DIAMETER
Install connecting rod bearing cap without installing connecting rod
bearing, a

Page 2744 of 3924

INFINITI FX35 2008 Service Manual
EM-260
< SERVICE INFORMATION >[VK45DE]
CYLINDER BLOCK
If replacing connecting rod assembly, refer to "CONNECTING
ROD BEARING OIL CLEARANCE" to select the connecting rod
bearing.
Factory installed p

EM-260
< SERVICE INFORMATION >[VK45DE]
CYLINDER BLOCK
If replacing connecting rod assembly, refer to "CONNECTING
ROD BEARING OIL CLEARANCE" to select the connecting rod
bearing.
Factory installed parts grading: Service parts apply only to grade “0”.
Unit: mm (in)
*: After installing in connecting rod
CYLINDER BLOCK DISTORTION
Using scraper, remove gasket on the cylinder block surface, and also remove engine oil, scale, carbon, orother contamination.
CAUTION:
Be careful not to allow gasket flakes to en ter engine oil or engine coolant passages.
Measure the distortion on the cylinder block upper face at some different points in six directions with straightedge and feeler gauge.
If it exceeds the limit, replace cylinder block.
MAIN BEARING HOUSING INNER DIAMETER
Install main bearing caps and main bearing without installing main bearings, and tighten main bearing cap bolts to the specified
torque. Refer to EM-242, "
Disassembly and Assembly" for the
tightening procedure.
Measure the inner diameter of main bearing housing with bore gauge.
If out of the standard, replace cylinder block and main bearing caps as assembly.
NOTE:
Cylinder block cannot be replaced as a single part, because it is
machined together with main bearing caps.
PISTON TO CYLINDER BORE CLEARANCE
Cylinder Bore Inner Diameter
PBIC2164E
Grade 0 1
Connecting rod bushing
inner diameter * 22.000 - 22.006
(0.8661 - 0.8664) 22.006 - 22.012
(0.8664 - 0.8666)
Piston pin hole diameter 21.993 - 21.999
(0.8659 - 0.8661) 21.999 - 22.005
(0.8661 - 0.8663)
Piston pin outer diameter 21.989 - 21.995
(0.8657 - 0.8659) 21.995 - 22. 001
(0.8659 - 0.8662)
PBIC2372E
Limit : 0.1 mm (0.004 in)
SEM123C
Standard : 68.944 - 68.968 mm (2.7143 - 2.7153 in)
PBIC1643E
