INFINITI FX35 2008 Service Manual
EVAPORATIVE EMISSION SYSTEMEC-41
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

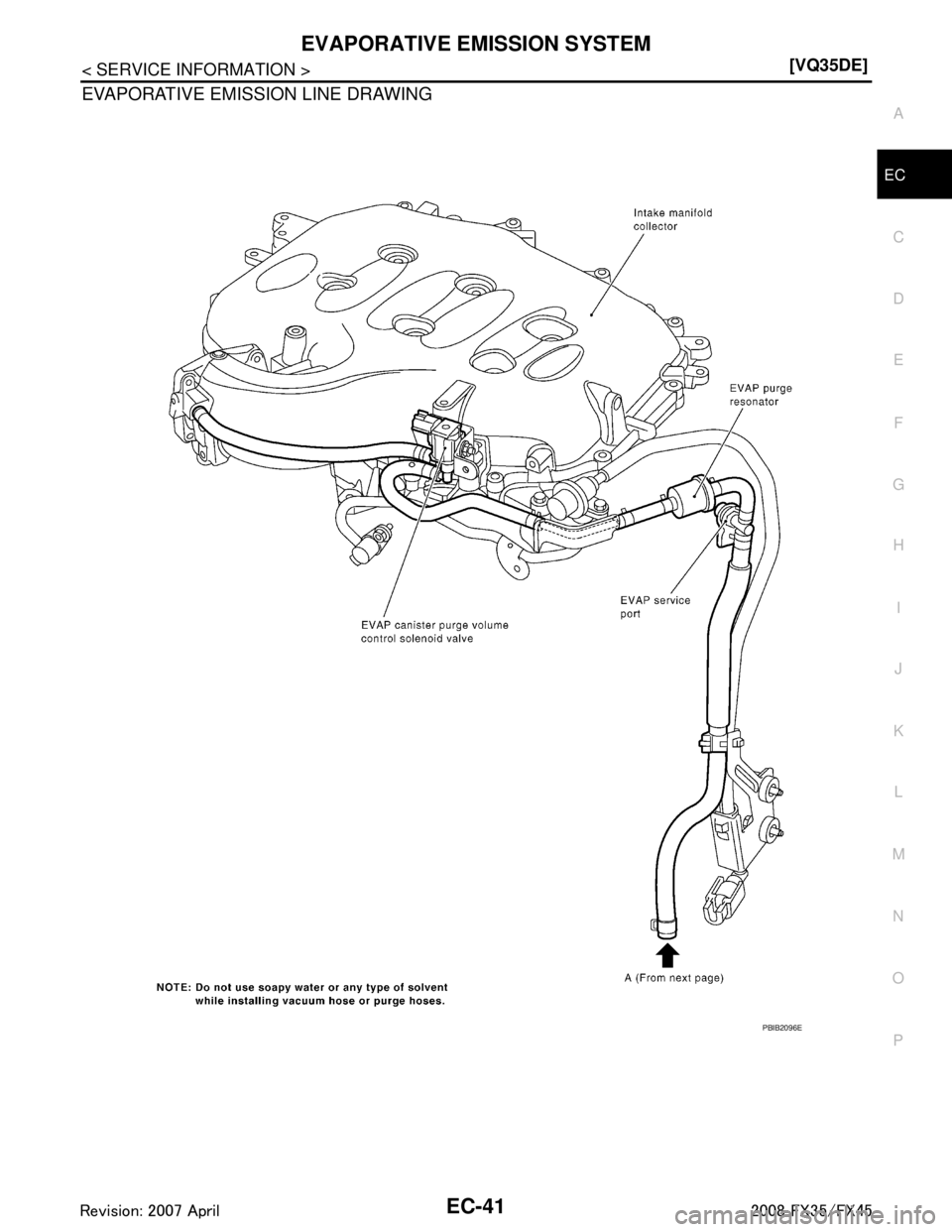

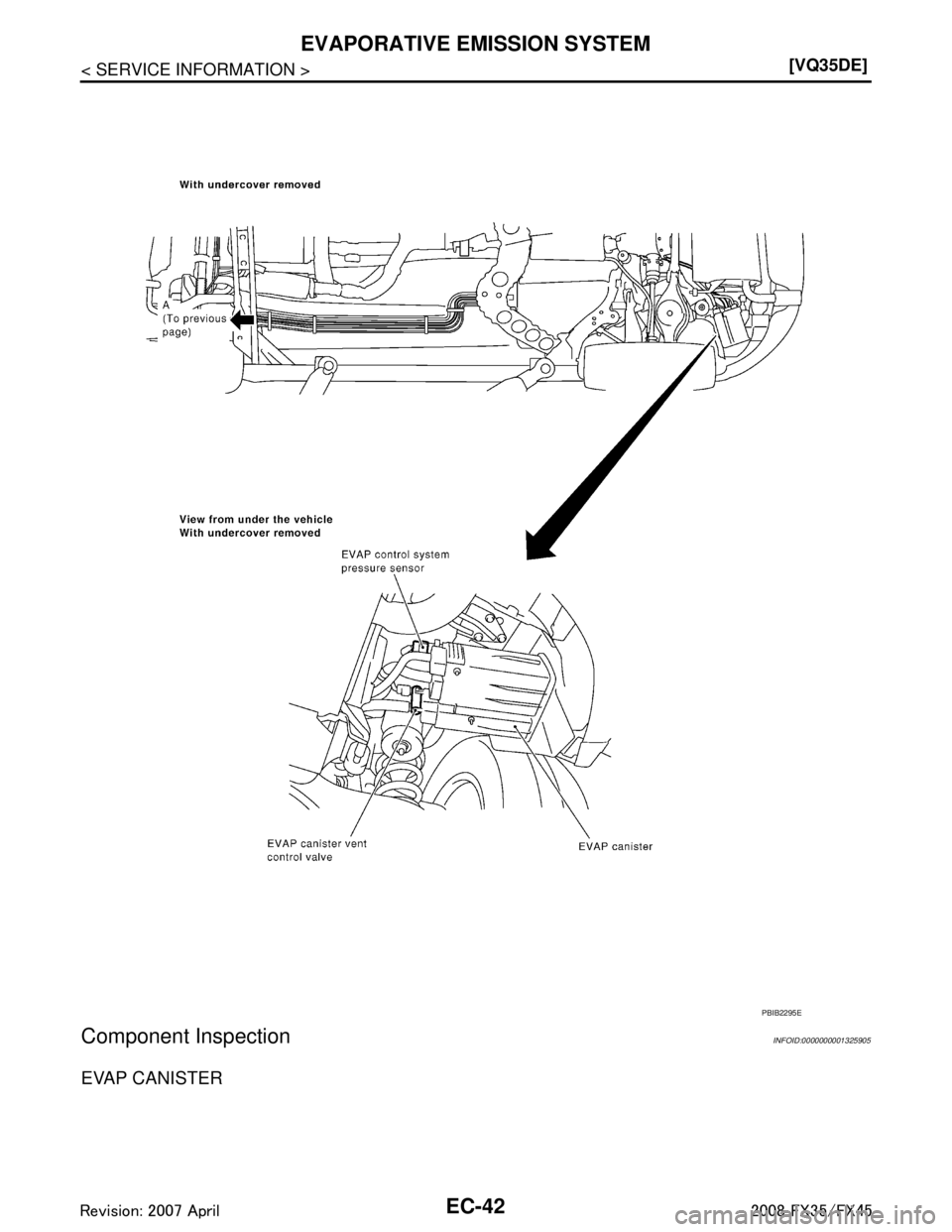

EVAPORATIVE EMISSION LINE DRAWING
PBIB2096E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3

Page 1282 of 3924

INFINITI FX35 2008 Service Manual
EC-42
< SERVICE INFORMATION >[VQ35DE]
EVAPORATIVE EMISSION SYSTEM
Component Inspection
INFOID:0000000001325905

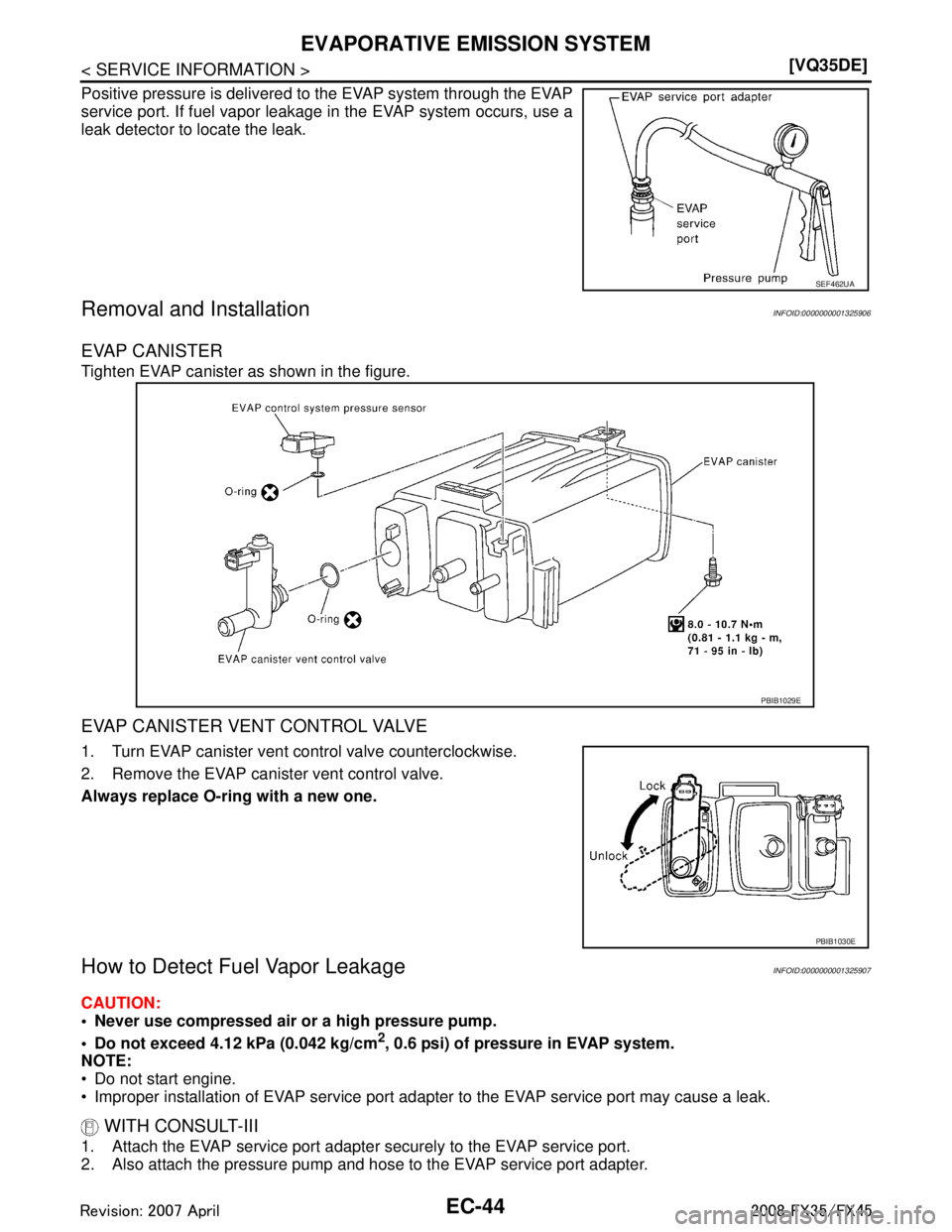

EVAP CANISTER
PBIB2295E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A98

Page 1283 of 3924

INFINITI FX35 2008 Service Manual
EVAPORATIVE EMISSION SYSTEMEC-43
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check EVAP canister as follows:
1. Block port
B.
2. Blow air into port A and check that it flows fr

Page 1284 of 3924

INFINITI FX35 2008 Service Manual
EC-44
< SERVICE INFORMATION >[VQ35DE]
EVAPORATIVE EMISSION SYSTEM

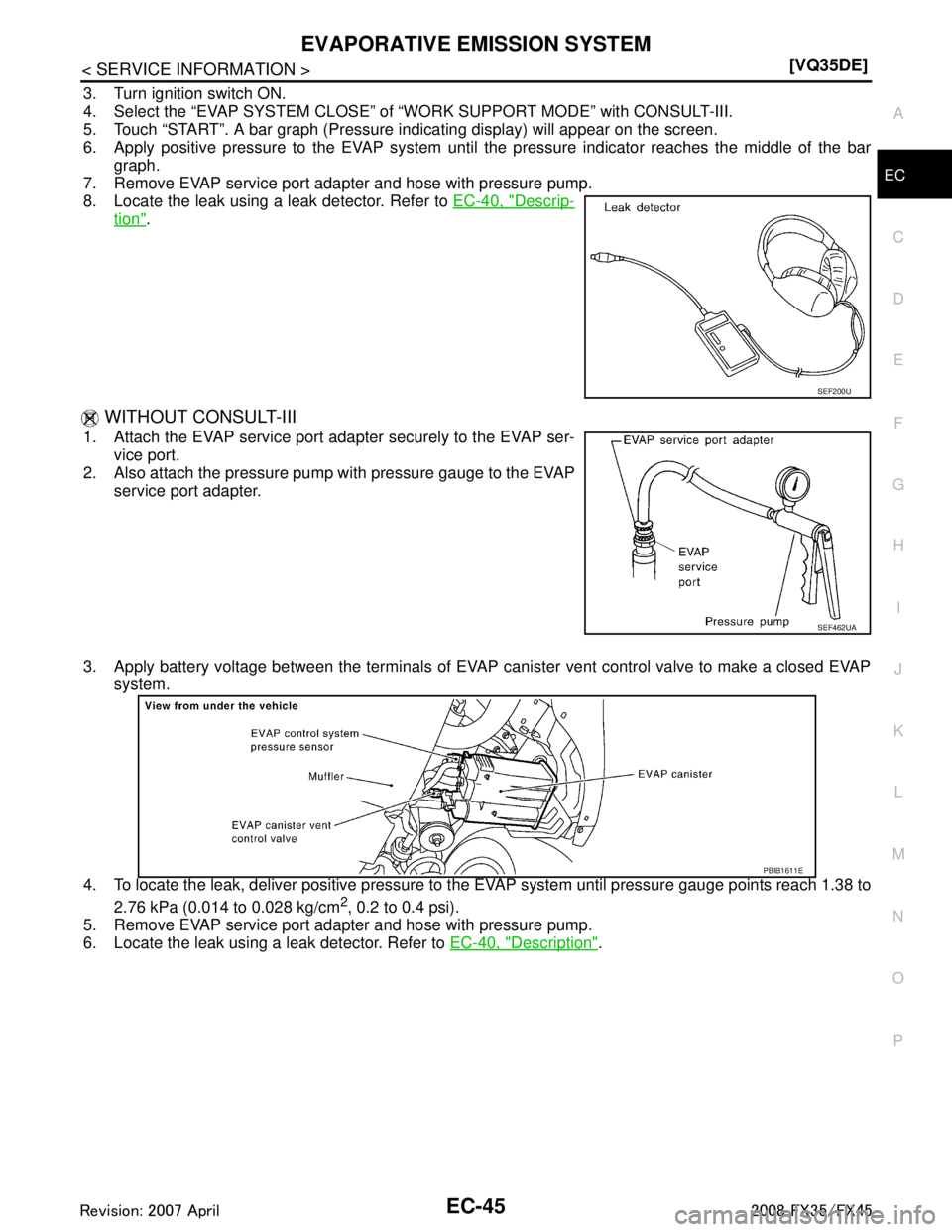

Positive pressure is delivered to the EVAP system through the EVAP
service port. If fuel vapor leak
age in the EVAP system occurs, us

Page 1285 of 3924

INFINITI FX35 2008 Service Manual
EVAPORATIVE EMISSION SYSTEMEC-45
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
3. Turn ignition switch ON.
4. Select the “EVAP SYSTEM CLOSE” of
“WORK SUPPORT MODE” with CO

Page 1286 of 3924

INFINITI FX35 2008 Service Manual
EC-46
< SERVICE INFORMATION >[VQ35DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
ON BOARD REFUELING VA
POR RECOVERY (ORVR)

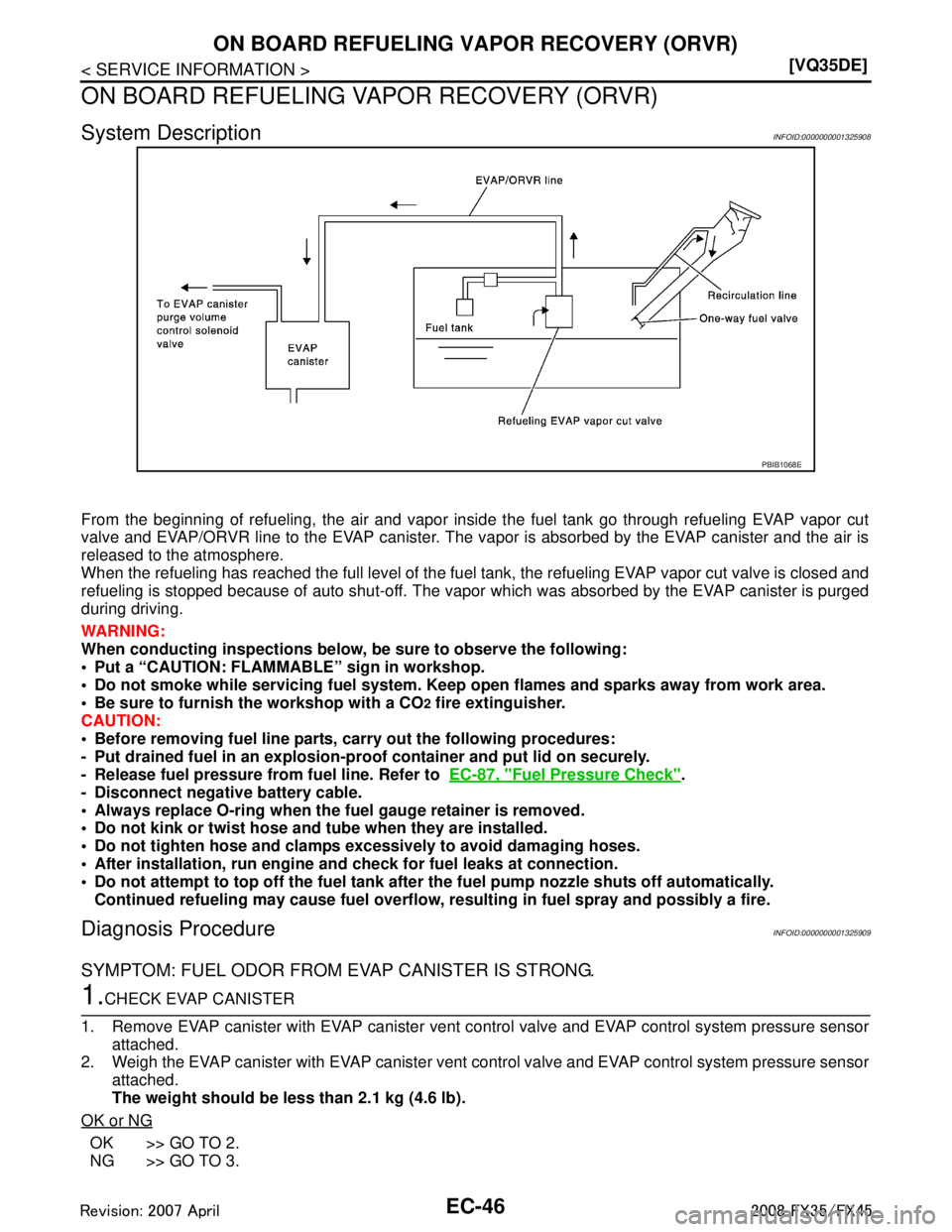

System DescriptionINFOID:0000000001325908
From the beginning of refueling, the

EC-46
< SERVICE INFORMATION >[VQ35DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
ON BOARD REFUELING VA
POR RECOVERY (ORVR)
System DescriptionINFOID:0000000001325908
From the beginning of refueling, the air and vapor insi de the fuel tank go through refueling EVAP vapor cut
valve and EVAP/ORVR line to the EVAP canister. The vapor is absorbed by the EVAP canister and the air is
released to the atmosphere.
When the refueling has reached the full level of the fuel tank, the refueling EVAP vapor cut valve is closed and
refueling is stopped because of auto shut-off. The vapor which was absorbed by the EVAP canister is purged
during driving.
WARNING:
When conducting inspections below, be sure to observe the following:
Put a “CAUTION: FLAMMABLE” sign in workshop.
Do not smoke while servicing fuel system. Keep open flames and sparks away from work area.
Be sure to furnish the workshop with a CO
2 fire extinguisher.
CAUTION:
Before removing fuel line parts, carry out the following procedures:
- Put drained fuel in an explosion-pr oof container and put lid on securely.
- Release fuel pressure from fuel line. Refer to EC-87, "
Fuel Pressure Check".
- Disconnect negative battery cable.
Always replace O-ring when the fuel gauge retainer is removed.
Do not kink or twist hose and tube when they are installed.
Do not tighten hose and clamps excessively to avoid damaging hoses.
After installation, run engine an d check for fuel leaks at connection.
Do not attempt to top off the fuel tank afte r the fuel pump nozzle shuts off automatically.
Continued refueling may cause fu el overflow, resulting in fuel spray and possibly a fire.
Diagnosis ProcedureINFOID:0000000001325909
SYMPTOM: FUEL ODOR FROM EVAP CANISTER IS STRONG.
1.CHECK EVAP CANISTER
1. Remove EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
2. Weigh the EVAP canister with EVAP canister vent control valve and EVAP control system pressure sensor
attached.
The weight should be l ess than 2.1 kg (4.6 lb).
OK or NG
OK >> GO TO 2.
NG >> GO TO 3.
PBIB1068E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1287 of 3924

INFINITI FX35 2008 Service Manual
ON BOARD REFUELING VAPOR RECOVERY (ORVR)EC-47
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

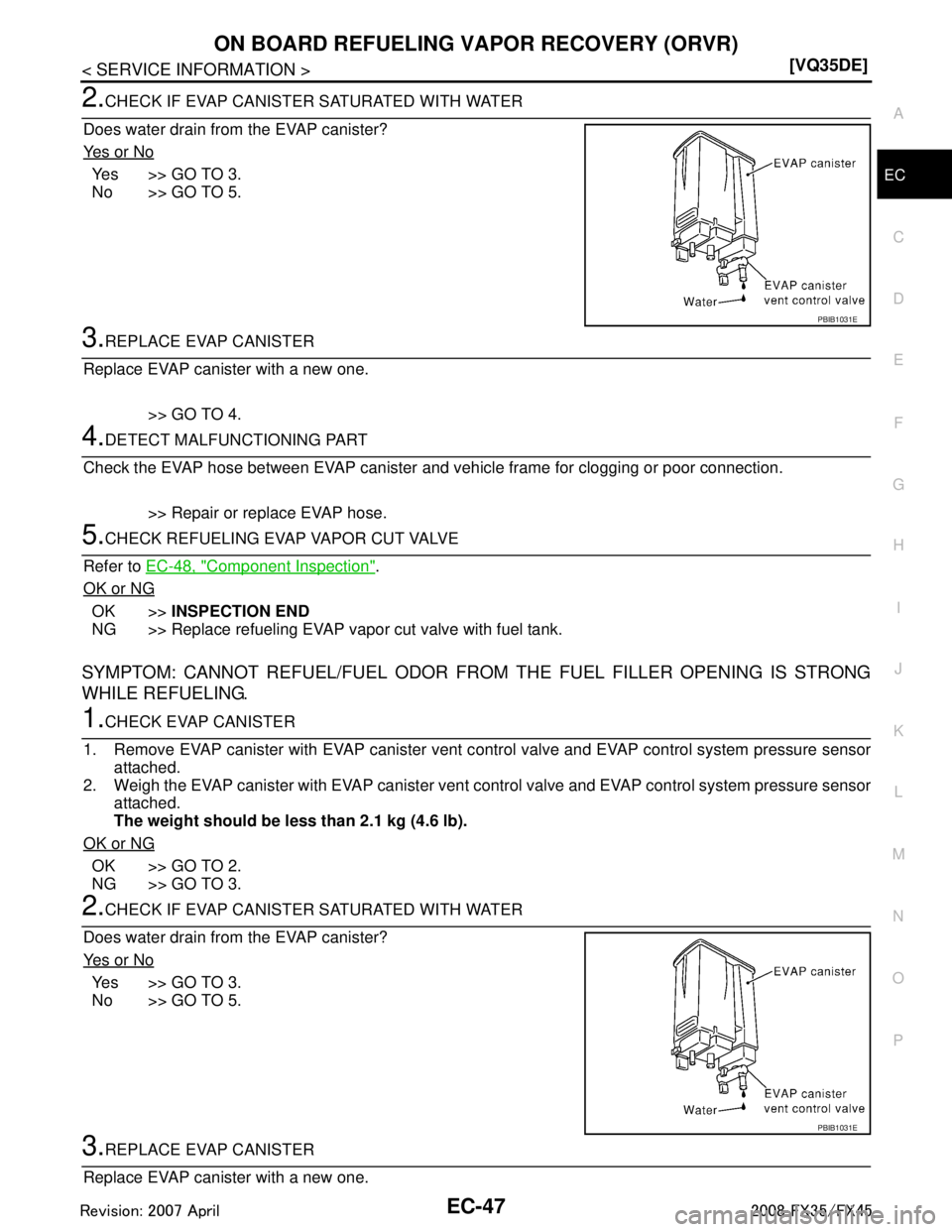

2.CHECK IF EVAP CANISTER
SATURATED WITH WATER
Does water drain from the EVAP canister?

Page 1288 of 3924

INFINITI FX35 2008 Service Manual
EC-48
< SERVICE INFORMATION >[VQ35DE]
ON BOARD REFUELING VAPOR RECOVERY (ORVR)
>> GO TO 4.

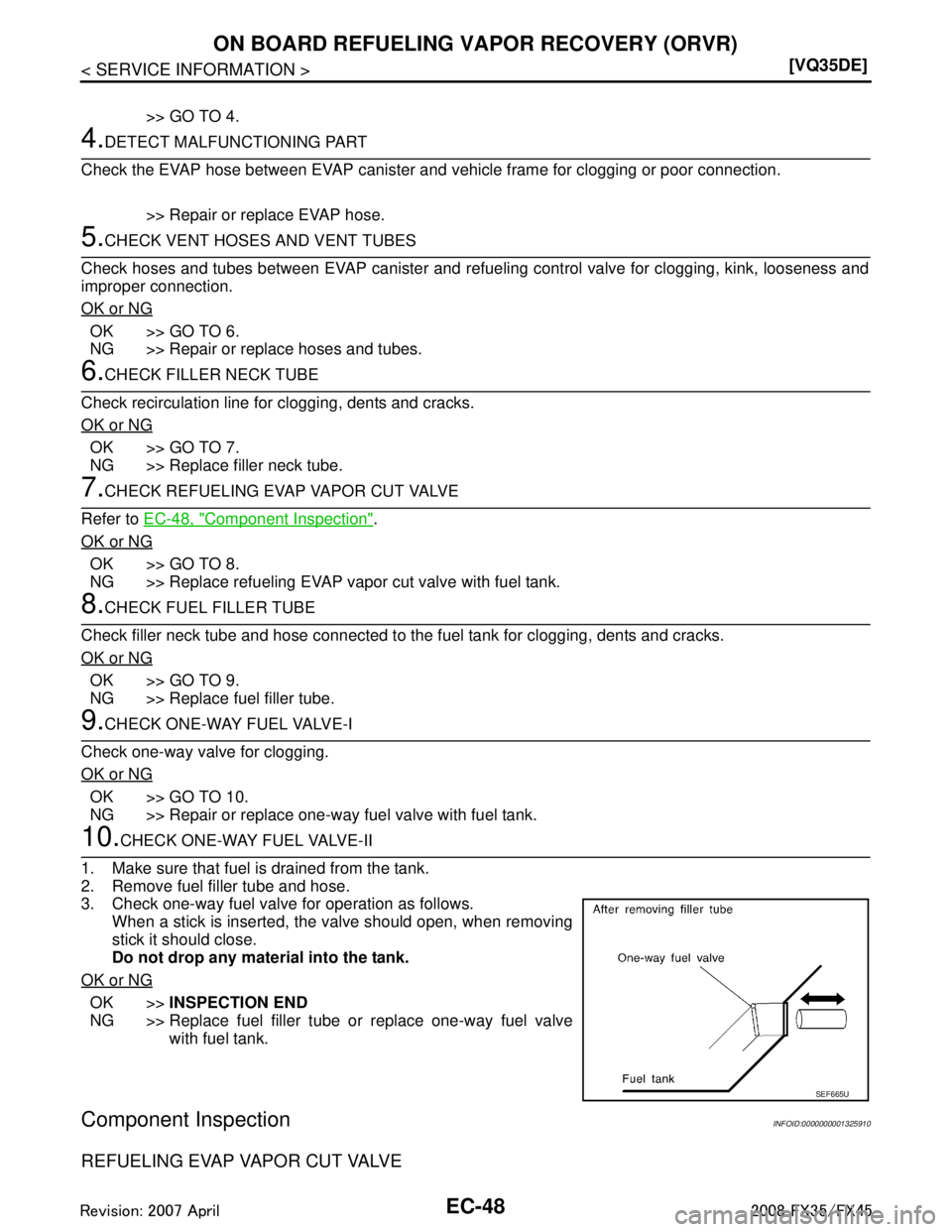

4.DETECT MALFUNCTIONING PART
Check the EVAP hose between EVAP canister and vehicle frame for clogging or po
