Page 3729 of 3924

INFINITI FX35 2008 Service Manual SE-90 < SERVICE INFORMATION > FRONT SEAT REMOVAL When removing or installing the seat trim, carefully handle it to keep dirt out and avoid damage. CAUTION:  Before removing the front seat, turn igni

Page 3730 of 3924

INFINITI FX35 2008 Service Manual FRONT SEATSE-91 < SERVICE INFORMATION > C DE F G H J K L M A B SE N O P 7. Remove the seat cushion outer finisher. 8. Remove the seat control switch assembly. 9. Remove the lumber support switch ass

Page 3731 of 3924

INFINITI FX35 2008 Service Manual SE-92 < SERVICE INFORMATION > FRONT SEAT Be sure to insert the rear end tab of the rear leg cover under the rail. REMOVAL OF SEATBACK TRIM AND PAD 1. Remove the seatback garnish. 2. Remove the retain

Page 3732 of 3924

INFINITI FX35 2008 Service Manual FRONT SEATSE-93 < SERVICE INFORMATION > C DE F G H J K L M A B SE N O P 6. Remove the heated seat connector. 7. After removing the seatback trim and pad, remove t he hog rings to separate the trim,

Page 3733 of 3924

INFINITI FX35 2008 Service Manual SE-94 < SERVICE INFORMATION > FRONT SEAT 6. Remove the retainer and clip. 7. After removing the seat cushion trim and pad, remove the hog rings to separate the trim and pad and theseat cushion heater

Page 3734 of 3924

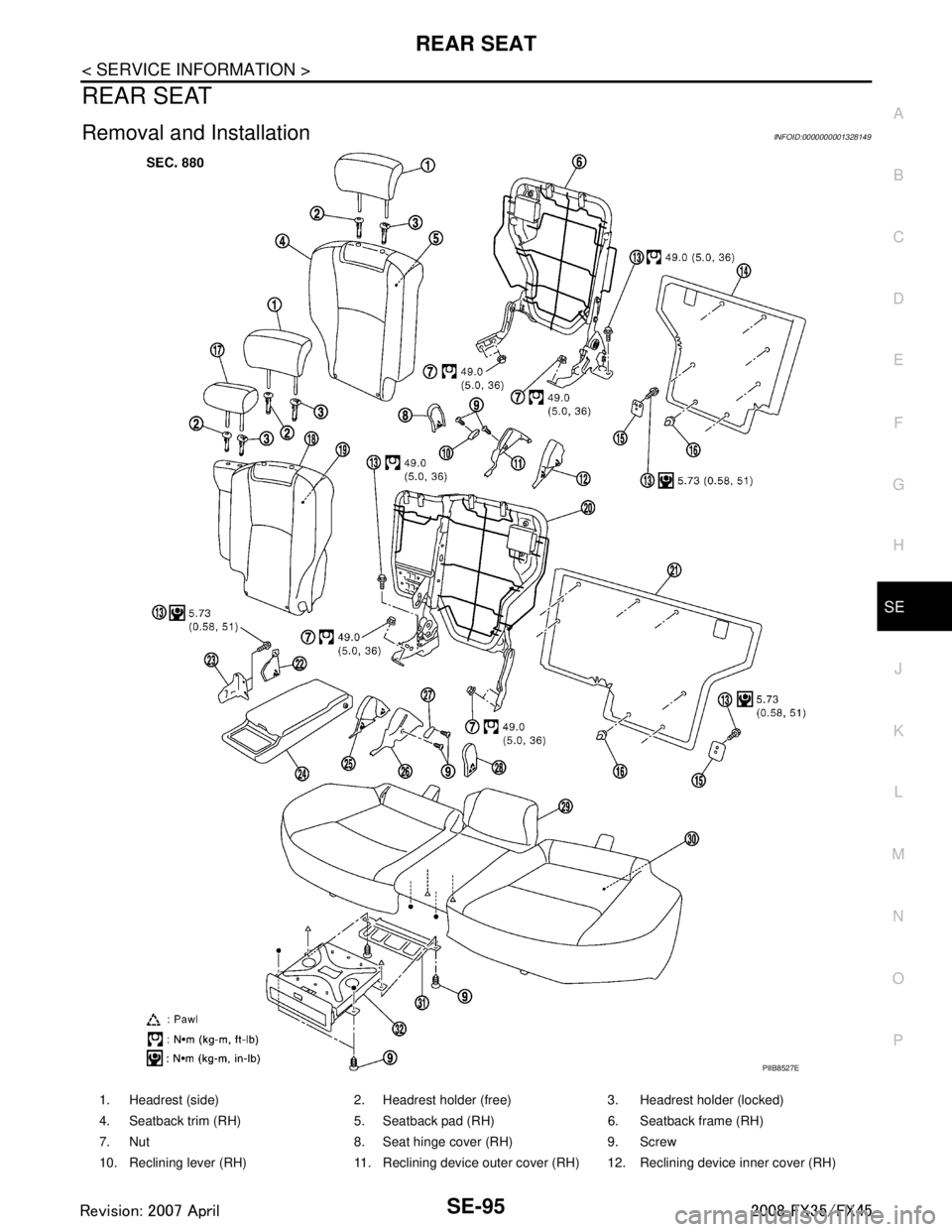

INFINITI FX35 2008 Service Manual REAR SEATSE-95 < SERVICE INFORMATION > C DE F G H J K L M A B SE N O P REAR SEAT Removal and InstallationINFOID:0000000001328149 PIIB8527E 1. Headrest (side) 2. Headrest holder (free) 3. Headrest hol

Page 3735 of 3924

INFINITI FX35 2008 Service Manual SE-96 < SERVICE INFORMATION > REAR SEAT REMOVAL 1. Pull the lock at the front bottom of the seat cushion forward (1 for each side), and pull the seat cushion upward to release the wire from the plast

Page 3736 of 3924

INFINITI FX35 2008 Service Manual REAR SEATSE-97 < SERVICE INFORMATION > C DE F G H J K L M A B SE N O P 1. Remove the cup holder in the back of the seat cushion. 2. Removal the hog rings to separate the trim and pad. INSTALLATION OF
