INFINITI FX35 2008 Service Manual ATC-116 < SERVICE INFORMATION > DUCTS AND GRILLES DUCTS AND GRILLES Removal and InstallationINFOID:0000000001328216 COMPONENT LAYOUT REMOVAL Removal of Center Ventilator Grilles 1. Remove cluster lid

Page 522 of 3924

INFINITI FX35 2008 Service Manual DUCTS AND GRILLESATC-117 < SERVICE INFORMATION > C DE F G H I K L M A B AT C N O P 2. Remove mounting clips, and then remove rear ventilator grilles. Removal of Defroster Nozzle, Ducts and Ventilato

Page 523 of 3924

INFINITI FX35 2008 Service Manual ATC-118 < SERVICE INFORMATION > DUCTS AND GRILLES 4. Remove mounting clips, and then remove rear ventilator duct 3. 5. Remove instrument panel and pad. Refer to IP-10 . 6. Remove rear ventilator duct

Page 524 of 3924

INFINITI FX35 2008 Service Manual DUCTS AND GRILLESATC-119 < SERVICE INFORMATION > C DE F G H I K L M A B AT C N O P 4. Remove mounting clip, and then remove center floor duct with rear ventilator duct 1 attached. 5. Remove center fl

Page 525 of 3924

INFINITI FX35 2008 Service Manual ATC-120 < SERVICE INFORMATION > REFRIGERANT LINES REFRIGERANT LINES HFC-134a (R-134a) Service ProcedureINFOID:0000000001328217 SETTING OF SERVICE TOOLS AND EQUIPMENT Discharging Refrigerant WARNING:

Page 526 of 3924

INFINITI FX35 2008 Service Manual REFRIGERANT LINESATC-121 < SERVICE INFORMATION > C DE F G H I K L M A B AT C N O P ComponentINFOID:0000000001328218 Refer to AT C - 5 , "Precaution for Refrigerant Connection". *1AT C - 2 2 , "Mai

Page 527 of 3924

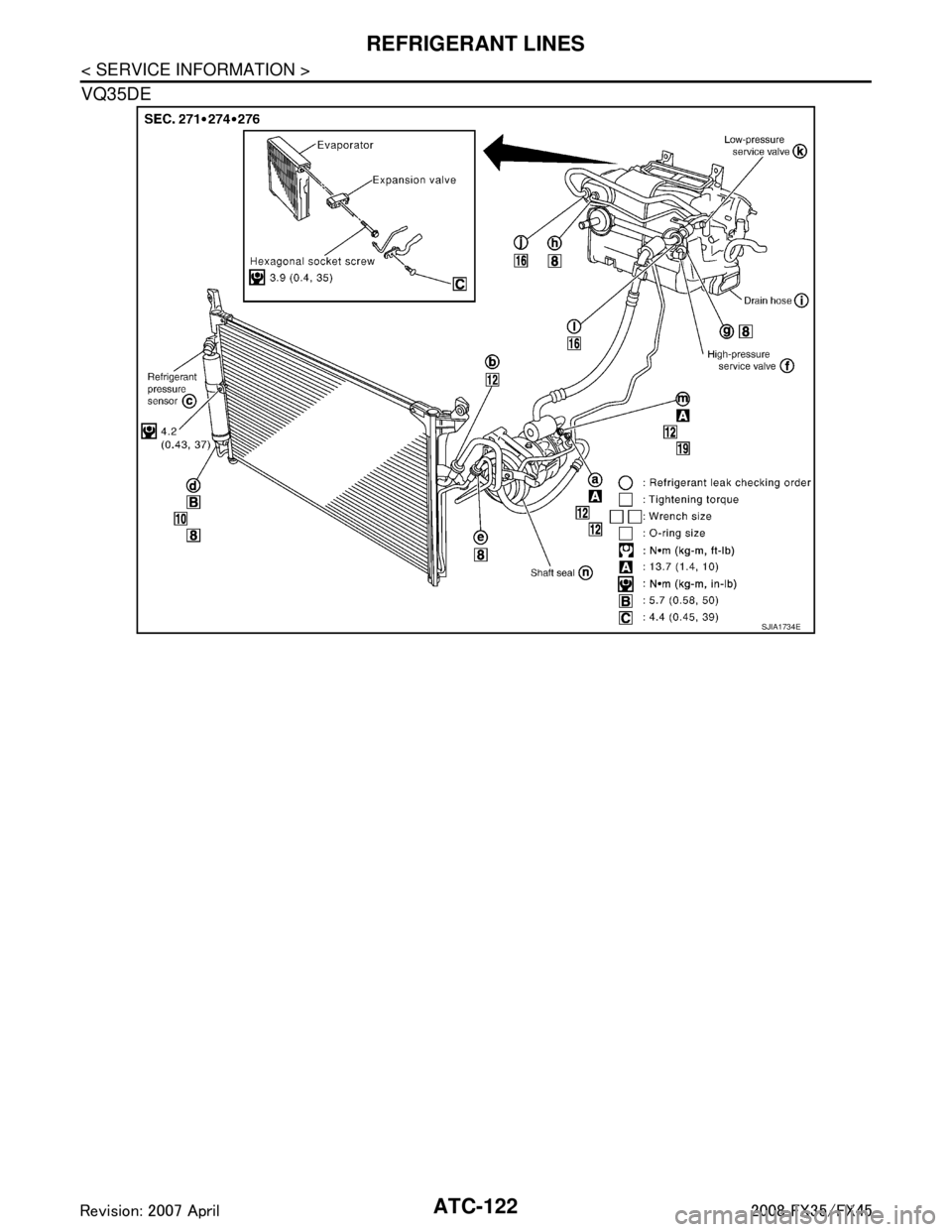

INFINITI FX35 2008 Service Manual ATC-122 < SERVICE INFORMATION > REFRIGERANT LINES VQ35DE SJIA1734E 3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3 3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A

Page 528 of 3924

INFINITI FX35 2008 Service Manual REFRIGERANT LINESATC-123 < SERVICE INFORMATION > C DE F G H I K L M A B AT C N O P VK45DE Removal and Installation of CompressorINFOID:0000000001328219 REMOVAL VQ35DE SJIA1735E SJIA1643E 3AA93ABC3ACD
