Page 1033 of 3924
BRC-18
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

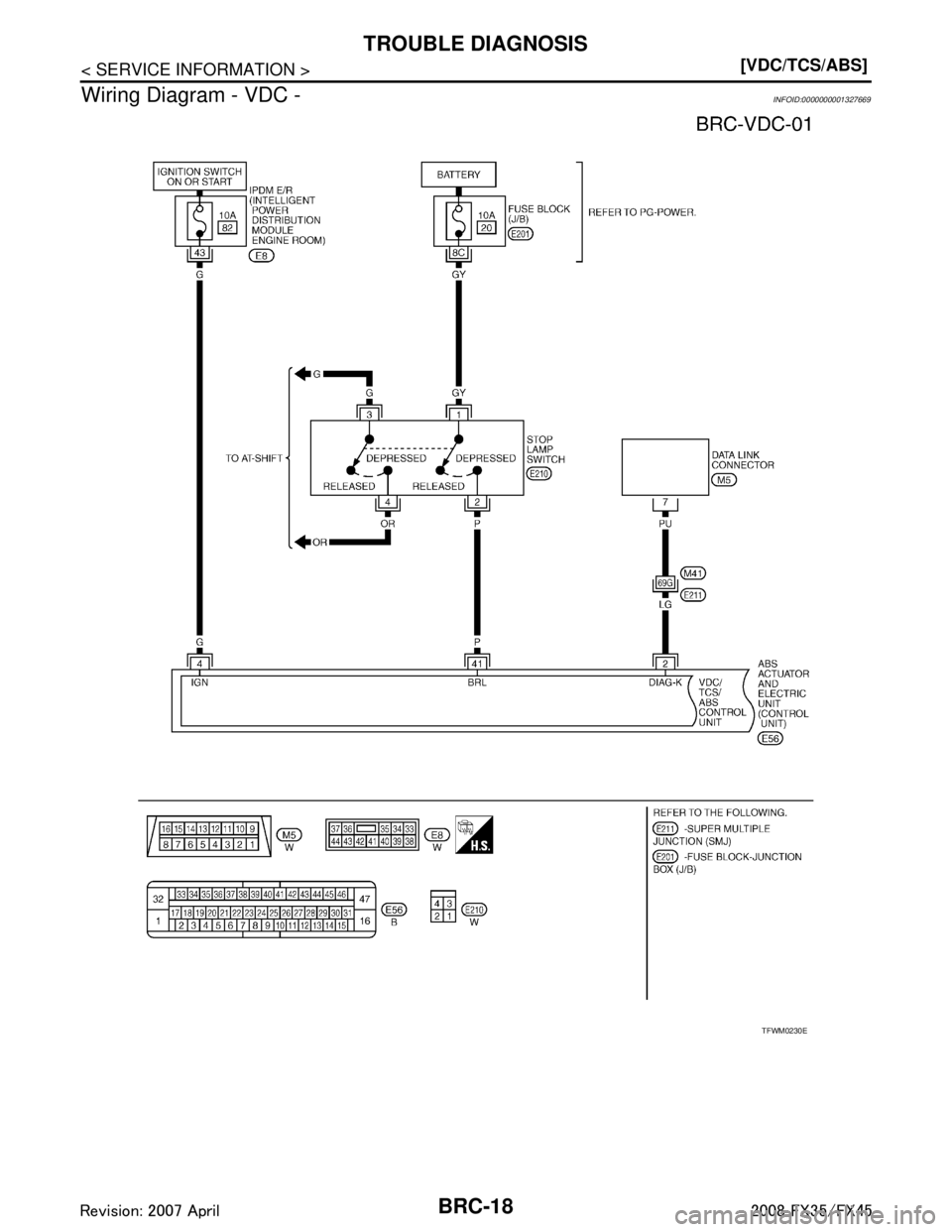

Wiring Diagram - VDC -
INFOID:0000000001327669

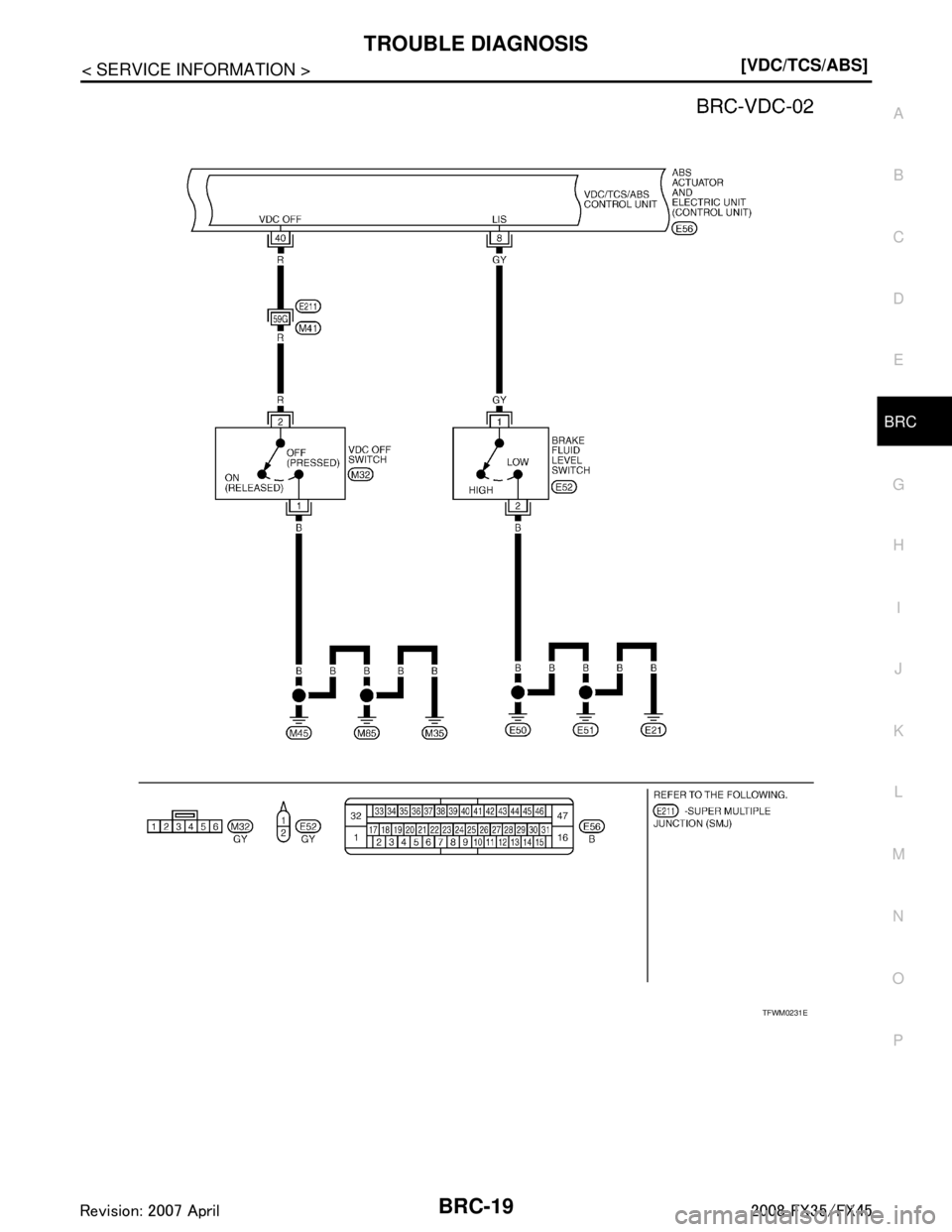

TFWM0230E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1034 of 3924
TROUBLE DIAGNOSISBRC-19
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

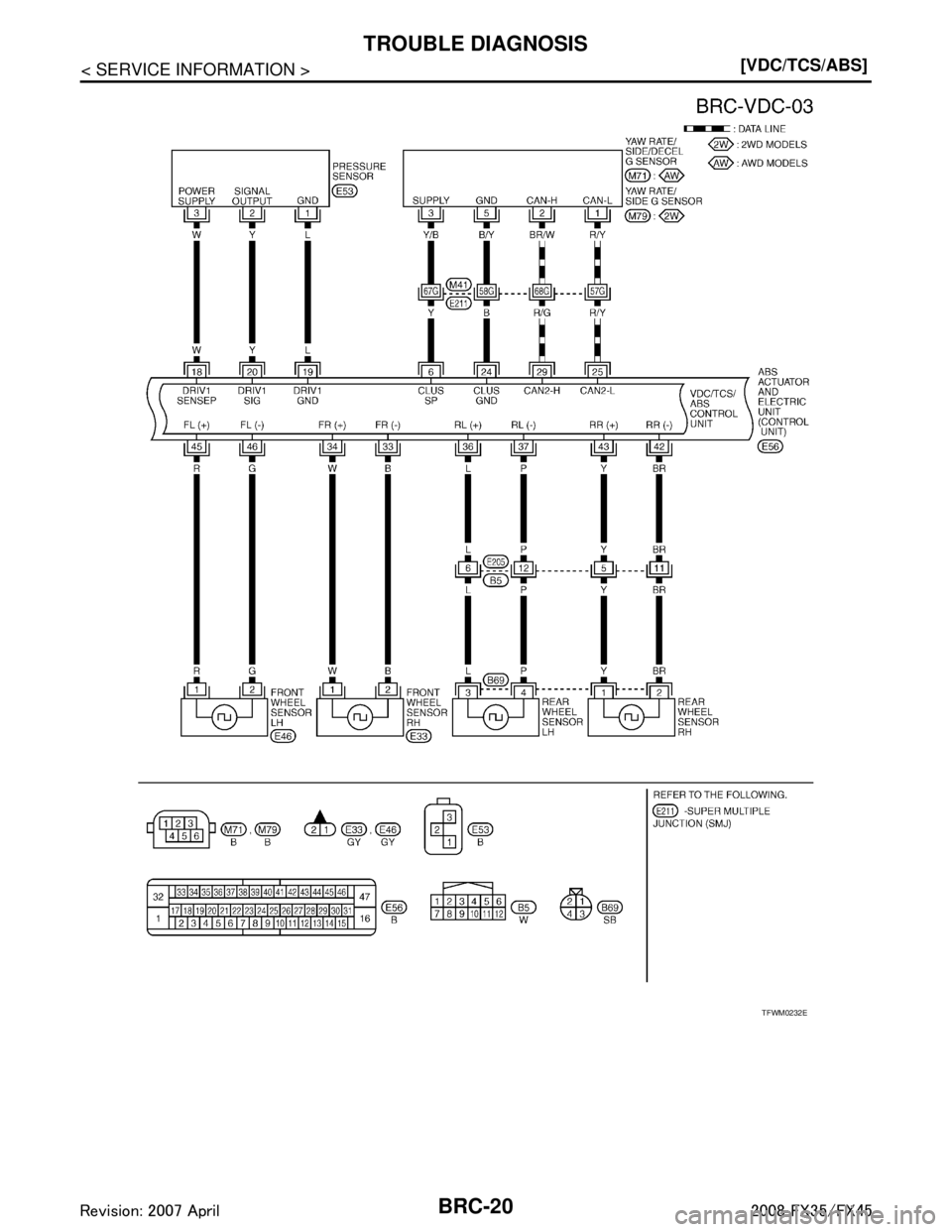

TFWM0231E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1035 of 3924
BRC-20
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
TFWM0232E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1036 of 3924
TROUBLE DIAGNOSISBRC-21
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P

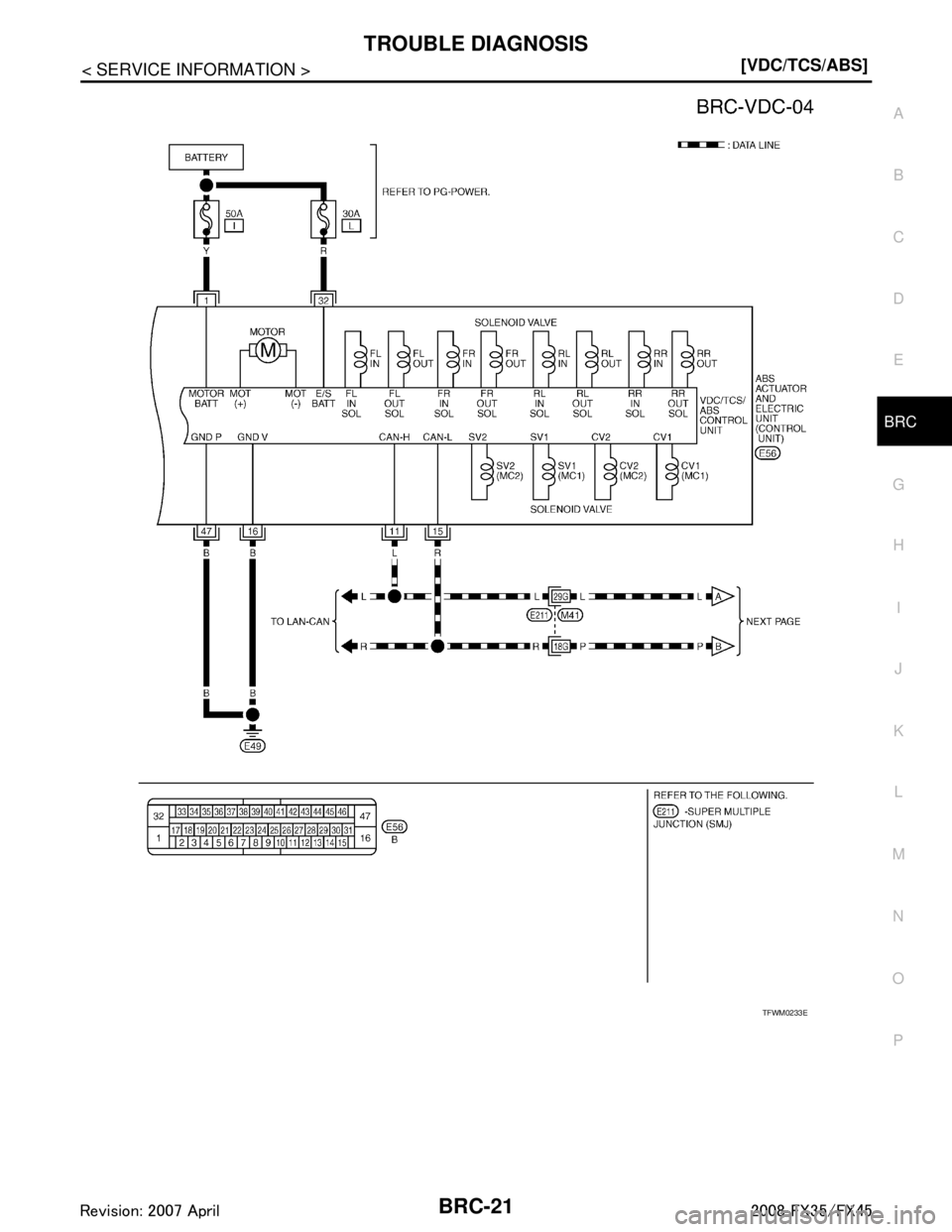

TFWM0233E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1037 of 3924
BRC-22
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS

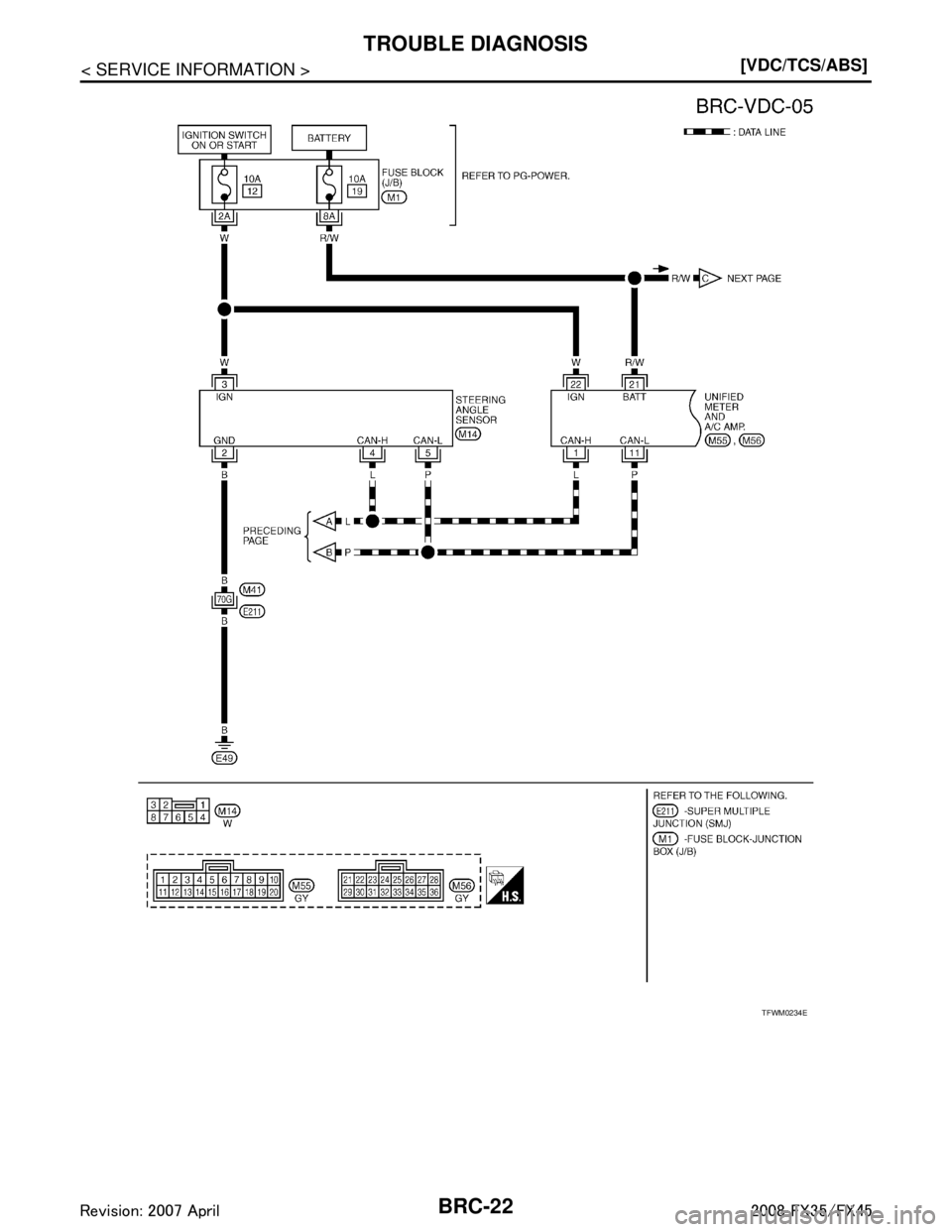

TFWM0234E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1038 of 3924
TROUBLE DIAGNOSISBRC-23
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
Control Unit Input/Out put Signal StandardINFOID:0000000001327670
REFERENCE VALUE FROM CONSULT-III
CAUTION:
The display shows ABS actuator and electric unit (control unit) calculation data, so a normal value
might be displayed even in the event the output circuit (harness) is open or short-circuited.

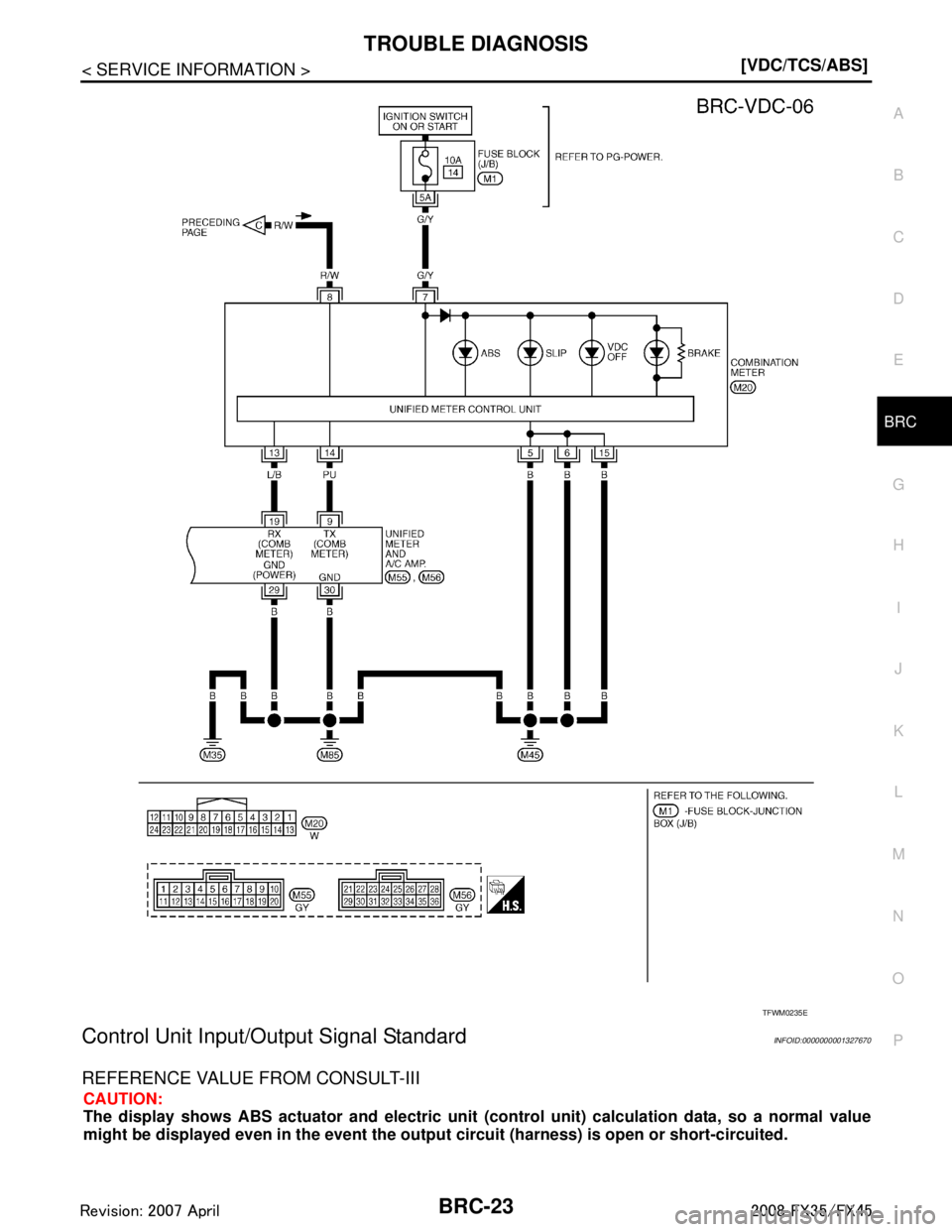

TFWM0235E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1039 of 3924
![INFINITI FX35 2008 Service Manual
BRC-24
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R INFINITI FX35 2008 Service Manual
BRC-24
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R](/manual-img/42/57017/w960_57017-1038.png)
BRC-24
< SERVICE INFORMATION >[VDC/TCS/ABS]
TROUBLE DIAGNOSIS
Monitor item Display content Data monitor
Condition Reference value in
normal operation
SLCT LVR POSI A/T shift position P: P position
R: R position
N: N position
D: D position
GEAR A/T gear position 1: 1st gear
2: 2nd gear
3: 3rd gear
4: 4th gear
5: 5th gear
FR RH SENSOR
FR LH SENSOR
RR RH SENSOR
RR LH SENSOR Wheel speed Vehicle stopped 0 [km/h (MPH)]
Vehicle running (Note 1)
Almost in accordance
with speedometer
display
(within
± 10 %)
ACCEL POS SIG Open/close condition of throttle valve
(linked with a
ccelerator pedal) Accelerator pedal not depressed
(Engine stopped)
0 %
Depress accelerator pedal
(Engine stopped) 0 to 100 %
ENGINE SPEED With engine running With engine stopped 0 rpm
Engine running
Almost in accordance
with tachometer dis-
play
STR ANGLE SIG Steering angle detected by steering angle
sensor Straight-ahead Approx. 0 deg
Steering wheel turned –756 to 756 deg
YAW RATE SEN Yaw rate detected by yaw rate sensor Vehicle stopped Approx. 0 d/s
Vehicle running –100 to 100 d/s
SIDE G-SENSOR Transverse G detected by side G sensor Vehicle stopped
Approx. 0 m/s
2
Vehicle running–16.7 to 16.7 m/s2
PRESS SENSORBrake fluid pressure detected by pressure
sensor With ignition switch turned ON and brake
pedal released
Approx. 0 bar
With ignition switch turned ON and brake
pedal depressed 0 to 170 bar
BATTERY VOLT Battery voltage supplied to ABS actuator
and electric unit (control unit) Ignition switch ON 10 to 16 V
STOP LAMP SW Brake pedal operation Brake pedal depressed ON
Brake pedal not depressed OFF
OFF SW VDC OFF switch ON/OFF status VDC OFF switch ON
(When VDC OFF indicator lamp is ON)
ON
VDC OFF switch OFF
(When VDC OFF indicator lamp is OFF) OFF
ABS WARN LAMP ABS warning lamp ON condition (Note 2) ABS warning lamp ON ON
ABS warning lamp OFF OFF
MOTOR RELAY Operation status of motor and motor relay Ignition switch ON or engine running
(ABS not operated)
OFF
Ignition switch ON or engine running (ABS
operated) ON
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1040 of 3924
![INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISBRC-25
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR RLY Actuator relay operation status Actuator (solenoid) is active
(“ACTIVE TEST” with CONS INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISBRC-25
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR RLY Actuator relay operation status Actuator (solenoid) is active
(“ACTIVE TEST” with CONS](/manual-img/42/57017/w960_57017-1039.png)
TROUBLE DIAGNOSISBRC-25
< SERVICE INFORMATION > [VDC/TCS/ABS]
C
D
E
G H
I
J
K L
M A
B
BRC
N
O P
ACTUATOR RLY Actuator relay operation status Actuator (solenoid) is active
(“ACTIVE TEST” with CONSULT-III)
ON
When actuator relay is inactive
(in fail-safe mode) OFF
OFF LAMP VDC OFF indicator lamp status
(Note 3) When VDC OFF indicator lamp is ON ON
When VDC OFF indicator lamp is OFF OFF
SLIP LAMP SLIP indicator lamp status
(Note 4) When SLIP indicator lamp is ON ON
When SLIP indicator lamp is OFF OFF
FR LH IN SOL
FR LH OUT SOL
FR RH IN SOL
FR RH OUT SOL
RR RH IN SOL
RR RH OUT SOL
RR LH IN SOL
RR LH OUT SOL Solenoid valve operation Actuator (solenoid) is active (“ACTIVE
TEST” with CONSULT-III) and actuator re-
lay is active (ignition switch ON)
ON
When actuator (solenoid) is not active or
actuator relay is inactive (in fail-safe
mode) OFF
CV1
CV2
SV1
SV2 VDC/TCS switch-over valve status When actuator (switch-over valve) is ac-
tive (“ACTIVE TEST” with CONSULT-III)
and actuator relay is active (ignition switch
ON)
ON
When actuator (switch-over valve) is not
active or actuator relay is inactive (in fail-
safe mode) OFF
DECEL G-SEN Longitudinal acceleration detected by decel
G sensor (Note 5) Vehicle stopped Approx. 0 G
Vehicle running -1.7 to +1.7 G
FLUID LEV SW ON/OFF status of brake fluid level switch When brake fluid level switch ON ON
When brake fluid level switch OFF OFF
VDC FAIL SIG
TCS FAIL SIG
ABS FAIL SIG
EBD FAIL SIG Fail signal status VDC fail
TCS fail
ABS fail
EBD fail
ON
VDC normal
TCS normal
ABS normal
EBD normal OFF
EBD WARN LAMP Brake warning lamp on condition
(Note 6) Brake warning lamp ON ON
Brake warning lamp OFF OFF
EBD SIGNAL EBD operation EBD active ON
EBD not active OFF
ABS SIGNAL ABS operation ABS active ON
ABS not active OFF
TCS SIGNAL TCS operation TCS active ON
TCS not active OFF
VDC SIGNAL VDC operation VDC active ON
VDC not active OFF
CRANKING SIG CRANKING status Cranking ON
Not cranking OFF
4WD FAIL REQ ETS fail status (Note 5) ETS fail ON
ETS normal OFF
Monitor item Display content
Data monitor
Condition Reference value in
normal operation
