DTC P0117, P0118 ECT SENSOREC-193
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0117, P0118 ECT SENSOR
Component DescriptionINFOID:0000000001326013
The engine coolant temperature (ECT
) sensor is used to detect the
engine coolant temperature. The sensor modifies a voltage signal
from the ECM. The modified signal returns to the ECM as the engine
coolant temperature input. The sens or uses a thermistor which is
sensitive to the change in temperature. The electrical resistance of
the thermistor decreases as temperature increases.
*: This data is reference values and is measured between ECM terminal 73 (Engine
coolant temperature sensor) and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
On Board Diagnosis LogicINFOID:0000000001326014
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.
SEF594K
Engine coolant temperature
°C ( °F) Voltage* V Resistance k
Ω
-10 (14) 4.4 7.0 - 11.4 20 (68) 3.5 2.1 - 2.9
50 (122) 2.2 0.68 - 1.00
90 (194) 0.9 0.236 - 0.260
SEF012P
DTC No. Trouble Diagnosis
Name DTC Detecting Condit
ion Possible Cause
P0117
0117 Engine coolant tem-
perature sensor cir-
cuit low input An excessively low voltage from the sensor is
sent to ECM.
Harness or connectors
(Engine coolant temperature sensor circuit is
open or shorted.)
Engine coolant temperature sensor
P0118
0118 Engine coolant tem-
perature sensor cir-
cuit high input An excessively high voltage from the sensor is
sent to ECM.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1434 of 3924
![INFINITI FX35 2008 Service Manual
EC-194
< SERVICE INFORMATION >[VQ35DE]
DTC P0117, P0118 ECT SENSOR
DTC Confirmation Procedure
INFOID:0000000001326015
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn i INFINITI FX35 2008 Service Manual
EC-194
< SERVICE INFORMATION >[VQ35DE]
DTC P0117, P0118 ECT SENSOR
DTC Confirmation Procedure
INFOID:0000000001326015
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn i](/manual-img/42/57017/w960_57017-1433.png)
EC-194
< SERVICE INFORMATION >[VQ35DE]
DTC P0117, P0118 ECT SENSOR
DTC Confirmation Procedure
INFOID:0000000001326015
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
1. Turn ignition switch ON and wait at least 5 seconds.
2. Check DTC.
3. If DTC is detected, go to EC-195, "
Diagnosis Procedure".
Detected items Engine operating condition in fail-safe mode
Engine coolant temper- ature sensor circuit Engine coolant temperature will be determined by ECM based on the following condition.
CONSULT-III displays the engine coolant temperature decided by ECM.
Condition Engine coolant temperature decided
(CONSULT-III display)
Just as ignition switch is turned ON or START 40 °C (104 °F)
Approx. 4 minutes or more after engine starting 80 °C (176 °F)
Except as shown above 40 - 80
°C (104 - 176 °F)
(Depends on the time)
When the fail-safe system for engine coolant temperature sensor is activated, the cooling fan operates while
engine is running.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1435 of 3924
DTC P0117, P0118 ECT SENSOREC-195
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Wiring DiagramINFOID:0000000001326016
Diagnosis ProcedureINFOID:0000000001326017
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
TBWM0289E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1436 of 3924
![INFINITI FX35 2008 Service Manual
EC-196
< SERVICE INFORMATION >[VQ35DE]
DTC P0117, P0118 ECT SENSOR
2. Loosen and retighten ground screw on the body. Refer to
EC-144, "Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or rep INFINITI FX35 2008 Service Manual
EC-196
< SERVICE INFORMATION >[VQ35DE]
DTC P0117, P0118 ECT SENSOR
2. Loosen and retighten ground screw on the body. Refer to
EC-144, "Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or rep](/manual-img/42/57017/w960_57017-1435.png)
EC-196
< SERVICE INFORMATION >[VQ35DE]
DTC P0117, P0118 ECT SENSOR
2. Loosen and retighten ground screw on the body. Refer to
EC-144, "Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK ECT SENSOR POWER SUPPLY CIRCUIT
1. Disconnect engine coolant temperature (ECT) sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between ECT sensor terminal 1 and ground with CONSULT-III or tester.
OK or NG
OK >> GO TO 3.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
3.CHECK ECT SENSOR GROUND CIRCUIT FOR OPEN AND SHORT
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check harness continuity between ECT s ensor terminal 2 and ECM terminal 67.
Refer to Wiring Diagram.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK ENGINE COOLANT TEMPERATURE SENSOR
Refer to EC-197, "
Component Inspection".
OK or NG
OK >> GO TO 5.
NG >> Replace engine coolant temperature sensor.
PBIB2625E
PBIB1563E
Voltage: Approximately 5V
PBIB0080E
Continuity should exist.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1437 of 3924
DTC P0117, P0118 ECT SENSOREC-197
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
5.CHECK INTERMITTENT INCIDENT
Refer to EC-139
.
>> INSPECTION END
Component InspectionINFOID:0000000001326018
ENGINE COOLANT TEMPERATURE SENSOR
Check resistance between engine cool ant temperature sensor termi-
nals 1 and 2 as shown in the figure.
If NG, replace engine coolant temperature sensor.
Removal and InstallationINFOID:0000000001326019
ENGINE COOLANT TEMPERATURE SENSOR
Refer to CO-27.
PBIB2005E
Engine coolant temperature °C ( °F) Resistance k Ω
20 (68) 2.1 - 2.9
50 (122) 0.68 - 1.00
90 (194) 0.236 - 0.260
SEF012P
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1438 of 3924
![INFINITI FX35 2008 Service Manual
EC-198
< SERVICE INFORMATION >[VQ35DE]
DTC P0122, P0123 TP SENSOR
DTC P0122, P0123 TP SENSOR
Component DescriptionINFOID:0000000001326020
Electric throttle control actuator
consists of throttle cont INFINITI FX35 2008 Service Manual
EC-198
< SERVICE INFORMATION >[VQ35DE]
DTC P0122, P0123 TP SENSOR
DTC P0122, P0123 TP SENSOR
Component DescriptionINFOID:0000000001326020
Electric throttle control actuator
consists of throttle cont](/manual-img/42/57017/w960_57017-1437.png)
EC-198
< SERVICE INFORMATION >[VQ35DE]
DTC P0122, P0123 TP SENSOR
DTC P0122, P0123 TP SENSOR
Component DescriptionINFOID:0000000001326020
Electric throttle control actuator
consists of throttle control motor,
throttle position (TP) sensor, et c. The throttle position sensor
responds to the throttle valve movement.
The throttle position sensor has two sensors. These sensors are a
kind of potentiometers which transform the throttle valve position into
output voltage, and emit the voltage signal to the ECM. In addition,
these sensors detect the opening and closing speed of the throttle
valve and feed the voltage signals to the ECM. The ECM judges the
current opening angle of the throttle valve from these signals and the
ECM controls the throttle control motor to make the throttle valve
opening angle properly in response to driving condition.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326021
Specification data are reference values.
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.
On Board Diagn osis LogicINFOID:0000000001326022
These self-diagnoses have the one trip detection logic.
FAIL-SAFE MODE
When the malfunction is detected, ECM enters fail-safe mode and the MIL lights up.
DTC Confirmation ProcedureINFOID:0000000001326023
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 8V at idle.
1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to EC-200, "
Diagnosis Procedure".
PBIB0145E
MONITOR ITEM CONDITION SPECIFICATION
TP SEN 1-B1
TP SEN 2-B1* Ignition switch: ON
(Engine stopped)
Selector lever: D Accelerator pedal:
Fully released More than 0.36V
Accelerator pedal: Fully depressed Less than 4.75V
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0122
0122 Throttle position sensor
2 circuit low input An excessively low voltage from the TP sensor
2 is sent to ECM. Harness or connectors
(TP sensor 2 circuit is open or shorted.)
(APP sensor 2 circuit is shorted.)
Electric throttle control actuator (TP sensor 2)
Accelerator pedal position sensor (APP sensor 2)
P0123
0123
Throttle position sensor
2 circuit high input An excessively high voltage from the TP sensor
2 is sent to ECM.
Engine operation condition in fail-safe mode
The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1439 of 3924
DTC P0122, P0123 TP SENSOREC-199
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

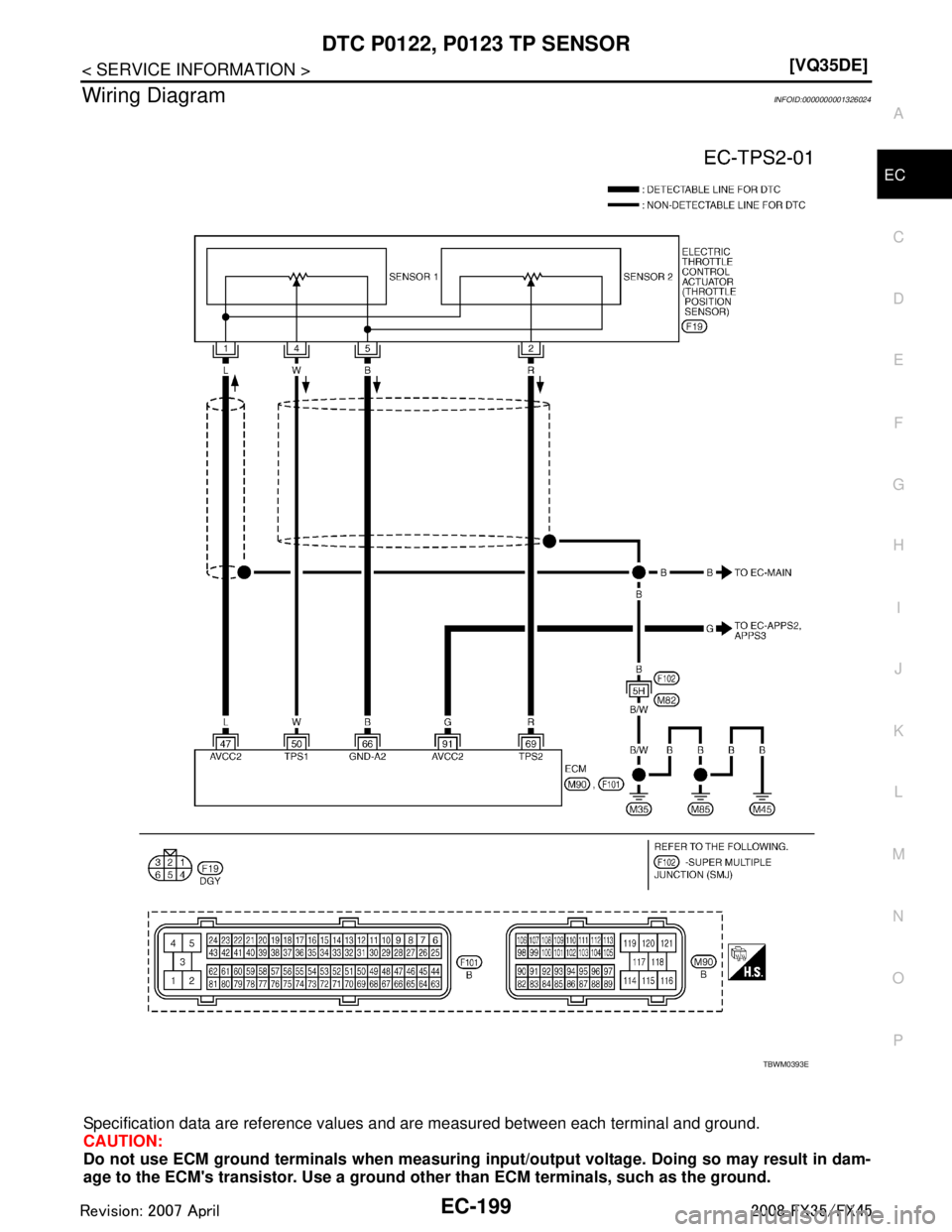

Wiring DiagramINFOID:0000000001326024
Specification data are reference values
and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM0393E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1440 of 3924
![INFINITI FX35 2008 Service Manual
EC-200
< SERVICE INFORMATION >[VQ35DE]
DTC P0122, P0123 TP SENSOR
Diagnosis Procedure
INFOID:0000000001326025
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground sc INFINITI FX35 2008 Service Manual
EC-200
< SERVICE INFORMATION >[VQ35DE]
DTC P0122, P0123 TP SENSOR
Diagnosis Procedure
INFOID:0000000001326025
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground sc](/manual-img/42/57017/w960_57017-1439.png)
EC-200
< SERVICE INFORMATION >[VQ35DE]
DTC P0122, P0123 TP SENSOR
Diagnosis Procedure
INFOID:0000000001326025
1.CHECK GROUND CONNECTIONS
1. Turn ignition switch OFF.
2. Loosen and retighten ground screw on the body. Refer to EC-144, "
Ground Inspection".
OK or NG
OK >> GO TO 2.
NG >> Repair or replace ground connections.
2.CHECK THROTTLE POSITION SE NSOR 2 POWER SUPPLY CIRCUIT-I
TER-
MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
47 L Sensor power supply (Throt-
tle position sensor) [Ignition switch: ON]
Approximately 5V
50 W Throttle position sensor 1 [Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully released
More than 0.36V
[Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully depressed Less than 4.75V
66 B Sensor ground
(Throttle position sensor) [Engine is running]
Warm-up condition
Idle speed Approximately 0V
69 R Throttle position sensor 2 [Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully released
Less than 4.75V
[Ignition switch: ON]
Engine stopped
Selector lever: D
Accelerator pedal: Fully depressed More than 0.36V
91 G Sensor power supply
(APP sensor 2) [Ignition switch: ON]
Approximately 5V
PBIB2625E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
