Page 1601 of 3924

INFINITI FX35 2008 Service Manual
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
EC-361
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0447 EVAP CANISTER
VENT CONTROL VALVE
Component DescriptionINFOID:000000000132

DTC P0447 EVAP CANISTER VENT CONTROL VALVE
EC-361
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0447 EVAP CANISTER
VENT CONTROL VALVE
Component DescriptionINFOID:0000000001326185
The EVAP canister vent control valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows EVAP
Control System diagnosis.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001326186
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001326187
DTC Confirmation ProcedureINFOID:0000000001326188
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, conf irm battery voltage is more than 11V at idle.
1. Start engine and wait at least 8 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-363, "
Diagnosis Procedure".
PBIB1263E
PBIB1611E
MONITOR ITEM CONDITION SPECIFICATION
VENT CONT/V Ignition switch: ON OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0447
0447 EVAP canister vent con-
trol valve circuit open An improper voltage signal is sent to ECM
through EVAP canister vent control valve. Harness or connectors
(EVAP canister vent control valve circuit
is open or shorted.)
EVAP canister vent control valve
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1602 of 3924

INFINITI FX35 2008 Service Manual
EC-362
< SERVICE INFORMATION >[VQ35DE]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
Wiring Diagram
INFOID:0000000001326189
Specification data are reference values and are measured between each terminal

Page 1603 of 3924

INFINITI FX35 2008 Service Manual
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
EC-363
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Diagnosis ProcedureINFOID:0000000001326190
1.INSPECTION START
Do you have CONSULT-II

Page 1604 of 3924

INFINITI FX35 2008 Service Manual
EC-364
< SERVICE INFORMATION >[VQ35DE]
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
Harness connectors B84, B216
Harness for open or short between EVAP canister vent control valve and IPDM E/R
>> R

Page 1605 of 3924

INFINITI FX35 2008 Service Manual
DTC P0447 EVAP CANISTER VENT CONTROL VALVE
EC-365
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

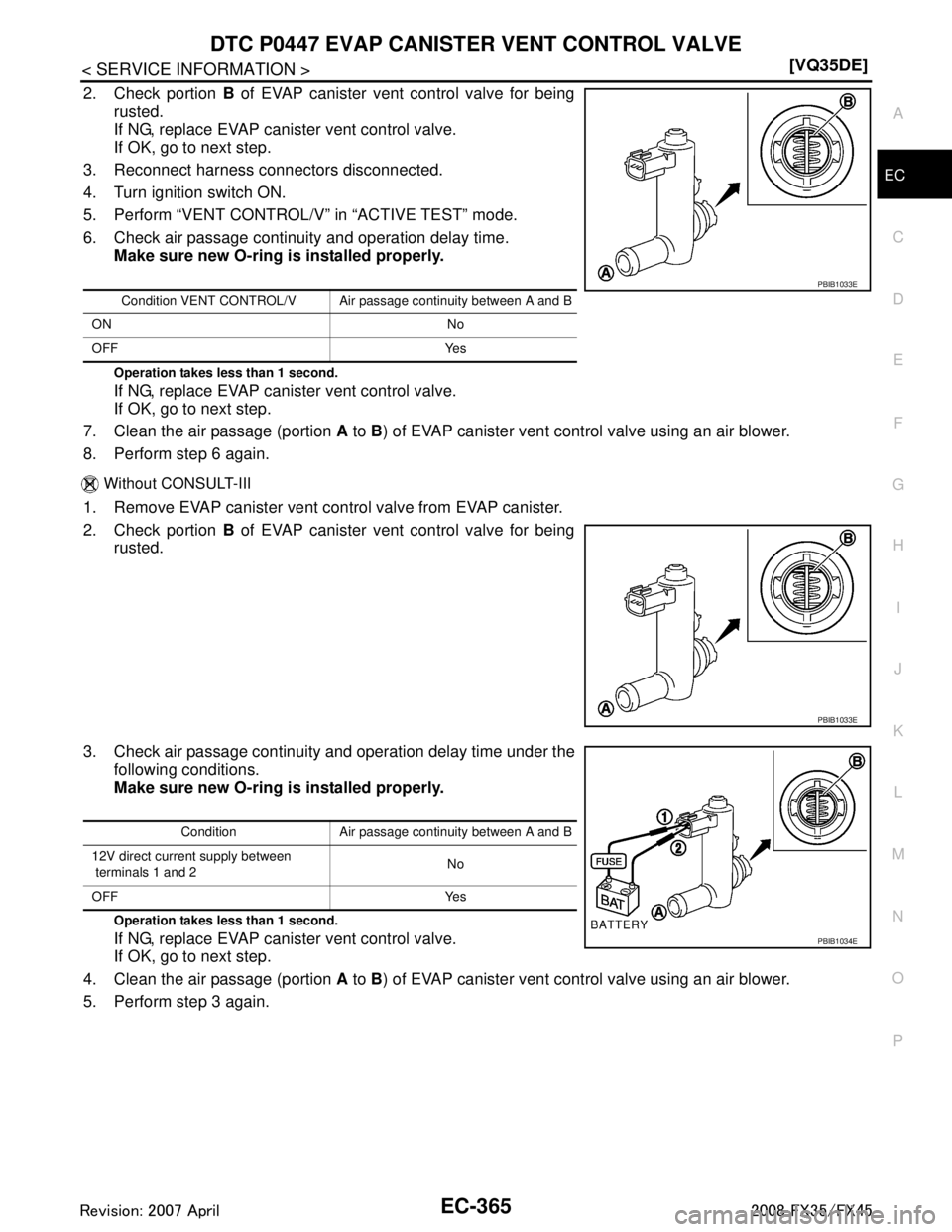

2. Check portion
B of EVAP canister vent control valve for being
rusted.
If NG, rep

Page 1606 of 3924

INFINITI FX35 2008 Service Manual
EC-366
< SERVICE INFORMATION >[VQ35DE]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
Component DescriptionINFOID:0000000001326192
The EVAP canister vent contro

EC-366
< SERVICE INFORMATION >[VQ35DE]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
Component DescriptionINFOID:0000000001326192
The EVAP canister vent control
valve is located on the EVAP canis-
ter and is used to seal the canister vent.
This solenoid valve responds to signals from the ECM. When the
ECM sends an ON signal, the coil in the solenoid valve is energized.
A plunger will then move to seal the canister vent. The ability to seal
the vent is necessary for the on board diagnosis of other evaporative
emission control system components.
This solenoid valve is used only for diagnosis, and usually remains
opened.
When the vent is closed, under normal purge conditions, the evapo-
rative emission control system is depressurized and allows EVAP
Control System diagnosis.
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001326193
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001326194
DTC Confirmation ProcedureINFOID:0000000001326195
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.

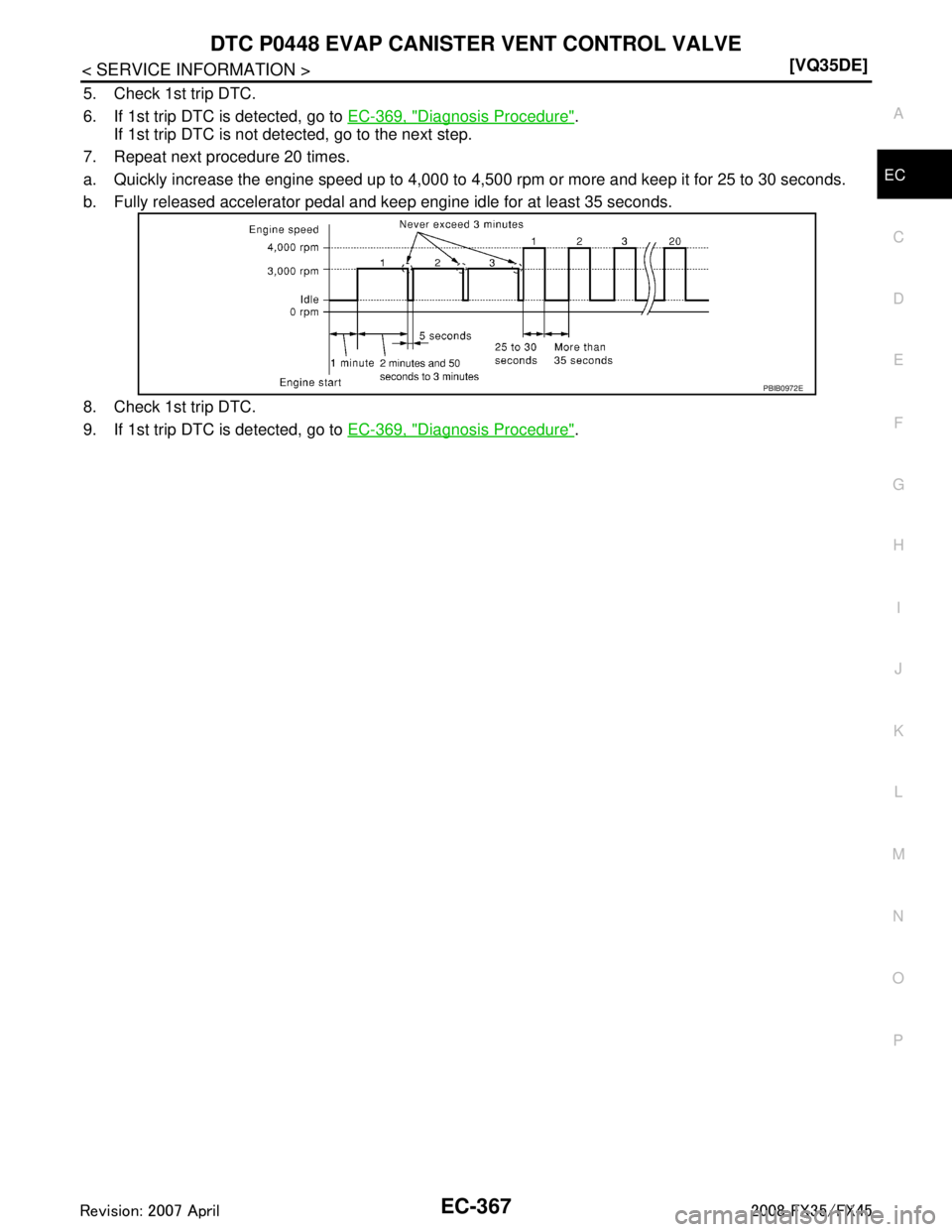

1. Turn ignition switch ON and wait at least 5 seconds.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Start engine and let it idle for at least 1 minute.
4. Repeat next procedures three times.
a. Increase the engine speed up to 3,000 to 3,500 rpm and keep it for 2 minutes and 50 seconds to 3 min- utes.
Never exceed 3 minutes.
b. Fully released accelerator pedal and keep engine idle for about 5 seconds.
PBIB1263E
PBIB1611E
MONITOR ITEM CONDITION SPECIFICATION
VENT CONT/V Ignition switch: ON OFF
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0448
0448 EVAP canister vent con-
trol valve close EVAP canister vent control valve remains
closed under specified driving conditions. EVAP canister vent control valve
EVAP control system pressure sensor
and the circuit
Blocked rubber tube to EVAP canister vent control valve
EVAP canister is saturated with water
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1607 of 3924

INFINITI FX35 2008 Service Manual
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
EC-367
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
5. Check 1st trip DTC.
6. If 1st trip DTC is detected, go to
EC-369, "
Diagnosis Pr

Page 1608 of 3924

INFINITI FX35 2008 Service Manual
EC-368
< SERVICE INFORMATION >[VQ35DE]
DTC P0448 EVAP CANISTER VENT CONTROL VALVE
Wiring Diagram
INFOID:0000000001326196
Specification data are reference values and are measured between each terminal
