Page 33 of 3924

INFINITI FX35 2008 Service Manual
ACS-26
< SERVICE INFORMATION >[ICC]

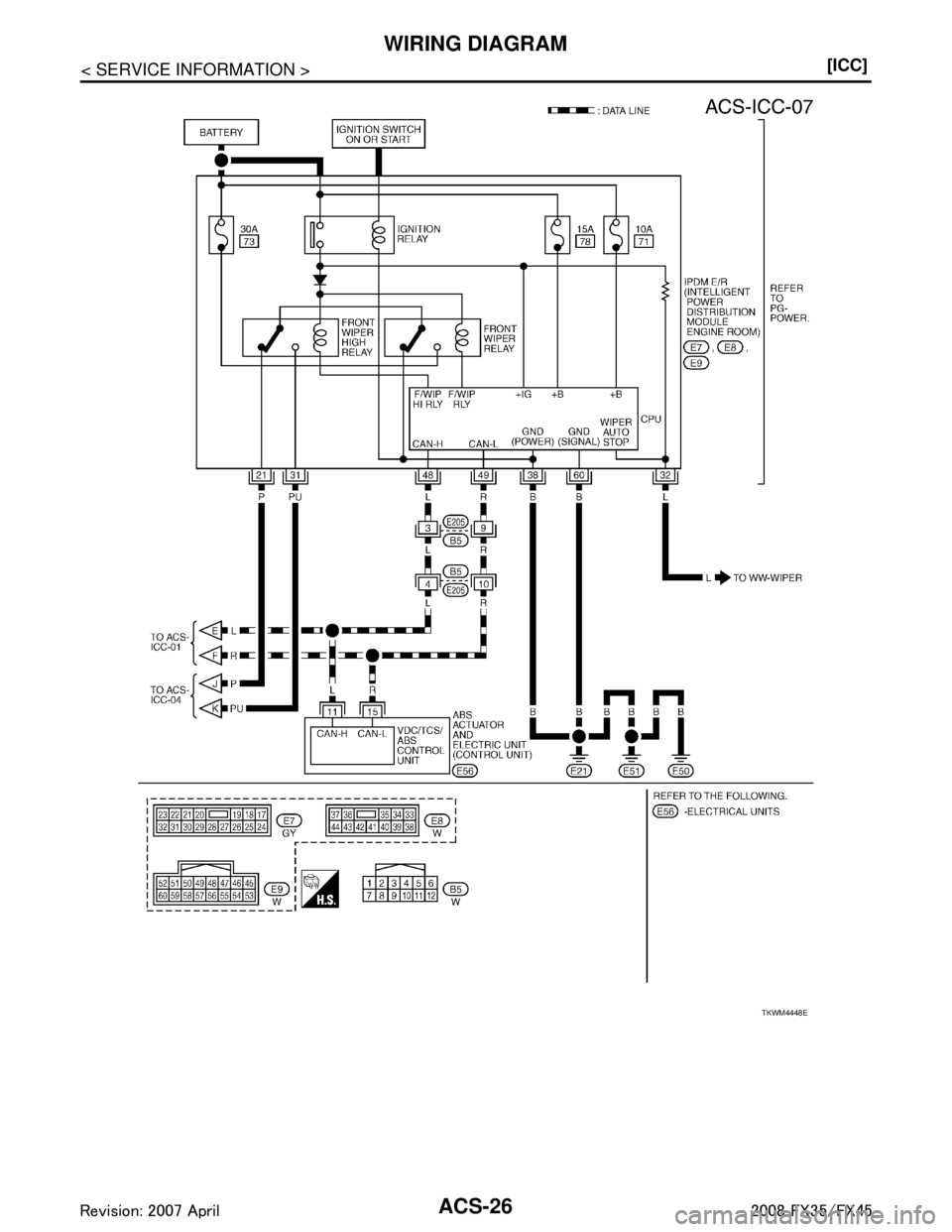

WIRING DIAGRAM
TKWM4448E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 34 of 3924

INFINITI FX35 2008 Service Manual
TERMINALS AND REFERENCE VALUEACS-27
< SERVICE INFORMATION > [ICC]
C
D
E
F
G H
I
J
L
M A
B
ACS
N
O P
TERMINALS AND REFERENCE VALUE
Terminal and Reference Value for ICC UnitINFOID:0000000001328820
Te r

Page 35 of 3924

INFINITI FX35 2008 Service Manual
ACS-28
< SERVICE INFORMATION >[ICC]
TERMINALS AND REFERENCE VALUE
Terminal and Reference Value for ICC Sensor
INFOID:0000000001328821
19 (B)
20 (B)
46 (B) GroundGround ON — Approx. 0
22 (G/Y) Brake

Page 36 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONACS-29
< SERVICE INFORMATION > [ICC]
C
D
E
F
G H
I
J
L
M A
B
ACS
N
O P
TROUBLE DIAGNOSIS — GENERAL DESCRIPTION
Work FlowINFOID:0000000001328822
Reference

Page 37 of 3924

INFINITI FX35 2008 Service Manual
ACS-30
< SERVICE INFORMATION >[ICC]
TROUBLE DIAGNOSIS —
GENERAL DESCRIPTION
WORK SUPPORT
Cause of Auto-Cancel
Display Item List
NOTE:
Last five cancel (system cancel) causes are displayed.
SELF DI

ACS-30
< SERVICE INFORMATION >[ICC]
TROUBLE DIAGNOSIS —
GENERAL DESCRIPTION
WORK SUPPORT
Cause of Auto-Cancel
Display Item List
NOTE:
Last five cancel (system cancel) causes are displayed.
SELF DIAGNOSTIC RESULT
For details, refer to ACS-35, "Diagnostic Trouble Code (DTC) Chart".
DATA MONITOR
×: Applicable
Work Support Monitors aiming direction to facilitate laser beam aiming operation.
Indicates causes of automatic cancellation of the ICC system.
Ecu Identification Displays part number of ICC unit. Test mode Function
Operation Function
CAUSE OF AUTO-CANCEL Indicates causes of automatic cancellation of the ICC system.
LASER BEAM ADJUST Outputs laser beam, calculates dislocation of the beam, and indicates adjustment direction.
For details, refer to
ACS-14
.
Cause of cancellation Description
OPERATING WIPER Windshield wipers were operated at HI or LO speed operation.
OPERATING ABS ABS func tion was operated.
OPERATING TCS TCS function was operated.
OPERATING VDC VDC function was operated.
OPE SW VOLT CIRC Outside the standard control switch input voltage was detected.
ECM CIRCUIT ECM did not permit ICC operation.
LASER SUN BEAM Intense light such as sunlight entered ICC sensor light sensing part.
LASER TEMP Temperature around ICC sensor became low.
OP SW DOUBLE TOUCH ICC steering switches were pressed at the same time.
WHL SPD ELEC NOISE Wheel speed sensor signal caught electromagnetic noise.
VDC/TCS OFF SW VDC OFF switch was pressed.
WHEEL SPD UNMATCH Wheel speed became different from AT vehicle speed.
TIRE SLIP Wheel slipped.
PKB SW ON Parking brake is applied.
IGN LOW VOLT Power supply voltage became low.
SNOW MODE SW Snow mode switch was pressed.
NO RECORD —
Monitored Item [unit] ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM
MENU Description
VHCL SPEED SE
[km/h] or [mph] ××× Indicates vehicle speed calculated from ICC unit through CAN
communication [ABS actuator and
electric unit (control unit)
transmits wheel speed sensor signal through CAN communica-
tion].
SET VHCL SPD
[km/h] or [mph] ××
Indicates set vehicle speed memorized in ICC unit.
THRTL OPENING
[%] ××× Indicates throttle angle read from ICC unit through CAN commu-
nication (ECM transmits throttle angle through CAN communica-
tion).
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 38 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONACS-31
< SERVICE INFORMATION > [ICC]
C
D
E
F
G H
I
J
L
M A
B
ACS
N
O P
ENGINE RPM
[rpm] ×× Indicates engine speed read from ICC unit through CAN commu-
nica

TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONACS-31
< SERVICE INFORMATION > [ICC]
C
D
E
F
G H
I
J
L
M A
B
ACS
N
O P
ENGINE RPM
[rpm] ×× Indicates engine speed read from ICC unit through CAN commu-
nication (ECM transmits engine speed through CAN communica-
tion).
DISTANCE ADJ
[ShortMid/Long] ×××
Indicates set distance memorized in ICC unit.
WIPER SW
[Off/Low/High] ××
Indicates wiper [OFF/LOW/HIGH] status (BCM transmits front
wiper request signal through CAN communication).
MAIN SW
[On/Off] ××× Indicates [On/Off] status as judged from ICC steering switch sig-
nal (ECM transmits ICC steering switch signal through CAN com-
munication).
SET/COAST SW
[On/Off] ××× Indicates [On/Off] status as judged from ICC steering switch sig-
nal (ECM transmits ICC steering switch signal through CAN com-
munication).
CANCEL SW
[On/Off] ××× Indicates [On/Off] status as judged from ICC steering switch sig-
nal (ECM transmits ICC steering switch signal through CAN com-
munication).
RESUME/ACC SW
[On/Off] ××× Indicates [On/Off] status as judged from ICC steering switch sig-
nal (ECM transmits ICC steering switch signal through CAN com-
munication).
CRUISE OPE
[On/Off] ××
Indicates whether controlling or not (On means “controlling”).
BRAKE SW
[On/Off] ××× Indicates [On/Off] status as judged from ICC brake switch signal.
STOP LAMP SW
[On/Off] ××× Indicates [On/Off] status as judged from stop lamp switch signal.
RELEASE SW NO
[On/Off] ×× Indicates [On/Off] status as judged from release switch signal.
ON when brake is depressed.
OFF when brake is not depressed.
RELEASE SW NC
[On/Off] ×× Indicates [On/Off] status as judged from release switch signal.
ON when brake is not depressed.
OFF when brake is depressed.
IDLE SW
[On/Off] ×× Indicates [On/Off] status of idle switch read from ICC unit through
CAN communication (ECM
transmits On/Off status through CAN
communication).
GEAR
[1, 2, 3, 4, 5] ×× Indicates AT gear position read from ICC unit through CAN com-
munication (TCM transmits gear position through CAN commu-
nication).
BUZZER O/P
[On/Off] ×
Indicates [On/Off] status of ICC warning chime output.
ICC WARNING ×NOTE:
This item is displayed, but cannot monitor.
VHCL SPD AT
[km/h] or [mph] ×Indicates vehicle speed calculated from AT vehicle speed sensor
read from ICC unit through CAN communication (TCM transmits
AT vehicle speed sensor signal through CAN communication).
PRESS SENS
[bar] ××× Indicates brake fluid pressure value calculated from signal volt-
age of pressure sensor.
PRESS SENS 2 ×× NOTE:
This item is displayed, but cannot monitor.
D RANGE SW
[On/Off] ×× Indicates [On/Off] status of “D” position read from ICC unit
through CAN communication (TCM transmits On/Off condition of
“D” position through CAN communication).
A/T OD OFF
[On/Off] ×
Indicates [On/Off] status of OD cancel output under control.
Monitored Item [unit]
ECU INPUT
SIGNALS MAIN
SIGNALS SELECTION
FROM
MENU Description
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 39 of 3924

INFINITI FX35 2008 Service Manual
ACS-32
< SERVICE INFORMATION >[ICC]
TROUBLE DIAGNOSIS —
GENERAL DESCRIPTION
ACTIVE TEST
CAUTION:
Never perform the active test while driving.
Active test cannot be started while I CC system wa

Page 40 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONACS-33
< SERVICE INFORMATION > [ICC]
C
D
E
F
G H
I
J
L
M A
B
ACS
N
O P
1. Go to operation check after asking the cust omer for symptom information. Refer to A

TROUBLE DIAGNOSIS — GENERAL DESCRIPTIONACS-33
< SERVICE INFORMATION > [ICC]
C
D
E
F
G H
I
J
L
M A
B
ACS
N
O P
1. Go to operation check after asking the cust omer for symptom information. Refer to ACS-11, "ICC System
Running Test".
2. Stop vehicle, turn ignition swit ch OFF, then connect CONSULT-III.
3. With engine started, check “Self Diagnostic Result” of ICC system.
4. Self-diagnostic result appears on screen. If “NO DTC ·· ·” is shown, check ICC warning lamp. If any mal-
function is indicated, GO TO step 5.
5. According to ACS-35, "
Diagnostic Trouble Code (DTC) Chart", perform appropriate check, and repair or
replace malfunctioning part as necessary.
6. Turn ignition switch OFF.
7. Start the engine and select “Self Diagnosti c Result” of ICC system, and erase DTC.
NOTE:
If the memory does not erase, go to 5.
8. Perform ICC system running test (drive vehicle wi th ICC system ON), and make sure that ICC warning
lamp does not illuminate.
WITHOUT CONSULT-III
1. Go to operation check after asking the cust omer for symptom information. Refer to ACS-11, "ICC System
Running Test".
2. Stop the vehicle to start the self-diagnosis.
3. Turn ignition switch OFF.
4. From 5 seconds through 15 seconds after turning ignition switch ON, press RESUME/ACCELERATE switch 5 times, and SET/
COAST switch 5 times.
NOTE:
Never start engine.
Never turn the MAIN switch ON.
When operation above is not completed from 5 secondsthrough 15 seconds, start again from above go to 3.
If self-diagnosis mode cannot be started after several
attempts, the ICC unit may have had malfunction. Repair or
replace it. Refer to ACS-59, "
SELF-DIAGNOSIS BY ICC SYS-
TEM DISPLAY WILL NOT RUN".
5. When self-diagnosis mode is started, DTC are shown on set vehicle speed indicator.
NOTE:
DTC will disappear after 5 minutes.
When more than one malfunction is detected, a maxi mum of 3 code numbers can be stored; the latest
malfunction will be displayed first.
6. Check ACS-35, "
Diagnostic Trouble Code (DTC) Chart", and repair or replace if necessary.
7. After repair, erase DTC stored in the ICC unit.
PKIA9675E
