INFINITI FX35 2008 Service Manual
AV-78
< SERVICE INFORMATION >
INTEGRATED DISPLAY SYSTEM
4. The initial trouble diagnosis screen will be shown, and items“Self Diagnosis (DCU)”, “Confirmation/Adjustment” and “CAN
DIAG SUPPO

Page 626 of 3924

INFINITI FX35 2008 Service Manual
INTEGRATED DISPLAY SYSTEMAV-79
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
Rear window defogger switch operation is not checked (No beep sound even under normal status).
EXITING THE SELF

INTEGRATED DISPLAY SYSTEMAV-79
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
Rear window defogger switch operation is not checked (No beep sound even under normal status).
EXITING THE SELF-DIAGNOSIS MODE
Turn ignition switch OFF.
CAN Communication CheckINFOID:0000000001328727
1.CHECK MONITOR DESCRIPTION
1. Start self-diagnosis of DCU. Refer to AV-73, "
Self-Diagnosis Mode (DCU)".
2. Select “CAN DIAG SUPPORT MONITOR”. Refer to AV-77,
"CAN Diagnostic Support Monitor".
3. Record each item display description (OK/NG/UNK WN) displayed on the following CAN DIAG SUPPORT
MONITOR Check Sheet.
CAN DIAG SUPPORT MONITOR Check Sheet
>> After filling in CAN DIAG SUPPORT MONITOR Check Sheet, Go to LAN-43, "CAN System Spec-
ification Chart".
Unable to Operate System with A/C and AV SwitchINFOID:0000000001328728
Symptom: Unable to operate A/C system and audio system with A/C and AV switch. (Unable to start self-diag-
nosis.)
1.CHECK CONDITION
1. Turn ignition switch ON.
2. Check if an image is displayed on the screen.
Is an image displayed on the screen?
YES >> GO TO 2.
NO >> Repair malfunctioning part. Refer to AV-80, "
All Images Are Not Displayed".
2.SELF-DIAGNOSIS OF A/C AND AV SWITCH
Start self-diagnosis of A/C and AV switch, and check the self-diagnosis result. Refer to AV-78, "
A/C and AV
Switch Self-Diagnosis Function".
OK or NG
Item content
Error counter
(Reference value)
Normal conditio n Error (Example)
CAN_COMM OK NG 0 - 50
CAN_CIRC_1 OK UNKWN 0 - 50
CAN_CIRC_2 OK UNKWN 0 - 50
CAN_CIRC_3 OK UNKWN 0 - 50
CAN_CIRC_4 OK UNKWN 0 - 50
CAN_CIRC_5 OK UNKWN 0 - 50
CAN_CIRC_6 OK UNKWN 0 - 50
CAN_CIRC_7 OK UNKWN 0 - 50
CAN_CIRC_8 OK UNKWN 0 - 50
CAN_CIRC_9 UNKWN UNKWN 0 - 50
PKIB6080E
Diagnosis item Screen display Diagnosis item Screen display CAN_COMM OK NG CAN_CIRC_5 OK UNKWN
CAN_CIRC_1 OK UNKWN CAN_CIRC_6 OK UNKWN
CAN_CIRC_2 OK UNKWN CAN_CIRC_7 OK UNKWN
CAN_CIRC_3 OK UNKWN CAN_CIRC_8 OK UNKWN
CAN_CIRC_4 OK UNKWN CAN_CIRC_9 OK UNKWN
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 627 of 3924

INFINITI FX35 2008 Service Manual
AV-80
< SERVICE INFORMATION >
INTEGRATED DISPLAY SYSTEM
OK >> GO TO 4.
NG >> GO TO 3.

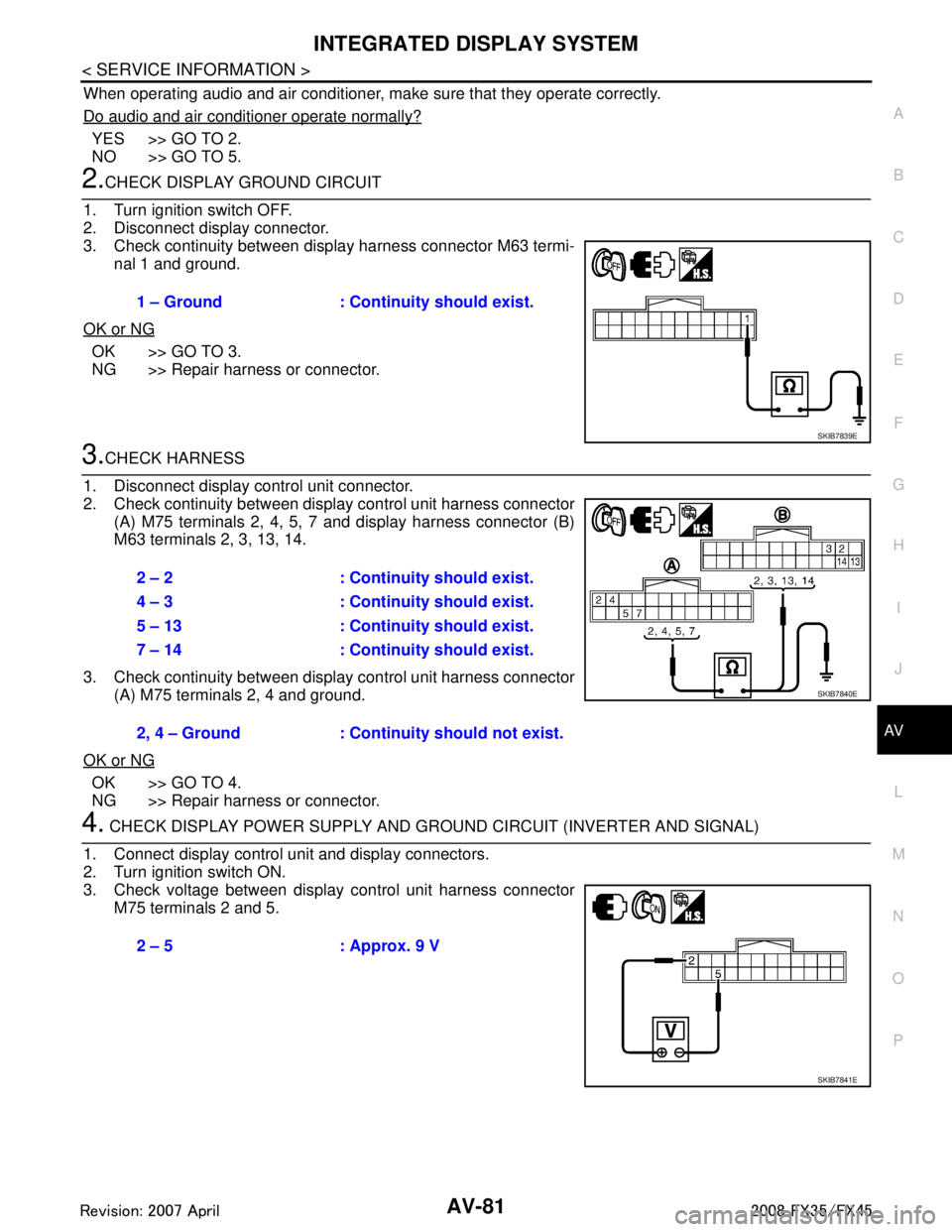

3.CHECK A/C AND AV SWITCH POWER SUPPLY AND GROUND CIRCUIT
1. Check voltage between A/C and AV switch harness conn

Page 628 of 3924

INFINITI FX35 2008 Service Manual
INTEGRATED DISPLAY SYSTEMAV-81
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
When operating audio and air conditioner, make sure that they operate correctly.
Do audio and air conditioner op

Page 629 of 3924

INFINITI FX35 2008 Service Manual
AV-82
< SERVICE INFORMATION >
INTEGRATED DISPLAY SYSTEM
4. Check voltage between display control unit harness connectorM75 terminals 4 and 7.
OK or NG
OK >> Replace display.
NG >> Replace display con

Page 630 of 3924

INFINITI FX35 2008 Service Manual
INTEGRATED DISPLAY SYSTEMAV-83
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
Purple (Magenta) tinged screen
Check continuity between display control unit harness connector
(A) M76 termina

Page 631 of 3924

INFINITI FX35 2008 Service Manual
AV-84
< SERVICE INFORMATION >
INTEGRATED DISPLAY SYSTEM
Check voltage waveform between display control unit harness con-
nector M76 terminal 52 and ground with CONSULT-III or oscillo-
scope.
Yellow

Page 632 of 3924

INFINITI FX35 2008 Service Manual
INTEGRATED DISPLAY SYSTEMAV-85
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
3. When displaying RGB image, check voltage waveform between display control unit harness connector M76 terminal

INTEGRATED DISPLAY SYSTEMAV-85
< SERVICE INFORMATION >
C
DE
F
G H
I
J
L
M A
B
AV
N
O P
3. When displaying RGB image, check voltage waveform between display control unit harness connector M76 terminal 56 and
ground with CONSULT-III or oscilloscope.
OK or NG
OK >> Replace display.
NG >> Replace display control unit.
Value for All Item in the TRIP Screen Do Not ChangeINFOID:0000000001328732
Symptom: Values for items, “Elapsed Time”, “Drivi ng Distance” and “Average Speed” in the TRIP screen do
not change. FUEL ECONOMY screen is not displayed when pressing “TRIP” button.
1. CHECK DISPLAY CONTROL UNIT IGNITION SIGNAL
Select “Vehicle Signals” in Confirmation/Adjustment mode, and check the ignition signal inputting to display
control unit. Refer to AV-75, "
Confirmation/Adjustment Mode".
OK or NG
OK >> Replace display control unit.
NG >> Check display control unit ignition signal circuit, and repair malfunctioning part.
Value for Item, "Driving Distance" a nd "Average Speed" Do Not ChangeINFOID:0000000001328733
Symptom: Values for Items, "Driving Distance" and "Average Speed" do not change. (The Value for "Elapsed
Time" Changes.)
1.CHECK DISPLAY CONTROL UNIT VEHICLE SPEED SIGNAL
Select “Vehicle Signals” in Confirmation/Adjustment mode, and check the vehicle speed signal inputting to dis-
play control unit. Refer to AV-75, "
Confirmation/Adjustment Mode".
OK or NG
OK >> Replace display control unit.
NG >> Check display control unit vehicle speed signal circuit, and repair malfunctioning part.
Value for All Item in the FUEL ECONOMY Screen Do Not ChangeINFOID:0000000001328734
Symptom: Values for items, “Average Fuel Economy” and “Distance to Empty” in the FUEL ECONOMY screen
do not change.
1.CHECK CONDITION
Check if values for all items in the TRIP screen change properly.
OK or NG
OK >> GO TO 2.
NG >> Repair malfunctioning part. Refer to AV-85, "
Value for All Item in the TRIP Screen Do Not Change"
or AV-85, "Value for Item, "Driving Distance" and "Average Speed" Do Not Change".
2.CHECK CAN COMMUNICATION
Check CAN communication. Refer to AV-79, "
CAN Communication Check".
OK or NG
OK >> Replace display control unit.
NG >> After filling out CAN DIAG SUPPORT MONITOR check sheet, Go to LAN-43, "
CAN System Spec-
ification Chart".
56 – Ground:
SKIB7864ESKIB3603E
