Page 1097 of 3924
![INFINITI FX35 2008 Service Manual
CO-26
< SERVICE INFORMATION >[VQ35DE]
WATER PUMP
b. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to mating surface of chain tensioner
cover and water pump INFINITI FX35 2008 Service Manual
CO-26
< SERVICE INFORMATION >[VQ35DE]
WATER PUMP
b. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to mating surface of chain tensioner
cover and water pump](/manual-img/42/57017/w960_57017-1096.png)
CO-26
< SERVICE INFORMATION >[VQ35DE]
WATER PUMP
b. Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to mating surface of chain tensioner
cover and water pump cover.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
CAUTION:
Attaching should be done with in 5 minutes after coating.
c. Tighten mounting bolts.
5. Install water drain plug (front) on water pump side of cylinder block. Apply liquid gasket to the thread of water drain plug (front).
Use Genuine RTV Silicone Sealant or equivalent. Refer to GI-44, "
Recommended Chemical Prod-
uct and Sealant".
6. Install in the reverse order of removal for remaining parts. After starting engine, let idle fo r three minutes, then rev engine up to 3,000 rpm under no load to
purge air from the high-pressure chamber of ch ain tensioner. Engine may produce a rattling
noise. This indicates that air still remains in the chamber and is not a matter of concern.
INSPECTION AFTER INSTALLATION
Check for leaks of engine coolant using the radiator cap tester adapter (commercial service tool) and the
radiator cap tester (commercial service tool). Refer to CO-10, "
Inspection".
Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.
PBIC2663E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1098 of 3924
![INFINITI FX35 2008 Service Manual
WATER INLET AND THERMOSTAT ASSEMBLYCO-27
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O

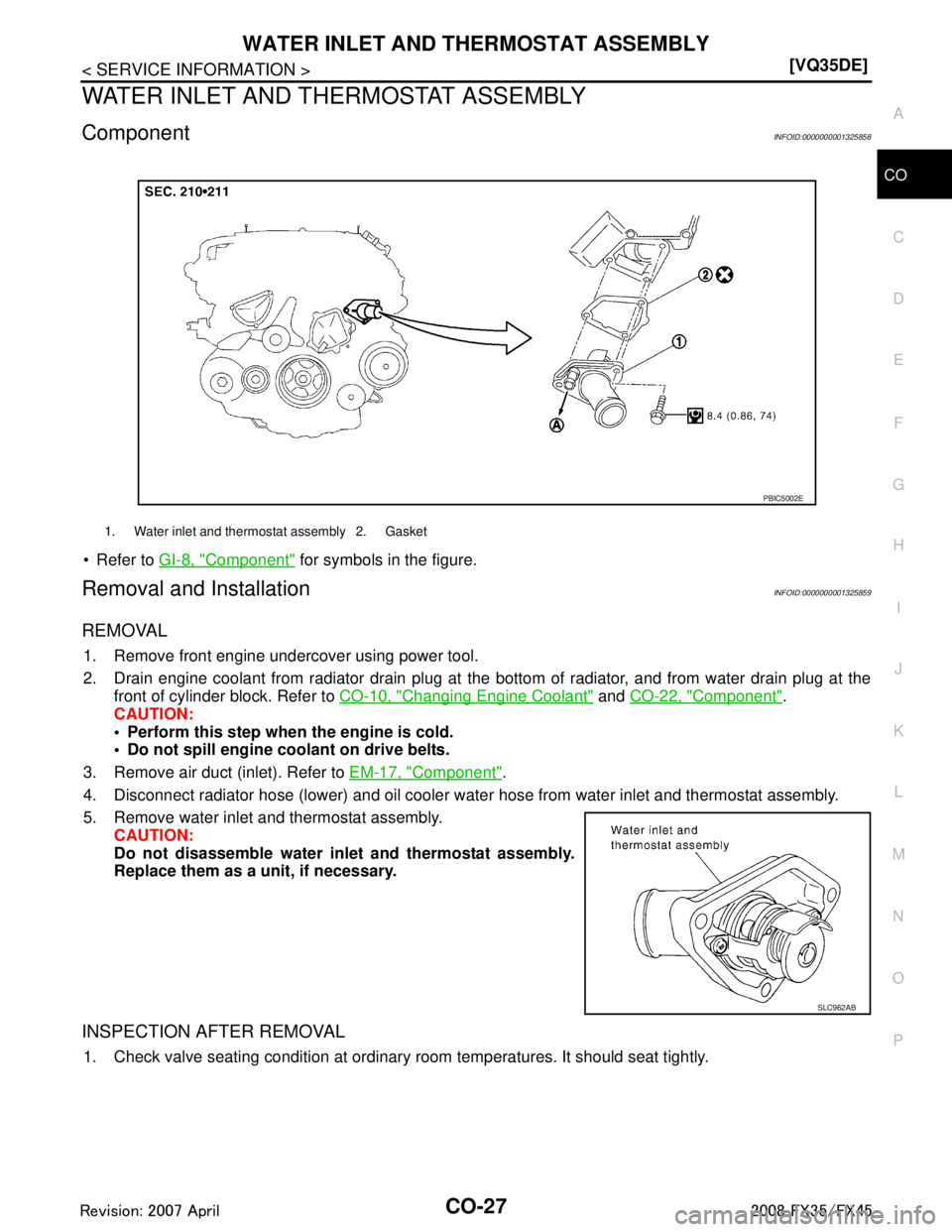

WATER INLET AND THERMOSTAT ASSEMBLY
ComponentINFOID:0000000001325858
Refer to
GI-8, "Compo INFINITI FX35 2008 Service Manual
WATER INLET AND THERMOSTAT ASSEMBLYCO-27
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
WATER INLET AND THERMOSTAT ASSEMBLY
ComponentINFOID:0000000001325858
Refer to
GI-8, "Compo](/manual-img/42/57017/w960_57017-1097.png)
WATER INLET AND THERMOSTAT ASSEMBLYCO-27
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
WATER INLET AND THERMOSTAT ASSEMBLY
ComponentINFOID:0000000001325858
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325859
REMOVAL
1. Remove front engine undercover using power tool.
2. Drain engine coolant from radiator drain plug at the bottom of radiator, and from water drain plug at the
front of cylinder block. Refer to CO-10, "
Changing Engine Coolant" and CO-22, "Component".
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
3. Remove air duct (inlet). Refer to EM-17, "
Component".
4. Disconnect radiator hose (lower) and oil cooler wate r hose from water inlet and thermostat assembly.
5. Remove water inlet and thermostat assembly. CAUTION:
Do not disassemble water inle t and thermostat assembly.
Replace them as a unit, if necessary.
INSPECTION AFTER REMOVAL
1. Check valve seating condition at ordinary r oom temperatures. It should seat tightly.
1. Water inlet and thermostat assembly 2. Gasket
PBIC5002E
SLC962AB
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1099 of 3924
![INFINITI FX35 2008 Service Manual
CO-28
< SERVICE INFORMATION >[VQ35DE]
WATER INLET AND THERMOSTAT ASSEMBLY
2. Check valve operation.
If the malfunctioning condition, when valve seating at ordinary
room temperature, or measured va INFINITI FX35 2008 Service Manual
CO-28
< SERVICE INFORMATION >[VQ35DE]
WATER INLET AND THERMOSTAT ASSEMBLY
2. Check valve operation.
If the malfunctioning condition, when valve seating at ordinary
room temperature, or measured va](/manual-img/42/57017/w960_57017-1098.png)
CO-28
< SERVICE INFORMATION >[VQ35DE]
WATER INLET AND THERMOSTAT ASSEMBLY
2. Check valve operation.
If the malfunctioning condition, when valve seating at ordinary
room temperature, or measured values are out of the standard,
replace water inlet and thermostat assembly.
INSTALLATION
Note the following, and install in the reverse order of removal.
Be careful not to spill engine coolant over en gine room. Use rag to absorb engine coolant.
INSPECTION AFTER INSTALLATION
Check for leaks of engine coolant using the radiator cap tester adapter (commercial service tool) and the
radiator cap tester (commercial service tool). Refer to CO-10, "
Inspection".
Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.
Thermostat
Valve opening temperature 76 - 79 °C (169 - 174 °F)
Maximum valve lift 8.6 mm/90 °C (0.339 in/194 °F)
Valve closing temperature 71 °C (160 °F)
SLC949A
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1100 of 3924
![INFINITI FX35 2008 Service Manual
WATER OUTLET AND WATER PIPINGCO-29
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O

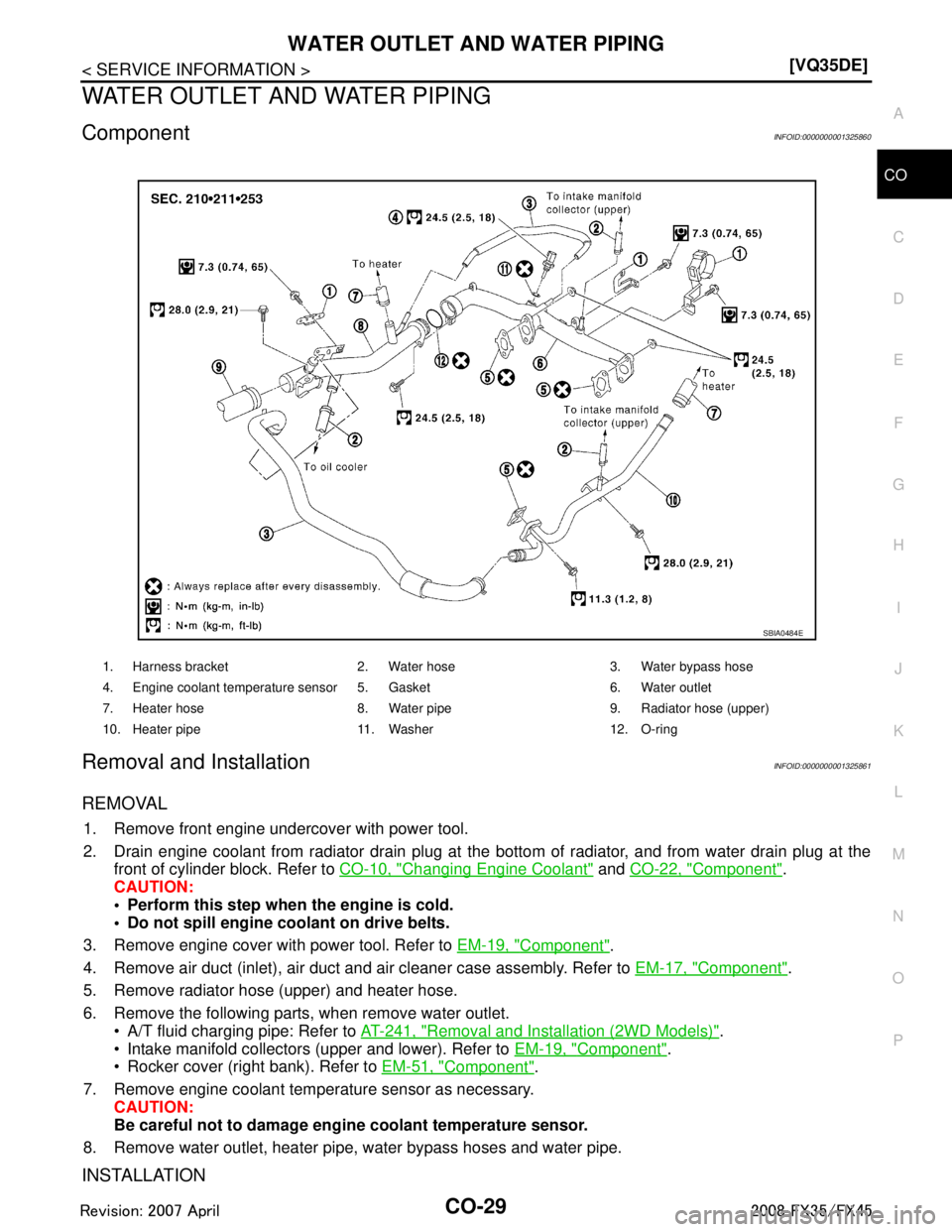

WATER OUTLET AND WATER PIPING
ComponentINFOID:0000000001325860
Removal and InstallationINFOID:00000 INFINITI FX35 2008 Service Manual
WATER OUTLET AND WATER PIPINGCO-29
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
WATER OUTLET AND WATER PIPING
ComponentINFOID:0000000001325860
Removal and InstallationINFOID:00000](/manual-img/42/57017/w960_57017-1099.png)
WATER OUTLET AND WATER PIPINGCO-29
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
WATER OUTLET AND WATER PIPING
ComponentINFOID:0000000001325860
Removal and InstallationINFOID:0000000001325861
REMOVAL
1. Remove front engine undercover with power tool.
2. Drain engine coolant from radiator drain plug at the
bottom of radiator, and from water drain plug at the
front of cylinder block. Refer to CO-10, "
Changing Engine Coolant" and CO-22, "Component".
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
3. Remove engine cover with power tool. Refer to EM-19, "
Component".
4. Remove air duct (inlet), air duct and air cleaner case assembly. Refer to EM-17, "
Component".
5. Remove radiator hose (upper) and heater hose.
6. Remove the following parts, when remove water outlet. A/T fluid charging pipe: Refer to AT-241, "
Removal and Installation (2WD Models)".
Intake manifold collectors (upper and lower). Refer to EM-19, "
Component".
Rocker cover (right bank). Refer to EM-51, "
Component".
7. Remove engine coolant temperature sensor as necessary. CAUTION:
Be careful not to damage engi ne coolant temperature sensor.
8. Remove water outlet, heater pipe, water bypass hoses and water pipe.
INSTALLATION
1. Harness bracket 2. Water hose 3. Water bypass hose
4. Engine coolant temperature sensor 5. Gasket 6. Water outlet
7. Heater hose 8. Water pipe 9. Radiator hose (upper)
10. Heater pipe 11. Washer 12. O-ring
SBIA0484E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1101 of 3924
CO-30
< SERVICE INFORMATION >[VQ35DE]
WATER OUTLET AND WATER PIPING
Note the following, and install in the reverse order of removal.
Securely insert each hose, and install clamp at a pos
ition where it does not interfere with the pipe bulge.
When inserting water pipe into water outlet, apply neutral detergent to O-ring.
INSPECTION AFTER INSTALLATION
Check for leaks of engine coolant using the radiator cap tester adapter (commercial service tool) and the
radiator cap tester (commercial service tool). Refer to CO-10, "
Inspection".
Start and warm up the engine. Visually make sure that there is no leaks of engine coolant.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1102 of 3924
SERVICE DATA AND SPECIFICATIONS (SDS)
CO-31
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
SERVICE DATA AND SPECIFICATIONS (SDS)
Standard and LimitINFOID:0000000001325862
ENGINE COOLANT CAPACITY (APPROXIMATE)
Unit: (US qt, Imp qt)
RADIATOR
Unit: kPa (kg/cm2, psi)
THERMOSTAT
Engine coolant capacity [With reservoir tank (“MAX” level)] 8.6 (9-1/8, 7- 5/8)
Reservoir tank engine coolant capacity (At “MAX” level) 0.8 (7/8, 3/4)
Cap relief pressure
Standard 78 - 98 (0.8 - 1.0, 11 - 14)
Limit 59 (0.6, 9)
Leakage testing pressure 157 (1.6, 23)
Valve opening temperature 76 - 79 °C (169 - 174 °F)
Maximum valve lift 8.6 mm/90 °C (0.339 in/194 °F)
Valve closing temperature 71 °C (160 °F)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1103 of 3924
![INFINITI FX35 2008 Service Manual
CO-32
< SERVICE INFORMATION >[VK45DE]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint S
ystem (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001612913
INFINITI FX35 2008 Service Manual
CO-32
< SERVICE INFORMATION >[VK45DE]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint S
ystem (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001612913](/manual-img/42/57017/w960_57017-1102.png)
CO-32
< SERVICE INFORMATION >[VK45DE]
PRECAUTIONS
SERVICE INFORMATION
PRECAUTIONS
Precaution for Supplemental Restraint S
ystem (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"
INFOID:0000000001612913
The Supplemental Restraint System such as “A IR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severi ty of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and w hether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SUPPLEMENTAL RESTRAINT SYS-
TEM” and “SEAT BELTS” of this Service Manual.
WARNING:
To avoid rendering the SRS inopera tive, which could increase the risk of personal injury or death in
the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISS AN/INFINITI dealer.
Improper maintenance, including in correct removal and installation of the SRS, can lead to personal
injury caused by unintent ional activation of the system. For re moval of Spiral Cable and Air Bag
Module, see the “SUPPLEMEN TAL RESTRAINT SYSTEM”.
Do not use electrical test equipmen t on any circuit related to the SRS unless instructed to in this
Service Manual. SRS wiring harnesses can be identi fied by yellow and/or orange harnesses or har-
ness connectors.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 1104 of 3924
PREPARATIONCO-33
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
CO
NP
O
PREPARATION
Special Service ToolINFOID:0000000001325864
The actual shapes of Kent-Moore
tools may from those of special service tools illustrated here.
Commercial Service ToolINFOID:0000000001325865
Tool number
(Kent-Moore No.)
Tool name Description
KV99103510
(—)
Radiator plate pliers A Installing radiator upper and lower tanks
KV99103520
(—)
Radiator plate pliers B Removing radiator upper and lower tanks
S-NT224
S-NT225
Tool name
Description
Power tool Loosening nuts and bolts
Radiator cap tester Checking radiator and radiator cap
Radiator cap tester adapter
(J33984-A) Adapting radiator cap tester to radiator cap
and thermostat housing filler neck
a: 28 (1.10) dia.
b: 31.4 (1.236) dia.
c: 41.3 (1.626) dia.
Unit: mm (in)
PBIC0190E
PBIC1982E
S-NT564
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
