Page 3745 of 3924

INFINITI FX35 2008 Service Manual
SRS-8
< SERVICE INFORMATION >
PREPARATION
PREPARATION
Commercial Service ToolINFOID:0000000001327743
Tool name Description
Tamper resistant TORX bit
S-NT757
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A

Page 3746 of 3924

INFINITI FX35 2008 Service Manual
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)SRS-9
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)

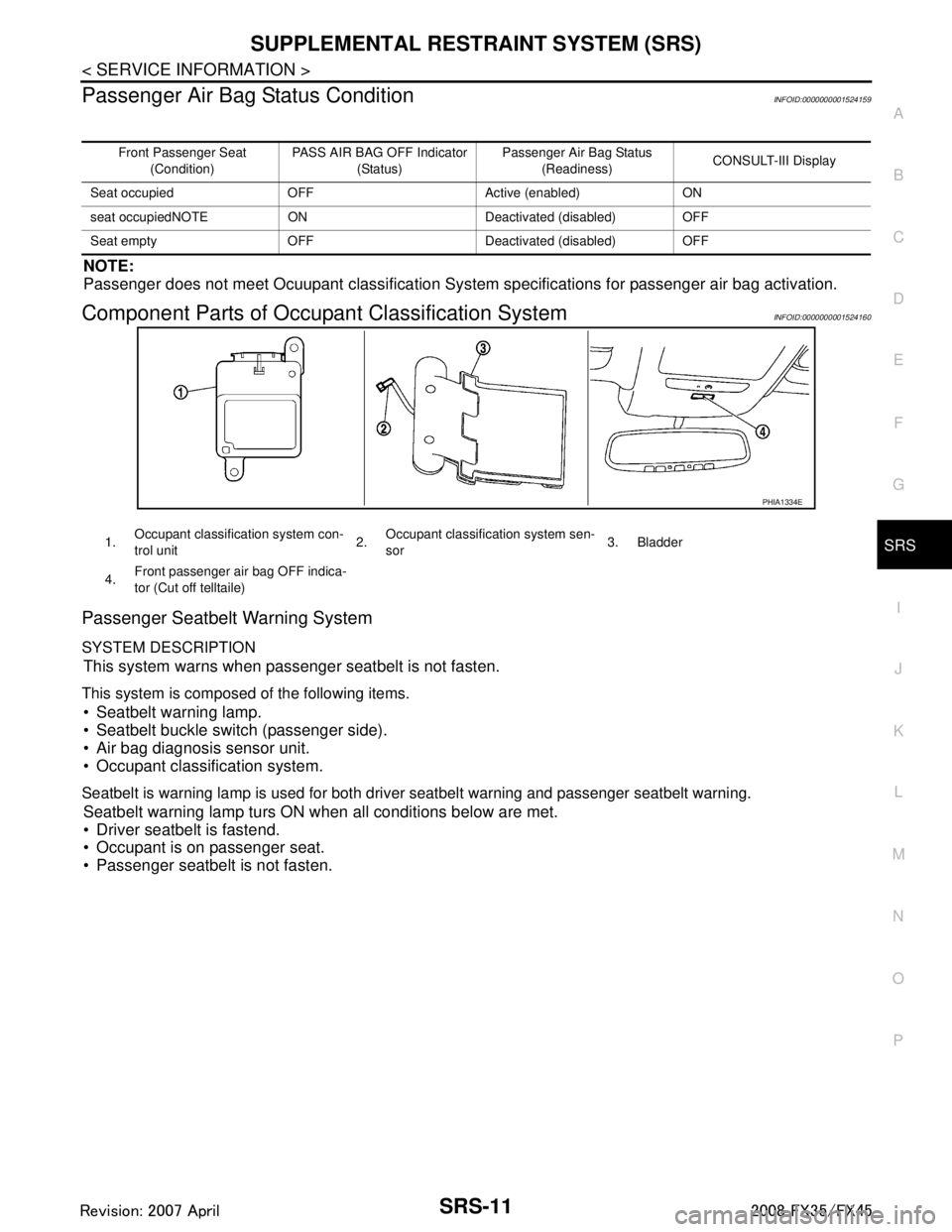

SRS ConfigurationINFOID:0000000001524154
The air bag deploys if t

Page 3747 of 3924

INFINITI FX35 2008 Service Manual
SRS-10
< SERVICE INFORMATION >
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Front Seat Belt Pre-te nsioner with Load Limiter
INFOID:0000000001524155
The seat belt pre-tensioner system wi th load limiter is in

SRS-10
< SERVICE INFORMATION >
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)
Front Seat Belt Pre-te nsioner with Load Limiter
INFOID:0000000001524155
The seat belt pre-tensioner system wi th load limiter is installed for
both the driver's seat and the front passenger's seat. It operates
simultaneously with the SRS air bag system in the event of a frontal
collision with an impact exceeding a specified level.
When the frontal collision with an impact exceeding a specified level
occurs, seat belt slack resulting from clothing or other factors is
immediately taken up by the pre-tensioner. Vehicle passengers are
securely restrained.
When passengers in a vehicle are thrown forward in a collision and
the restraining force of the seat belt exceeds a specified level, the
load limiter permits the specified extension of the seat belt by the
twisting of the ELR shaft, and a relaxation of the chest-area seat belt
web tension while maintaining force.
Front Side Air BagINFOID:0000000001524156
Front side air bag is built-in type.
The front seatbacks with built-in type side air bag have the labels as
shown.
Side Curtain Air BagINFOID:0000000001524157
The side curtain air bags have the labels as shown.
Occupant Classification System (OCS)INFOID:0000000001524158
The occupant classification system identifies different si ze occupants, out of position occupants, and detects if
child seat is present in the front passenger seat. The oc cupant classification system receives inputs from the
occupant classification sensor (located inside the pa ssenger seat cushion assembly) and belt tension sensor
(part of the passenger front seat belt assembly and located at the belt anchor location). Depending on classifi-
cation of passenger, the occupant clas sification system sends a signal to the diagnosis sensor unit. The diag-
nosis sensor unit uses this signal to determine full, pa rtial, or non deployment of passenger front air bag in the
event of a collision. Depending on the signal received, the diagnosis sensor unit can disable the passenger
front air bag completely.
NOTE:
In case of customer concern, CONSULT-III can be used to confirm the passenger air bag status (readiness).
SRS444
SHIA0170E
BF-2006D
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 3748 of 3924

INFINITI FX35 2008 Service Manual
SUPPLEMENTAL RESTRAINT SYSTEM (SRS)SRS-11
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
Passenger Air Bag Status ConditionINFOID:0000000001524159
NOTE:
Passenger does not meet Ocuupant cla

Page 3749 of 3924

INFINITI FX35 2008 Service Manual
SRS-12
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
TROUBLE DIAGNOSIS
Trouble Diagnosis IntroductionINFOID:0000000001524161
CAUTION:
Do not use electrical test equipment on any circuit related to the

Page 3750 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISSRS-13
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
DETAILED FLOW
1.GET INFORMATION FOR SYMPTOM
Get the detailed information from the customer about the symptom.
>> GO

Page 3751 of 3924

INFINITI FX35 2008 Service Manual
SRS-14
< SERVICE INFORMATION >
TROUBLE DIAGNOSIS
Is malfunctioning part detected?
YES >> GO TO 5.
NO >> Repeat DTC confirmation with diagnostic procedure.
5.REPAIR OR REPLACE
Repair or replace the ma

Page 3752 of 3924

INFINITI FX35 2008 Service Manual
TROUBLE DIAGNOSISSRS-15
< SERVICE INFORMATION >
C
DE
F
G
I
J
K L
M A
B
SRS
N
O P
SchematicINFOID:0000000001524163
THWM0250E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC
