Page 1521 of 3924

INFINITI FX35 2008 Service Manual
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
EC-281
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
5.DETECT MALFUNCTIONING PART
Check the f

Page 1522 of 3924

INFINITI FX35 2008 Service Manual
EC-282
< SERVICE INFORMATION >[VQ35DE]
DTC P0171, P0174 FUEL IN
JECTION SYSTEM FUNCTION

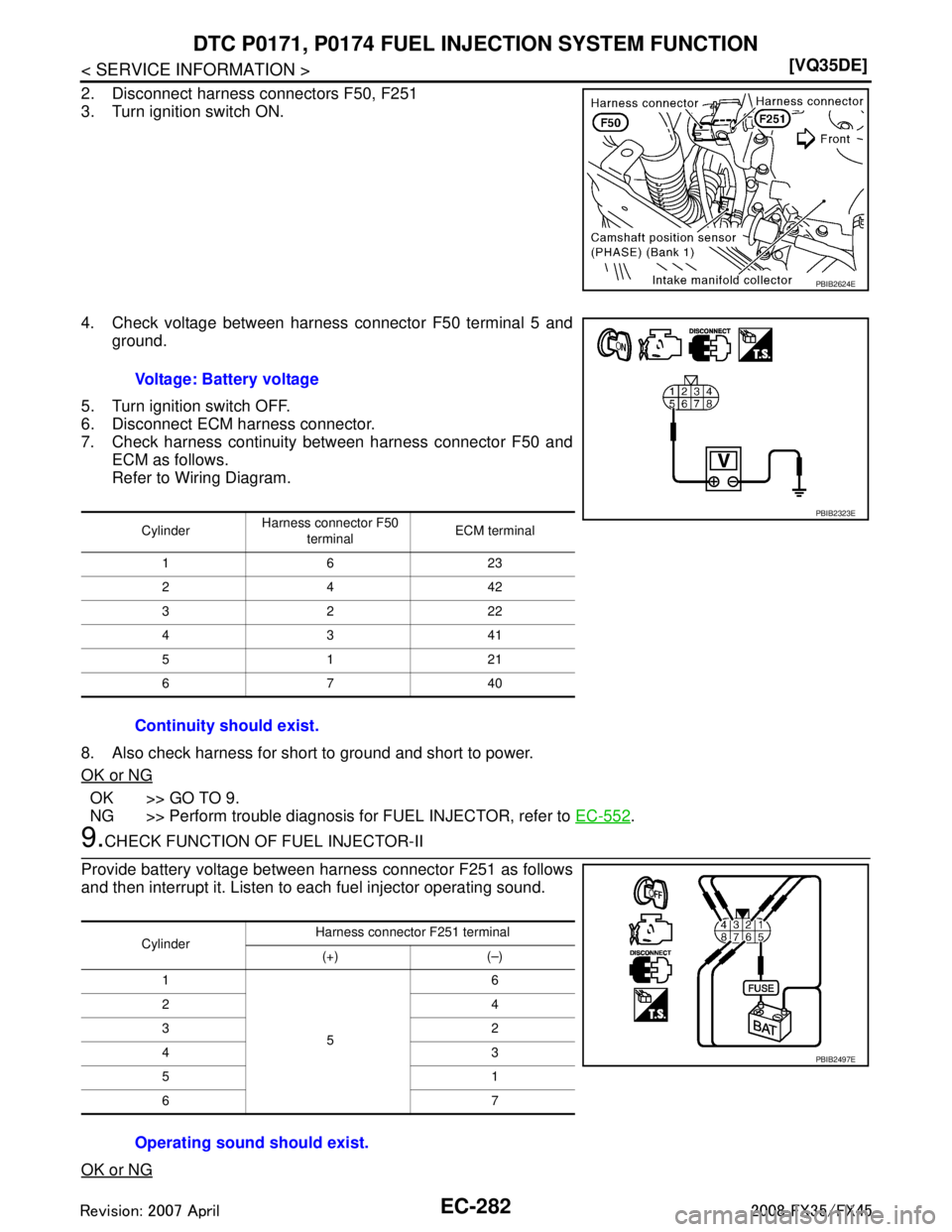

2. Disconnect harness connectors F50, F251
3. Turn ignition switch ON.
4. Check voltage between harness connect

Page 1523 of 3924

INFINITI FX35 2008 Service Manual
DTC P0171, P0174 FUEL INJECTION SYSTEM FUNCTION
EC-283
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
OK >> GO TO 10.
NG >> Perform trouble diagnosis for FUEL INJECTOR, refer to
EC

Page 1524 of 3924

INFINITI FX35 2008 Service Manual
EC-284
< SERVICE INFORMATION >[VQ35DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
On Board Diagnosis LogicINFOID:0000000001326105
With the Air-Fu

EC-284
< SERVICE INFORMATION >[VQ35DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
On Board Diagnosis LogicINFOID:0000000001326105
With the Air-Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the
theoretical mixture ratio based on the mixture ratio feedback signal from the air fuel ratio (A/F) sensor 1. The
ECM calculates the necessary compensation to corr ect the offset between the actual and the theoretical
ratios.
In case the amount of the compensation value is extrem ely large (the actual mixture ratio is too rich.), the
ECM judges the condition as the fuel injection system malfunction and lights up the MIL (2 trip detection logic).
DTC Confirmation ProcedureINFOID:0000000001609264
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
WITH CONSULT-III
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.
3. Turn ignition switch ON and select “SELF-LE ARNING CONT” in “WORK SUPPORT” mode with CON-
SULT-III.
4. Clear the self-learning control coefficient by touching “CLEAR”.
5. Start engine. If it is difficult to start engine, the fuel injection system has a malfunction.
Perform the following procedure is advised.
a. Crank engine while depressing accelerator pedal.
b. If engine starts, go to . If engine does not start, remove ignition plugs and check for fouling, etc.
6. Keep engine at idle for at least 10 minutes.
7. Check 1st trip DTC.
8. If 1st trip DTC is detected, go to EC-289, "
Diagnosis Procedure".
If 1st trip DTC is not detected, per forming the following procedure is advised.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Start engine and drive the vehicle under the similar conditions to (1st trip) Freeze Frame Data for 10 min- utes. Refer to the table below.
Hold the accelerator pedal as steady as possible.
The similar conditions to (1st trip) Freeze Frame Da ta means the vehicle operation that the following con-
ditions should be satisfied at the same time.
Sensor Input signal to ECM ECM function Actuator
Air fuel ration (A/F) sensor 1 Density of oxygen in exhaust gas
(Mixture ratio feedback signal) Fuel injection
control
Fuel injector
DTC No.
Trouble diagnosis
name DTC detecting condition Possible cause
P0172
0172
(Bank 1) Fuel injection system
too rich Fuel injection system does not operate properly.
The amount of mixture ratio compensation is too
large. (The mixture ratio is too rich.) Air fuel ratio (A/F) sensor 1
Fuel injector
Exhaust gas leaks
Incorrect fuel pressure
Mass air flow sensor
P0175
0175
(Bank 2)
Engine speed Engine speed in the freeze frame data
± 400 rpm
Vehicle speed Vehicle speed in the freeze frame data ± 10 km/h (6 MPH)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1525 of 3924

INFINITI FX35 2008 Service Manual
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-285
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O9. Check 1st trip DTC.
10. The 1st trip is detected, go to
EC-289, "
Diagnosis

DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-285
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O9. Check 1st trip DTC.
10. The 1st trip is detected, go to
EC-289, "
Diagnosis Procedure".
WITH GST
1. Start engine and warm it up to normal operating temperature.
2. Turn ignition switch OFF and wait at least 10 seconds.

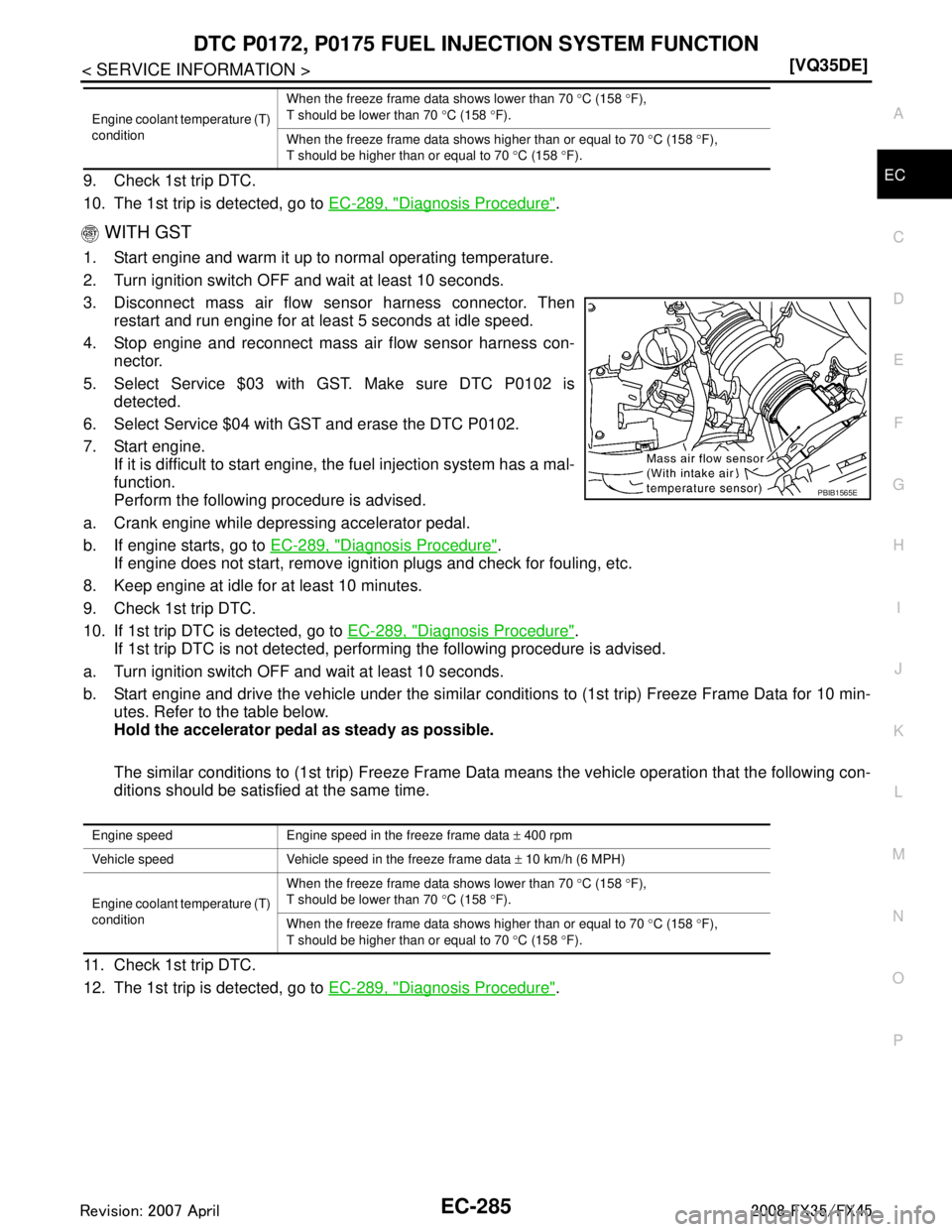

3. Disconnect mass air flow sensor harness connector. Then
restart and run engine for at least 5 seconds at idle speed.
4. Stop engine and reconnect mass air flow sensor harness con- nector.
5. Select Service $03 with GST. Make sure DTC P0102 is detected.
6. Select Service $04 with GST and erase the DTC P0102.
7. Start engine. If it is difficult to start engine, the fuel injection system has a mal-
function.
Perform the following procedure is advised.
a. Crank engine while depressing accelerator pedal.
b. If engine starts, go to EC-289, "
Diagnosis Procedure".
If engine does not start, remove ignition plugs and check for fouling, etc.
8. Keep engine at idle for at least 10 minutes.
9. Check 1st trip DTC.
10. If 1st trip DTC is detected, go to EC-289, "
Diagnosis Procedure".
If 1st trip DTC is not detected, per forming the following procedure is advised.
a. Turn ignition switch OFF and wait at least 10 seconds.
b. Start engine and drive the vehicle under the similar condi tions to (1st trip) Freeze Frame Data for 10 min-
utes. Refer to the table below.
Hold the accelerator pedal as steady as possible.
The similar conditions to (1st trip) Freeze Frame Da ta means the vehicle operation that the following con-
ditions should be satisfied at the same time.
11. Check 1st trip DTC.
12. The 1st trip is detected, go to EC-289, "
Diagnosis Procedure".
Engine coolant temperature (T)
conditionWhen the freeze frame data shows lower than 70
°C (158 °F),
T should be lower than 70 °C (158 °F).
When the freeze frame data shows higher than or equal to 70 °C (158 °F),
T should be higher than or equal to 70 °C (158 °F).
PBIB1565E
Engine speed Engine speed in the freeze frame data ± 400 rpm
Vehicle speed Vehicle speed in the freeze frame data ± 10 km/h (6 MPH)
Engine coolant temperature (T)
condition When the freeze frame data shows lower than 70
°C (158 °F),
T should be lower than 70 °C (158 °F).
When the freeze frame data shows higher than or equal to 70 °C (158 °F),
T should be higher than or equal to 70 °C (158 °F).
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1526 of 3924

INFINITI FX35 2008 Service Manual
EC-286
< SERVICE INFORMATION >[VQ35DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION

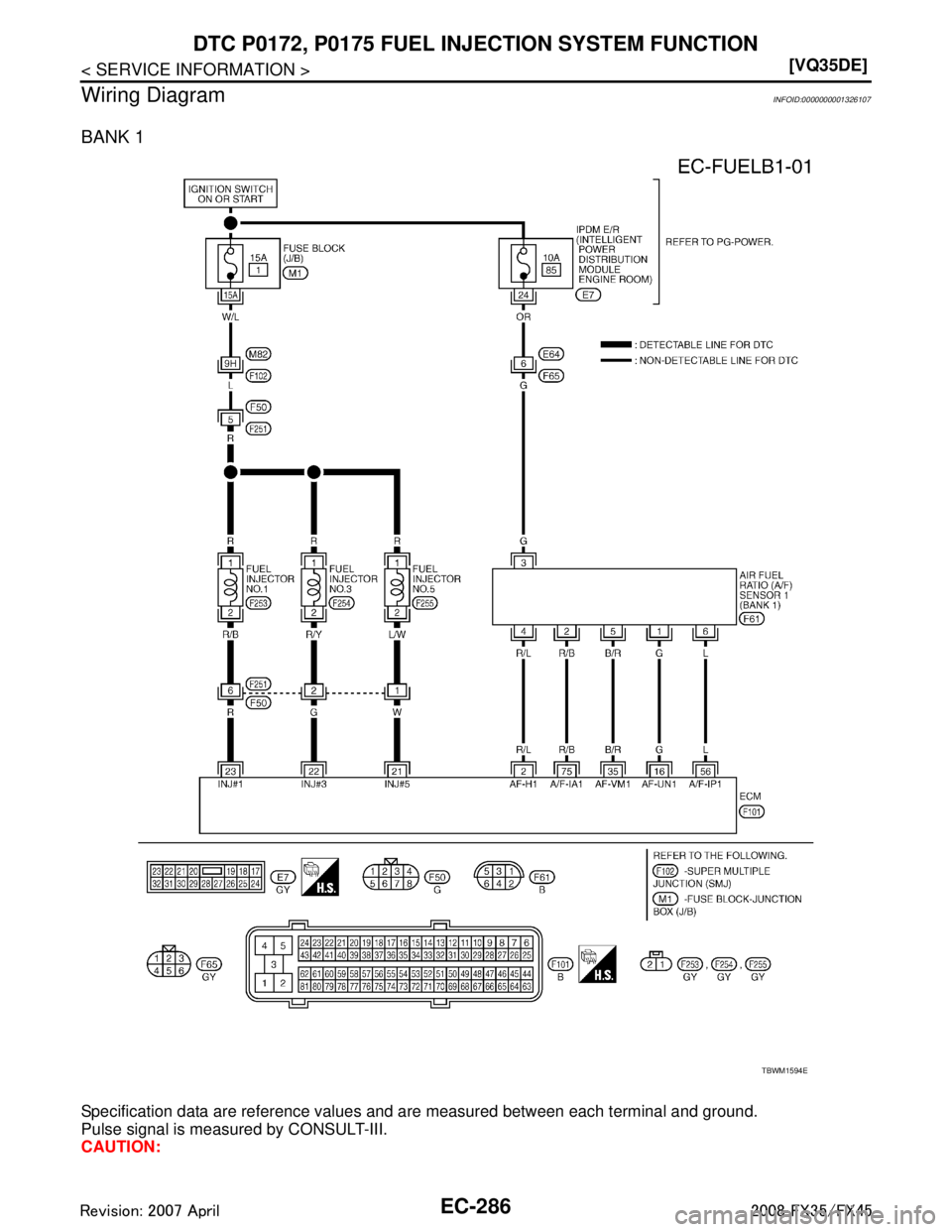

Wiring Diagram
INFOID:0000000001326107
BANK 1
Specification data are reference values and are measured between

Page 1527 of 3924

INFINITI FX35 2008 Service Manual
DTC P0172, P0175 FUEL INJECTION SYSTEM FUNCTION
EC-287
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing so

Page 1528 of 3924

INFINITI FX35 2008 Service Manual
EC-288
< SERVICE INFORMATION >[VQ35DE]
DTC P0172, P0175 FUEL IN
JECTION SYSTEM FUNCTION

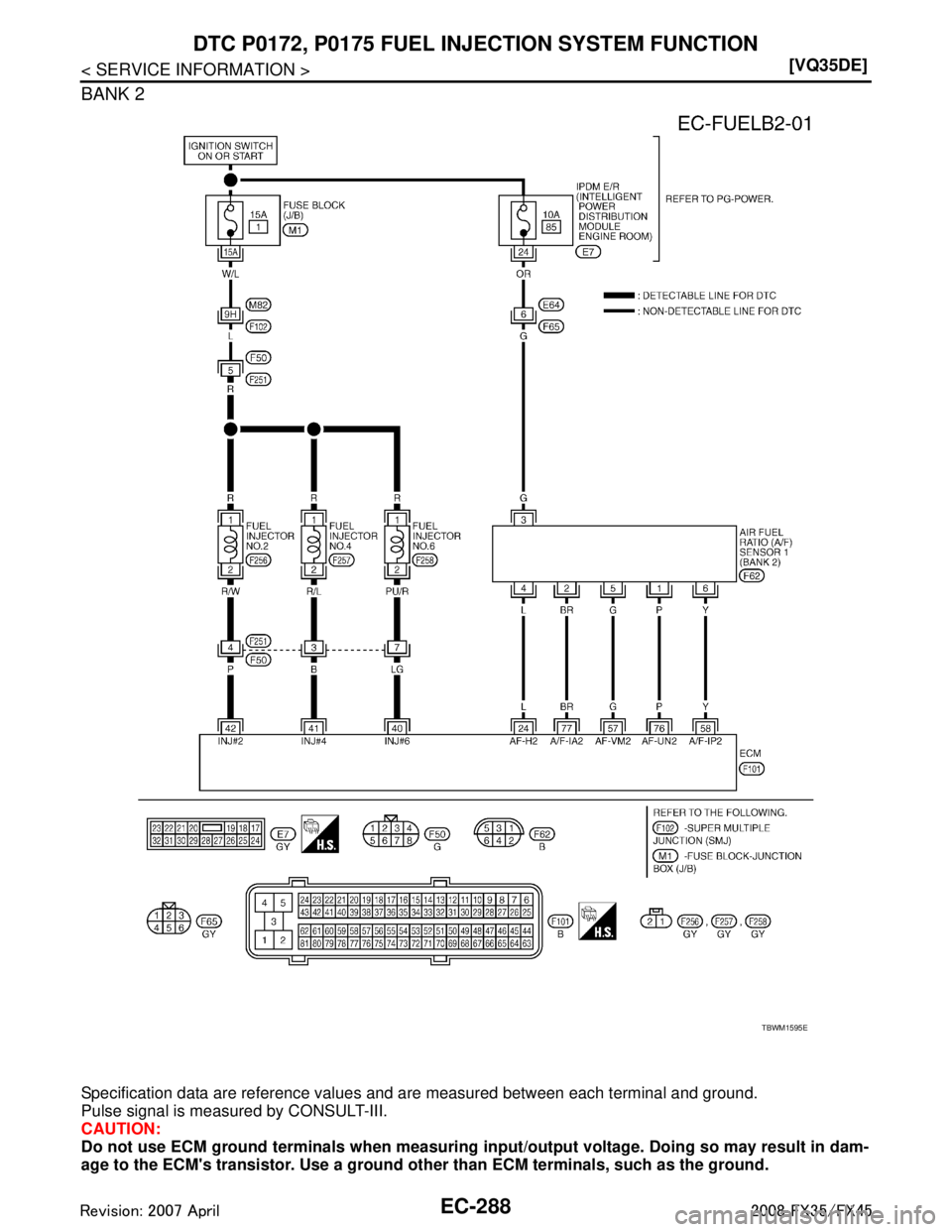

BANK 2
Specification data are reference values and are measured between each terminal and ground.
Pulse signal
