Page 2689 of 3924
![INFINITI FX35 2008 Service Manual
TIMING CHAINEM-205
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder INFINITI FX35 2008 Service Manual
TIMING CHAINEM-205
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder](/manual-img/42/57017/w960_57017-2688.png)
TIMING CHAINEM-205
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
1. Make sure that crankshaft key and dowel pin of each camshaft
are located as shown in the figure. (No. 1 cylinder at compres-
sion TDC)
NOTE:
Though camshaft does not stop at the position as shown in the
figure, for the placement of cam nose, it is generally accepted
camshaft is placed for the same direction of the figure.
2. Install camshaft sprockets. Install onto correct side by checking with identification mark onsurface.
Install camshaft sprocket (EXH) by selectively using the
groove of dowel pin according to the bank. (Common part
used for both banks.)
Lock the hexagonal part of camshaft in the same procedure as for removal, and tighten mounting bolts.
3. Install crankshaft sprockets for both banks. Install each crankshaft sprocket so that its flange side (thelarger diameter side without teeth) faces in the direction shown
in the figure.
NOTE:
The same parts are used but facing directions are different. Camshaft dowel pin
: At cylinder head upper face side in each bank
Crankshaft key : At cylinder head side of left bank
SBIA0356E
PBIC2345E
PBIC0057E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2690 of 3924
![INFINITI FX35 2008 Service Manual
EM-206
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
4. Install timing chains and related parts.
Align the mating mark on each sprocket and timing chain for installation.NOTE:
Before installing chai INFINITI FX35 2008 Service Manual
EM-206
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
4. Install timing chains and related parts.
Align the mating mark on each sprocket and timing chain for installation.NOTE:
Before installing chai](/manual-img/42/57017/w960_57017-2689.png)
EM-206
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
4. Install timing chains and related parts.
Align the mating mark on each sprocket and timing chain for installation.NOTE:
Before installing chain tensioner, it is possible to change the position of mating mark on timing chain for
that on each sprocket for alignment.
CAUTION:
For the above reason, after the mating marks ar e aligned, keep them aligned by holding them
with a hand.
Install slack guides and tension guides onto correct si de by checking with identification mark on surface.
Install chain tensioner with plunger fixed as described in its removal.
CAUTION:
Before and after the installation of chain tens ioner, make sure that the mating mark on timing
chain is not out of alignment.
After installing chain tensioner, remove stoppe r pin to release tensioner. Make sure tensioner
is released.
To avoid chain-link skipping of timing chain, do not move crankshaft or camshafts until front
cover is installed.
5. Perform the same procedure as for right bank, install timing chain and related parts on left side.
6. Install oil pump. Refer to LU-29
.
7. Install oil pump drive spacer as follows:
a. Insert oil pump drive spacer according to the directions of crank- shaft key and the two flat surfaces of oil pump inner rotor.
If the positional relationship does not allow the insertion, rotate
oil pump inner rotor with a finger to allow spacer.
b. After confirming that the position of each part is in correct condi- tion to allow for spacer, force fit spacer by lightly tapping with
plastic hammer until it contacts and does not go further.
8. Install front oil seal on front cover. Apply new engine oil to both oil seal lip and dust seal lip.
PBIC2344E
PBIC0058E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2691 of 3924
![INFINITI FX35 2008 Service Manual
TIMING CHAINEM-207
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Install it so that each seal lip is oriented as shown in the figure.
CAUTION:
Be careful not to scratch or make b INFINITI FX35 2008 Service Manual
TIMING CHAINEM-207
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Install it so that each seal lip is oriented as shown in the figure.
CAUTION:
Be careful not to scratch or make b](/manual-img/42/57017/w960_57017-2690.png)
TIMING CHAINEM-207
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Install it so that each seal lip is oriented as shown in the figure.
CAUTION:
Be careful not to scratch or make burrs on circumference
of oil seal.
Using front oil seal drift (commerc ial service tool), press fit until
the height of front oil seal is level with the mounting surface.
Make sure the garter spring is in position and seal lips not inverted.
9. Install chain tensioner cover to front cover. Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to front cover as shown in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
10. Install front cover as follows:
a. Install new O-rings onto cyli nder heads (right and left bank) and
cylinder block.
SEM715A
Front oil seal drift
Outer diameter : 56 mm (2.20 in)
Inner diameter : 49 mm (1.93 in)
PBIC0059E
SBIA0372E
SBIA0373E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2692 of 3924
![INFINITI FX35 2008 Service Manual
EM-208
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
b. Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to front cover as shown in the figure.
Use Genuine RTV Sili INFINITI FX35 2008 Service Manual
EM-208
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
b. Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to front cover as shown in the figure.
Use Genuine RTV Sili](/manual-img/42/57017/w960_57017-2691.png)
EM-208
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
b. Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to front cover as shown in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
c. make sure again that the mating marks on timing chain and that on each sprocket are aligned. Then, install front cover.
CAUTION:
Be careful to avoid interferen ce with the front end of oil
pump drive spacer. Such interf erence may damage front oil
seal.
d. Tighten mounting bolts in numerical order as shown in the fig- ure.
There are four type mounting bolts.
e. After all mounting bolts are tightened, retighten t hem in numerical order as shown in the figure.
CAUTION:
Be sure to wipe off any excessive liquid gasket leaking onto surface mating with oil pan.
11. Install intake valve timing control cover as follows:
a. At the back of intake valve timing control cover, in stall new seal rings (three for each bank) to the area to
be inserted into camshaft sprocket (INT).
CAUTION:
Do not spread seal ring excessively to avoid breaks and deformation.
b. Install new O-rings on front cover.
PBIC0062E
KBIA0354J
PBIC1681E
SBIA0374E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2693 of 3924
![INFINITI FX35 2008 Service Manual
TIMING CHAINEM-209
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
c. Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to intake valve timing cont INFINITI FX35 2008 Service Manual
TIMING CHAINEM-209
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
c. Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to intake valve timing cont](/manual-img/42/57017/w960_57017-2692.png)
TIMING CHAINEM-209
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

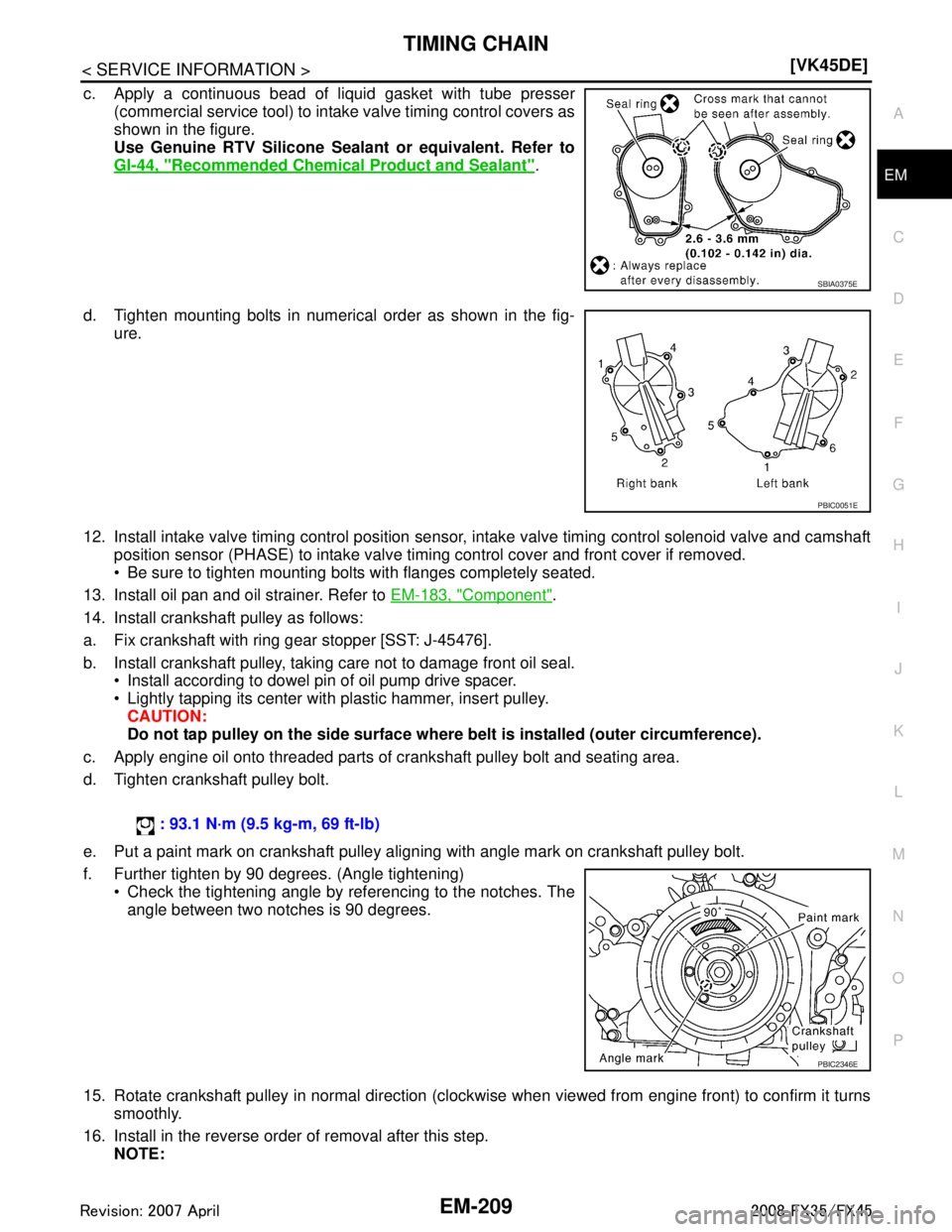

c. Apply a continuous bead of liquid gasket with tube presser
(commercial service tool) to intake valve timing control covers as
shown in the figure.
Use Genuine RTV Silicone Seal ant or equivalent. Refer to
GI-44, "
Recommended Chemical Product and Sealant".
d. Tighten mounting bolts in numerical order as shown in the fig- ure.
12. Install intake valve timing control position sensor, intake valve timing control solenoid valve and camshaft position sensor (PHASE) to intake valve timing control cover and front cover if removed.
Be sure to tighten mounting bolts with flanges completely seated.
13. Install oil pan and oil strainer. Refer to EM-183, "
Component".
14. Install crankshaft pulley as follows:
a. Fix crankshaft with ring gear stopper [SST: J-45476].
b. Install crankshaft pulley, taking care not to damage front oil seal. Install according to dowel pin of oil pump drive spacer.
Lightly tapping its center with plastic hammer, insert pulley.CAUTION:
Do not tap pulley on the side surface where belt is installed (outer circumference).
c. Apply engine oil onto threaded parts of crankshaft pulley bolt and seating area.
d. Tighten crankshaft pulley bolt.
e. Put a paint mark on crankshaft pulley aligning with angle mark on crankshaft pulley bolt.
f. Further tighten by 90 degrees. (Angle tightening) Check the tightening angle by referencing to the notches. Theangle between two notches is 90 degrees.
15. Rotate crankshaft pulley in normal direction (clockwise when viewed from engine front) to confirm it turns smoothly.
16. Install in the reverse order of removal after this step. NOTE:
SBIA0375E
PBIC0051E
: 93.1 N·m (9.5 kg-m, 69 ft-lb)
PBIC2346E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2694 of 3924
![INFINITI FX35 2008 Service Manual
EM-210
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in guide may gen-
erate a pounding noise during and jus INFINITI FX35 2008 Service Manual
EM-210
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in guide may gen-
erate a pounding noise during and jus](/manual-img/42/57017/w960_57017-2693.png)
EM-210
< SERVICE INFORMATION >[VK45DE]
TIMING CHAIN
If hydraulic pressure inside timing chain tensioner drops after removal/installation, slack in guide may gen-
erate a pounding noise during and just after engine start. However, this does not indicate an unusualness.
Noise will stop after hydraulic pressure rises.
INSPECTION AFTER INSTALLATION
Inspection for Leaks
The followings are procedures for checking fluids leak, lubricates leak and exhaust gases leak. Before starting engine, check oil/fluid levels incl
uding engine coolant and engine oil. If less than required
quantity, fill to the specified level. Refer to MA-9, "
Fluids and Lubricants"
Use procedure below to check for fuel leakage.
- Turn ignition switch “ON” (with engine stopped). With fuel pressure applied to fuel piping, check for fuel leak-
age at connection points.
- Start engine. With engine speed increased, che ck again for fuel leakage at connection points.
Run engine to check for unusual noise and vibration.
Warm up engine thoroughly to make sure there is no leak age of fuel, exhaust gases, or any oil/fluids includ-
ing engine oil and engine coolant.
Bleed air from lines and hoses of applic able lines, such as in cooling system.
After cooling down engine, again check oil/fluid levels including engine oil and engine coolant. Refill to the
specified level, if necessary.
Summary of the inspection items:
*: Transmission/transaxle/CVT fluid. power steering fluid, brake fluid, etc. Items Before starting engine Engine running After engine stopped
Engine coolant Level Leakage Level
Engine oil Level Leakage Level
Other oils and fluid* Level Leakage Level
Fuel Leakage Leakage Leakage
Exhaust gases — Leakage —
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2695 of 3924
![INFINITI FX35 2008 Service Manual
CAMSHAFTEM-211
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

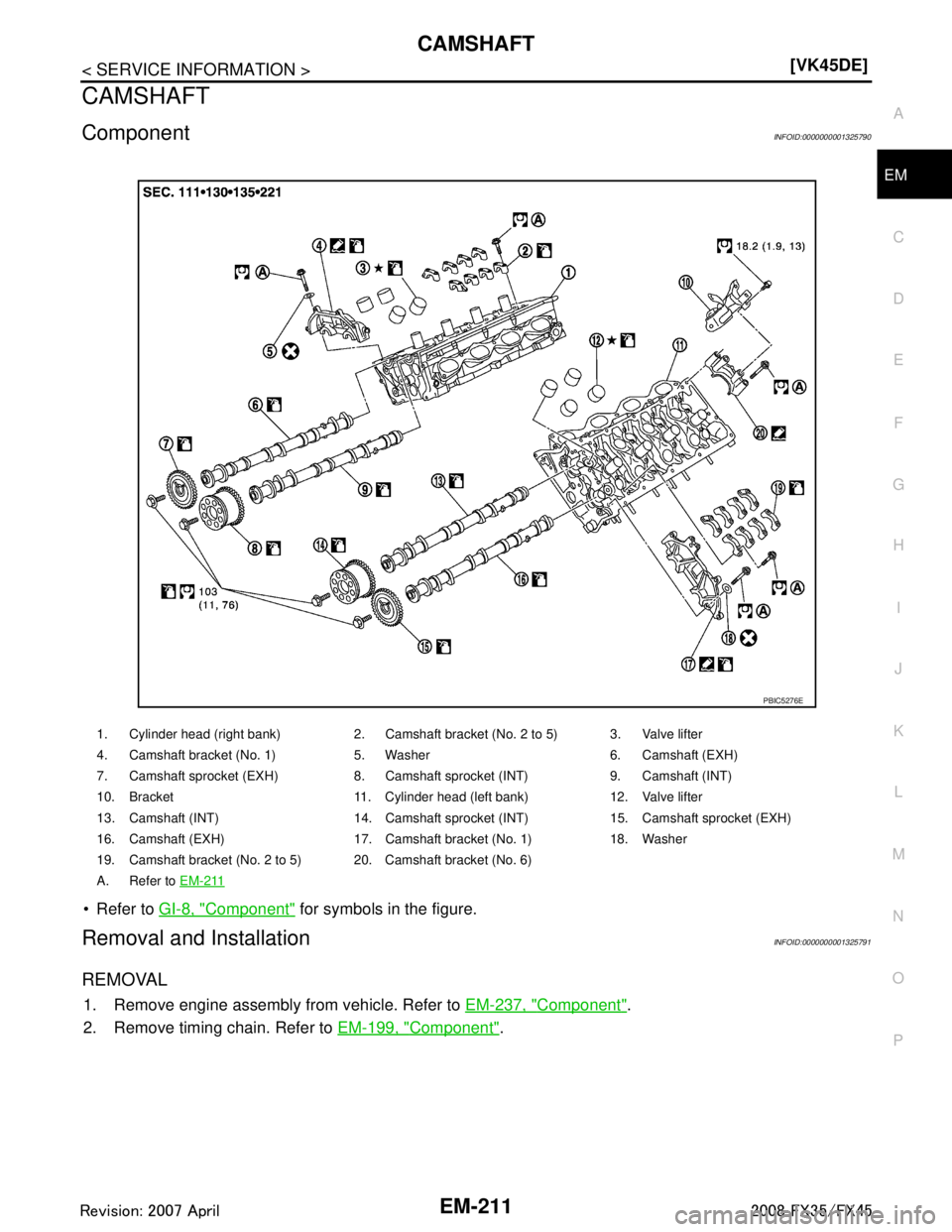

CAMSHAFT
ComponentINFOID:0000000001325790
Refer to
GI-8, "Component" for symbols in the figure.
Removal and Installa INFINITI FX35 2008 Service Manual
CAMSHAFTEM-211
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CAMSHAFT
ComponentINFOID:0000000001325790
Refer to
GI-8, "Component" for symbols in the figure.
Removal and Installa](/manual-img/42/57017/w960_57017-2694.png)
CAMSHAFTEM-211
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
CAMSHAFT
ComponentINFOID:0000000001325790
Refer to
GI-8, "Component" for symbols in the figure.
Removal and InstallationINFOID:0000000001325791
REMOVAL
1. Remove engine assembly from vehicle. Refer to EM-237, "Component".
2. Remove timing chain. Refer to EM-199, "
Component".
1. Cylinder head (right bank) 2. Camshaft bracket (No. 2 to 5) 3. Valve lifter
4. Camshaft bracket (No. 1) 5. Washer 6. Camshaft (EXH)
7. Camshaft sprocket (EXH) 8. Camshaf t sprocket (INT) 9. Camshaft (INT)
10. Bracket 11. Cylinder head (left bank) 12. Valve lifter
13. Camshaft (INT) 14. Camshaft sprocket (INT) 15. Camshaft sprocket (EXH)
16. Camshaft (EXH) 17. Camshaft bracket (No. 1) 18. Washer
19. Camshaft bracket (No. 2 to 5) 20. Camshaft bracket (No. 6)
A. Refer to EM-211
PBIC5276E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2696 of 3924
![INFINITI FX35 2008 Service Manual

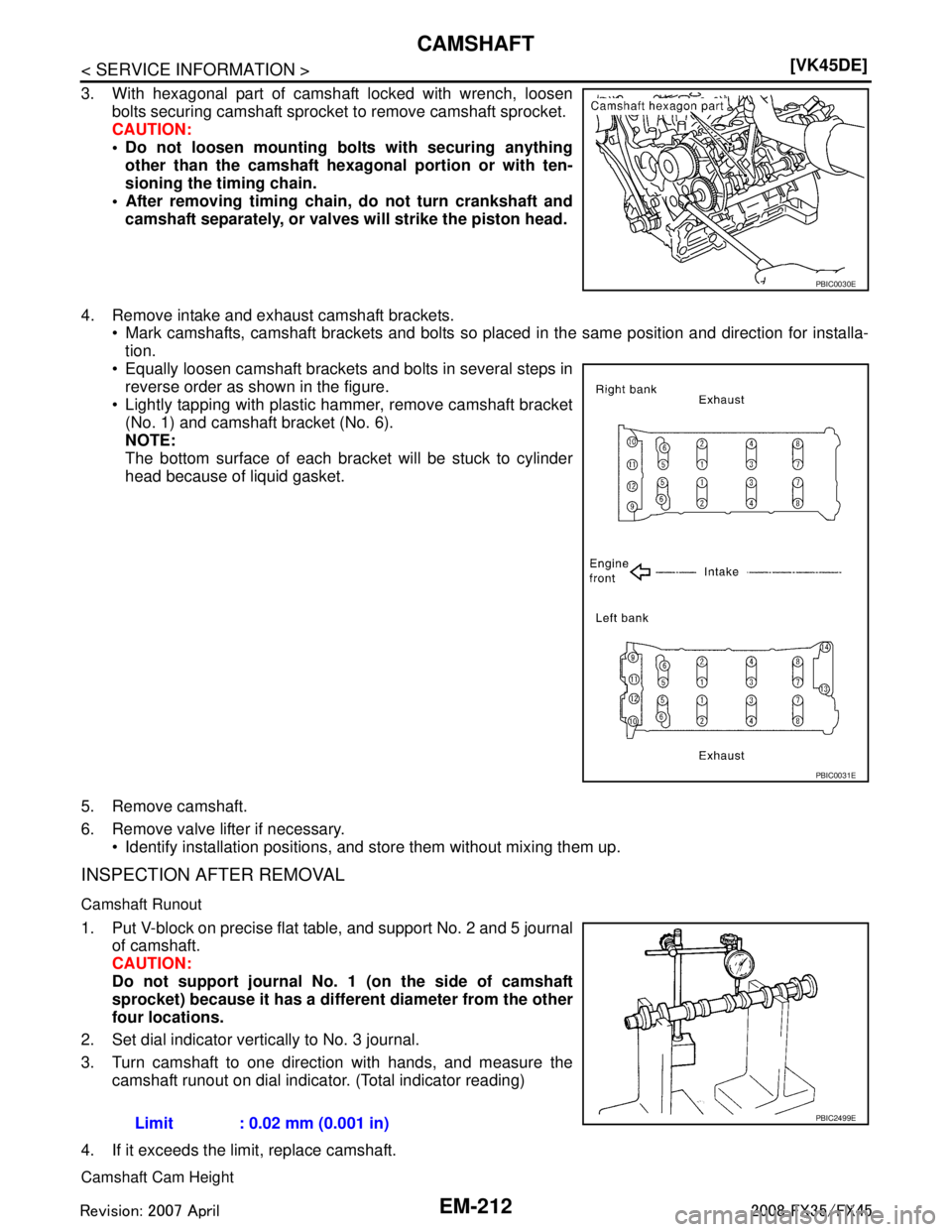

EM-212
< SERVICE INFORMATION >[VK45DE]
CAMSHAFT
3. With hexagonal part of camshaft locked with wrench, loosen
bolts securing camshaft sprocket to remove camshaft sprocket.
CAUTION:
Do not loosen m INFINITI FX35 2008 Service Manual
EM-212
< SERVICE INFORMATION >[VK45DE]
CAMSHAFT
3. With hexagonal part of camshaft locked with wrench, loosen
bolts securing camshaft sprocket to remove camshaft sprocket.
CAUTION:
Do not loosen m](/manual-img/42/57017/w960_57017-2695.png)
EM-212
< SERVICE INFORMATION >[VK45DE]
CAMSHAFT
3. With hexagonal part of camshaft locked with wrench, loosen
bolts securing camshaft sprocket to remove camshaft sprocket.
CAUTION:
Do not loosen mounting bol ts with securing anything
other than the camshaft hexagonal portion or with ten-
sioning the timing chain.
After removing timing chain, do not turn crankshaft and
camshaft separately, or valves will strike the piston head.
4. Remove intake and exhaust camshaft brackets. Mark camshafts, camshaft brackets and bolts so placed in the same position and direction for installa-
tion.
Equally loosen camshaft brackets and bolts in several steps in reverse order as shown in the figure.
Lightly tapping with plastic hammer, remove camshaft bracket (No. 1) and camshaft bracket (No. 6).
NOTE:
The bottom surface of each bracket will be stuck to cylinder
head because of liquid gasket.
5. Remove camshaft.
6. Remove valve lifter if necessary. Identify installation positions, and store them without mixing them up.
INSPECTION AFTER REMOVAL
Camshaft Runout
1. Put V-block on precise flat table, and support No. 2 and 5 journalof camshaft.
CAUTION:
Do not support journal No. 1 (on the side of camshaft
sprocket) because it has a differe nt diameter from the other
four locations.
2. Set dial indicator vertically to No. 3 journal.
3. Turn camshaft to one direction with hands, and measure the camshaft runout on dial indicator. (Total indicator reading)
4. If it exceeds the limit, replace camshaft.
Camshaft Cam Height
PBIC0030E
PBIC0031E
Limit : 0.02 mm (0.001 in)PBIC2499E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
