Page 3225 of 3924
PARKING, LICENSE PLATE AND TAIL LAMPS
LT-123
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P

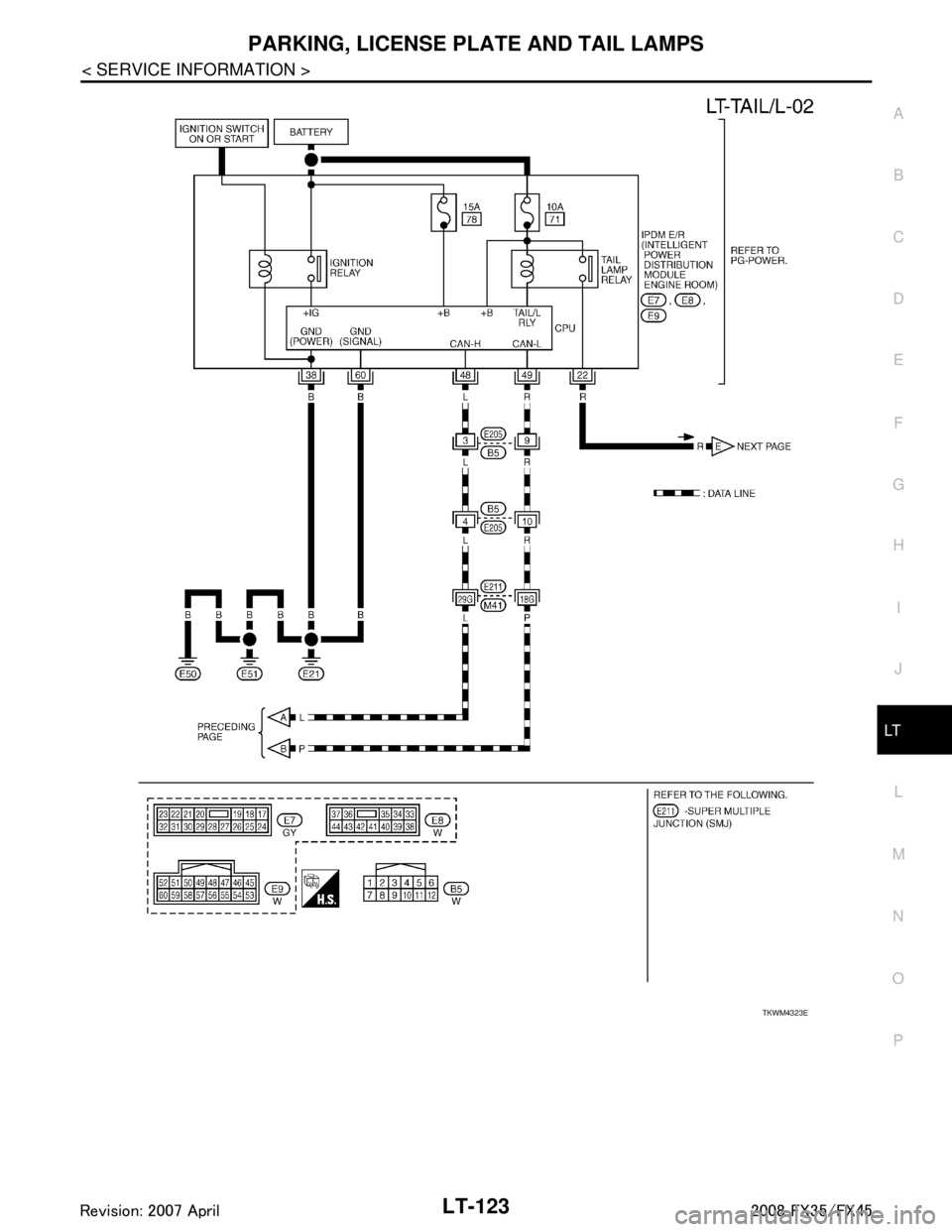

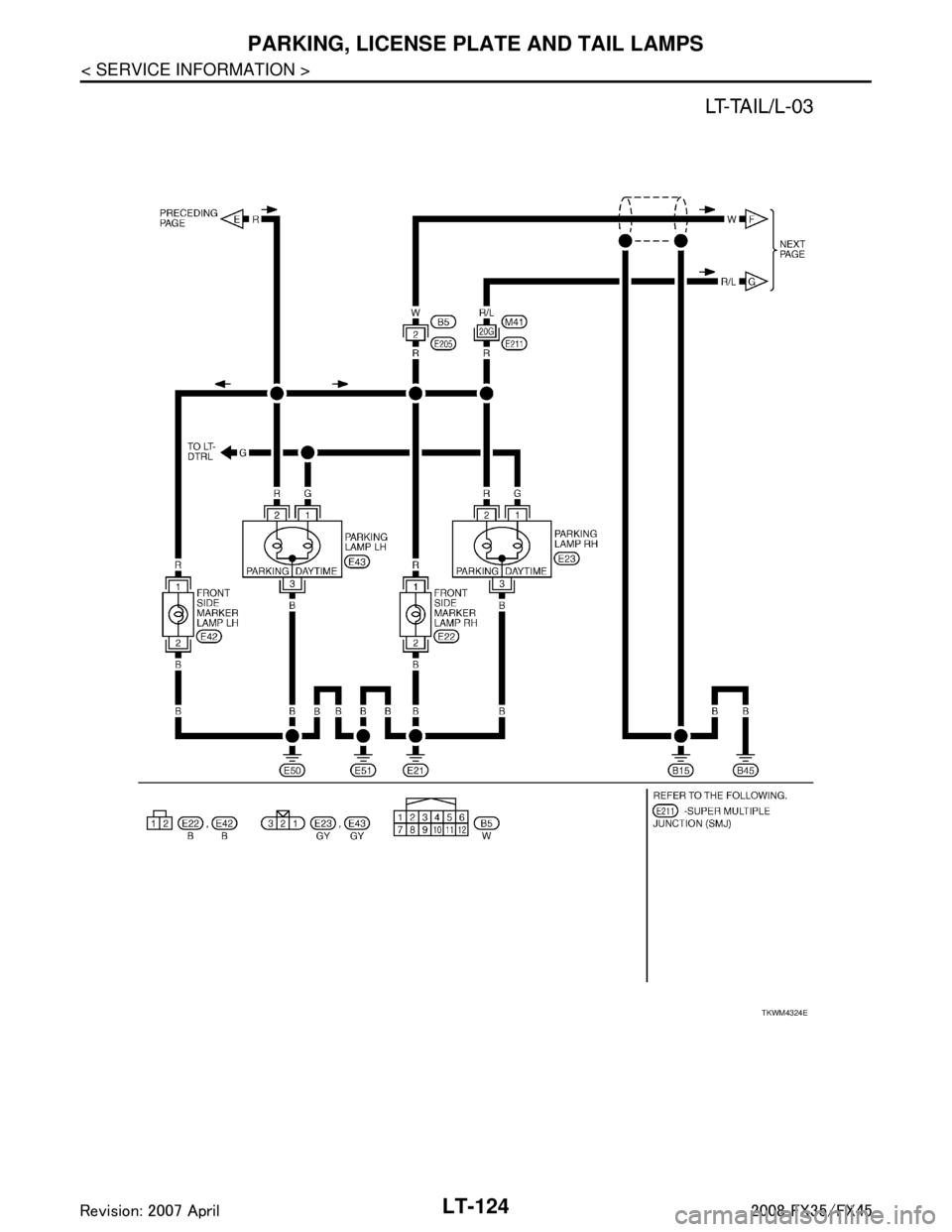

TKWM4323E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3226 of 3924
LT-124
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
TKWM4324E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3227 of 3924
PARKING, LICENSE PLATE AND TAIL LAMPS
LT-125
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P

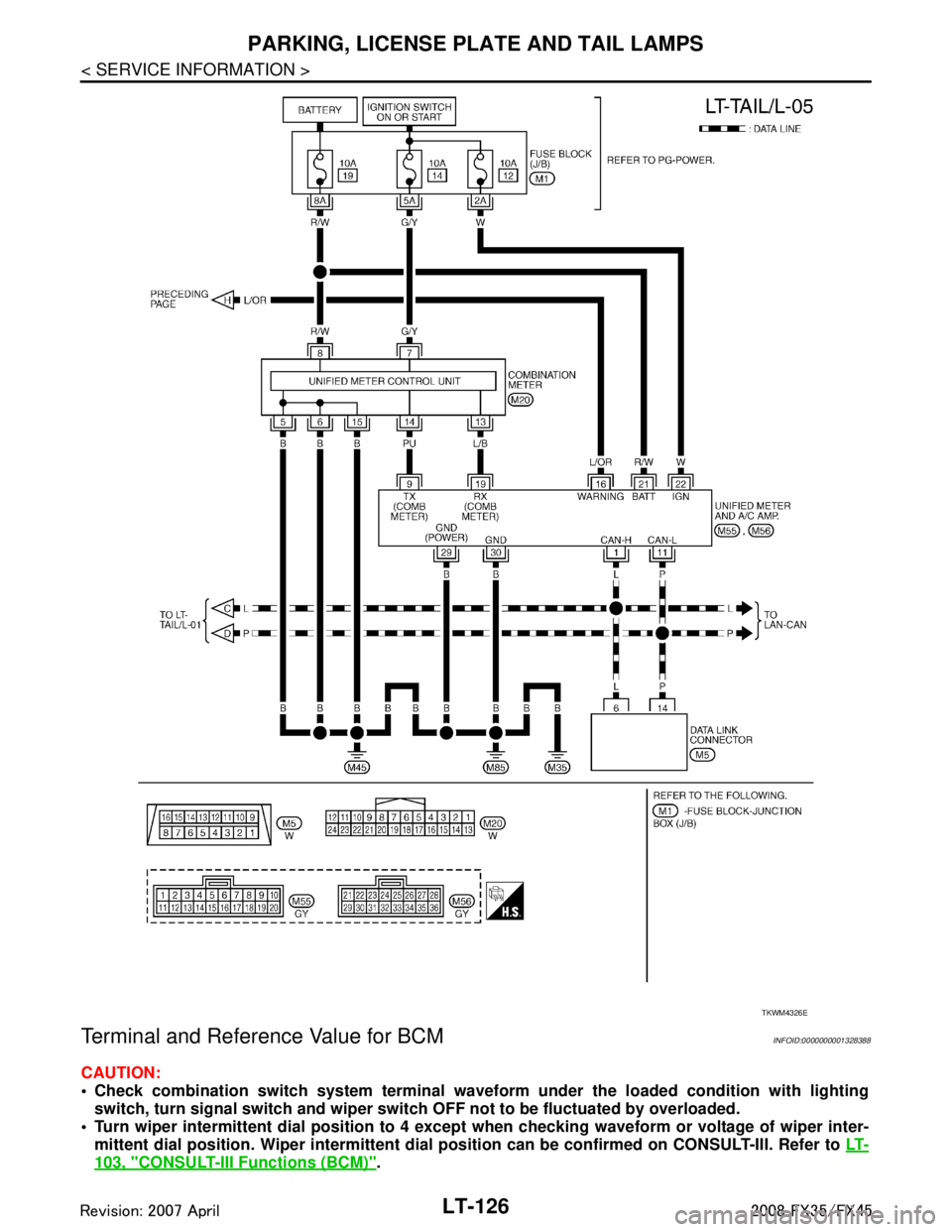

TKWM4325E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3228 of 3924
LT-126
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
Terminal and Reference Value for BCM
INFOID:0000000001328388
CAUTION:
Check combination switch system terminal waveform under the loaded condition with lighting
switch, turn signal switch and wiper switch OFF not to be fluctuated by overloaded.
Turn wiper intermittent dial posi tion to 4 except when checking wavef orm or voltage of wiper inter-
mittent dial position. Wiper intermittent dial position can be confirmed on CONSULT-III. Refer to LT-
103, "CONSULT-III Functions (BCM)".
TKWM4326E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3229 of 3924

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-127
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P
Terminal and Reference Value for IPDM E/RINFOID:0000000001328389
Te r m i n a l No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
2GY Combination
switch input 5
ONLighting, turn, wip-
er switch
(Wiper intermittent
dial position 4) OFF Approx. 0 V
Lighting switch 1ST
Approx. 1.0 V
11 L G Ignition switch
(ACC)
ACC — Battery voltage
33 G Combination
switch output 4 ONLighting, turn, wip-
er switch
(Wiper intermittent
dial position 4) OFF
Approx. 7.2 V
Lighting switch 1ST
(The same result with
lighting switch 2ND) Approx. 1.2 V
38 W/L Ignition switch
(ON)
ON — Battery voltage
39 L CAN − H— — —
40 P CAN − L— — —
42 L/R Battery power
supply OFF — Battery voltage
49 B Ground ON — Approx. 0 V
52 B Ground ON — Approx. 0 V
55 G Battery power
supply OFF — Battery voltage
PKIB4959J
PKIB4960J
PKIB4958J
Te r m i n a l
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
22 R Parking, license plate,
side marker, and tail
lamps ON
Lighting switch
1ST position OFF Approx. 0 V
ON Battery voltage
38 B Ground ON — Approx. 0 V
48 L CAN − H— — —
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3230 of 3924

LT-128
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
Terminal and Reference Value for Re ar Combination Lamp Control Unit
INFOID:0000000001328390
Refer to LT-86, "Terminal and Reference Value for Rear Combination Lamp Control Unit".
How to Proceed with Trouble DiagnosisINFOID:0000000001328391
1. Confirm the symptom or customer complaint.
2. Understand operation description and function description. Refer to LT-118, "
System Description".
3. Perform Preliminary Check. Refer to LT-128, "
Preliminary Check".
4. Check symptom and repair or r eplace the cause of malfunction.
5. Do parking, license plate, side marker and tail lamps operate normally? If YES, GO TO 6. If NO, GO TO 4.
6. INSPECTION END
Preliminary CheckINFOID:0000000001328392
CHECK POWER SUPPLY AND GROUND CIRCUIT
1.CHECK FUSES
Check for blown fuses.
Refer to LT- 1 2 2 , "Wiring Diagram - TAIL/L -".
OK or NG
OK >> GO TO 2.
NG >> If fuse is blown, be sure to eliminate caus e of malfunction before installing new fuse. Refer to PG-
3.
2.CHECK POWER SUPPLY CIRCUIT
49 R CAN − L— — —
60 B Ground ON — Approx. 0 V
Te r m i n a l
No. Wire
color Signal name Measuring condition
Reference value
Ignition
switch Operation or condition
Unit Power source Fuse and fusible link No.
BCM Battery
M
22
Ignition switch ON or START position 1 Ignition switch ACC or ON position 6
IPDM E/R Battery 71
Rear combination lamp control unit Battery 20
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3231 of 3924

PARKING, LICENSE PLATE AND TAIL LAMPS
LT-129
< SERVICE INFORMATION >
C
D E
F
G H
I
J
L
M A
B
LT
N
O P
1. Turn ignition switch OFF.
2. Disconnect BCM connector.
3. Check voltage between BCM harness connector and ground.
OK or NG
OK >> GO TO 3.
NG >> Repair harness or connector.
3.CHECK GROUND CIRCUIT
Check continuity between BCM harness connector and ground.
OK or NG
OK >> INSPECTION END
NG >> Repair harness or connector.
CONSULT-III Functions (BCM)INFOID:0000000001328393
Refer to LT-16, "CONSULT-III Functions (BCM)".
CONSULT-III Functions (IPDM E/R)INFOID:0000000001328394
Refer to LT-17, "CONSULT-III Functions (IPDM E/R)".
Parking, License Plate and Side Marker Lamps Do Not IlluminateINFOID:0000000001328395
1.CHECK COMBINATION SWITCH INPUT SIGNAL
CONSULT-III DATA MONITOR
1. Select “LIGHT SW 1ST” of BCM data monitor item.
2. With operating the lighting switch, check the monitor status.
CHECK COMBINATION SWITCH
Refer to LT-104, "
Combination Switch Inspection".
OK or NG
OK >> GO TO 2.
NG >> Check combination switch (lighting switch). Refer to LT-104, "
Combination Switch Inspection".
(+)
(-)Ignition switch position
BCM con- nector Te r m i n a l O F F A C C O N
M3 11
Ground Approx. 0 V
Battery volt-
age Battery volt-
age
38 Approx. 0 V Approx. 0 V Battery volt-
age
M4 42
Battery volt-
age Battery volt-
age Battery volt-
age
55 Battery volt-
age Battery volt-
age Battery volt-
age
PKIA5204E
BCM connector Terminal Continuity
M4 49 Ground
Ye s
52
SKIA5294E
When lighting switch is 1ST
position : LIGHT SW 1ST ON
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 3232 of 3924

LT-130
< SERVICE INFORMATION >
PARKING, LICENSE PLATE AND TAIL LAMPS
2.ACTIVE TEST
CONSULT-III ACTIVE TEST
1. Select “TAIL LAMP” of IPDM E/R active test item.
2. With operating the test item, check the parking, license plate, side marker and tail lamps operation.
IPDM E/R AUTO ACTIVE TEST
1. Start auto active test. Refer to PG-20, "
Auto Active Test".
2. Check that the parking, license plate, side marker and tail lamps operation.
OK or NG
OK >> GO TO 3.
NG >> GO TO 4.
3.CHECK IPDM E/R
1. Select “TAIL&CLR REQ” of IPDM E/R data monitor item.
2. With operating the lighting switch, check the monitor status.
OK or NG
OK >> Replace IPDM E/R. Refer to PG-24, "Removal and Installation of IPDM E/R".
NG >> Replace BCM. Refer to BCS-13, "
Removal and Installation of BCM".
4.CHECK IPDM E/R
CONSULT-III ACTIVE TEST
1. Turn ignition switch OFF.
2. Disconnect front side marker lamp, parking lamp, license plate lamp and rear combination lamp connec- tors.
3. Select “TAIL LAMP” of IPDM E/R active test item.
4. With operating the test item, check voltage between fr ont side marker lamp, parking lamp, license plate
lamp and rear combination lamp harness connector and ground.
IPDM E/R AUTO ACTIVE TEST
1. Turn ignition switch OFF.
2. Disconnect front side marker lamp, parking lamp, license plate lamp and rear combination lamp connec-
tor.
3. Start auto active test. Refer to PG-20, "
Auto Active Test".
4. With operating the test item, check voltage between fr ont side marker lamp, parking lamp, license plate
lamp and rear combination lamp harness connector and ground. Parking, license plate, side marker and tail lamps
should operate.
Parking, license plate, side marker and tail lamps
should operate.
When lighting switch is 1ST
position
: TAIL&CLR REQ ON
(+)
(-) Voltage
Front side marker
lamp connector Te r m i n a l
RH E22 1 Ground Battery voltage
LH E42
PKIA5236E
