DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-153
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
DescriptionINFOID:0000000

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-153
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
DescriptionINFOID:0000000001325965
SYSTEM DESCRIPTION
The ECM performs ON/OFF duty control of the air fuel
ratio (A/F) sensor 1 heater corresponding to the engine
operating condition to keep the temperature of air fuel ratio (A/F) sensor 1 element at the specified range.
CONSULT-III Reference Val ue in Data Monitor ModeINFOID:0000000001325966
Specification data are reference values.
On Board Diagnosis LogicINFOID:0000000001325967
DTC Confirmation ProcedureINFOID:0000000001325968
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confi rm that battery voltage is between 10.5V and 16V at
idle.
1. Start engine and let it idle for at least 10 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-157, "
Diagnosis Procedure".
Sensor Input Signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Air fuel ratio (A/F) sensor 1
heater control Air fuel ratio (A/F) sensor 1 heater
Mass air flow sensor Amount of intake air
MONITOR ITEM CONDITION SPECIFICATION
A/F S1 HTR(B1)
A/F S1 HTR(B2) Engine: After warming up, idle the engine 0 - 100%
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0031
0031
(Bank 1) Air fuel ratio (A/F) sensor
1 heater control circuit low The current amperage in the heated air fuel ratio (A/
F) sensor 1 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.) Harness or connectors
[Air fuel ratio (A/F) sensor 1 heater cir-
cuit is open or shorted.]
Air fuel ratio (A/F) sensor 1 heater
P0051
0051
(Bank 2)
P0032
0032
(Bank 1)
Air fuel ratio (A/F) sensor
1 heater control circuit
high The current amperage in the heated air fuel ratio (A/
F) sensor 1 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the air fuel ratio (A/F) sensor 1 heater.) Harness or connectors
[Air fuel ratio (A/F) sensor 1 heater cir-
cuit is shorted.]
Air fuel ratio (A/F) sensor 1 heater
P0052
0052
(Bank 2)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 1394 of 3924

INFINITI FX35 2008 Service Manual
EC-154
< SERVICE INFORMATION >[VQ35DE]
DTC P0031, P0032,
P0051, P0052 A/F SENSOR 1 HEATER
Wiring Diagram
INFOID:0000000001325969

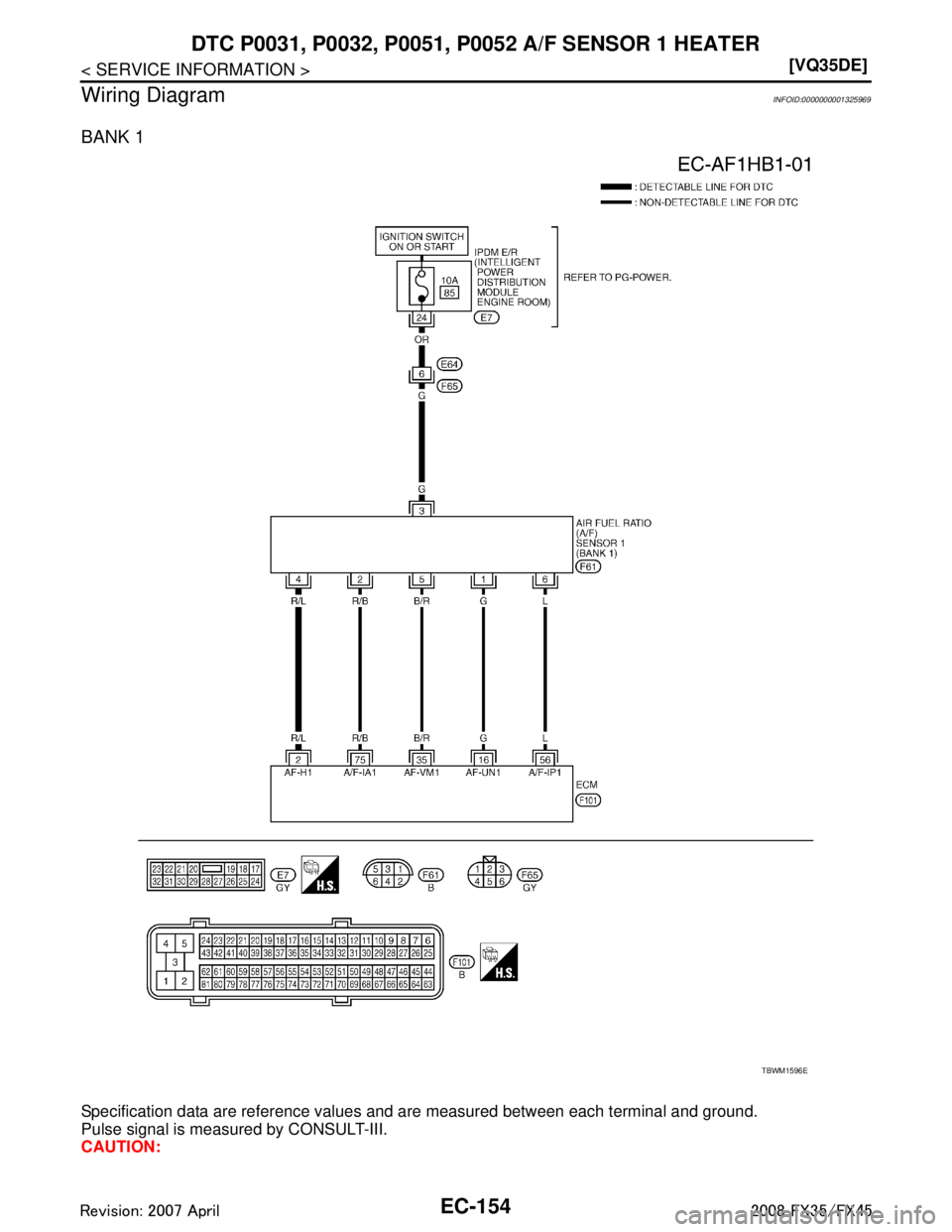

BANK 1
Specification data are reference values and are measured betwe

Page 1395 of 3924

INFINITI FX35 2008 Service Manual
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-155
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Do not use ECM ground terminals wh
en measuring input/output voltage. Doing

Page 1396 of 3924

INFINITI FX35 2008 Service Manual
EC-156
< SERVICE INFORMATION >[VQ35DE]
DTC P0031, P0032,
P0051, P0052 A/F SENSOR 1 HEATER

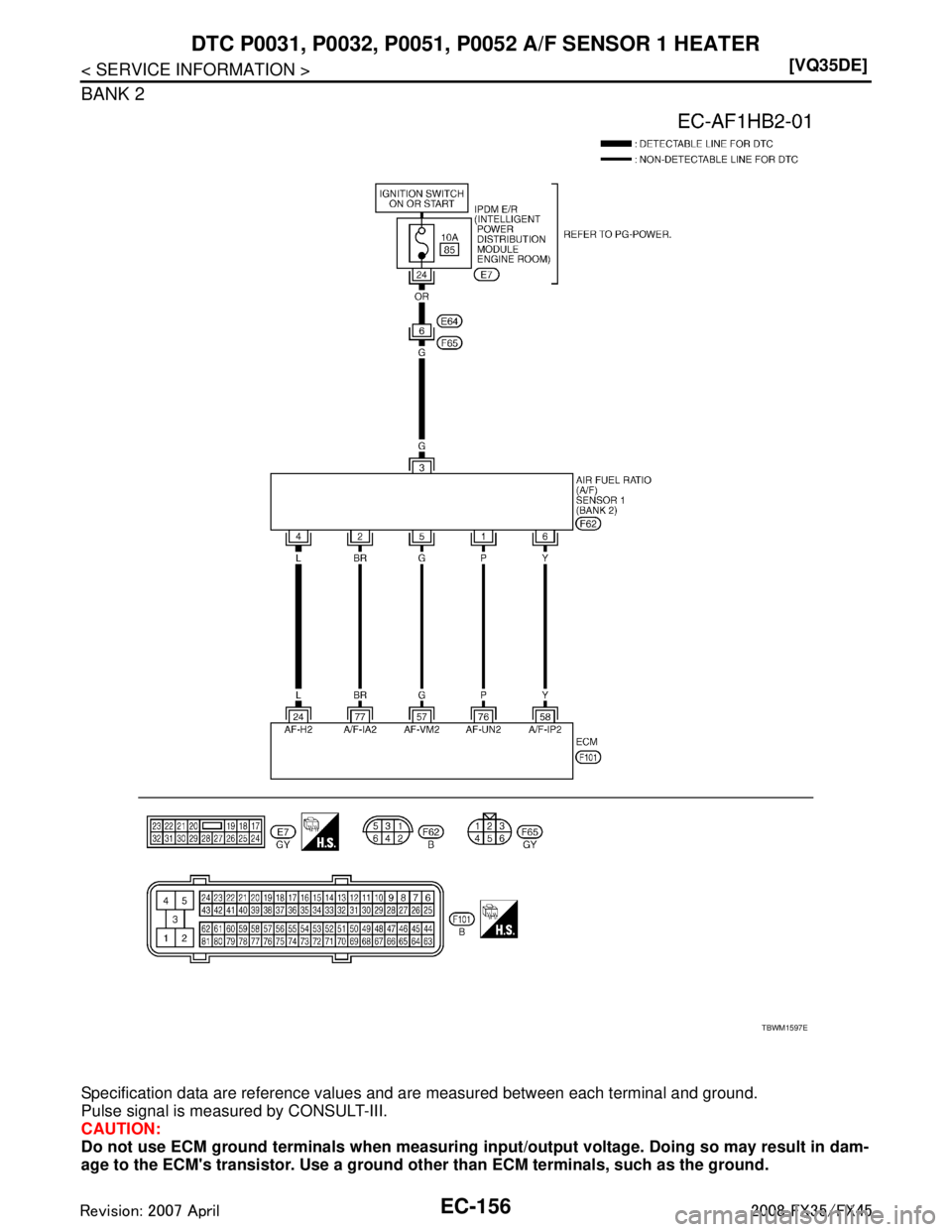

BANK 2
Specification data are reference values and are measured between each terminal and ground.
Pulse sign

Page 1397 of 3924

INFINITI FX35 2008 Service Manual

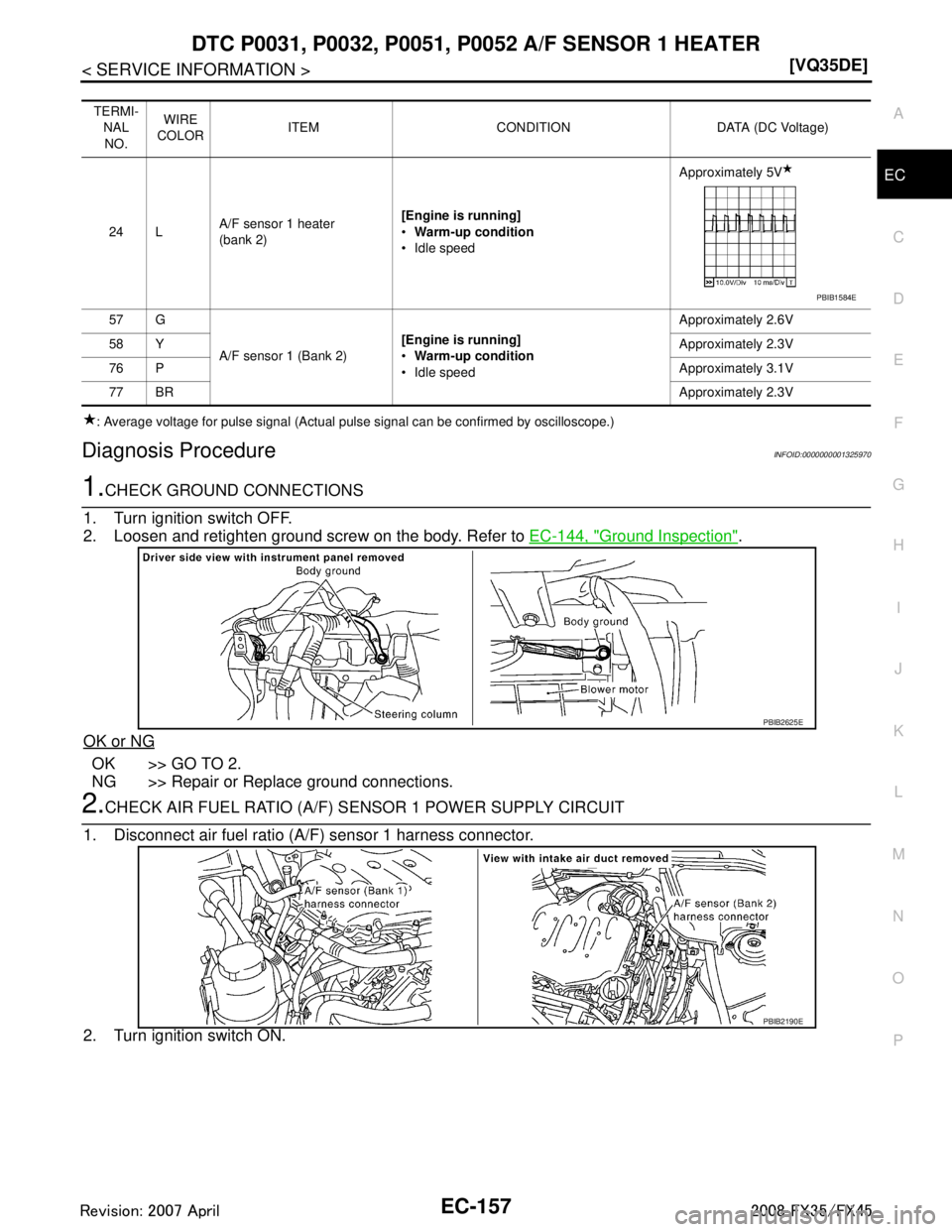

DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-157
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
: Average voltage for pulse signal (Actual pulse signal can be confirmed by

Page 1398 of 3924

INFINITI FX35 2008 Service Manual
EC-158
< SERVICE INFORMATION >[VQ35DE]
DTC P0031, P0032,
P0051, P0052 A/F SENSOR 1 HEATER
3. Check voltage between air fuel ratio sensor 1 terminal 3 and
ground with CONSULT-III or tester.
OK or NG

Page 1399 of 3924

INFINITI FX35 2008 Service Manual
DTC P0031, P0032, P0051, P0052 A/F SENSOR 1 HEATER
EC-159
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
Check resistance between terminals 3 and 4.
Check continuity between termina

Page 1400 of 3924

INFINITI FX35 2008 Service Manual
EC-160
< SERVICE INFORMATION >[VQ35DE]
DTC P0037, P
0038, P0057, P0058 HO2S2 HEATER
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
DescriptionINFOID:0000000001325973
SYSTEM DESCRIPTION
The ECM performs

EC-160
< SERVICE INFORMATION >[VQ35DE]
DTC P0037, P
0038, P0057, P0058 HO2S2 HEATER
DTC P0037, P0038, P0057, P0058 HO2S2 HEATER
DescriptionINFOID:0000000001325973
SYSTEM DESCRIPTION
The ECM performs ON/OFF control of the heated oxy gen sensor 2 heater corresponding to the engine speed,
amount of intake air and engine coolant temperature.
OPERATION
CONSULT-III Reference Value in Data Monitor ModeINFOID:0000000001325974
Specification data are reference values.
On Board Diagn osis LogicINFOID:0000000001325975
DTC Confirmation ProcedureINFOID:0000000001325976
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Sensor Input signal to ECM ECM function Actuator
Camshaft position sensor (PHASE)
Crankshaft position sensor (POS) Engine speed
Heated oxygen sensor 2
heater controlHeated oxygen sensor 2 heater
Engine coolant temperature sensor Engine coolant temperature
Mass air flow sensor Amount of intake air
Engine speed rpm Heated oxygen sensor 2 heater
Above 3,600 OFF
Below 3,600 rpm after the following conditions are met.
Engine: After warming up
Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and at idle for 1 minute under no load ON
MONITOR ITEM CONDITION SPECIFICATION
HO2S2 HTR (B1)
HO2S2 HTR (B2) Engine speed: Below 3,600 rpm after the following conditions are met.
- Engine: After warming up
- Keeping the engine speed between 3,500 and 4,000 rpm for 1 minute and
at idle for 1 minute under no load ON
Engine speed: Above 3,600 rpm OFF
DTC No. Trouble diagnosis
name DTC detecting condition Possible cause
P0037
0037
(Bank 1) Heated oxygen
sensor 2 heater
control circuit low The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively low voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.) Harness or connectors
(Heated oxygen sensor 2 heater circuit is
open or shorted.)
Heated oxygen sensor 2 heater
P0057
0057
(Bank 2)
P0038
0038
(Bank 1)
Heated oxygen
sensor 2 heater
control circuit high The current amperage in the heated oxygen sen-
sor 2 heater circuit is out of the normal range.
(An excessively high voltage signal is sent to ECM
through the heated oxygen sensor 2 heater.) Harness or connectors
(Heated oxygen sensor 2 heater circuit is
shorted.)
Heated oxygen sensor 2 heater
P0058
0058
(Bank 2)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
