Page 3561 of 3924

INFINITI FX35 2008 Service Manual
REAR FINAL DRIVE ASSEMBLYRFD-19
< SERVICE INFORMATION >
CEF
G H
I
J
K L
M A
B
RFD
N
O P

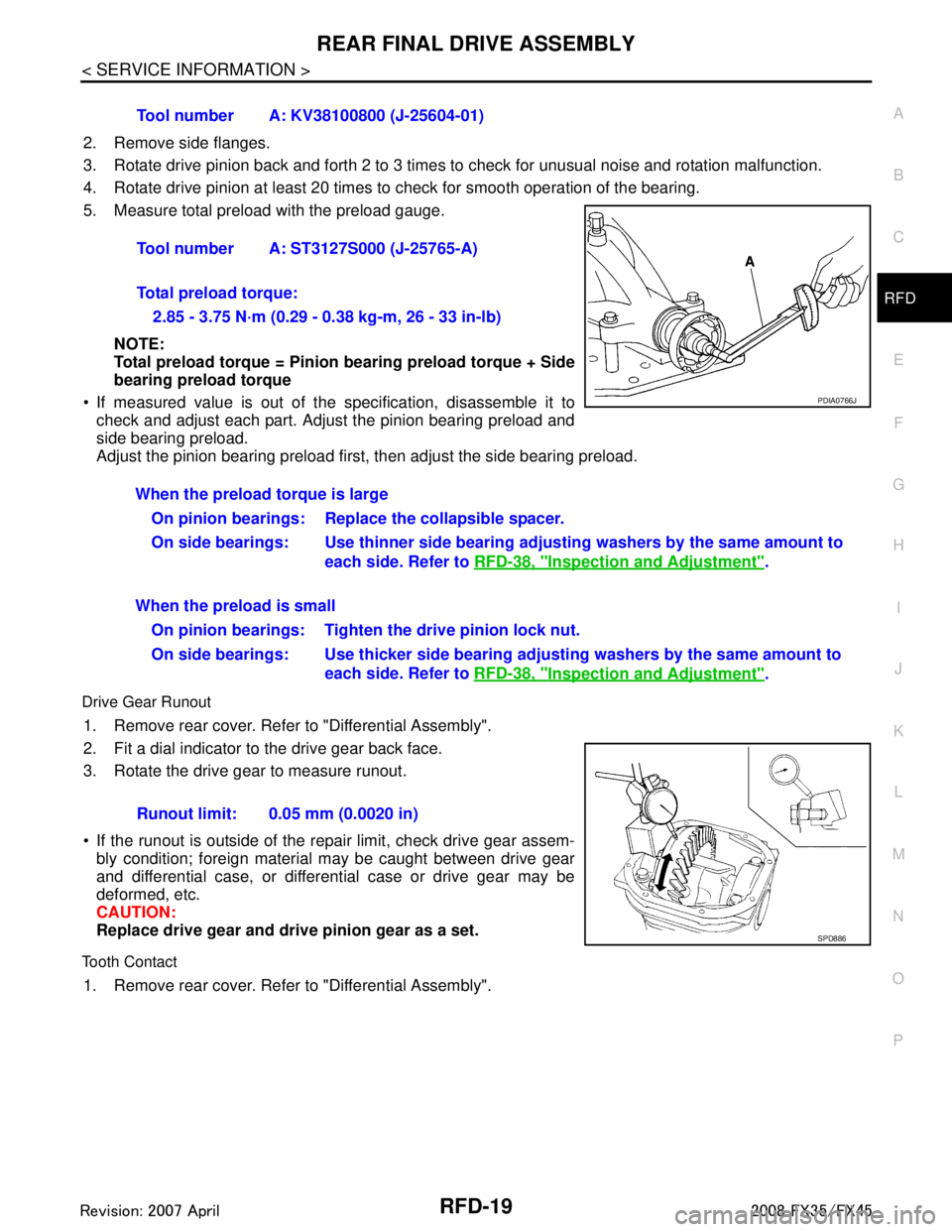

2. Remove side flanges.
3. Rotate drive pinion back and forth 2 to 3 times to check for unusual noise and rotat

Page 3562 of 3924

INFINITI FX35 2008 Service Manual
RFD-20
< SERVICE INFORMATION >
REAR FINAL DRIVE ASSEMBLY

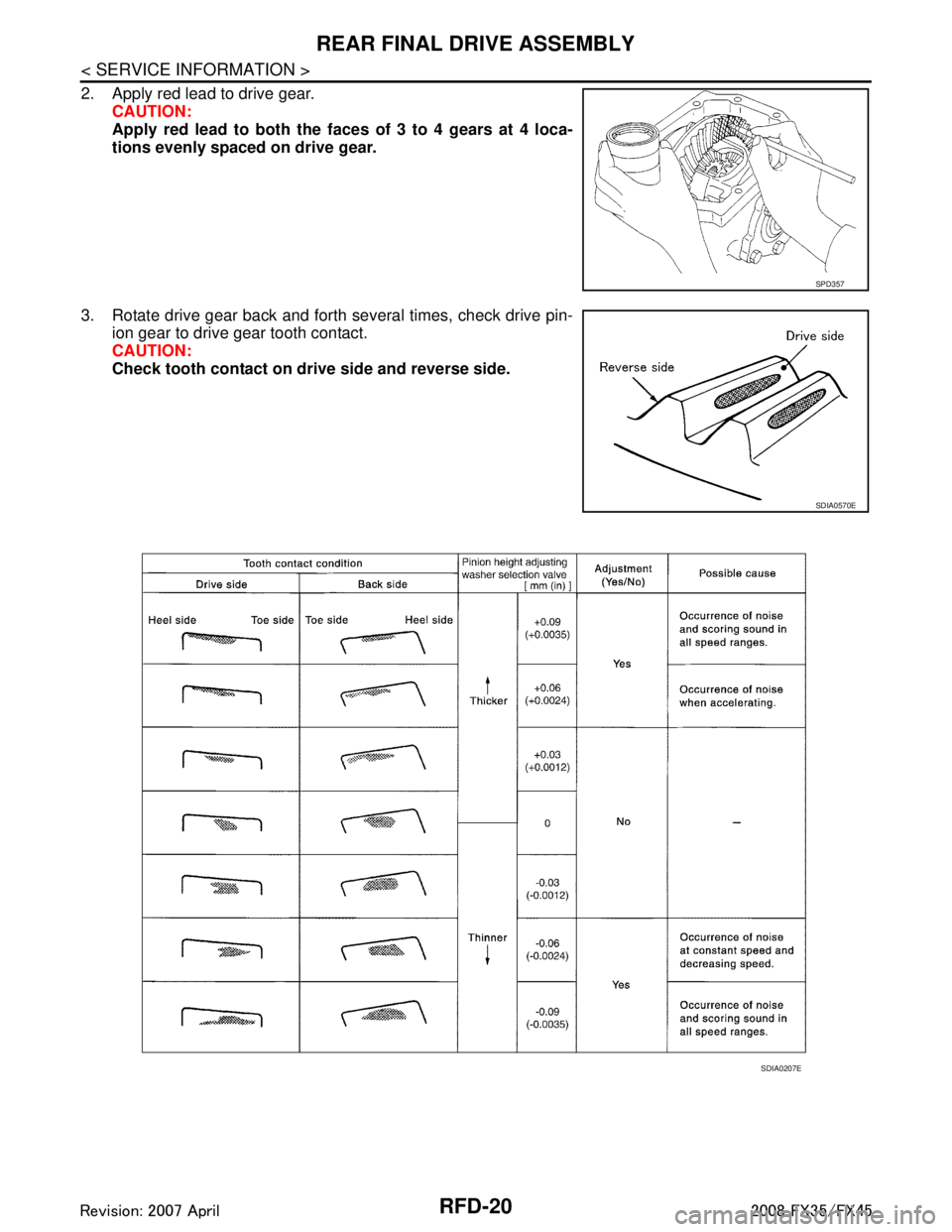

2. Apply red lead to drive gear.CAUTION:
Apply red lead to both the f aces of 3 to 4 gears at 4 loca-
tions evenly spaced on drive gear.
3. Ro

Page 3563 of 3924

INFINITI FX35 2008 Service Manual
REAR FINAL DRIVE ASSEMBLYRFD-21
< SERVICE INFORMATION >
CEF
G H
I
J
K L
M A
B
RFD
N
O P

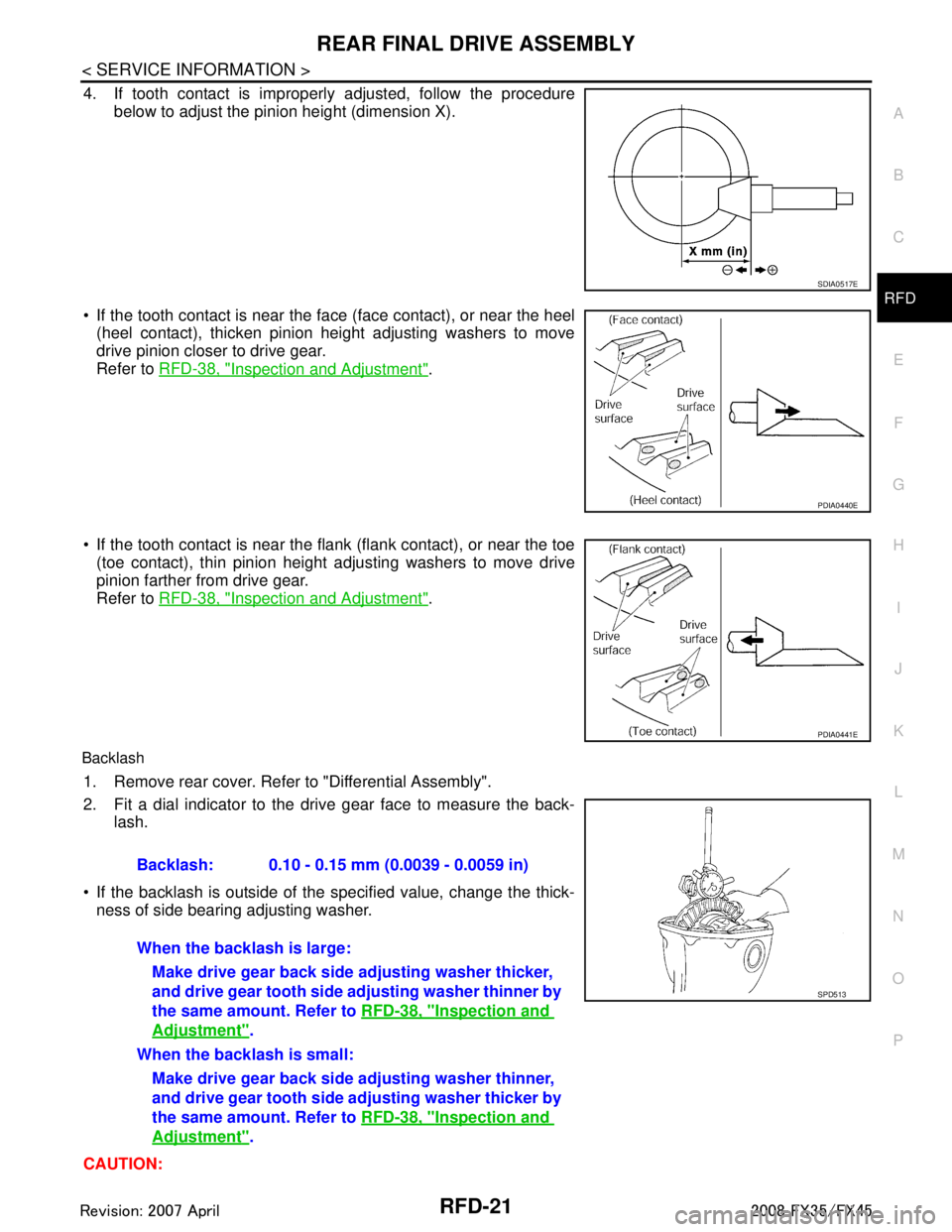

4. If tooth contact is improperly adjusted, follow the procedure
below to adjust the pinion height (dimension

Page 3564 of 3924

INFINITI FX35 2008 Service Manual
RFD-22
< SERVICE INFORMATION >
REAR FINAL DRIVE ASSEMBLY
Never change the total amount of washers as it will change the bearing preload.
Companion Flange Runout
1. Fit a test indicator to the inner s

Page 3565 of 3924

INFINITI FX35 2008 Service Manual
REAR FINAL DRIVE ASSEMBLYRFD-23
< SERVICE INFORMATION >
CEF
G H
I
J
K L
M A
B
RFD
N
O P

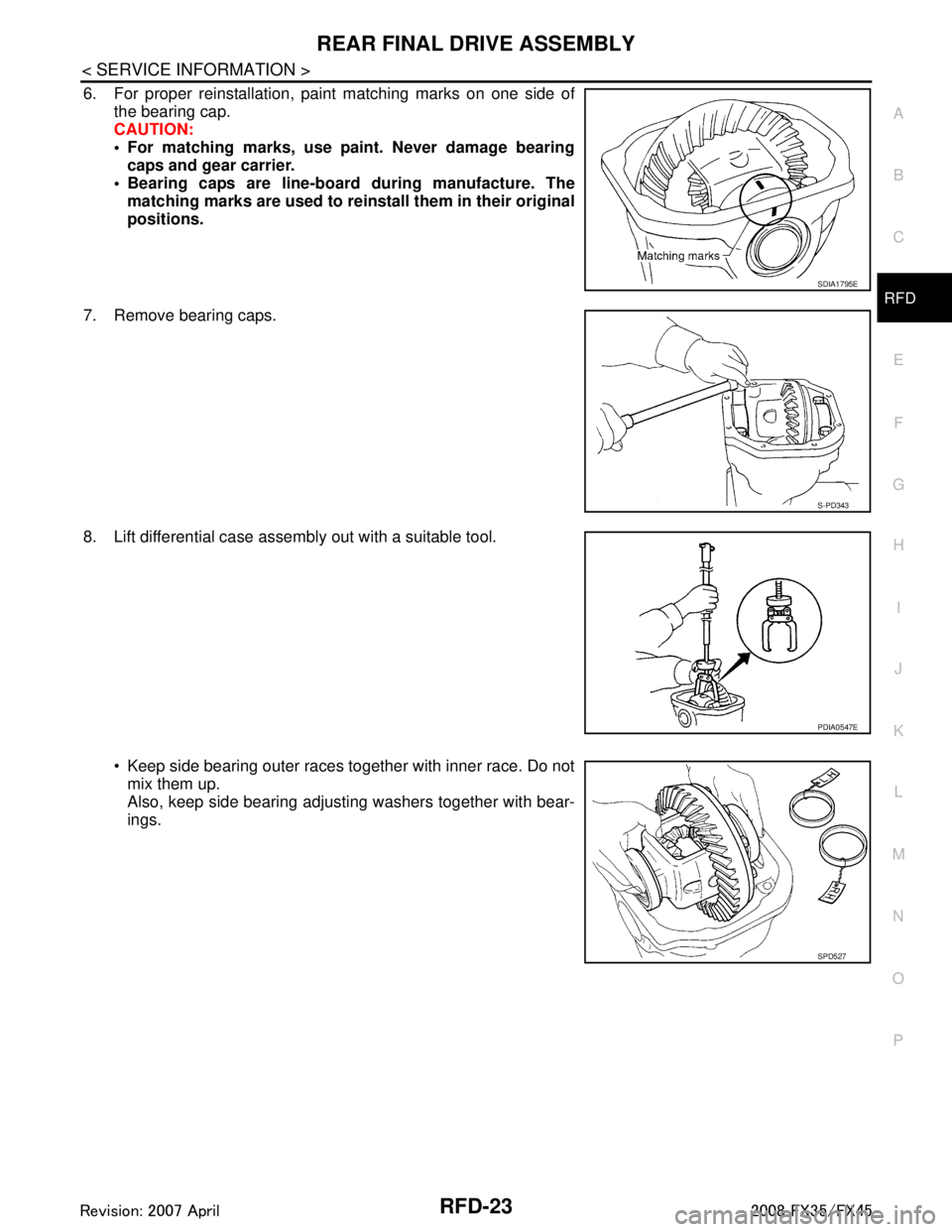

6. For proper reinstallation, paint matching marks on one side of the bearing cap.
CAUTION:
For matching mark

Page 3566 of 3924

INFINITI FX35 2008 Service Manual
RFD-24
< SERVICE INFORMATION >
REAR FINAL DRIVE ASSEMBLY

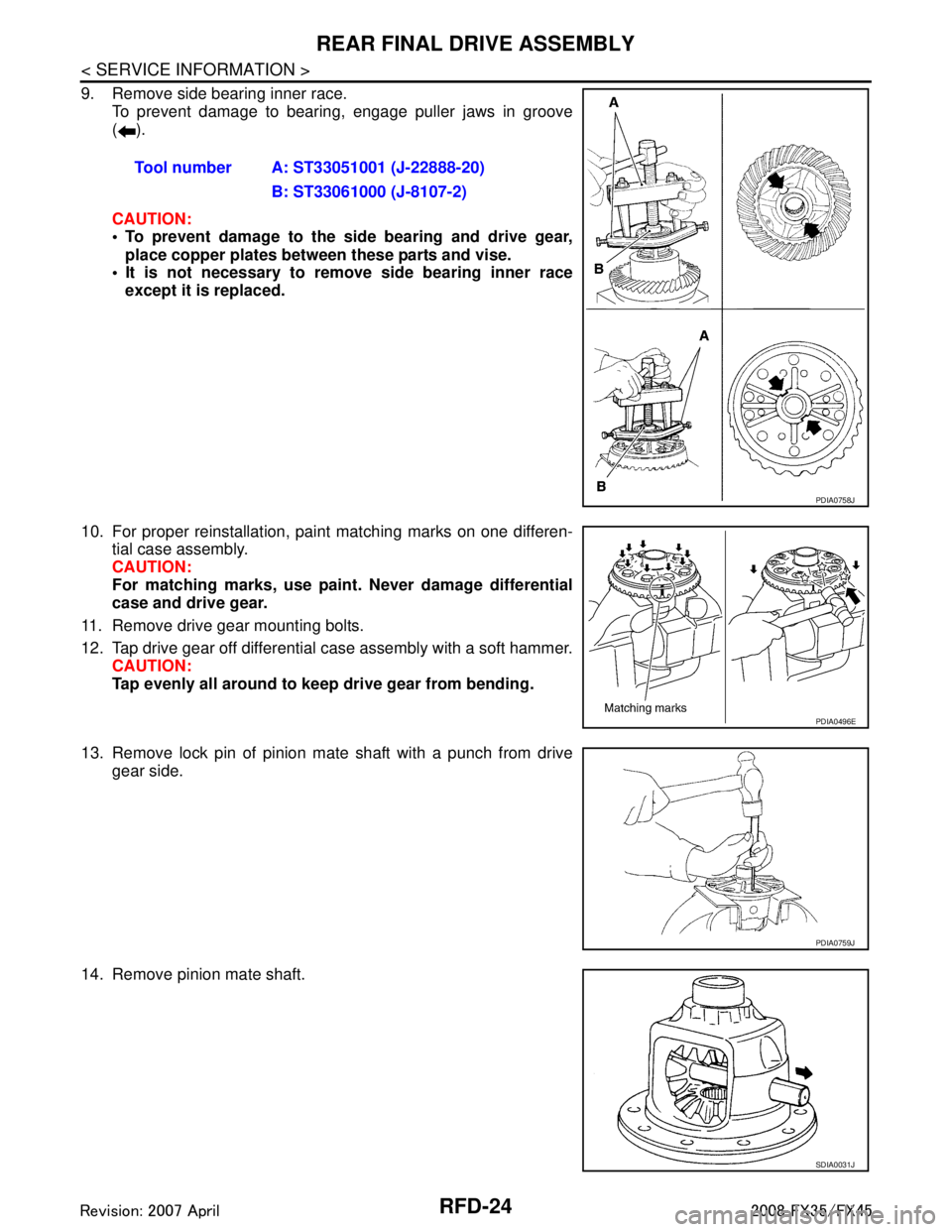

9. Remove side bearing inner race.To prevent damage to bearing, engage puller jaws in groove
().
CAUTION:
To prevent damage to the side bear

Page 3567 of 3924

INFINITI FX35 2008 Service Manual
REAR FINAL DRIVE ASSEMBLYRFD-25
< SERVICE INFORMATION >
CEF
G H
I
J
K L
M A
B
RFD
N
O P
15. Turn pinion mate gear, then remove pinion mate gear, pinion mate thrust washer, side gear and side gear thr

Page 3568 of 3924

INFINITI FX35 2008 Service Manual
RFD-26
< SERVICE INFORMATION >
REAR FINAL DRIVE ASSEMBLY
5. Press drive pinion assembly out of gear carrier.CAUTION:
Never drop drive pinion assembly.
6. Remove front oil seal.
7. Remove side oil sea

RFD-26
< SERVICE INFORMATION >
REAR FINAL DRIVE ASSEMBLY
5. Press drive pinion assembly out of gear carrier.CAUTION:
Never drop drive pinion assembly.
6. Remove front oil seal.
7. Remove side oil seal.
8. Remove pinion front bearing inner race.
9. Remove collapsible spacer.
10. Remove pinion rear bearing inner race and pinion height adjust- ing washer with the replacer.
11. Tap pinion front/rear bearing outer races uniformly a brass rod or equivalent to removed.
CAUTION:
Be careful not to damage gear carrier.
INSPECTION AFTER DISASSEMBLY
Clean up the disassembled parts. Then, inspect if the parts are worn or damaged. If so, follow the measures
below.
ADJUSTMENT AND SELECTION OF ADJUSTING WASHERS
PDIA0760J
Tool number A: ST30031000 (J-22912-01)
PDIA0801J
SDIA0817E
Content Conditions and Measures
Hypoid gear If the gear teeth do not mesh or line-up correctly, determine the cause and adjust or replace as nec-
essary.
If the gears are worn, cracked, damaged, pitted or chipped (by friction) noticeably, replace with new drive gear and drive pinion as a set.
Bearing If any chipped (by friction), pitted, worn, rusted or scratched mark, or unusual noise from the bearing
is observed, replace as a bearing assembly (as a new set).
Side gear and Pinion mate
gear If any cracks or damage on the surface of the tooth is found, replace.
If any worn or chipped mark on the contact sides of the thrust washer is found, replace.
Side gear thrust washer and
pinion mate thrust washer If it is chipped (by friction), damaged, or unusually worn, replace.
Oil seal Whenever disassembled, replace.
If wear, deterioration of adherence (sealing force lips), or damage is detected on the lips, replace them.
Differential case If any wear or crack on the contact sides of the differential case is found, replace.
Companion flange If any chipped mark (about 0.1 mm, 0.004 in) or other damage on the contact sides of the lips of the
companion flange is found, replace.
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
