Page 3833 of 3924

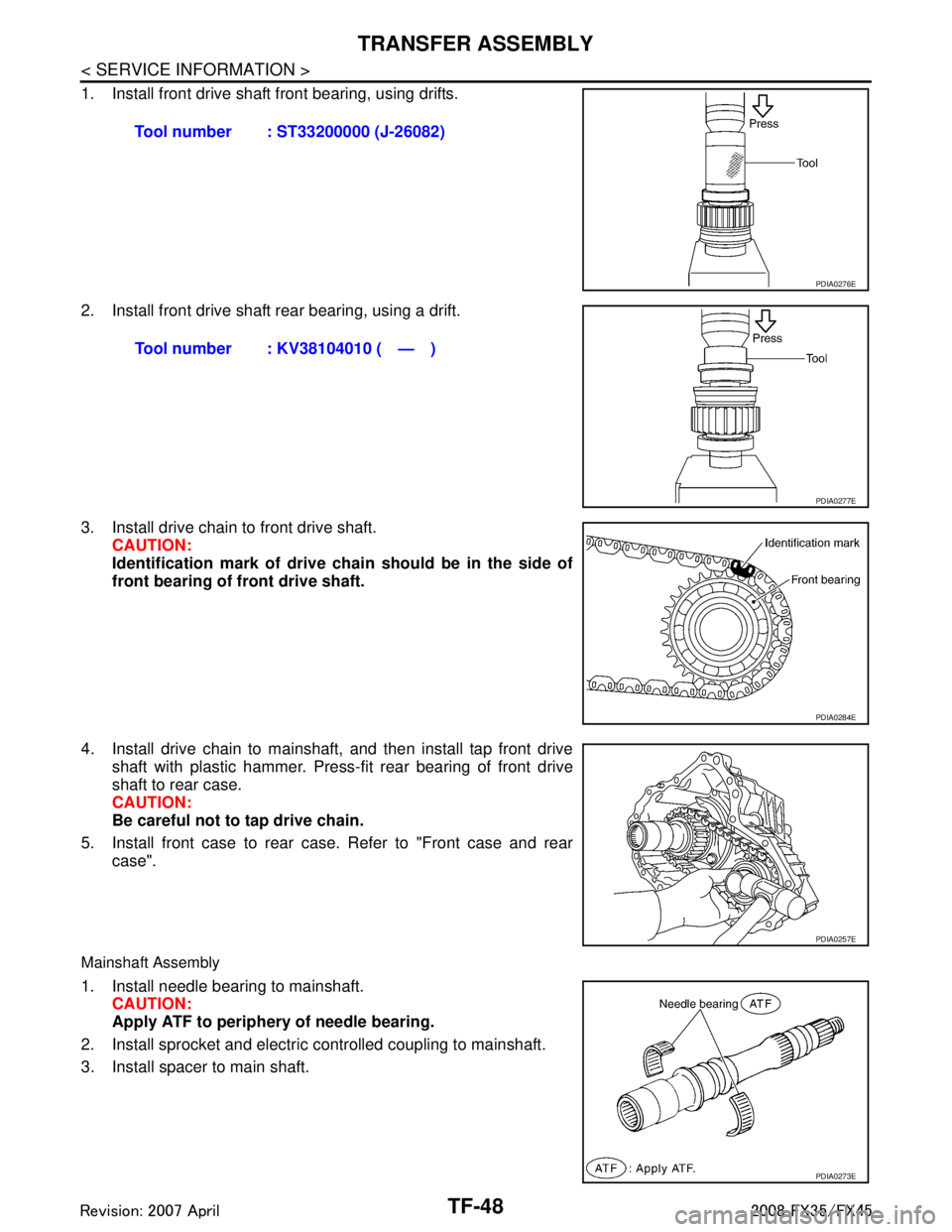

INFINITI FX35 2008 Service Manual TRANSFER ASSEMBLYTF-47 < SERVICE INFORMATION > CEF G H I J K L M A B TF N O P Check items below. If necessary , replace them with new ones.  Contact surfaces of bearing for wear, damage, etc.  Dama

Page 3834 of 3924

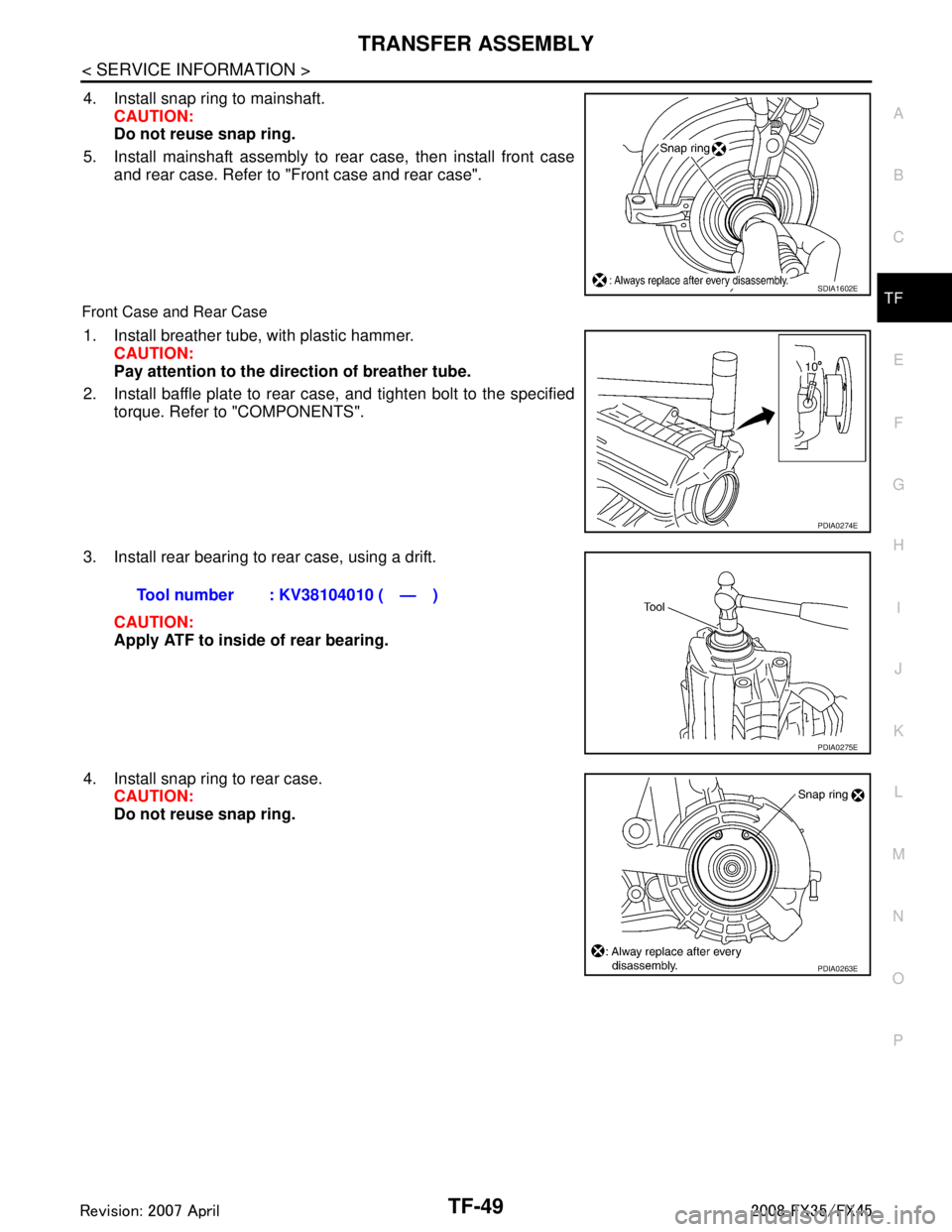

INFINITI FX35 2008 Service Manual TF-48 < SERVICE INFORMATION > TRANSFER ASSEMBLY 1. Install front drive shaft front bearing, using drifts. 2. Install front drive shaft rear bearing, using a drift. 3. Install drive chain to front dri

Page 3835 of 3924

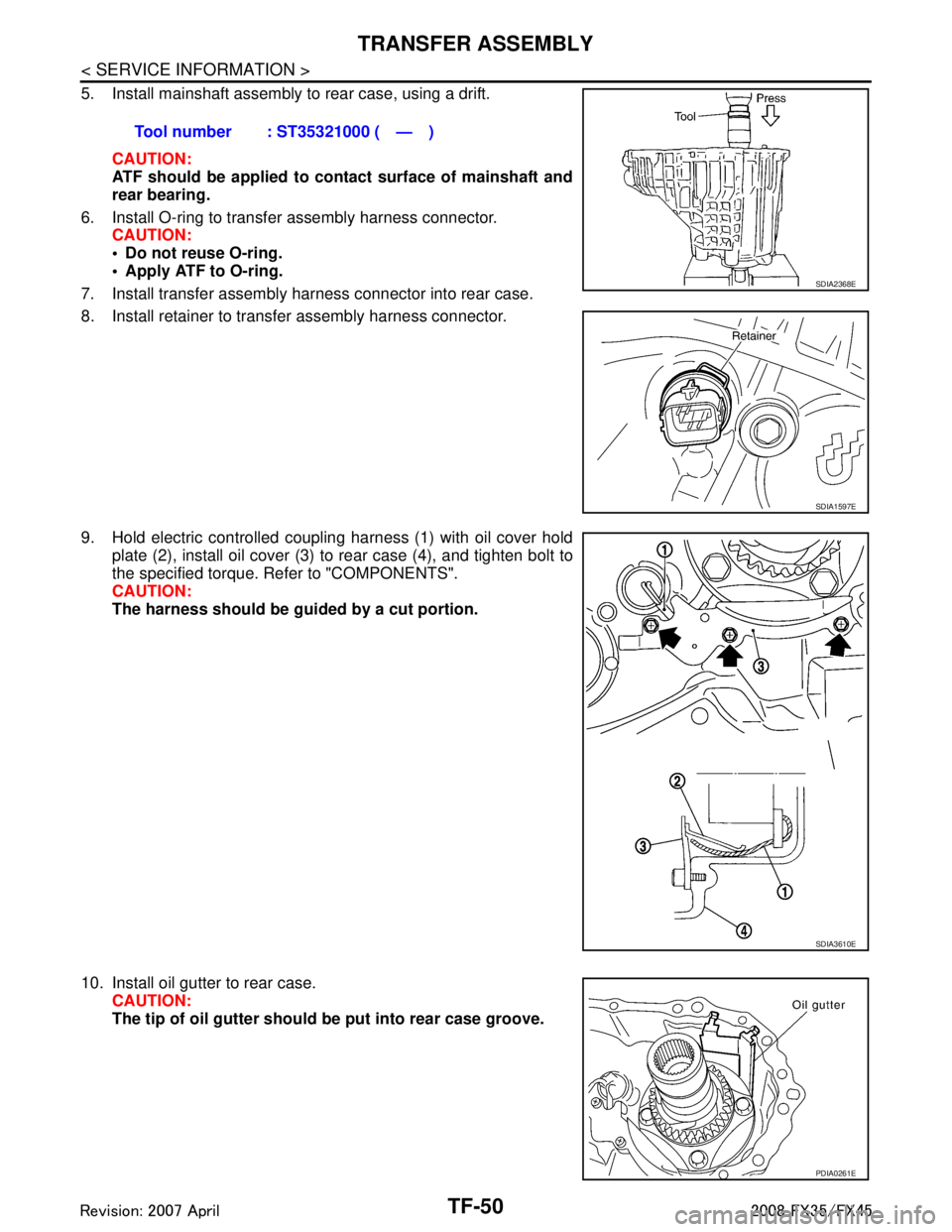

INFINITI FX35 2008 Service Manual TRANSFER ASSEMBLYTF-49 < SERVICE INFORMATION > CEF G H I J K L M A B TF N O P 4. Install snap ring to mainshaft. CAUTION: Do not reuse snap ring. 5. Install mainshaft assembly to rear case, then inst

Page 3836 of 3924

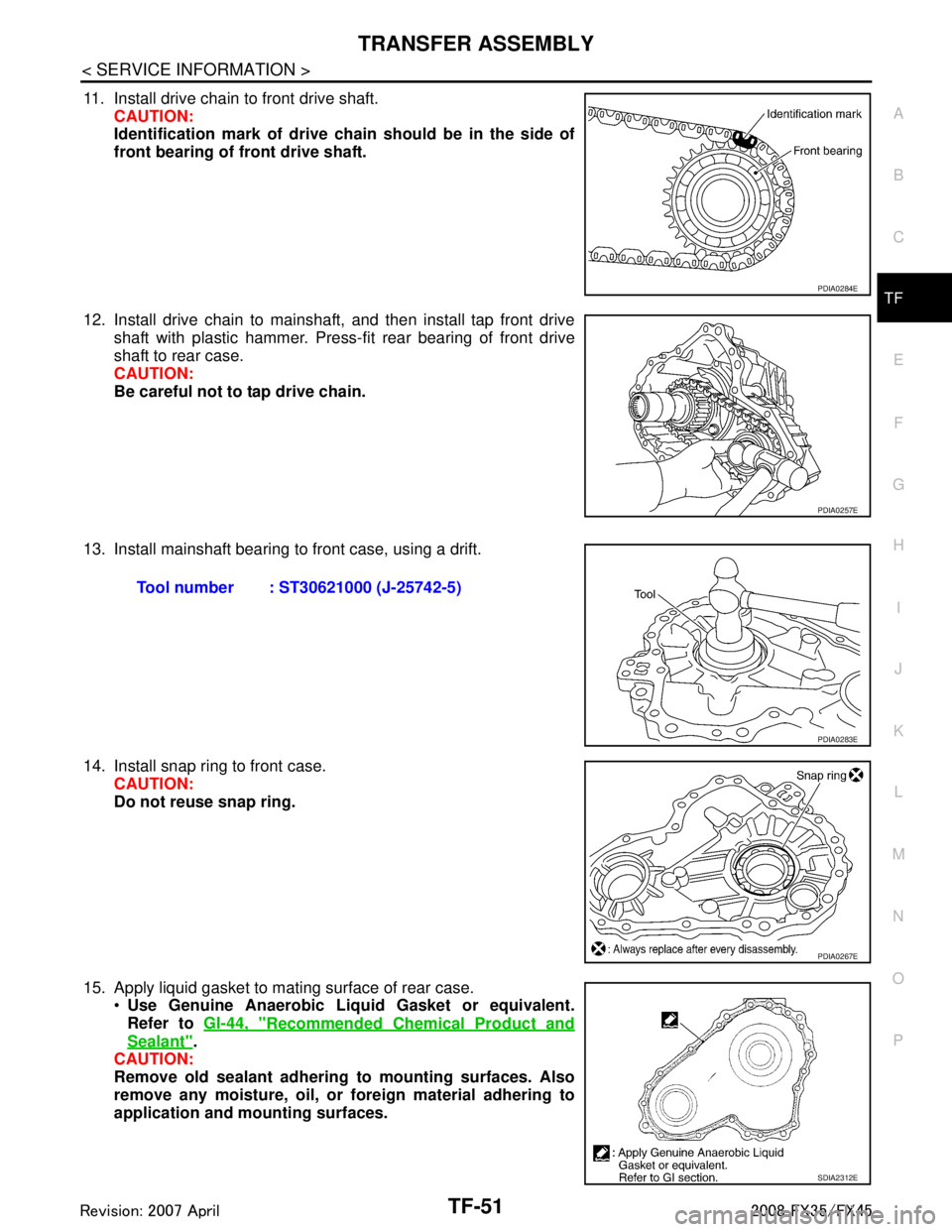

INFINITI FX35 2008 Service Manual TF-50 < SERVICE INFORMATION > TRANSFER ASSEMBLY 5. Install mainshaft assembly to rear case, using a drift.CAUTION: ATF should be applied to contact surface of mainshaft and rear bearing. 6. Install O

Page 3837 of 3924

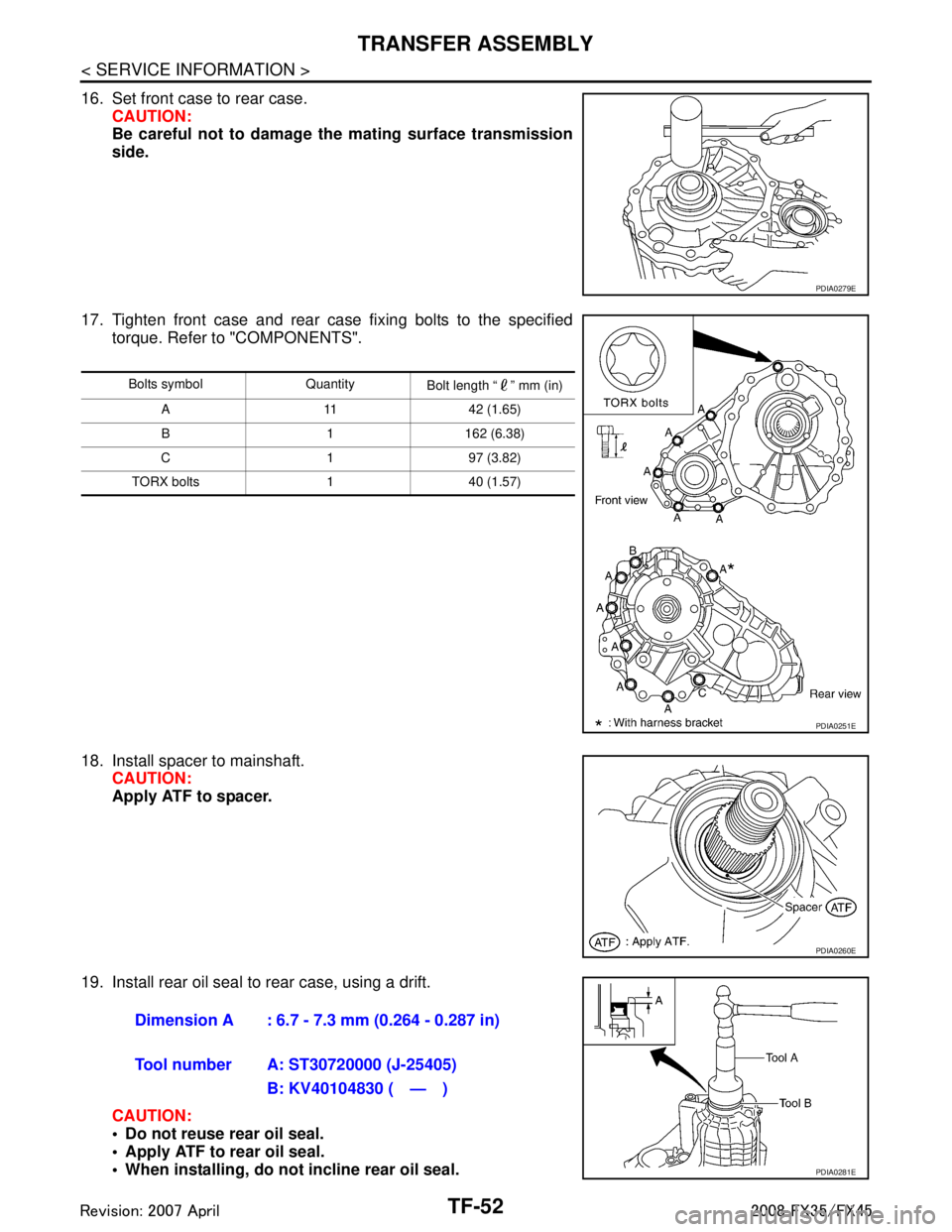

INFINITI FX35 2008 Service Manual TRANSFER ASSEMBLYTF-51 < SERVICE INFORMATION > CEF G H I J K L M A B TF N O P 11. Install drive chain to front drive shaft. CAUTION: Identification mark of drive ch ain should be in the side of front

Page 3838 of 3924

INFINITI FX35 2008 Service Manual TF-52 < SERVICE INFORMATION > TRANSFER ASSEMBLY 16. Set front case to rear case.CAUTION: Be careful not to damage th e mating surface transmission side. 17. Tighten front case and rear case fixing bo

Page 3839 of 3924

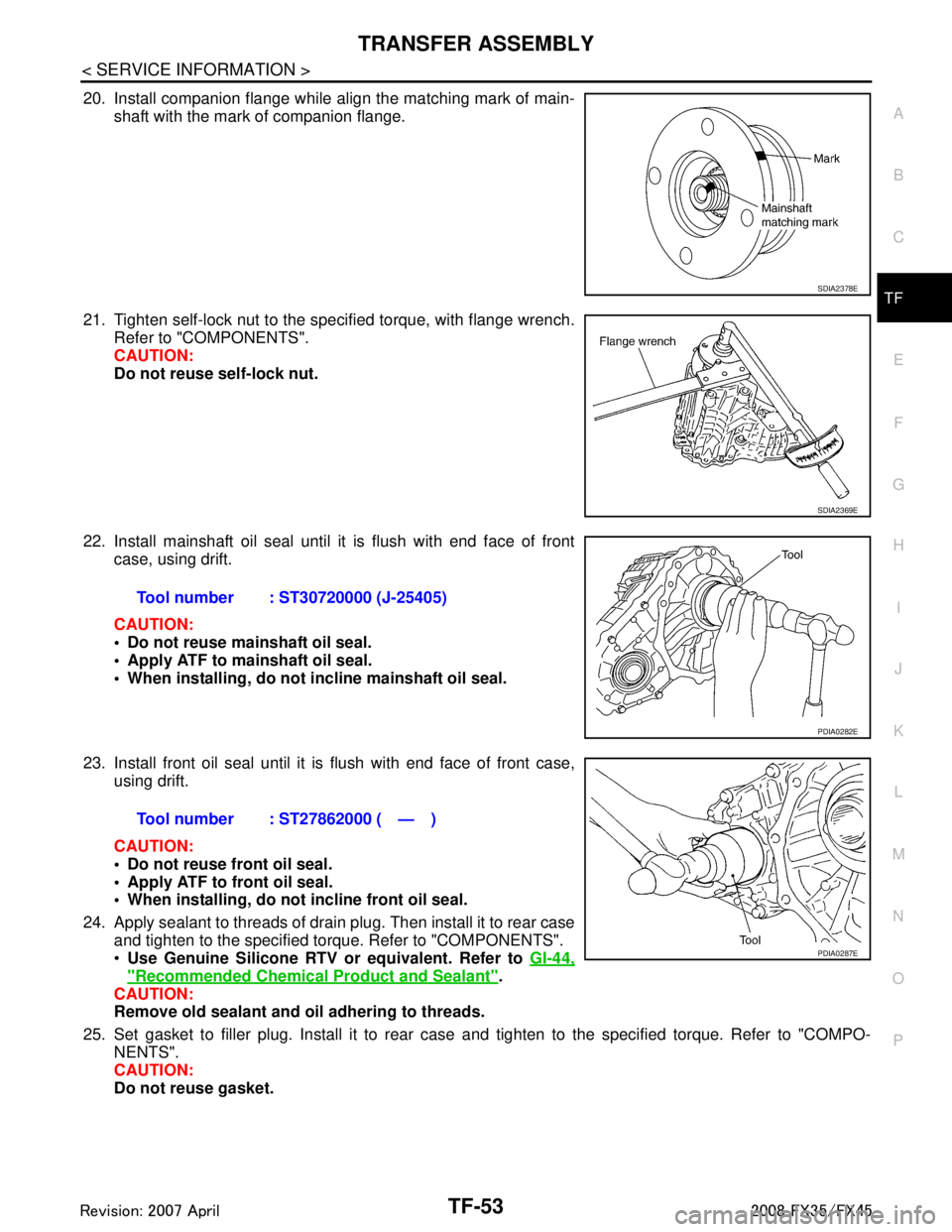

INFINITI FX35 2008 Service Manual TRANSFER ASSEMBLYTF-53 < SERVICE INFORMATION > CEF G H I J K L M A B TF N O P 20. Install companion flange while align the matching mark of main- shaft with the mark of companion flange. 21. Tighten

Page 3840 of 3924

INFINITI FX35 2008 Service Manual TF-54 < SERVICE INFORMATION > SERVICE DATA AND SPECIFICATIONS (SDS) SERVICE DATA AND SPECIFICATIONS (SDS) General SpecificationINFOID:0000000001327462 Applied model VQ35DE VK45DE Transfer model ETX13
