DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-897
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
4.CHECK FUNCTION OF FUEL INJECTOR-I
Without CONSULT-III
1. Turn ignition switch OFF.
2. Disconnect harness connectors F21, F 201 (Bank 1) and F41, F221 (Bank 2).
3. Turn ignition switch ON.
4. Check voltage between the following; harness connector F21 terminal 5 and ground,
harness connector F41 terminal 5 and ground.
5. Turn ignition switch OFF.
6. Disconnect ECM harness connector.
7. Check harness continuity between the following terminals.
8. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> Perform trouble diagnosis for EC-1149
.
5.CHECK FUNCTION OF FUEL INJECTOR-II
: Vehicle front 1. Harness connectors F41, F221 2. Harness connectors F21, F201
Voltage: Battery voltage
Cylinder Harness connector terminal ECM terminal
1 F21 terminal 3 23
3 F21 terminal 2 22
5 F21 terminal 1 21
7 F21 terminal 6 44
2 F41 terminal 3 42
4 F41 terminal 2 41
6 F41 terminal 1 40
8 F41 terminal 6 63
Continuity should exist.
PBIB3248E
PBIB0180E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2138 of 3924
![INFINITI FX35 2008 Service Manual
EC-898
< SERVICE INFORMATION >[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
Provide battery voltage between the following terminals, and then
interrupt it. Liste INFINITI FX35 2008 Service Manual
EC-898
< SERVICE INFORMATION >[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
Provide battery voltage between the following terminals, and then
interrupt it. Liste](/manual-img/42/57017/w960_57017-2137.png)
EC-898
< SERVICE INFORMATION >[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
Provide battery voltage between the following terminals, and then
interrupt it. Listen to each fuel injector operating sound.
OK or NG
OK >> GO TO 6.
NG >> Perform trouble diagnosis for EC-1149
.
6.CHECK FUNCTION OF IGNITION COIL-I
CAUTION:
Do the following procedure in the place where ventilation is good without the combustible.
1. Turn ignition switch OFF.
2. Remove fuel pump fuse in IPDM E/R to release fuel pressure.
NOTE:
Do not use CONSULT-III to releas e fuel pressure, or fuel pres-
sure applies again during the following procedure.
3. Start engine.
4. After engine stalls, crank it two or three times to release all fuel pressure.
5. Turn ignition switch OFF.
6. Remove all ignition coil harness connectors to avoid the electri-
cal discharge from the ignition coils.
7. Remove ignition coil and spark plug of the cylinder to be checked.
8. Crank engine for five seconds or more to remove combustion gas in the cylinder.
9. Connect spark plug and harness connector to ignition coil.
10. Fix ignition coil using a rope etc. with gap of 13 - 17 mm between the edge of the spark plug and grounded metal portion
as shown in the figure.
11. Crank engine for about three seconds, and check whether spark
is generated between the spark plug and the grounded metal
portion.
CAUTION:
Do not approach to the spar k plug and the ignition coil
within 50cm. Be careful not to get an electrical shock
while checking, because the el ectrical discharge voltage
becomes 20kV or more.
It might cause to damage the ignition coil if the gap of more than 17 mm is taken.
NOTE:
When the gap is less than 13 mm, the spark might be generated even if the coil is malfunctioning.
OK or NG
OK >> GO TO 10.
Cylinder Harness connector terminal
(+) (–)
1
F201 5 3
32
51
76
2
F221 5 3
42
61
86
Operating sound should exist.
PBIB2449E
Spark should be generated.
PBIB1482E
PBIB2325E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2139 of 3924
![INFINITI FX35 2008 Service Manual
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-899
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NG >> GO TO 7.
7.CHECK FUNCTION OF
IGNITION COIL-II
INFINITI FX35 2008 Service Manual
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-899
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NG >> GO TO 7.
7.CHECK FUNCTION OF
IGNITION COIL-II](/manual-img/42/57017/w960_57017-2138.png)
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-899
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
NG >> GO TO 7.
7.CHECK FUNCTION OF
IGNITION COIL-II
1. Turn ignition switch OFF.
2. Disconnect spark plug and connect a known-good spark plug.
3. Crank engine for about three seconds, and recheck whether spark is generated between the spark plug and the grounded metal portion.
OK or NG
OK >> GO TO 8.
NG >> Check ignition coil, power transistor and their circuits. Refer to EC-1166
.
8.CHECK SPARK PLUG
Check the initial spark plug for fouling, etc.
OK or NG
OK >> Replace malfunctioning spark plug(s) with standard type one(s). For spark plug type, refer to EM-188
.
NG >> 1. Repair or clean spark plug.
2. GO TO 9.
9.CHECK FUNCTION OF IGNITION COIL-III
1. Reconnect the initial spark plugs.
2. Crank engine for about three seconds, and recheck whether spark is generated between the spark plug and the grounded portion.
OK or NG
OK >> INSPECTION END
NG >> Replace malfunctioning spark plug(s) with standard type one(s). For spark plug type, refer to EM-
188.
10.CHECK COMPRESSION PRESSURE
Check compression pressure. Refer to EM-226, "
On-Vehicle Service".
OK or NG
OK >> GO TO 11.
NG >> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.
11 .CHECK FUEL PRESSURE
1. Install all removed parts.
2. Release fuel pressure to zero. Refer to EC-665, "
Fuel Pressure Check".
3. Install fuel pressure gauge and check fuel pressure. Refer to EC-665, "
Fuel Pressure Check".
OK or NG
OK >> GO TO 13.
NG >> GO TO 12.
12.DETECT MALFUNCTIONING PART
Check the following.
Fuel pump and circuit (Refer to EC-1155
.)
Fuel pressure regulator (Refer to EC-665, "
Fuel Pressure Check".)
Spark should be generated.
SEF156I
Spark should be generated.
At idling: Approximate
ly 350 kPa (3.57 kg/cm
2, 51 psi)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2140 of 3924
![INFINITI FX35 2008 Service Manual
EC-900
< SERVICE INFORMATION >[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
Fuel lines (Refer to FL-3, "Checking Fuel Line".)
Fuel filter for clogging
>> Re INFINITI FX35 2008 Service Manual
EC-900
< SERVICE INFORMATION >[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
Fuel lines (Refer to FL-3, "Checking Fuel Line".)
Fuel filter for clogging
>> Re](/manual-img/42/57017/w960_57017-2139.png)
EC-900
< SERVICE INFORMATION >[VK45DE]
DTC P0300 - P0308 MULTIPLE CYLINDER
MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
Fuel lines (Refer to FL-3, "Checking Fuel Line".)
Fuel filter for clogging
>> Repair or replace.
13.CHECK IGNITION TIMING
Check the following items. Refer to EC-658, "
Basic Inspection".
OK or NG
OK >> GO TO 14.
NG >> Follow the Basic Inspection.
14.CHECK AIR FUEL RATIO (A/F) SENSOR 1 INPUT SIGNAL CIRCUIT
1. Turn ignition switch OFF.
2. Disconnect air fuel ratio (A/F) sensor 1 harness connector.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals. Refer to Wiring Diagram.
5. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram.
Items Specifications
Target idle speed 650 ± 50 rpm (in P or N position)
Ignition timing 12 ± 5 ° BTDC (in P or N position)
: Vehicle front 1. A/F sensor 1 (Bank 2)
harness connector2. A/F sensor 1 (Bank 1)
harness connector
A/F sensor 1 terminal ECM terminal
Bank 1 116
275
535
656
Bank 2 176
277
557
658
Continuity should exist.
Bank 1 Bank 2
A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 116176
PBIB3246E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2141 of 3924
![INFINITI FX35 2008 Service Manual
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-901
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6. Also check harness for short to power.
OK or NG
OK INFINITI FX35 2008 Service Manual
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-901
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6. Also check harness for short to power.
OK or NG
OK](/manual-img/42/57017/w960_57017-2140.png)
DTC P0300 - P0308 MULTIPLE CYLINDER MISFIRE, NO. 1 - 8 CYLINDER MIS-
FIRE
EC-901
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O
6. Also check harness for short to power.
OK or NG
OK >> GO TO 15.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
15.CHECK A/F SENSOR 1 HEATER
Refer to EC-744, "
Component Inspection".
OK or NG
OK >> GO TO 16.
NG >> Replace malfunctioning A/F sensor 1.
16.CHECK MASS AIR FLOW SENSOR
With CONSULT-III
Check mass air flow sensor signal in “DATA MONITOR” mode with CONSULT-III.
With GST
Check mass air flow sensor signal in “Service $01” with GST.
OK or NG
OK >> GO TO 17.
NG >> Check connectors for rusted terminals or loose c onnections in the mass air flow sensor circuit or
grounds. Refer to EC-768
.
17.CHECK SYMPTOM MATRIX CHART
Check items on the rough idle symptom in EC-673, "
Symptom Matrix Chart".
OK or NG
OK >> GO TO 18.
NG >> Repair or replace.
18.ERASE THE 1ST TRIP DTC
Some tests may cause a 1st trip DTC to be set.
Erase the 1st trip DTC from the ECM memo ry after performing the tests. Refer to EC-633, "
Emission-related
Diagnostic Information".
>> GO TO 19.
19.CHECK INTERMITTENT INCIDENT
Refer to EC-717
.
>> INSPECTION END
275277
535557
656658
Continuity should not exist.
Bank 1 Bank 2
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
2.0 - 6.0 g·m/sec: at idling
7.0 - 20.0 g·m/sec: at 2,500 rpm
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2142 of 3924
![INFINITI FX35 2008 Service Manual
EC-902
< SERVICE INFORMATION >[VK45DE]
DTC P0327, P0328,
P0332, P0333 KS
DTC P0327, P0328, P0332, P0333 KS
Component DescriptionINFOID:0000000001326731
The knock sensor is attached to t he cylinder INFINITI FX35 2008 Service Manual
EC-902
< SERVICE INFORMATION >[VK45DE]
DTC P0327, P0328,
P0332, P0333 KS
DTC P0327, P0328, P0332, P0333 KS
Component DescriptionINFOID:0000000001326731
The knock sensor is attached to t he cylinder](/manual-img/42/57017/w960_57017-2141.png)
EC-902
< SERVICE INFORMATION >[VK45DE]
DTC P0327, P0328,
P0332, P0333 KS
DTC P0327, P0328, P0332, P0333 KS
Component DescriptionINFOID:0000000001326731
The knock sensor is attached to t he cylinder block. It senses engine-
knocking using a piezoelectric element. A knocking vibration from
the cylinderblock is sensed as vibrational pressure. This pressure is
converted into avoltage signal and sent to the ECM.
On Board Diagn osis LogicINFOID:0000000001326732
The MIL will not ligh t up for these diagnoses.
DTC Confirmation ProcedureINFOID:0000000001326733
NOTE:
If DTC Confirmation Procedure has been previously conduc ted, always turn ignition switch OFF and wait at
least 10 seconds before conducting the next test.
TESTING CONDITION:
Before performing the following procedure, confirm that battery voltage is more than 10V at idle.
1. Start engine and let it idle for at least 5 seconds.
2. Check 1st trip DTC.
3. If 1st trip DTC is detected, go to EC-904, "
Diagnosis Procedure".
PBIB0021E
DTC No. Trouble diagnosis name DTC detecting condition Possible cause
P0327
0327
(Bank 1) Knock sensor circuit low in-
put An excessively low voltage from the sensor
is sent to ECM.
Harness or connectors(The sensor circuit is open or shorted.)
Knock sensor
P0332
0332
(Bank 2)
P0328
0328
(Bank 1)
Knock sensor circuit high in-
put An excessively high voltage from the sensor
is sent to ECM.
P0333
0333
(Bank 2)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2143 of 3924
DTC P0327, P0328, P0332, P0333 KS
EC-903
< SERVICE INFORMATION > [VK45DE]
C
D
E
F
G H
I
J
K L
M A
EC
NP
O

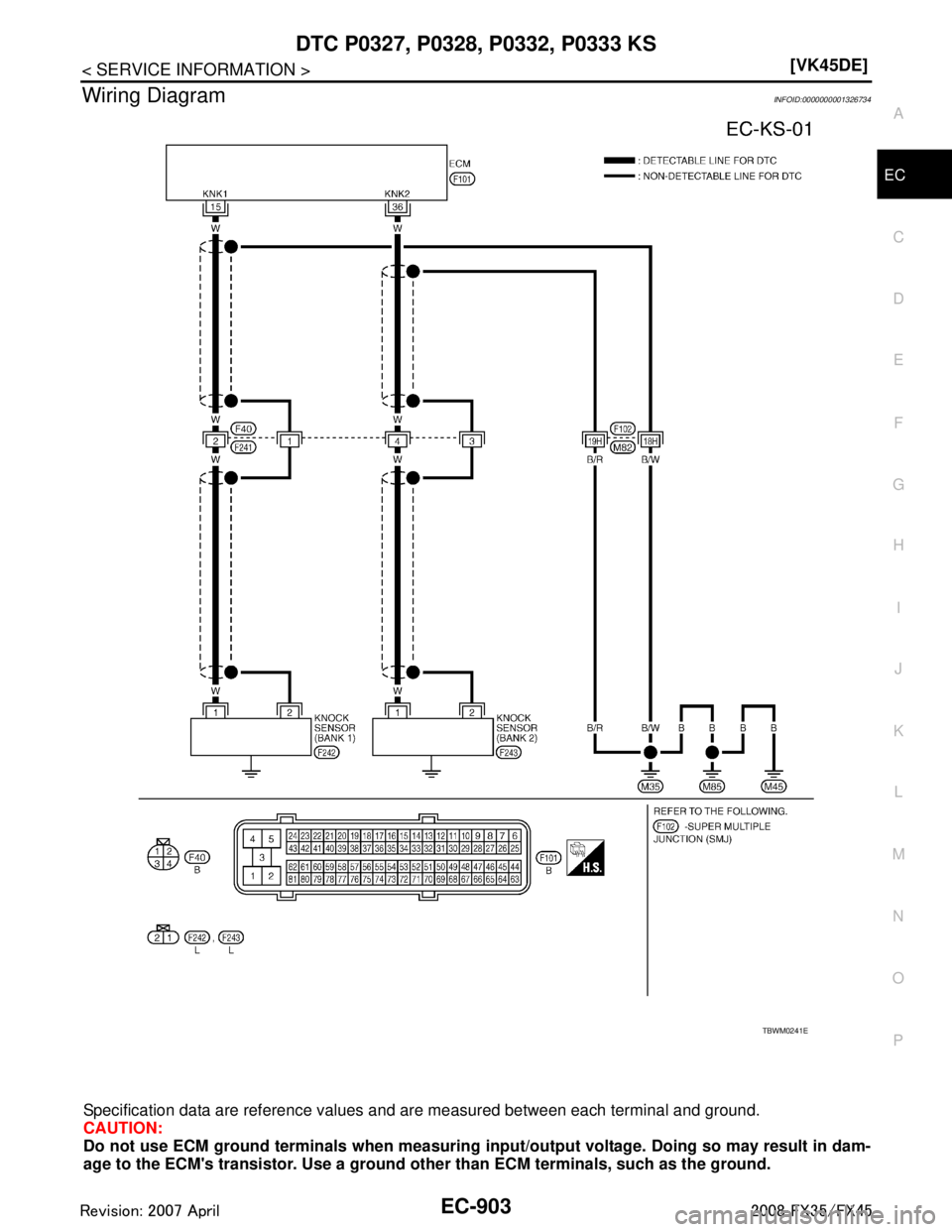

Wiring DiagramINFOID:0000000001326734
Specification data are reference values
and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals wh en measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground ot her than ECM terminals, such as the ground.
TBWM0241E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
Page 2144 of 3924
![INFINITI FX35 2008 Service Manual
EC-904
< SERVICE INFORMATION >[VK45DE]
DTC P0327, P0328,
P0332, P0333 KS
Diagnosis Procedure
INFOID:0000000001326735
1.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition s INFINITI FX35 2008 Service Manual
EC-904
< SERVICE INFORMATION >[VK45DE]
DTC P0327, P0328,
P0332, P0333 KS
Diagnosis Procedure
INFOID:0000000001326735
1.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition s](/manual-img/42/57017/w960_57017-2143.png)
EC-904
< SERVICE INFORMATION >[VK45DE]
DTC P0327, P0328,
P0332, P0333 KS
Diagnosis Procedure
INFOID:0000000001326735
1.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect ECM harness connector.
3. Check resistance between ECM terminals 15, 36 and ground. Refer to Wiring Diagram. NOTE:
It is necessary to use an ohmmeter which can measure more than 10 MΩ.
4. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 2.
2.CHECK KNOCK SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect knock sensor harness connector.
2. Check harness continuity between the following; ECM terminal 15 and knock sensor (Bank 1) terminal 1,
ECM terminal 36 and knock sensor (Bank 2) terminal 1.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3.DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F40, F241
Harness for open or short between ECM and knock sensor
>> Repair open circuit or short to ground or short to power in harness or connectors.
4.CHECK KNOCK SENSOR
Refer to EC-905, "
Component Inspection".
OK or NG
OK >> GO TO 5.
NG >> Replace malfunctioning knock sensor.
5.CHECK GROUND CONNECTIONS
Loosen and retighten three ground screws on the body.
TER- MI-
NAL
NO. WIRE
COLOR ITEM CONDITION DATA (DC Voltage)
15
36 W
W Knock sensor (Bank 1)
Knock sensor (Bank 2) [Engine is running]
Idle speed
Approximately 2.5V
Resistance: Approximately 532 - 588 k
Ω [at 20 °C (68 °F)]
Continuity should exist.
PBIB0021E
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C
