Page 2513 of 3924

INFINITI FX35 2008 Service Manual
EXHAUST MANIFOLD AND THREE WAY CATALYST
EM-29
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Before installing a new air fuel
ratio sensor 1 and new heated oxygen sensor 2, clean

Page 2514 of 3924

INFINITI FX35 2008 Service Manual
EM-30
< SERVICE INFORMATION >[VQ35DE]
OIL PAN AND OIL STRAINER
OIL PAN AND OIL STRAINER

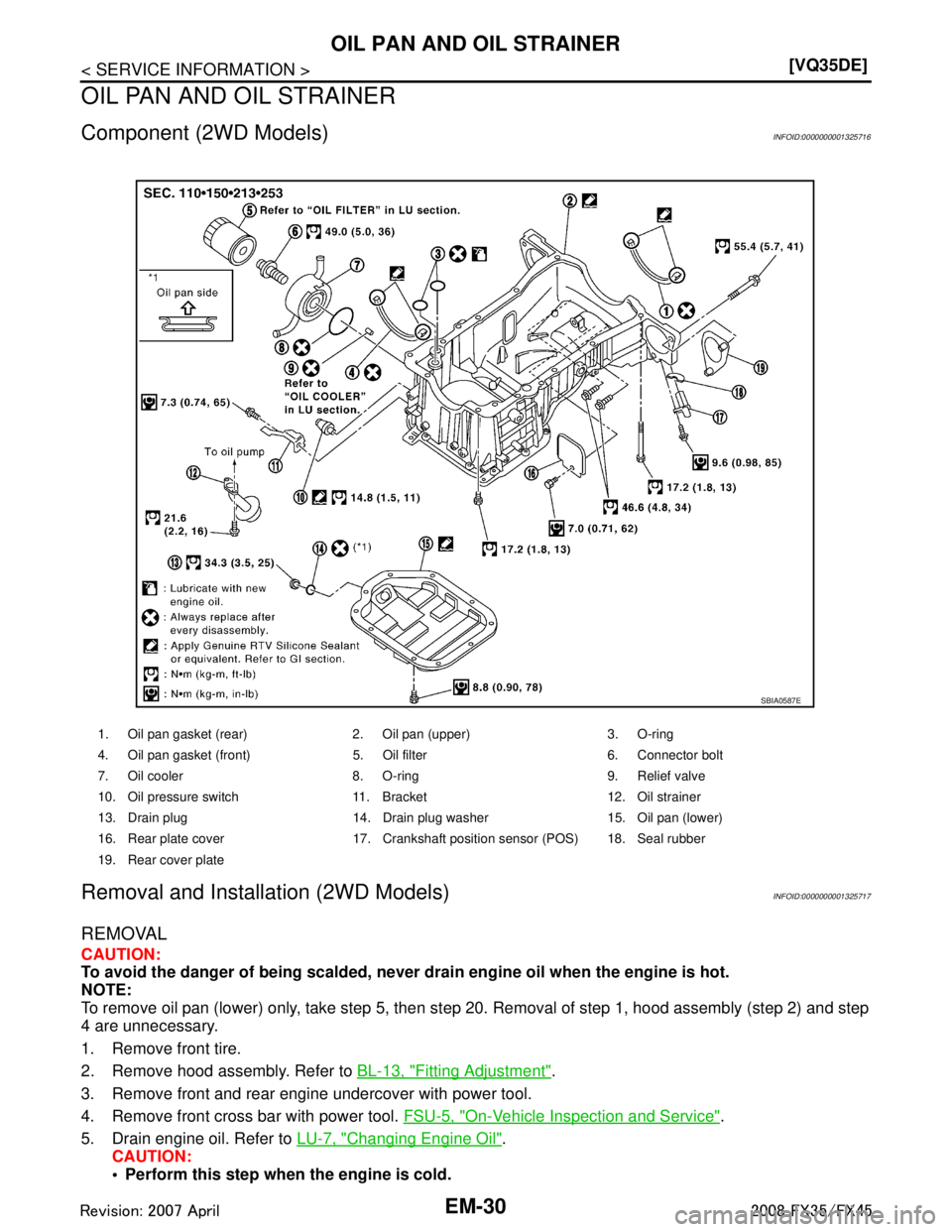

Component (2WD Models)INFOID:0000000001325716
Removal and Installation (2WD Models)INFOID:0000000001325717
REMO

Page 2515 of 3924

INFINITI FX35 2008 Service Manual
OIL PAN AND OIL STRAINEREM-31
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-10, "
Changing Engine Co

OIL PAN AND OIL STRAINEREM-31
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-10, "
Changing Engine Coolant".
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
7. Remove engine cover with power tool. Refer to EM-19, "
Component".
8. Remove air hose from air duct to mass air flow sens or side and electric throttle control actuator side.
Refer to EM-17, "
Component".
9. Removal engine rear lower slinger, and install engine rear slinger [SST: 10006 31U00 ( — )] to sling engine assembly for positioning. Refer to EM-7, "
Special Service Tool".
10. Remove front suspension member. Refer to FSU-16, "
Removal and Installation".
11. Remove drive belts. Refer to EM-15, "
Removal and Installation".
12. Remove alternator stay. Refer to SC-19, "
System Description".
13. Remove starter motor. Refer to SC-8, "
System Description".
14. Remove idler pulley and bracket assembly. Refer to EM-64, "
Component".
15. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-12, "
Com-
ponent".
16. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT-241, "
Removal and
Installation (2WD Models)".
17. Remove crankshaft position sensor (POS). CAUTION:
Handle carefully to avoid dropping and shocks.
Do not disassemble.
Do not allow metal powder to adhere to magnetic part at sensor tip.
Do not place sensors in a location wh ere they are exposed to magnetism.
18. Remove oil filter, as necessary. Refer to LU-8, "
Removal and Installation".
19. Remove oil cooler, as necessary. Refer to LU-12, "
Component".

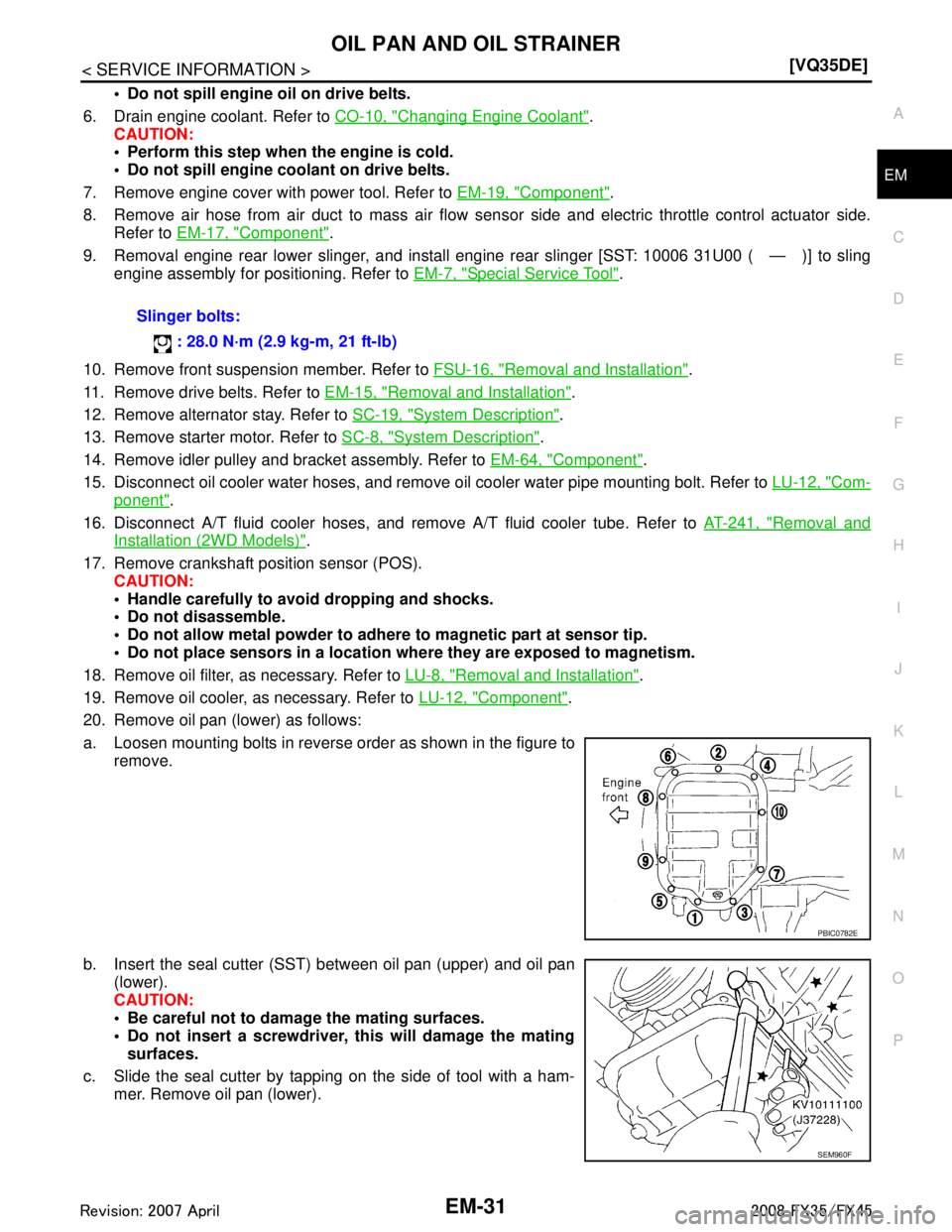

20. Remove oil pan (lower) as follows:
a. Loosen mounting bolts in reverse order as shown in the figure to remove.
b. Insert the seal cutter (SST) between oil pan (upper) and oil pan (lower).
CAUTION:
Be careful not to damage the mating surfaces.
Do not insert a screwdriver, this will damage the mating
surfaces.
c. Slide the seal cutter by tapping on the side of tool with a ham- mer. Remove oil pan (lower).Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
PBIC0782E
SEM960F
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Page 2516 of 3924

INFINITI FX35 2008 Service Manual
EM-32
< SERVICE INFORMATION >[VQ35DE]
OIL PAN AND OIL STRAINER
21. Remove oil strainer.
22. Remove transmission joint bolts which pierce oil pan (upper). Refer to
AT-241, "
Removal and Installation

Page 2517 of 3924

INFINITI FX35 2008 Service Manual
OIL PAN AND OIL STRAINEREM-33
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O

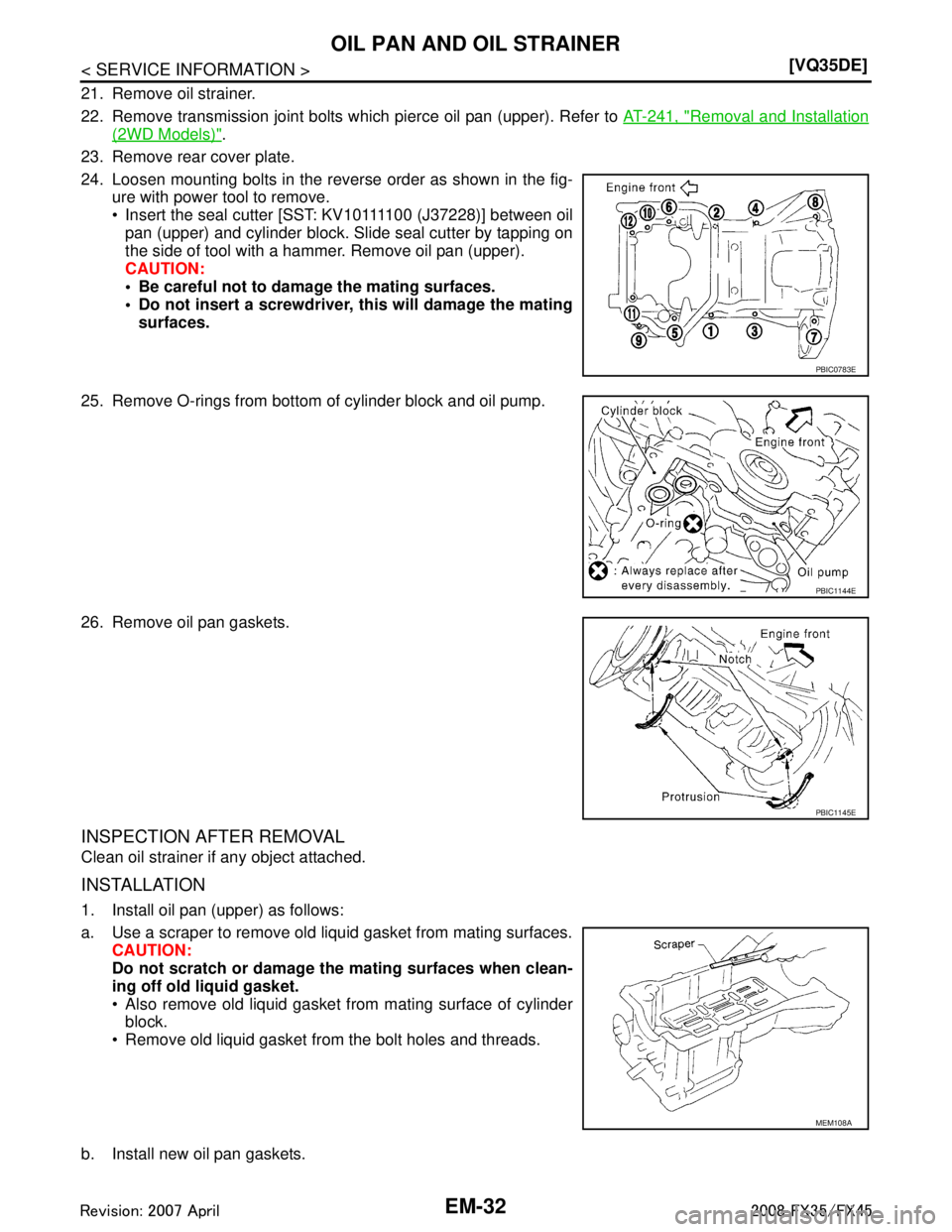

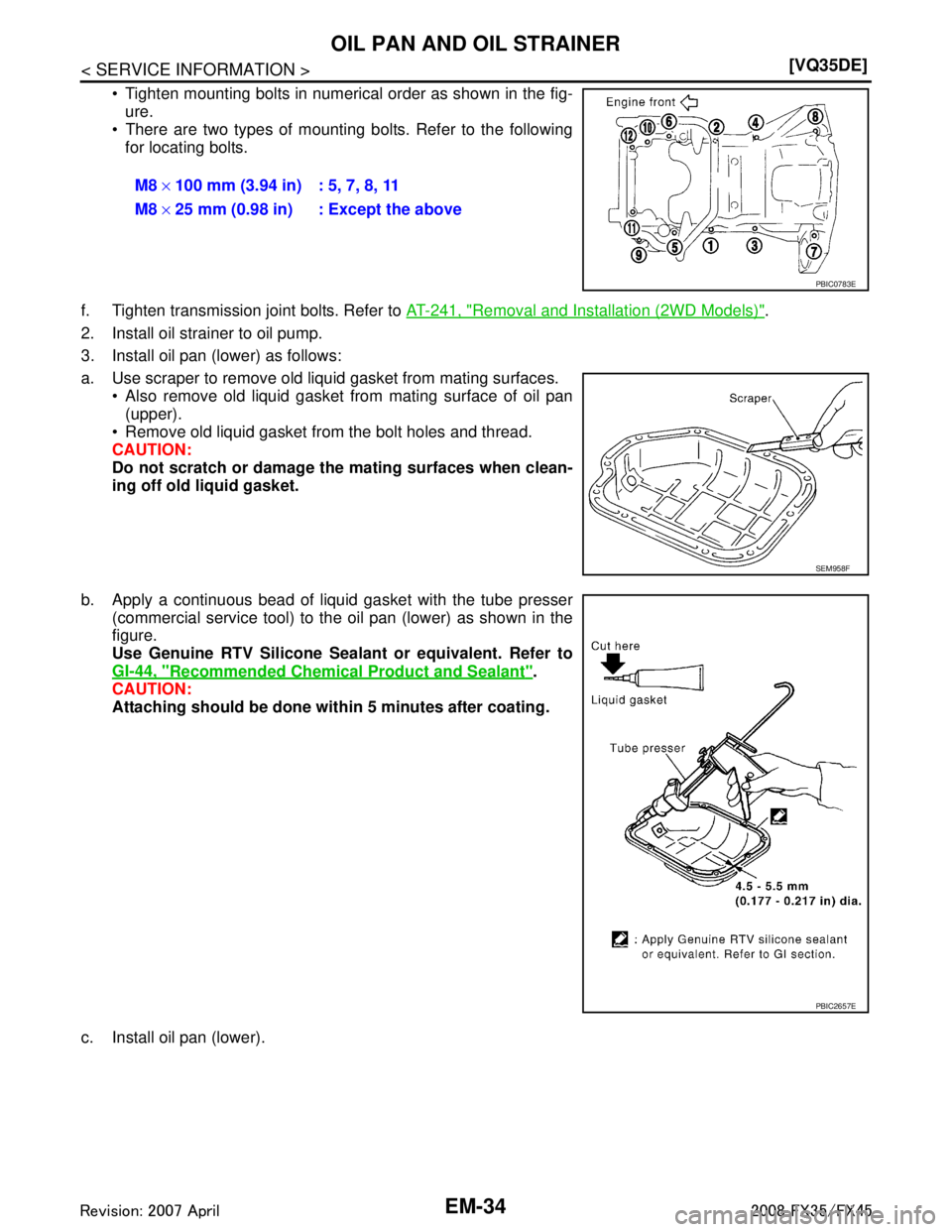

Apply liquid gasket to oil pan gaskets as shown in the figure.
Use Genuine RTV Silicone Seal ant or eq

Page 2518 of 3924

INFINITI FX35 2008 Service Manual
EM-34
< SERVICE INFORMATION >[VQ35DE]
OIL PAN AND OIL STRAINER

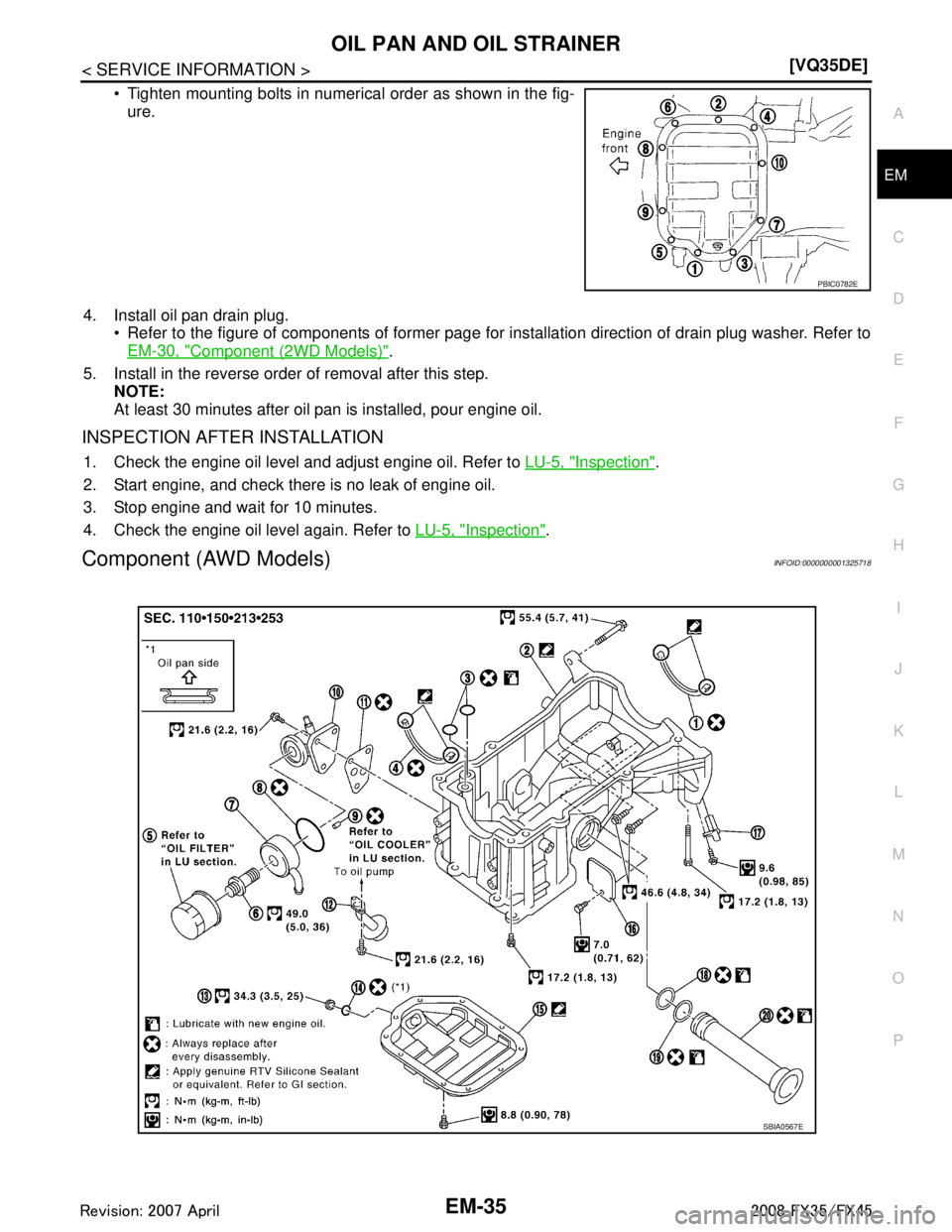

Tighten mounting bolts in numerical order as shown in the fig-
ure.
There are two types of mounting bolts. Refer to the following
fo

Page 2519 of 3924

INFINITI FX35 2008 Service Manual
OIL PAN AND OIL STRAINEREM-35
< SERVICE INFORMATION > [VQ35DE]
C
D
E
F
G H
I
J
K L
M A
EM
NP
O
Tighten mounting bolts in numerical order as shown in the fig-
ure.
4. Install oil pan drain plug. R

Page 2520 of 3924

INFINITI FX35 2008 Service Manual
EM-36
< SERVICE INFORMATION >[VQ35DE]
OIL PAN AND OIL STRAINER
Removal and Installation (AWD Models)
INFOID:0000000001325719
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine

EM-36
< SERVICE INFORMATION >[VQ35DE]
OIL PAN AND OIL STRAINER
Removal and Installation (AWD Models)
INFOID:0000000001325719
REMOVAL
CAUTION:
To avoid the danger of being scalded, never drain engine oil when the engine is hot.
NOTE:
To remove oil pan (lower) only, take step 5, then st ep 24. Removal of step 1, hood assembly (step 2) and step
4 are unnecessary.
1. Remove front tire.
2. Remove hood assembly. Refer to BL-13, "
Fitting Adjustment".
3. Remove front and rear engine undercover with power tool.
4. Remove front cross bar with power tool. Refer to FSU-5, "
On-Vehicle Inspection and Service".
5. Drain engine oil. Refer to LU-7, "
Changing Engine Oil".
CAUTION:
Perform this step when the engine is cold.
Do not spill engine oil on drive belts.
6. Drain engine coolant. Refer to CO-10, "
Changing Engine Coolant".
CAUTION:
Perform this step when the engine is cold.
Do not spill engine coolant on drive belts.
7. Remove engine cover with power tool. Refer to EM-19, "
Component".
8. Remove air hose from air duct to mass air flow s ensor side and electric throttle control actuator side.
Refer to EM-17, "
Component".
9. Remove drive belts. Refer to EM-15, "
Removal and Installation".
10. Remove front drive shaft (LH and RH) and side shaft. Refer to FAX-13, "
On-Vehicle Inspection".
11. Remove side shaft. Refer to FFD-14, "
Removal and Installation (VQ35DE Models)".
12. Removal engine rear lower slinger, and install engine rear slinger [SST: 10006 31U00 ( — )] to sling engine assembly for positioning. Refer to EM-7, "
Special Service Tool".
13. Remove front suspension member. Refer to FSU-16, "
Removal and Installation".
14. Remove engine mounting bracket, engine mounting bracket (lower) and insulator. Refer to EM-112,
"Component (2WD Models)".
15. Remove front propeller shaft. Refer to PR-4, "
On-Vehicle Inspection".
16. Remove oil filter and oil filter bracket. Refer to LU-10, "
Component".
17. Remove alternator stay. Refer to SC-19, "
System Description".
18. Remove idler pulley and bracket. Refer to EM-15, "
Removal and Installation".
19. Disconnect oil cooler water hoses, and remove oil cooler water pipe mounting bolt. Refer to LU-12, "
Com-
ponent".
20. Disconnect A/T fluid cooler hoses, and remove A/T fluid cooler tube. Refer to AT-241, "
Removal and
Installation (2WD Models)".
21. Remove front final drive assembly. Refer to FFD-14, "
Removal and Installation (VQ35DE Models)".
22. Remove starter motor. Refer to SC-8, "
System Description".
1. Oil pan gasket (rear) 2. Oil pan (upper) 3. O-ring
4. Oil pan gasket (front) 5. Oil filter 6. Connector bolt
7. Oil cooler 8. O-ring 9. Relief valve
10. Oil filter bracket 11. Oil filter bracket gasket 12. Oil strainer
13. Drain plug 14. Drain plug washer 15. Oil pan (lower)
16. Rear plate cover 17. Crankshaft position sensor (POS) 18 O-ring (small)
19. O-ring (large) 20. Axle pipe
Slinger bolts:
: 28.0 N·m (2.9 kg-m, 21 ft-lb)
3AA93ABC3ACD3AC03ACA3AC03AC63AC53A913A773A893A873A873A8E3A773A983AC73AC93AC03AC3
3A893A873A873A8F3A773A9D3AAF3A8A3A8C3A863A9D3AAF3A8B3A8C

Load next 8 pages
