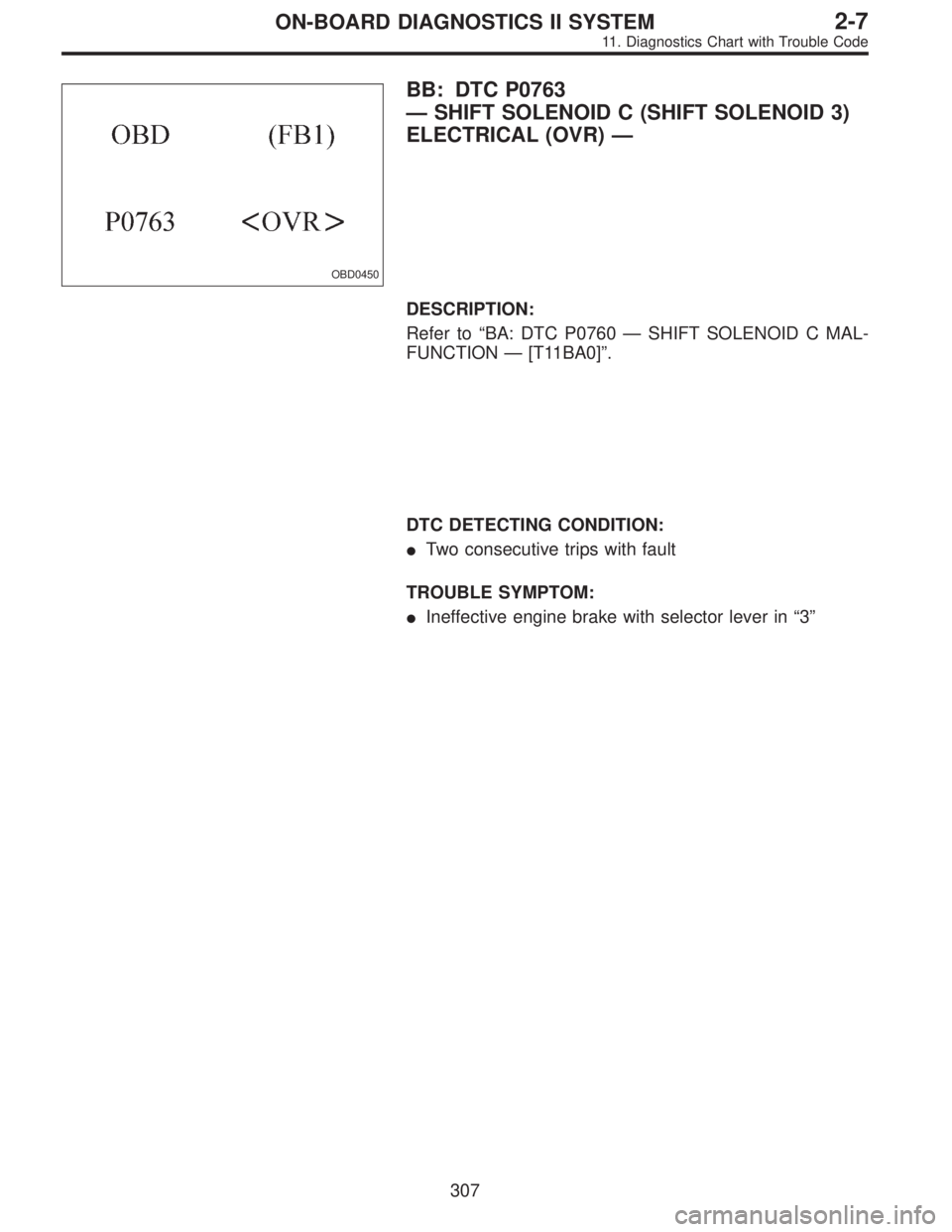

BB: DTC P0763
—SHIFT SOLENOID C (SHIFT SOLENOID 3)
ELECTRICAL (OVR)—
DESCRIPTION:
Refer to“BA: DTC P0760—SHIFT SOLENOID C MAL-
FUNCTION—[T11BA0]”.
DTC DETECTING CONDITION:
Two consecutive trips with fault
TROUBLE SYMPTOM:
Ineffective engine brake with selector lever in“3”
307
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1514 of 2248
1.Check harness connector between TCM and
shift solenoid 3.
2.Check shift solenoid 3’s ground line.
3.Check shift solenoid 3.
4.Check output signal emitted from TCM.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
[T3D0] and [T3E0].>
WIRING DIAGRAM:
OBD0452
NOTE:
For the diagnostic procedure on shift solenoid 3 circuit,
refer to“3-2 [T7C0]”.
308
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1515 of 2248
OBD0458

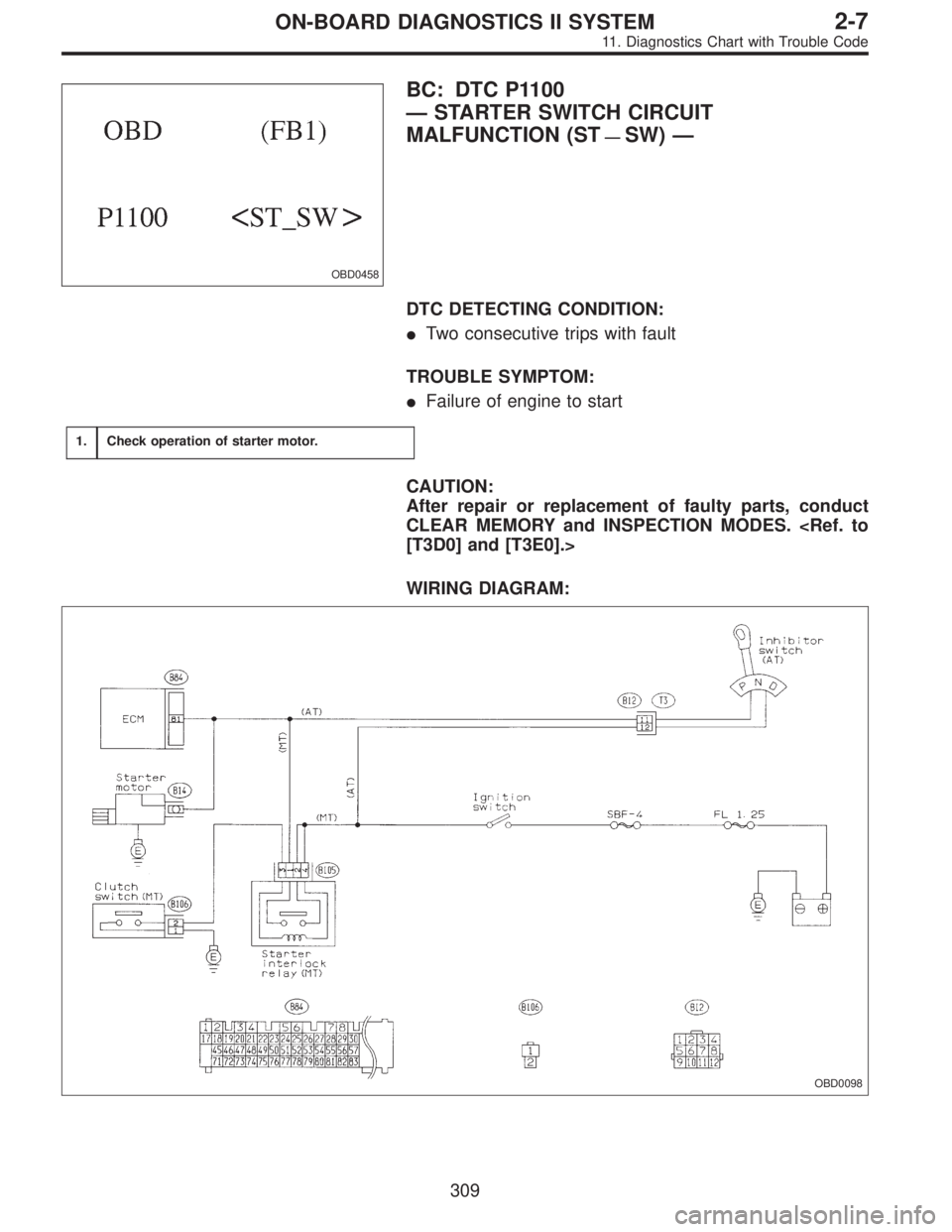

BC: DTC P1100
—STARTER SWITCH CIRCUIT
MALFUNCTION (ST
—SW)—
DTC DETECTING CONDITION:
Two consecutive trips with fault
TROUBLE SYMPTOM:
Failure of engine to start
1.Check operation of starter motor.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
[T3D0] and [T3E0].>
WIRING DIAGRAM:
OBD0098
309
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1516 of 2248
1

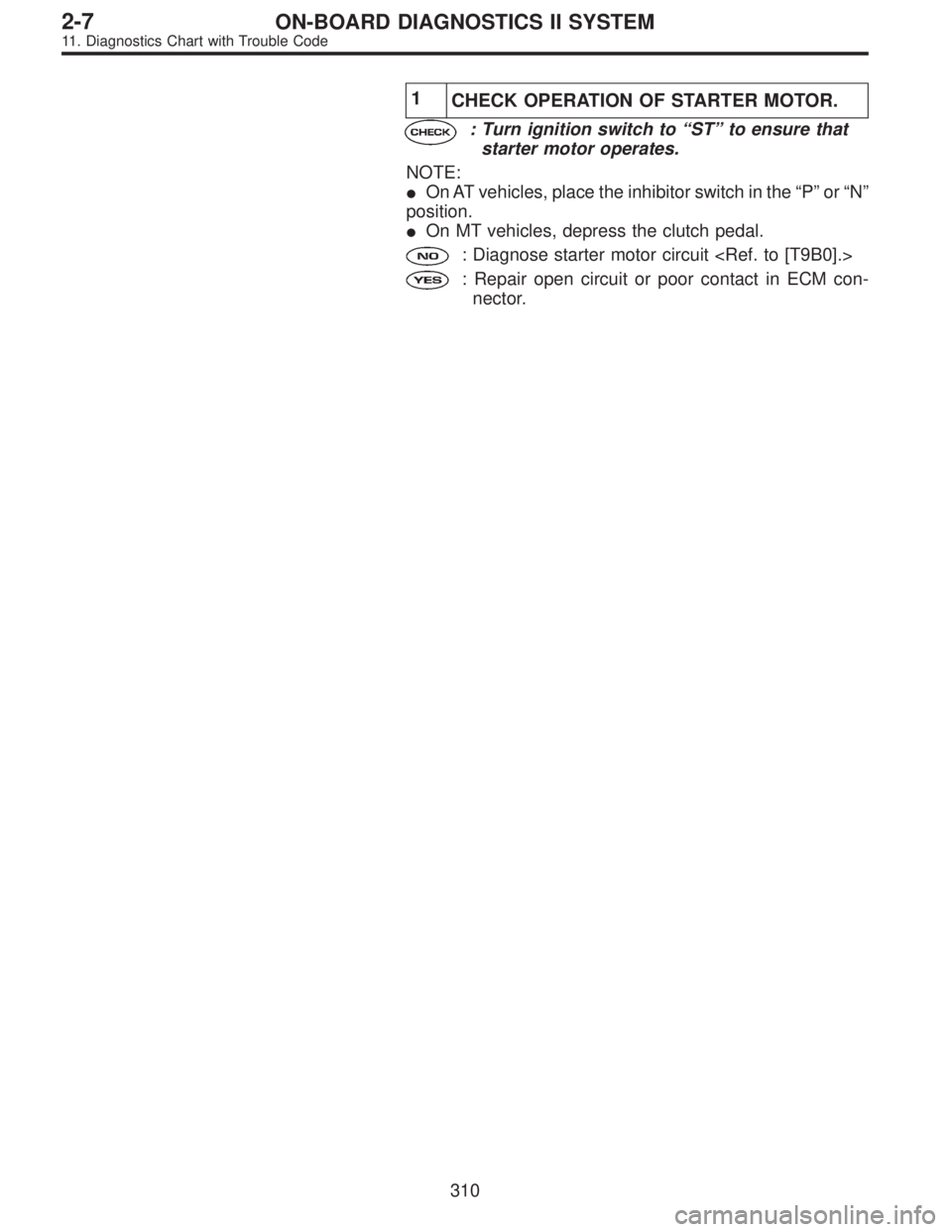

CHECK OPERATION OF STARTER MOTOR.
: Turn ignition switch to“ST”to ensure that
starter motor operates.
NOTE:
On AT vehicles, place the inhibitor switch in the“P”or“N”
position.
On MT vehicles, depress the clutch pedal.
: Diagnose starter motor circuit
: Repair open circuit or poor contact in ECM con-
nector.
310
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1517 of 2248
OBD0466
BD: DTC P1101

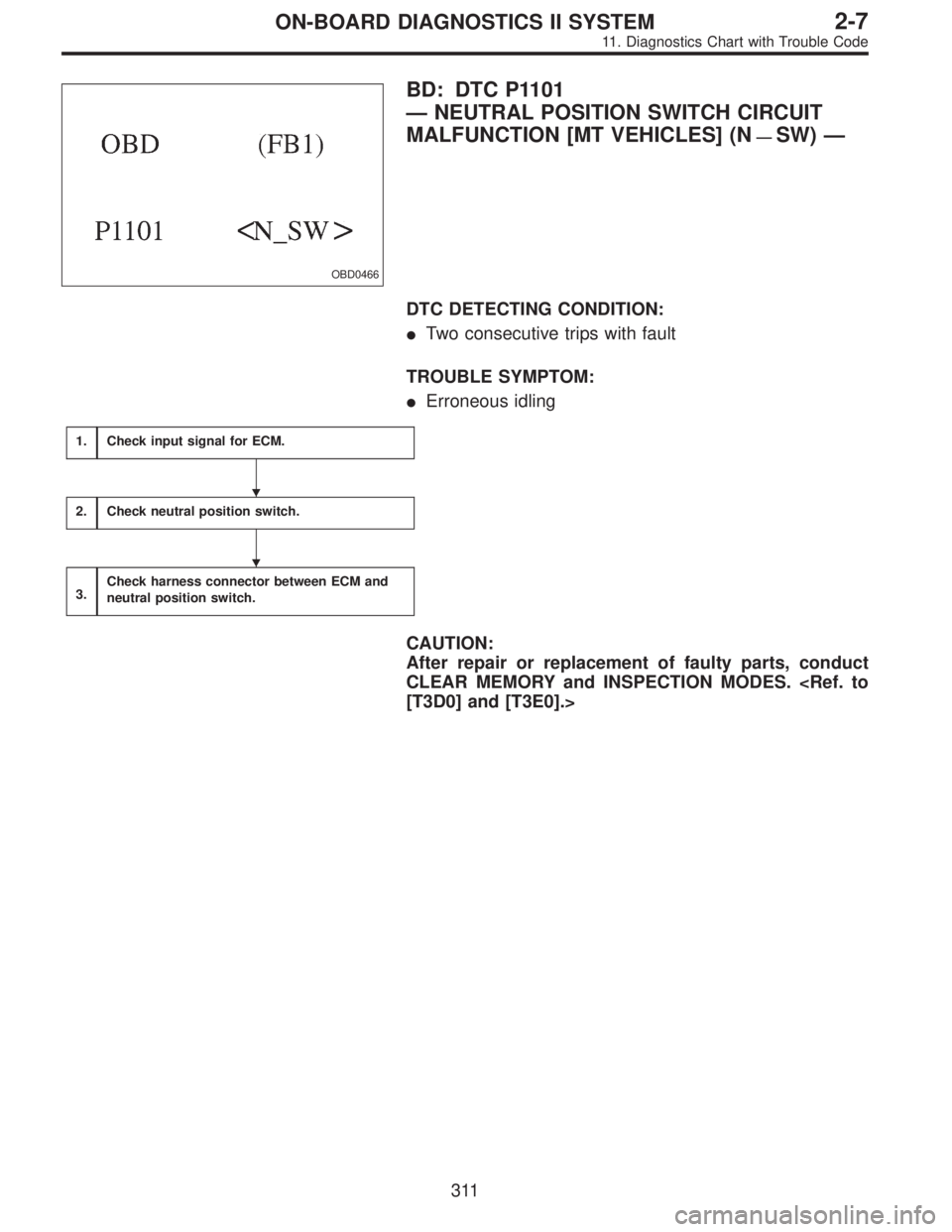

—NEUTRAL POSITION SWITCH CIRCUIT
MALFUNCTION [MT VEHICLES] (N
—SW)—
DTC DETECTING CONDITION:
Two consecutive trips with fault
TROUBLE SYMPTOM:
Erroneous idling
1.Check input signal for ECM.
2.Check neutral position switch.
3.Check harness connector between ECM and
neutral position switch.
CAUTION:
After repair or replacement of faulty parts, conduct
CLEAR MEMORY and INSPECTION MODES.
[T3D0] and [T3E0].>
311
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1518 of 2248

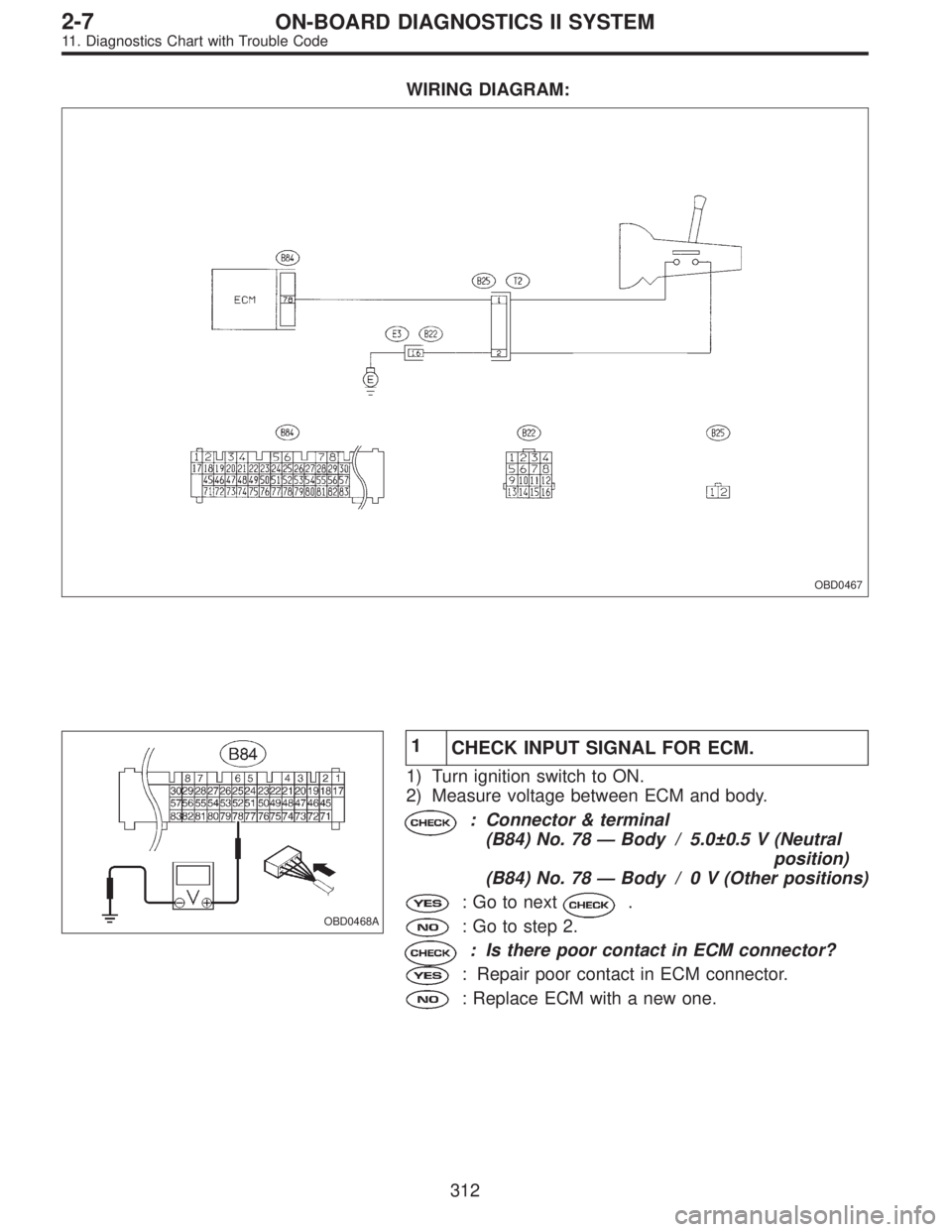

WIRING DIAGRAM:
OBD0467
OBD0468A
1
CHECK INPUT SIGNAL FOR ECM.
1) Turn ignition switch to ON.
2) Measure voltage between ECM and body.
: Connector & terminal
(B84) No. 78—Body / 5.0±0.5 V (Neutral
position)
(B84) No. 78—Body / 0 V (Other positions)
: Go to next.
: Go to step 2.
: Is there poor contact in ECM connector?
: Repair poor contact in ECM connector.
: Replace ECM with a new one.
312
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1519 of 2248

OBD0469A
2

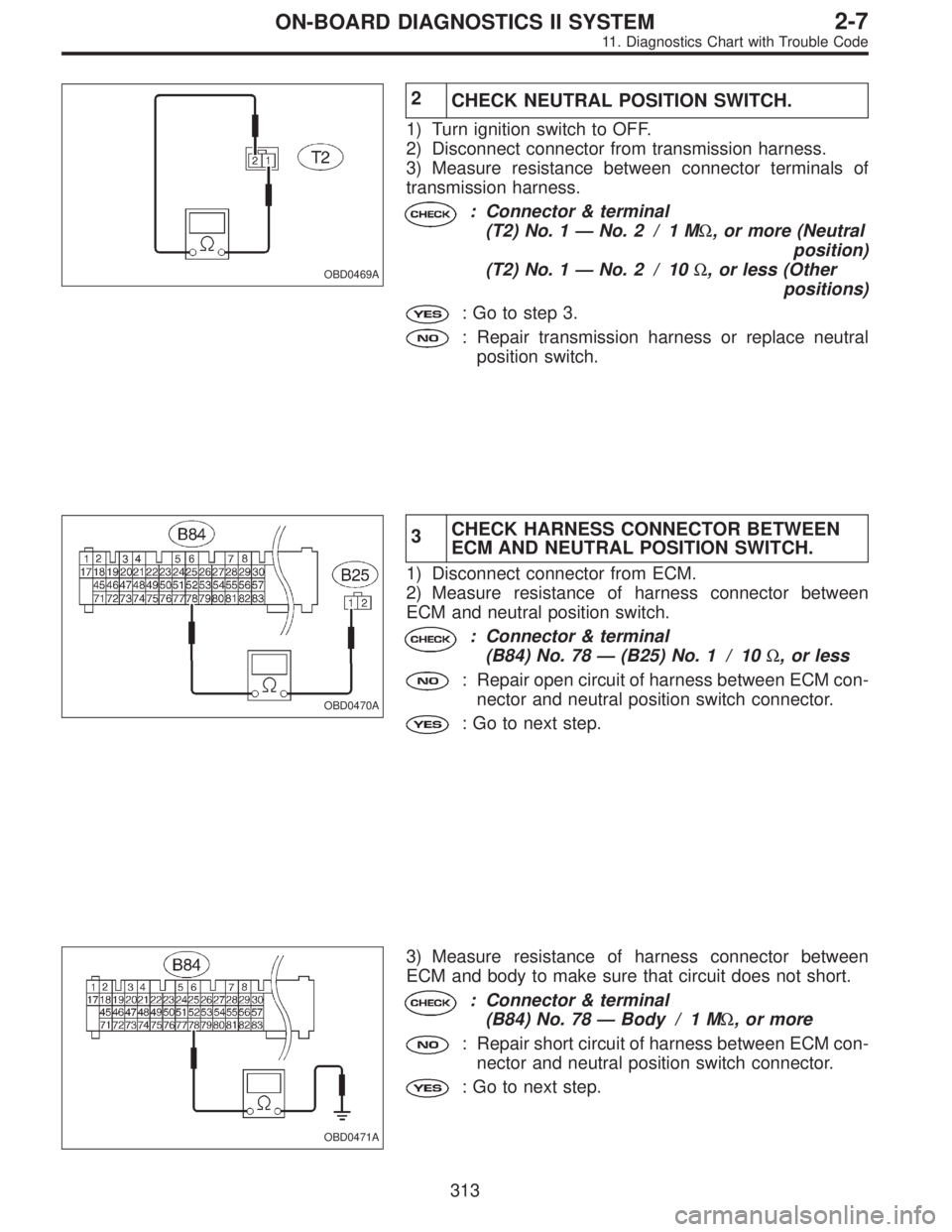

CHECK NEUTRAL POSITION SWITCH.
1) Turn ignition switch to OFF.
2) Disconnect connector from transmission harness.
3) Measure resistance between connector terminals of
transmission harness.
: Connector & terminal
(T2) No. 1—No. 2 / 1 MΩ, or more (Neutral
position)
(T2) No. 1—No. 2 / 10Ω, or less (Other
positions)
: Go to step 3.
: Repair transmission harness or replace neutral
position switch.
OBD0470A
3CHECK HARNESS CONNECTOR BETWEEN
ECM AND NEUTRAL POSITION SWITCH.
1) Disconnect connector from ECM.
2) Measure resistance of harness connector between
ECM and neutral position switch.
: Connector & terminal
(B84) No. 78—(B25) No. 1 / 10Ω, or less
: Repair open circuit of harness between ECM con-
nector and neutral position switch connector.
: Go to next step.
OBD0471A
3) Measure resistance of harness connector between
ECM and body to make sure that circuit does not short.
: Connector & terminal
(B84) No. 78—Body / 1 MΩ, or more
: Repair short circuit of harness between ECM con-
nector and neutral position switch connector.
: Go to next step.
313
2-7ON-BOARD DIAGNOSTICS II SYSTEM
11. Diagnostics Chart with Trouble Code
Page 1520 of 2248
OBD0472A

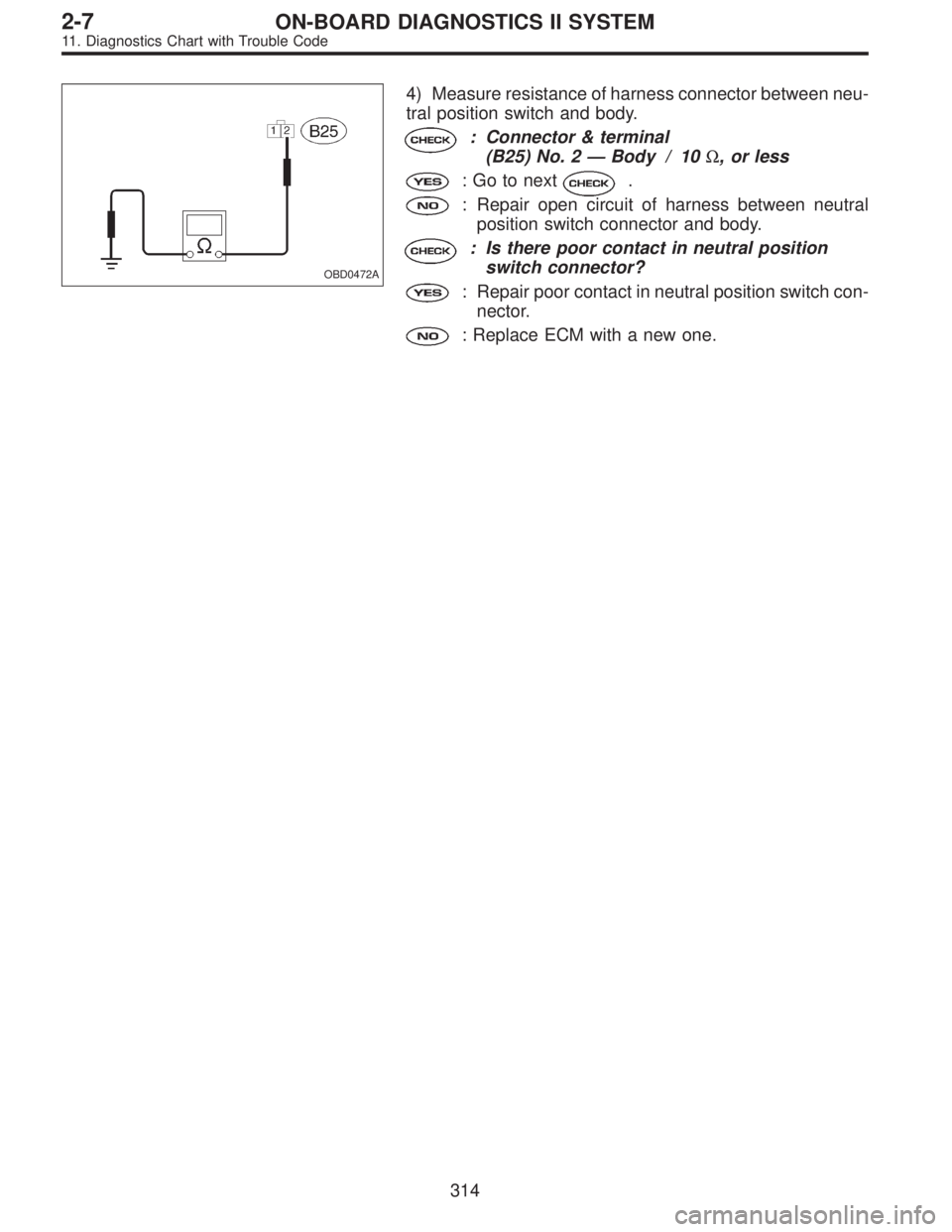

4) Measure resistance of harness connector between neu-
tral position switch and body.
: Connector & terminal
(B25) No. 2—Body / 10Ω, or less
: Go to next.
: Repair open circuit of harness between neutral
position switch connector and body.
: Is there poor contact in neutral position
switch connector?
: Repair poor contact in neutral position switch con-
nector.
: Replace ECM with a new one.
