6. Radiator Fan (Main Fan) Diagnosis
EPA0048
51
4-7DIAGNOSTICS
6. Radiator Fan (Main Fan) Diagnosis
Page 914 of 2248
7. Condenser Fan (Sub Fan)
Diagnosis (I)
52
4-7DIAGNOSTICS
7. Condenser Fan (Sub Fan) Diagnosis (I)
Page 915 of 2248
8. Condenser Fan (Sub Fan)
Diagnosis (II)
53
4-7DIAGNOSTICS
8. Condenser Fan (Sub Fan) Diagnosis (II)
Page 916 of 2248

9. Sight Glass Inspection
1. INSPECTION CONDITION
1) Operate the engine at approximately 1,500 rpm.
2) Open the door windows.
3) Set the fan switch to the 4th (High) position.
4) Set the mode selector switch to“A/C”position.
5) Set the temperature control switch to Full cold position.
6) Ensure that compressor discharge pressure is at least
588 kPa (6 kg/cm
2, 85 psi).
NOTE:
When discharge pressure does not reach 588 kPa (6
kg/cm
2, 85 psi) in areas where outside air temperature is
low, proceed as follows:
a. Set the TEMP. SWITCH to the Full hot position.
b. Set the temperature control switch to“MAX. A/C”posi-
tion.
c. Close the door windows completely.
d. Increase the compartment temperature so that dis-
charge pressure reaches at least 588 kPa (6 kg/cm
2,85
psi).
2. REFRIGERANT CHARGE AMOUNT CHECKING
Check the refrigerant charge amount using the following
table as a guide.
Item to check Adequate Insufficient Almost in refrigerant Too much refrigerant
State in sight glassCLEAR
Air bubbles sometimes
appear when engine
speed is increased or
decreased.
G4M0669
FOAMY or BUBBLY
Air bubbles always
appear.
G4M0670
FROSTY
Frost-like appears.
G4M0671
NO FOAM
No air bubbles appear.
G4M0672
Temperature of high
and low pressure linesHigh-pressure side is
hot while low-pressure
side is cold. (A big
temperature difference
between high and low
pressure side)High-pressure side is
warm and low-pressure
side is slightly cold.
(Not so big temperature
difference between high
and low pressure side)There is almost no
temperature difference
between high and low
pressure side.High-pressure side is
hot and low-pressure
side is slightly warm.
(Slight temperature
difference between high
and low pressure side)
Pressure of systemBoth pressures on high
and low pressure sides
are normal.Both pressures on high
and low pressure sides
are slightly low.High-pressure side is
abnormally low.Both pressures on high
and low pressure sides
are abnormally high.
54
4-7DIAGNOSTICS
9. Sight Glass Inspection
Page 917 of 2248
1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed on and along body
panels.
CAUTION:
All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuits.
Be careful not to damage Airbag system wiring har-
ness when repairing the body panel.
2. Body Datum Points
Various master repair locations are established as datum
points used during body repairs. In addition, guide holes,
locators and indents are provided to facilitate panel
replacement and achieve alignment accuracy.
NOTE:
Left and right datum points are all symmetrical to each
other.
2
5-1SERVICE DATA
1. Supplemental Restraint System“Airbag”- 2. Body Datum Points
Page 918 of 2248
1. Supplemental Restraint System
“Airbag”
Airbag system wiring harness is routed on and along body
panels.
CAUTION:
All Airbag system wiring harness and connectors
are colored yellow. Do not use electrical test equip-
ment on these circuits.
Be careful not to damage Airbag system wiring har-
ness when repairing the body panel.
2. Body Datum Points
Various master repair locations are established as datum
points used during body repairs. In addition, guide holes,
locators and indents are provided to facilitate panel
replacement and achieve alignment accuracy.
NOTE:
Left and right datum points are all symmetrical to each
other.
2
5-1SERVICE DATA
1. Supplemental Restraint System“Airbag”- 2. Body Datum Points
Page 919 of 2248

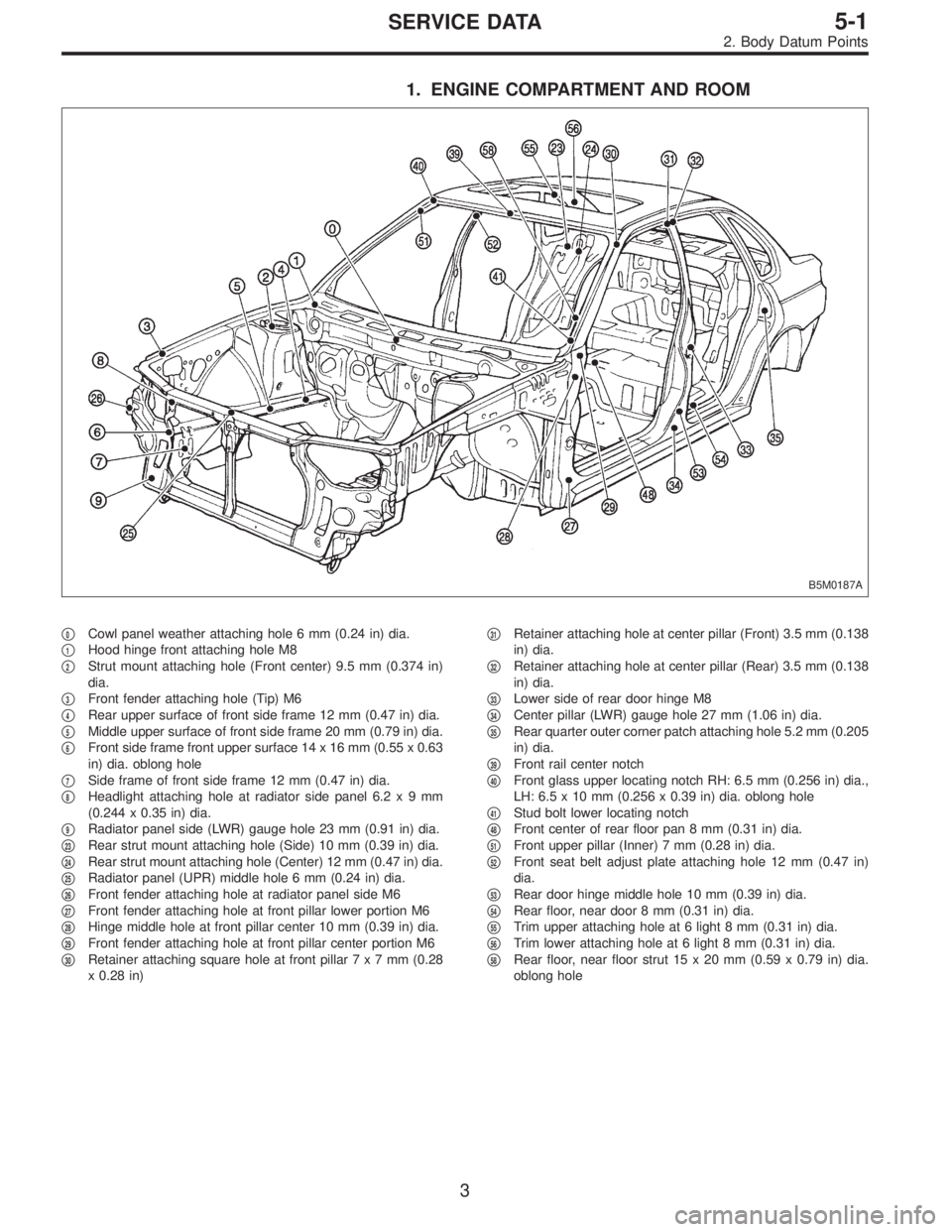

1. ENGINE COMPARTMENT AND ROOM
B5M0187A
0Cowl panel weather attaching hole 6 mm (0.24 in) dia.
1Hood hinge front attaching hole M8
2Strut mount attaching hole (Front center) 9.5 mm (0.374 in)
dia.
3Front fender attaching hole (Tip) M6
4Rear upper surface of front side frame 12 mm (0.47 in) dia.
5Middle upper surface of front side frame 20 mm (0.79 in) dia.
6Front side frame front upper surface 14 x 16 mm (0.55 x 0.63
in) dia. oblong hole
7Side frame of front side frame 12 mm (0.47 in) dia.
8Headlight attaching hole at radiator side panel 6.2x9mm
(0.244 x 0.35 in) dia.
9Radiator panel side (LWR) gauge hole 23 mm (0.91 in) dia.
23Rear strut mount attaching hole (Side) 10 mm (0.39 in) dia.
24Rear strut mount attaching hole (Center) 12 mm (0.47 in) dia.
25Radiator panel (UPR) middle hole 6 mm (0.24 in) dia.
26Front fender attaching hole at radiator panel side M6
27Front fender attaching hole at front pillar lower portion M6
28Hinge middle hole at front pillar center 10 mm (0.39 in) dia.
29Front fender attaching hole at front pillar center portion M6
30Retainer attaching square hole at front pillar7x7mm(0.28
x 0.28 in)
31Retainer attaching hole at center pillar (Front) 3.5 mm (0.138
in) dia.
32Retainer attaching hole at center pillar (Rear) 3.5 mm (0.138
in) dia.
33Lower side of rear door hinge M8
34Center pillar (LWR) gauge hole 27 mm (1.06 in) dia.
35Rear quarter outer corner patch attaching hole 5.2 mm (0.205
in) dia.
39Front rail center notch
40Front glass upper locating notch RH: 6.5 mm (0.256 in) dia.,
LH: 6.5 x 10 mm (0.256 x 0.39 in) dia. oblong hole
41Stud bolt lower locating notch
48Front center of rear floor pan 8 mm (0.31 in) dia.
51Front upper pillar (Inner) 7 mm (0.28 in) dia.
52Front seat belt adjust plate attaching hole 12 mm (0.47 in)
dia.
53Rear door hinge middle hole 10 mm (0.39 in) dia.
54Rear floor, near door 8 mm (0.31 in) dia.
55Trim upper attaching hole at 6 light 8 mm (0.31 in) dia.
56Trim lower attaching hole at 6 light 8 mm (0.31 in) dia.
58Rear floor, near floor strut 15 x 20 mm (0.59 x 0.79 in) dia.
oblong hole
3
5-1SERVICE DATA
2. Body Datum Points
Page 920 of 2248

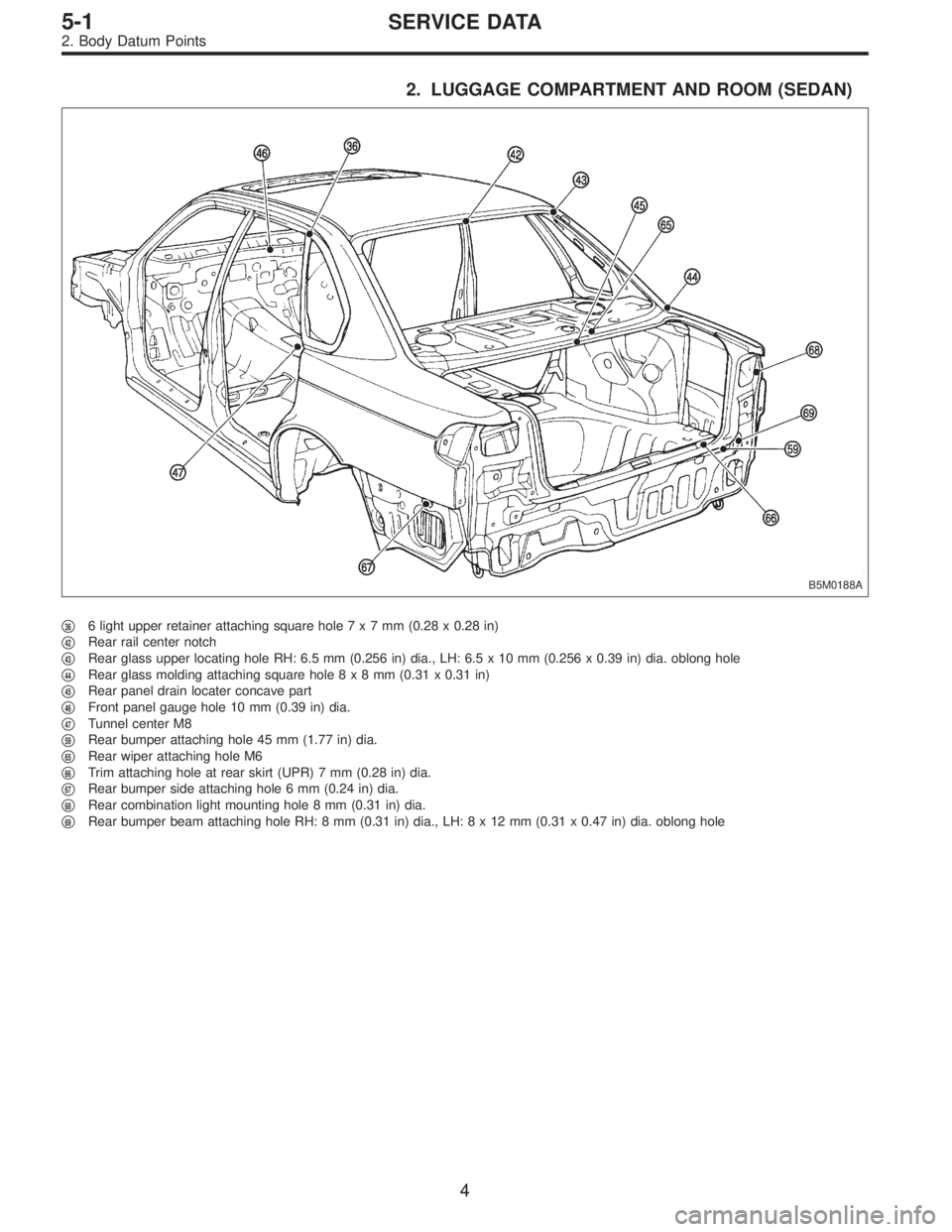

2. LUGGAGE COMPARTMENT AND ROOM (SEDAN)
B5M0188A
366 light upper retainer attaching square hole7x7mm(0.28 x 0.28 in)
42Rear rail center notch
43Rear glass upper locating hole RH: 6.5 mm (0.256 in) dia., LH: 6.5 x 10 mm (0.256 x 0.39 in) dia. oblong hole
44Rear glass molding attaching square hole8x8mm(0.31 x 0.31 in)
45Rear panel drain locater concave part
46Front panel gauge hole 10 mm (0.39 in) dia.
47Tunnel center M8
59Rear bumper attaching hole 45 mm (1.77 in) dia.
65Rear wiper attaching hole M6
66Trim attaching hole at rear skirt (UPR) 7 mm (0.28 in) dia.
67Rear bumper side attaching hole 6 mm (0.24 in) dia.
68Rear combination light mounting hole 8 mm (0.31 in) dia.
69Rear bumper beam attaching hole RH: 8 mm (0.31 in) dia., LH:8x12mm(0.31 x 0.47 in) dia. oblong hole
4
5-1SERVICE DATA
2. Body Datum Points
