Page 1393 of 2248

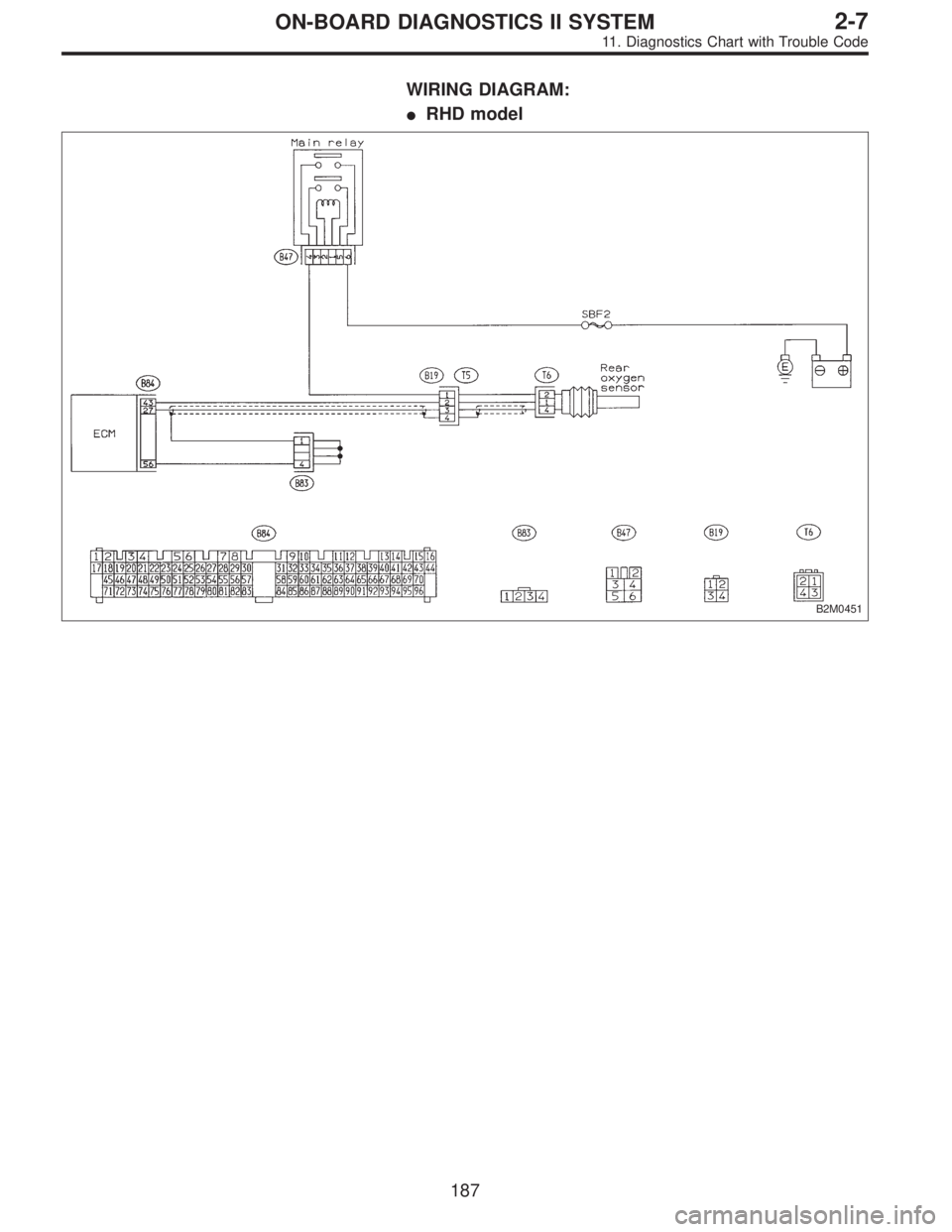

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: RHD model B2M0451 187 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostics Chart with Trouble Code

Page 1394 of 2248

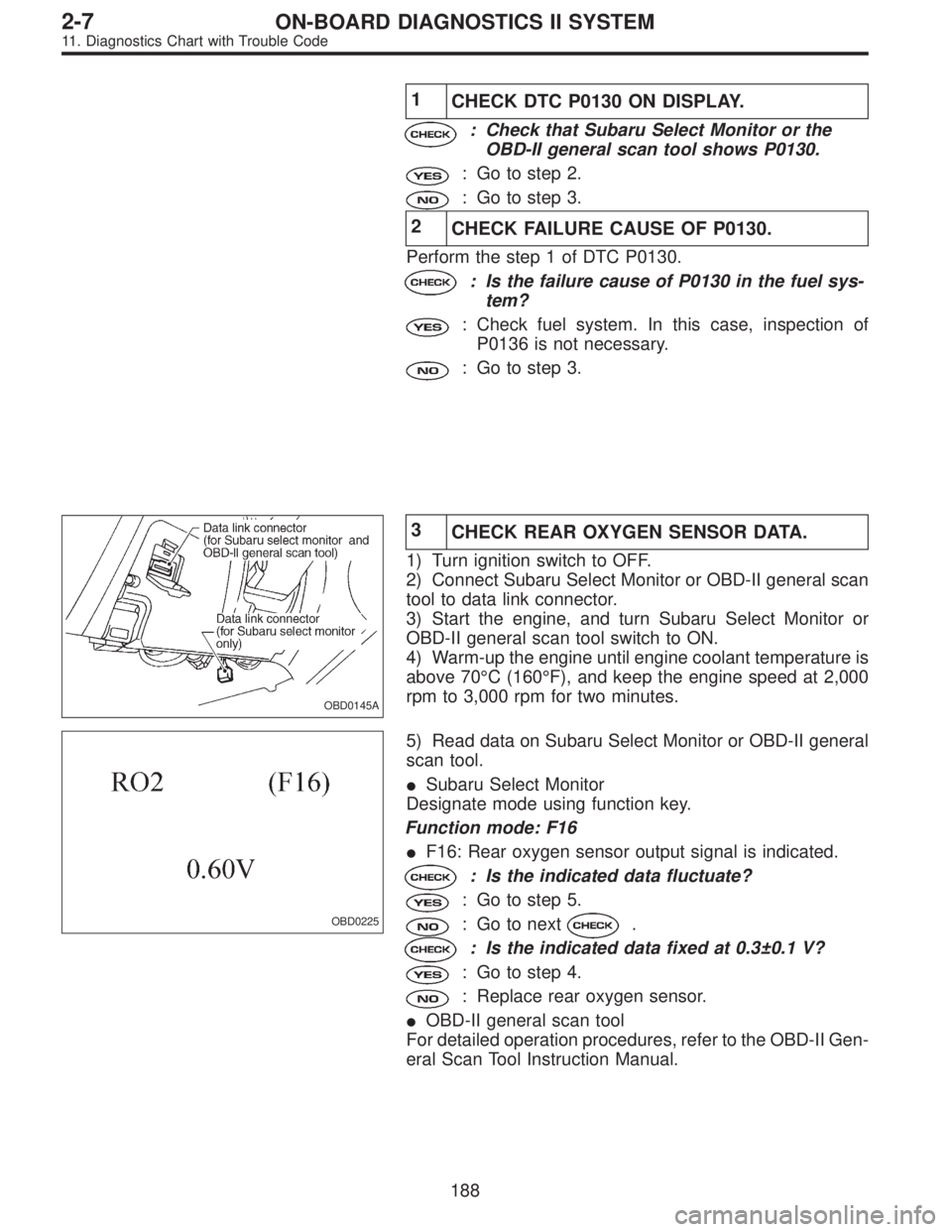

SUBARU LEGACY 1995 Service Repair Manual 1 CHECK DTC P0130 ON DISPLAY. : Check that Subaru Select Monitor or the OBD-II general scan tool shows P0130. : Go to step 2. : Go to step 3. 2 CHECK FAILURE CAUSE OF P0130. Perform the step 1 of DTC

Page 1395 of 2248

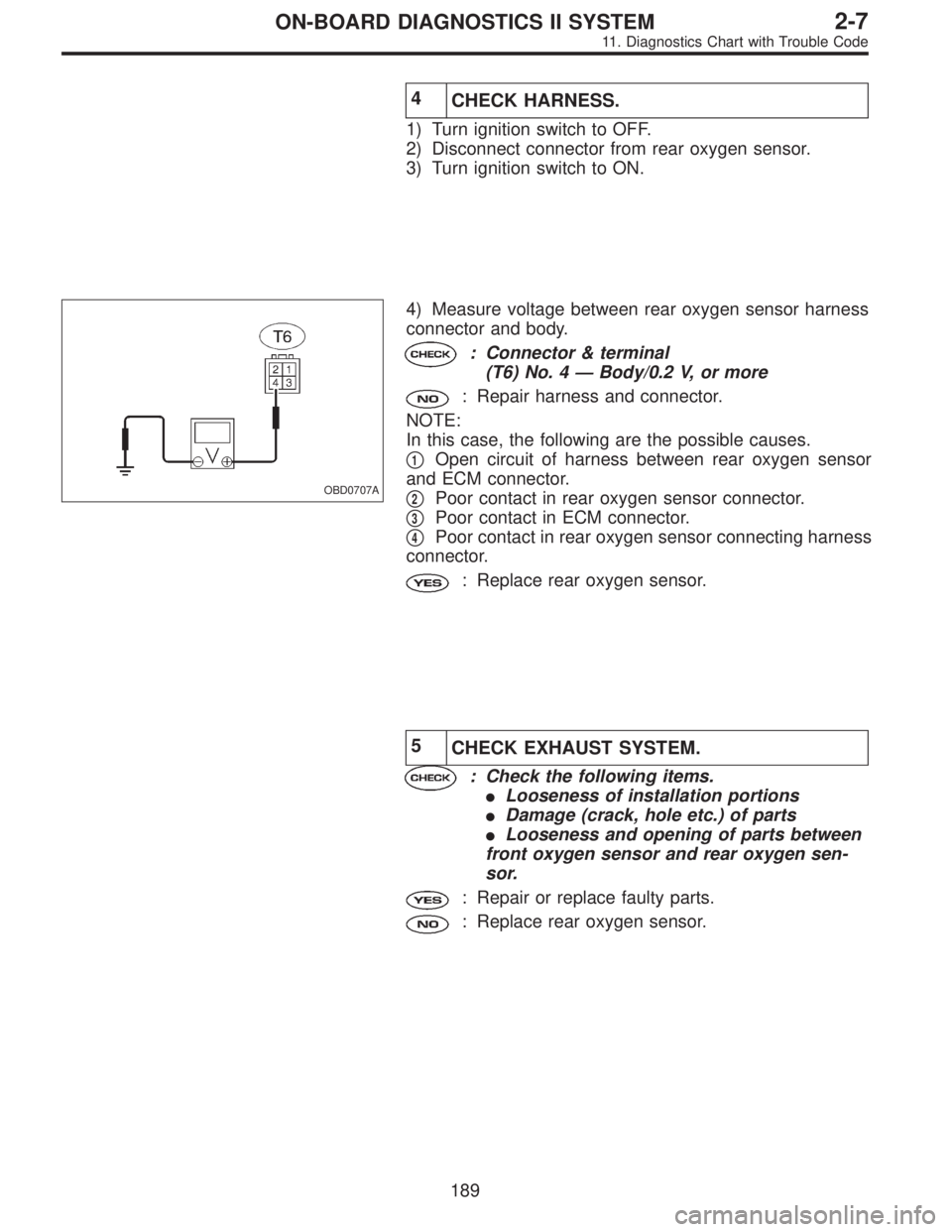

SUBARU LEGACY 1995 Service Repair Manual 4 CHECK HARNESS. 1) Turn ignition switch to OFF. 2) Disconnect connector from rear oxygen sensor. 3) Turn ignition switch to ON. OBD0707A 4) Measure voltage between rear oxygen sensor harness connecto

Page 1396 of 2248

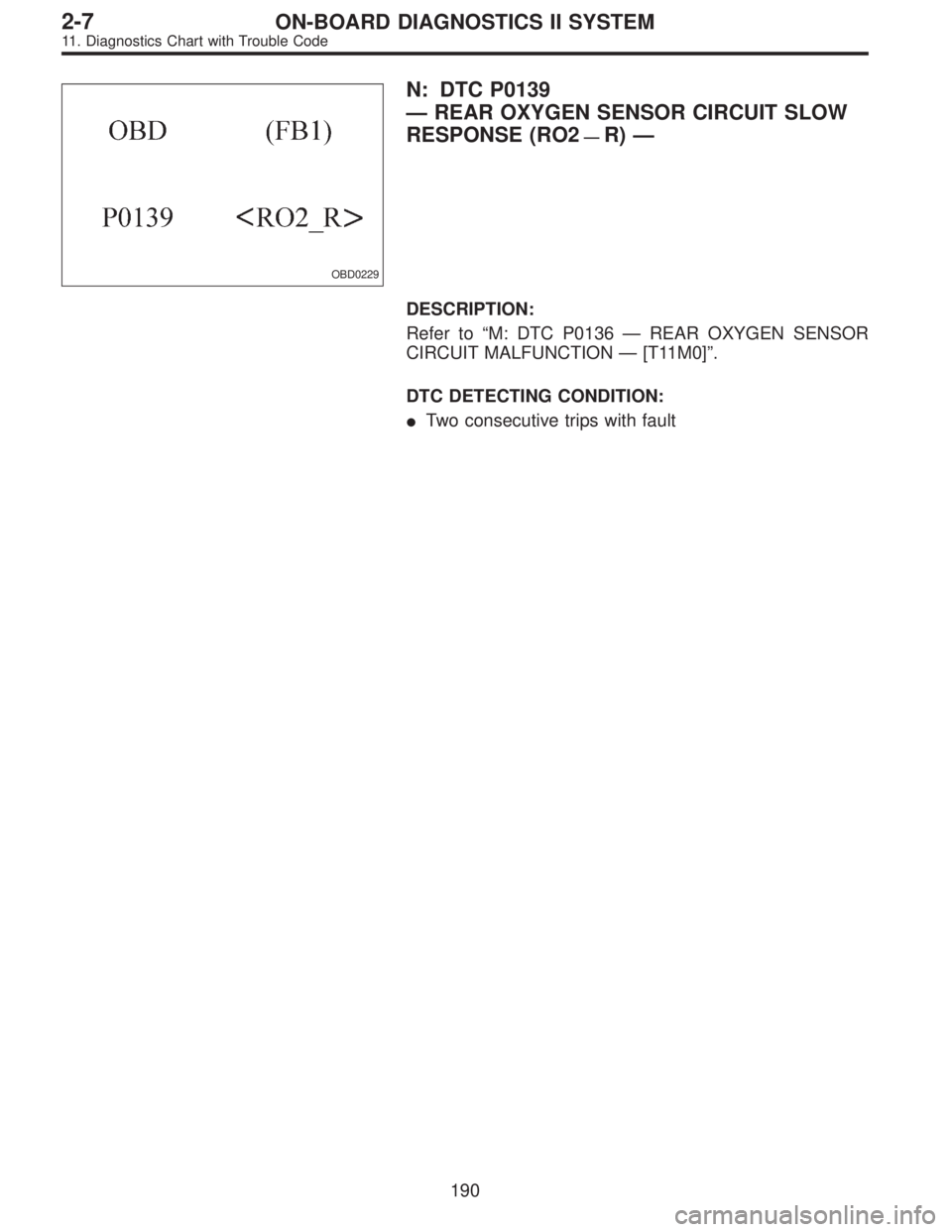

SUBARU LEGACY 1995 Service Repair Manual OBD0229 N: DTC P0139 —REAR OXYGEN SENSOR CIRCUIT SLOW RESPONSE (RO2 —R)— DESCRIPTION: Refer to“M: DTC P0136—REAR OXYGEN SENSOR CIRCUIT MALFUNCTION—[T11M0]”. DTC DETECTING CONDITION: Two

Page 1397 of 2248

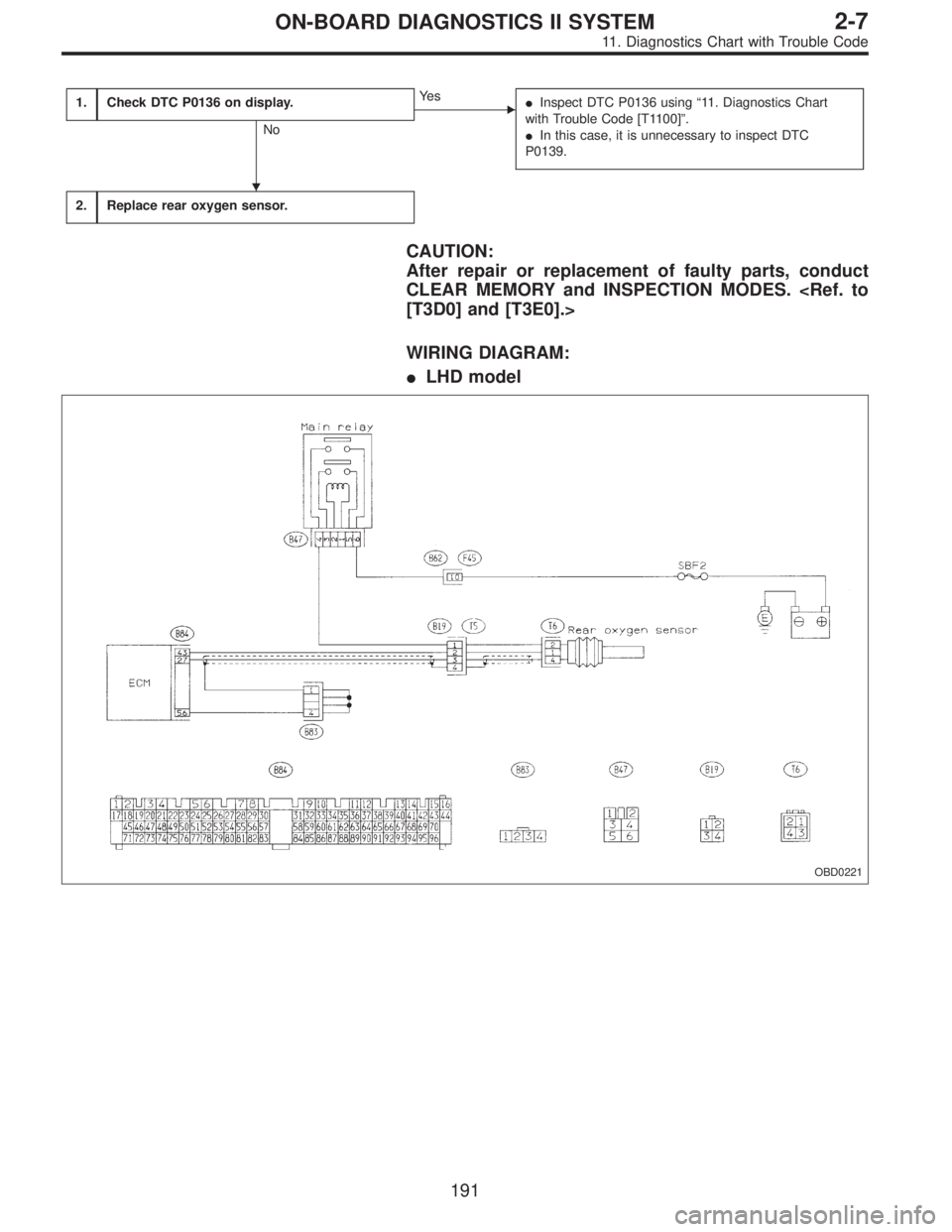

SUBARU LEGACY 1995 Service Repair Manual 1.Check DTC P0136 on display. No Ye s Inspect DTC P0136 using“11. Diagnostics Chart with Trouble Code [T1100]”. In this case, it is unnecessary to inspect DTC P0139. 2.Replace rear oxygen senso

Page 1398 of 2248

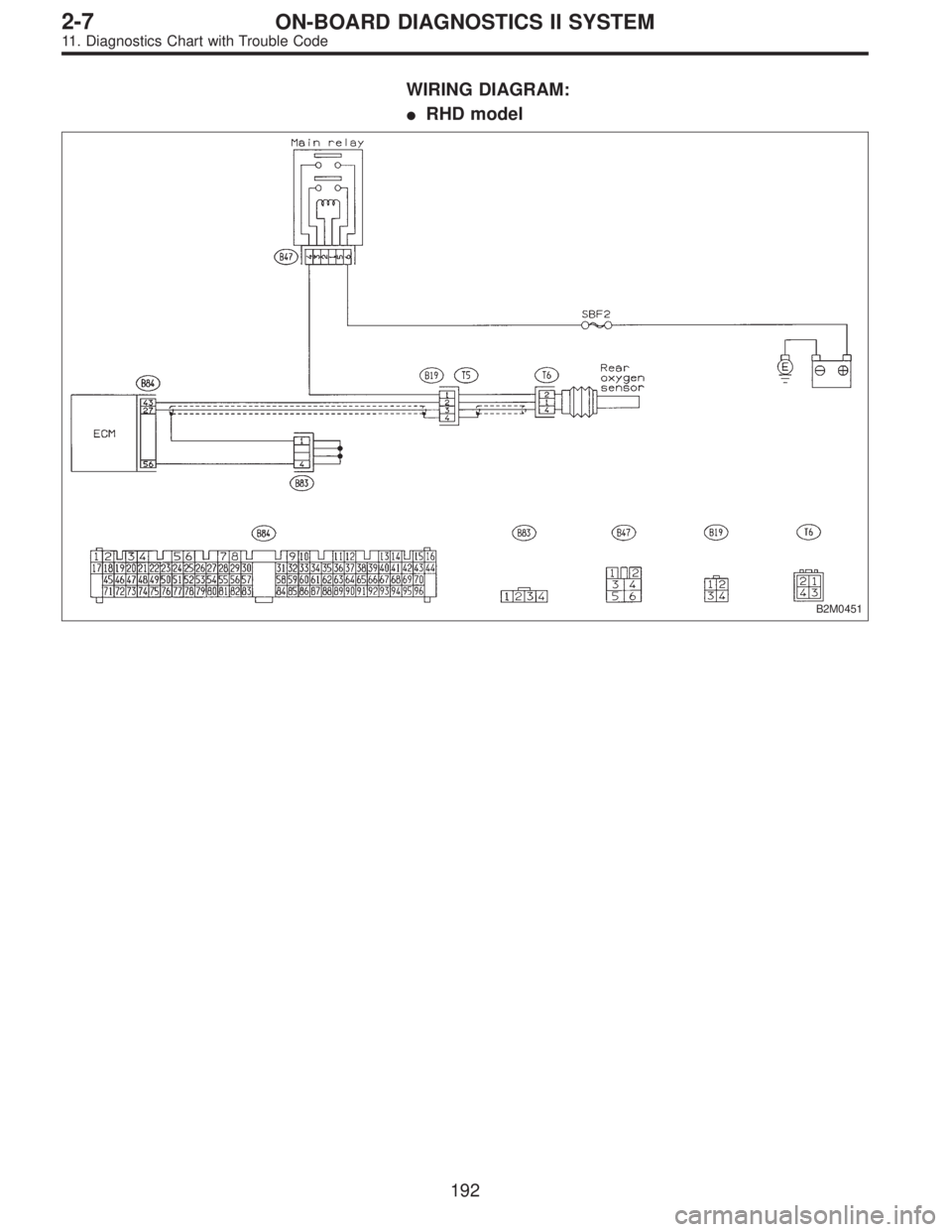

SUBARU LEGACY 1995 Service Repair Manual WIRING DIAGRAM: RHD model B2M0451 192 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostics Chart with Trouble Code

Page 1399 of 2248

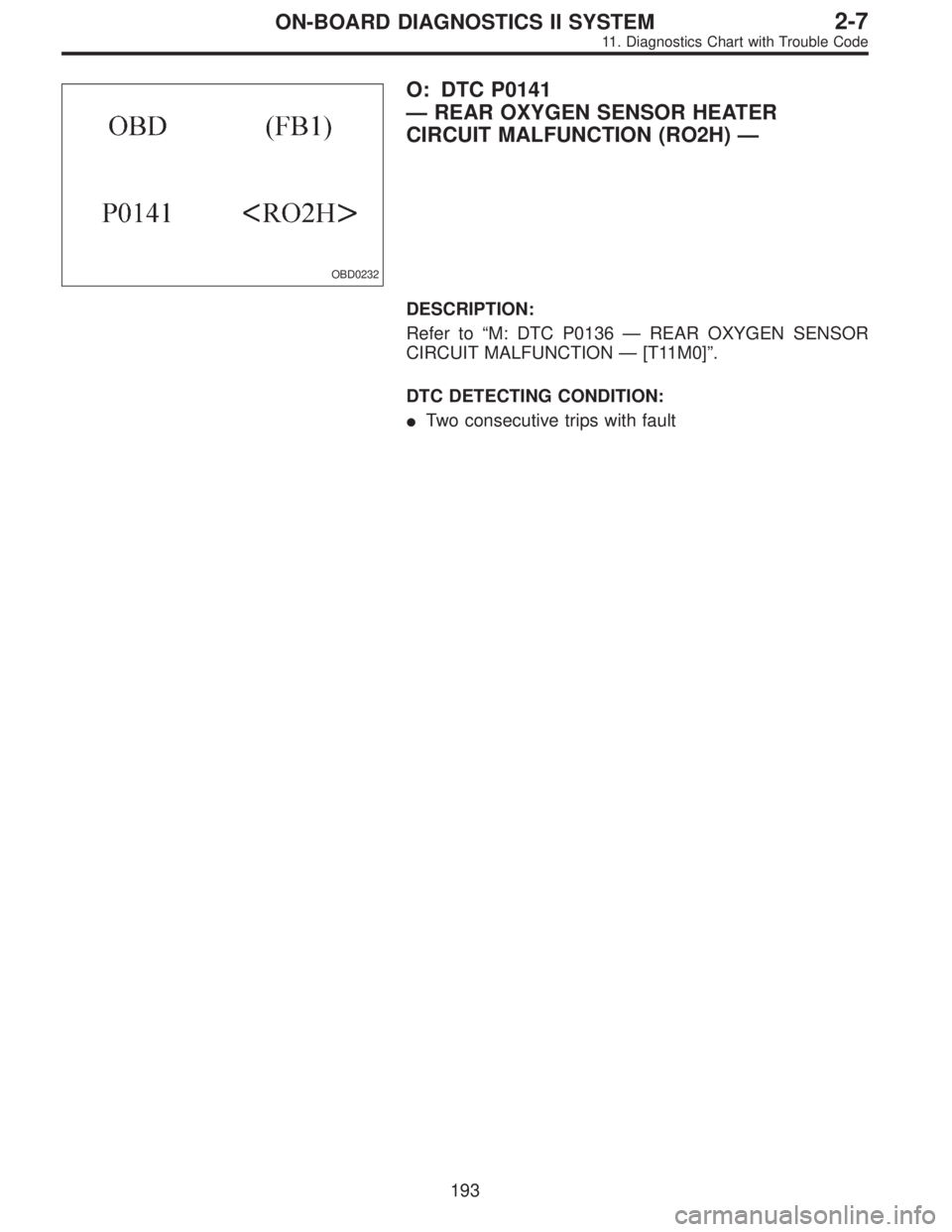

SUBARU LEGACY 1995 Service Repair Manual OBD0232 O: DTC P0141 —REAR OXYGEN SENSOR HEATER CIRCUIT MALFUNCTION (RO2H)— DESCRIPTION: Refer to“M: DTC P0136—REAR OXYGEN SENSOR CIRCUIT MALFUNCTION—[T11M0]”. DTC DETECTING CONDITION: Tw

Page 1400 of 2248

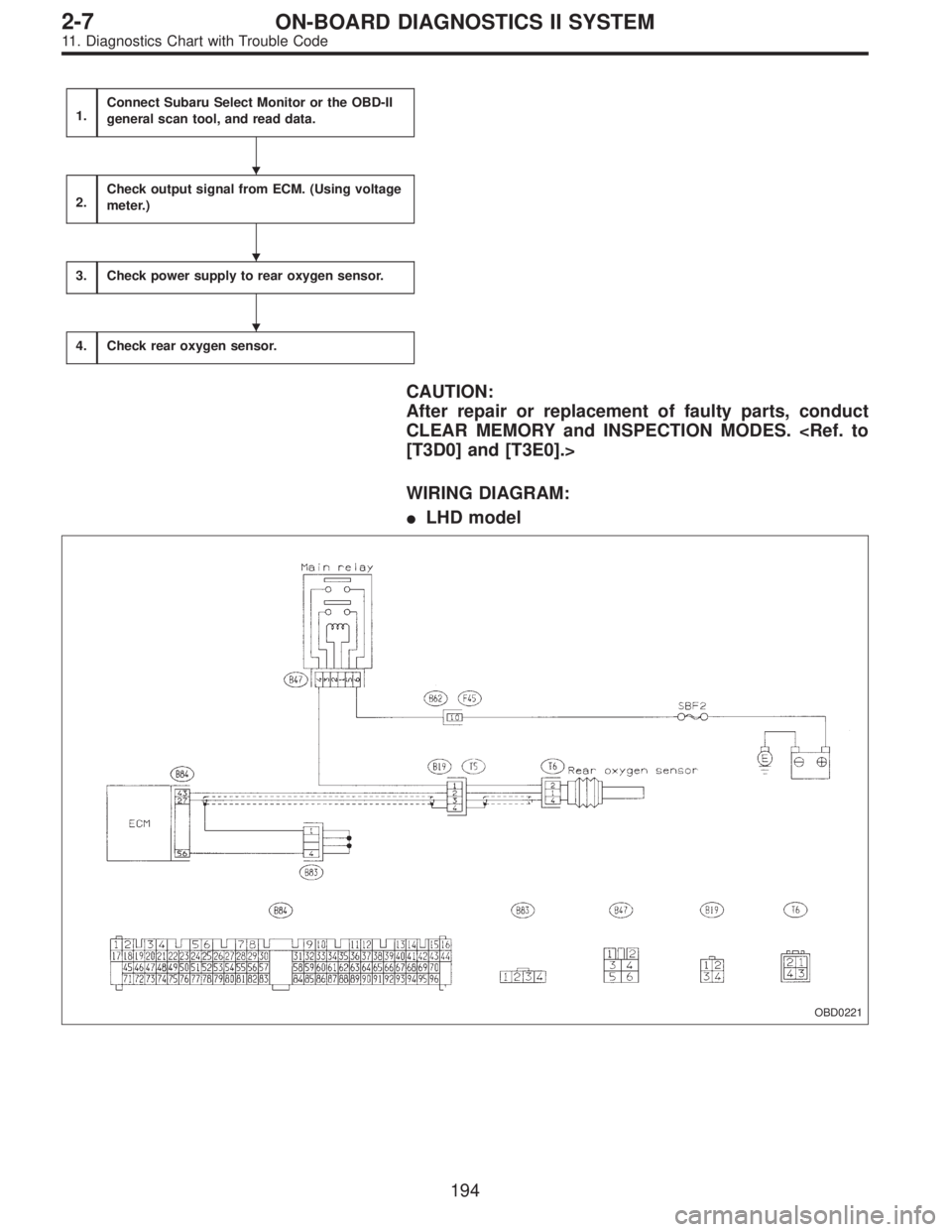

SUBARU LEGACY 1995 Service Repair Manual 1.Connect Subaru Select Monitor or the OBD-II general scan tool, and read data. 2.Check output signal from ECM. (Using voltage meter.) 3.Check power supply to rear oxygen sensor. 4.Check rear oxygen s
