Page 2105 of 2248

SUBARU LEGACY 1995 Service Repair Manual BU01-01B
19
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2106 of 2248

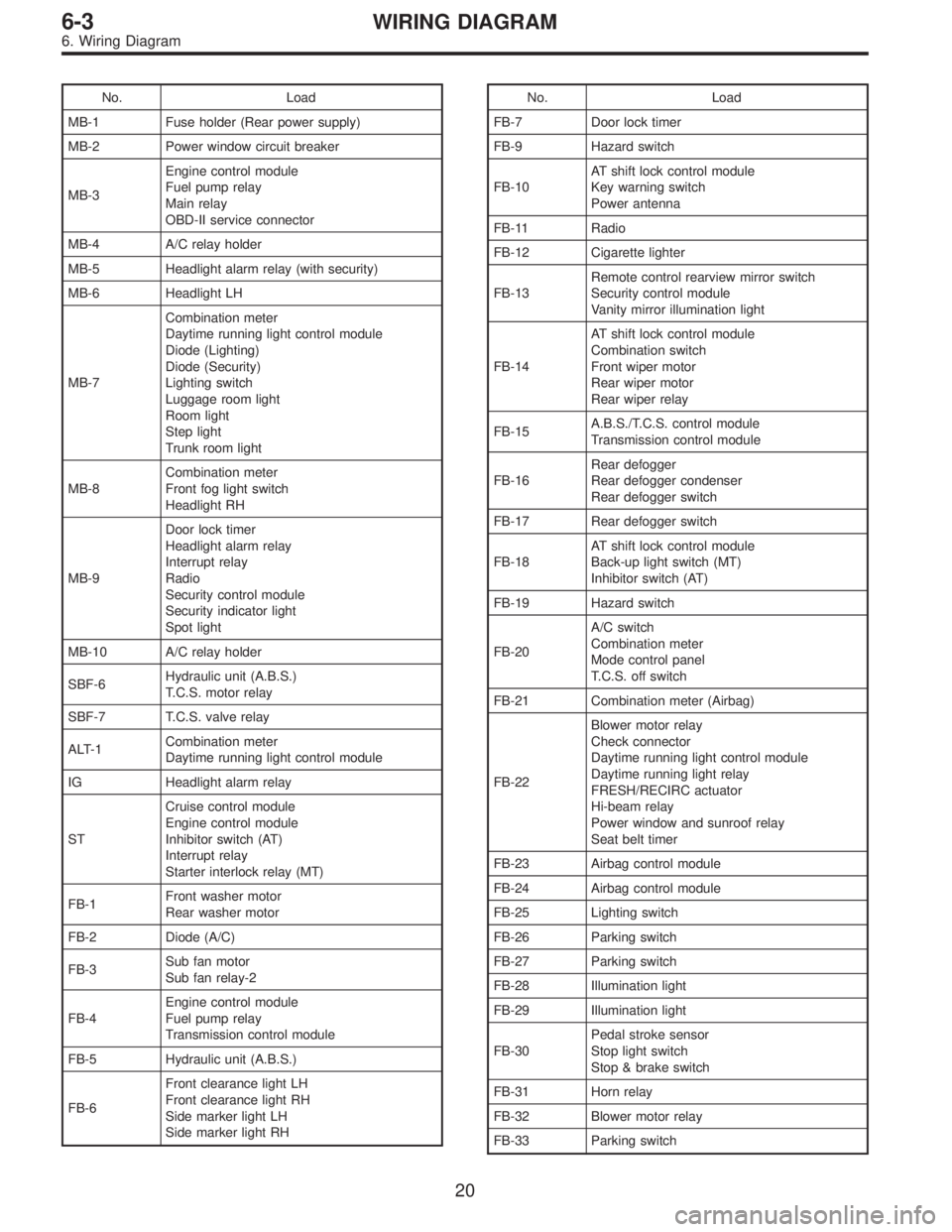

SUBARU LEGACY 1995 Service Repair Manual No. Load
MB-1 Fuse holder (Rear power supply)
MB-2 Power window circuit breaker
MB-3Engine control module
Fuel pump relay
Main relay
OBD-II service connector
MB-4 A/C relay holder
MB-5 Headlight alarm

No. Load
MB-1 Fuse holder (Rear power supply)
MB-2 Power window circuit breaker
MB-3Engine control module
Fuel pump relay
Main relay
OBD-II service connector
MB-4 A/C relay holder
MB-5 Headlight alarm relay (with security)
MB-6 Headlight LH
MB-7Combination meter
Daytime running light control module
Diode (Lighting)
Diode (Security)
Lighting switch
Luggage room light
Room light
Step light
Trunk room light
MB-8Combination meter
Front fog light switch
Headlight RH
MB-9Door lock timer
Headlight alarm relay
Interrupt relay
Radio
Security control module
Security indicator light
Spot light
MB-10 A/C relay holder
SBF-6Hydraulic unit (A.B.S.)
T.C.S. motor relay
SBF-7 T.C.S. valve relay
ALT-1Combination meter
Daytime running light control module
IG Headlight alarm relay
STCruise control module
Engine control module
Inhibitor switch (AT)
Interrupt relay
Starter interlock relay (MT)
FB-1Front washer motor
Rear washer motor
FB-2 Diode (A/C)
FB-3Sub fan motor
Sub fan relay-2
FB-4Engine control module
Fuel pump relay
Transmission control module
FB-5 Hydraulic unit (A.B.S.)
FB-6Front clearance light LH
Front clearance light RH
Side marker light LH
Side marker light RHNo. Load
FB-7 Door lock timer
FB-9 Hazard switch
FB-10AT shift lock control module
Key warning switch
Power antenna
FB-11 Radio
FB-12 Cigarette lighter
FB-13Remote control rearview mirror switch
Security control module
Vanity mirror illumination light
FB-14AT shift lock control module
Combination switch
Front wiper motor
Rear wiper motor
Rear wiper relay
FB-15A.B.S./T.C.S. control module
Transmission control module
FB-16Rear defogger
Rear defogger condenser
Rear defogger switch
FB-17 Rear defogger switch
FB-18AT shift lock control module
Back-up light switch (MT)
Inhibitor switch (AT)
FB-19 Hazard switch
FB-20A/C switch
Combination meter
Mode control panel
T.C.S. off switch
FB-21 Combination meter (Airbag)
FB-22Blower motor relay
Check connector
Daytime running light control module
Daytime running light relay
FRESH/RECIRC actuator
Hi-beam relay
Power window and sunroof relay
Seat belt timer
FB-23 Airbag control module
FB-24 Airbag control module
FB-25 Lighting switch
FB-26 Parking switch
FB-27 Parking switch
FB-28 Illumination light
FB-29 Illumination light
FB-30Pedal stroke sensor
Stop light switch
Stop & brake switch
FB-31 Horn relay
FB-32 Blower motor relay
FB-33 Parking switch
20
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2107 of 2248

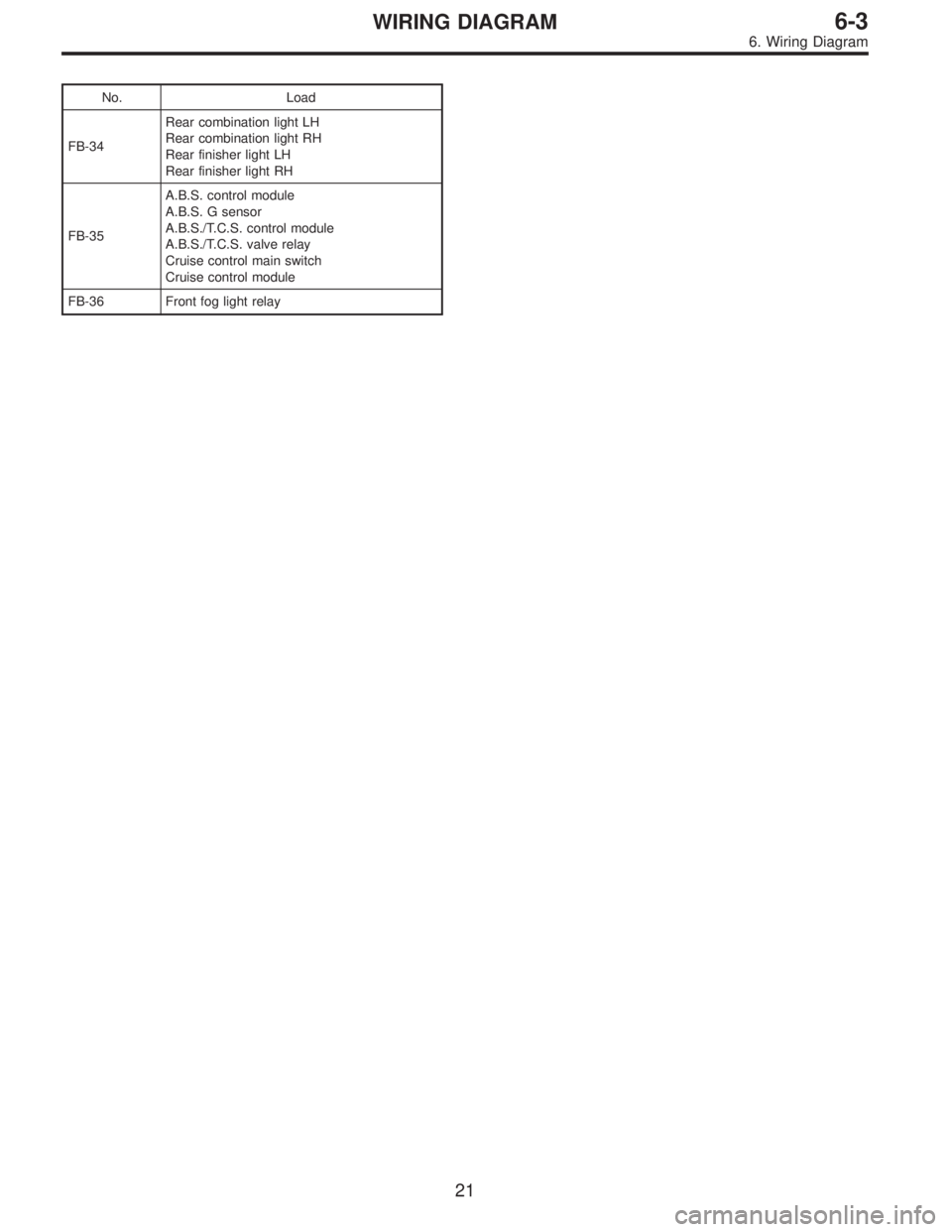

SUBARU LEGACY 1995 Service Repair Manual No. Load
FB-34Rear combination light LH
Rear combination light RH
Rear finisher light LH
Rear finisher light RH
FB-35A.B.S. control module
A.B.S. G sensor
A.B.S./T.C.S. control module
A.B.S./T.C.S. va

Page 2108 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. POWER SUPPLY ROUTING
RHD model
BUR01-01A
22
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2109 of 2248

SUBARU LEGACY 1995 Service Repair Manual BUR01-01B
23
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2110 of 2248

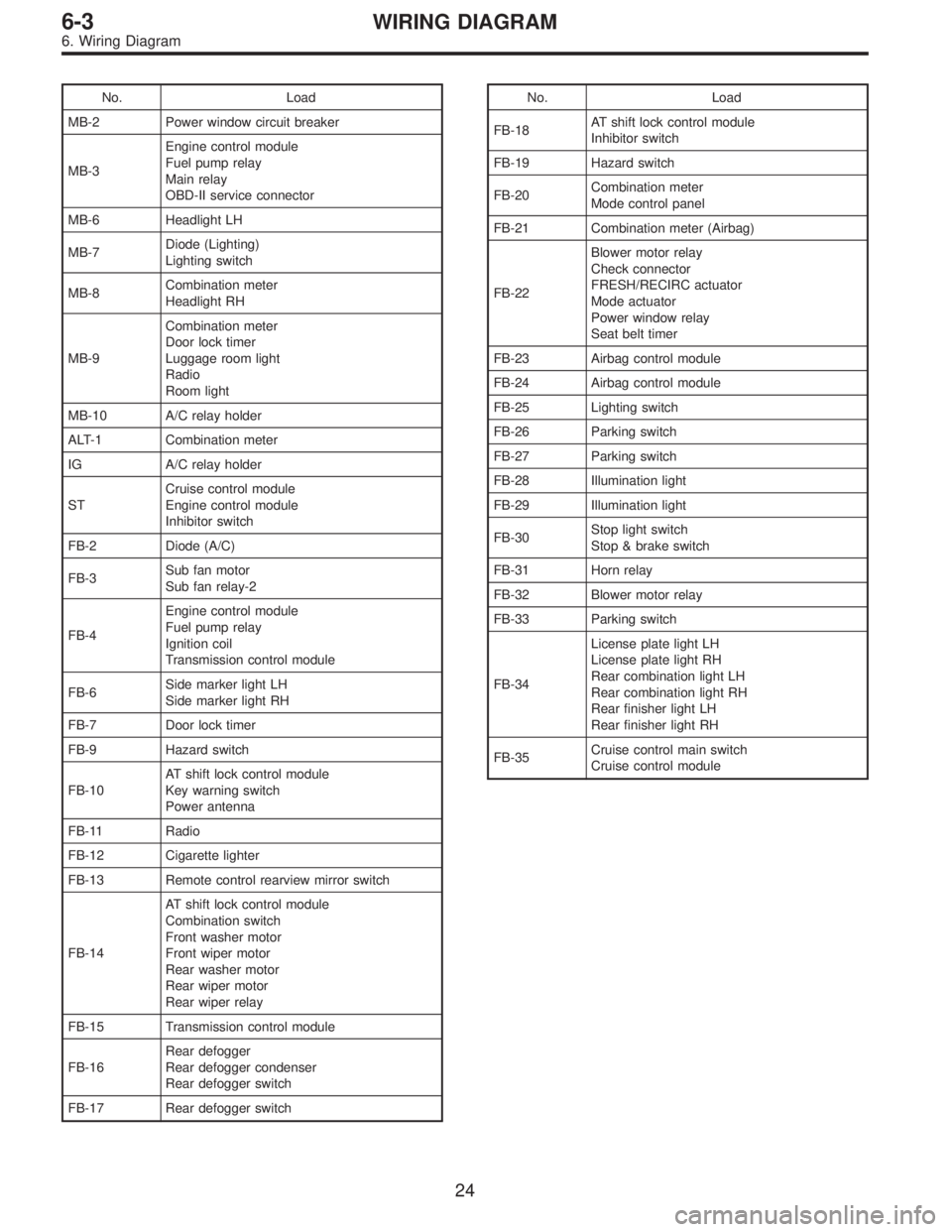

SUBARU LEGACY 1995 Service Repair Manual No. Load
MB-2 Power window circuit breaker
MB-3Engine control module
Fuel pump relay
Main relay
OBD-II service connector
MB-6 Headlight LH
MB-7Diode (Lighting)
Lighting switch
MB-8Combination meter
He

Page 2111 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. GROUND DISTRIBUTION
LHD model
BU04-02A
25
6-3WIRING DIAGRAM
6. Wiring Diagram

Page 2112 of 2248

SUBARU LEGACY 1995 Service Repair Manual BU04-02B
26
6-3WIRING DIAGRAM
6. Wiring Diagram
