Page 1809 of 2248

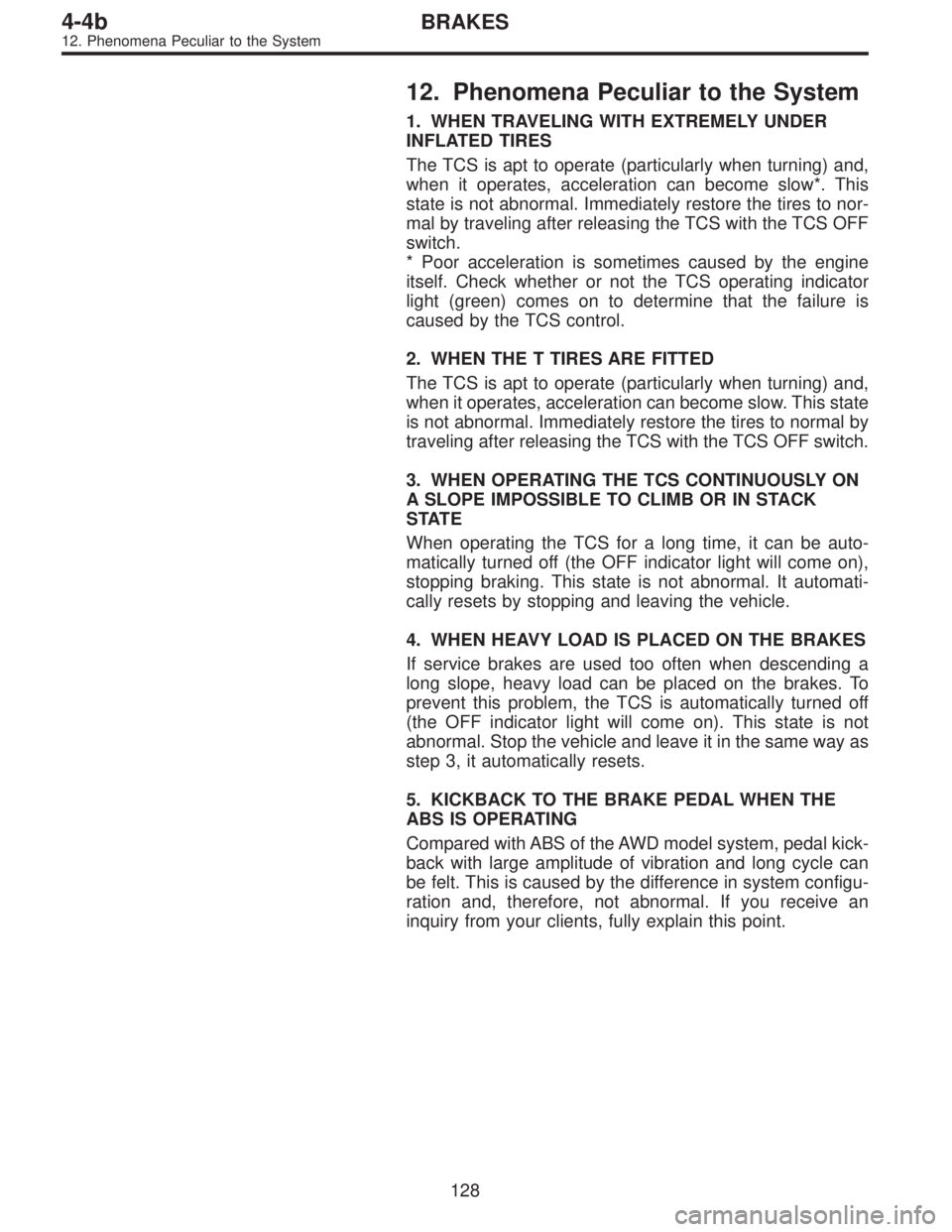

SUBARU LEGACY 1995 Service Repair Manual 12. Phenomena Peculiar to the System 1. WHEN TRAVELING WITH EXTREMELY UNDER INFLATED TIRES The TCS is apt to operate (particularly when turning) and, when it operates, acceleration can become slow*. T

Page 1810 of 2248

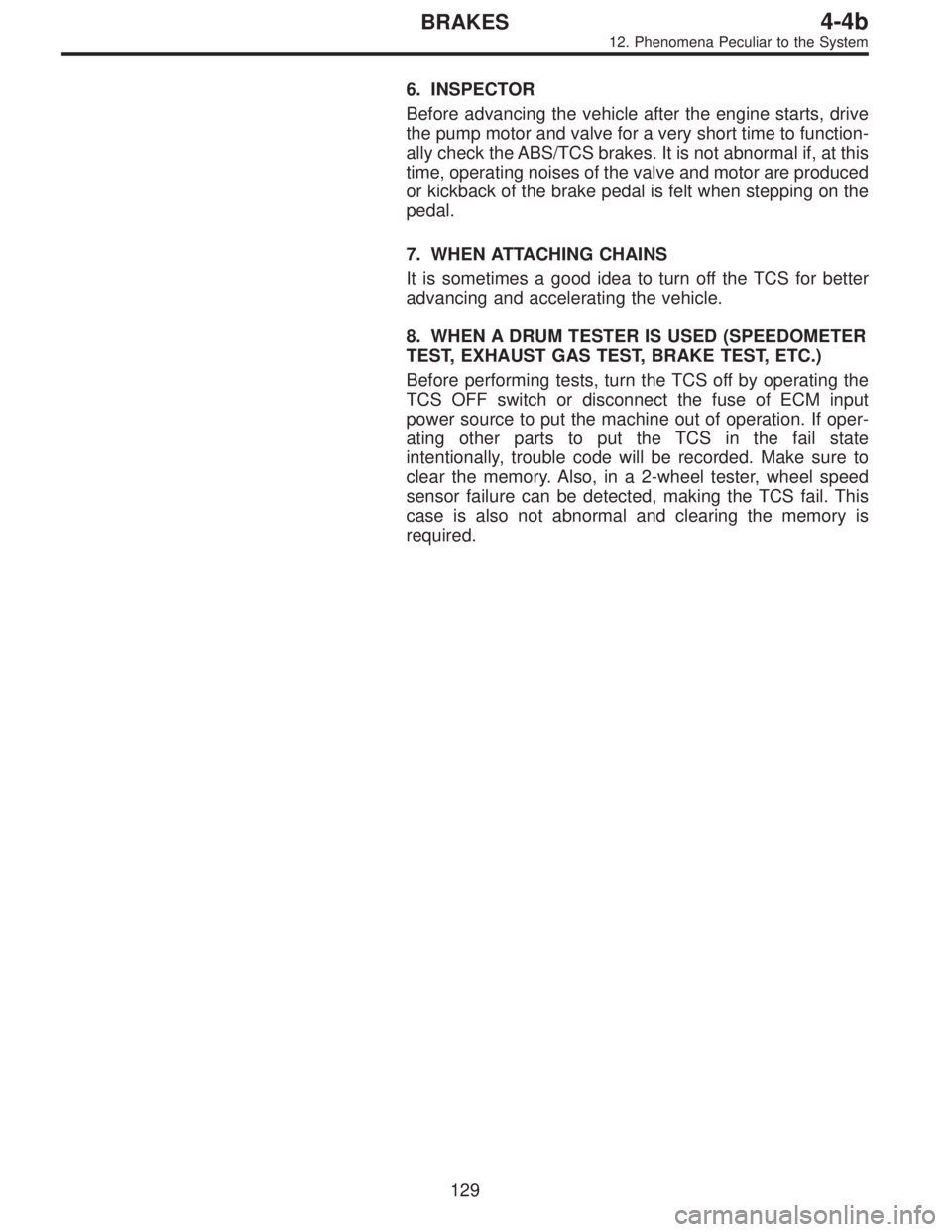

SUBARU LEGACY 1995 Service Repair Manual 6. INSPECTOR Before advancing the vehicle after the engine starts, drive the pump motor and valve for a very short time to function- ally check the ABS/TCS brakes. It is not abnormal if, at this time,

Page 1811 of 2248

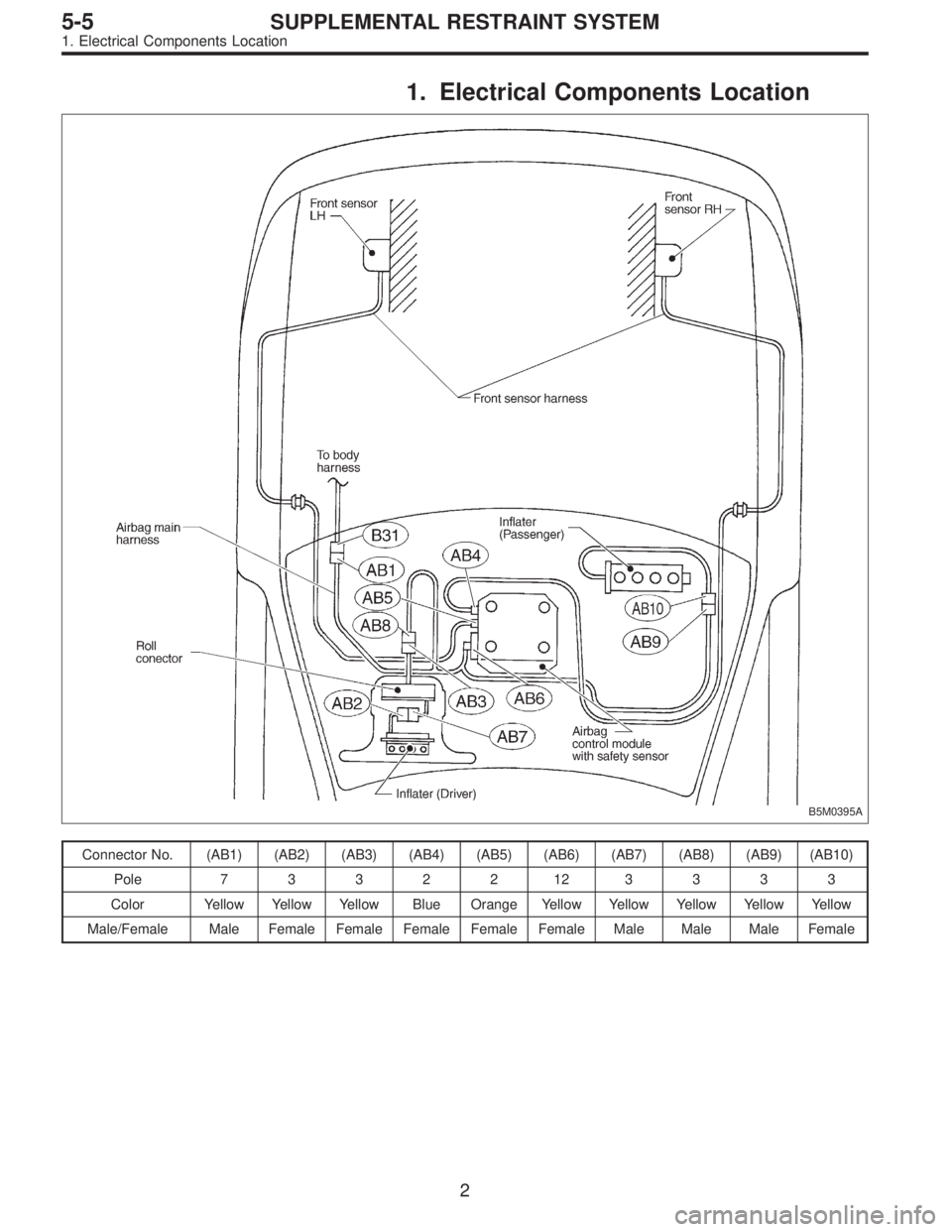

SUBARU LEGACY 1995 Service Repair Manual 1. Electrical Components Location B5M0395A Connector No. (AB1) (AB2) (AB3) (AB4) (AB5) (AB6) (AB7) (AB8) (AB9) (AB10) Pole73322123333 Color Yellow Yellow Yellow Blue Orange Yellow Yellow Yellow Yellow

Page 1812 of 2248

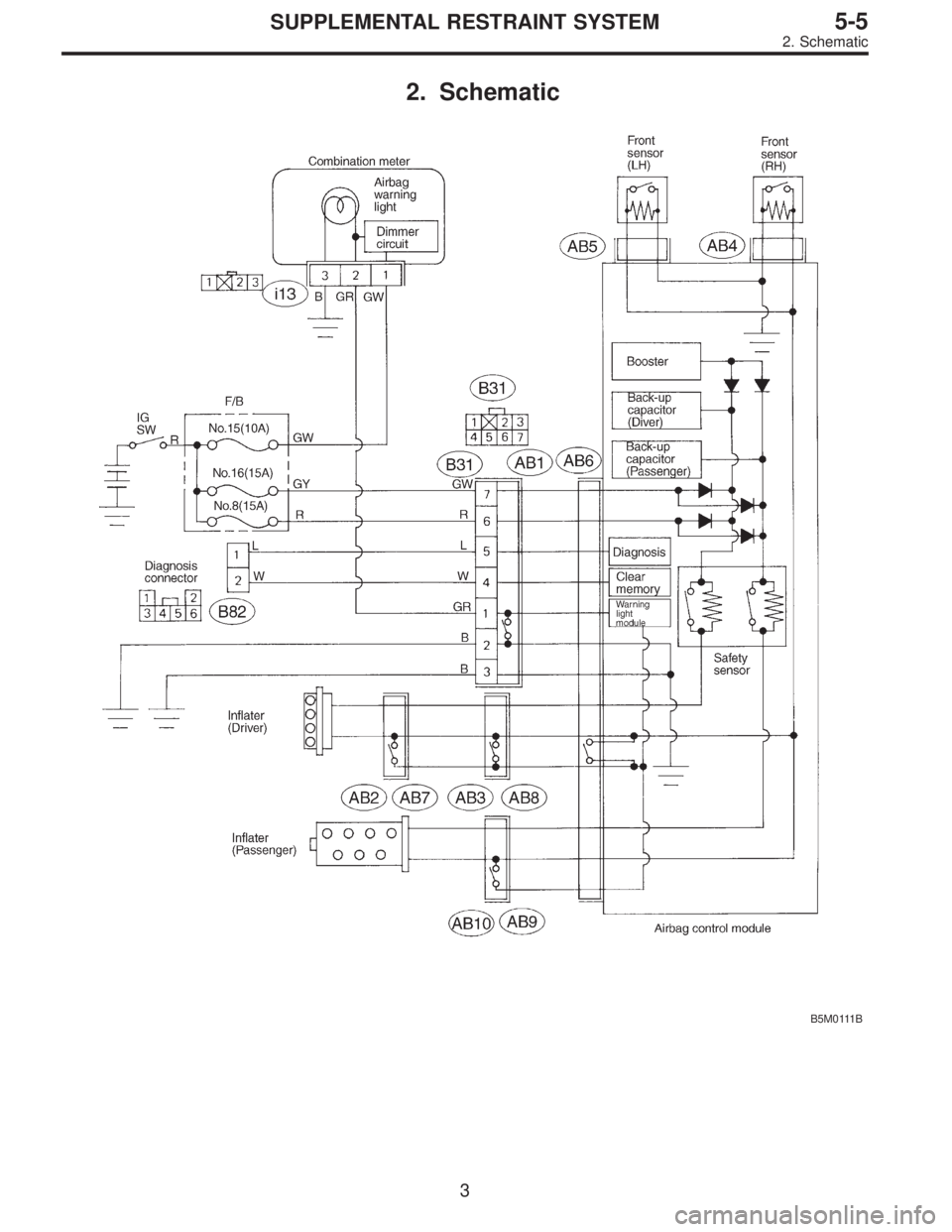

SUBARU LEGACY 1995 Service Repair Manual 2. Schematic B5M0111B 3 5-5SUPPLEMENTAL RESTRAINT SYSTEM 2. Schematic

Page 1813 of 2248

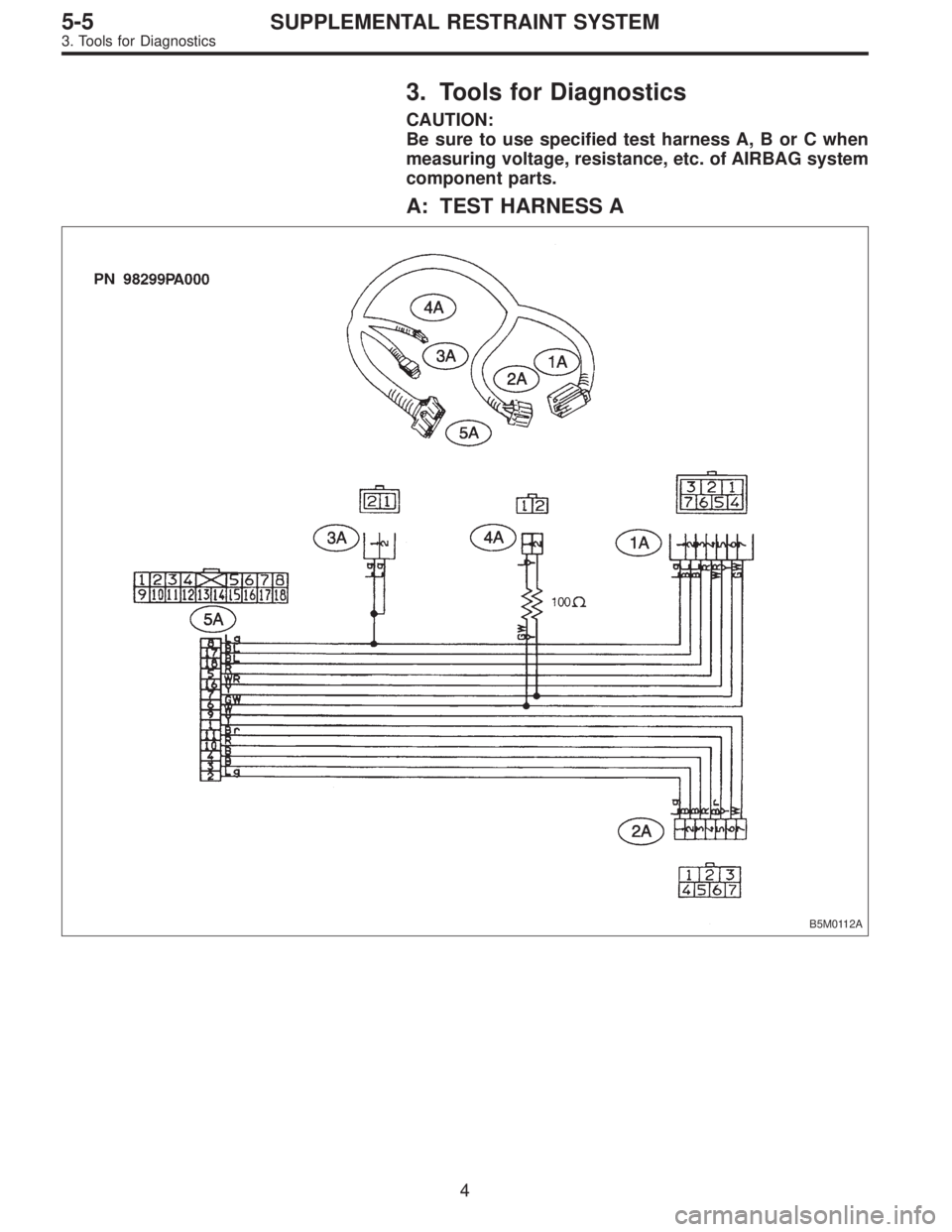

SUBARU LEGACY 1995 Service Repair Manual 3. Tools for Diagnostics CAUTION: Be sure to use specified test harness A, B or C when measuring voltage, resistance, etc. of AIRBAG system component parts. A: TEST HARNESS A B5M0112A 4 5-5SUPPLEMENTA

Page 1814 of 2248

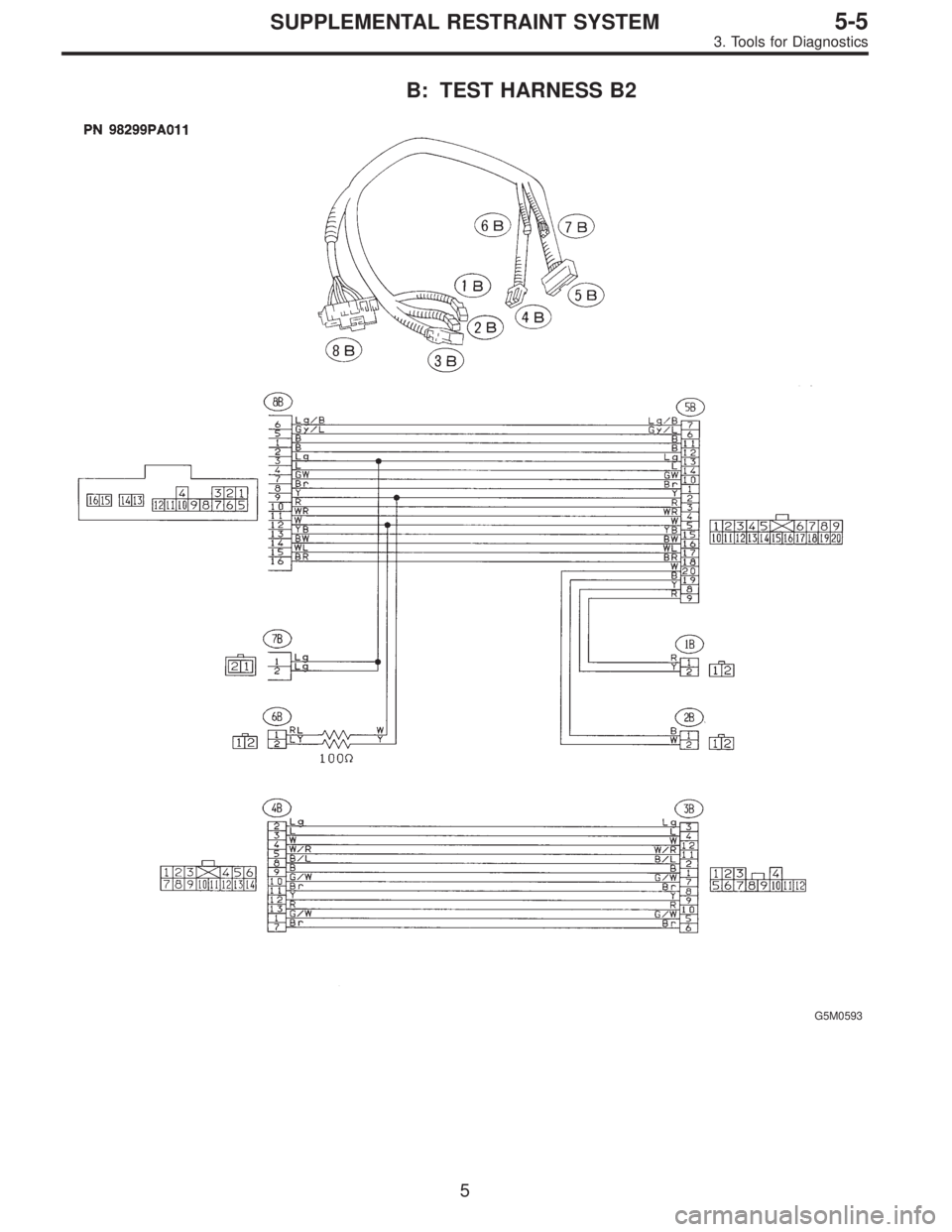

SUBARU LEGACY 1995 Service Repair Manual B: TEST HARNESS B2 G5M0593 5 5-5SUPPLEMENTAL RESTRAINT SYSTEM 3. Tools for Diagnostics

Page 1815 of 2248

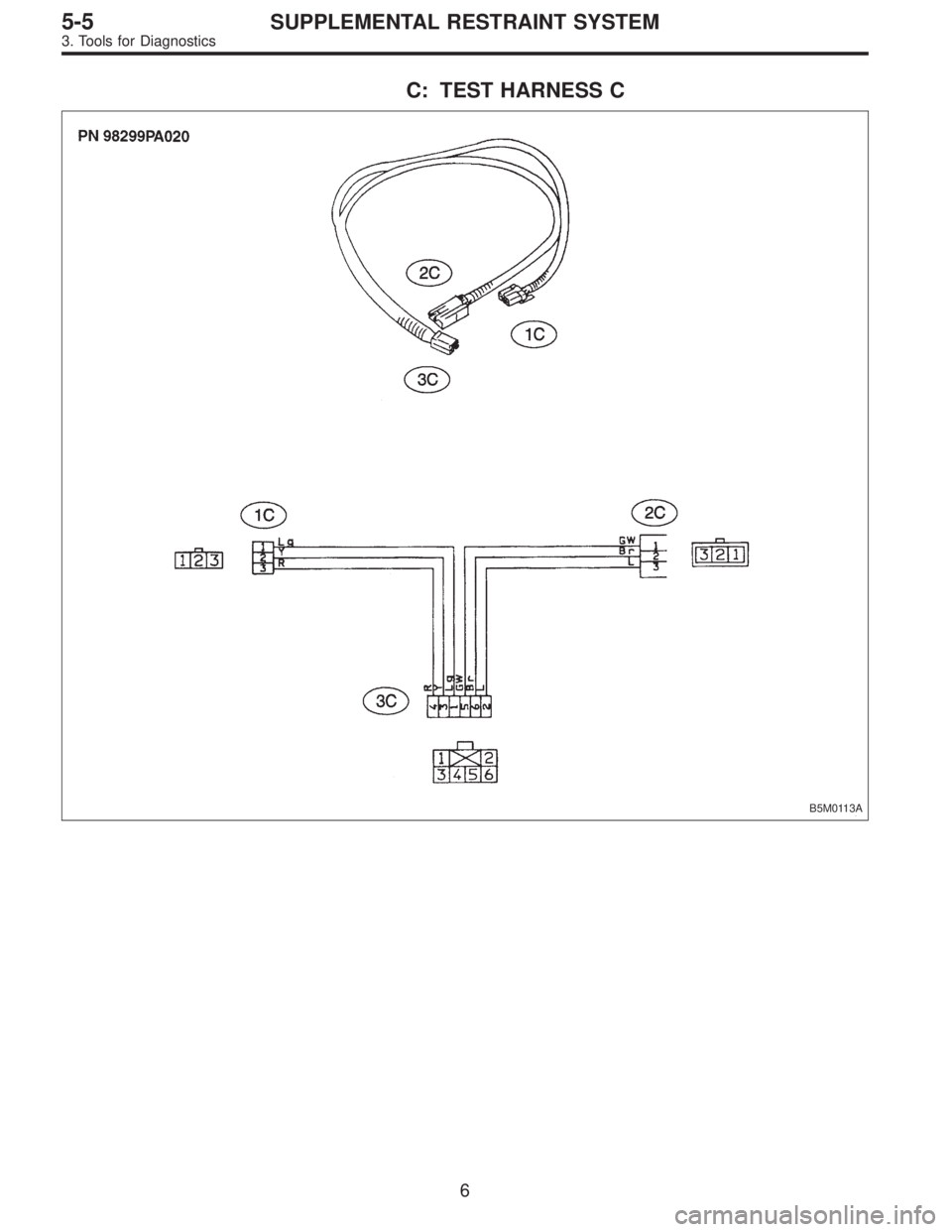

SUBARU LEGACY 1995 Service Repair Manual C: TEST HARNESS C B5M0113A 6 5-5SUPPLEMENTAL RESTRAINT SYSTEM 3. Tools for Diagnostics

Page 1816 of 2248

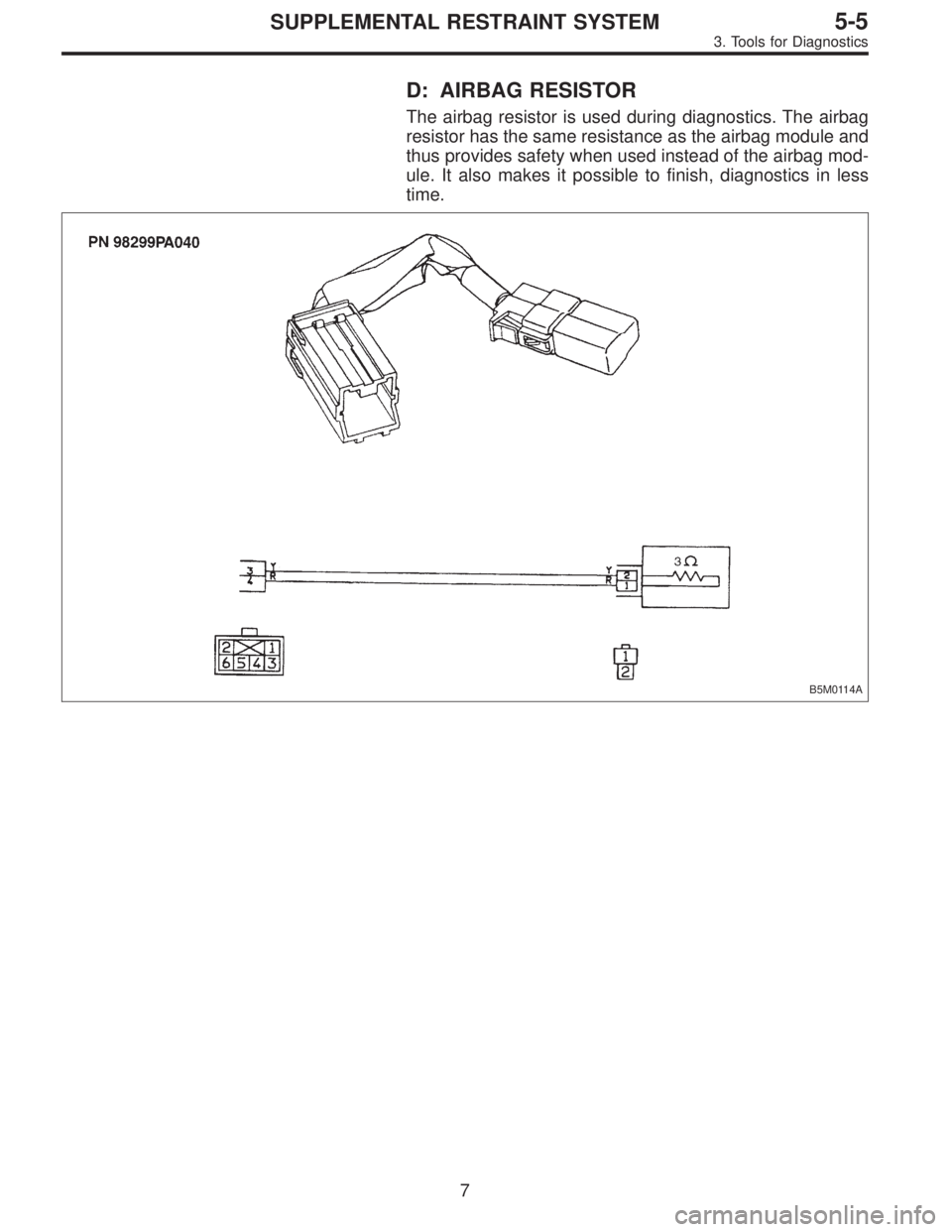

SUBARU LEGACY 1995 Service Repair Manual D: AIRBAG RESISTOR The airbag resistor is used during diagnostics. The airbag resistor has the same resistance as the airbag module and thus provides safety when used instead of the airbag mod- ule. I
