Page 137 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Engine Cooling System Trouble Possible cause Corrective action Over-heatinga. Insufficient engine coolantReplenish engine coolant, inspect for leakage, and repair. b. Loose timing belt Repair or re

Page 138 of 2248

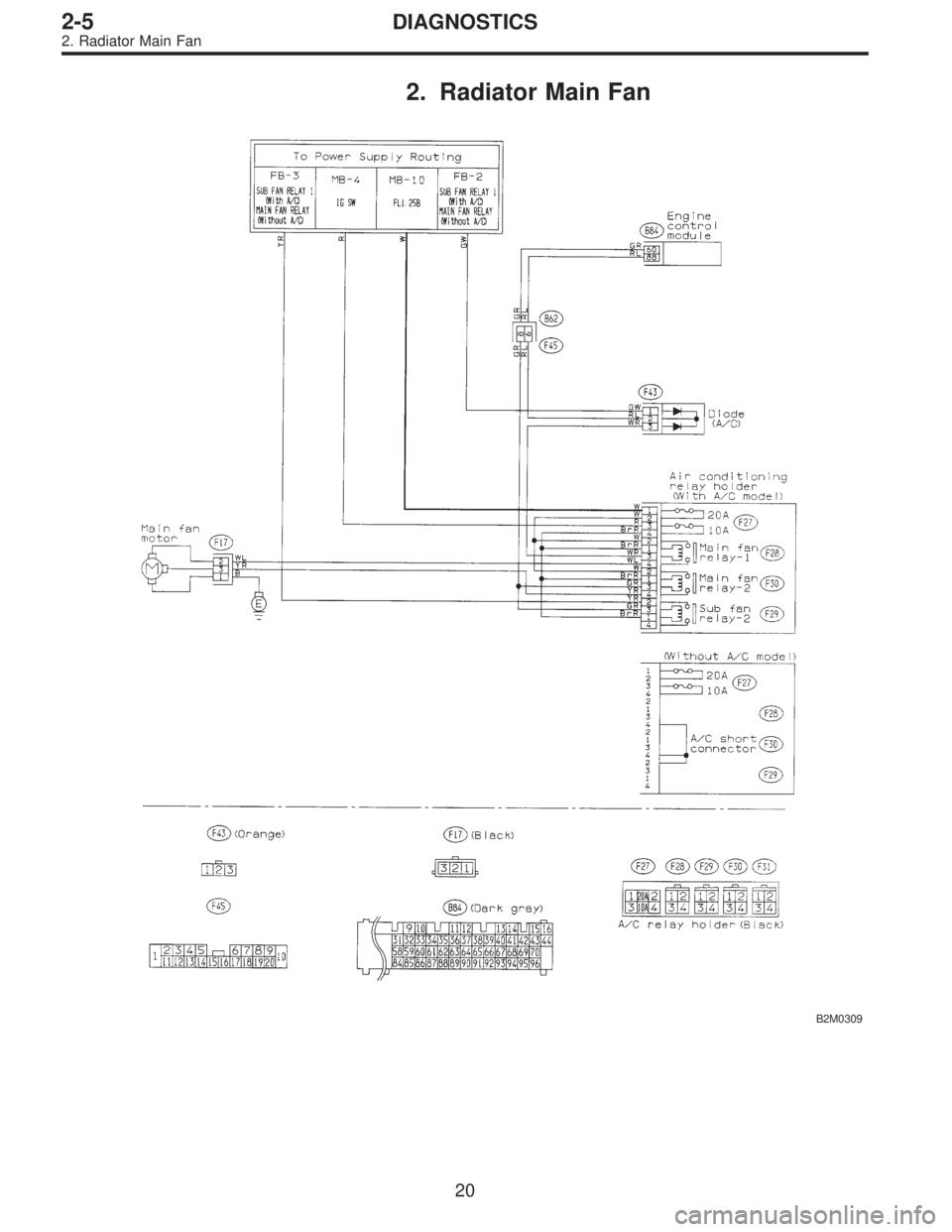

SUBARU LEGACY 1995 Service Repair Manual 2. Radiator Main Fan B2M0309 20 2-5DIAGNOSTICS 2. Radiator Main Fan

Page 139 of 2248

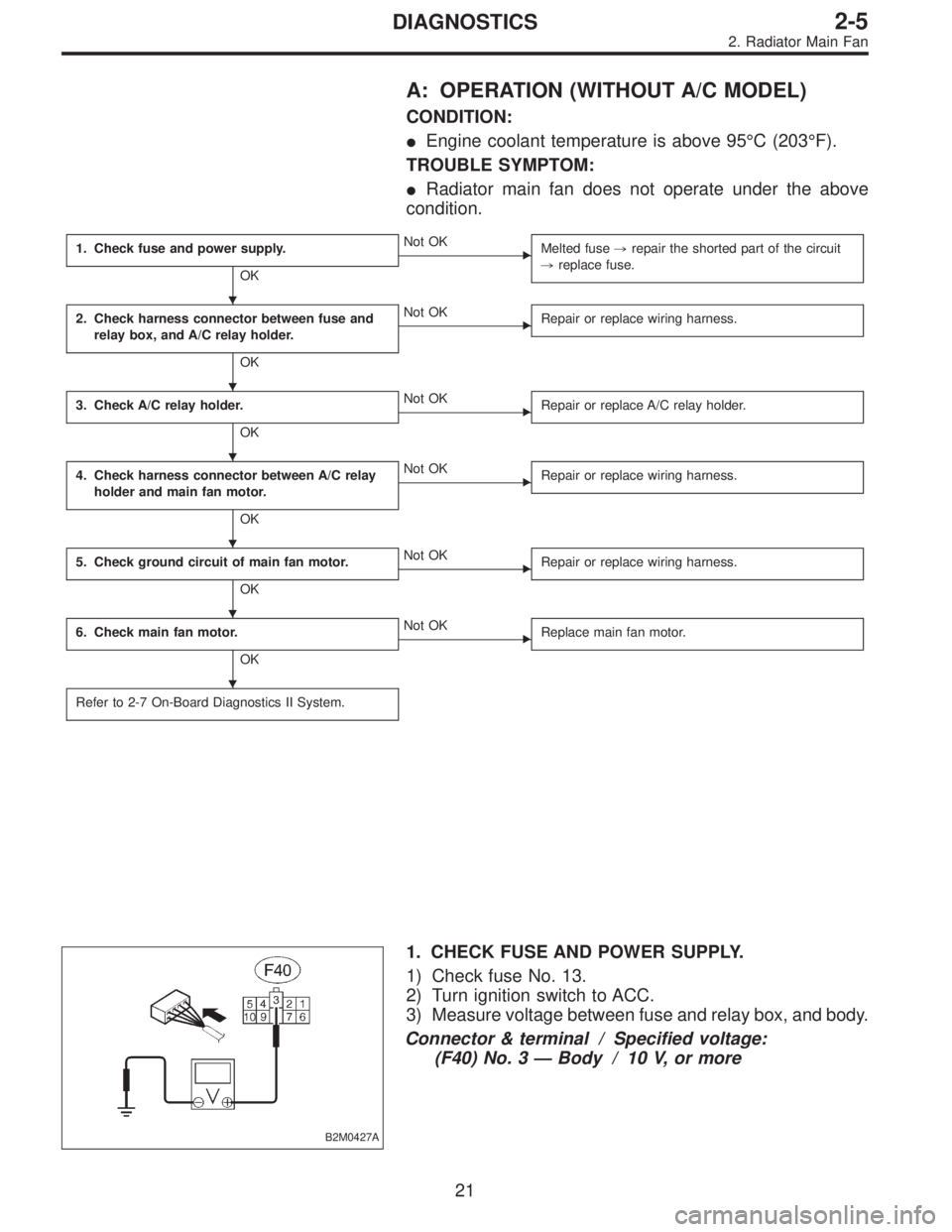

SUBARU LEGACY 1995 Service Repair Manual A: OPERATION (WITHOUT A/C MODEL) CONDITION: Engine coolant temperature is above 95°C (203°F). TROUBLE SYMPTOM: Radiator main fan does not operate under the above condition. 1. Check fuse and power

Page 140 of 2248

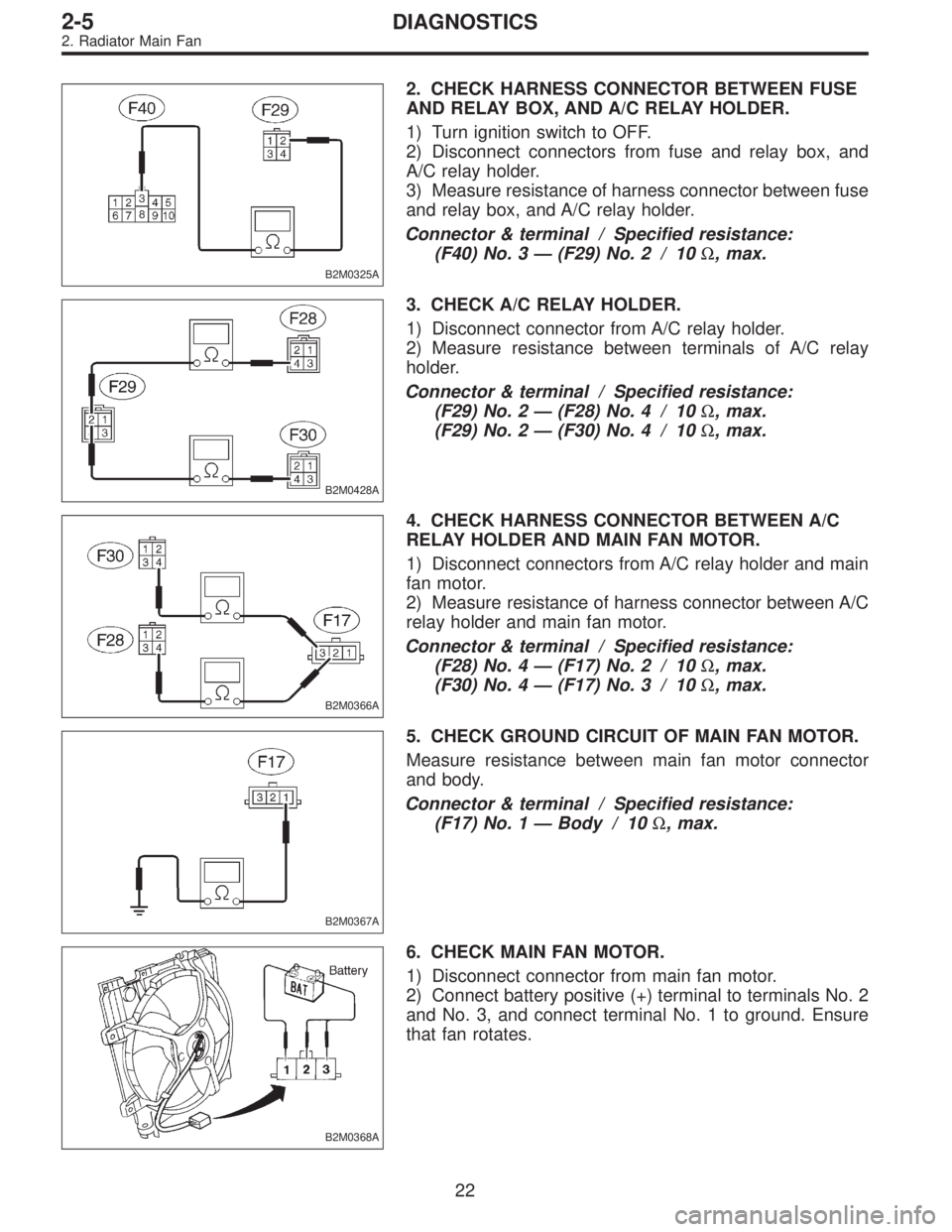

SUBARU LEGACY 1995 Service Repair Manual B2M0325A 2. CHECK HARNESS CONNECTOR BETWEEN FUSE AND RELAY BOX, AND A/C RELAY HOLDER. 1) Turn ignition switch to OFF. 2) Disconnect connectors from fuse and relay box, and A/C relay holder. 3) Measure

Page 141 of 2248

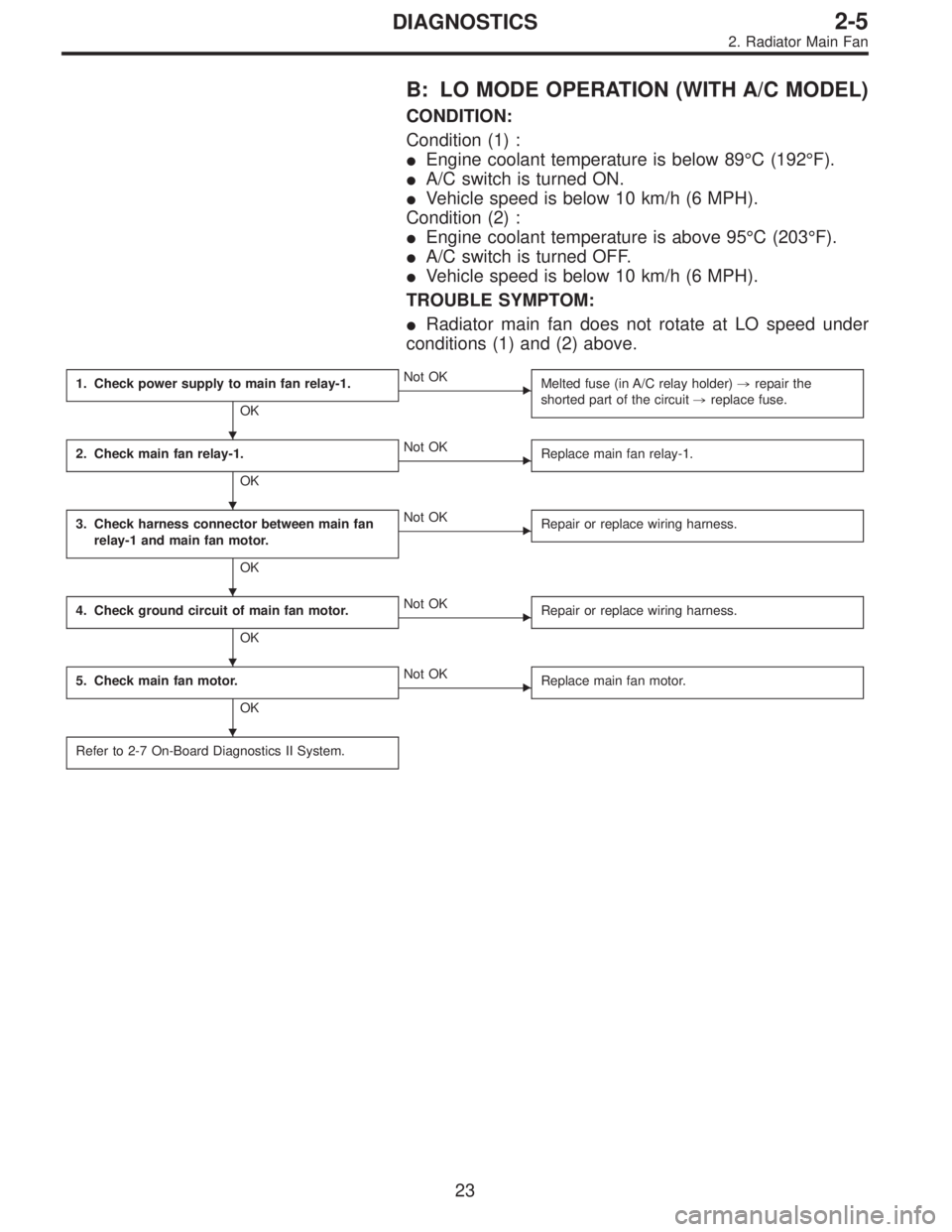

SUBARU LEGACY 1995 Service Repair Manual B: LO MODE OPERATION (WITH A/C MODEL) CONDITION: Condition (1) : Engine coolant temperature is below 89°C (192°F). A/C switch is turned ON. Vehicle speed is below 10 km/h (6 MPH). Condition (2) :

Page 142 of 2248

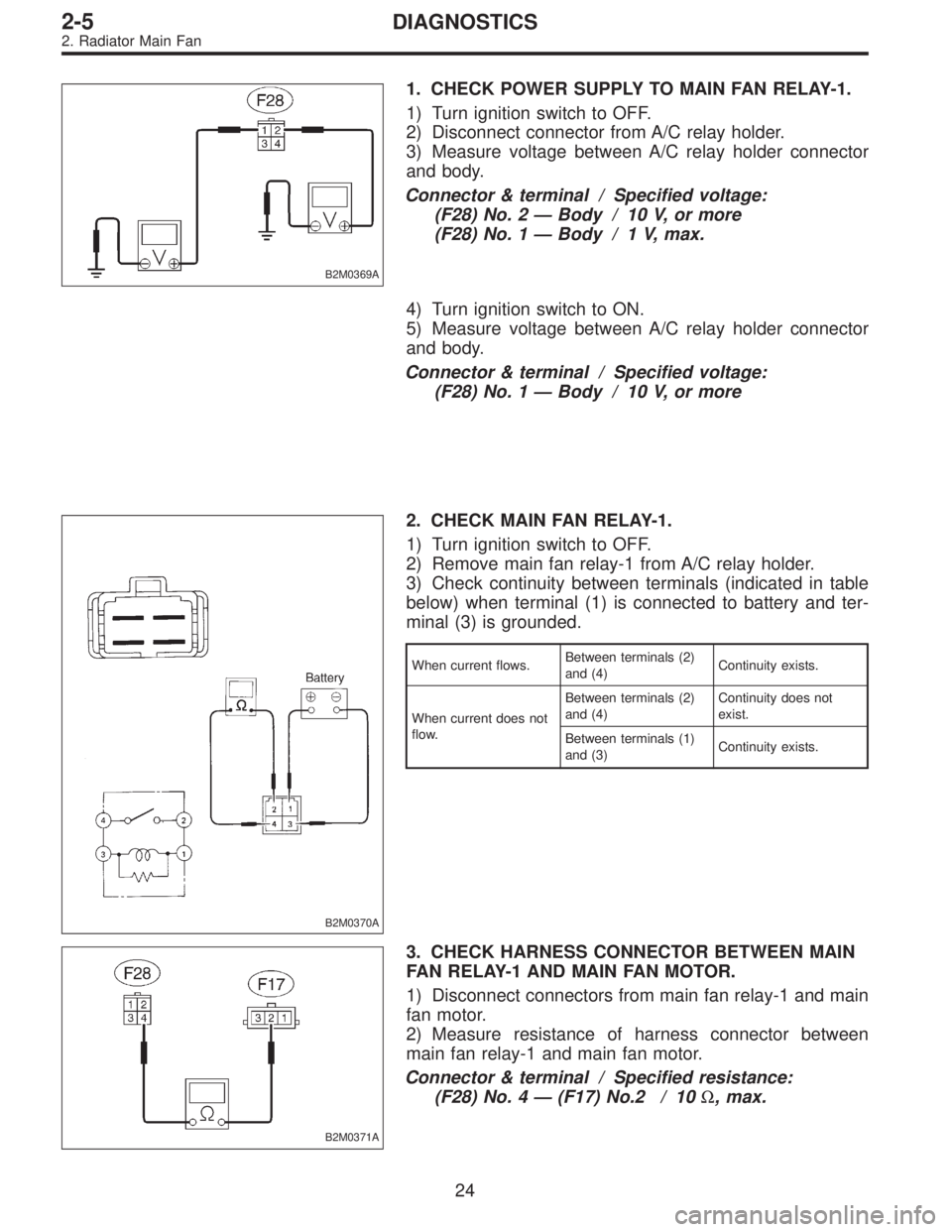

SUBARU LEGACY 1995 Service Repair Manual B2M0369A 1. CHECK POWER SUPPLY TO MAIN FAN RELAY-1. 1) Turn ignition switch to OFF. 2) Disconnect connector from A/C relay holder. 3) Measure voltage between A/C relay holder connector and body. Conne

Page 143 of 2248

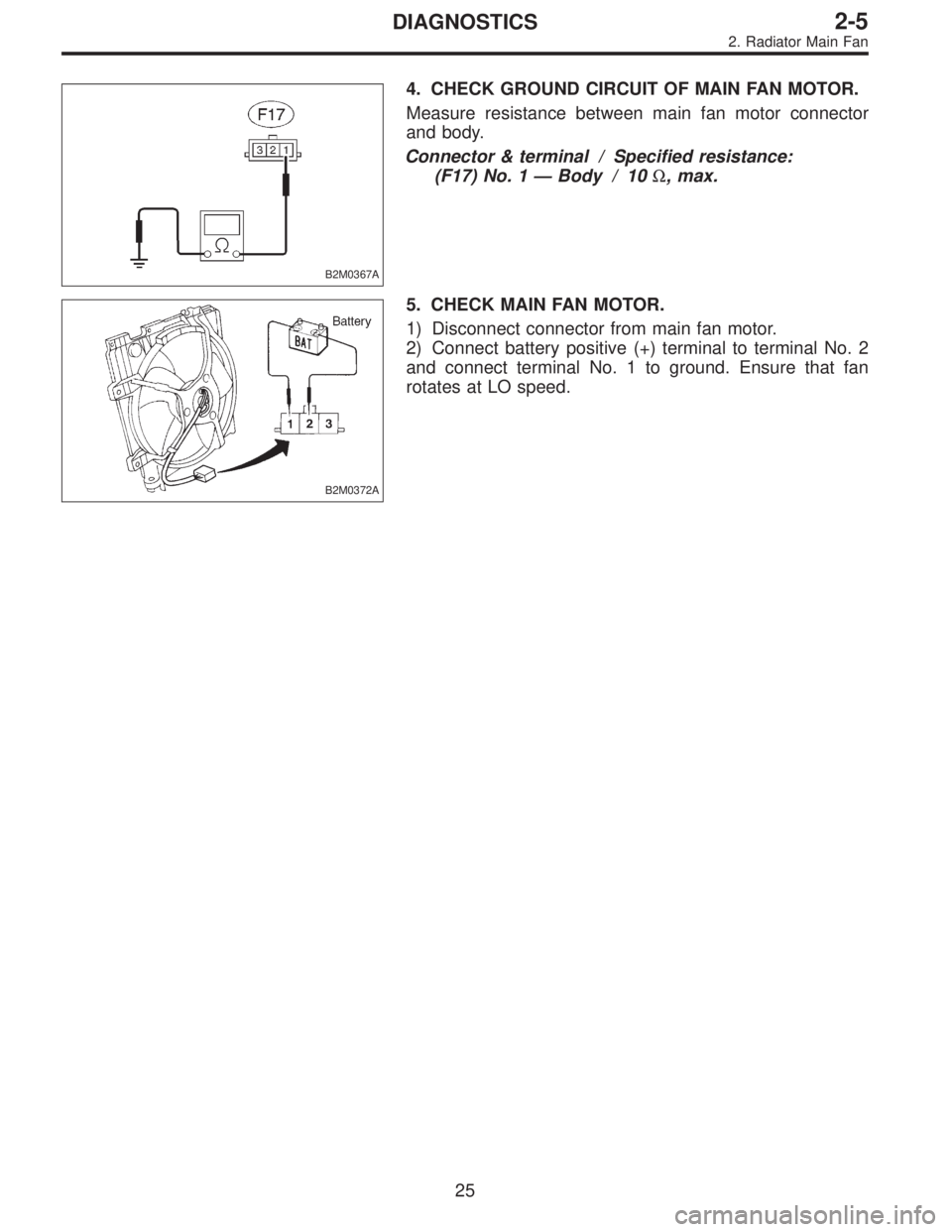

SUBARU LEGACY 1995 Service Repair Manual B2M0367A 4. CHECK GROUND CIRCUIT OF MAIN FAN MOTOR. Measure resistance between main fan motor connector and body. Connector & terminal / Specified resistance: (F17) No. 1—Body / 10Ω, max. B2M0372A

Page 144 of 2248

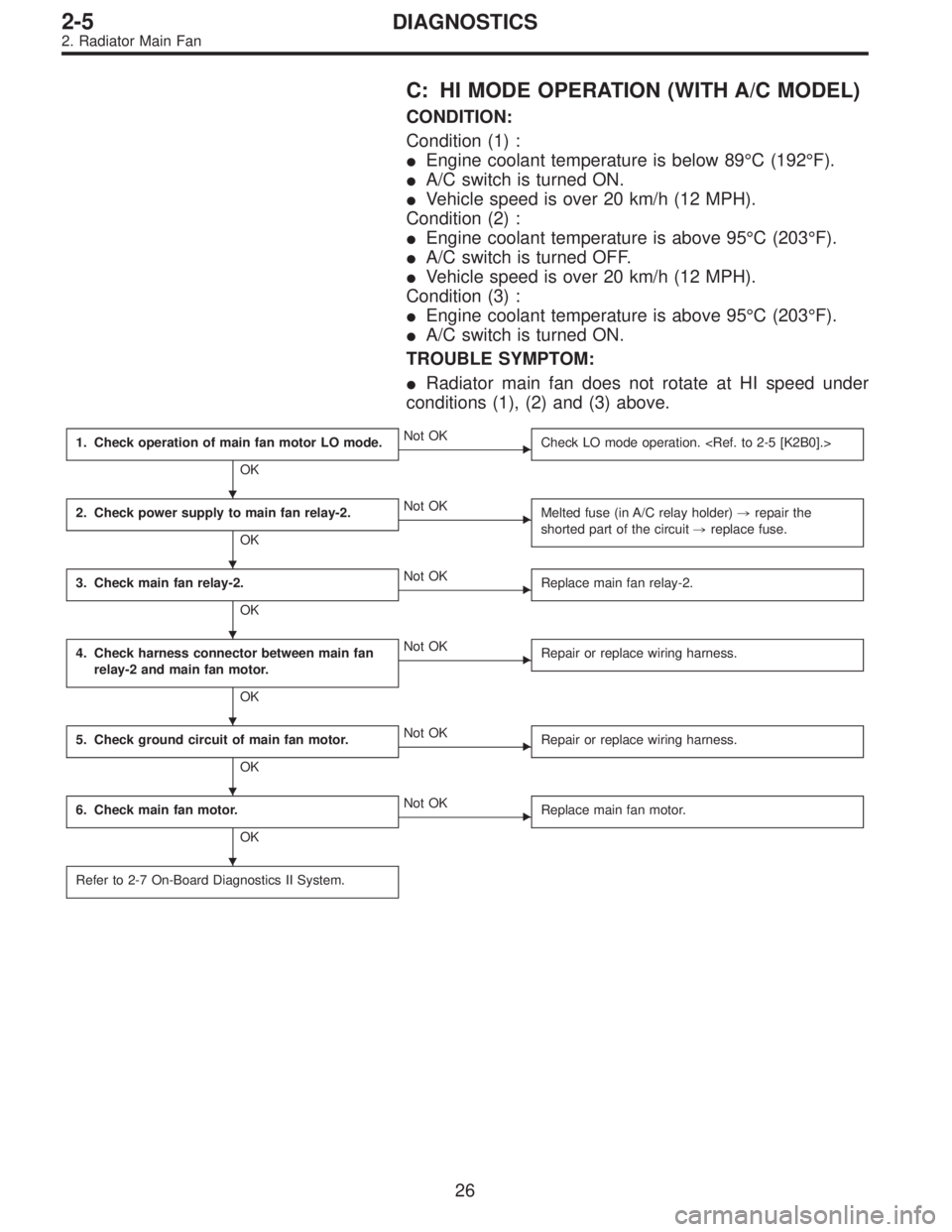

SUBARU LEGACY 1995 Service Repair Manual C: HI MODE OPERATION (WITH A/C MODEL) CONDITION: Condition (1) : Engine coolant temperature is below 89°C (192°F). A/C switch is turned ON. Vehicle speed is over 20 km/h (12 MPH). Condition (2) :
