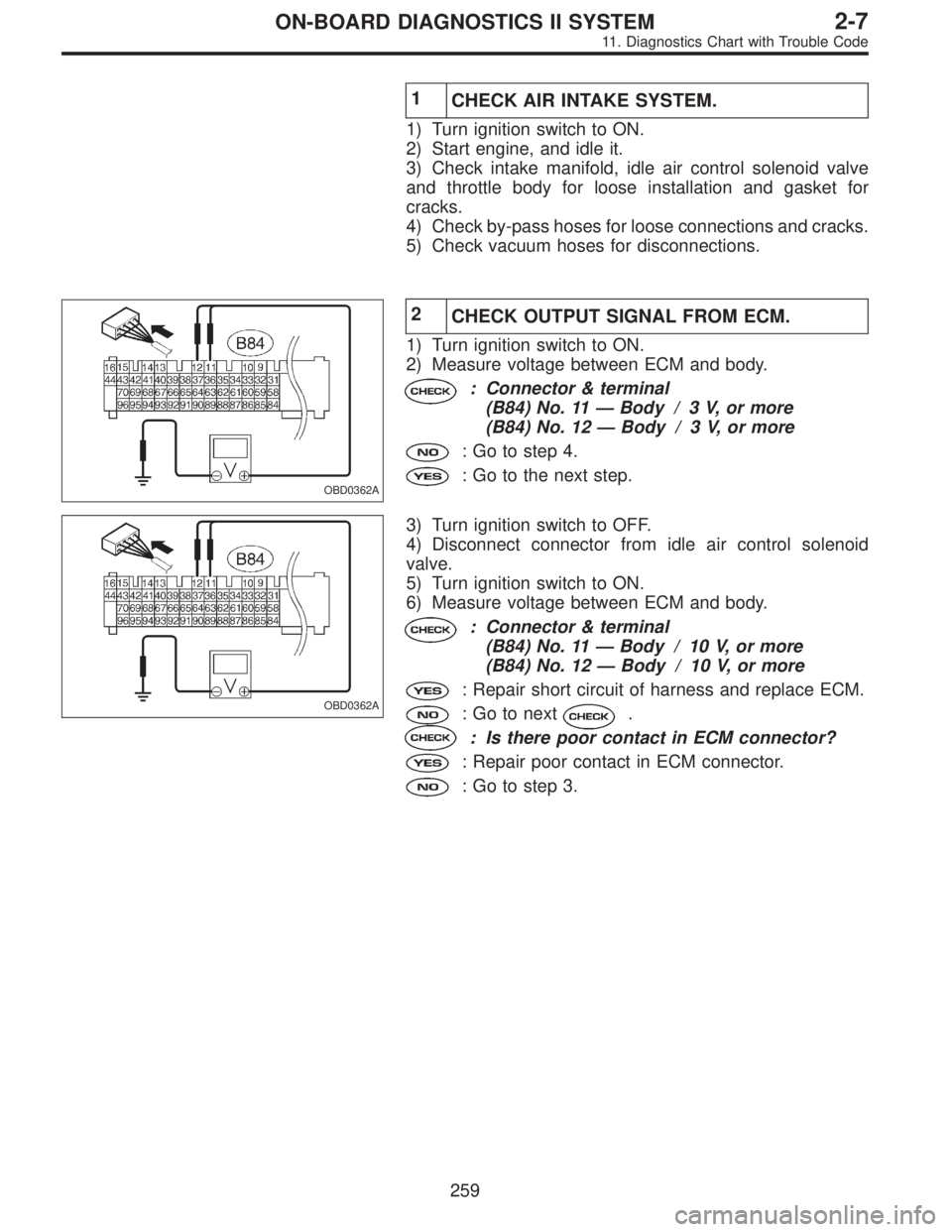

Page 1465 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1 CHECK AIR INTAKE SYSTEM. 1) Turn ignition switch to ON. 2) Start engine, and idle it. 3) Check intake manifold, idle air control solenoid valve and throttle body for loose installation and gasket fo

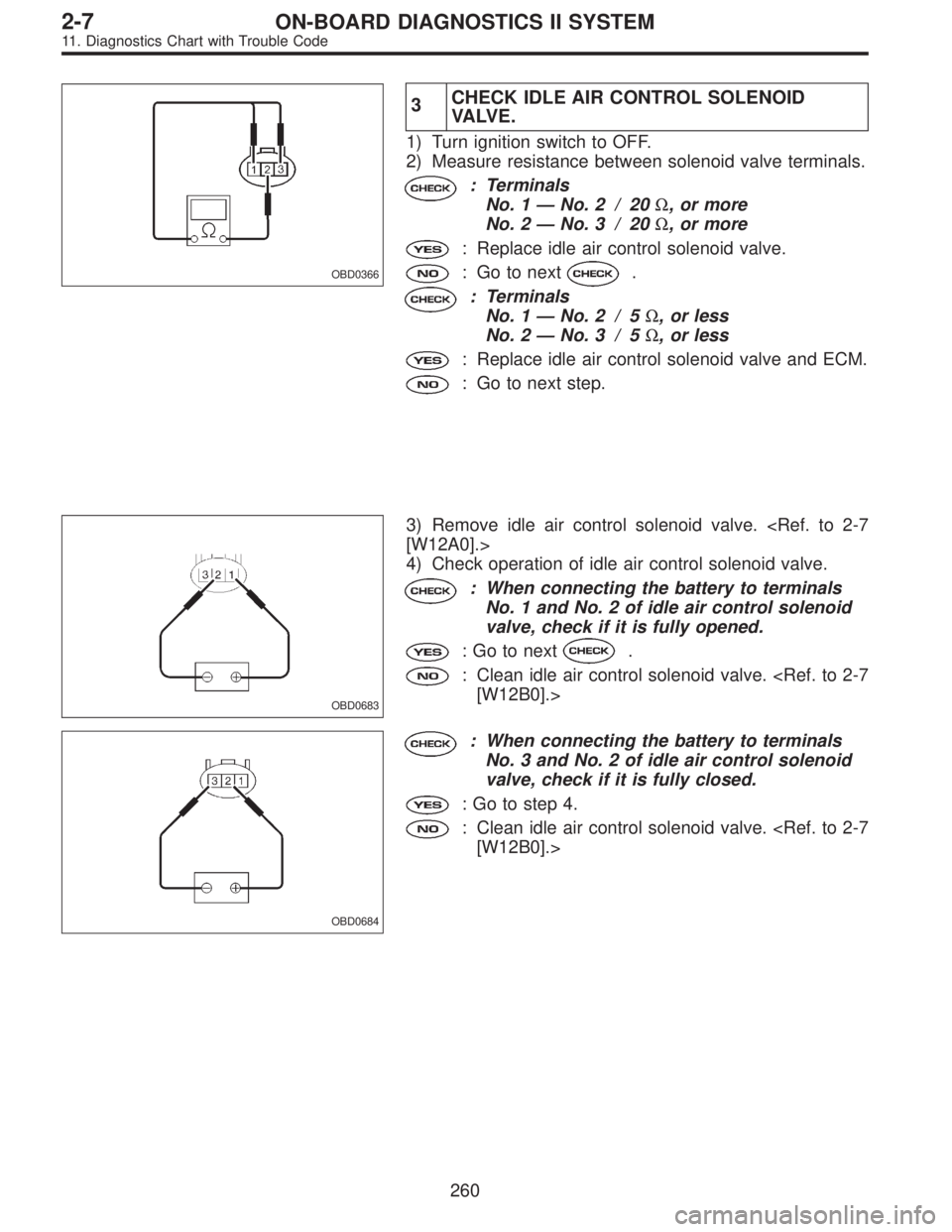

Page 1466 of 2248

SUBARU LEGACY 1995 Service Repair Manual OBD0366 3CHECK IDLE AIR CONTROL SOLENOID VA LV E . 1) Turn ignition switch to OFF. 2) Measure resistance between solenoid valve terminals. : Terminals No. 1—No. 2 / 20Ω, or more No. 2—No. 3 / 20

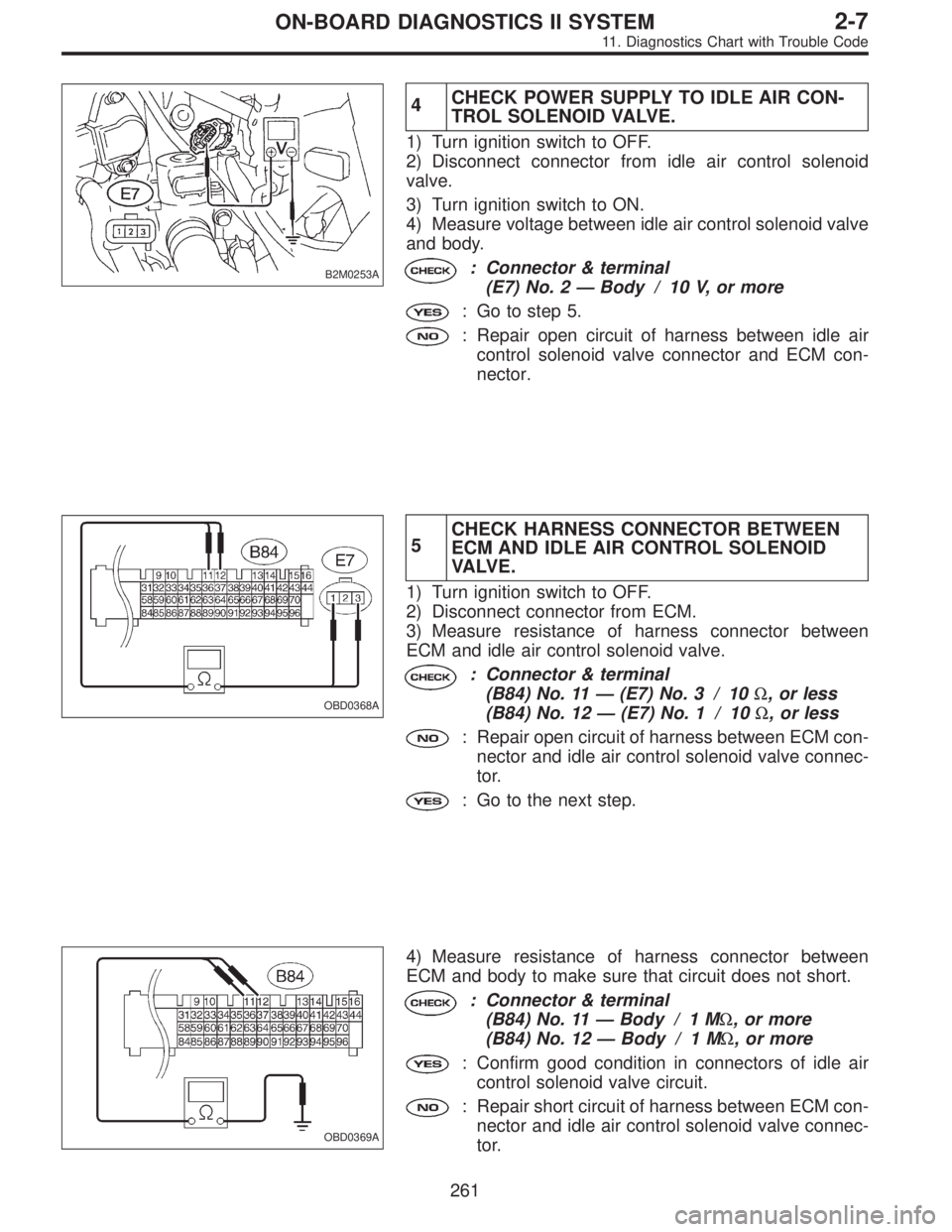

Page 1467 of 2248

SUBARU LEGACY 1995 Service Repair Manual B2M0253A 4CHECK POWER SUPPLY TO IDLE AIR CON- TROL SOLENOID VALVE. 1) Turn ignition switch to OFF. 2) Disconnect connector from idle air control solenoid valve. 3) Turn ignition switch to ON. 4) Measu

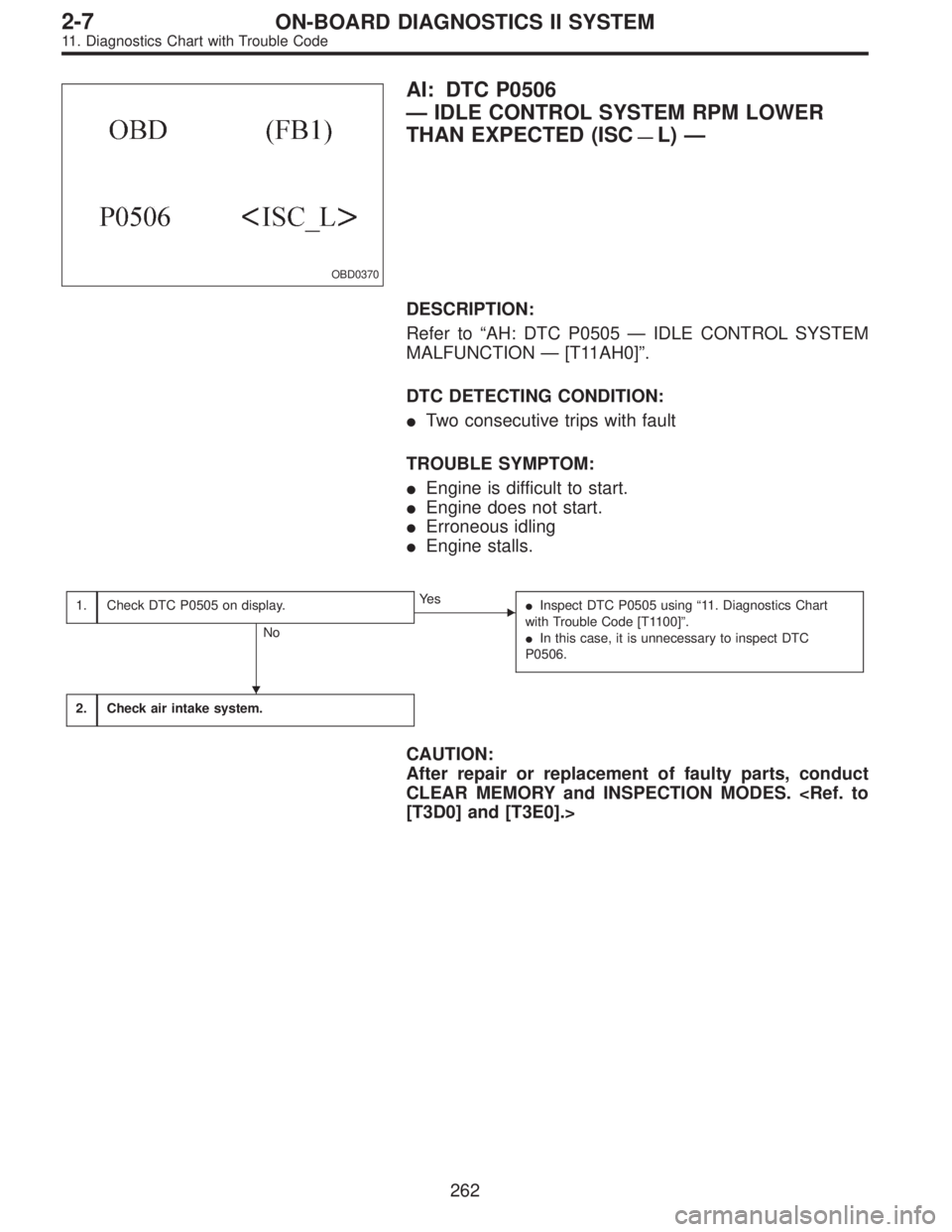

Page 1468 of 2248

SUBARU LEGACY 1995 Service Repair Manual OBD0370 AI: DTC P0506 —IDLE CONTROL SYSTEM RPM LOWER THAN EXPECTED (ISC —L)— DESCRIPTION: Refer to“AH: DTC P0505—IDLE CONTROL SYSTEM MALFUNCTION—[T11AH0]”. DTC DETECTING CONDITION: Two

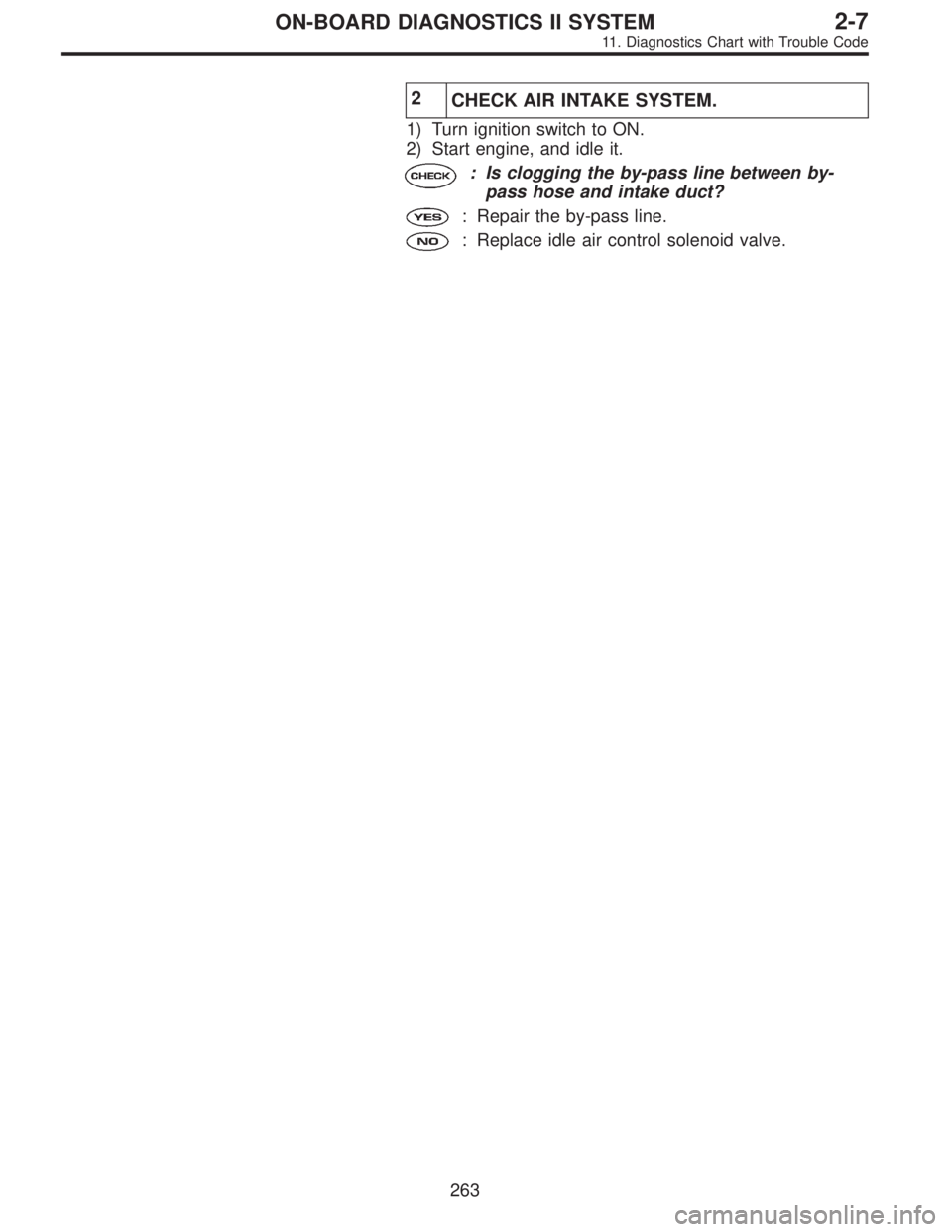

Page 1469 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2 CHECK AIR INTAKE SYSTEM. 1) Turn ignition switch to ON. 2) Start engine, and idle it. : Is clogging the by-pass line between by- pass hose and intake duct? : Repair the by-pass line. : Replace idle

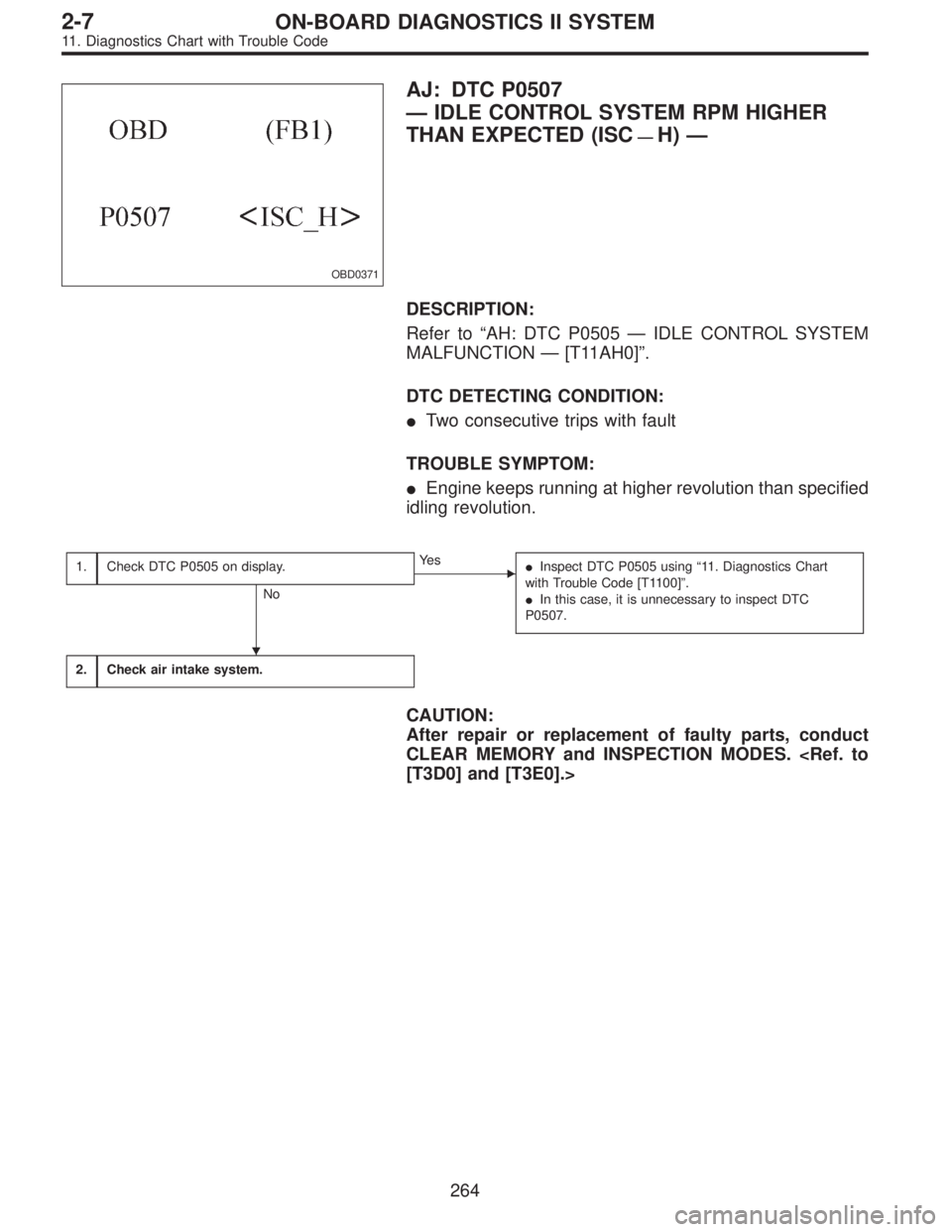

Page 1470 of 2248

SUBARU LEGACY 1995 Service Repair Manual OBD0371 AJ: DTC P0507 —IDLE CONTROL SYSTEM RPM HIGHER THAN EXPECTED (ISC —H)— DESCRIPTION: Refer to“AH: DTC P0505—IDLE CONTROL SYSTEM MALFUNCTION—[T11AH0]”. DTC DETECTING CONDITION: Two

Page 1471 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2 CHECK AIR INTAKE SYSTEM. 1) Turn ignition switch to ON. 2) Start engine, and idle it. :Check intake manifold, idle air control solenoid valve and throttle body for loose installation and gasket for

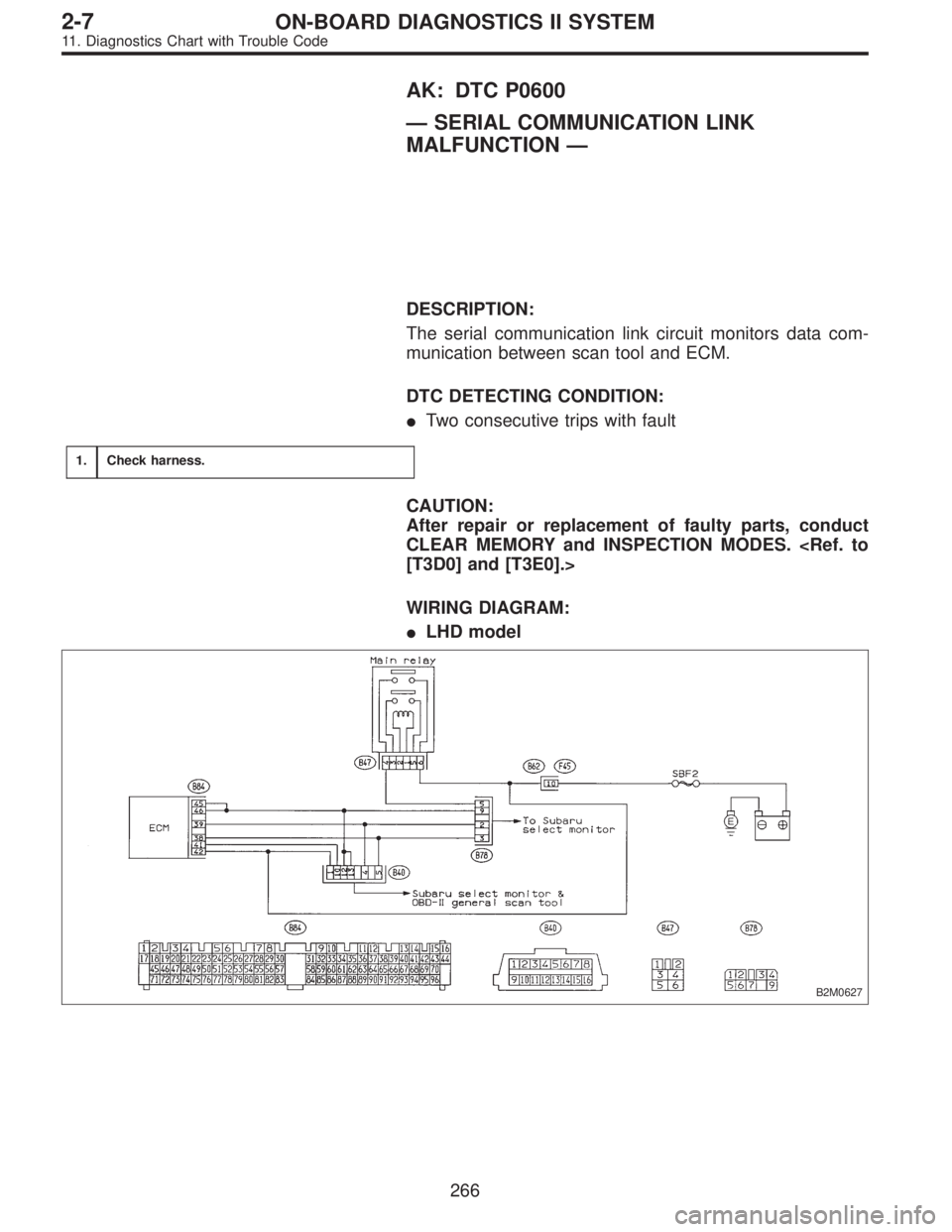

Page 1472 of 2248

SUBARU LEGACY 1995 Service Repair Manual AK: DTC P0600 —SERIAL COMMUNICATION LINK MALFUNCTION— DESCRIPTION: The serial communication link circuit monitors data com- munication between scan tool and ECM. DTC DETECTING CONDITION: Two cons
