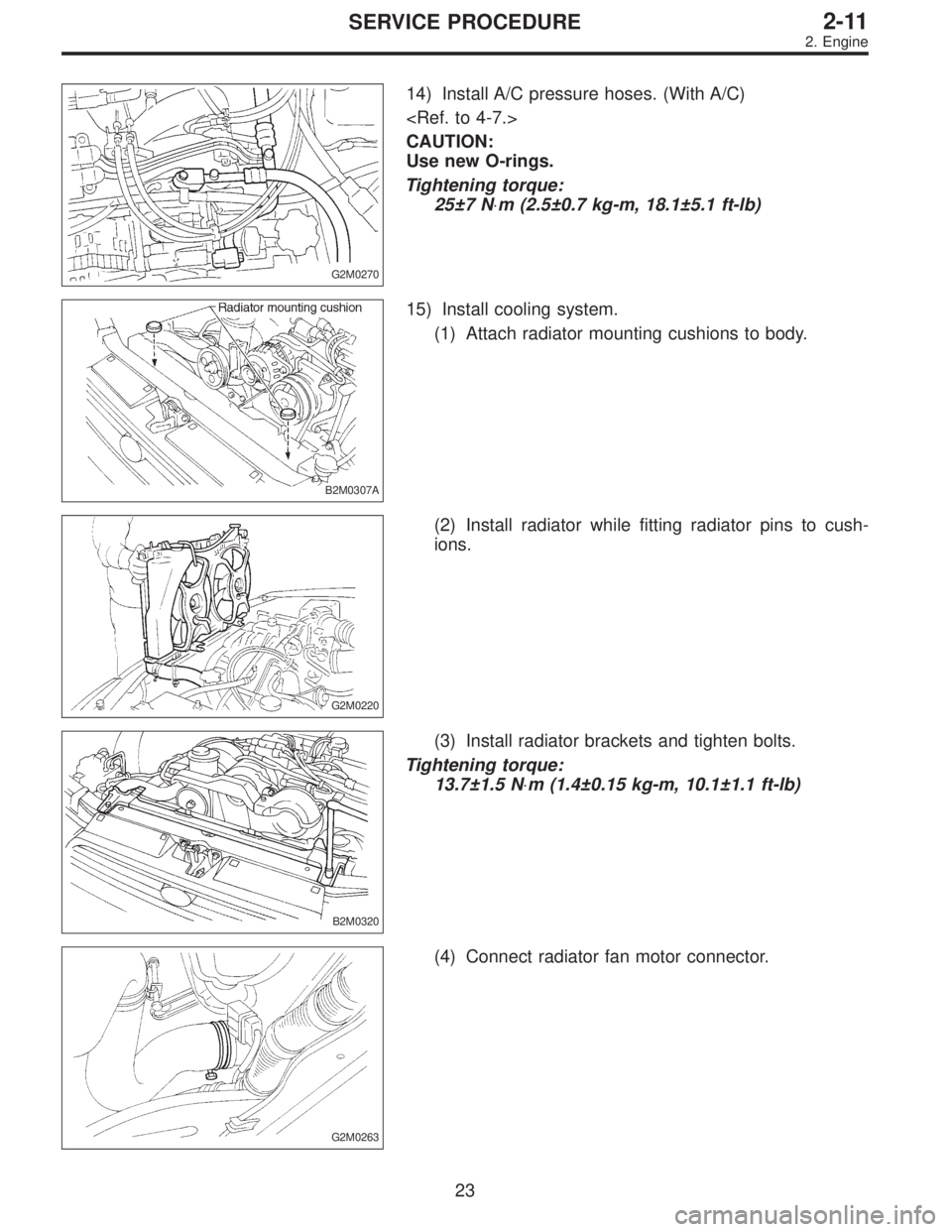

Page 257 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0270 14) Install A/C pressure hoses. (With A/C) <Ref. to 4-7.> CAUTION: Use new O-rings. Tightening torque: 25±7 N⋅m (2.5±0.7 kg-m, 18.1±5.1 ft-lb) B2M0307A 15) Install cooling system. (1) Att

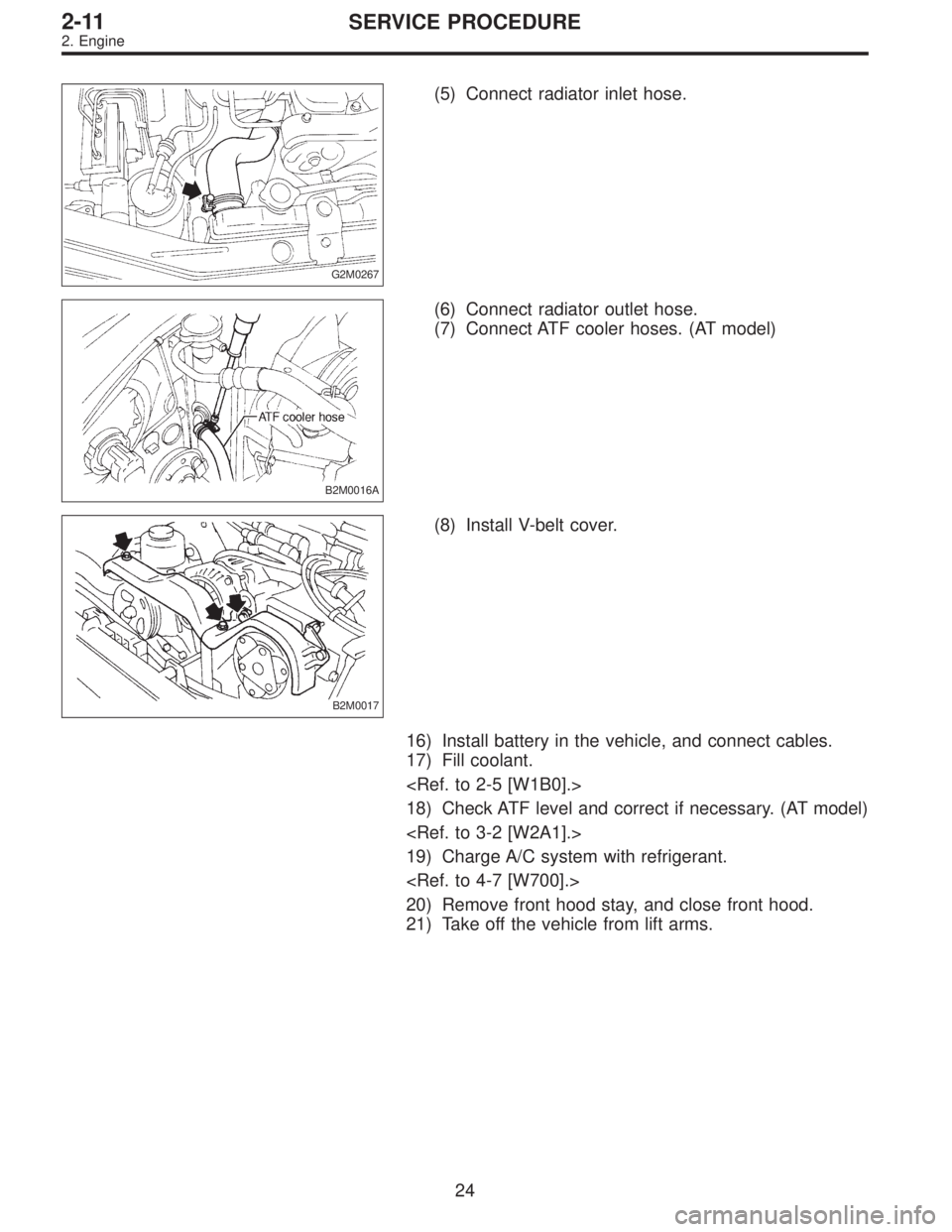

Page 258 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0267 (5) Connect radiator inlet hose. B2M0016A (6) Connect radiator outlet hose. (7) Connect ATF cooler hoses. (AT model) B2M0017 (8) Install V-belt cover. 16) Install battery in the vehicle, and c

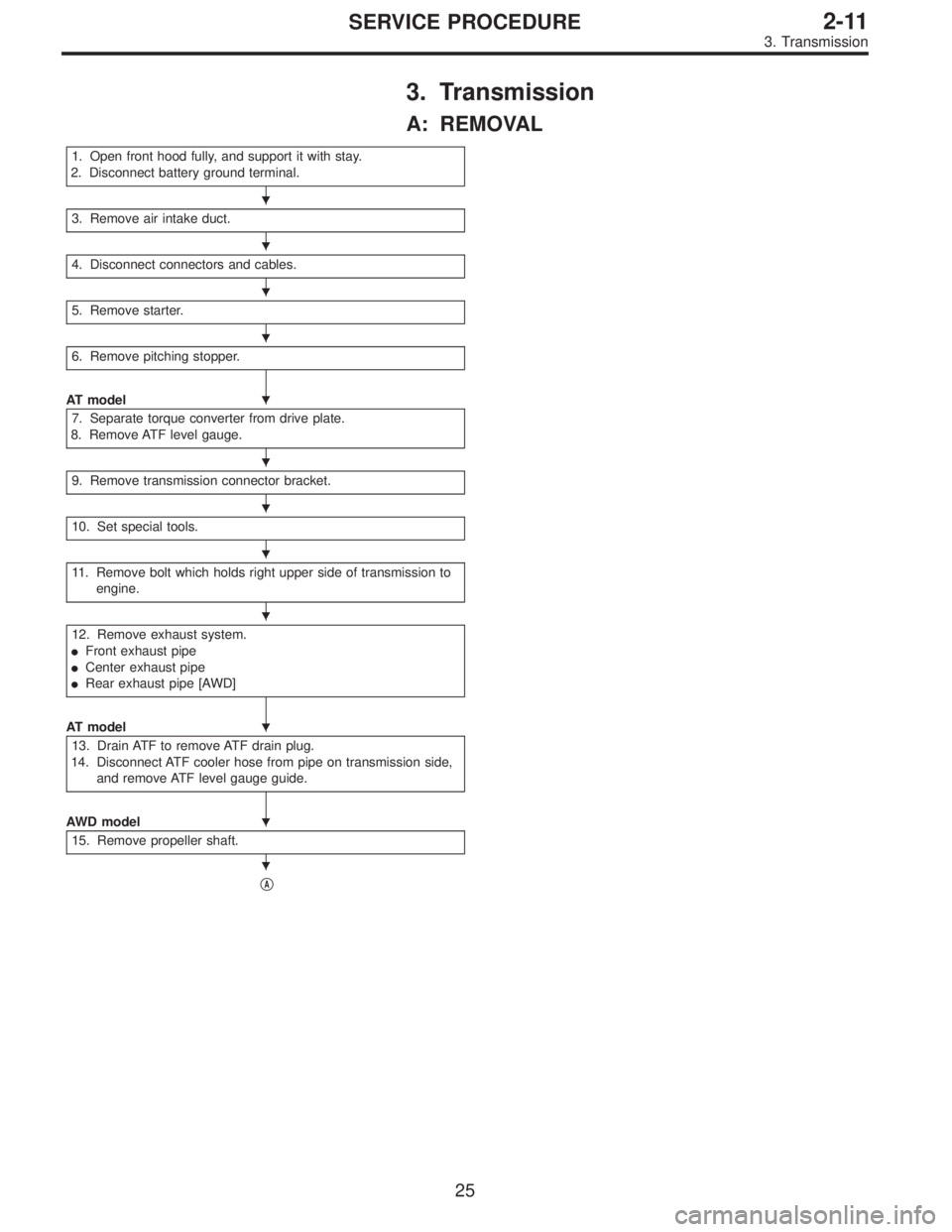

Page 259 of 2248

SUBARU LEGACY 1995 Service Repair Manual 3. Transmission A: REMOVAL 1. Open front hood fully, and support it with stay. 2. Disconnect battery ground terminal. 3. Remove air intake duct. 4. Disconnect connectors and cables. 5. Remove starter.

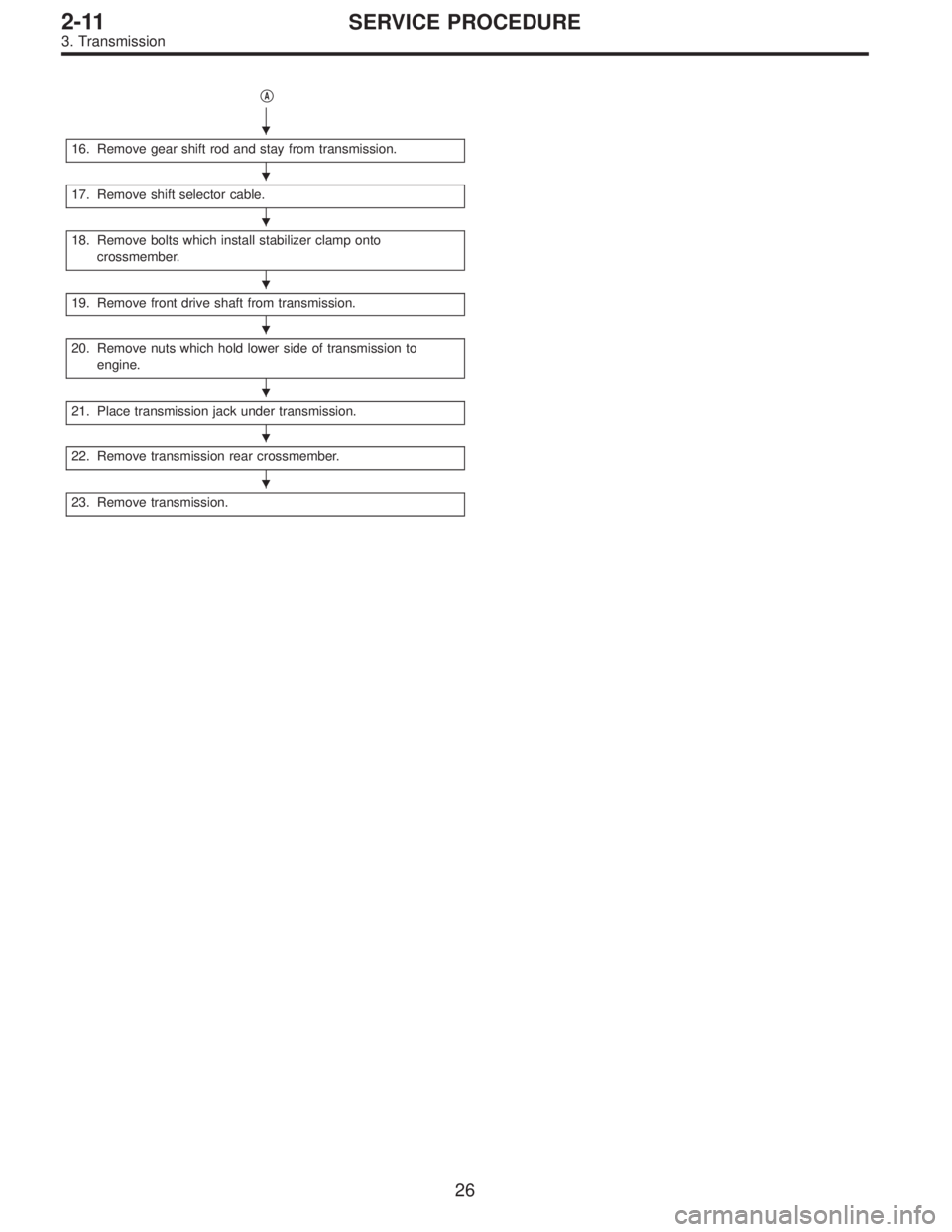

Page 260 of 2248

SUBARU LEGACY 1995 Service Repair Manual A 16. Remove gear shift rod and stay from transmission. 17. Remove shift selector cable. 18. Remove bolts which install stabilizer clamp onto crossmember. 19. Remove front drive shaft from transmissi

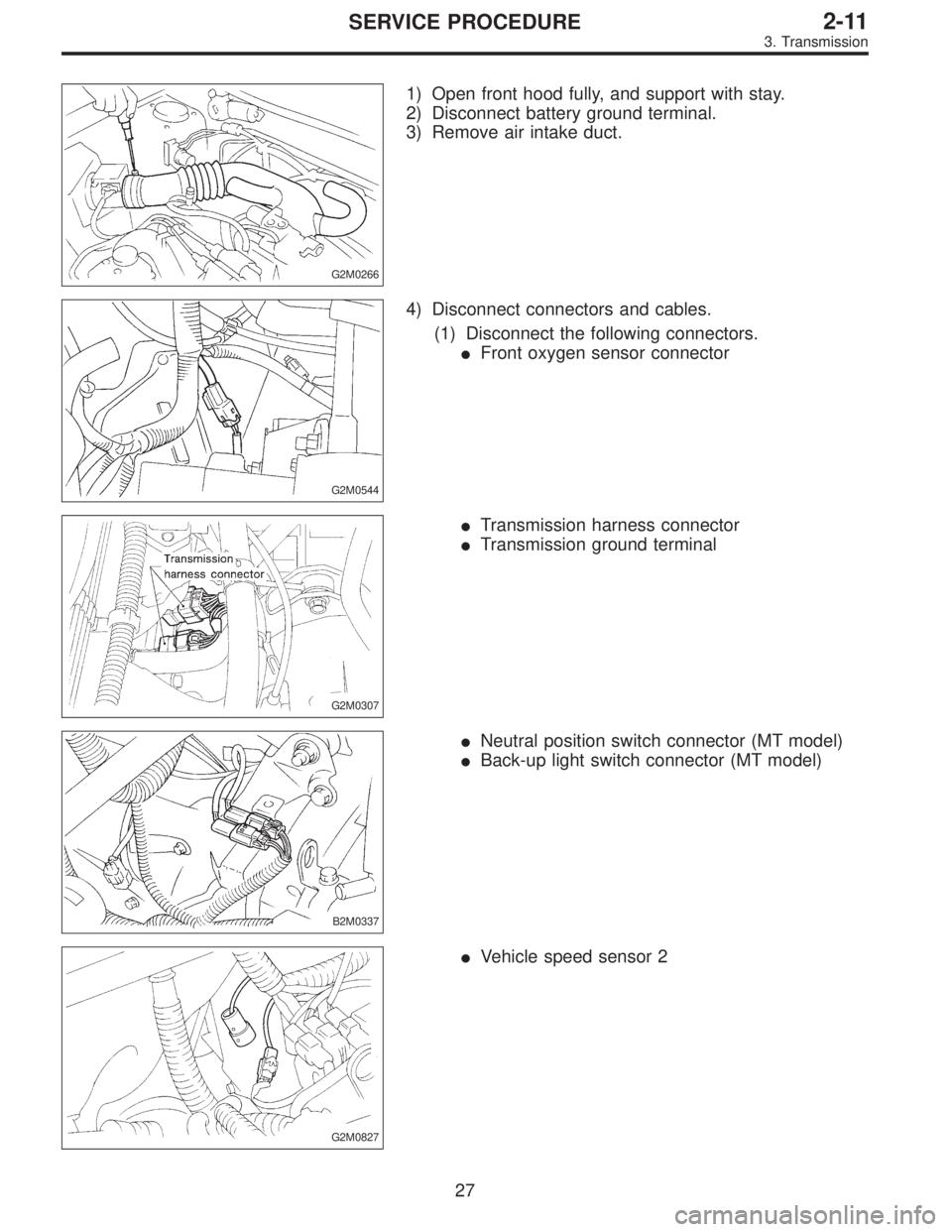

Page 261 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0266 1) Open front hood fully, and support with stay. 2) Disconnect battery ground terminal. 3) Remove air intake duct. G2M0544 4) Disconnect connectors and cables. (1) Disconnect the following con

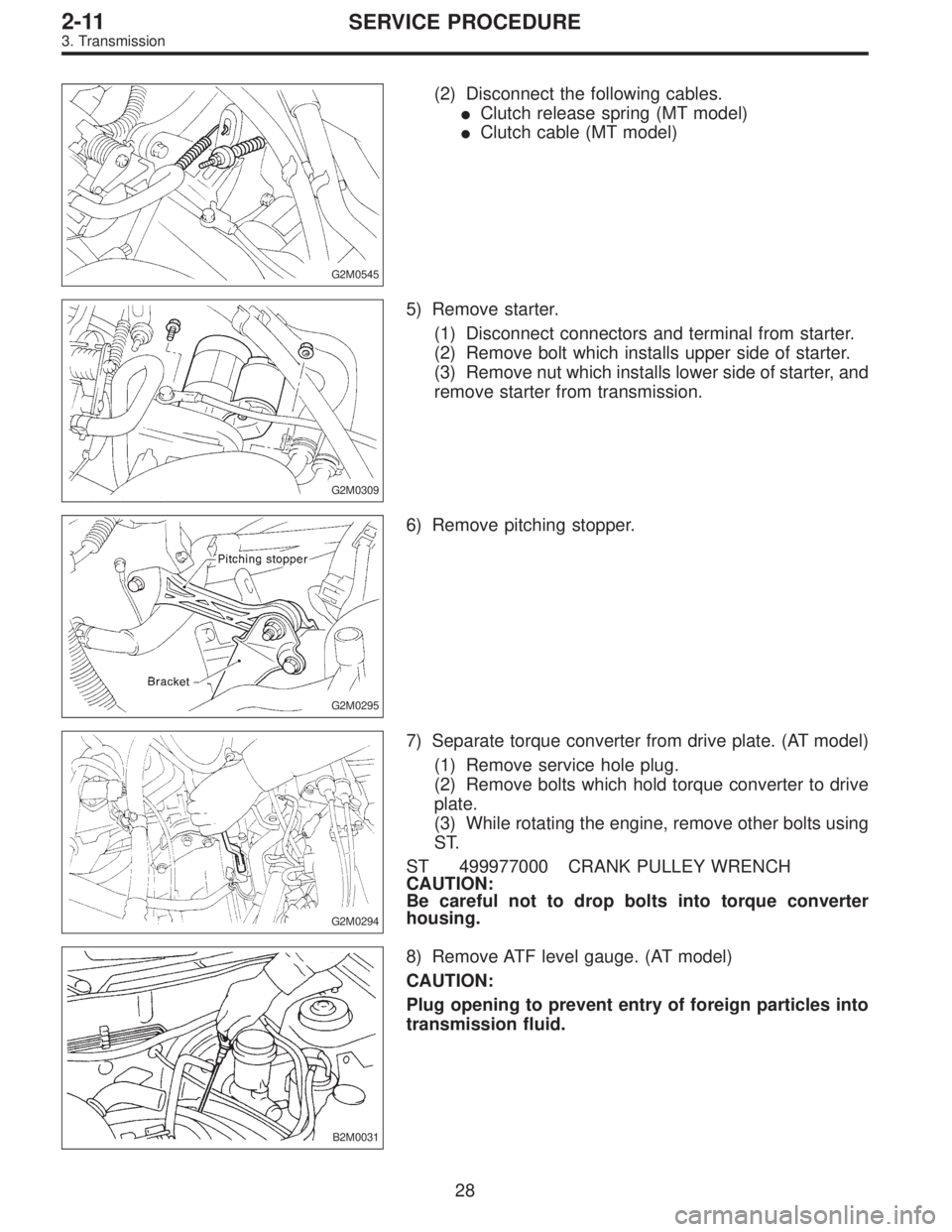

Page 262 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0545 (2) Disconnect the following cables. Clutch release spring (MT model) Clutch cable (MT model) G2M0309 5) Remove starter. (1) Disconnect connectors and terminal from starter. (2) Remove bolt

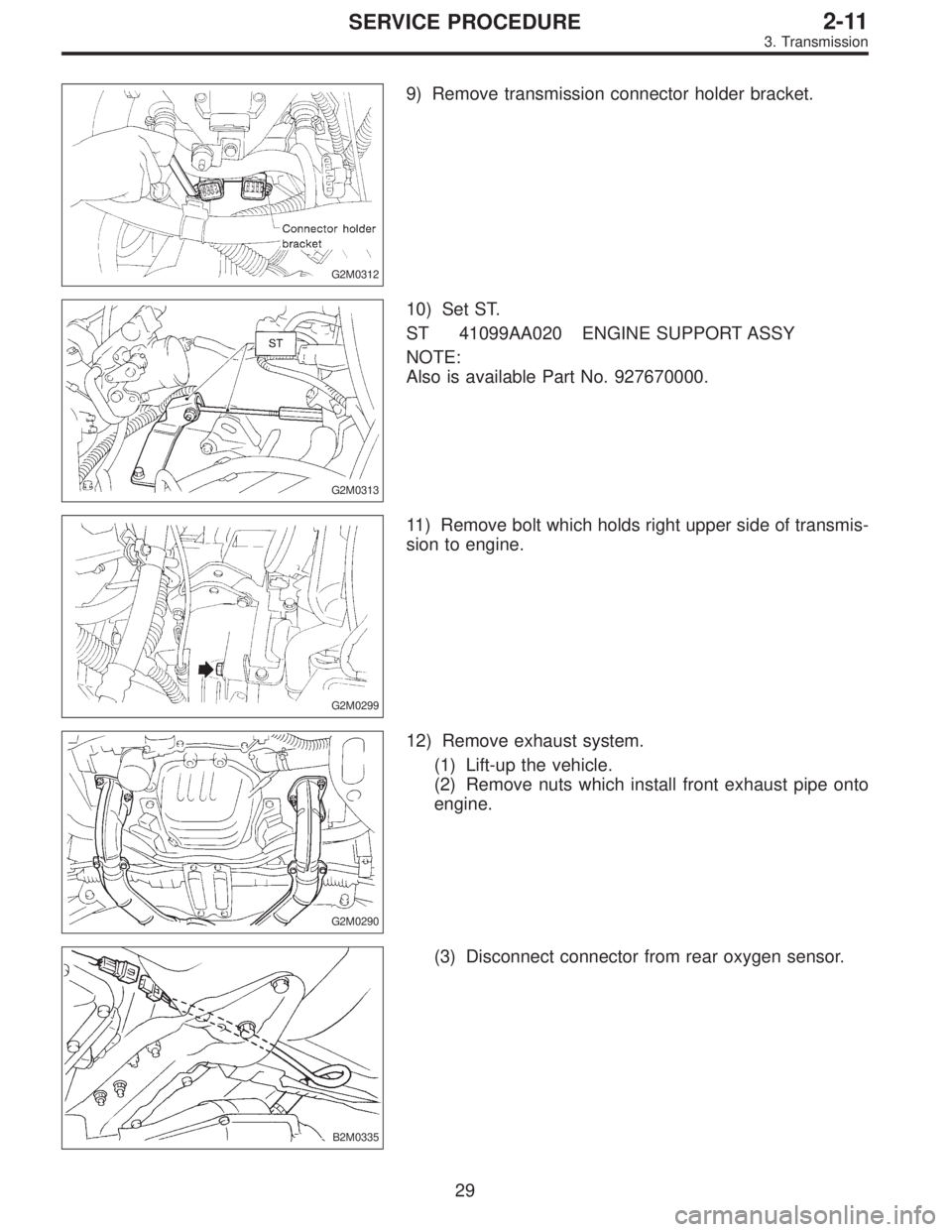

Page 263 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0312 9) Remove transmission connector holder bracket. G2M0313 10) Set ST. ST 41099AA020 ENGINE SUPPORT ASSY NOTE: Also is available Part No. 927670000. G2M0299 11) Remove bolt which holds right upp

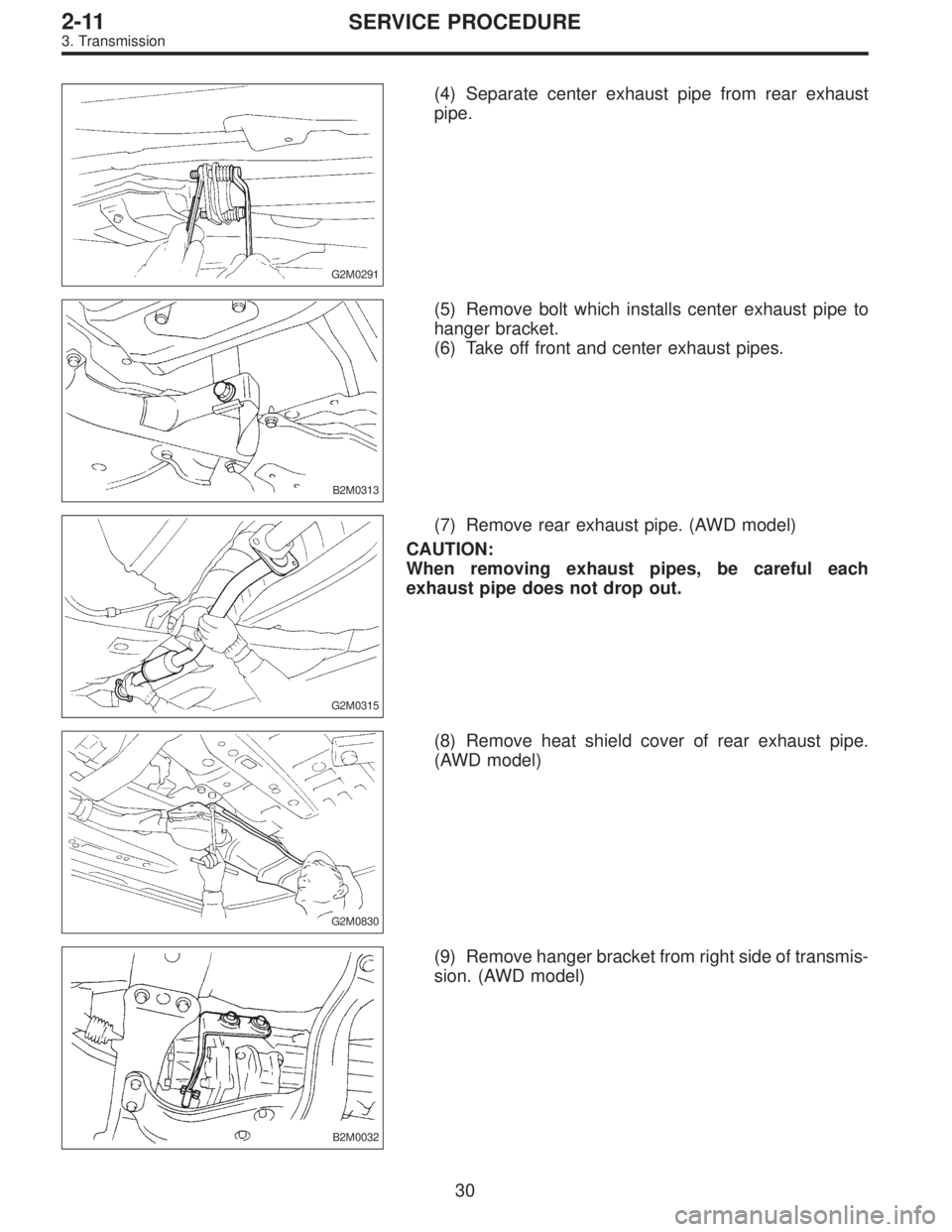

Page 264 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0291 (4) Separate center exhaust pipe from rear exhaust pipe. B2M0313 (5) Remove bolt which installs center exhaust pipe to hanger bracket. (6) Take off front and center exhaust pipes. G2M0315 (7)
