Page 921 of 2248

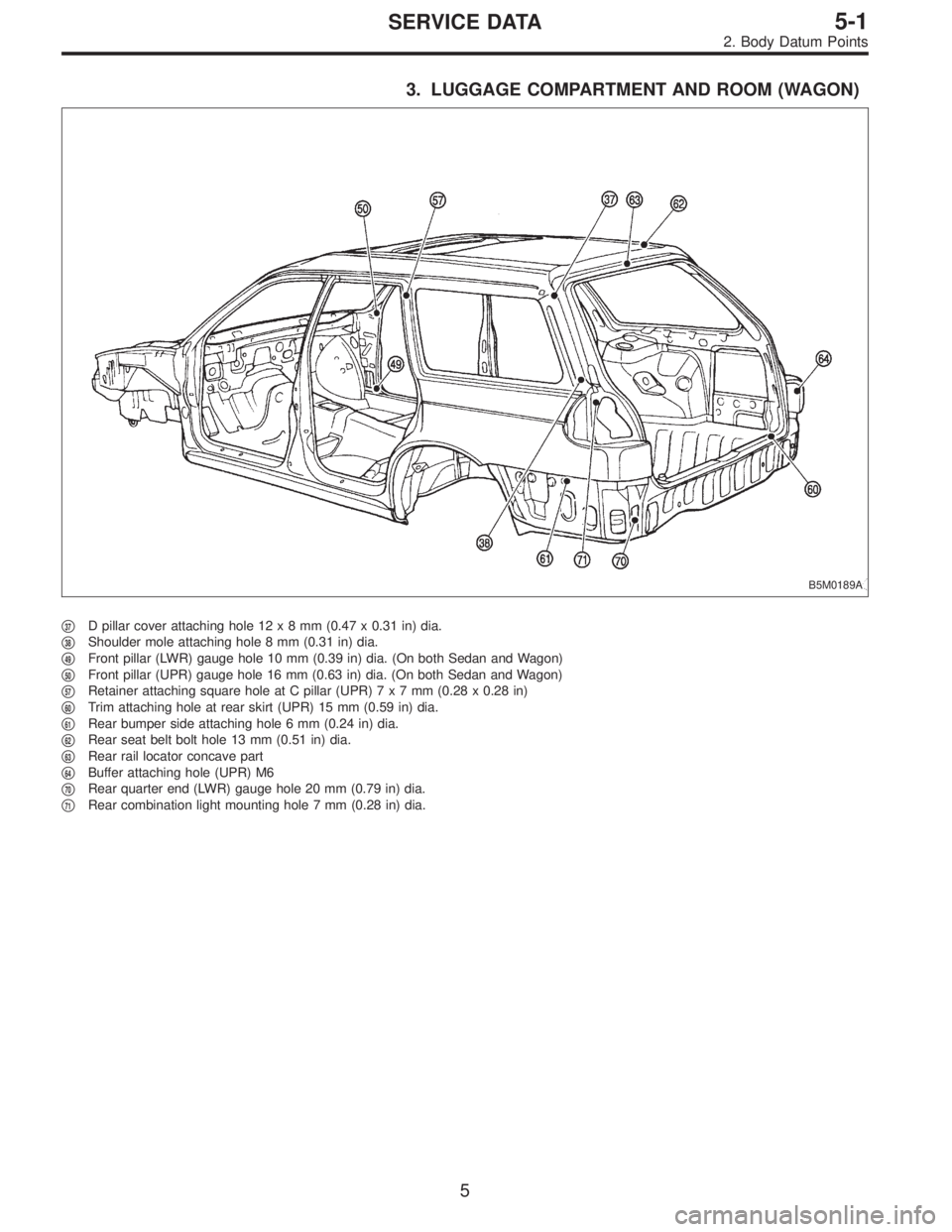

SUBARU LEGACY 1995 Service Repair Manual 3. LUGGAGE COMPARTMENT AND ROOM (WAGON) B5M0189A 37D pillar cover attaching hole 12x8mm(0.47 x 0.31 in) dia.  38Shoulder mole attaching hole 8 mm (0.31 in) dia.  49Front pillar (LWR) gauge hole 10

Page 922 of 2248

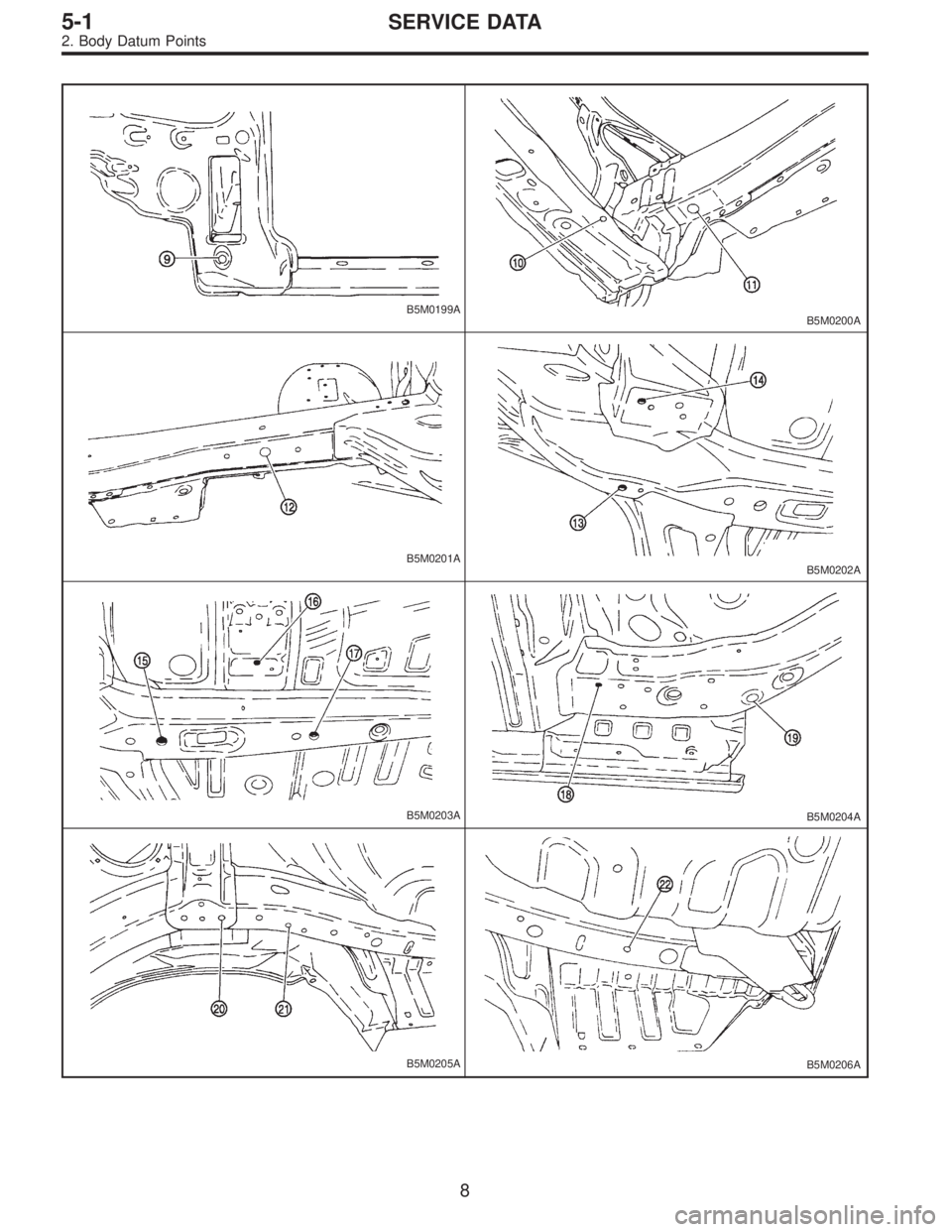

SUBARU LEGACY 1995 Service Repair Manual 4. UNDERBODY B5M0190A 10Radiator panel (LWR) frame gauge hole 10 mm (0.39 in) dia.  11Front side frame front lower surface 20 mm (0.79 in) dia.  12Front side frame center lower surface 20 mm (0.79

Page 923 of 2248

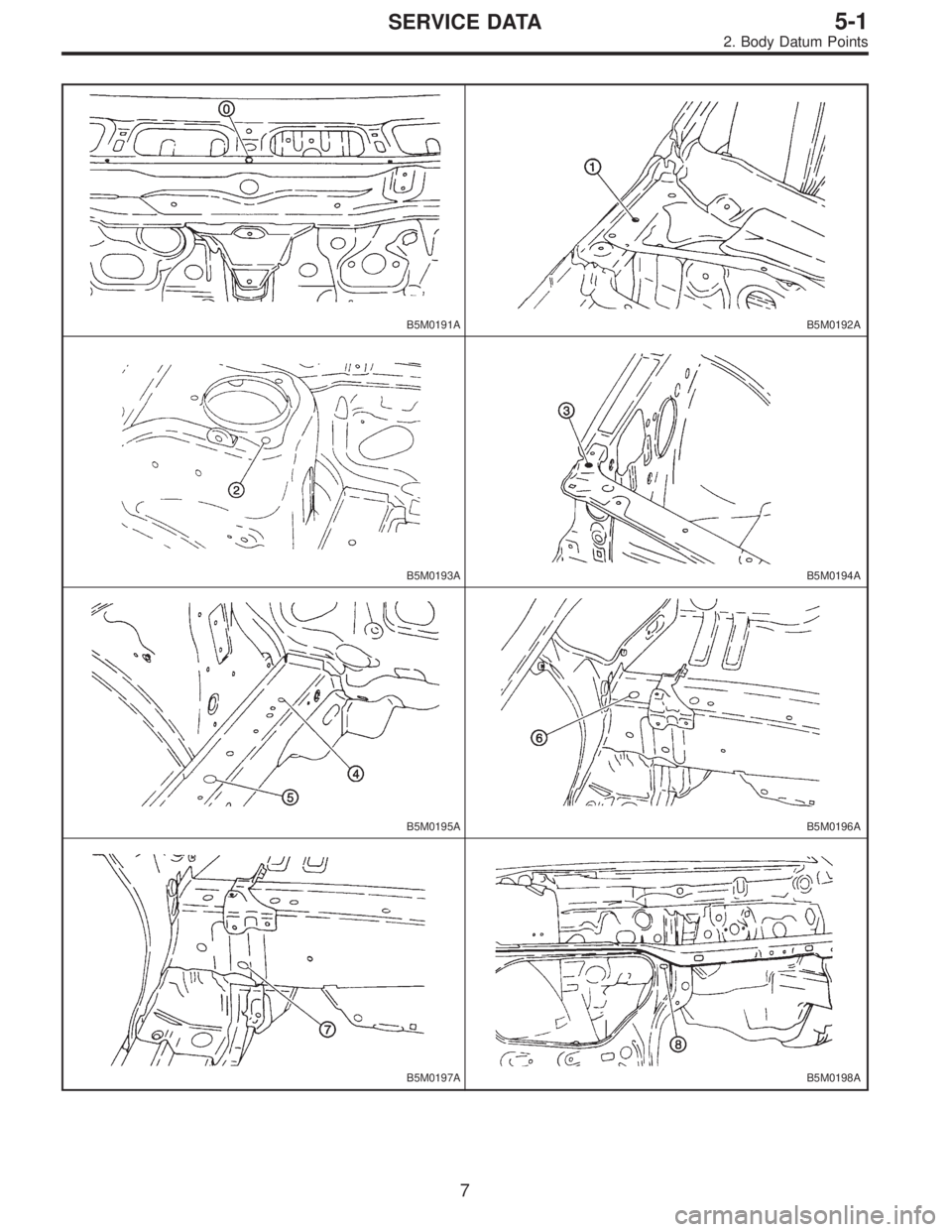

SUBARU LEGACY 1995 Service Repair Manual B5M0191AB5M0192A B5M0193AB5M0194A B5M0195AB5M0196A B5M0197AB5M0198A 7 5-1SERVICE DATA 2. Body Datum Points

Page 924 of 2248

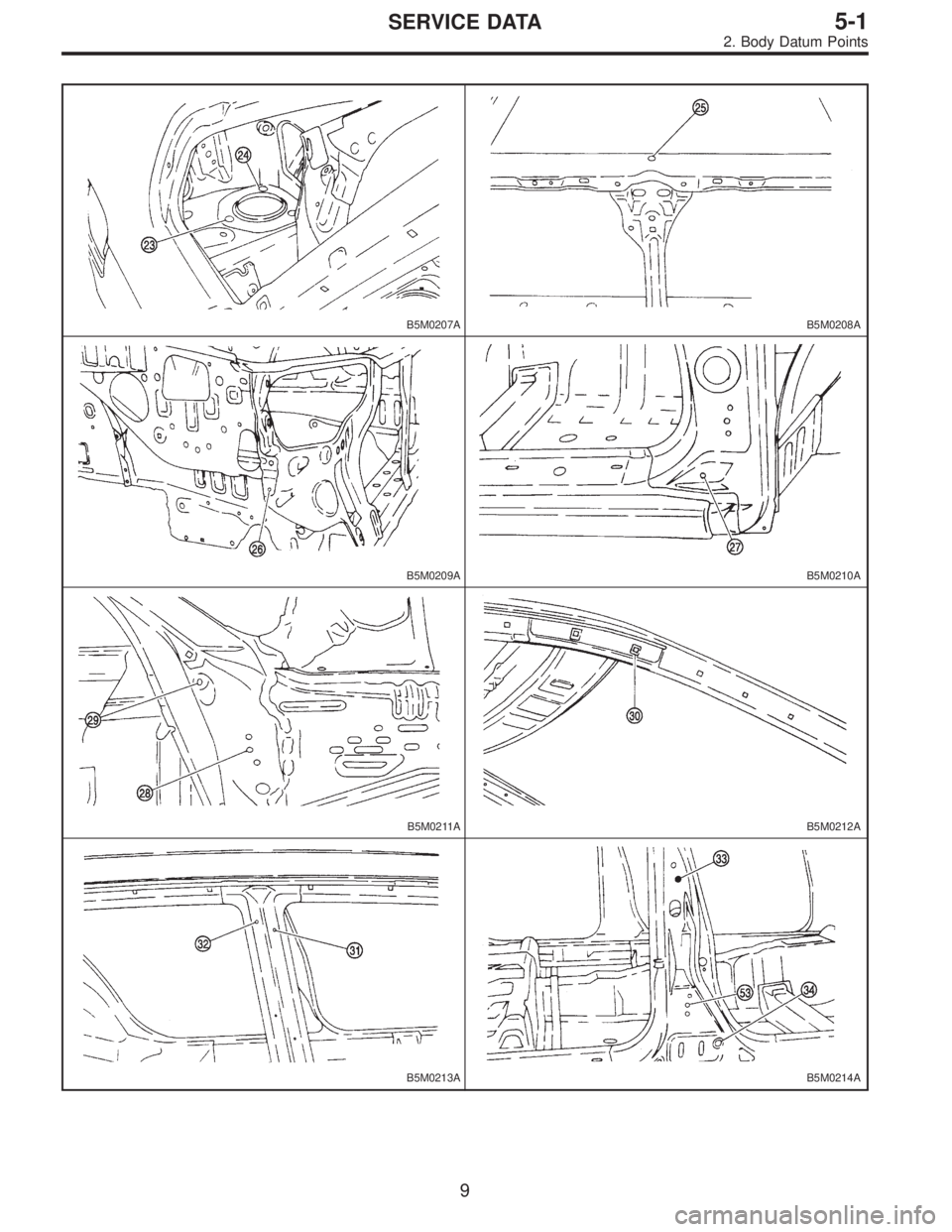

SUBARU LEGACY 1995 Service Repair Manual B5M0199AB5M0200A B5M0201AB5M0202A B5M0203AB5M0204A B5M0205AB5M0206A 8 5-1SERVICE DATA 2. Body Datum Points

Page 925 of 2248

SUBARU LEGACY 1995 Service Repair Manual B5M0207AB5M0208A B5M0209AB5M0210A B5M0211AB5M0212A B5M0213AB5M0214A 9 5-1SERVICE DATA 2. Body Datum Points

Page 926 of 2248

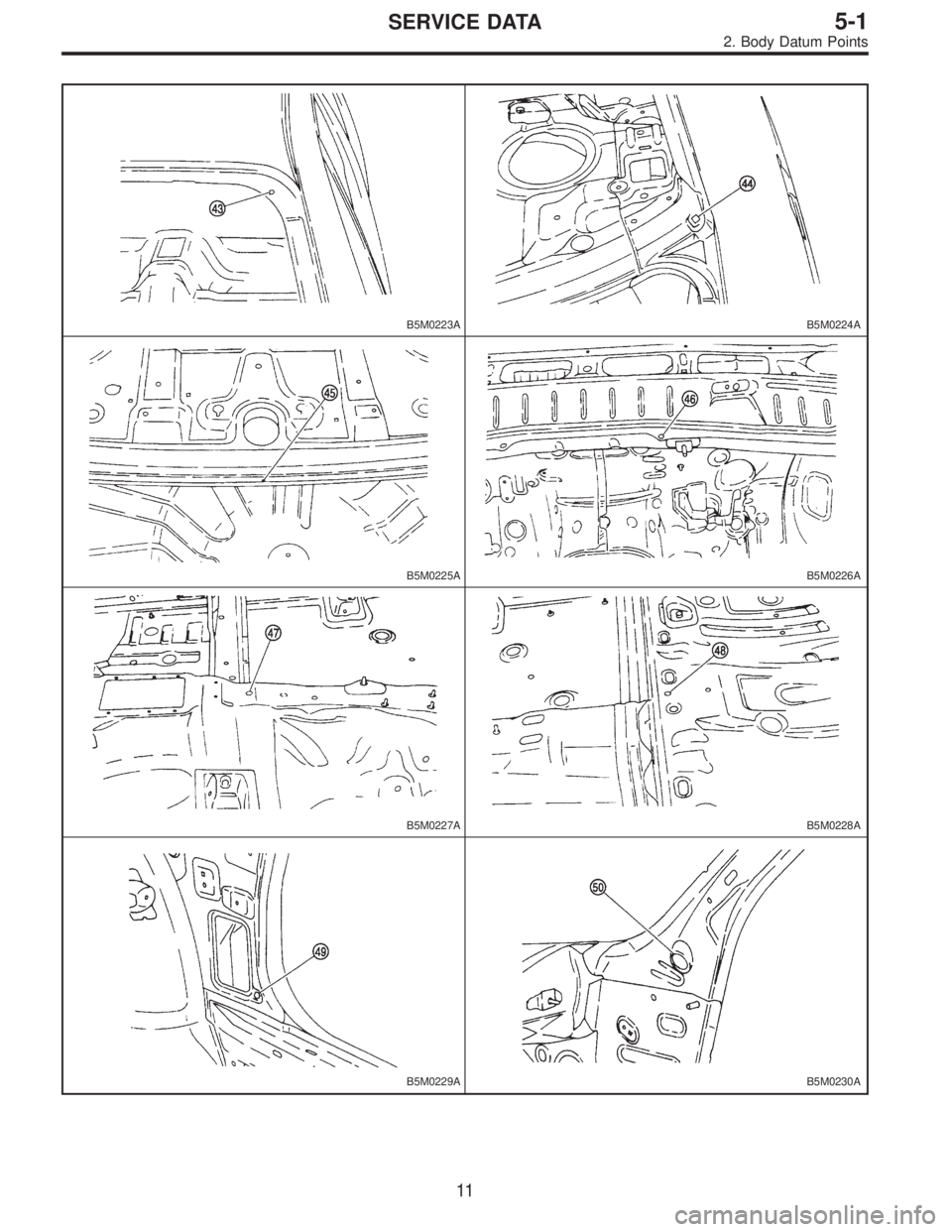

SUBARU LEGACY 1995 Service Repair Manual B5M0215AB5M0216A B5M0217AB5M0218A B5M0219AB5M0220A B5M0221AB5M0222A 10 5-1SERVICE DATA 2. Body Datum Points

Page 927 of 2248

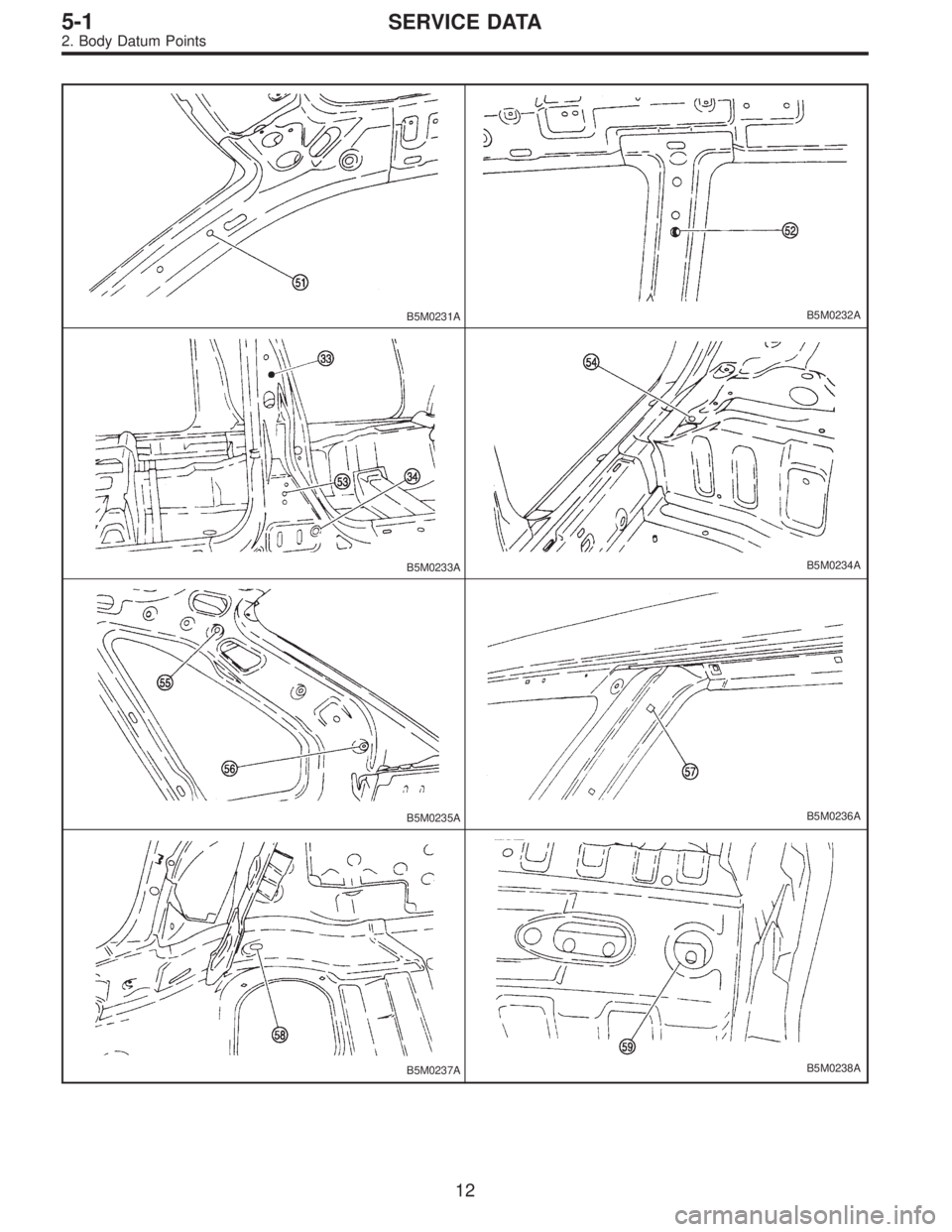

SUBARU LEGACY 1995 Service Repair Manual B5M0223AB5M0224A B5M0225AB5M0226A B5M0227AB5M0228A B5M0229AB5M0230A 11 5-1SERVICE DATA 2. Body Datum Points

Page 928 of 2248

SUBARU LEGACY 1995 Service Repair Manual B5M0231AB5M0232A B5M0233AB5M0234A B5M0235AB5M0236A B5M0237AB5M0238A 12 5-1SERVICE DATA 2. Body Datum Points
