Page 1025 of 2248

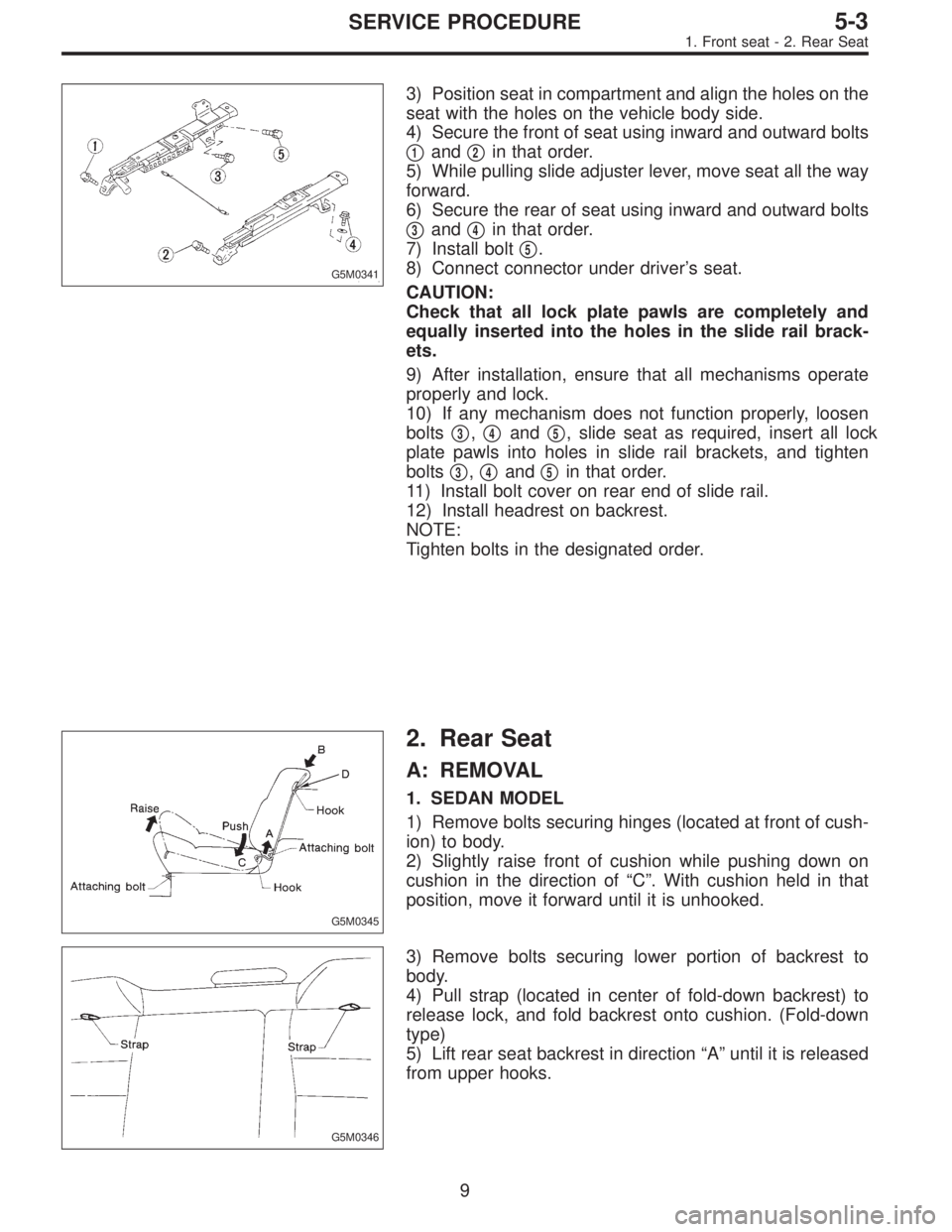

SUBARU LEGACY 1995 Service Repair Manual G5M0341 3) Position seat in compartment and align the holes on the seat with the holes on the vehicle body side. 4) Secure the front of seat using inward and outward bolts  1and2in that order. 5) Wh

Page 1026 of 2248

SUBARU LEGACY 1995 Service Repair Manual G5M0341 3) Position seat in compartment and align the holes on the seat with the holes on the vehicle body side. 4) Secure the front of seat using inward and outward bolts  1and2in that order. 5) Wh

Page 1027 of 2248

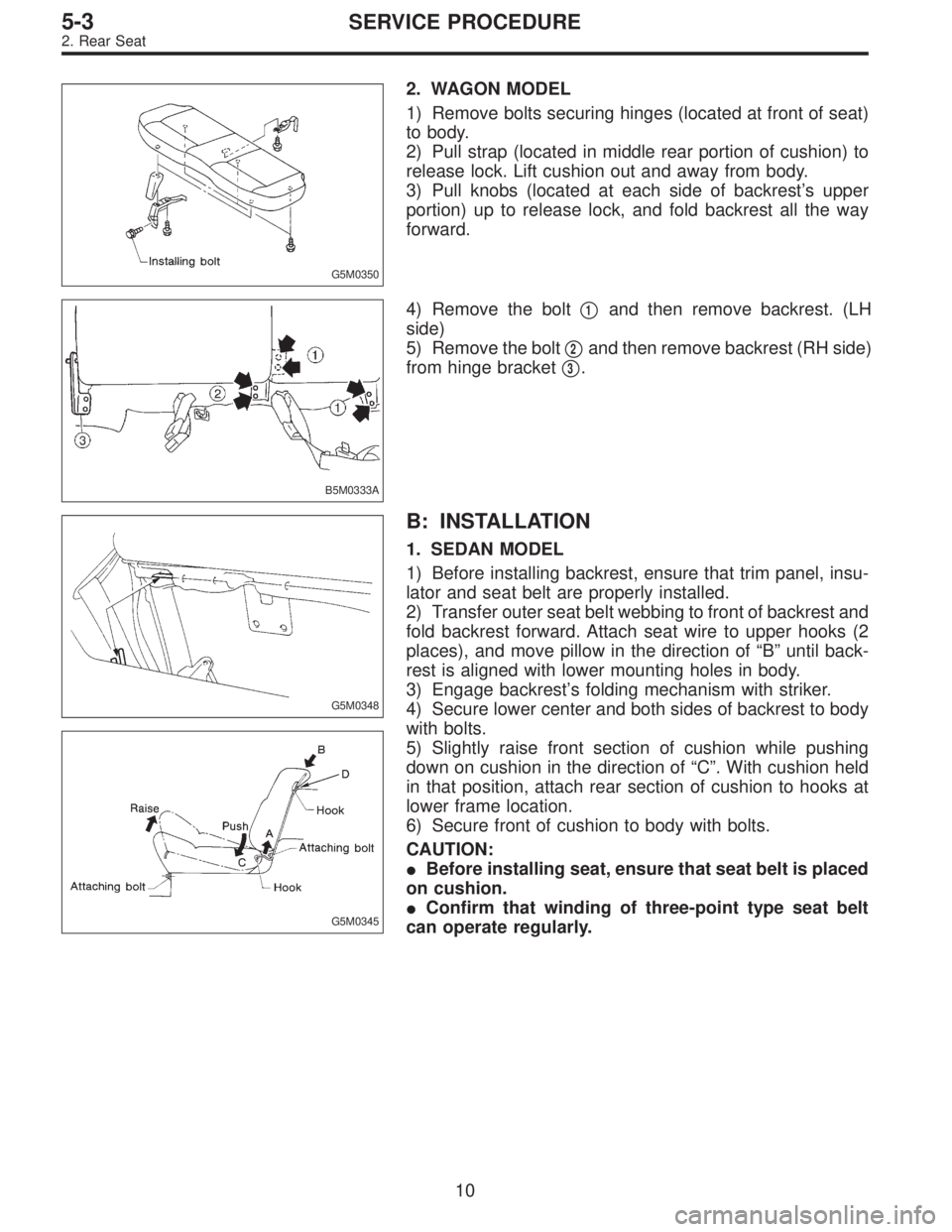

SUBARU LEGACY 1995 Service Repair Manual G5M0350 2. WAGON MODEL 1) Remove bolts securing hinges (located at front of seat) to body. 2) Pull strap (located in middle rear portion of cushion) to release lock. Lift cushion out and away from bod

Page 1028 of 2248

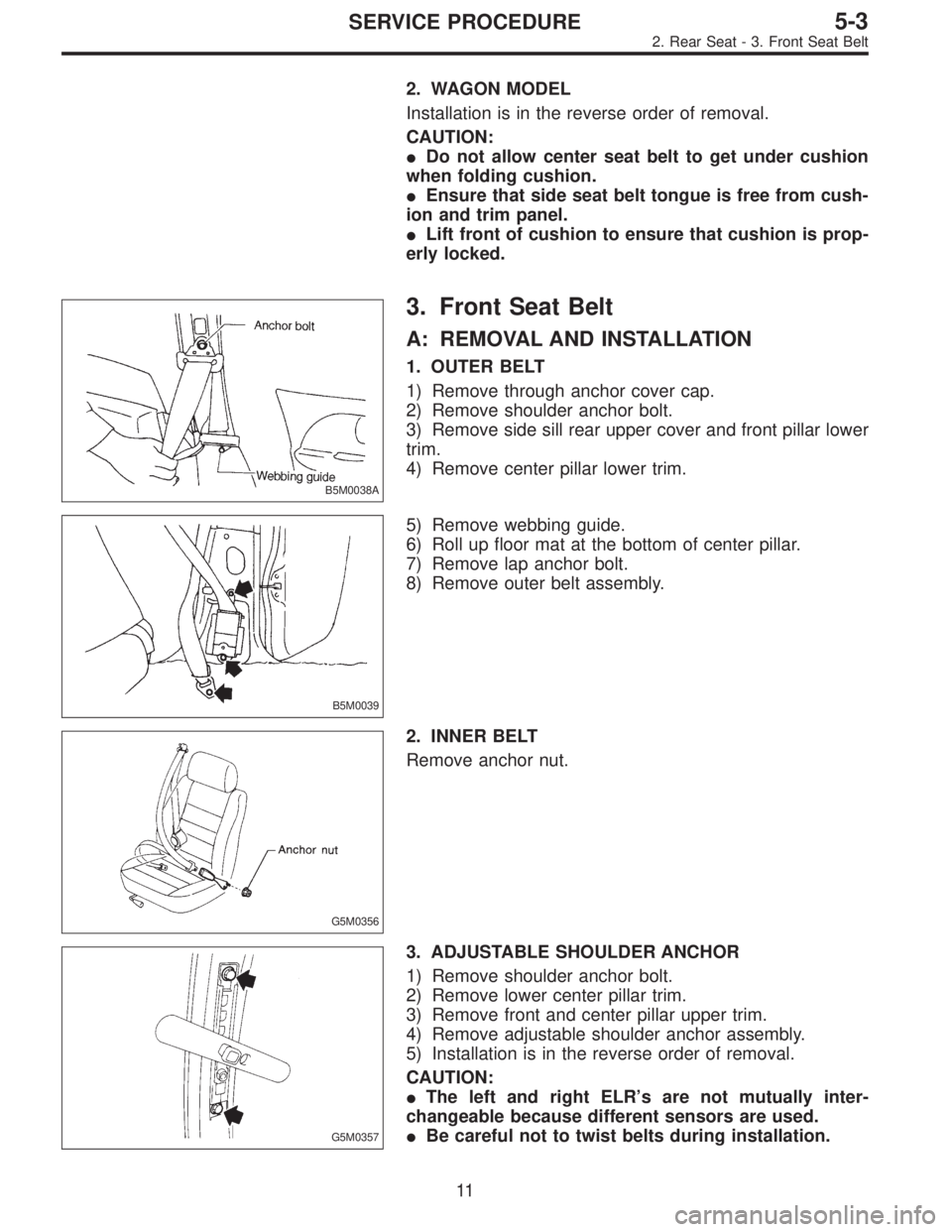

SUBARU LEGACY 1995 Service Repair Manual 2. WAGON MODEL Installation is in the reverse order of removal. CAUTION: Do not allow center seat belt to get under cushion when folding cushion. Ensure that side seat belt tongue is free from cush-

Page 1029 of 2248

SUBARU LEGACY 1995 Service Repair Manual 2. WAGON MODEL Installation is in the reverse order of removal. CAUTION: Do not allow center seat belt to get under cushion when folding cushion. Ensure that side seat belt tongue is free from cush-

Page 1030 of 2248

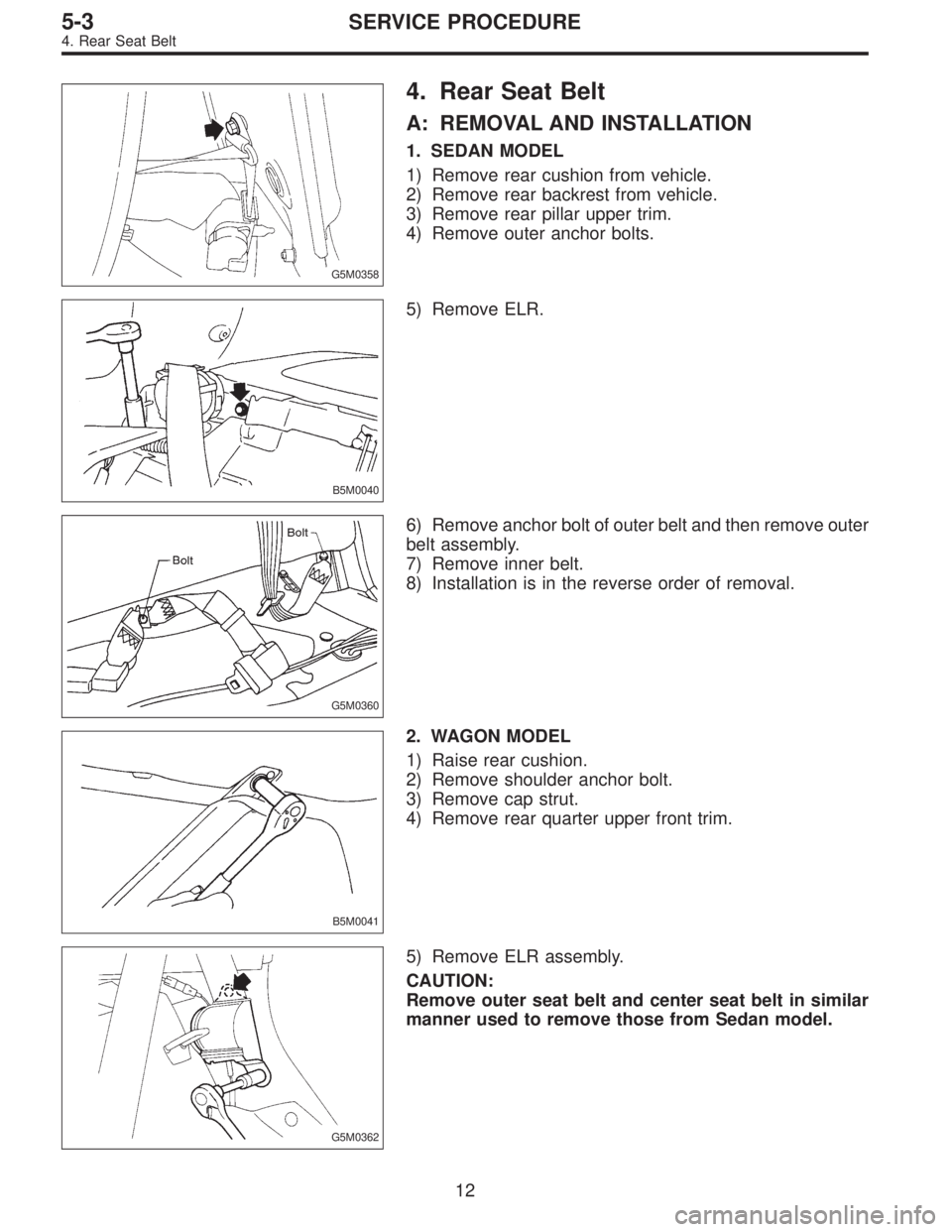

SUBARU LEGACY 1995 Service Repair Manual G5M0358 4. Rear Seat Belt A: REMOVAL AND INSTALLATION 1. SEDAN MODEL 1) Remove rear cushion from vehicle. 2) Remove rear backrest from vehicle. 3) Remove rear pillar upper trim. 4) Remove outer anchor

Page 1031 of 2248

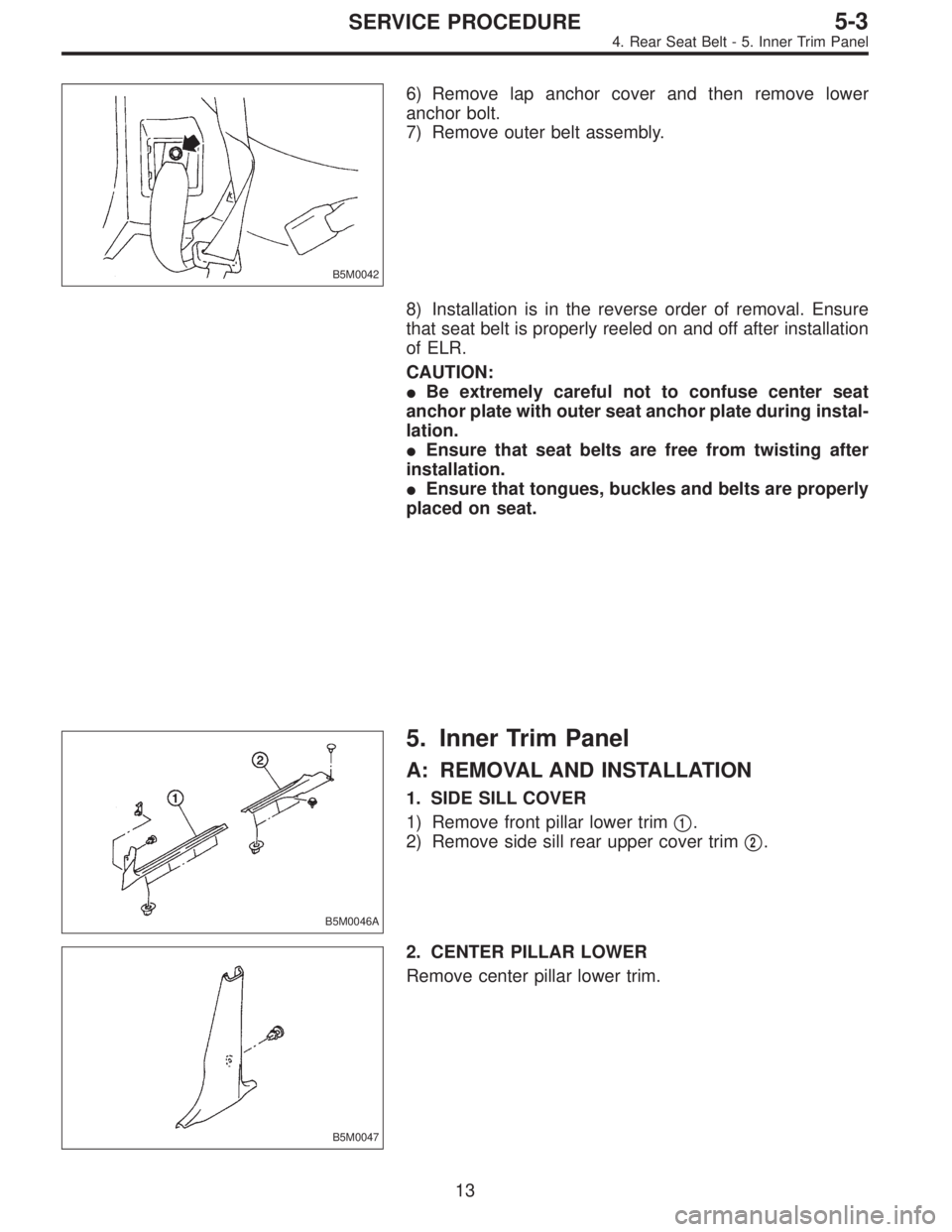

SUBARU LEGACY 1995 Service Repair Manual B5M0042 6) Remove lap anchor cover and then remove lower anchor bolt. 7) Remove outer belt assembly. 8) Installation is in the reverse order of removal. Ensure that seat belt is properly reeled on and

Page 1032 of 2248

SUBARU LEGACY 1995 Service Repair Manual B5M0042 6) Remove lap anchor cover and then remove lower anchor bolt. 7) Remove outer belt assembly. 8) Installation is in the reverse order of removal. Ensure that seat belt is properly reeled on and
