Page 217 of 2248

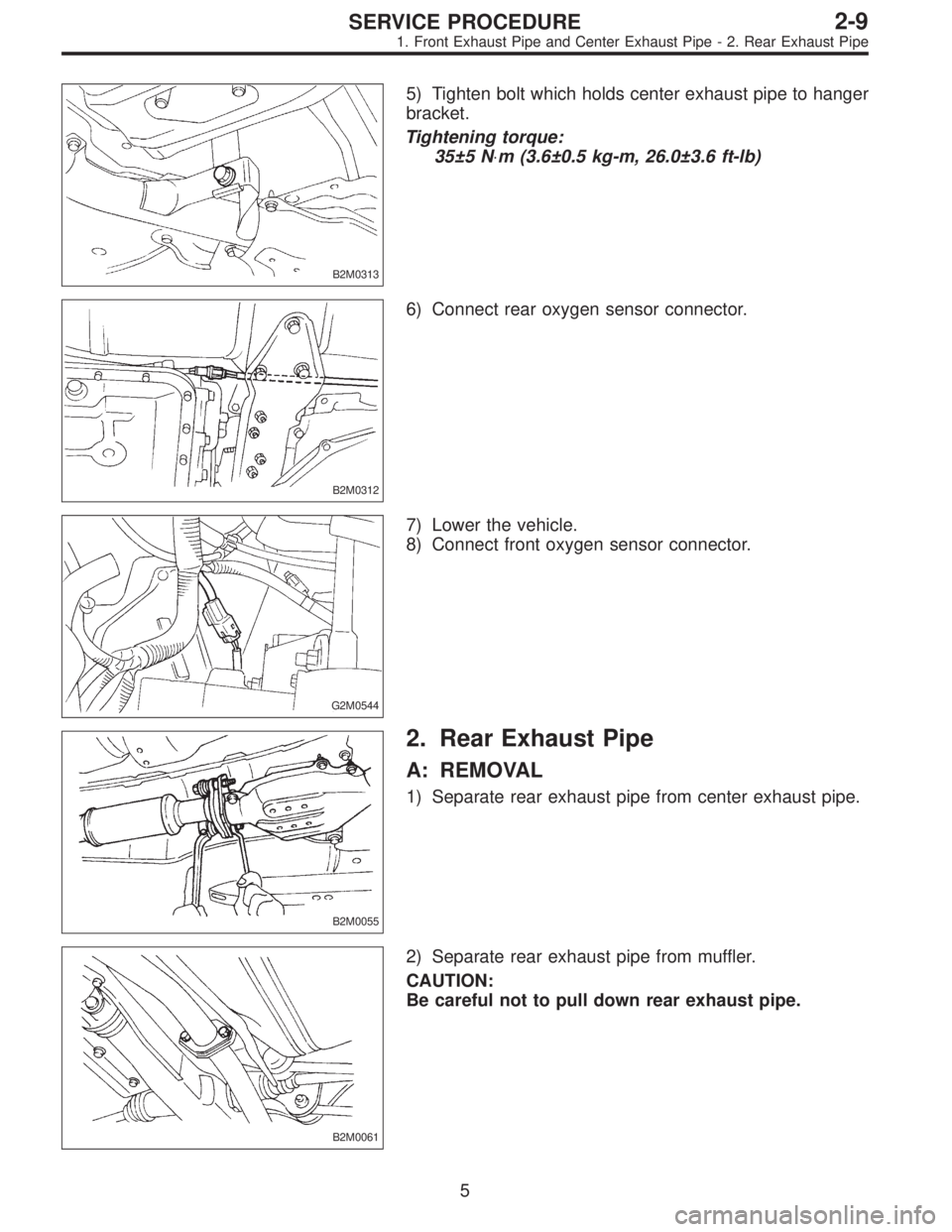

SUBARU LEGACY 1995 Service Repair Manual B2M0313 5) Tighten bolt which holds center exhaust pipe to hanger bracket. Tightening torque: 35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb) B2M0312 6) Connect rear oxygen sensor connector. G2M0544 7) L

Page 218 of 2248

SUBARU LEGACY 1995 Service Repair Manual B2M0313 5) Tighten bolt which holds center exhaust pipe to hanger bracket. Tightening torque: 35±5 N⋅m (3.6±0.5 kg-m, 26.0±3.6 ft-lb) B2M0312 6) Connect rear oxygen sensor connector. G2M0544 7) L

Page 219 of 2248

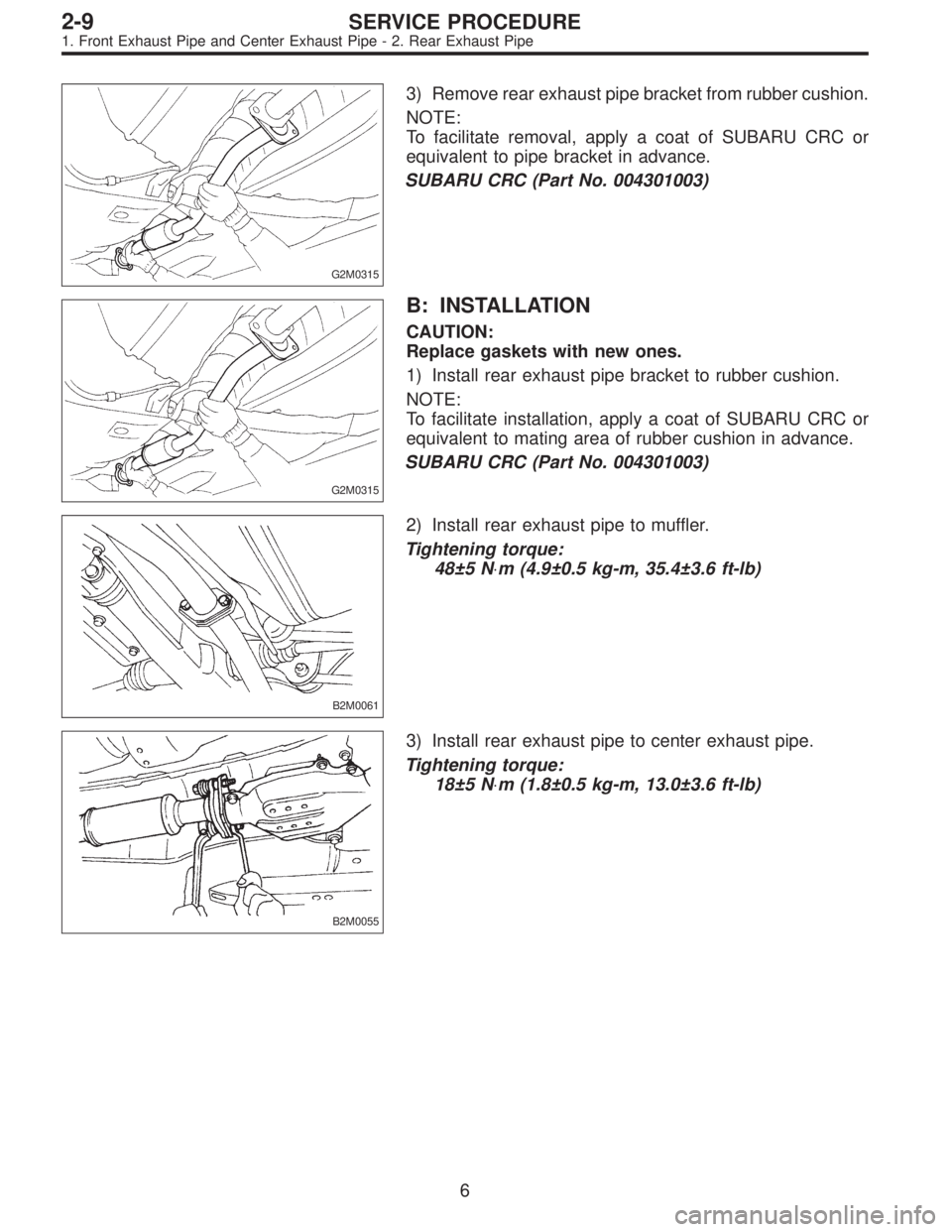

SUBARU LEGACY 1995 Service Repair Manual G2M0315 3) Remove rear exhaust pipe bracket from rubber cushion. NOTE: To facilitate removal, apply a coat of SUBARU CRC or equivalent to pipe bracket in advance. SUBARU CRC (Part No. 004301003) G2M03

Page 220 of 2248

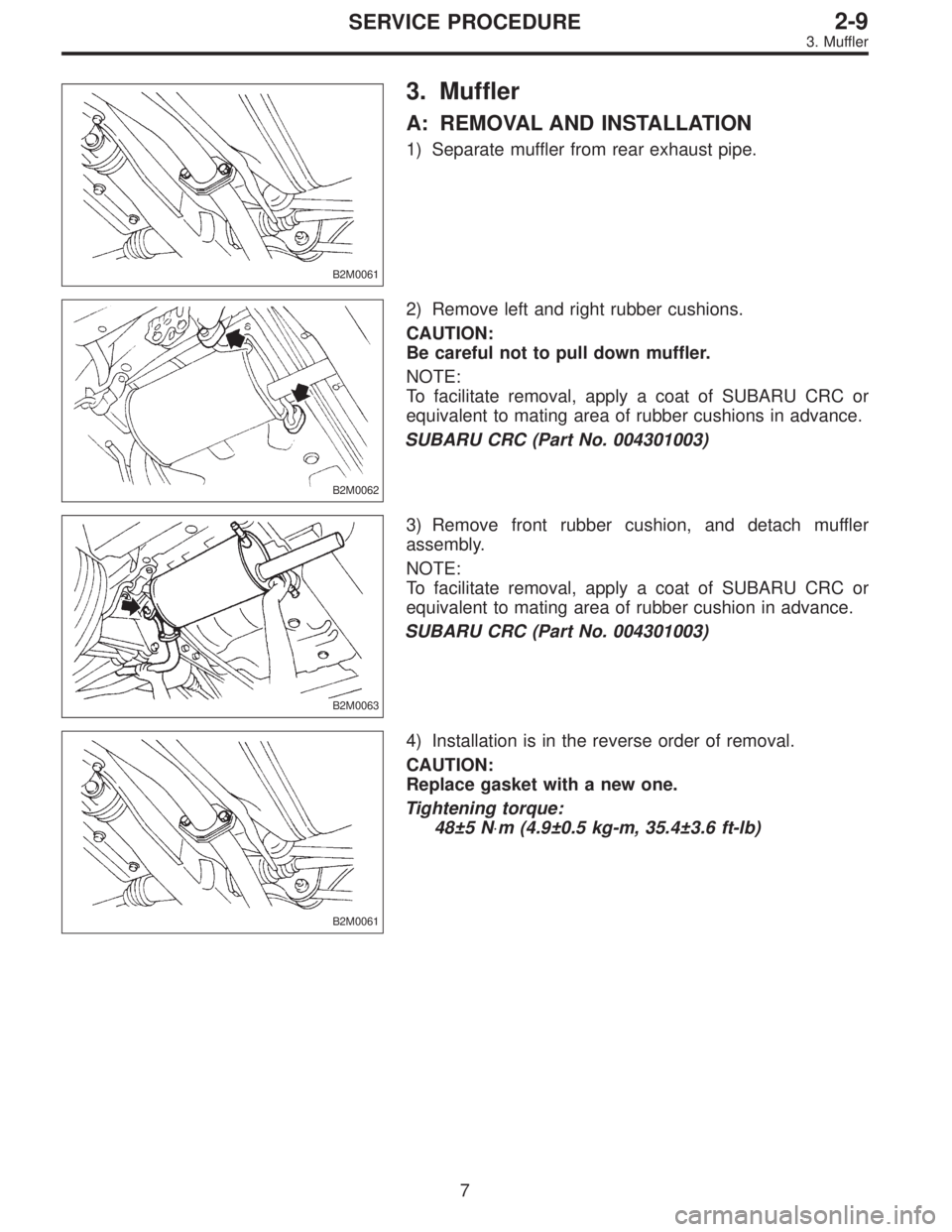

SUBARU LEGACY 1995 Service Repair Manual B2M0061 3. Muffler A: REMOVAL AND INSTALLATION 1) Separate muffler from rear exhaust pipe. B2M0062 2) Remove left and right rubber cushions. CAUTION: Be careful not to pull down muffler. NOTE: To faci

Page 221 of 2248

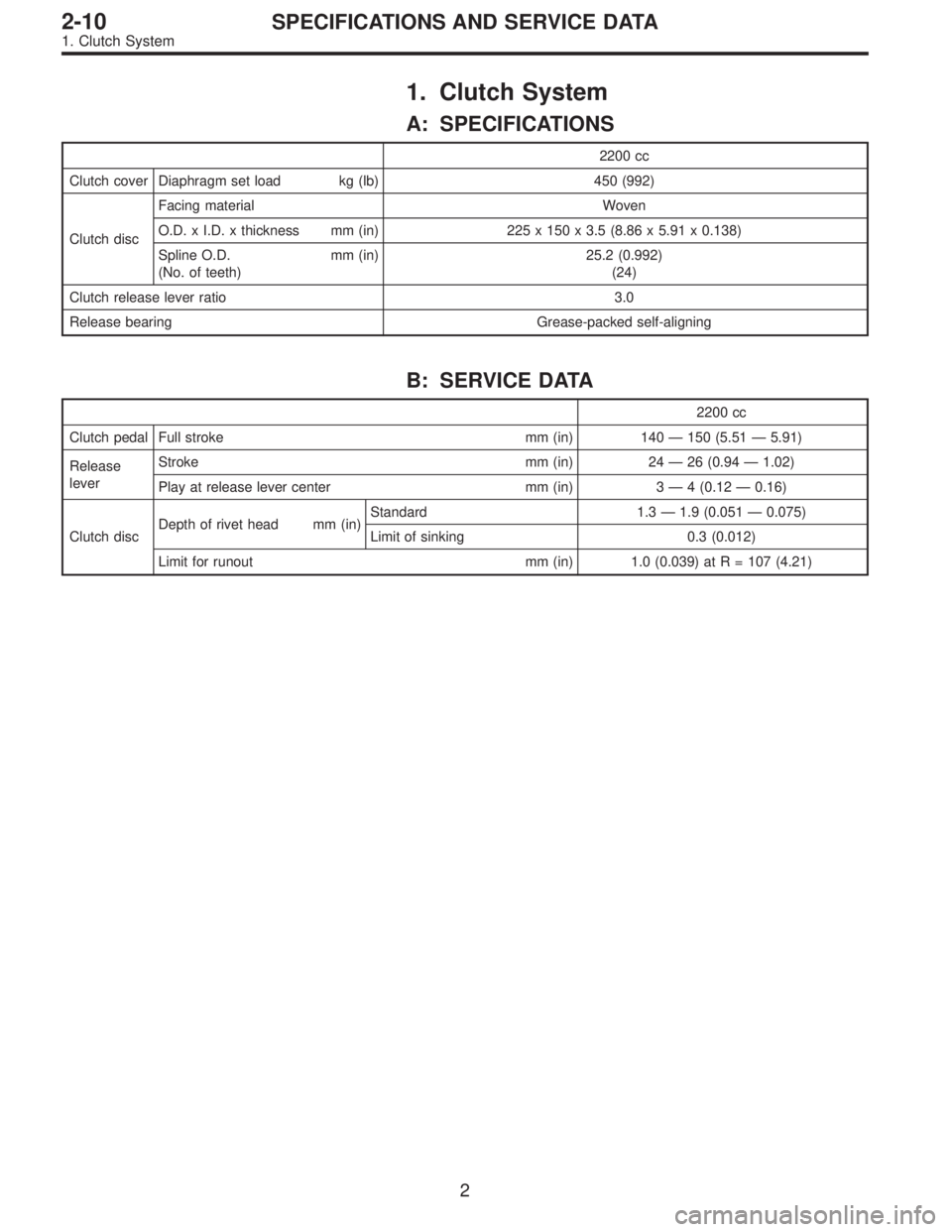

SUBARU LEGACY 1995 Service Repair Manual 1. Clutch System A: SPECIFICATIONS 2200 cc Clutch cover Diaphragm set load kg (lb) 450 (992) Clutch discFacing material Woven O.D. x I.D. x thickness mm (in) 225 x 150 x 3.5 (8.86 x 5.91 x 0.138) Spli

Page 222 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Clutch System B2M0632A 1Clutch cable bracket  2Clutch release lever sealing  3Retainer spring  4Pivot  5Clutch release lever  6Clip  7Clutch release bearing  8Clutch cover 9Clutch disc  1

Page 223 of 2248

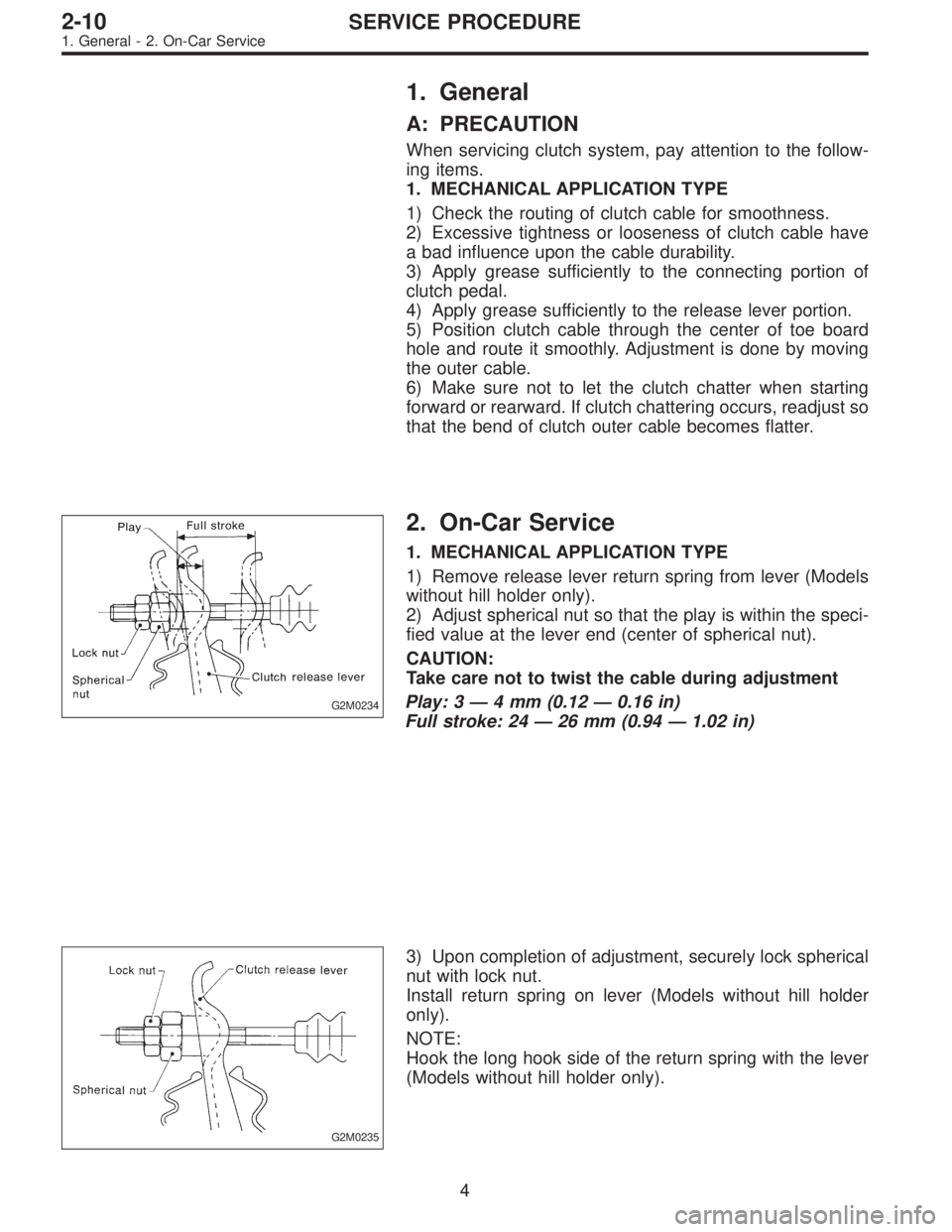

SUBARU LEGACY 1995 Service Repair Manual 1. General A: PRECAUTION When servicing clutch system, pay attention to the follow- ing items. 1. MECHANICAL APPLICATION TYPE 1) Check the routing of clutch cable for smoothness. 2) Excessive tightnes

Page 224 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. General A: PRECAUTION When servicing clutch system, pay attention to the follow- ing items. 1. MECHANICAL APPLICATION TYPE 1) Check the routing of clutch cable for smoothness. 2) Excessive tightnes
