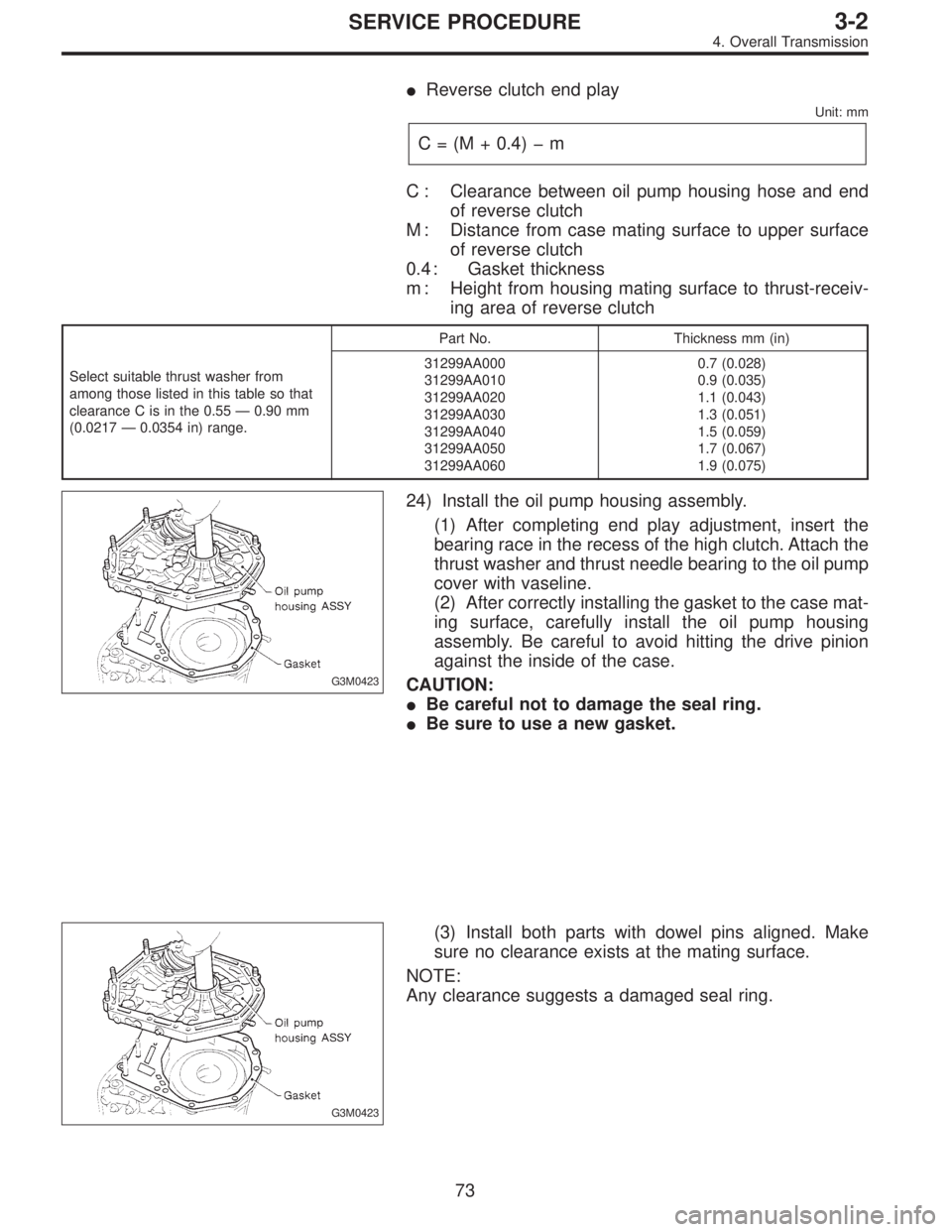

Page 417 of 2248

SUBARU LEGACY 1995 Service Repair Manual Reverse clutch end play Unit: mm C = (M + 0.4)�m C : Clearance between oil pump housing hose and end of reverse clutch M : Distance from case mating surface to upper surface of reverse clutch 0.4 : G

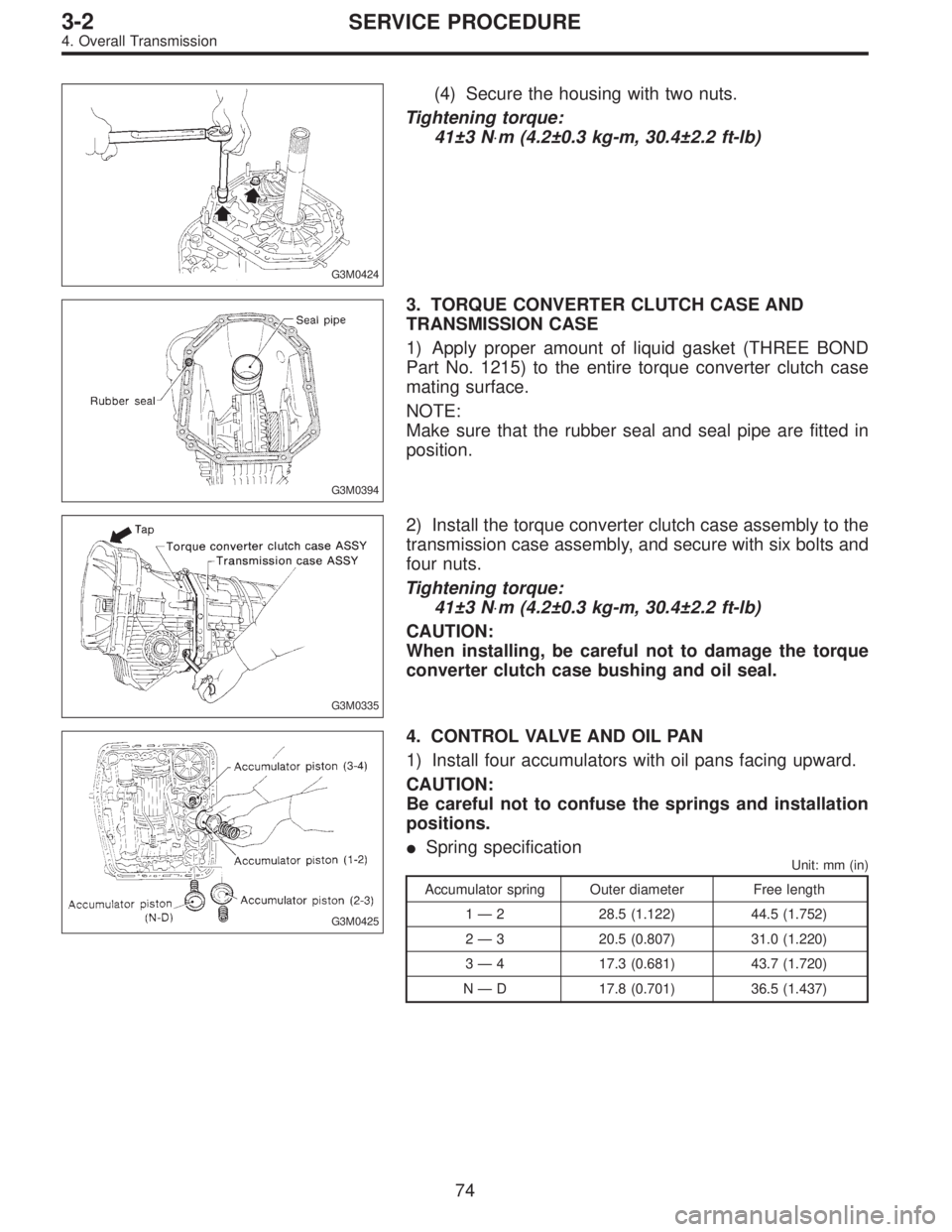

Page 418 of 2248

SUBARU LEGACY 1995 Service Repair Manual G3M0424 (4) Secure the housing with two nuts. Tightening torque: 41±3 N⋅m (4.2±0.3 kg-m, 30.4±2.2 ft-lb) G3M0394 3. TORQUE CONVERTER CLUTCH CASE AND TRANSMISSION CASE 1) Apply proper amount of li

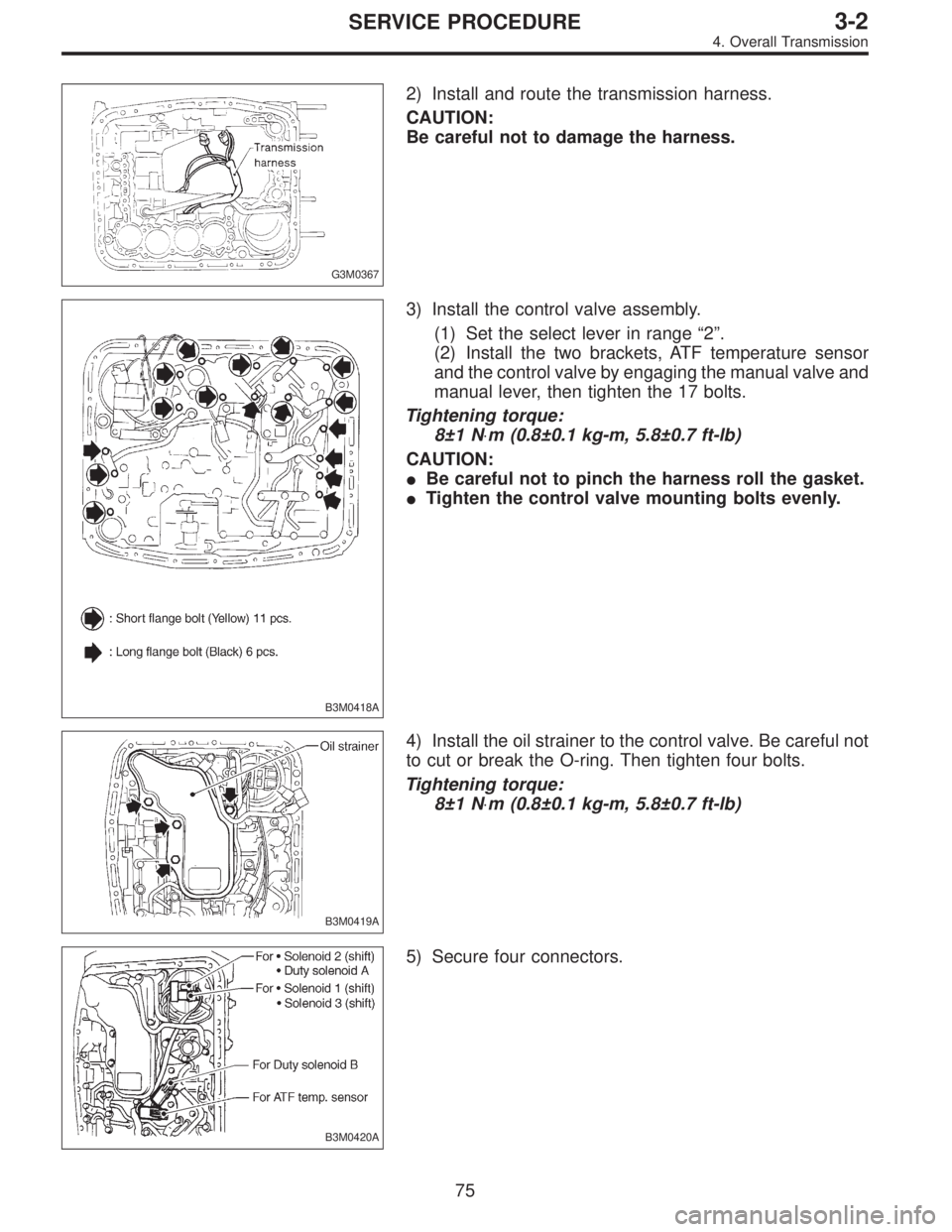

Page 419 of 2248

SUBARU LEGACY 1995 Service Repair Manual G3M0367 2) Install and route the transmission harness. CAUTION: Be careful not to damage the harness. B3M0418A 3) Install the control valve assembly. (1) Set the select lever in range“2”. (2) Inst

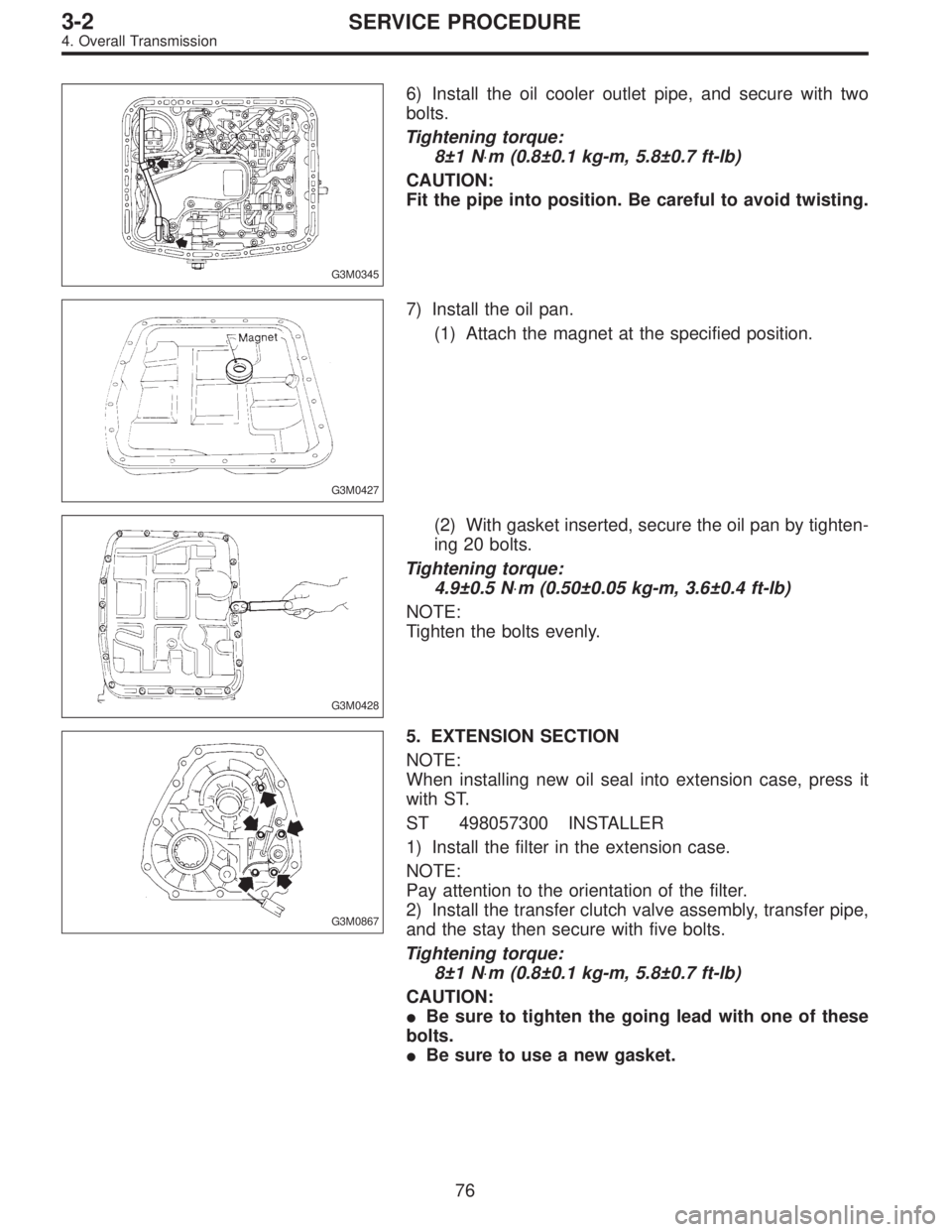

Page 420 of 2248

SUBARU LEGACY 1995 Service Repair Manual G3M0345 6) Install the oil cooler outlet pipe, and secure with two bolts. Tightening torque: 8±1 N⋅m (0.8±0.1 kg-m, 5.8±0.7 ft-lb) CAUTION: Fit the pipe into position. Be careful to avoid twistin

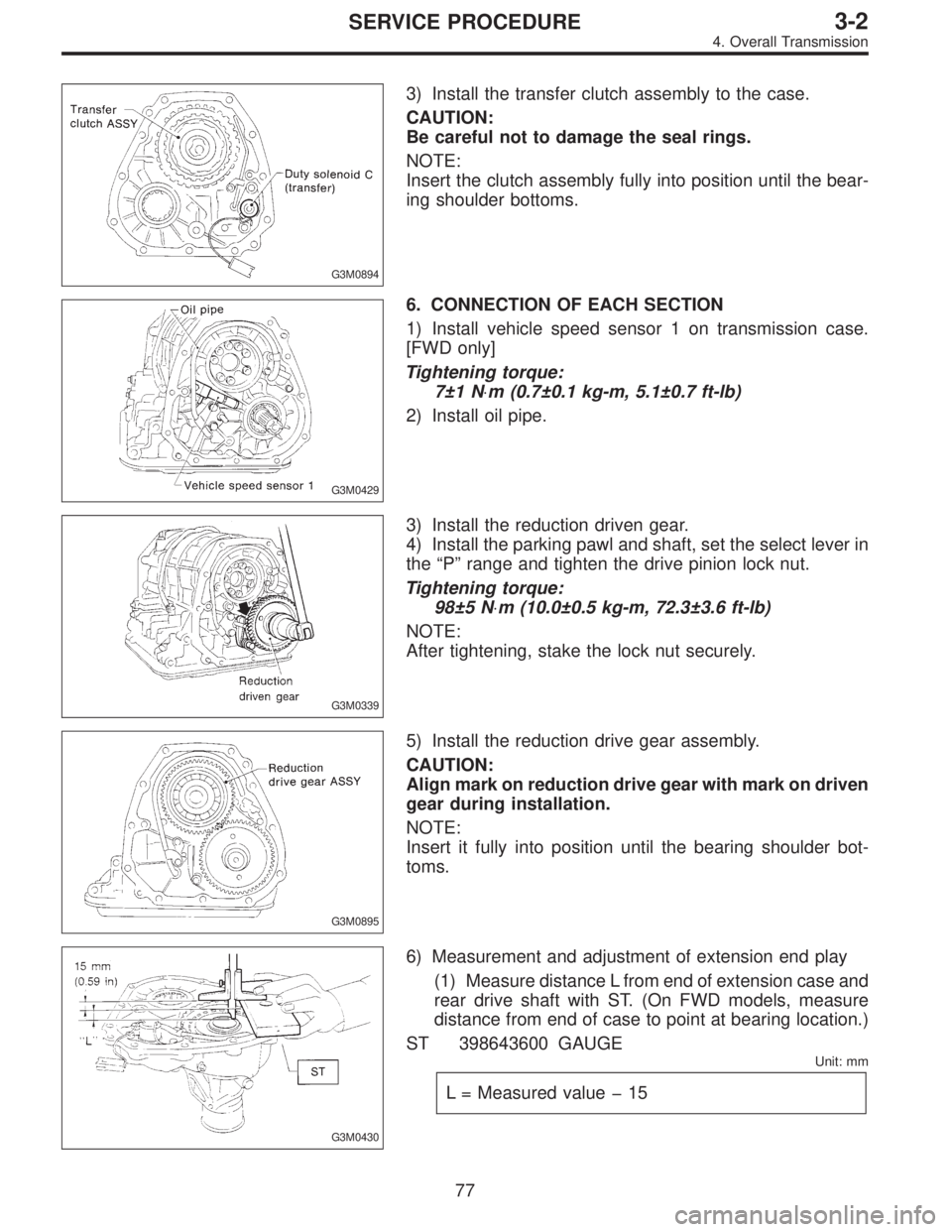

Page 421 of 2248

SUBARU LEGACY 1995 Service Repair Manual G3M0894 3) Install the transfer clutch assembly to the case. CAUTION: Be careful not to damage the seal rings. NOTE: Insert the clutch assembly fully into position until the bear- ing shoulder bottoms

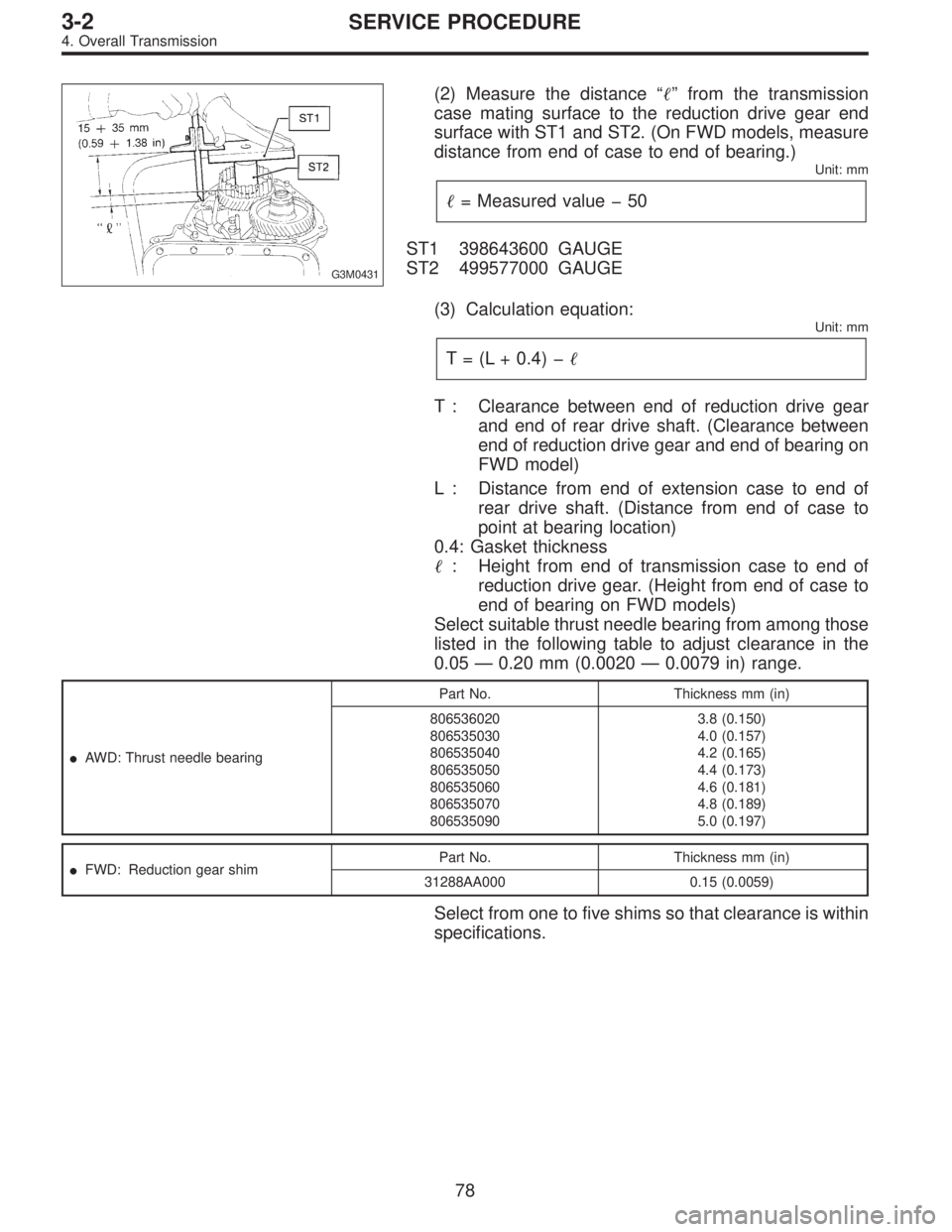

Page 422 of 2248

SUBARU LEGACY 1995 Service Repair Manual G3M0431 (2) Measure the distance“”from the transmission case mating surface to the reduction drive gear end surface with ST1 and ST2. (On FWD models, measure distance from end of case to end of b

Page 423 of 2248

SUBARU LEGACY 1995 Service Repair Manual G3M0896 7) Installation of extension case (AWD), transmission cover (FWD) and transmission case. AWD model: (1) Attach the selected thrust needle bearing to the end surface of reduction drive gear wi

Page 424 of 2248

SUBARU LEGACY 1995 Service Repair Manual G3M0434 2) Installation and adjustment of inhibitor switch (1) Install the inhibitor switch to the transmission case. Fit the projecting portion of the switch in the recessed portion of the case, and
