Page 1825 of 2248

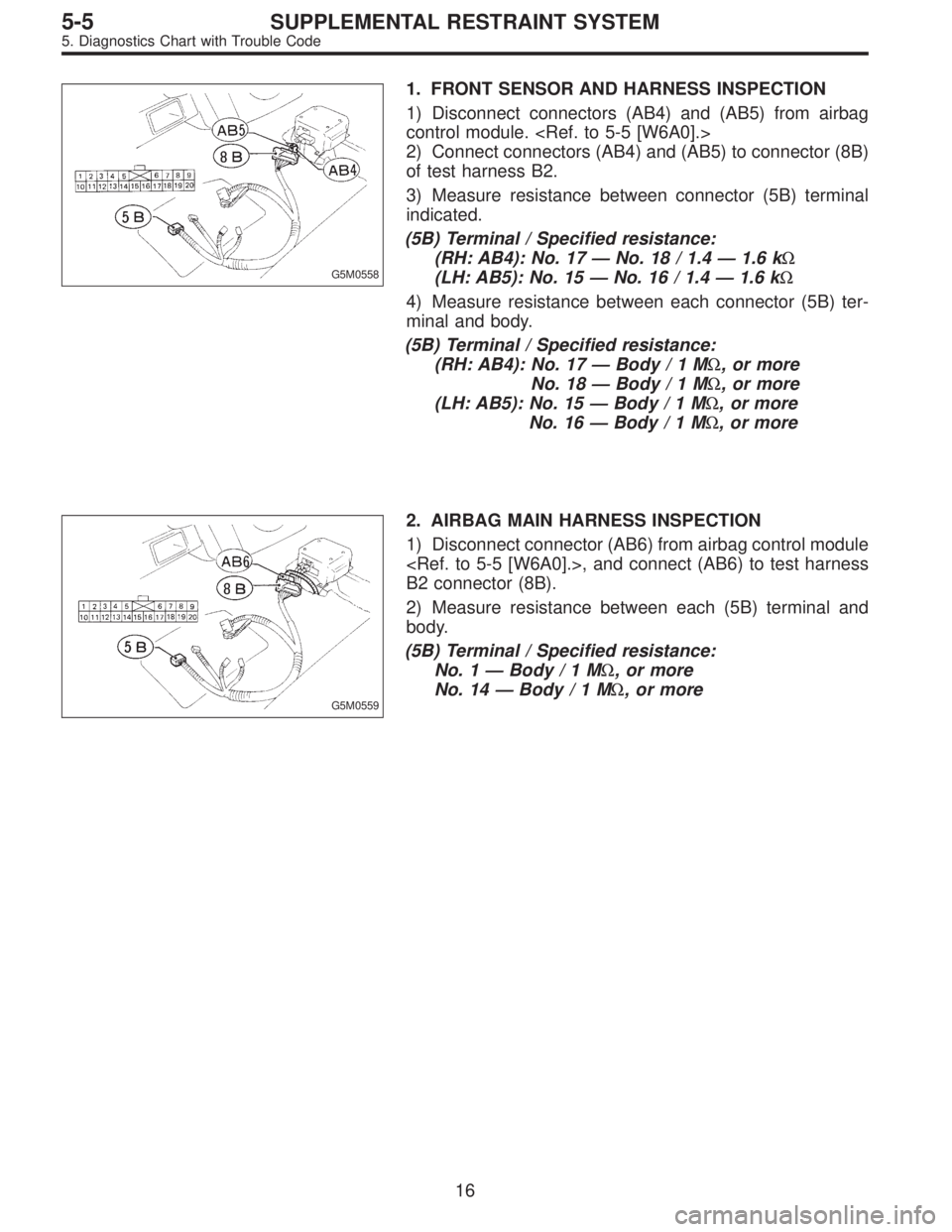

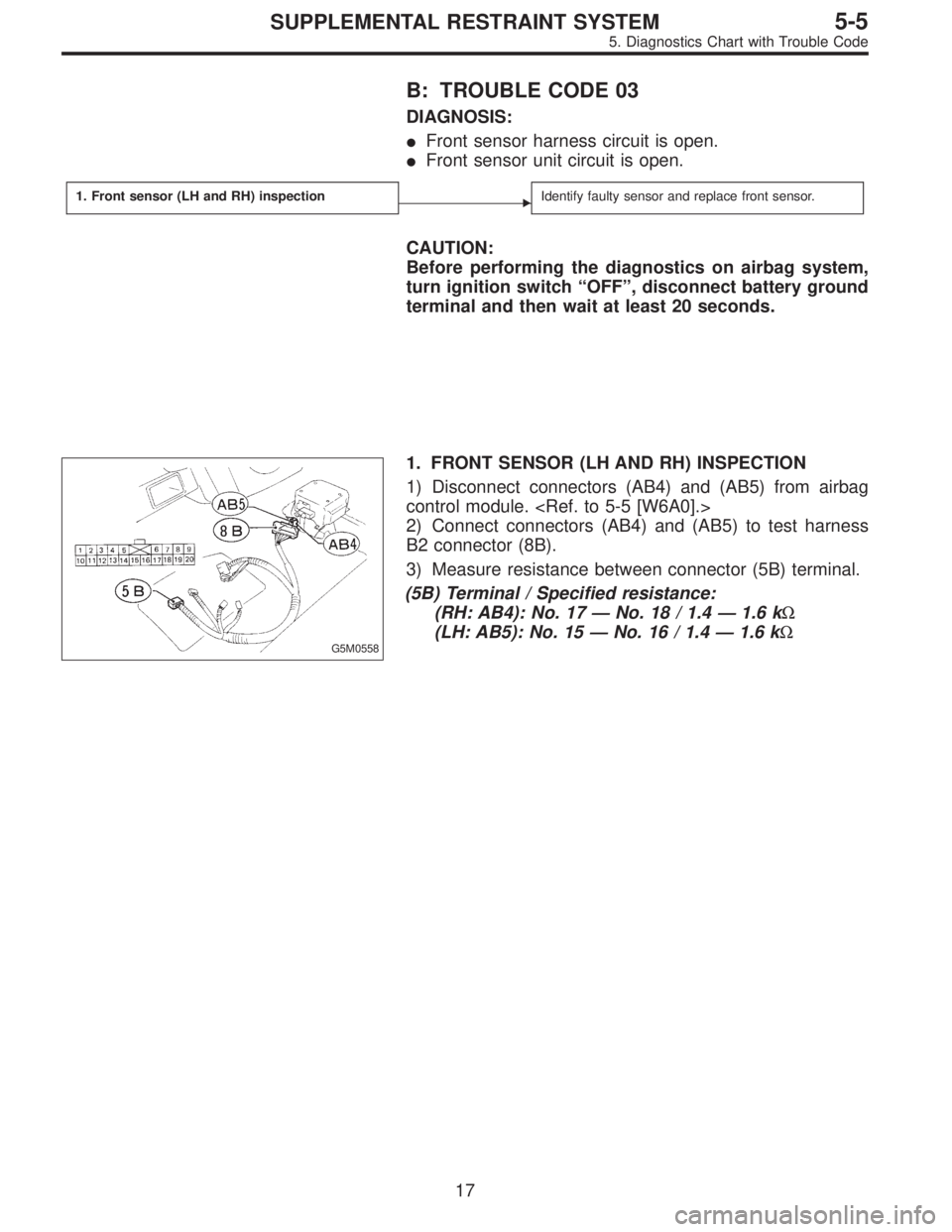

SUBARU LEGACY 1995 Service Repair Manual G5M0558 1. FRONT SENSOR AND HARNESS INSPECTION 1) Disconnect connectors (AB4) and (AB5) from airbag control module. <Ref. to 5-5 [W6A0].> 2) Connect connectors (AB4) and (AB5) to connector (8B) of tes

Page 1826 of 2248

SUBARU LEGACY 1995 Service Repair Manual B: TROUBLE CODE 03 DIAGNOSIS: Front sensor harness circuit is open. Front sensor unit circuit is open. 1. Front sensor (LH and RH) inspectionIdentify faulty sensor and replace front sensor. CAUTION

Page 1827 of 2248

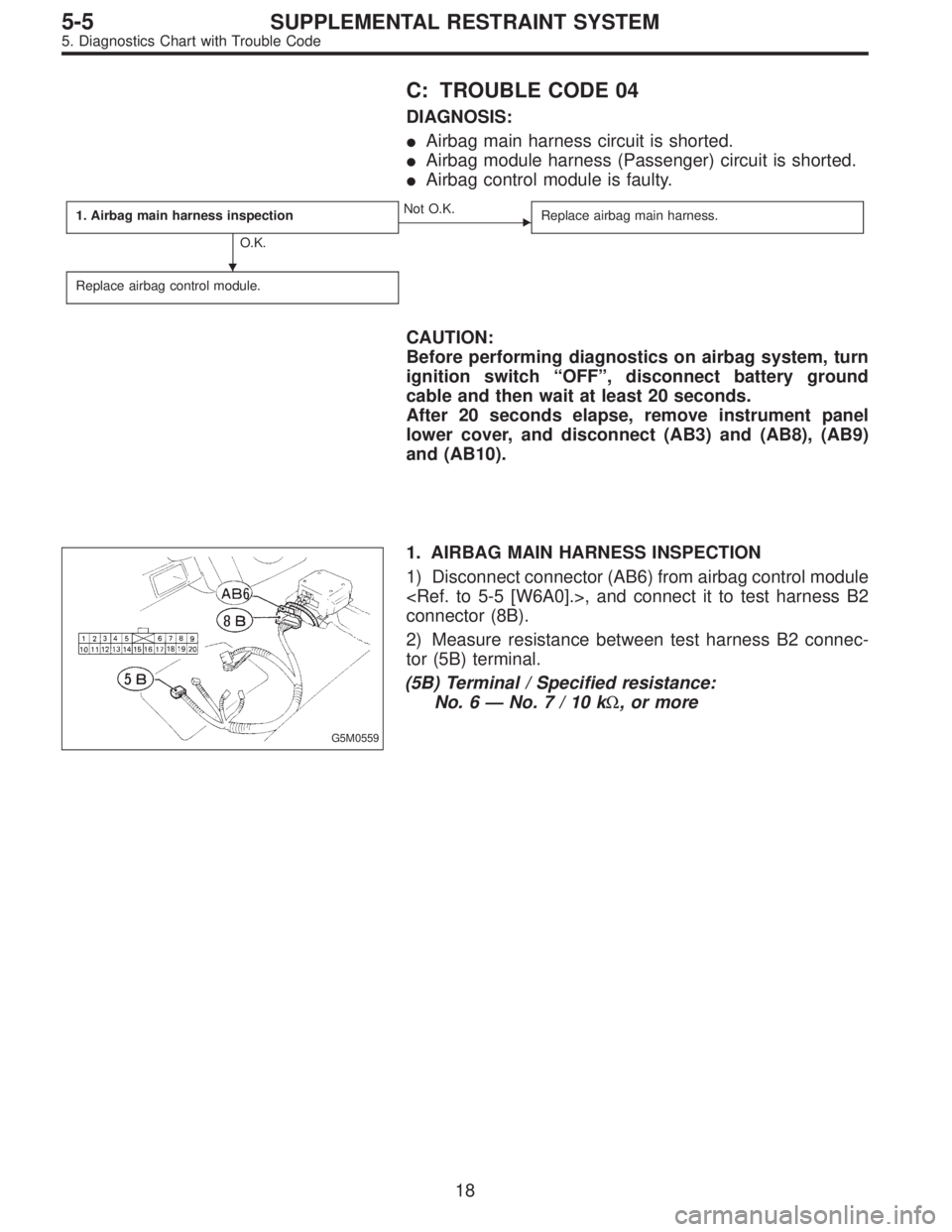

SUBARU LEGACY 1995 Service Repair Manual C: TROUBLE CODE 04 DIAGNOSIS: Airbag main harness circuit is shorted. Airbag module harness (Passenger) circuit is shorted. Airbag control module is faulty. 1. Airbag main harness inspection O.K.

Page 1828 of 2248

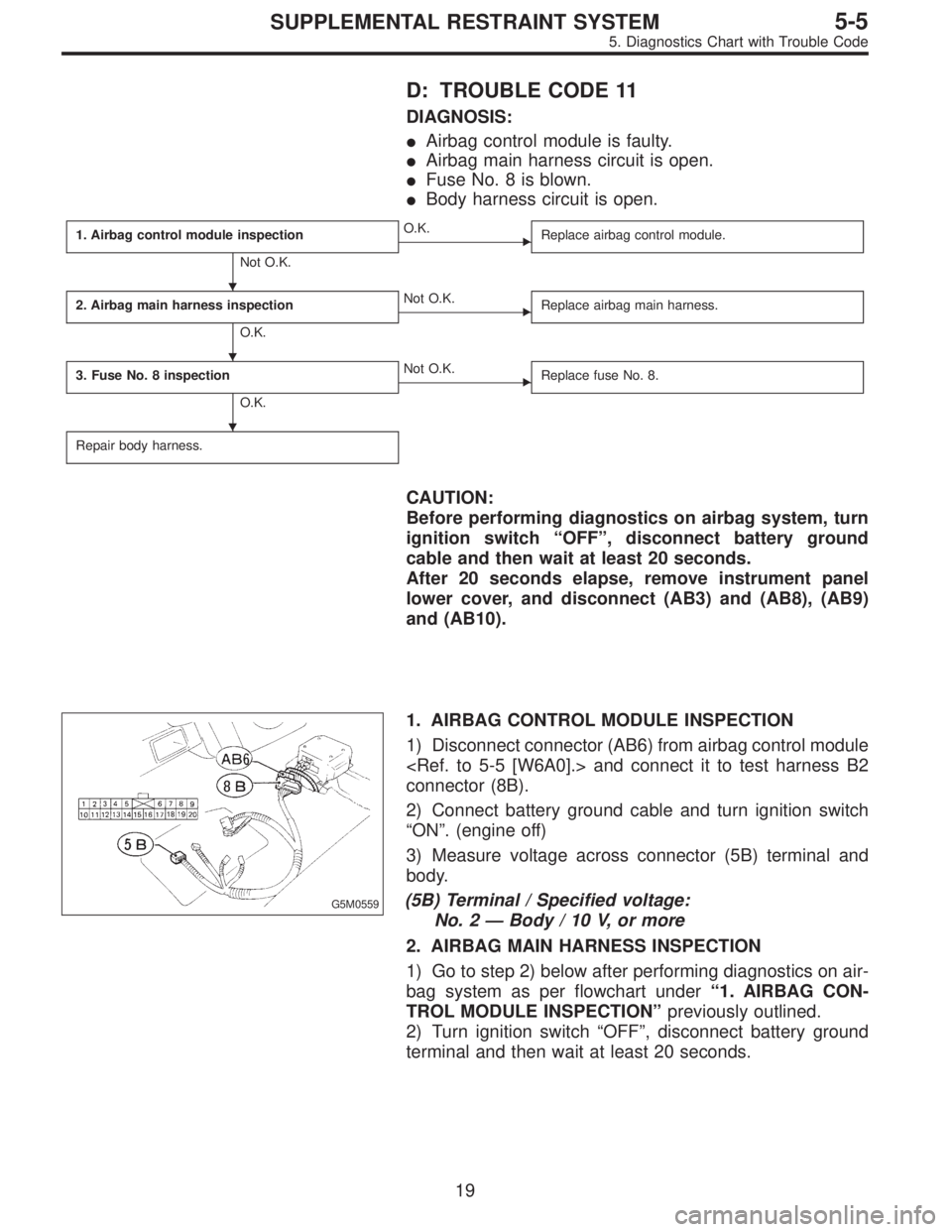

SUBARU LEGACY 1995 Service Repair Manual D: TROUBLE CODE 11 DIAGNOSIS: Airbag control module is faulty. Airbag main harness circuit is open. Fuse No. 8 is blown. Body harness circuit is open. 1. Airbag control module inspection Not O.K.

Page 1829 of 2248

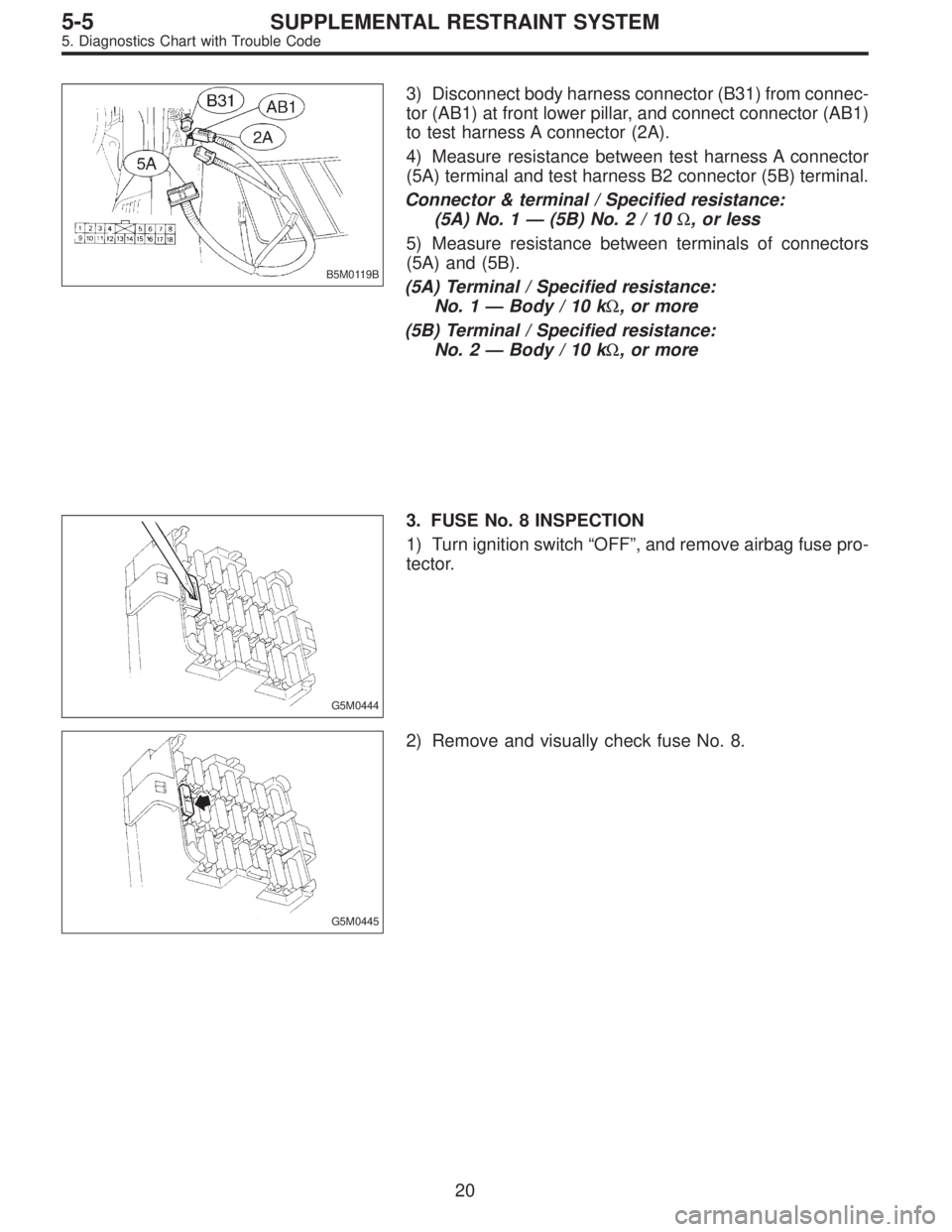

SUBARU LEGACY 1995 Service Repair Manual B5M0119B 3) Disconnect body harness connector (B31) from connec- tor (AB1) at front lower pillar, and connect connector (AB1) to test harness A connector (2A). 4) Measure resistance between test harne

Page 1830 of 2248

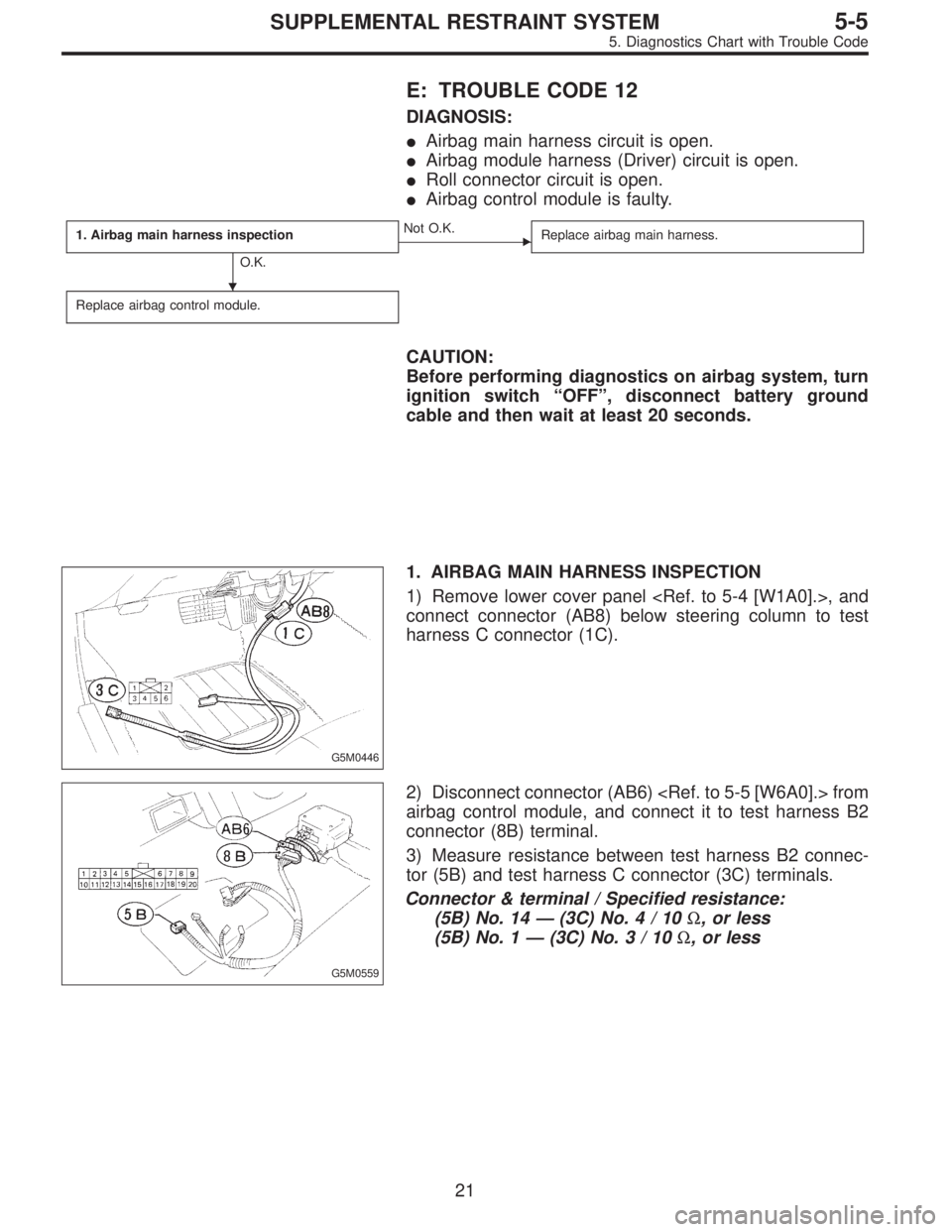

SUBARU LEGACY 1995 Service Repair Manual E: TROUBLE CODE 12 DIAGNOSIS: Airbag main harness circuit is open. Airbag module harness (Driver) circuit is open. Roll connector circuit is open. Airbag control module is faulty. 1. Airbag main h

Page 1831 of 2248

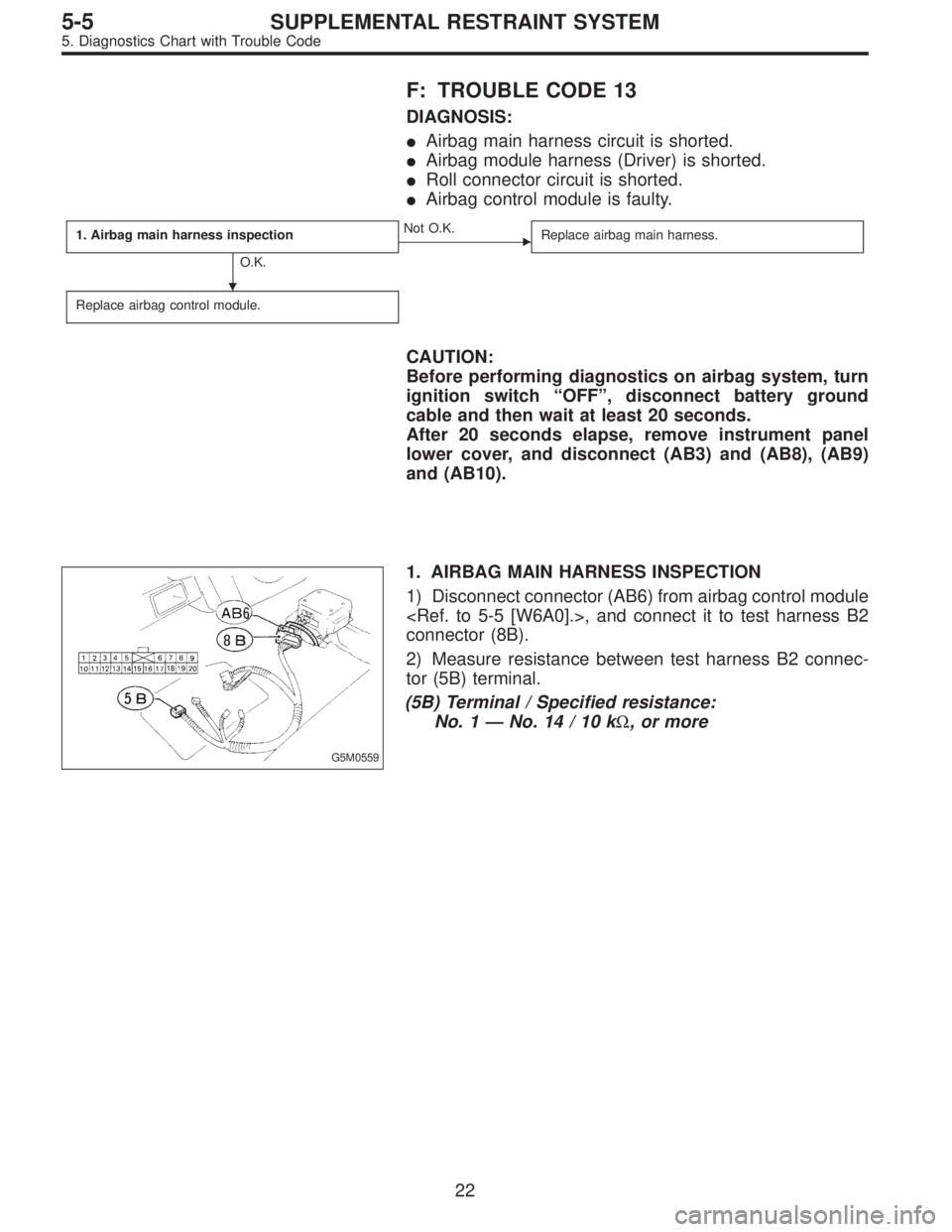

SUBARU LEGACY 1995 Service Repair Manual F: TROUBLE CODE 13 DIAGNOSIS: Airbag main harness circuit is shorted. Airbag module harness (Driver) is shorted. Roll connector circuit is shorted. Airbag control module is faulty. 1. Airbag main

Page 1832 of 2248

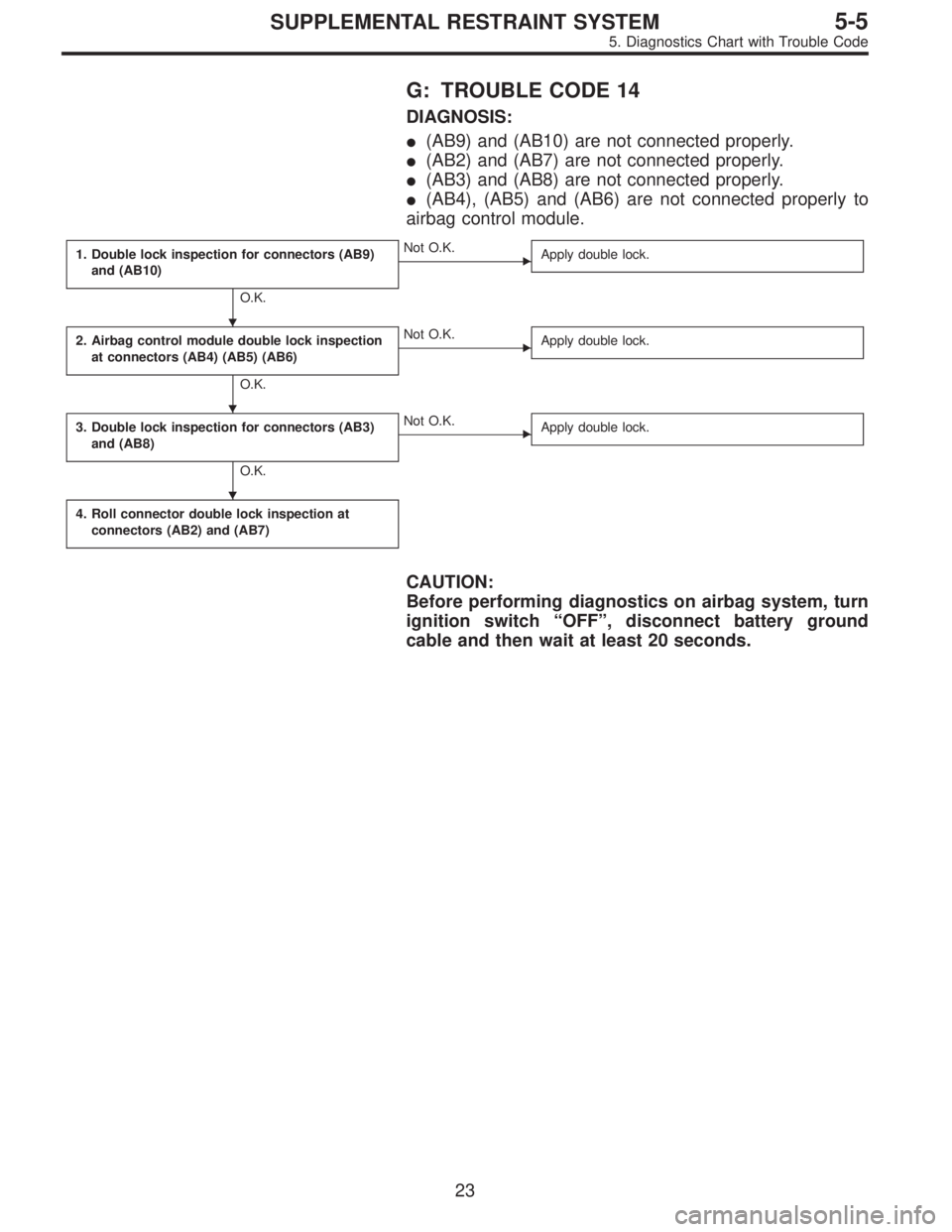

SUBARU LEGACY 1995 Service Repair Manual G: TROUBLE CODE 14 DIAGNOSIS: (AB9) and (AB10) are not connected properly. (AB2) and (AB7) are not connected properly. (AB3) and (AB8) are not connected properly. (AB4), (AB5) and (AB6) are not co
