Page 1113 of 2248
B6M0059A

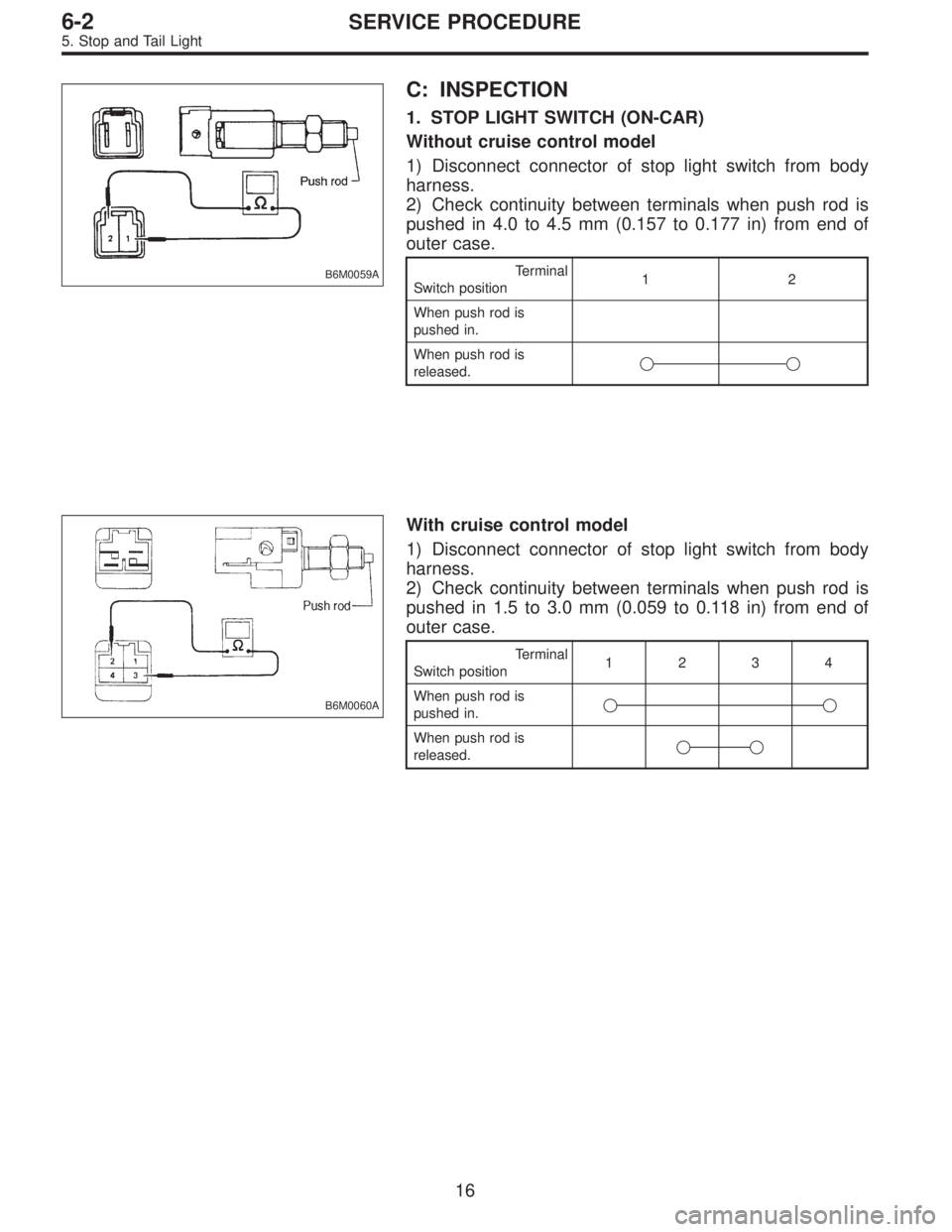

C: INSPECTION
1. STOP LIGHT SWITCH (ON-CAR)
Without cruise control model
1) Disconnect connector of stop light switch from body
harness.
2) Check continuity between terminals when push rod is
pushed in 4.0 to 4.5 mm (0.157 to 0.177 in) from end of
outer case.
Terminal
Switch position12
When push rod is
pushed in.
When push rod is
released.
B6M0060A
With cruise control model
1) Disconnect connector of stop light switch from body
harness.
2) Check continuity between terminals when push rod is
pushed in 1.5 to 3.0 mm (0.059 to 0.118 in) from end of
outer case.
Terminal
Switch position1234
When push rod is
pushed in.
When push rod is
released.
16
6-2SERVICE PROCEDURE
5. Stop and Tail Light
Page 1114 of 2248
B6M0342
With TCS model
1) Disconnect connector of stop light switch from body
harness.
2) Check continuity between terminals when push rod is
pushed in 1.2 to 3.2 mm (0.047 to 0.126 in) from end of
outer case.
Terminal
Switch position1234
When push rod is
pushed in.
When push rod is
released.
2. COMBINATION SWITCH (ON-CAR)
Refer to 6-2 [W4D1] as for inspection of combination
switch.
G6M0112
3. TAIL AND ILLUMINATION RELAY
Check continuity between terminals as indicated in table
below, when connecting battery to terminal No. 1 and No. 3
When current flows.Between terminals
No. 2 and No. 4Continuity exists.
When current does not flow.Between terminals
No. 2 and No. 4Continuity does not
exist.
Between terminals
No. 1 and No. 3Continuity exists.
17
6-2SERVICE PROCEDURE
5. Stop and Tail Light
Page 1115 of 2248

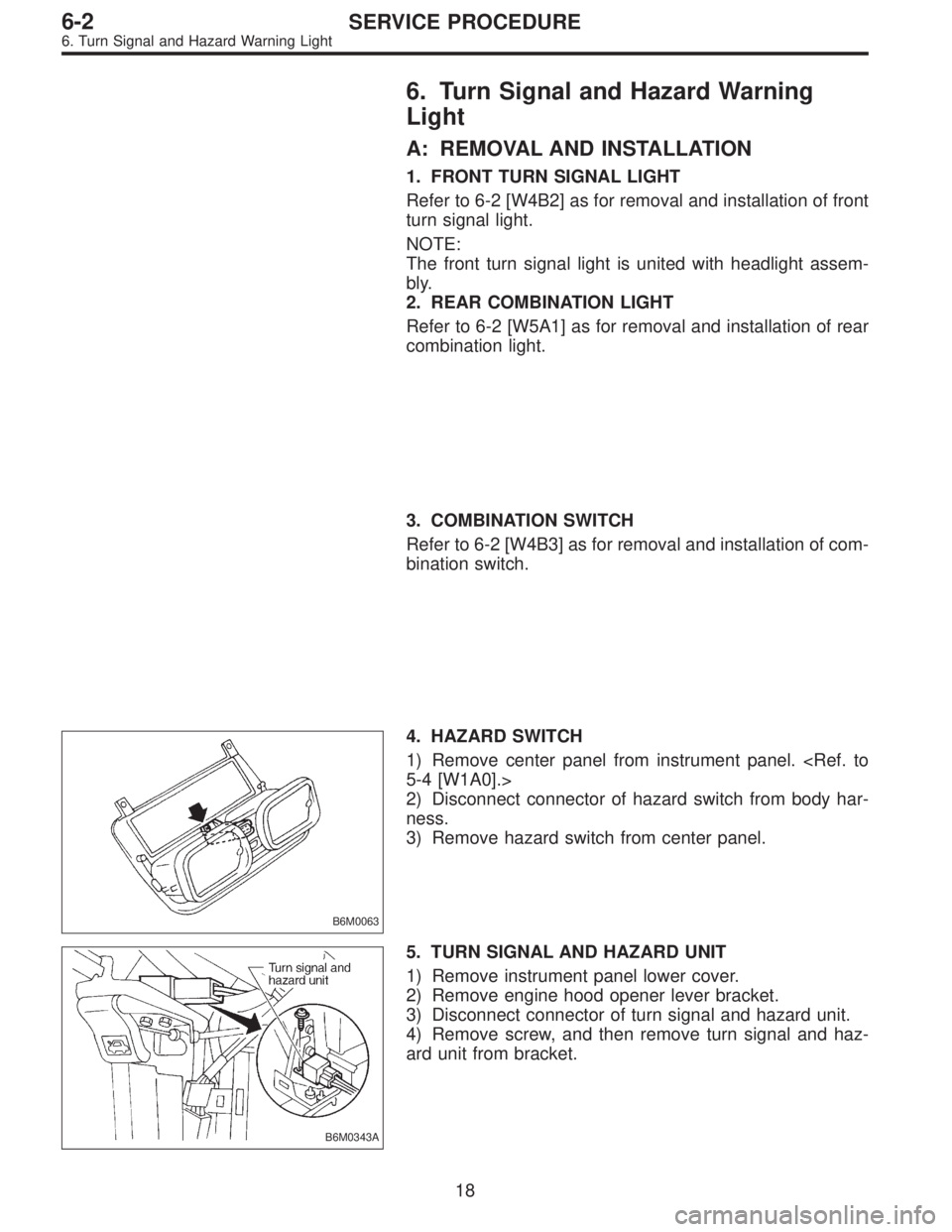

6. Turn Signal and Hazard Warning
Light
A: REMOVAL AND INSTALLATION
1. FRONT TURN SIGNAL LIGHT
Refer to 6-2 [W4B2] as for removal and installation of front
turn signal light.
NOTE:
The front turn signal light is united with headlight assem-
bly.
2. REAR COMBINATION LIGHT
Refer to 6-2 [W5A1] as for removal and installation of rear
combination light.
3. COMBINATION SWITCH
Refer to 6-2 [W4B3] as for removal and installation of com-
bination switch.
B6M0063
4. HAZARD SWITCH
1) Remove center panel from instrument panel.
5-4 [W1A0].>
2) Disconnect connector of hazard switch from body har-
ness.
3) Remove hazard switch from center panel.
B6M0343A
5. TURN SIGNAL AND HAZARD UNIT
1) Remove instrument panel lower cover.
2) Remove engine hood opener lever bracket.
3) Disconnect connector of turn signal and hazard unit.
4) Remove screw, and then remove turn signal and haz-
ard unit from bracket.
18
6-2SERVICE PROCEDURE
6. Turn Signal and Hazard Warning Light
Page 1116 of 2248

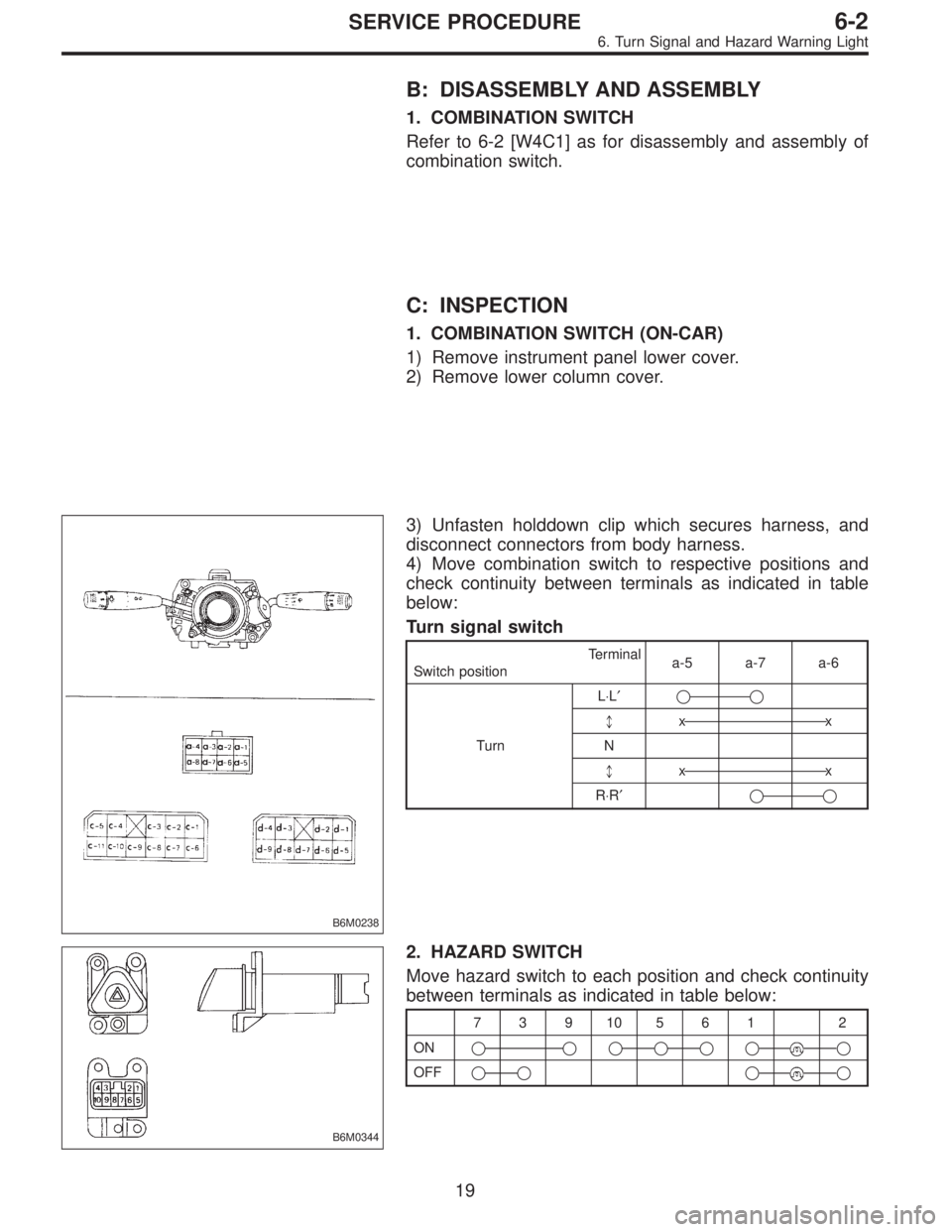

B: DISASSEMBLY AND ASSEMBLY
1. COMBINATION SWITCH
Refer to 6-2 [W4C1] as for disassembly and assembly of
combination switch.
C: INSPECTION
1. COMBINATION SWITCH (ON-CAR)
1) Remove instrument panel lower cover.
2) Remove lower column cover.
B6M0238
3) Unfasten holddown clip which secures harness, and
disconnect connectors from body harness.
4) Move combination switch to respective positions and
check continuity between terminals as indicated in table
below:
Turn signal switch
Terminal
Switch positiona-5 a-7 a-6
TurnL⋅L′
*xx
N
*xx
R⋅R′
B6M0344
2. HAZARD SWITCH
Move hazard switch to each position and check continuity
between terminals as indicated in table below:
73910561 2
ON
OFF
19
6-2SERVICE PROCEDURE
6. Turn Signal and Hazard Warning Light
Page 1117 of 2248
![SUBARU LEGACY 1995 Service Repair Manual 7. Back-up Light
A: REMOVAL AND INSTALLATION
1. BACK-UP LIGHT
Refer to 6-2 [W5A2] as for removal and installation of rear
finisher.
2. BACK-UP LIGHT SWITCH (MT MODEL)
Refer to 3-1 [W2B1 (AWD) or W3A0 SUBARU LEGACY 1995 Service Repair Manual 7. Back-up Light
A: REMOVAL AND INSTALLATION
1. BACK-UP LIGHT
Refer to 6-2 [W5A2] as for removal and installation of rear
finisher.
2. BACK-UP LIGHT SWITCH (MT MODEL)
Refer to 3-1 [W2B1 (AWD) or W3A0](/manual-img/17/57432/w960_57432-1116.png)

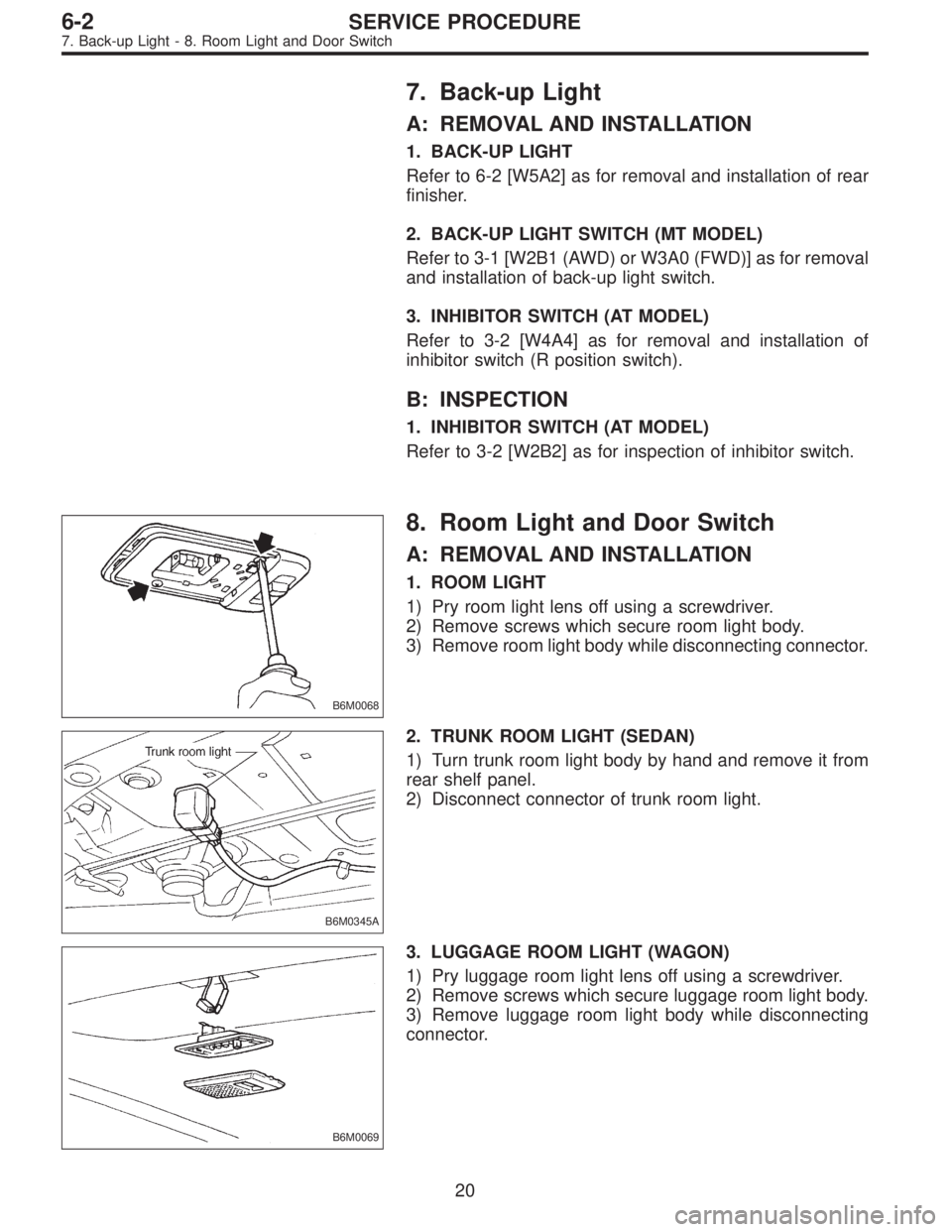

7. Back-up Light
A: REMOVAL AND INSTALLATION
1. BACK-UP LIGHT
Refer to 6-2 [W5A2] as for removal and installation of rear
finisher.
2. BACK-UP LIGHT SWITCH (MT MODEL)
Refer to 3-1 [W2B1 (AWD) or W3A0 (FWD)] as for removal
and installation of back-up light switch.
3. INHIBITOR SWITCH (AT MODEL)
Refer to 3-2 [W4A4] as for removal and installation of
inhibitor switch (R position switch).
B: INSPECTION
1. INHIBITOR SWITCH (AT MODEL)
Refer to 3-2 [W2B2] as for inspection of inhibitor switch.
B6M0068
8. Room Light and Door Switch
A: REMOVAL AND INSTALLATION
1. ROOM LIGHT
1) Pry room light lens off using a screwdriver.
2) Remove screws which secure room light body.
3) Remove room light body while disconnecting connector.
B6M0345A
2. TRUNK ROOM LIGHT (SEDAN)
1) Turn trunk room light body by hand and remove it from
rear shelf panel.
2) Disconnect connector of trunk room light.
B6M0069
3. LUGGAGE ROOM LIGHT (WAGON)
1) Pry luggage room light lens off using a screwdriver.
2) Remove screws which secure luggage room light body.
3) Remove luggage room light body while disconnecting
connector.
20
6-2SERVICE PROCEDURE
7. Back-up Light - 8. Room Light and Door Switch
Page 1118 of 2248
![SUBARU LEGACY 1995 Service Repair Manual 7. Back-up Light
A: REMOVAL AND INSTALLATION
1. BACK-UP LIGHT
Refer to 6-2 [W5A2] as for removal and installation of rear
finisher.
2. BACK-UP LIGHT SWITCH (MT MODEL)
Refer to 3-1 [W2B1 (AWD) or W3A0 SUBARU LEGACY 1995 Service Repair Manual 7. Back-up Light
A: REMOVAL AND INSTALLATION
1. BACK-UP LIGHT
Refer to 6-2 [W5A2] as for removal and installation of rear
finisher.
2. BACK-UP LIGHT SWITCH (MT MODEL)
Refer to 3-1 [W2B1 (AWD) or W3A0](/manual-img/17/57432/w960_57432-1117.png)
7. Back-up Light
A: REMOVAL AND INSTALLATION
1. BACK-UP LIGHT
Refer to 6-2 [W5A2] as for removal and installation of rear
finisher.
2. BACK-UP LIGHT SWITCH (MT MODEL)
Refer to 3-1 [W2B1 (AWD) or W3A0 (FWD)] as for removal
and installation of back-up light switch.
3. INHIBITOR SWITCH (AT MODEL)
Refer to 3-2 [W4A4] as for removal and installation of
inhibitor switch (R position switch).
B: INSPECTION
1. INHIBITOR SWITCH (AT MODEL)
Refer to 3-2 [W2B2] as for inspection of inhibitor switch.
B6M0068
8. Room Light and Door Switch
A: REMOVAL AND INSTALLATION
1. ROOM LIGHT
1) Pry room light lens off using a screwdriver.
2) Remove screws which secure room light body.
3) Remove room light body while disconnecting connector.
B6M0345A
2. TRUNK ROOM LIGHT (SEDAN)
1) Turn trunk room light body by hand and remove it from
rear shelf panel.
2) Disconnect connector of trunk room light.
B6M0069
3. LUGGAGE ROOM LIGHT (WAGON)
1) Pry luggage room light lens off using a screwdriver.
2) Remove screws which secure luggage room light body.
3) Remove luggage room light body while disconnecting
connector.
20
6-2SERVICE PROCEDURE
7. Back-up Light - 8. Room Light and Door Switch
Page 1119 of 2248

B6M0070A

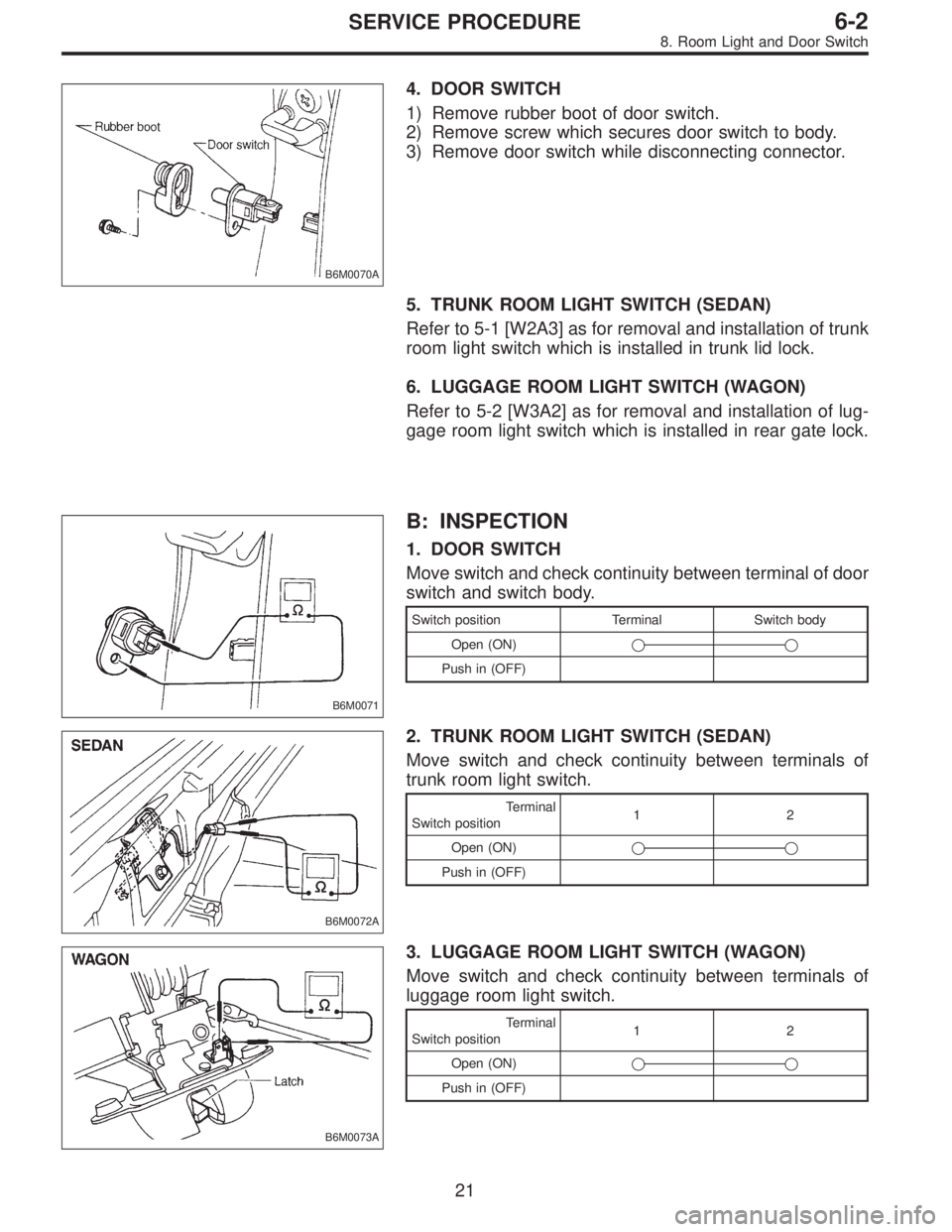

4. DOOR SWITCH
1) Remove rubber boot of door switch.
2) Remove screw which secures door switch to body.
3) Remove door switch while disconnecting connector.
5. TRUNK ROOM LIGHT SWITCH (SEDAN)
Refer to 5-1 [W2A3] as for removal and installation of trunk
room light switch which is installed in trunk lid lock.
6. LUGGAGE ROOM LIGHT SWITCH (WAGON)
Refer to 5-2 [W3A2] as for removal and installation of lug-
gage room light switch which is installed in rear gate lock.
B6M0071
B: INSPECTION
1. DOOR SWITCH
Move switch and check continuity between terminal of door
switch and switch body.
Switch position Terminal Switch body
Open (ON)
Push in (OFF)
B6M0072A
2. TRUNK ROOM LIGHT SWITCH (SEDAN)
Move switch and check continuity between terminals of
trunk room light switch.
Terminal
Switch position12
Open (ON)
Push in (OFF)
B6M0073A
3. LUGGAGE ROOM LIGHT SWITCH (WAGON)
Move switch and check continuity between terminals of
luggage room light switch.
Terminal
Switch position12
Open (ON)
Push in (OFF)
21
6-2SERVICE PROCEDURE
8. Room Light and Door Switch
Page 1120 of 2248
B6M0346
9. Spot Light
A: REMOVAL AND INSTALLATION
1. SPOT LIGHT AND SWITCH
1) Pry spot light lens off using a screwdriver.
2) Remove screws which secure spot light body.
3) Remove spot light body while disconnecting connec-
tor(s).
B6M0347
B: INSPECTION
1. SPOT LIGHT SWITCH
Move switch and check continuity between terminal of spot
light switch connector and steel plate as shown.
Switch position Connector terminal Plate
Open (OFF)
Push in (ON)
10. Front Wiper and Washer
A: ON-CAR SERVICES
1. ADJUSTMENT
1) Turn the wiper switch to OFF position.
2) Adjust blades in original position as shown in figure by
changing wiper arm installation.
G6M0115
Original position:
A: 25 — 30 mm (0.98 — 1.18 in)
B: 35 — 40 mm (1.38 — 1.57 in)
G6M0116
3) Stop the vehicle.
4) Adjust washer ejecting point on windshield glass as
shown in figure.
Ejecting point:
A: 375 mm (14.76 in)
B: 150 mm (5.91 in)
C: 380 mm (14.96 in)
22
6-2SERVICE PROCEDURE
9. Spot Light - 10. Front Wiper and Washer
