Page 273 of 2248

SUBARU LEGACY 1995 Service Repair Manual G2M0317
13) Install ATF level gauge guide, and ATF cooler hoses
onto pipe. (AT model)
G3M0023
14) Install propeller shaft. (AWD model)
(1) Install propeller shaft into transmission.
(2) Tighten bolts

Page 274 of 2248

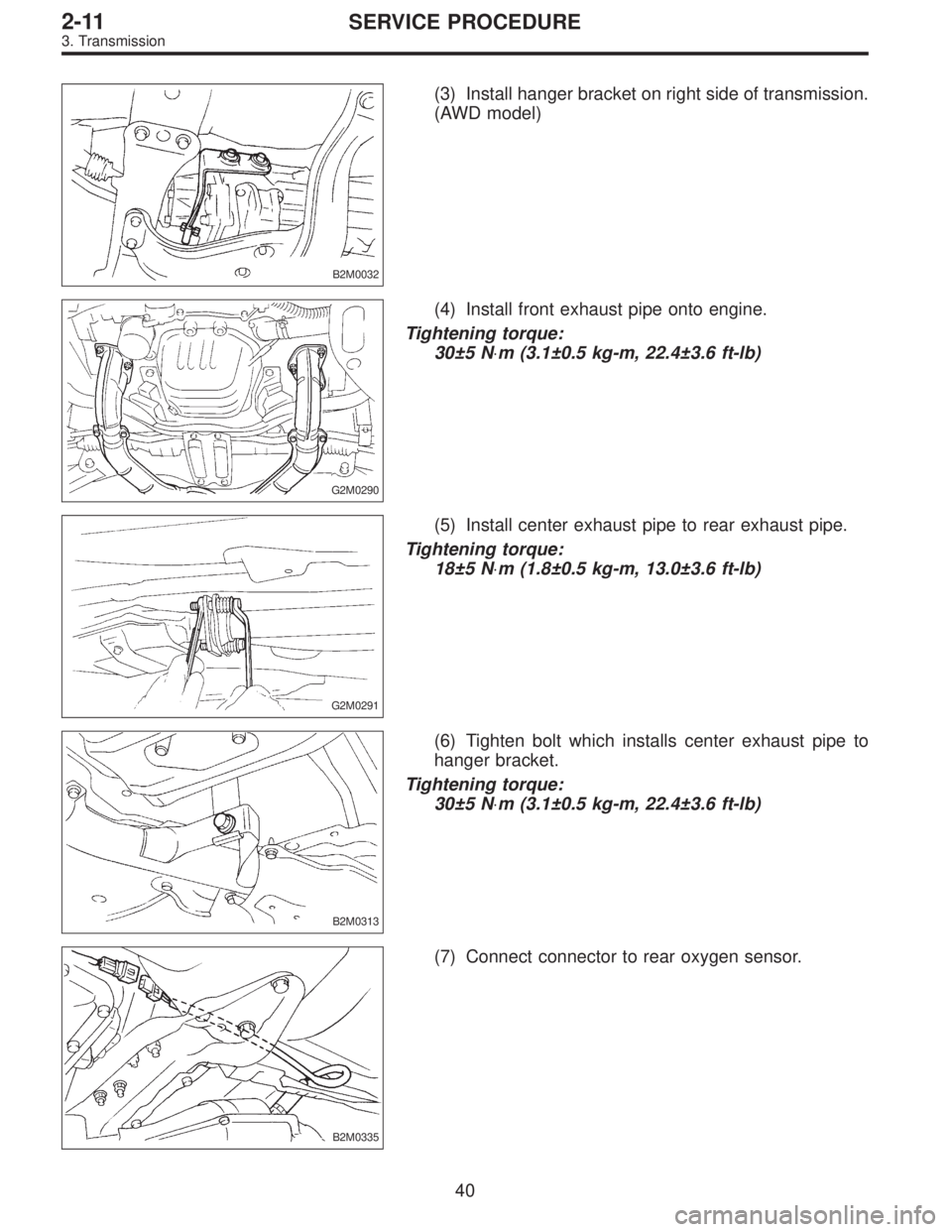

SUBARU LEGACY 1995 Service Repair Manual B2M0032
(3) Install hanger bracket on right side of transmission.
(AWD model)
G2M0290
(4) Install front exhaust pipe onto engine.
Tightening torque:
30±5 N⋅m (3.1±0.5 kg-m, 22.4±3.6 ft-lb)
G2M029

Page 275 of 2248

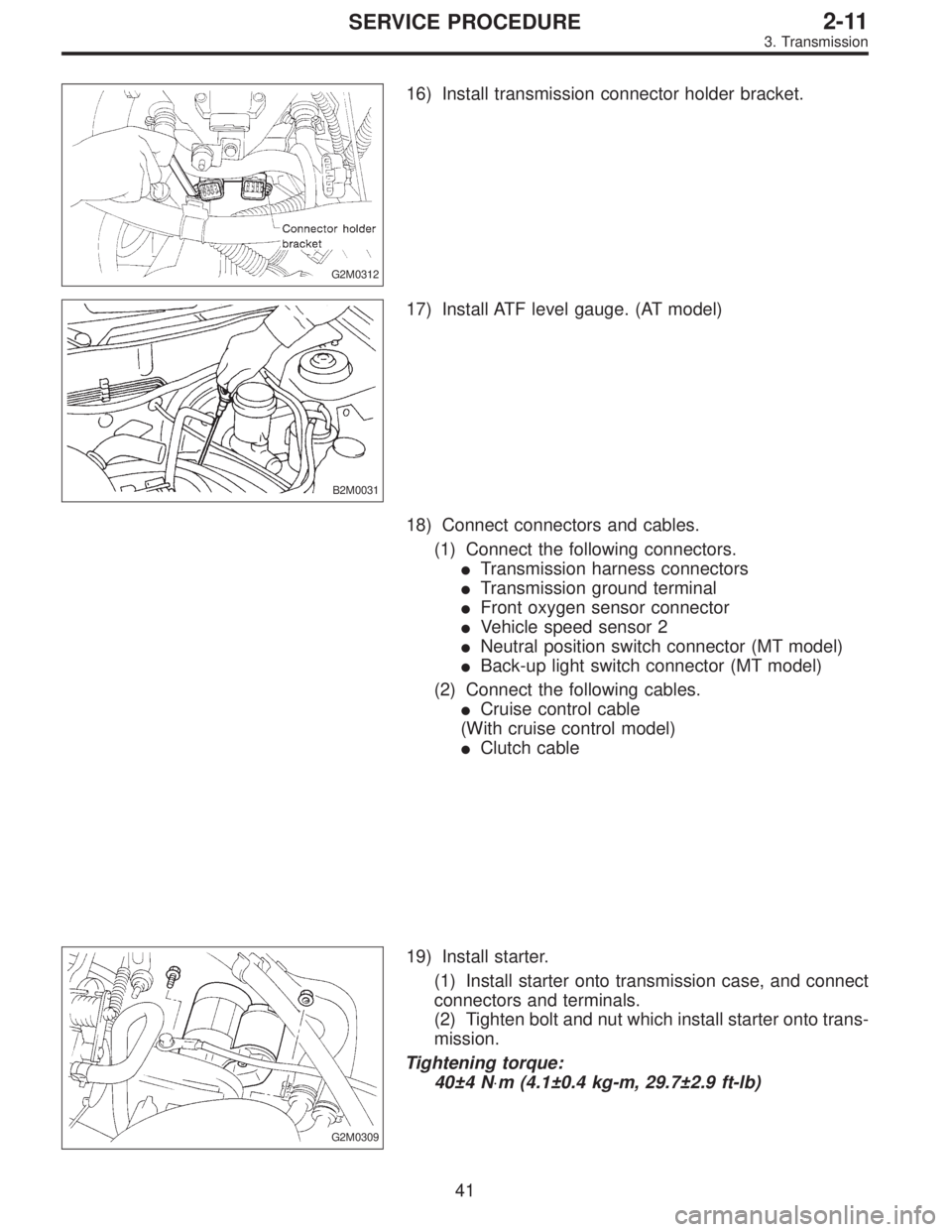

SUBARU LEGACY 1995 Service Repair Manual G2M0312
16) Install transmission connector holder bracket.
B2M0031
17) Install ATF level gauge. (AT model)
18) Connect connectors and cables.
(1) Connect the following connectors.
Transmission harnes

Page 276 of 2248

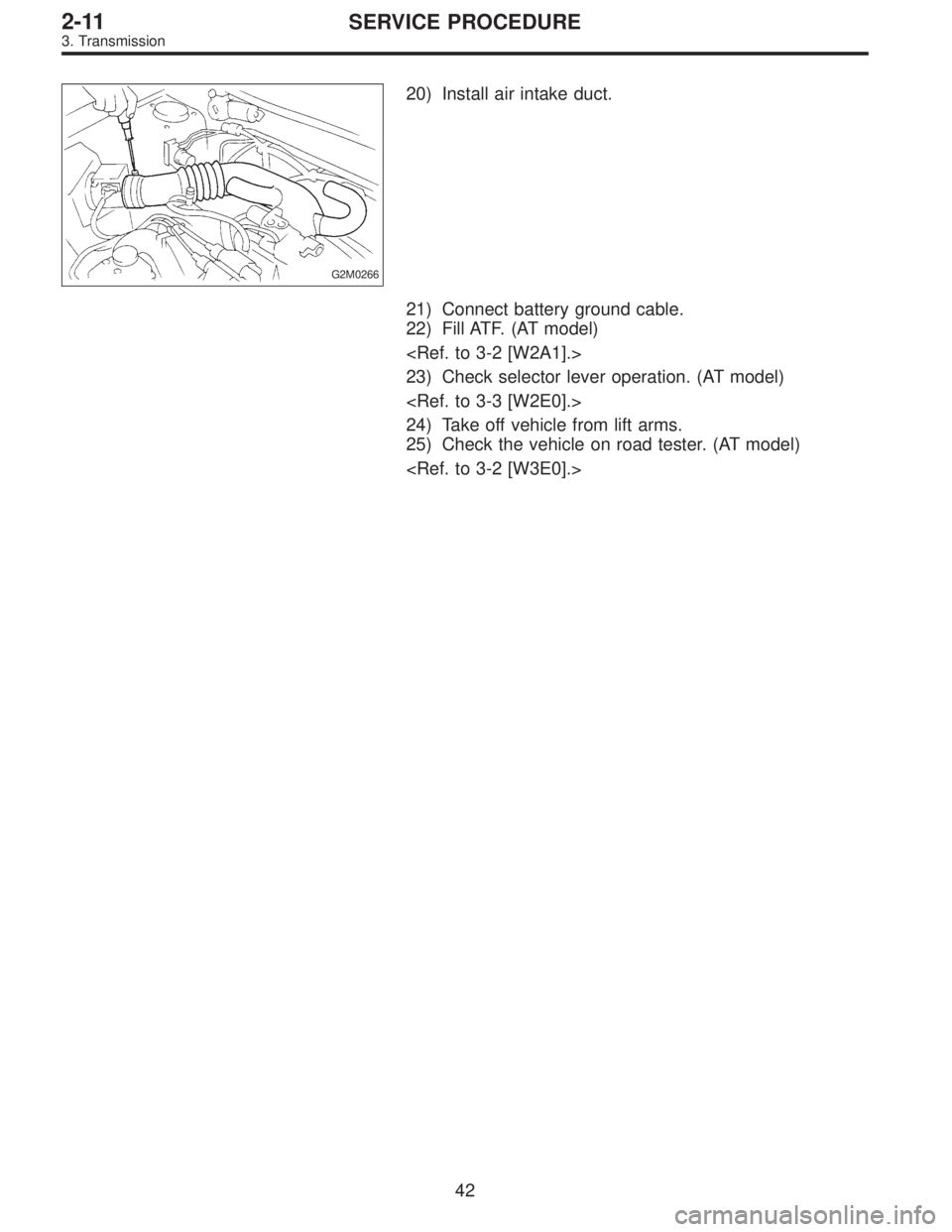

SUBARU LEGACY 1995 Service Repair Manual G2M0266
20) Install air intake duct.
21) Connect battery ground cable.
22) Fill ATF. (AT model)
<Ref. to 3-2 [W2A1].>
23) Check selector lever operation. (AT model)
<Ref. to 3-3 [W2E0].>
24) Take off

Page 277 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Manual Transmission and
Differential

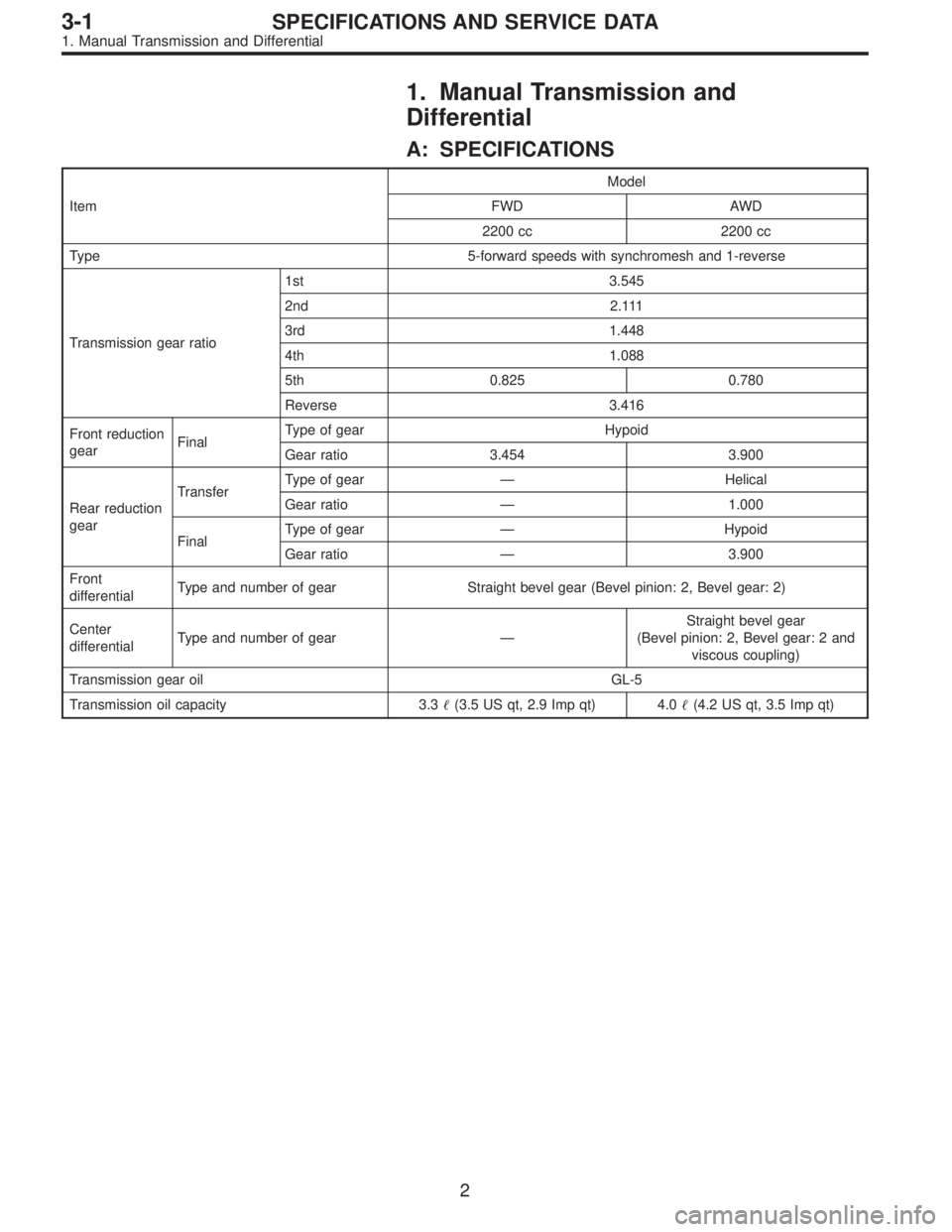

A: SPECIFICATIONS
ItemModel
FWD AWD
2200 cc 2200 cc
Type 5-forward speeds with synchromesh and 1-reverse
Transmission gear ratio1st 3.545
2nd 2.111
3rd 1.448
4t

Page 278 of 2248

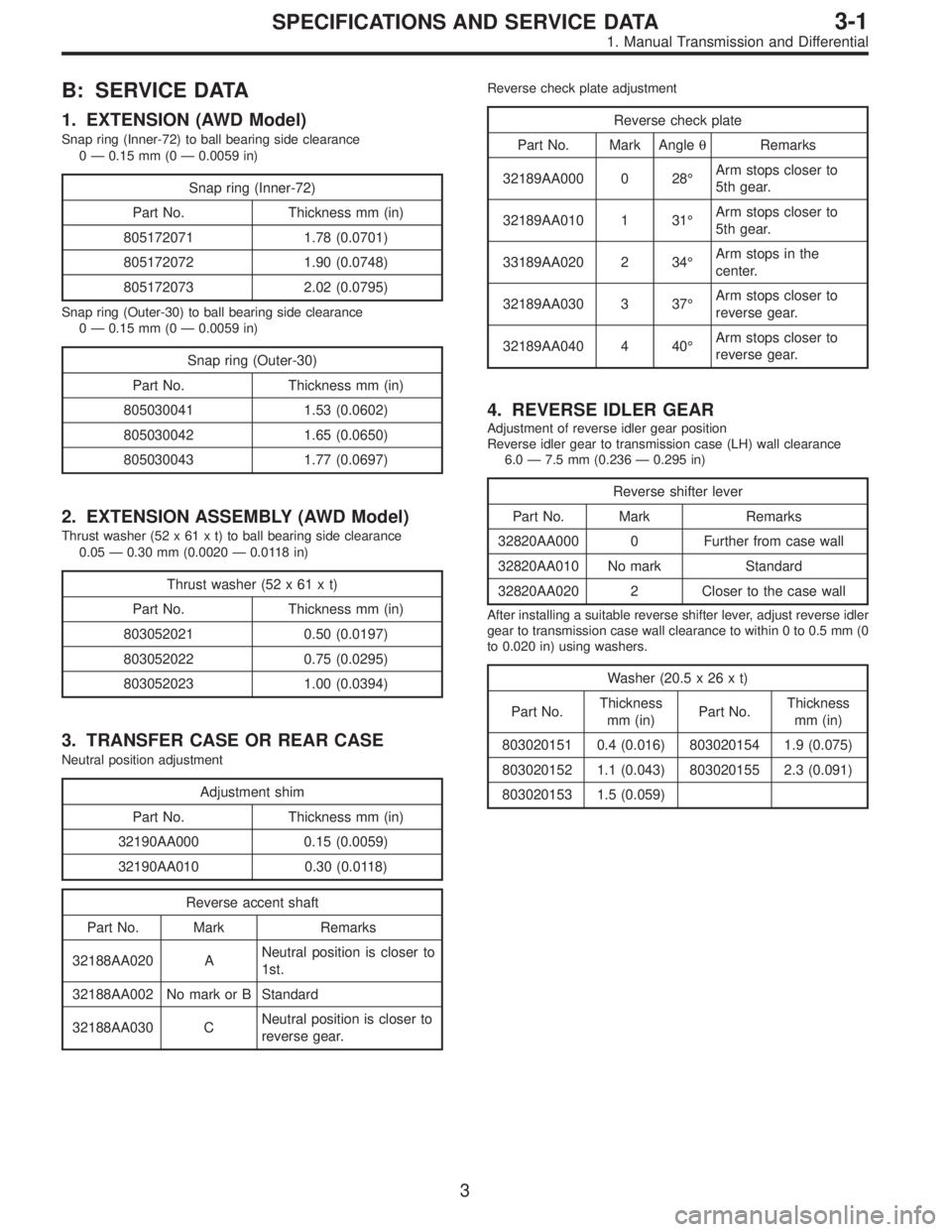

SUBARU LEGACY 1995 Service Repair Manual B: SERVICE DATA
1. EXTENSION (AWD Model)
Snap ring (Inner-72) to ball bearing side clearance
0—0.15 mm (0—0.0059 in)
Snap ring (Inner-72)
Part No. Thickness mm (in)
805172071 1.78 (0.0701)
8051720

B: SERVICE DATA
1. EXTENSION (AWD Model)
Snap ring (Inner-72) to ball bearing side clearance
0—0.15 mm (0—0.0059 in)
Snap ring (Inner-72)
Part No. Thickness mm (in)
805172071 1.78 (0.0701)
805172072 1.90 (0.0748)
805172073 2.02 (0.0795)
Snap ring (Outer-30) to ball bearing side clearance
0—0.15 mm (0—0.0059 in)
Snap ring (Outer-30)
Part No. Thickness mm (in)
805030041 1.53 (0.0602)
805030042 1.65 (0.0650)
805030043 1.77 (0.0697)
2. EXTENSION ASSEMBLY (AWD Model)
Thrust washer (52 x 61 x t) to ball bearing side clearance
0.05—0.30 mm (0.0020—0.0118 in)
Thrust washer (52 x 61 x t)
Part No. Thickness mm (in)
803052021 0.50 (0.0197)
803052022 0.75 (0.0295)
803052023 1.00 (0.0394)
3. TRANSFER CASE OR REAR CASE
Neutral position adjustment
Adjustment shim
Part No. Thickness mm (in)
32190AA000 0.15 (0.0059)
32190AA010 0.30 (0.0118)
Reverse accent shaft
Part No. Mark Remarks
32188AA020 ANeutral position is closer to
1st.
32188AA002 No mark or B Standard
32188AA030 CNeutral position is closer to
reverse gear.
Reverse check plate adjustment
Reverse check plate
Part No. Mark AngleθRemarks
32189AA000 0 28°Arm stops closer to
5th gear.
32189AA010 1 31°Arm stops closer to
5th gear.
33189AA020 2 34°Arm stops in the
center.
32189AA030 3 37°Arm stops closer to
reverse gear.
32189AA040 4 40°Arm stops closer to
reverse gear.
4. REVERSE IDLER GEAR
Adjustment of reverse idler gear position
Reverse idler gear to transmission case (LH) wall clearance
6.0—7.5 mm (0.236—0.295 in)
Reverse shifter lever
Part No. Mark Remarks
32820AA000 0 Further from case wall
32820AA010 No mark Standard
32820AA020 2 Closer to the case wall
After installing a suitable reverse shifter lever, adjust reverse idler
gear to transmission case wall clearance to within 0 to 0.5 mm (0
to 0.020 in) using washers.
Washer (20.5 x 26 x t)
Part No.Thickness
mm (in)Part No.Thickness
mm (in)
803020151 0.4 (0.016) 803020154 1.9 (0.075)
803020152 1.1 (0.043) 803020155 2.3 (0.091)
803020153 1.5 (0.059)
3
3-1SPECIFICATIONS AND SERVICE DATA
1. Manual Transmission and Differential

Page 279 of 2248

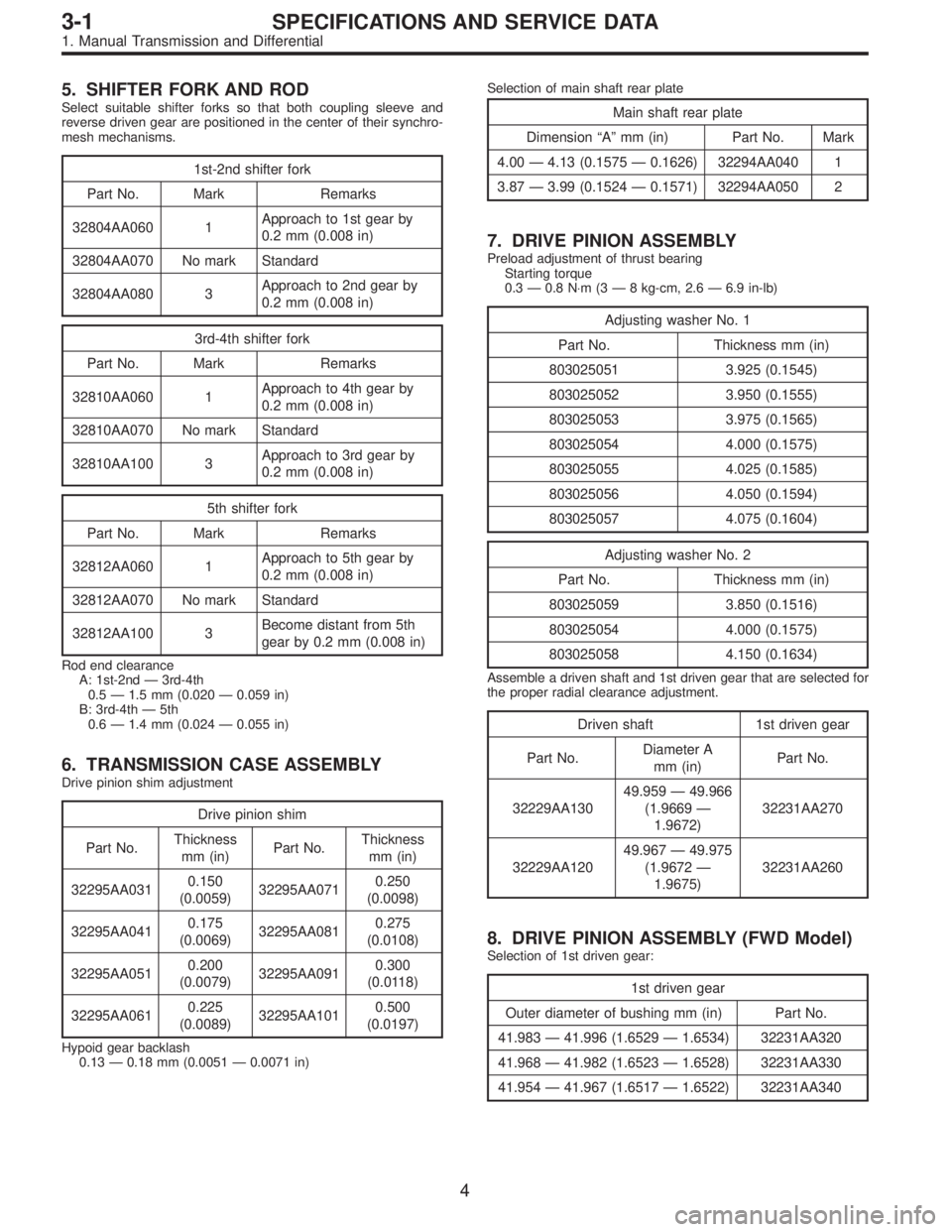

SUBARU LEGACY 1995 Service Repair Manual 5. SHIFTER FORK AND ROD
Select suitable shifter forks so that both coupling sleeve and
reverse driven gear are positioned in the center of their synchro-
mesh mechanisms.
1st-2nd shifter fork
Part No.

5. SHIFTER FORK AND ROD
Select suitable shifter forks so that both coupling sleeve and
reverse driven gear are positioned in the center of their synchro-
mesh mechanisms.
1st-2nd shifter fork
Part No. Mark Remarks
32804AA060 1Approach to 1st gear by
0.2 mm (0.008 in)
32804AA070 No mark Standard
32804AA080 3Approach to 2nd gear by
0.2 mm (0.008 in)
3rd-4th shifter fork
Part No. Mark Remarks
32810AA060 1Approach to 4th gear by
0.2 mm (0.008 in)
32810AA070 No mark Standard
32810AA100 3Approach to 3rd gear by
0.2 mm (0.008 in)
5th shifter fork
Part No. Mark Remarks
32812AA060 1Approach to 5th gear by
0.2 mm (0.008 in)
32812AA070 No mark Standard
32812AA100 3Become distant from 5th
gear by 0.2 mm (0.008 in)
Rod end clearance
A: 1st-2nd—3rd-4th
0.5—1.5 mm (0.020—0.059 in)
B: 3rd-4th—5th
0.6—1.4 mm (0.024—0.055 in)
6. TRANSMISSION CASE ASSEMBLY
Drive pinion shim adjustment
Drive pinion shim
Part No.Thickness
mm (in)Part No.Thickness
mm (in)
32295AA0310.150
(0.0059)32295AA0710.250
(0.0098)
32295AA0410.175
(0.0069)32295AA0810.275
(0.0108)
32295AA0510.200
(0.0079)32295AA0910.300
(0.0118)
32295AA0610.225
(0.0089)32295AA1010.500
(0.0197)
Hypoid gear backlash
0.13—0.18 mm (0.0051—0.0071 in)Selection of main shaft rear plate
Main shaft rear plate
Dimension“A”mm (in) Part No. Mark
4.00—4.13 (0.1575—0.1626) 32294AA040 1
3.87—3.99 (0.1524—0.1571) 32294AA050 2
7. DRIVE PINION ASSEMBLY
Preload adjustment of thrust bearing
Starting torque
0.3—0.8 N⋅m(3—8 kg-cm, 2.6—6.9 in-lb)
Adjusting washer No. 1
Part No. Thickness mm (in)
803025051 3.925 (0.1545)
803025052 3.950 (0.1555)
803025053 3.975 (0.1565)
803025054 4.000 (0.1575)
803025055 4.025 (0.1585)
803025056 4.050 (0.1594)
803025057 4.075 (0.1604)
Adjusting washer No. 2
Part No. Thickness mm (in)
803025059 3.850 (0.1516)
803025054 4.000 (0.1575)
803025058 4.150 (0.1634)
Assemble a driven shaft and 1st driven gear that are selected for
the proper radial clearance adjustment.
Driven shaft 1st driven gear
Part No.Diameter A
mm (in)Part No.
32229AA13049.959—49.966
(1.9669—
1.9672)32231AA270
32229AA12049.967—49.975
(1.9672—
1.9675)32231AA260
8. DRIVE PINION ASSEMBLY (FWD Model)
Selection of 1st driven gear:
1st driven gear
Outer diameter of bushing mm (in) Part No.
41.983—41.996 (1.6529—1.6534) 32231AA320
41.968—41.982 (1.6523—1.6528) 32231AA330
41.954—41.967 (1.6517—1.6522) 32231AA340
4
3-1SPECIFICATIONS AND SERVICE DATA
1. Manual Transmission and Differential

Page 280 of 2248

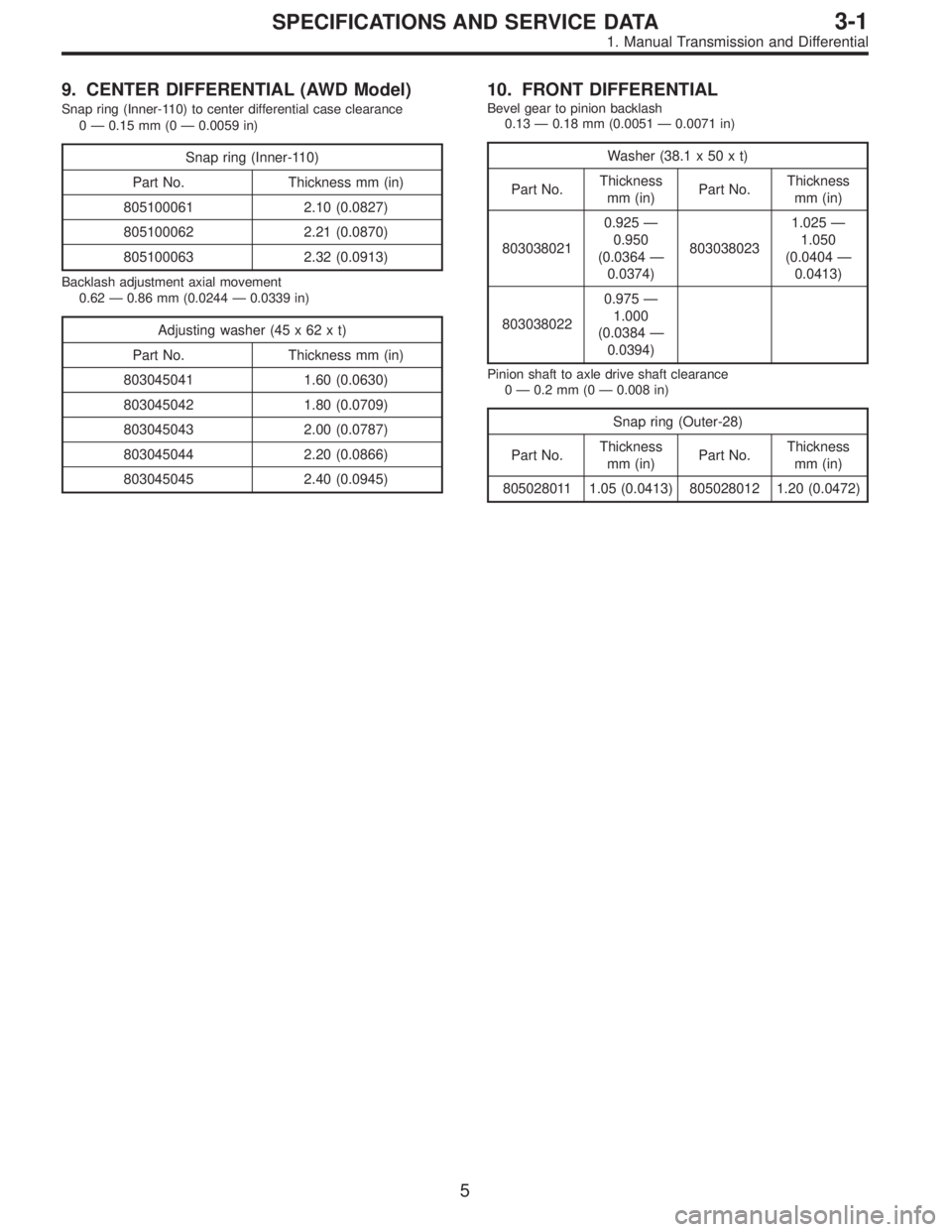

SUBARU LEGACY 1995 Service Repair Manual 9. CENTER DIFFERENTIAL (AWD Model)
Snap ring (Inner-110) to center differential case clearance
0—0.15 mm (0—0.0059 in)
Snap ring (Inner-110)
Part No. Thickness mm (in)
805100061 2.10 (0.0827)
8051
