2. RHD MODEL
B3M0385A
1Grip
2Spring
3Button
4Indicator cover
5“P”position switch
6Indicator light bulb
7Shift-lock solenoid
8Plate
9Packing
10Outer cable
11Nut
12Nut
13Inner cable
14Clip
15Rod
16Selector lever
17Lock plate
18Detention spring
19Pin
20Spacer
21Washer
22Boot
23Spacer
24Snap pin
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 12±3 (1.2±0.3, 8.7±2.2)
T3: 18±5 (1.8±0.5, 13.0±3.6)
5
3-3COMPONENT PARTS
2. Automatic Transmission
Page 466 of 2248
1. Manual Transmission

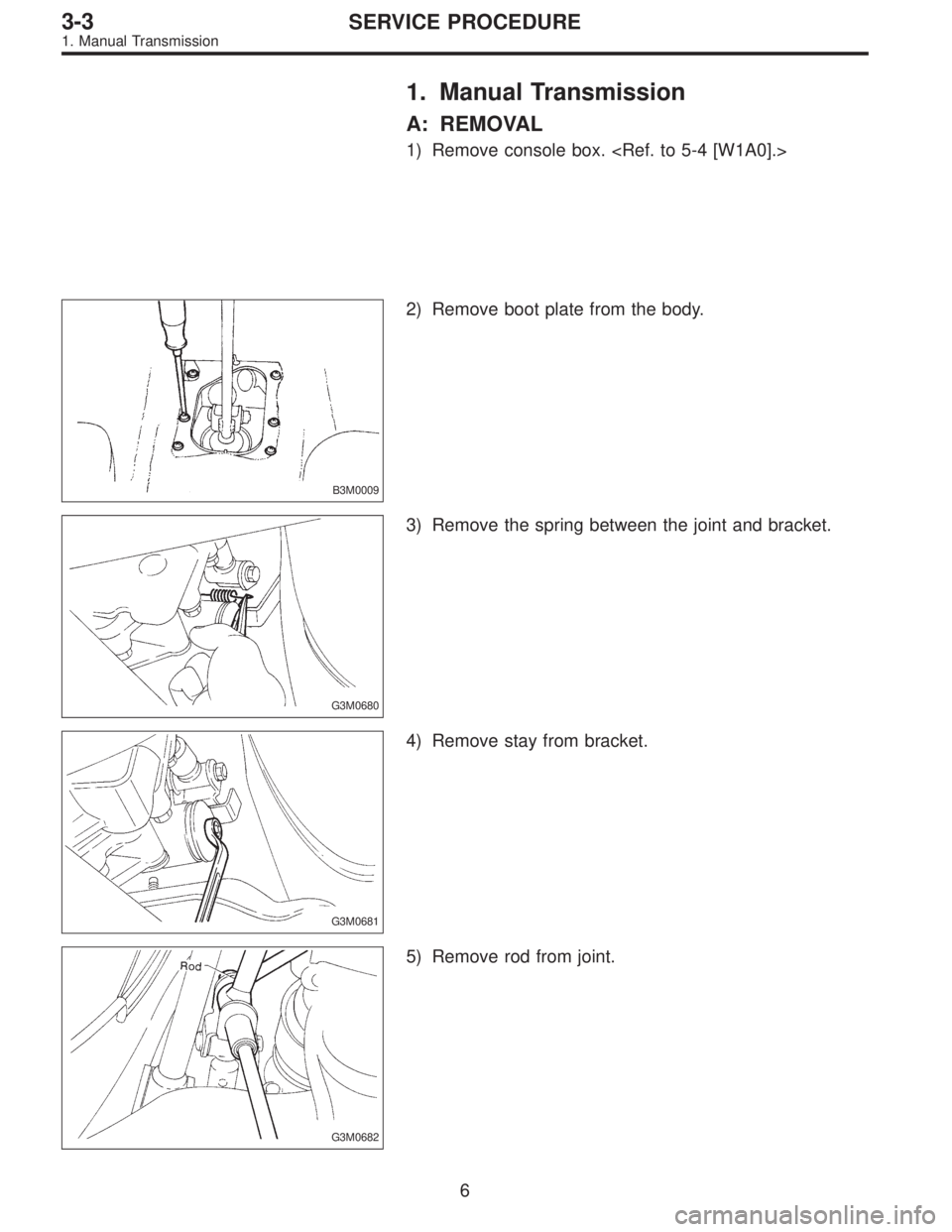

A: REMOVAL
1) Remove console box.
B3M0009
2) Remove boot plate from the body.
G3M0680
3) Remove the spring between the joint and bracket.
G3M0681
4) Remove stay from bracket.
G3M0682
5) Remove rod from joint.
6
3-3SERVICE PROCEDURE
1. Manual Transmission
Page 467 of 2248
G3M0683

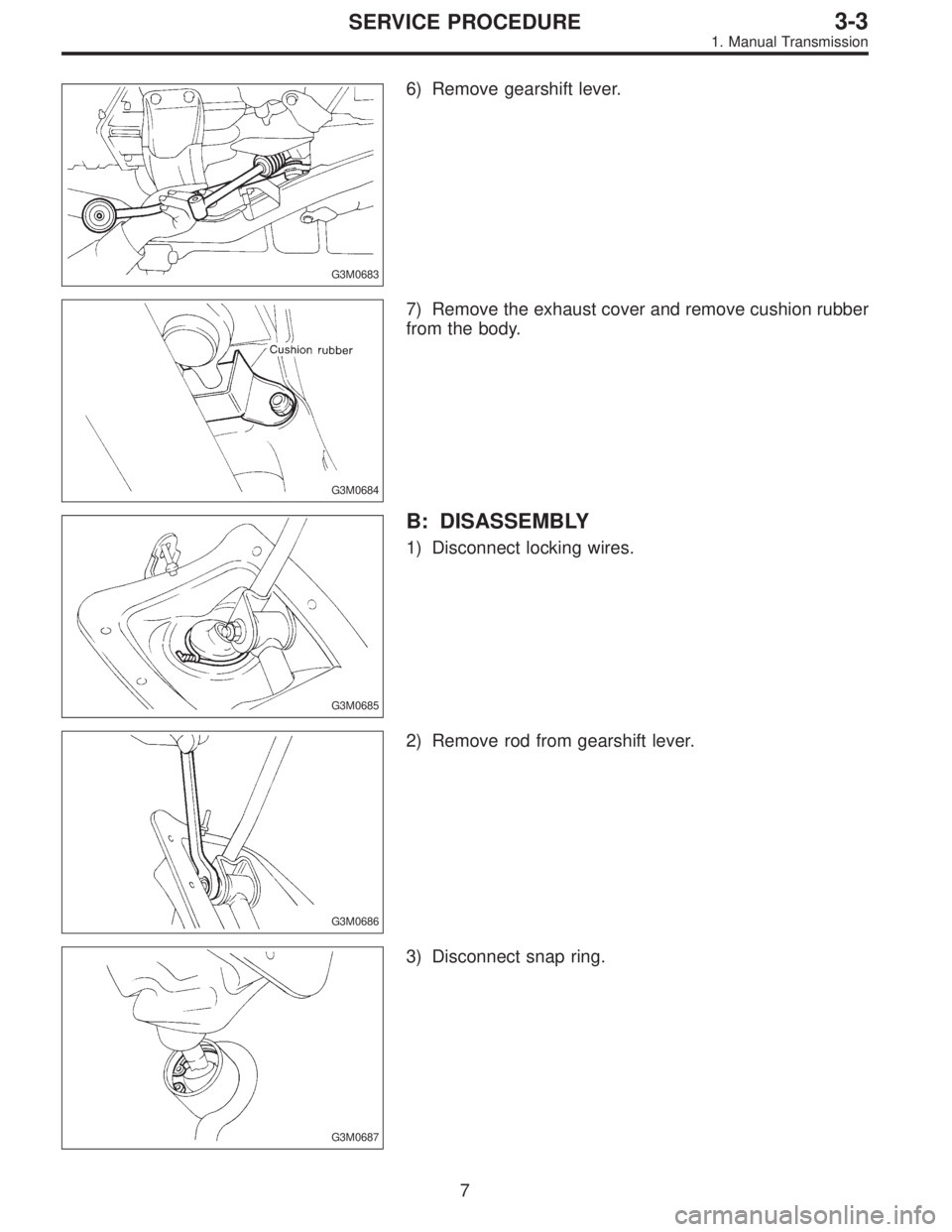

6) Remove gearshift lever.
G3M0684
7) Remove the exhaust cover and remove cushion rubber
from the body.
G3M0685
B: DISASSEMBLY
1) Disconnect locking wires.
G3M0686
2) Remove rod from gearshift lever.
G3M0687
3) Disconnect snap ring.
7
3-3SERVICE PROCEDURE
1. Manual Transmission
Page 468 of 2248
G3M0688

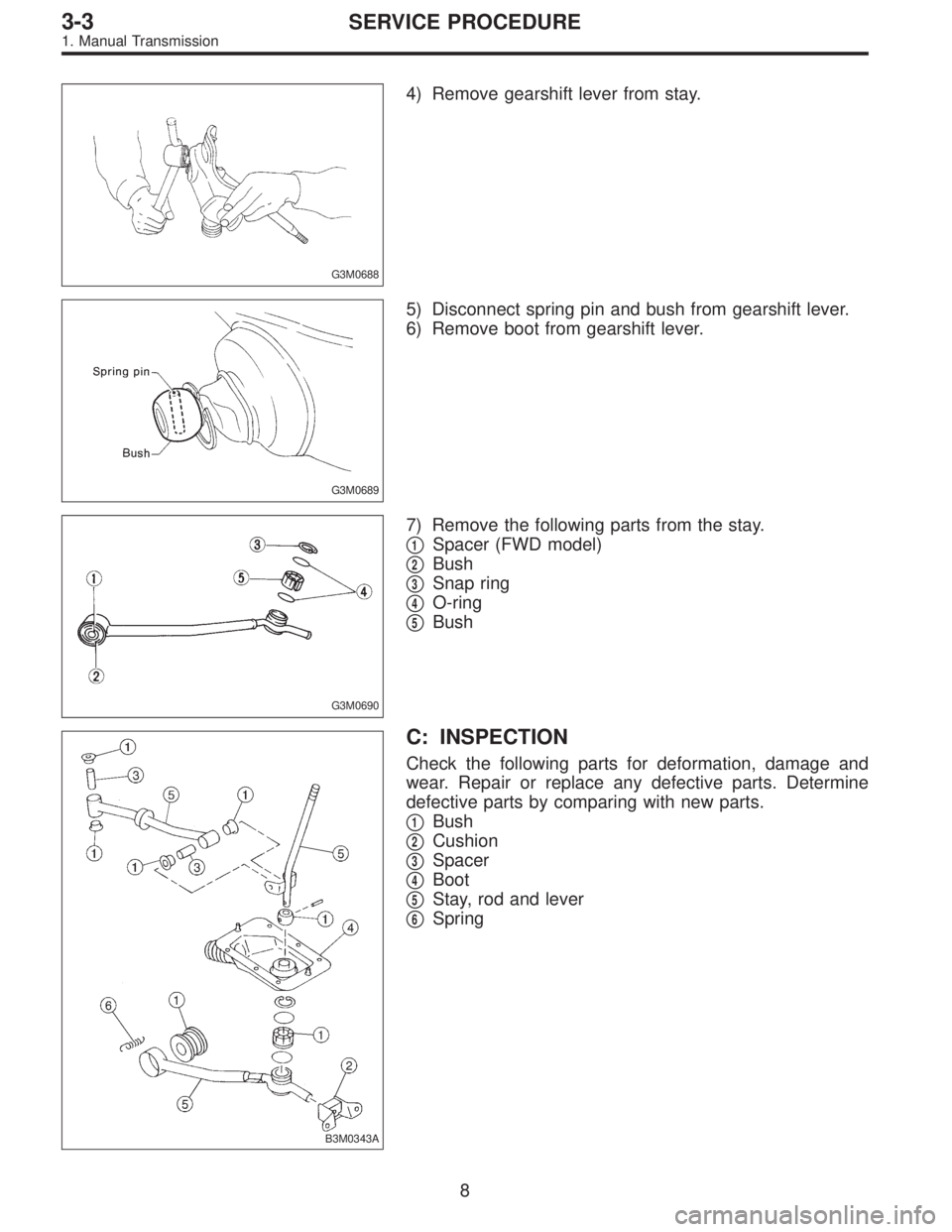

4) Remove gearshift lever from stay.
G3M0689
5) Disconnect spring pin and bush from gearshift lever.
6) Remove boot from gearshift lever.
G3M0690
7) Remove the following parts from the stay.
1Spacer (FWD model)
2Bush
3Snap ring
4O-ring
5Bush
B3M0343A
C: INSPECTION
Check the following parts for deformation, damage and
wear. Repair or replace any defective parts. Determine
defective parts by comparing with new parts.
1Bush
2Cushion
3Spacer
4Boot
5Stay, rod and lever
6Spring
8
3-3SERVICE PROCEDURE
1. Manual Transmission
Page 469 of 2248
G3M0692

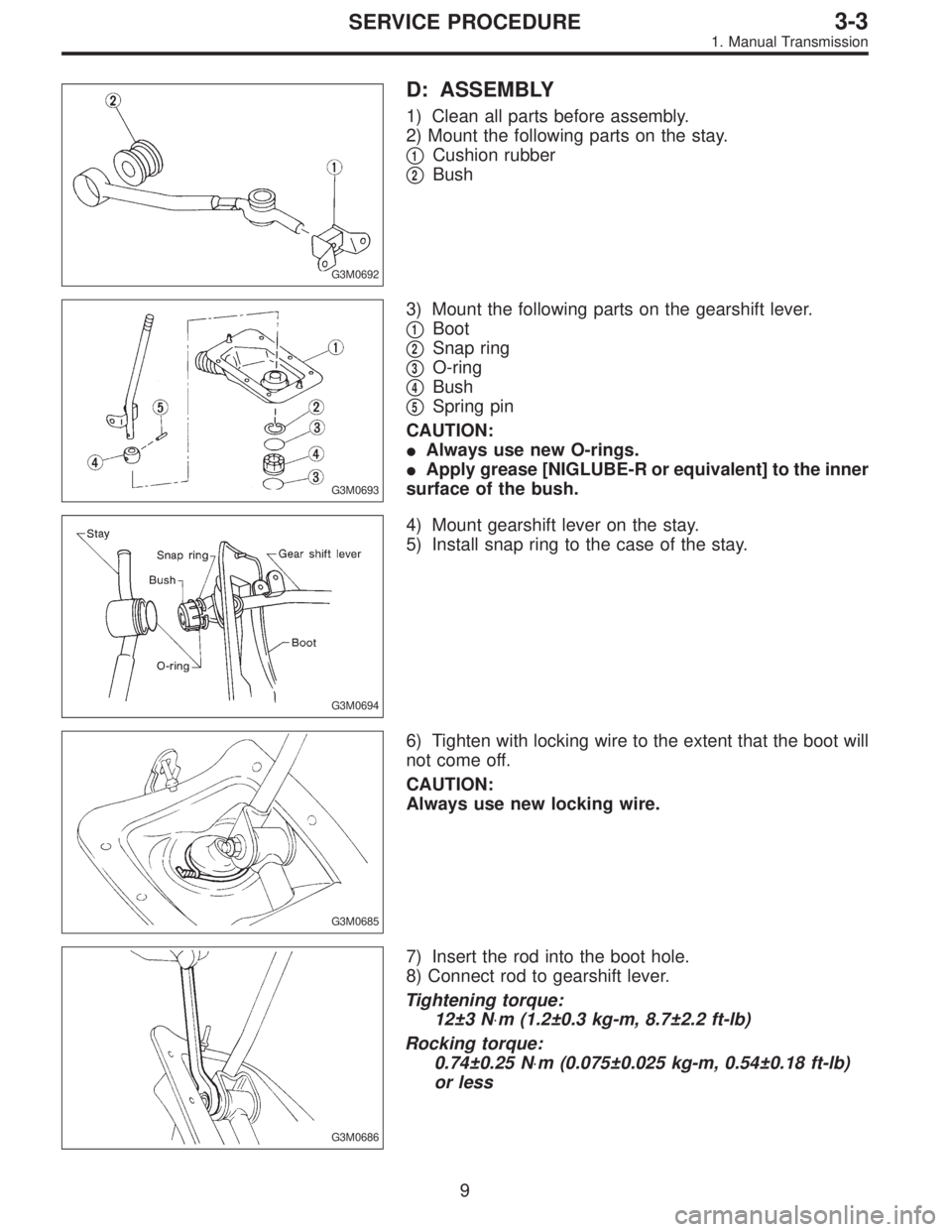

D: ASSEMBLY
1) Clean all parts before assembly.
2) Mount the following parts on the stay.
1Cushion rubber
2Bush
G3M0693
3) Mount the following parts on the gearshift lever.
1Boot
2Snap ring
3O-ring
4Bush
5Spring pin
CAUTION:
Always use new O-rings.
Apply grease [NIGLUBE-R or equivalent] to the inner
surface of the bush.
G3M0694
4) Mount gearshift lever on the stay.
5) Install snap ring to the case of the stay.
G3M0685
6) Tighten with locking wire to the extent that the boot will
not come off.
CAUTION:
Always use new locking wire.
G3M0686
7) Insert the rod into the boot hole.
8) Connect rod to gearshift lever.
Tightening torque:
12±3 N⋅m (1.2±0.3 kg-m, 8.7±2.2 ft-lb)
Rocking torque:
0.74±0.25 N⋅m (0.075±0.025 kg-m, 0.54±0.18 ft-lb)
or less
9
3-3SERVICE PROCEDURE
1. Manual Transmission
Page 470 of 2248
G3M0695

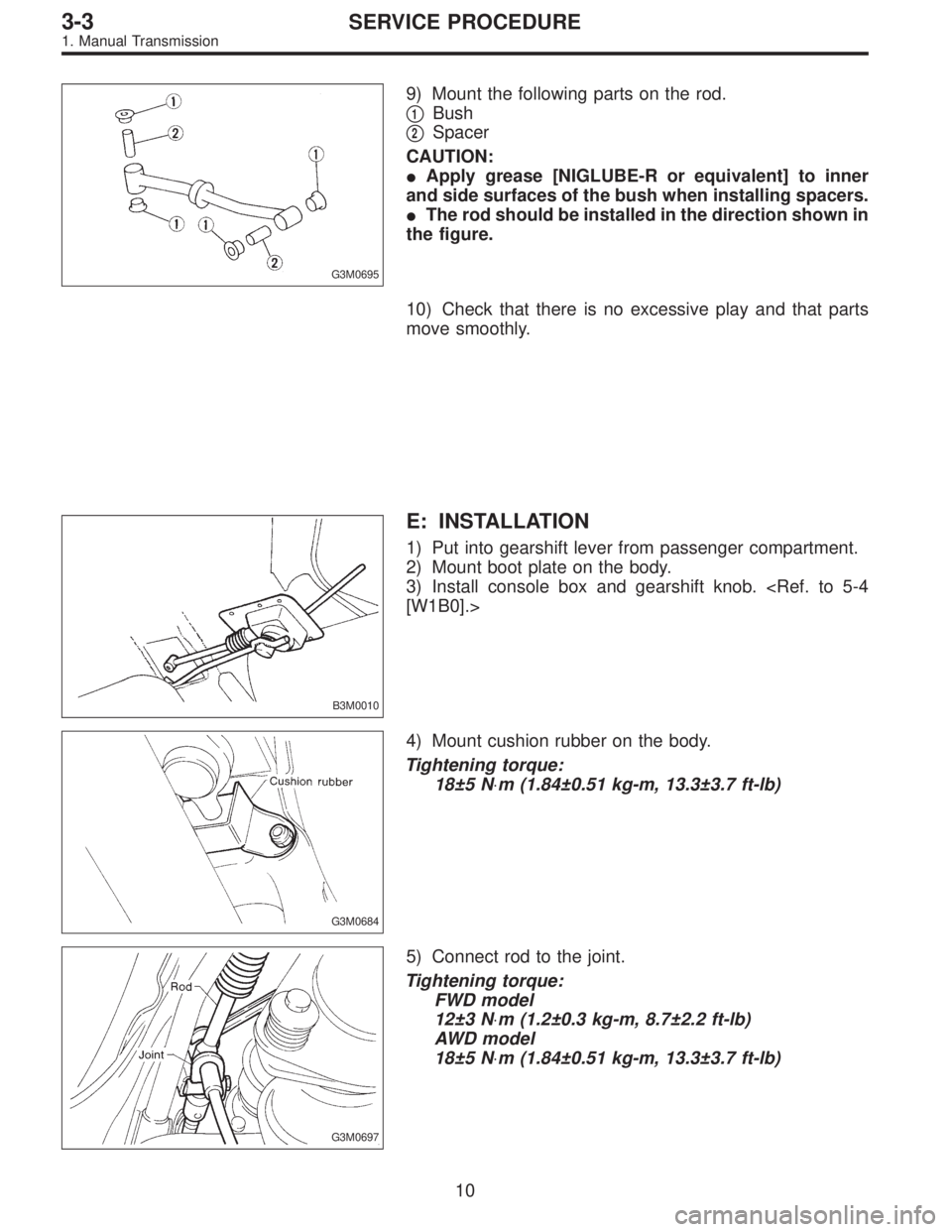

9) Mount the following parts on the rod.
1Bush
2Spacer
CAUTION:
Apply grease [NIGLUBE-R or equivalent] to inner
and side surfaces of the bush when installing spacers.
The rod should be installed in the direction shown in
the figure.
10) Check that there is no excessive play and that parts
move smoothly.
B3M0010
E: INSTALLATION
1) Put into gearshift lever from passenger compartment.
2) Mount boot plate on the body.
3) Install console box and gearshift knob.
[W1B0].>
G3M0684
4) Mount cushion rubber on the body.
Tightening torque:
18±5 N⋅m (1.84±0.51 kg-m, 13.3±3.7 ft-lb)
G3M0697
5) Connect rod to the joint.
Tightening torque:
FWD model
12±3 N⋅m (1.2±0.3 kg-m, 8.7±2.2 ft-lb)
AWD model
18±5 N⋅m (1.84±0.51 kg-m, 13.3±3.7 ft-lb)
10
3-3SERVICE PROCEDURE
1. Manual Transmission
Page 471 of 2248

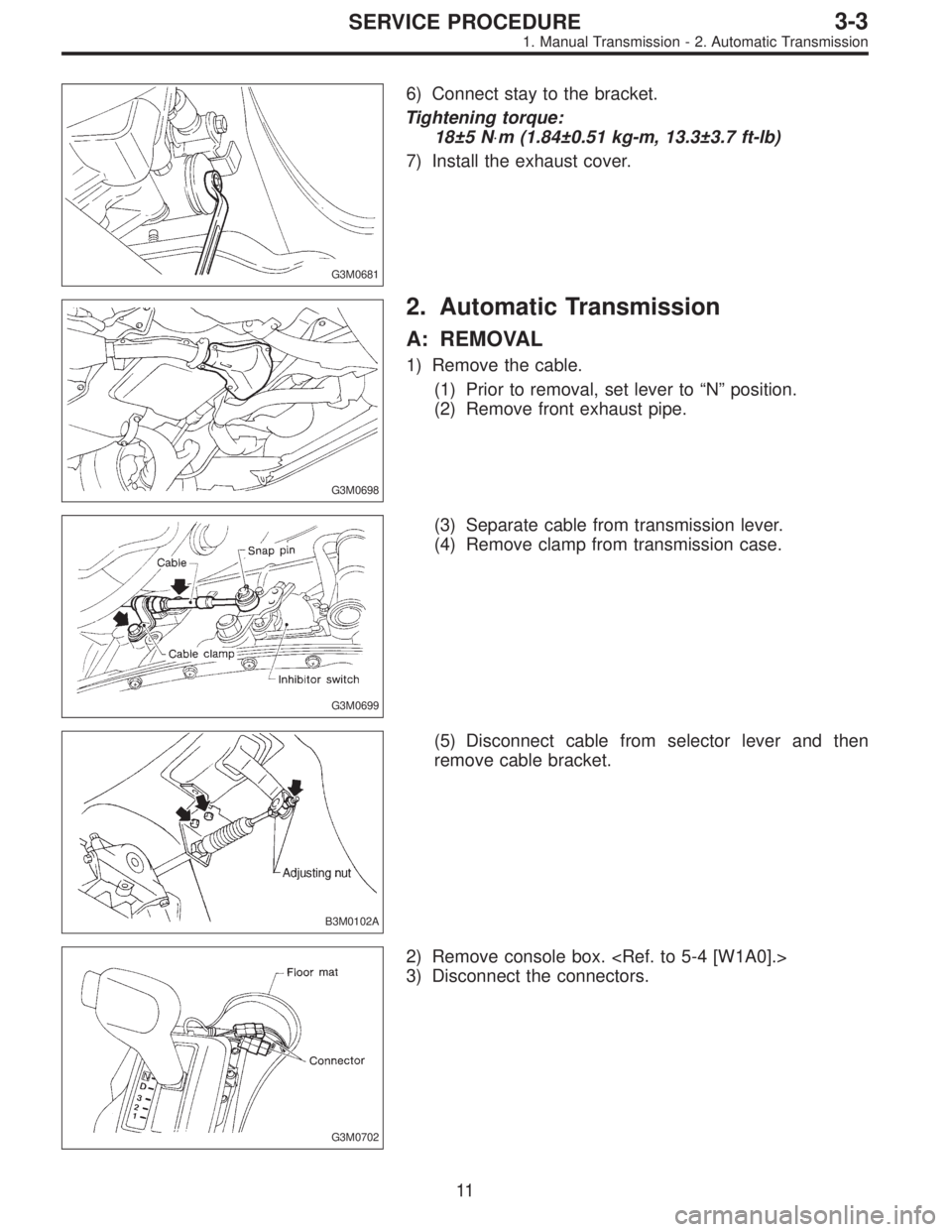

G3M0681
6) Connect stay to the bracket.
Tightening torque:
18±5 N⋅m (1.84±0.51 kg-m, 13.3±3.7 ft-lb)
7) Install the exhaust cover.
G3M0698
2. Automatic Transmission
A: REMOVAL
1) Remove the cable.
(1) Prior to removal, set lever to“N”position.
(2) Remove front exhaust pipe.
G3M0699
(3) Separate cable from transmission lever.
(4) Remove clamp from transmission case.
B3M0102A
(5) Disconnect cable from selector lever and then
remove cable bracket.
G3M0702
2) Remove console box.
3) Disconnect the connectors.
11
3-3SERVICE PROCEDURE
1. Manual Transmission - 2. Automatic Transmission
Page 472 of 2248
G3M0681
6) Connect stay to the bracket.
Tightening torque:
18±5 N⋅m (1.84±0.51 kg-m, 13.3±3.7 ft-lb)
7) Install the exhaust cover.
G3M0698
2. Automatic Transmission
A: REMOVAL
1) Remove the cable.
(1) Prior to removal, set lever to“N”position.
(2) Remove front exhaust pipe.
G3M0699
(3) Separate cable from transmission lever.
(4) Remove clamp from transmission case.
B3M0102A
(5) Disconnect cable from selector lever and then
remove cable bracket.
G3M0702
2) Remove console box.
3) Disconnect the connectors.
11
3-3SERVICE PROCEDURE
1. Manual Transmission - 2. Automatic Transmission
