Page 865 of 2248

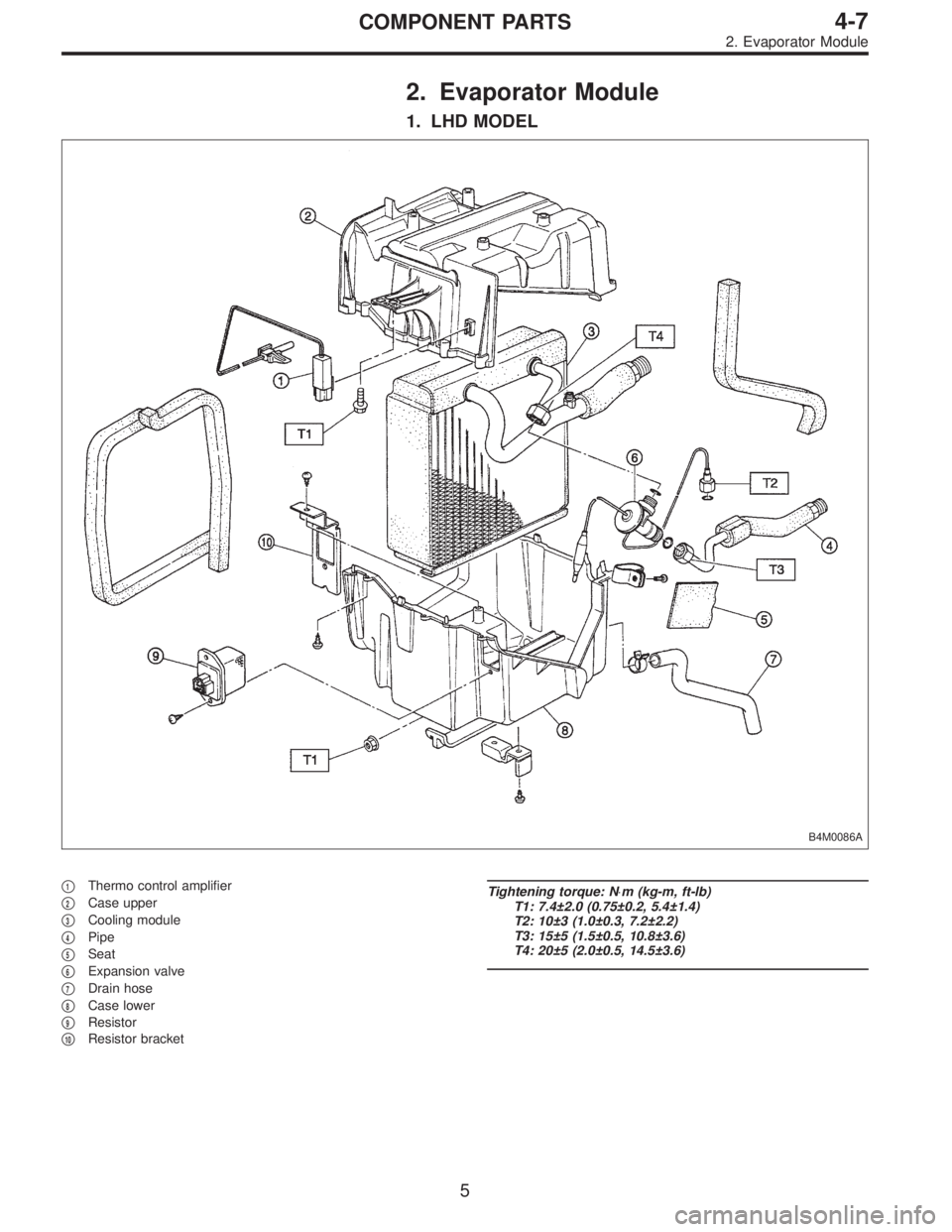

SUBARU LEGACY 1995 Service Repair Manual 2. Evaporator Module 1. LHD MODEL B4M0086A 1Thermo control amplifier  2Case upper  3Cooling module  4Pipe  5Seat  6Expansion valve  7Drain hose  8Case lower  9Resistor  10Resistor bracket Ti

Page 866 of 2248

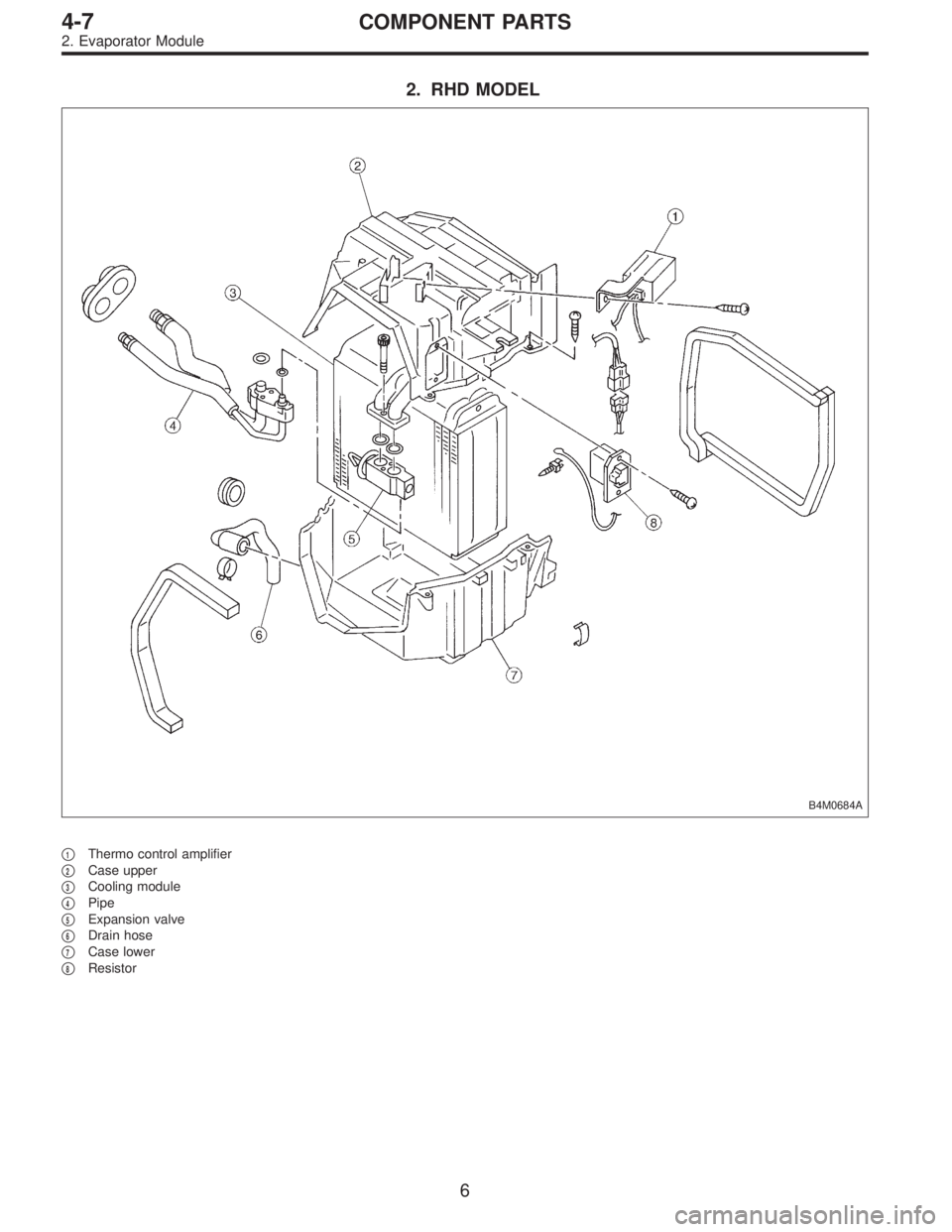

SUBARU LEGACY 1995 Service Repair Manual 2. RHD MODEL B4M0684A 1Thermo control amplifier  2Case upper  3Cooling module  4Pipe  5Expansion valve  6Drain hose  7Case lower  8Resistor 6 4-7COMPONENT PARTS 2. Evaporator Module

Page 867 of 2248

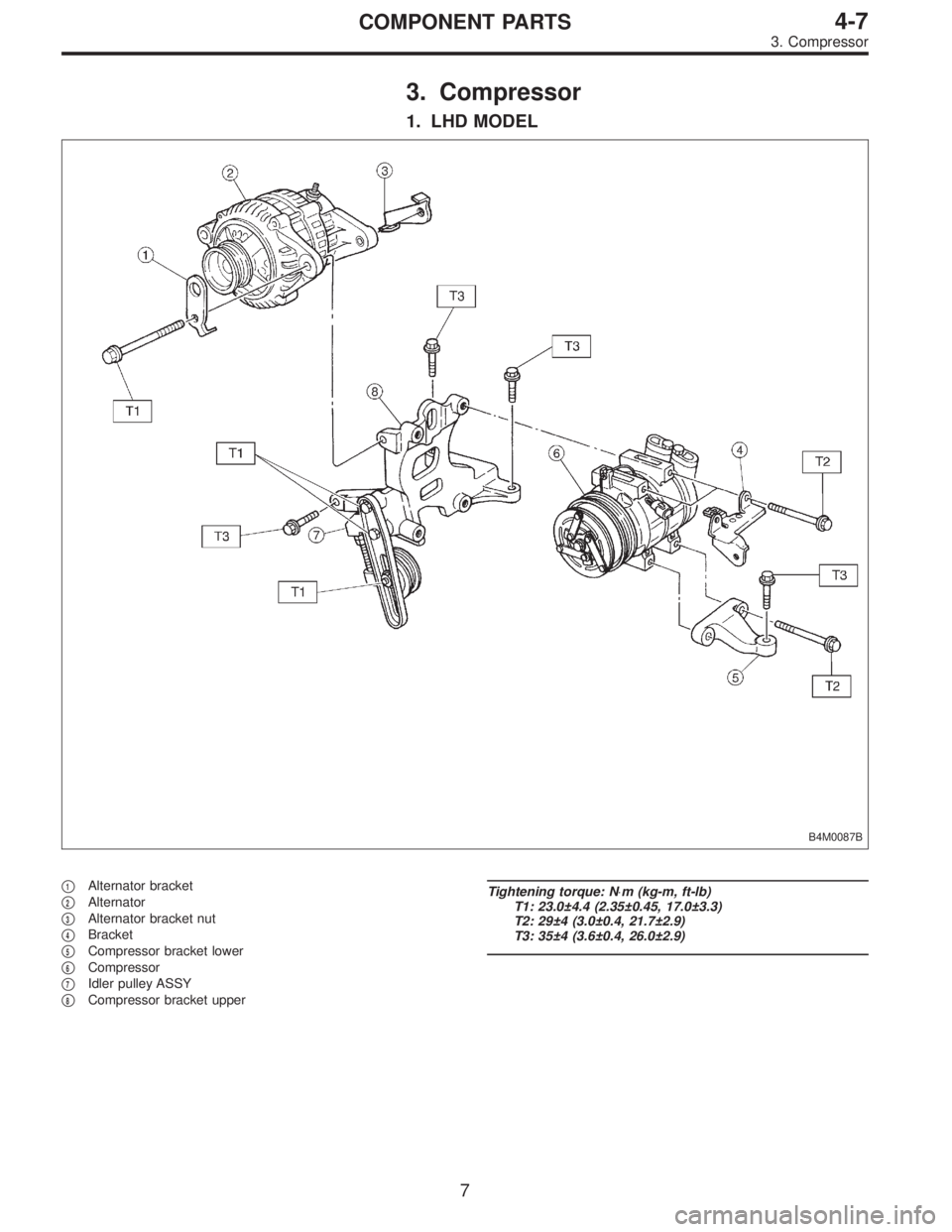

SUBARU LEGACY 1995 Service Repair Manual 3. Compressor 1. LHD MODEL B4M0087B 1Alternator bracket  2Alternator  3Alternator bracket nut  4Bracket  5Compressor bracket lower  6Compressor  7Idler pulley ASSY  8Compressor bracket upper T

Page 868 of 2248

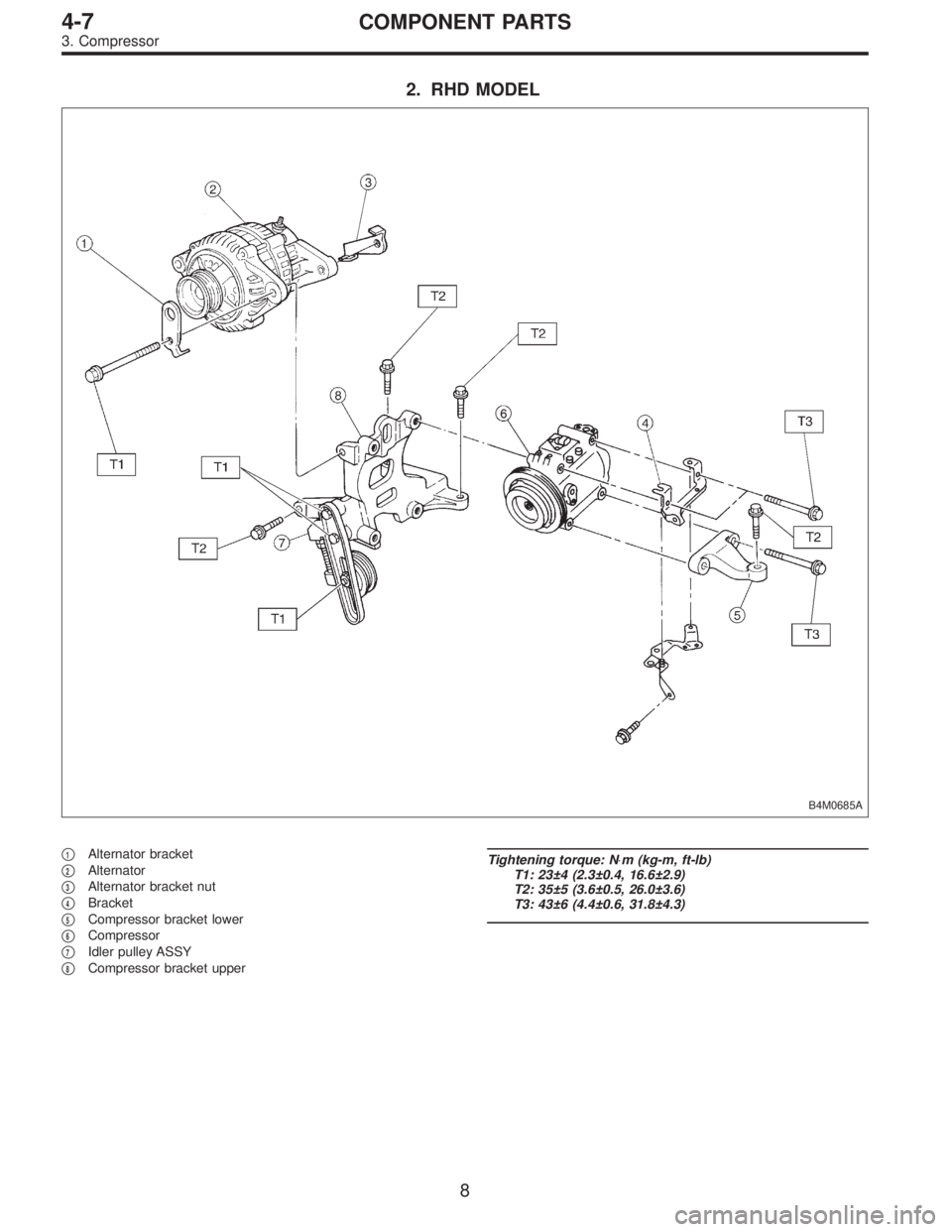

SUBARU LEGACY 1995 Service Repair Manual 2. RHD MODEL B4M0685A 1Alternator bracket  2Alternator  3Alternator bracket nut  4Bracket  5Compressor bracket lower  6Compressor  7Idler pulley ASSY  8Compressor bracket upper Tightening torq

Page 869 of 2248

SUBARU LEGACY 1995 Service Repair Manual 1. Safety Precautions 1. HFC-134a AIR CONDITIONING SYSTEM Component parts of the cooling system, refrigerant, com- pressor oil, and other parts are not the same for the HFC- 134a system and the older

Page 870 of 2248

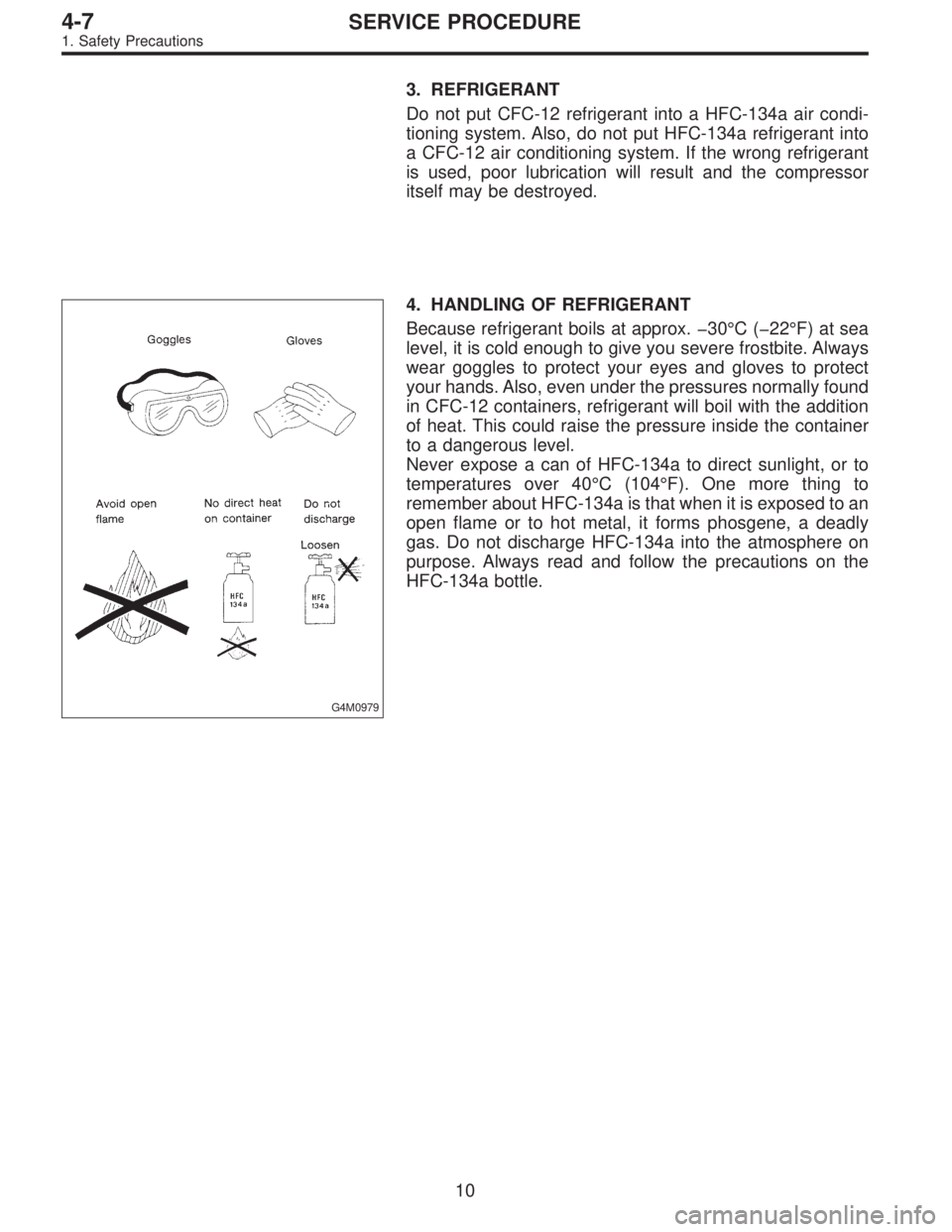

SUBARU LEGACY 1995 Service Repair Manual 3. REFRIGERANT Do not put CFC-12 refrigerant into a HFC-134a air condi- tioning system. Also, do not put HFC-134a refrigerant into a CFC-12 air conditioning system. If the wrong refrigerant is used, p

Page 871 of 2248

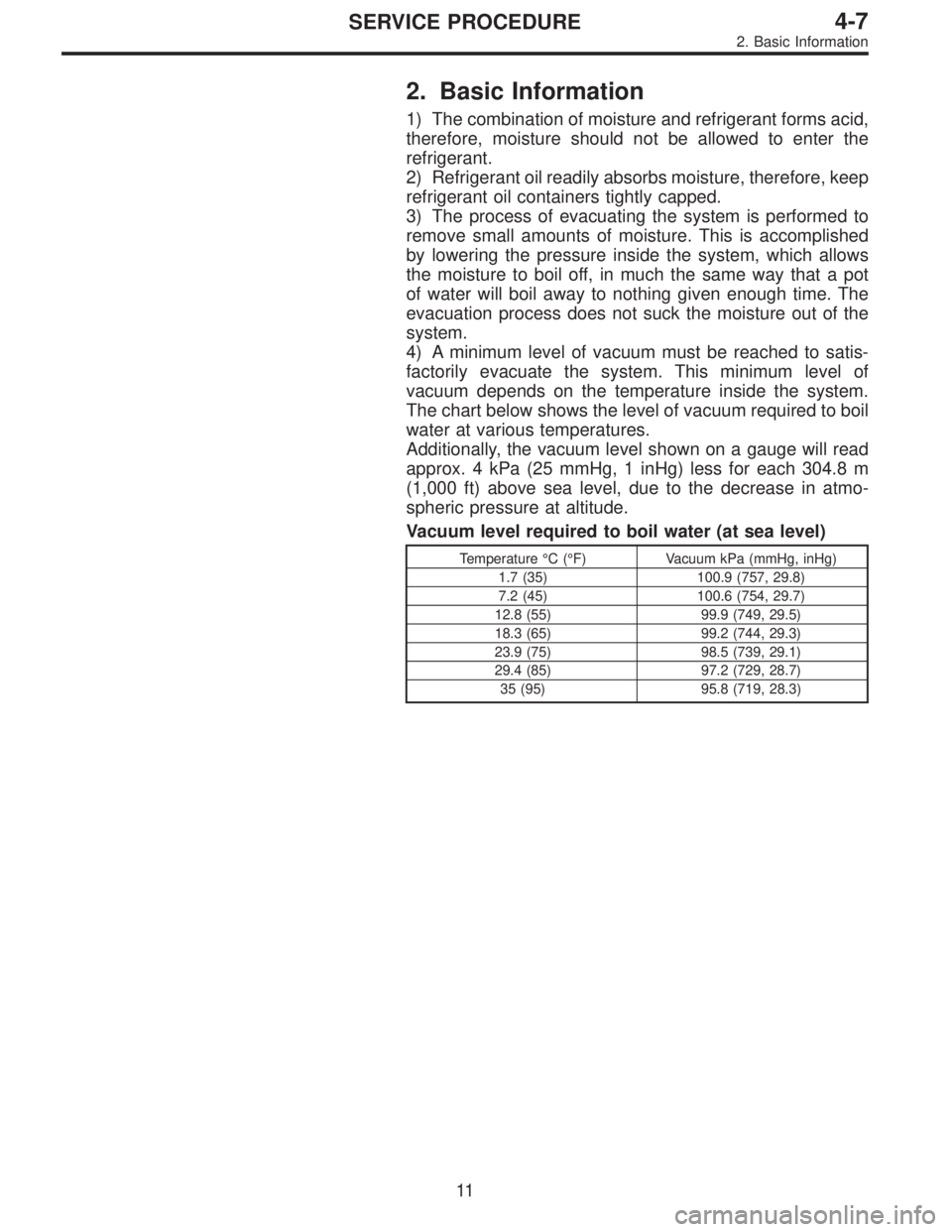

SUBARU LEGACY 1995 Service Repair Manual 2. Basic Information 1) The combination of moisture and refrigerant forms acid, therefore, moisture should not be allowed to enter the refrigerant. 2) Refrigerant oil readily absorbs moisture, therefo

Page 872 of 2248

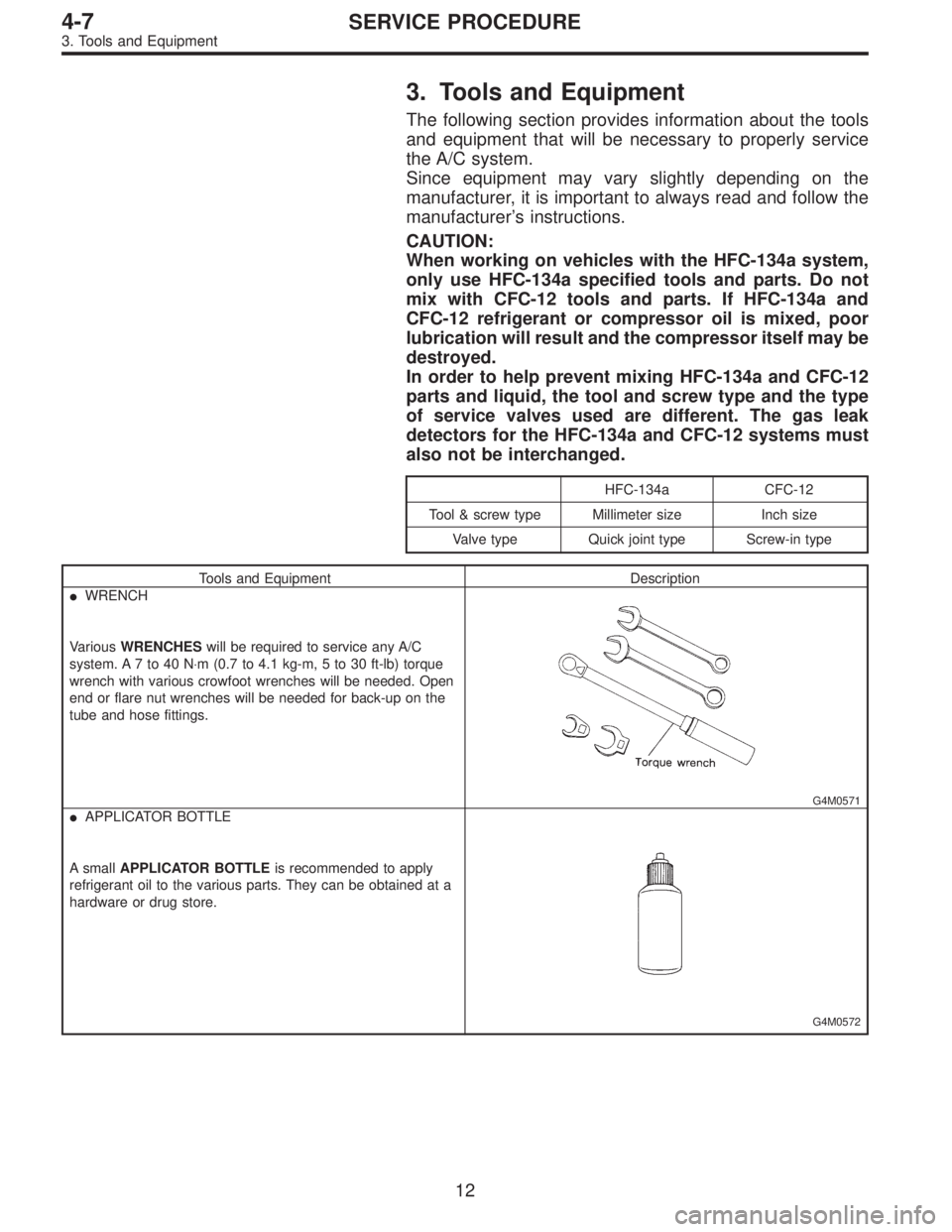

SUBARU LEGACY 1995 Service Repair Manual 3. Tools and Equipment The following section provides information about the tools and equipment that will be necessary to properly service the A/C system. Since equipment may vary slightly depending o
