Page 1145 of 2248

SUBARU LEGACY 1995 Service Repair Manual B6M0133 B: INSPECTION 1. DOOR LOCK SWITCH (DRIVER’S DOOR) 1) Remove door trim panel. <Ref. to 5-2 [W2A2].> 2) Disconnect connector of door switch. 3) Set switch to each position and check continuity

Page 1146 of 2248

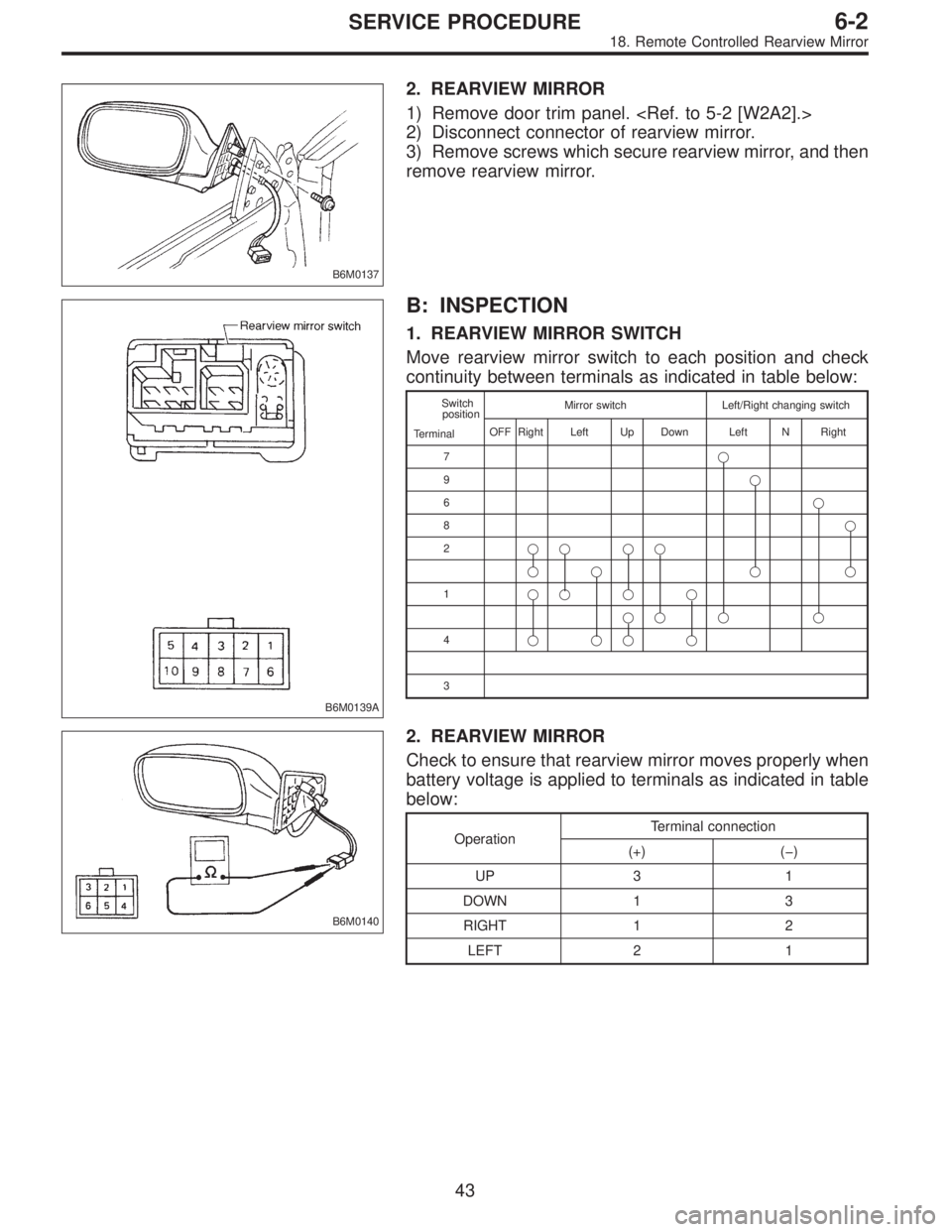

SUBARU LEGACY 1995 Service Repair Manual B6M0137 2. REARVIEW MIRROR 1) Remove door trim panel. <Ref. to 5-2 [W2A2].> 2) Disconnect connector of rearview mirror. 3) Remove screws which secure rearview mirror, and then remove rearview mirror.

Page 1147 of 2248

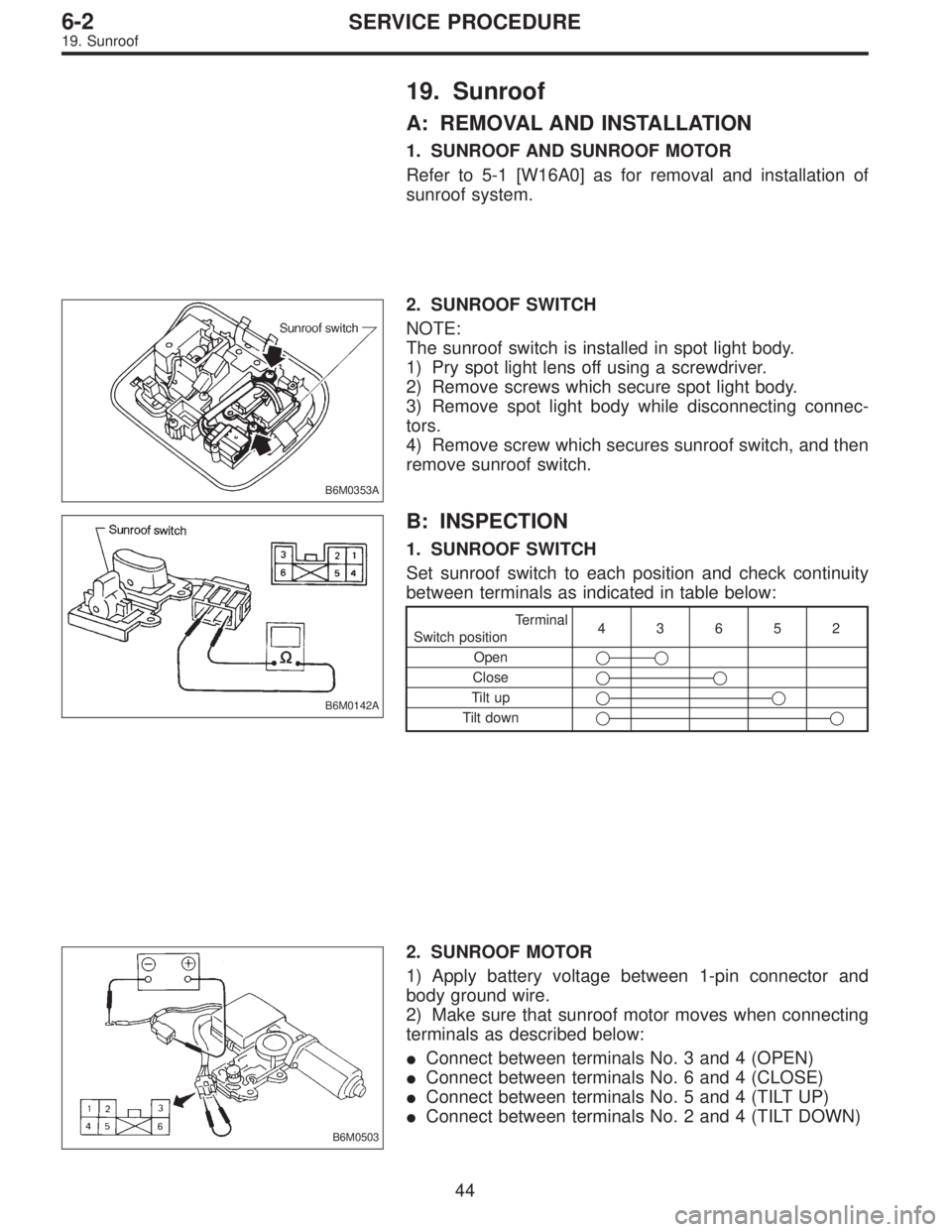

SUBARU LEGACY 1995 Service Repair Manual 19. Sunroof A: REMOVAL AND INSTALLATION 1. SUNROOF AND SUNROOF MOTOR Refer to 5-1 [W16A0] as for removal and installation of sunroof system. B6M0353A 2. SUNROOF SWITCH NOTE: The sunroof switch is inst

Page 1148 of 2248

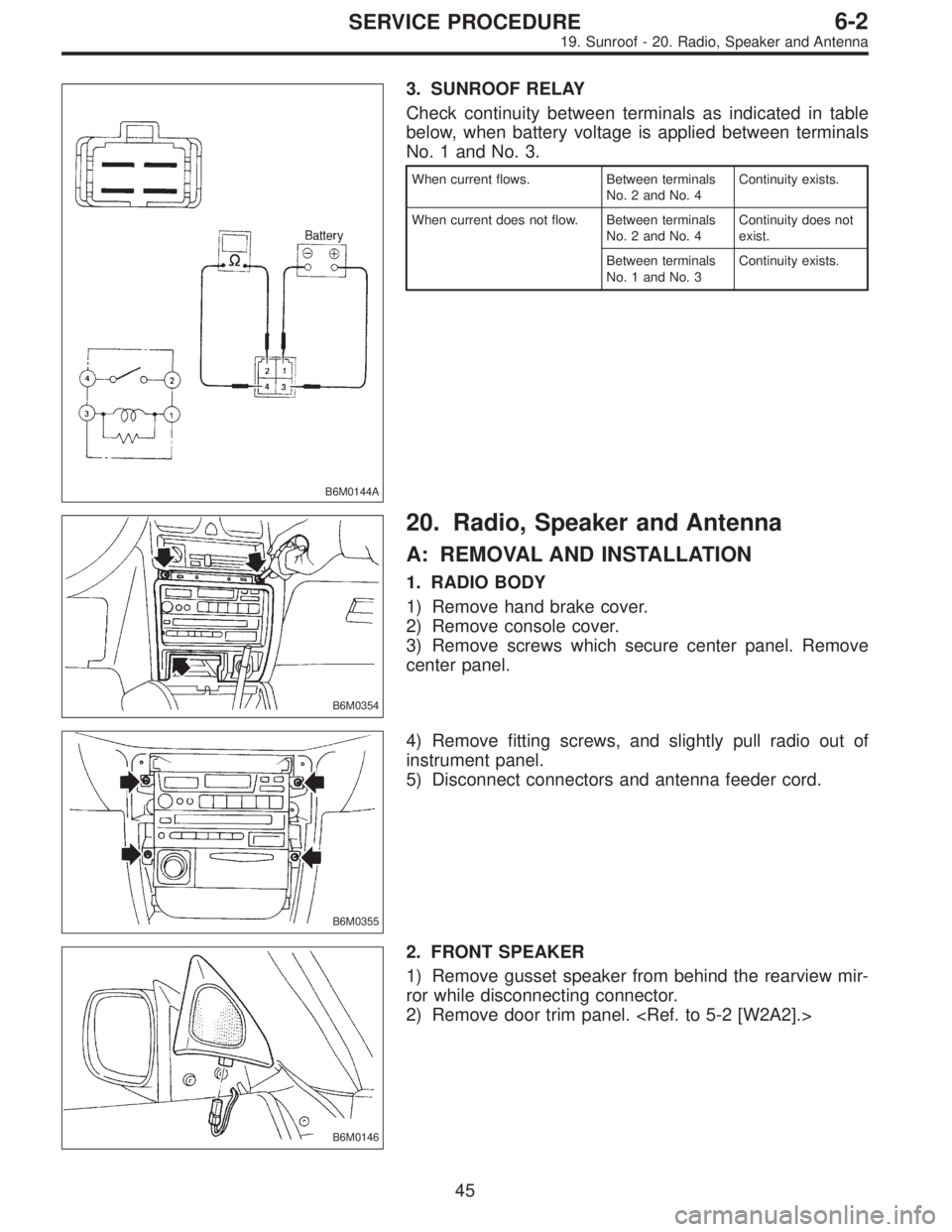

SUBARU LEGACY 1995 Service Repair Manual B6M0144A 3. SUNROOF RELAY Check continuity between terminals as indicated in table below, when battery voltage is applied between terminals No. 1 and No. 3. When current flows. Between terminals No. 2

Page 1149 of 2248

SUBARU LEGACY 1995 Service Repair Manual B6M0144A 3. SUNROOF RELAY Check continuity between terminals as indicated in table below, when battery voltage is applied between terminals No. 1 and No. 3. When current flows. Between terminals No. 2

Page 1150 of 2248

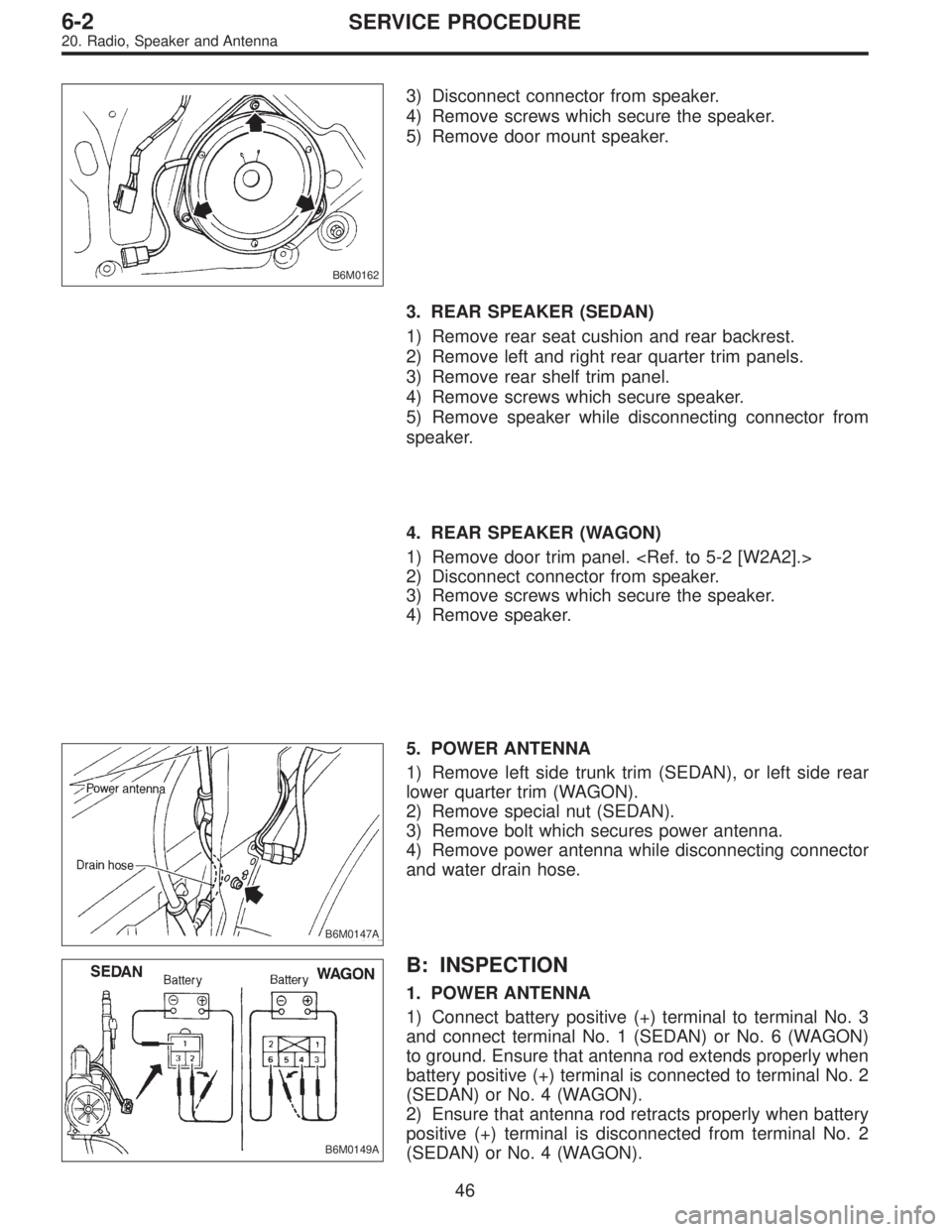

SUBARU LEGACY 1995 Service Repair Manual B6M0162 3) Disconnect connector from speaker. 4) Remove screws which secure the speaker. 5) Remove door mount speaker. 3. REAR SPEAKER (SEDAN) 1) Remove rear seat cushion and rear backrest. 2) Remove

Page 1151 of 2248

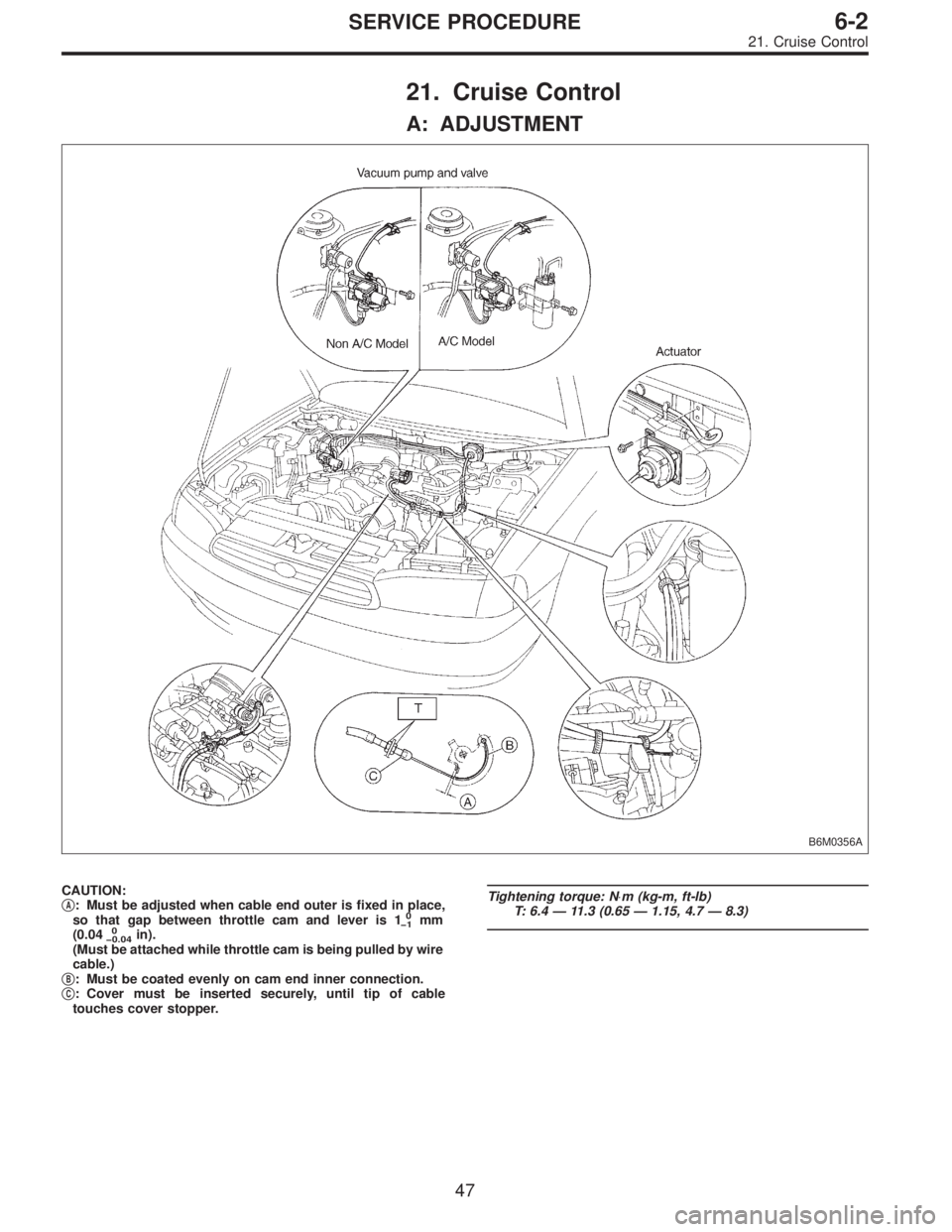

SUBARU LEGACY 1995 Service Repair Manual 21. Cruise Control A: ADJUSTMENT B6M0356A CAUTION: A: Must be adjusted when cable end outer is fixed in place, so that gap between throttle cam and lever is 10 �1mm (0.040 �0.04in). (Must be attached

Page 1152 of 2248

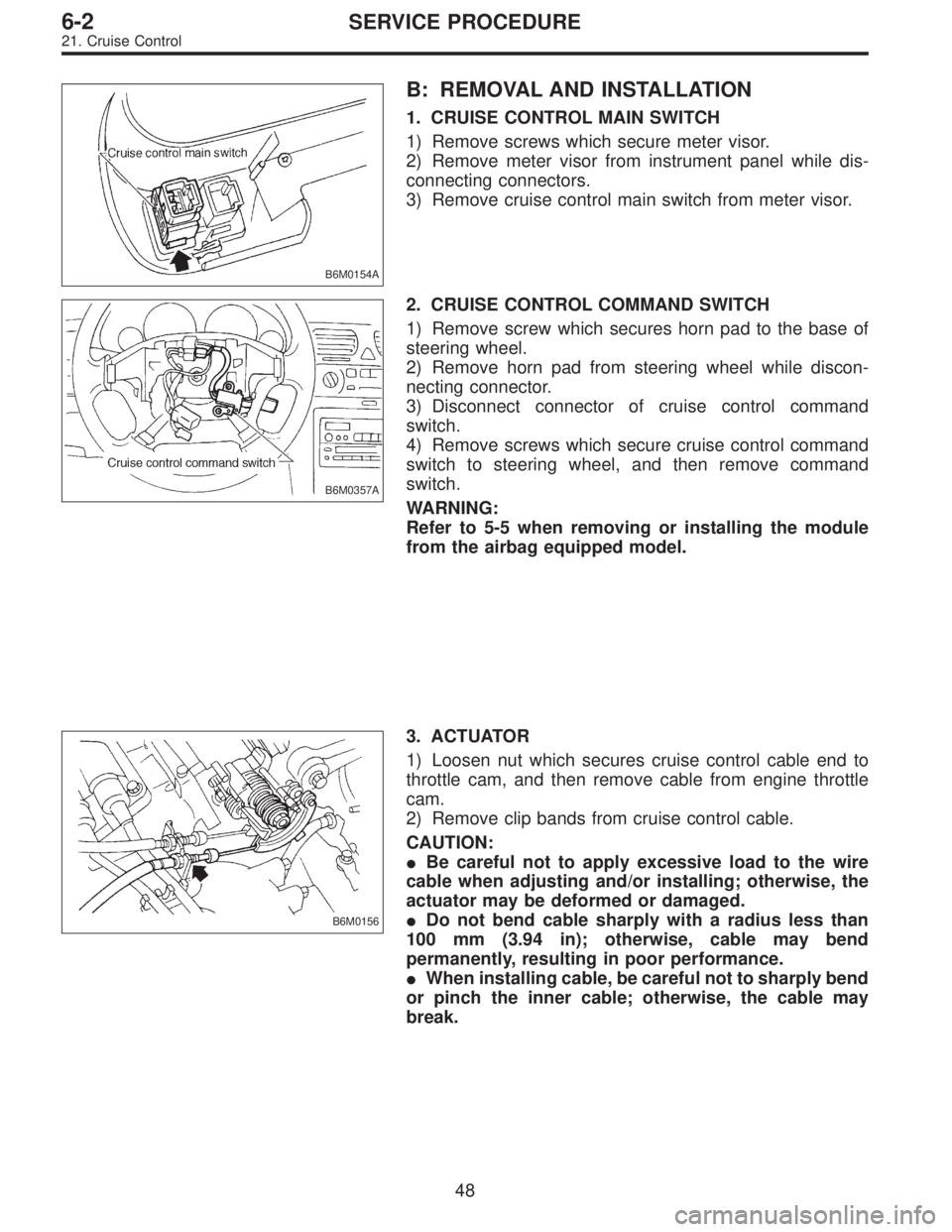

SUBARU LEGACY 1995 Service Repair Manual B6M0154A B: REMOVAL AND INSTALLATION 1. CRUISE CONTROL MAIN SWITCH 1) Remove screws which secure meter visor. 2) Remove meter visor from instrument panel while dis- connecting connectors. 3) Remove cr
