Page 41 of 2248

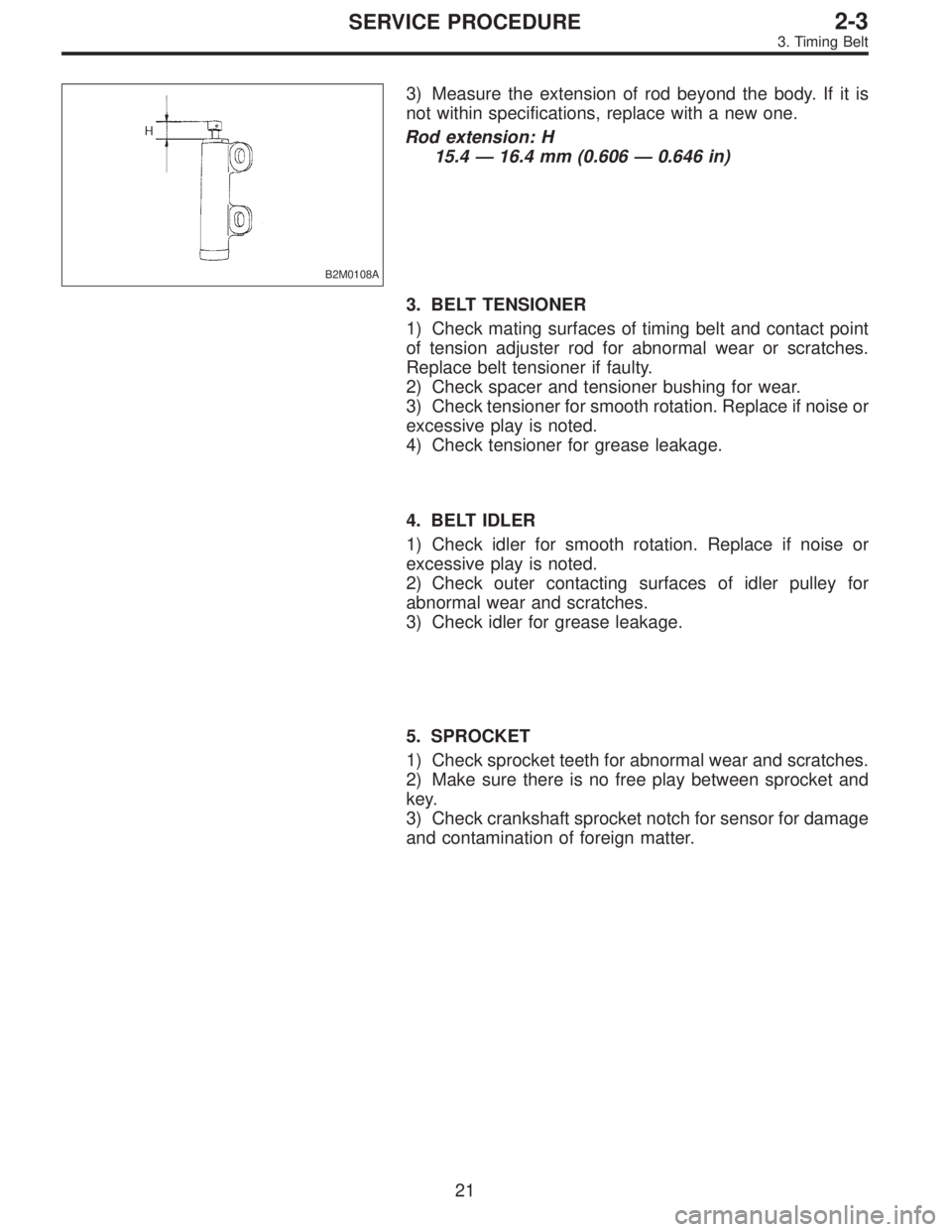

SUBARU LEGACY 1995 Service Repair Manual B2M0108A 3) Measure the extension of rod beyond the body. If it is not within specifications, replace with a new one. Rod extension: H 15.4—16.4 mm (0.606—0.646 in) 3. BELT TENSIONER 1) Check mati

Page 42 of 2248

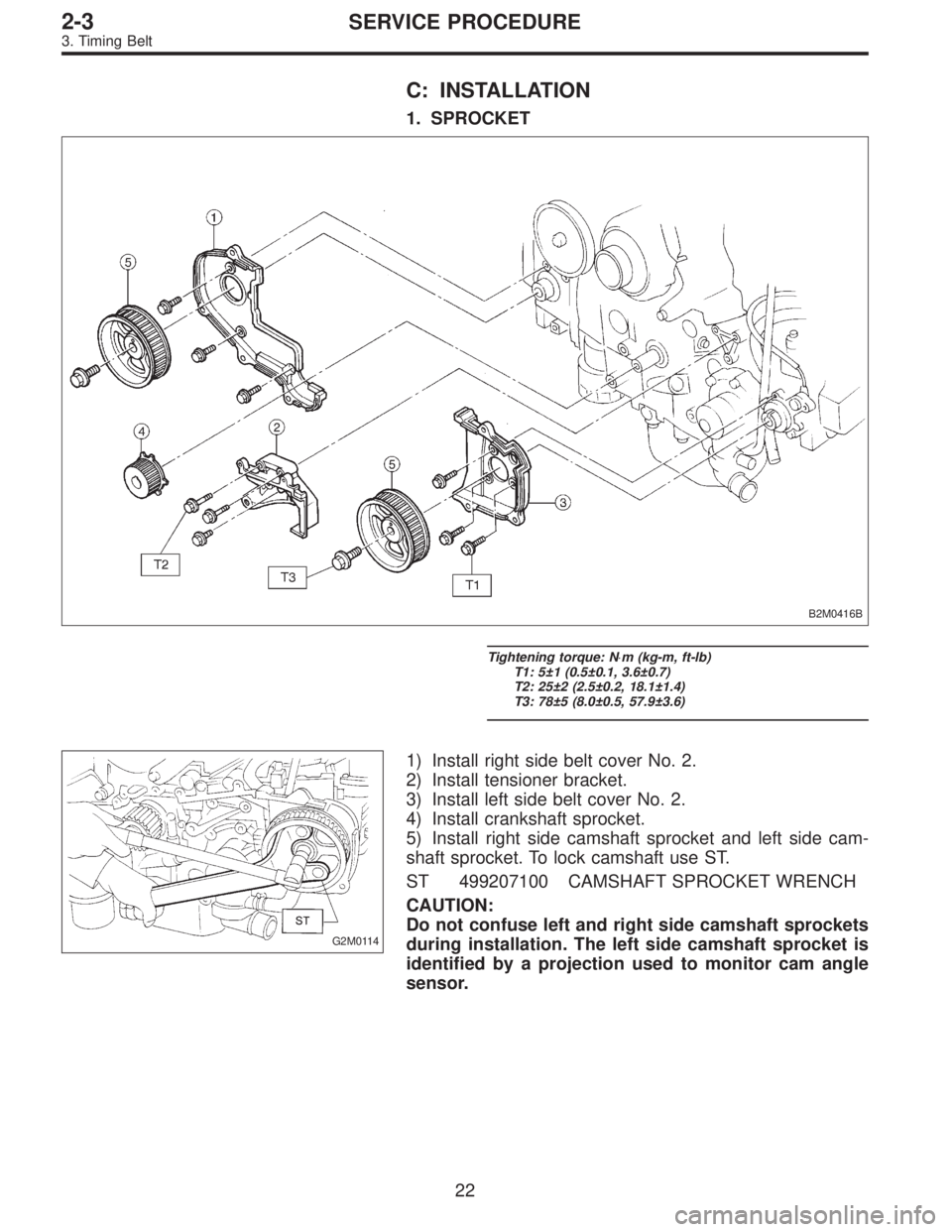

SUBARU LEGACY 1995 Service Repair Manual C: INSTALLATION 1. SPROCKET B2M0416B Tightening torque: N⋅m (kg-m, ft-lb) T1: 5±1 (0.5±0.1, 3.6±0.7) T2: 25±2 (2.5±0.2, 18.1±1.4) T3: 78±5 (8.0±0.5, 57.9±3.6) G2M0114 1) Install right side

Page 43 of 2248

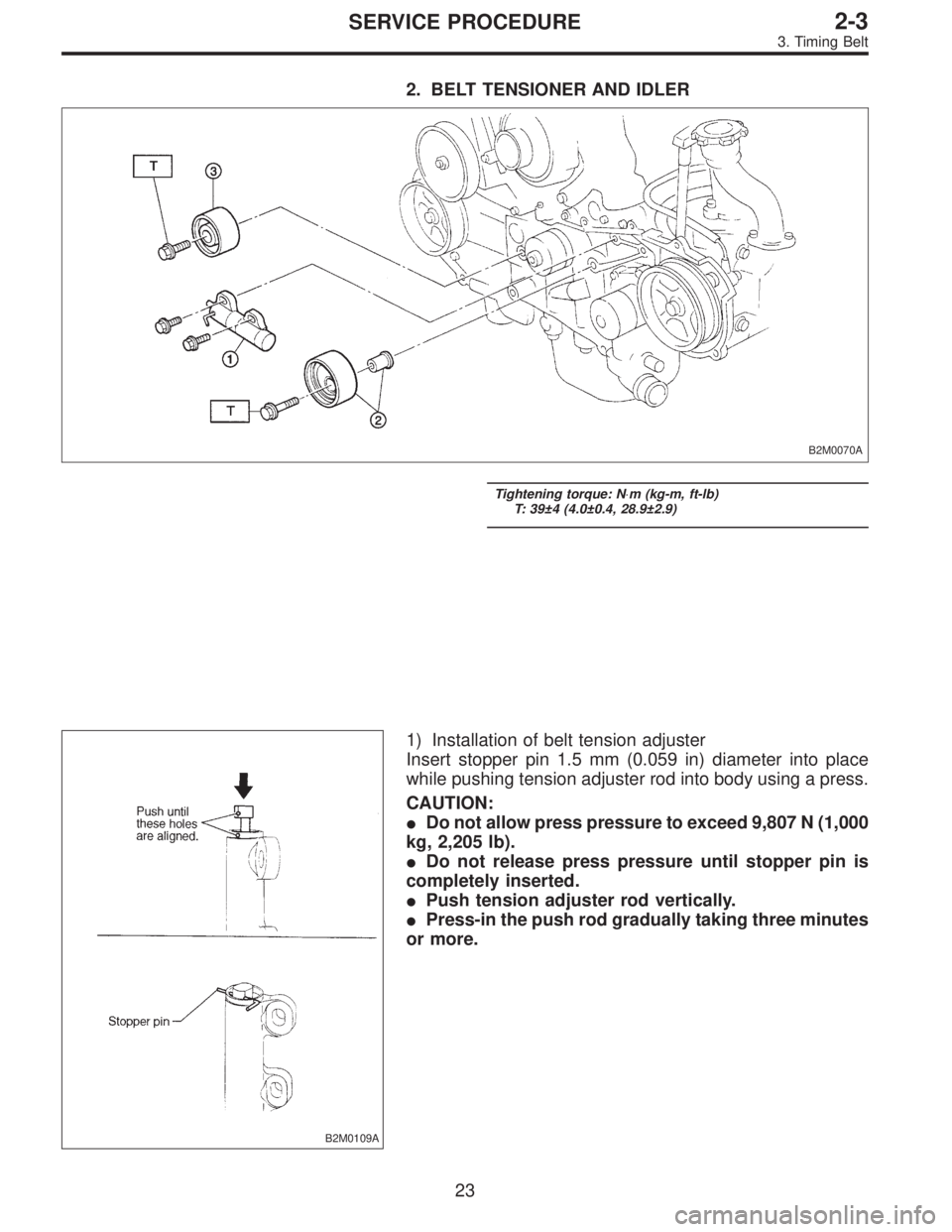

SUBARU LEGACY 1995 Service Repair Manual 2. BELT TENSIONER AND IDLER B2M0070A Tightening torque: N⋅m (kg-m, ft-lb) T: 39±4 (4.0±0.4, 28.9±2.9) B2M0109A 1) Installation of belt tension adjuster Insert stopper pin 1.5 mm (0.059 in) diamet

Page 44 of 2248

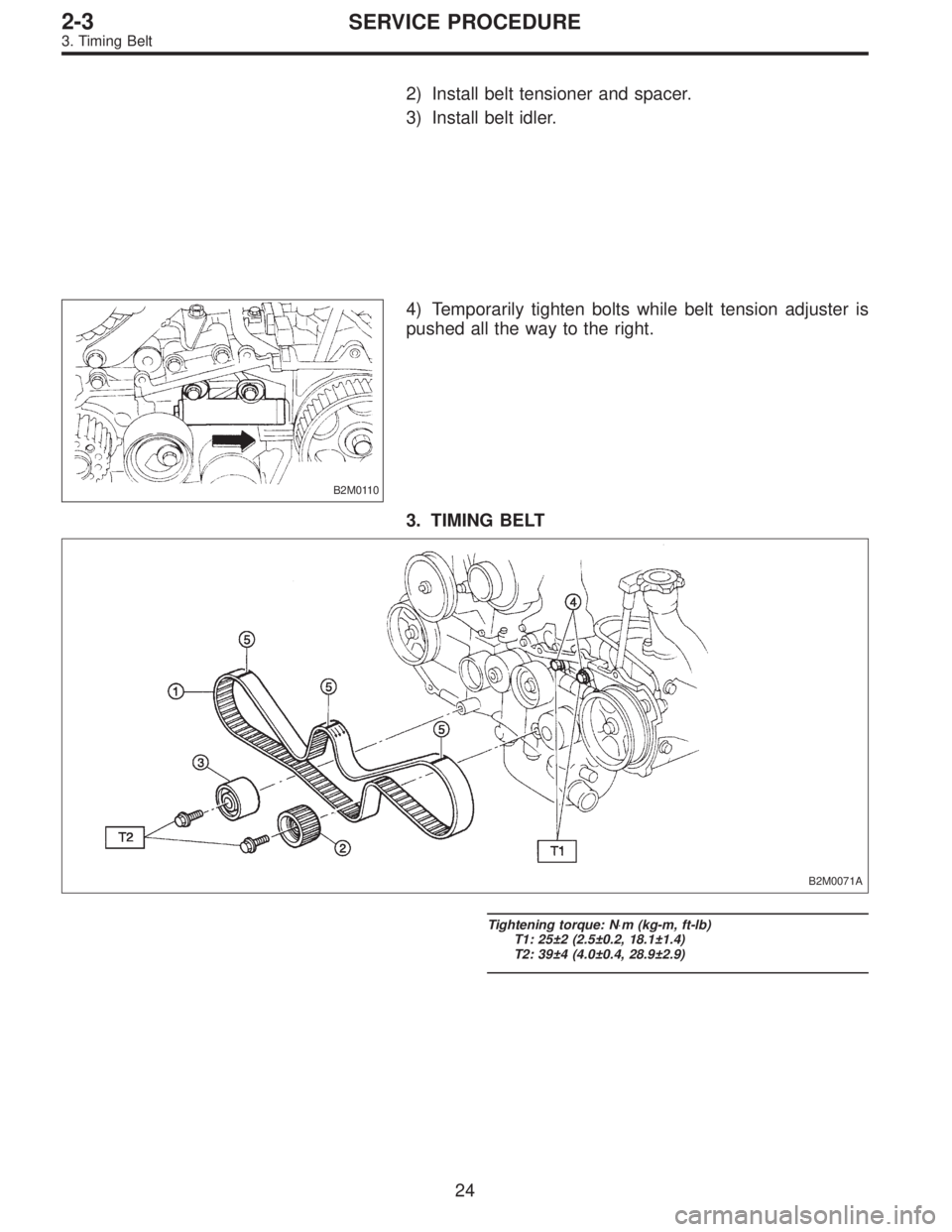

SUBARU LEGACY 1995 Service Repair Manual 2) Install belt tensioner and spacer. 3) Install belt idler. B2M0110 4) Temporarily tighten bolts while belt tension adjuster is pushed all the way to the right. 3. TIMING BELT B2M0071A Tightening tor

Page 45 of 2248

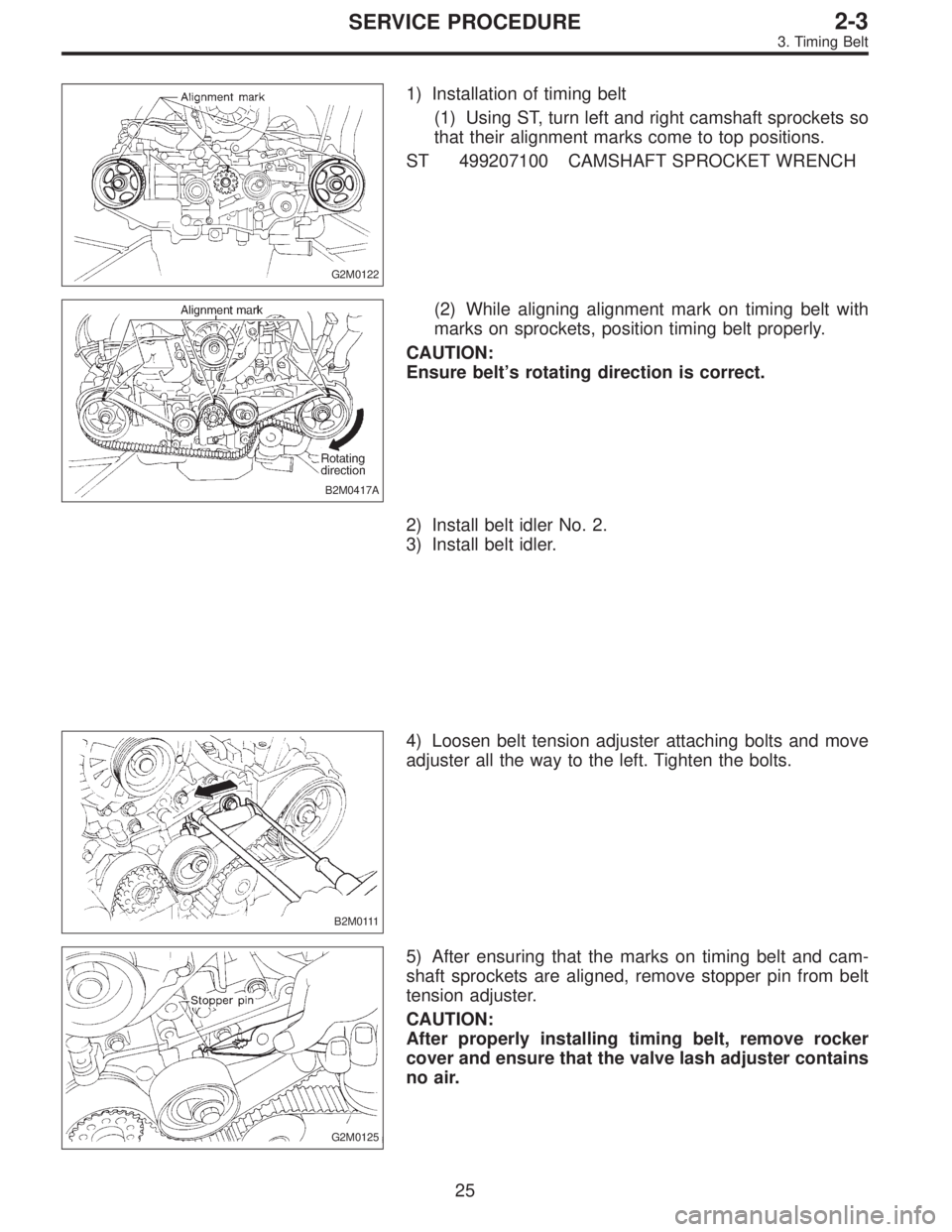

SUBARU LEGACY 1995 Service Repair Manual G2M0122 1) Installation of timing belt (1) Using ST, turn left and right camshaft sprockets so that their alignment marks come to top positions. ST 499207100 CAMSHAFT SPROCKET WRENCH B2M0417A (2) Whil

Page 46 of 2248

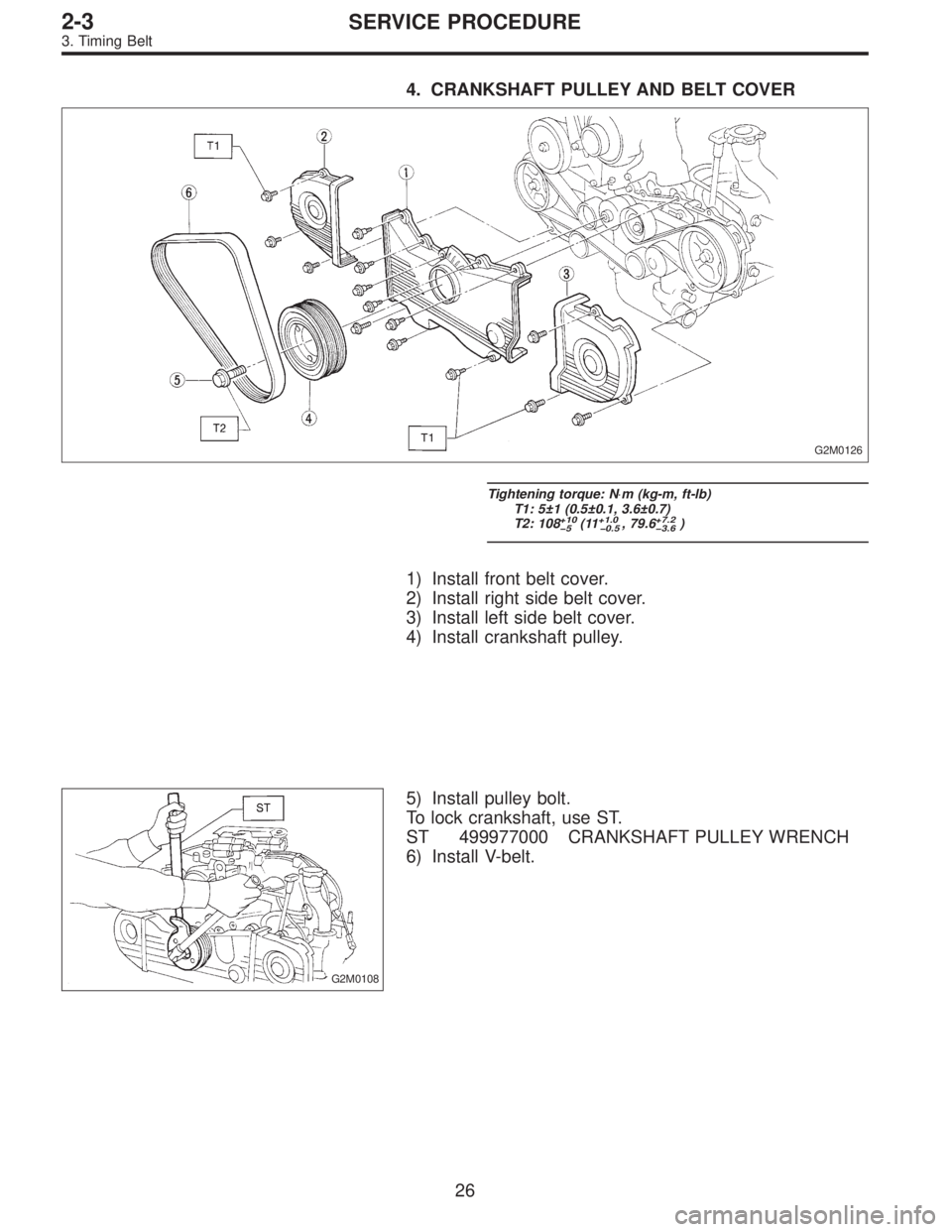

SUBARU LEGACY 1995 Service Repair Manual 4. CRANKSHAFT PULLEY AND BELT COVER G2M0126 Tightening torque: N⋅m (kg-m, ft-lb) T1: 5±1 (0.5±0.1, 3.6±0.7) T2: 108 +10 �5(11+1.0 �0.5, 79.6+7.2 �3.6) 1) Install front belt cover. 2) Install righ

Page 47 of 2248

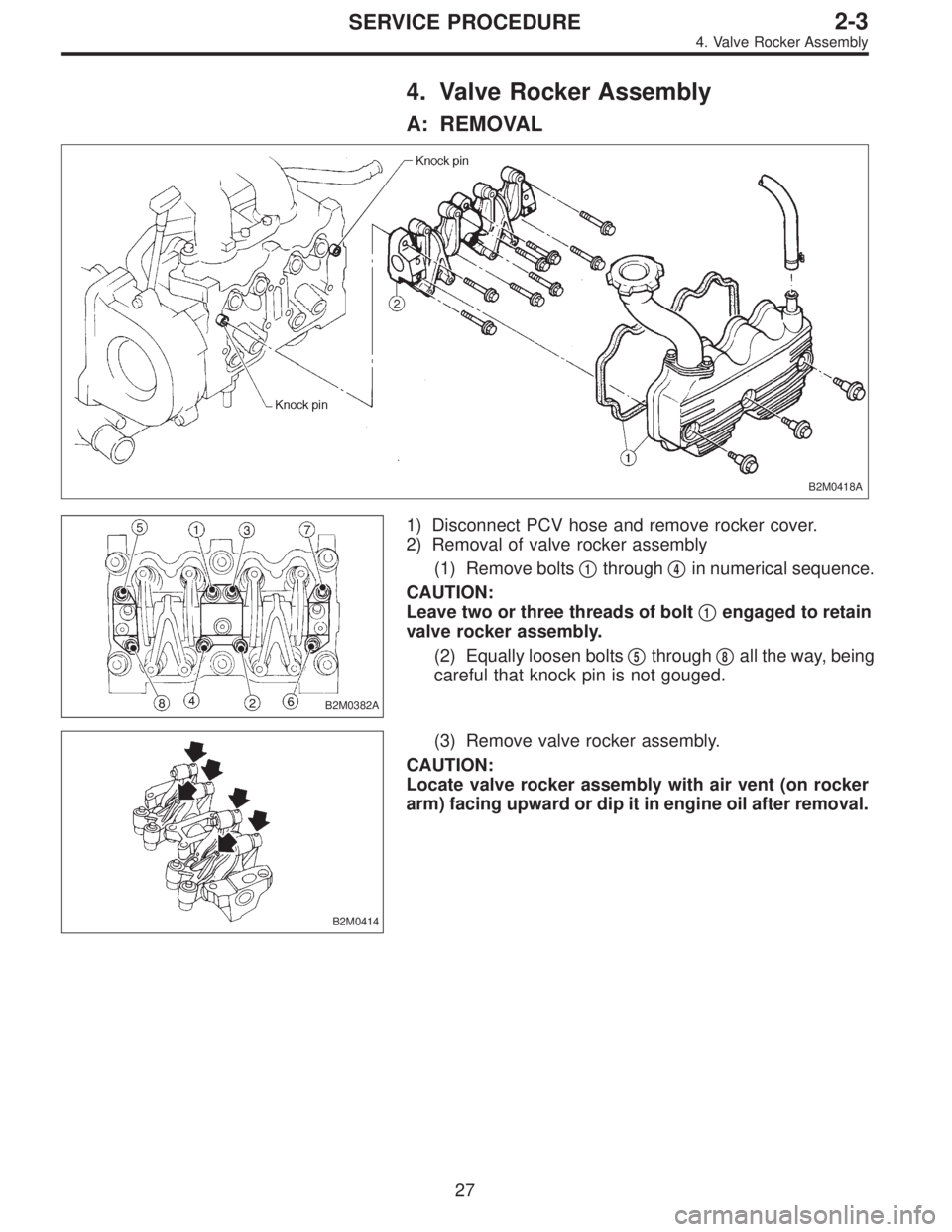

SUBARU LEGACY 1995 Service Repair Manual 4. Valve Rocker Assembly A: REMOVAL B2M0418A B2M0382A 1) Disconnect PCV hose and remove rocker cover. 2) Removal of valve rocker assembly (1) Remove bolts 1through4in numerical sequence. CAUTION: Le

Page 48 of 2248

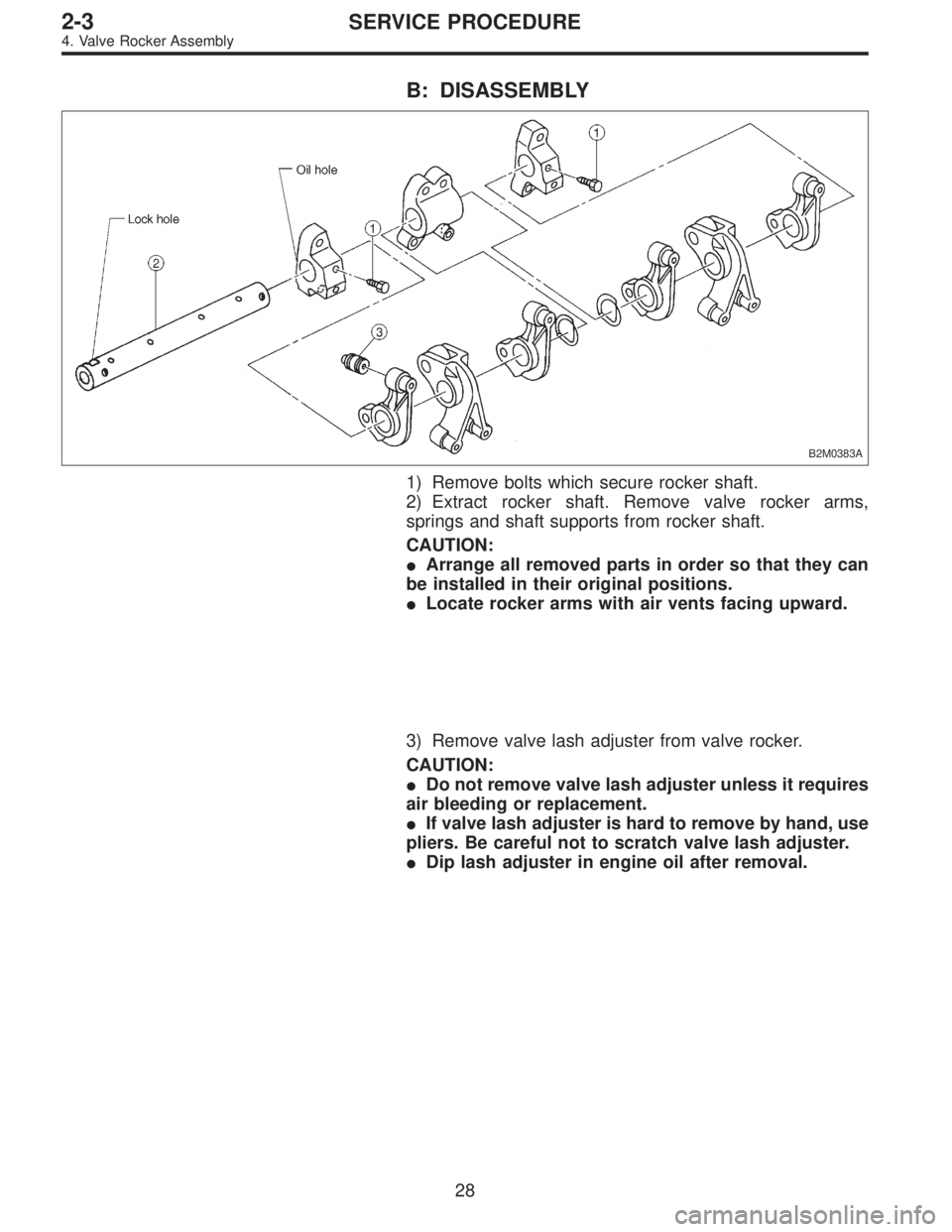

SUBARU LEGACY 1995 Service Repair Manual B: DISASSEMBLY B2M0383A 1) Remove bolts which secure rocker shaft. 2) Extract rocker shaft. Remove valve rocker arms, springs and shaft supports from rocker shaft. CAUTION: Arrange all removed parts
