Page 281 of 2248

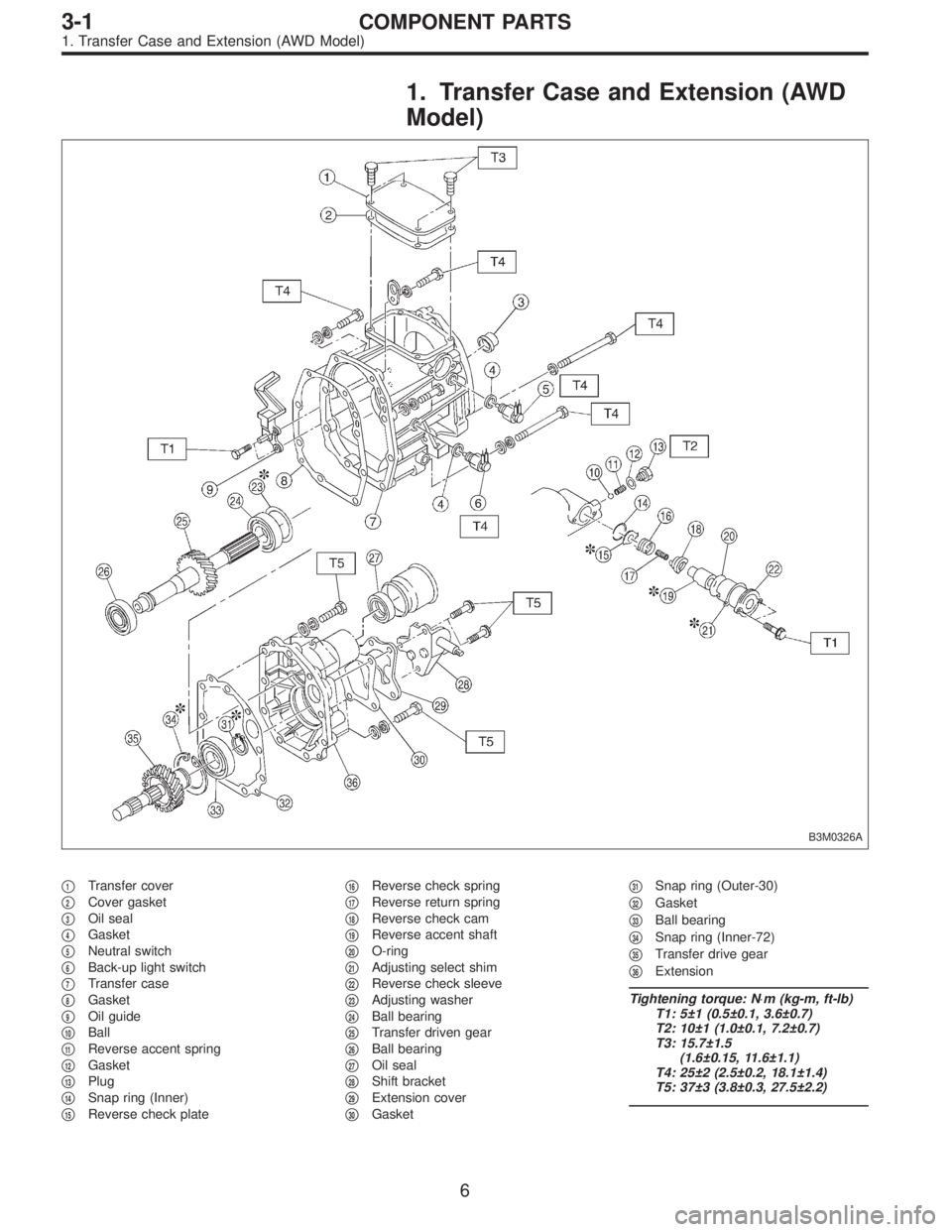

SUBARU LEGACY 1995 Service Repair Manual 1. Transfer Case and Extension (AWD Model) B3M0326A 1Transfer cover  2Cover gasket  3Oil seal  4Gasket  5Neutral switch  6Back-up light switch  7Transfer case  8Gasket  9Oil guide  10Ball

Page 282 of 2248

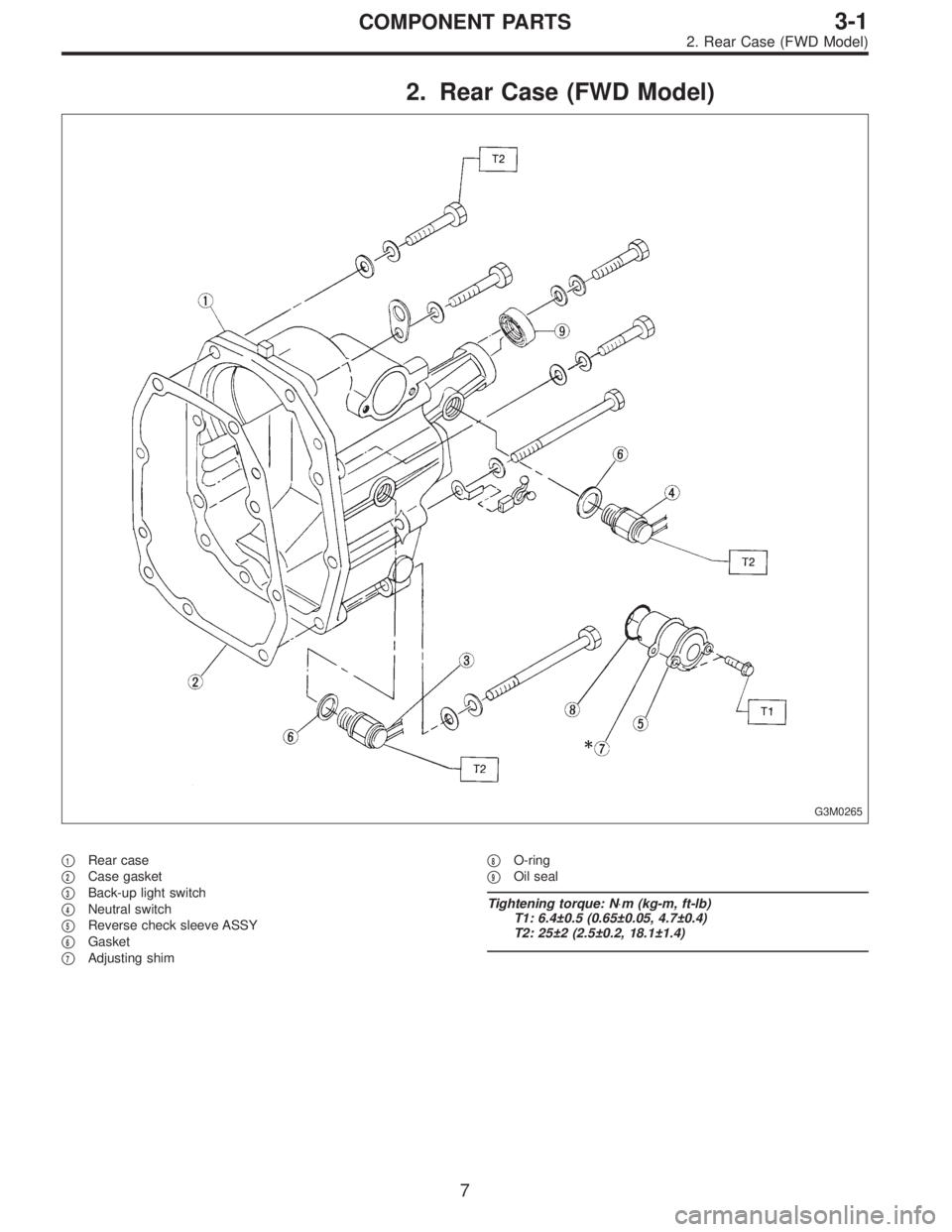

SUBARU LEGACY 1995 Service Repair Manual 2. Rear Case (FWD Model) G3M0265 1Rear case  2Case gasket  3Back-up light switch  4Neutral switch  5Reverse check sleeve ASSY  6Gasket  7Adjusting shim 8O-ring  9Oil seal Tightening torque: N

Page 283 of 2248

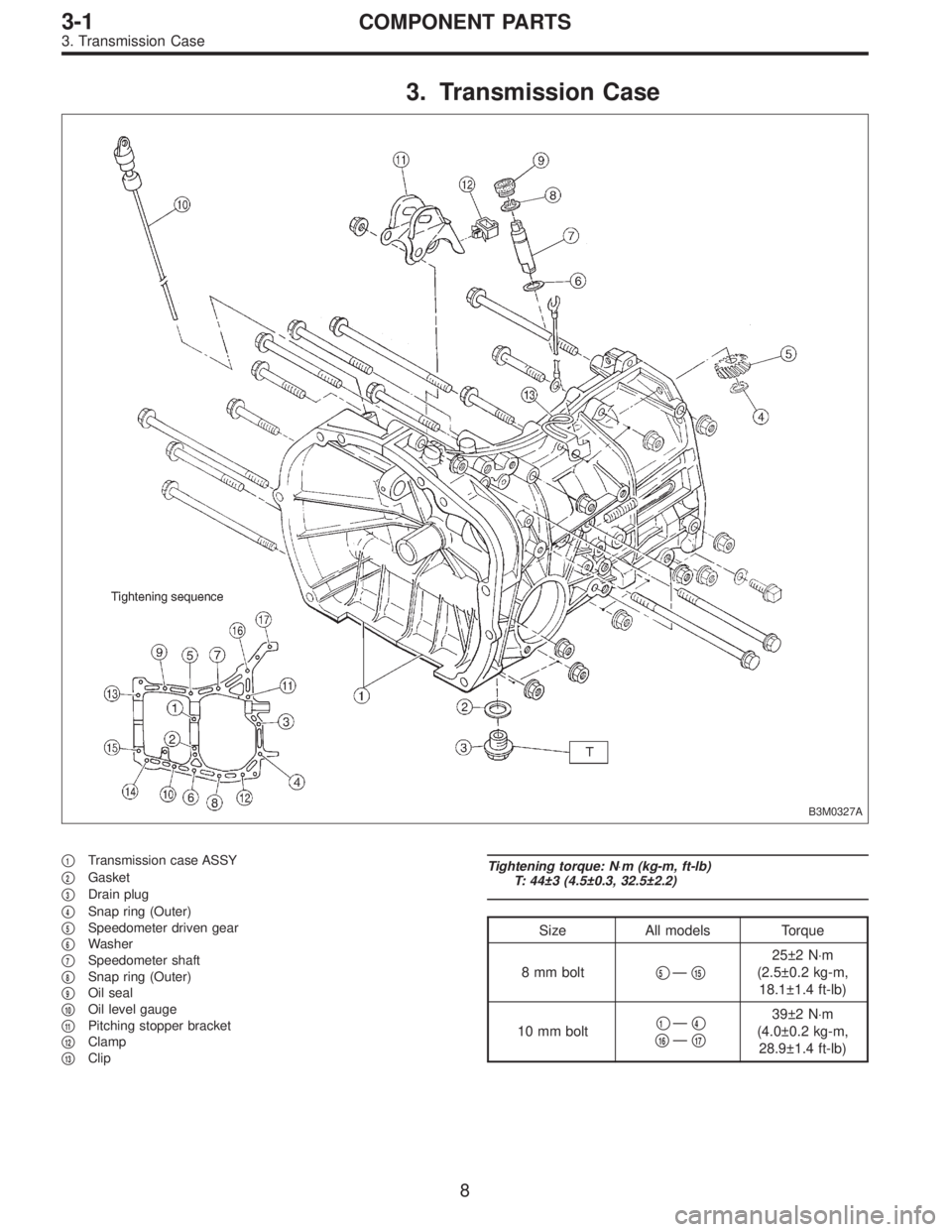

SUBARU LEGACY 1995 Service Repair Manual 3. Transmission Case B3M0327A 1Transmission case ASSY  2Gasket  3Drain plug  4Snap ring (Outer)  5Speedometer driven gear  6Washer  7Speedometer shaft  8Snap ring (Outer)  9Oil seal  10Oil l

Page 284 of 2248

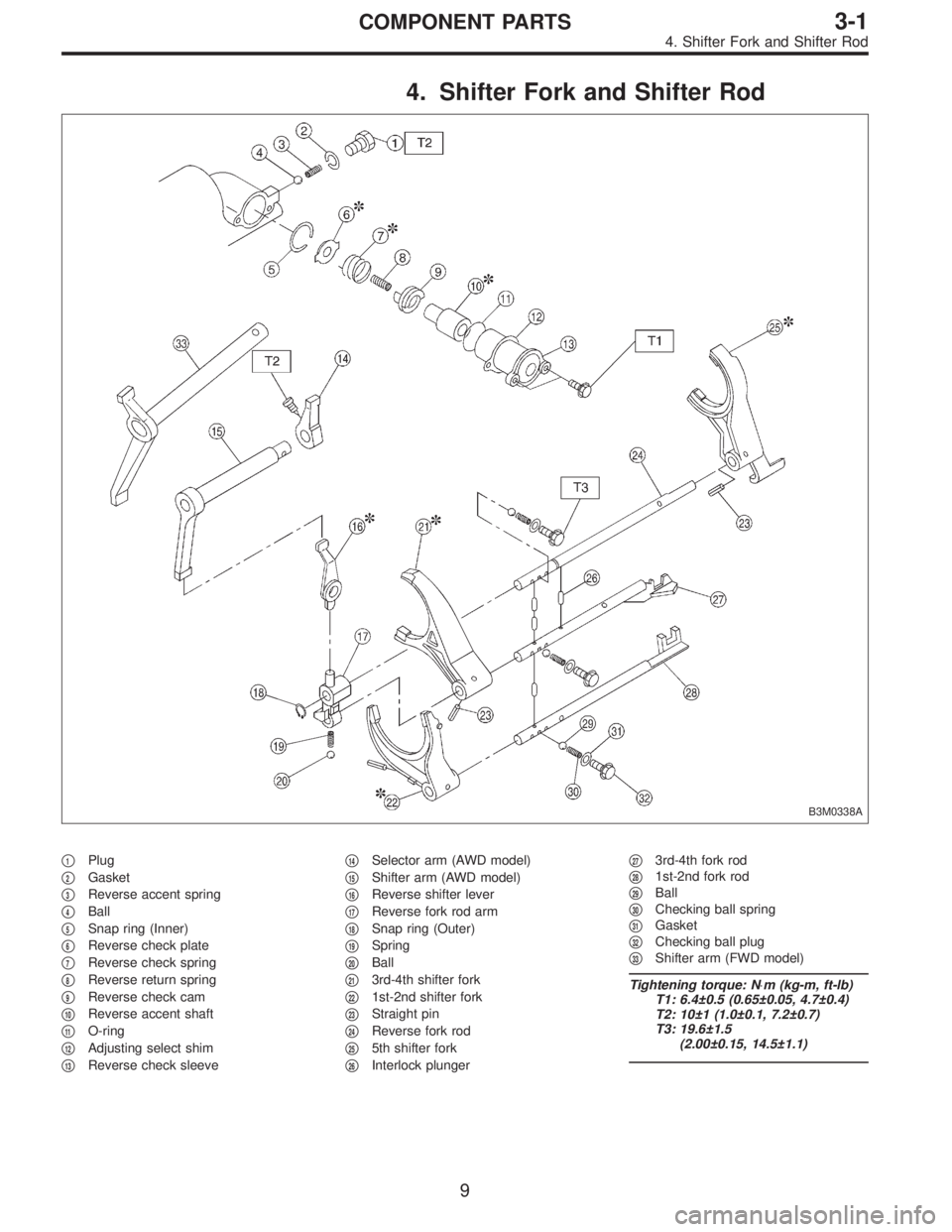

SUBARU LEGACY 1995 Service Repair Manual 4. Shifter Fork and Shifter Rod B3M0338A 1Plug  2Gasket  3Reverse accent spring  4Ball  5Snap ring (Inner)  6Reverse check plate  7Reverse check spring  8Reverse return spring  9Reverse check

Page 285 of 2248

SUBARU LEGACY 1995 Service Repair Manual 5. Drive Pinion Assembly 1. AWD MODEL G3M0510 1Drive pinion shaft  2Roller bearing  3Washer  4Thrust bearing  5Needle bearing  6Key  7Driven shaft  8Woodruff key  9Drive pinion collar  10Sna

Page 286 of 2248

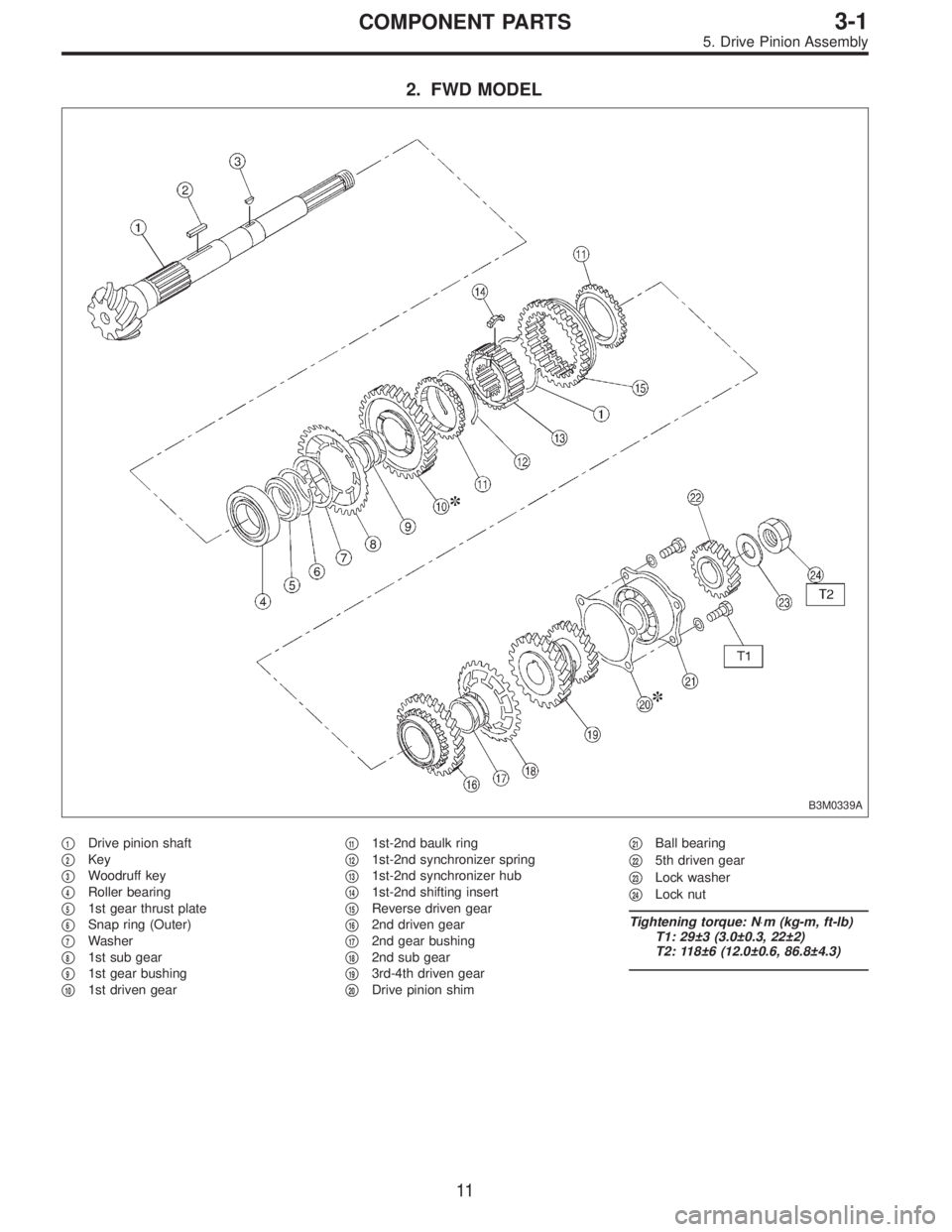

SUBARU LEGACY 1995 Service Repair Manual 2. FWD MODEL B3M0339A 1Drive pinion shaft  2Key  3Woodruff key  4Roller bearing  51st gear thrust plate  6Snap ring (Outer)  7Washer  81st sub gear  91st gear bushing  101st driven gear 111

Page 287 of 2248

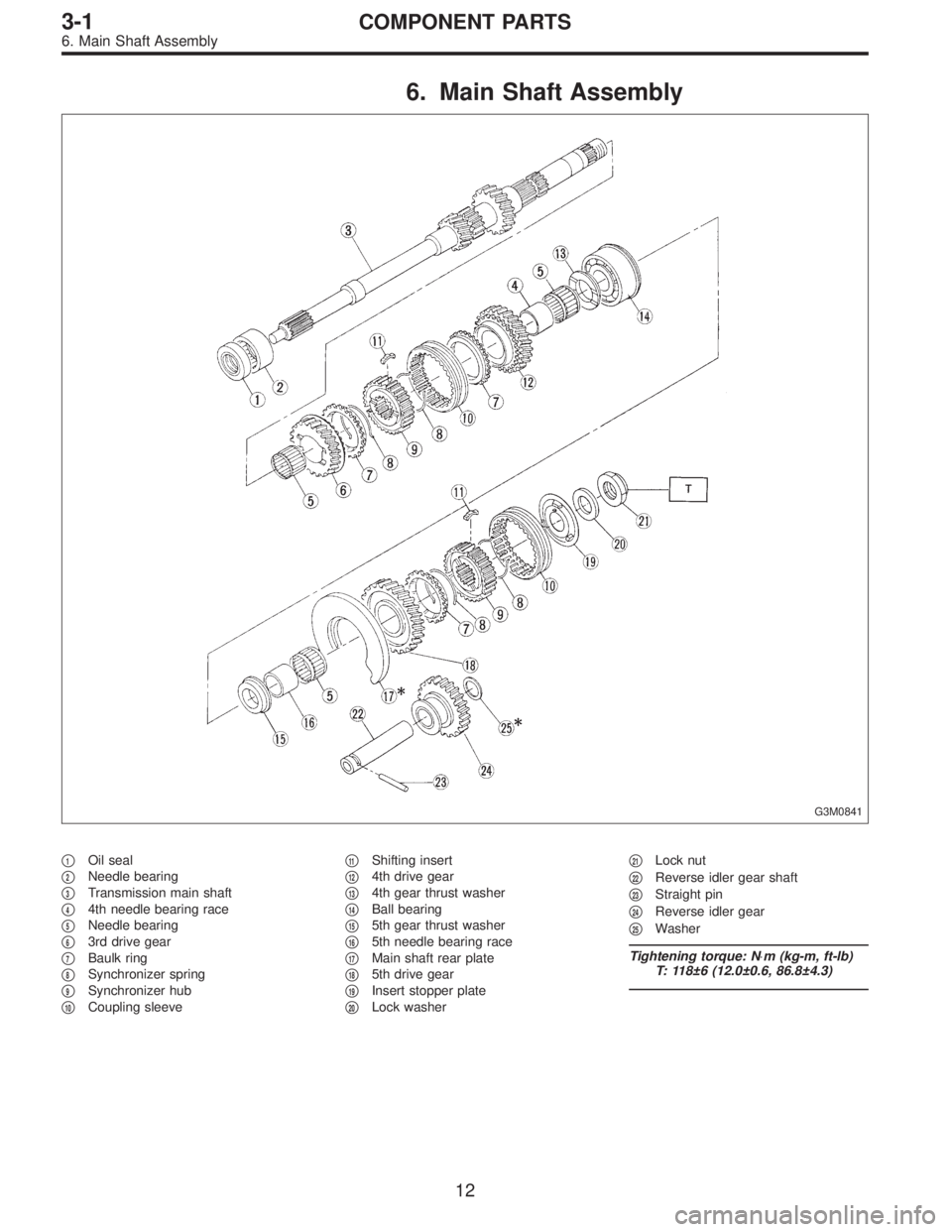

SUBARU LEGACY 1995 Service Repair Manual 6. Main Shaft Assembly G3M0841 1Oil seal  2Needle bearing  3Transmission main shaft  44th needle bearing race  5Needle bearing  63rd drive gear  7Baulk ring  8Synchronizer spring  9Synchroniz

Page 288 of 2248

SUBARU LEGACY 1995 Service Repair Manual 7. Center Differential (AWD Model) B3M0036A 1Ball bearing  2Snap ring (Inner-110)  3Center differential cover  4Needle bearing  5Adjusting washer  6Viscous coupling  7Pinion shaft 8Differentia
